Climate Control Unit Removal and Installation
WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

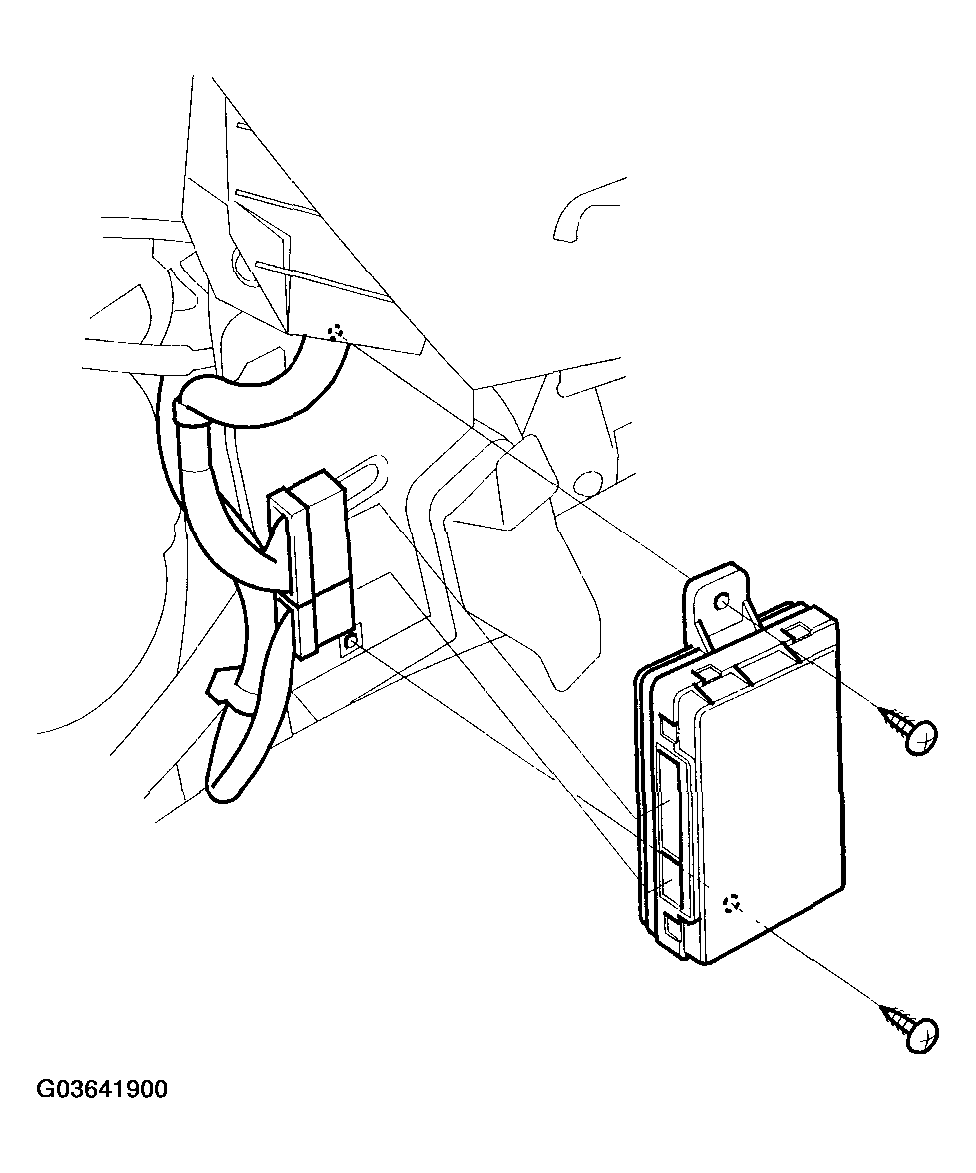

- Disconnect the connectors from the climate control unit, then remove the self-tapping screws and the climate control unit.
- Install the control unit in the reverse order of removal. After installation, operate the control panel controls to see if they work properly.
- Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION ).
