Sunlight Sensor Test
WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

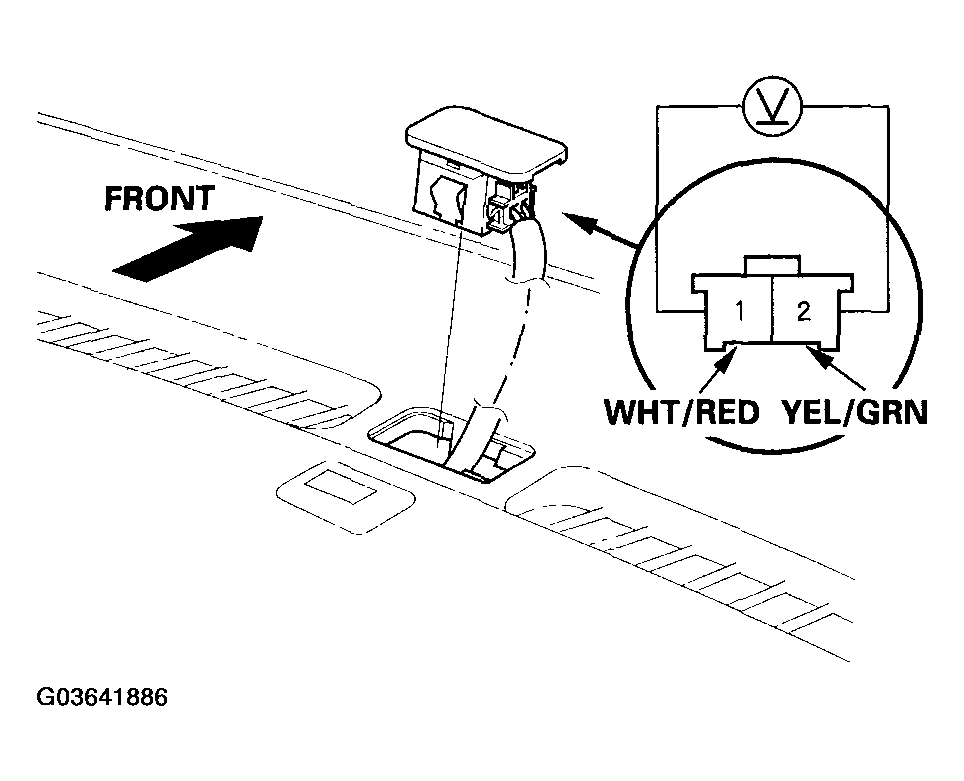

Turn the ignition switch ON (II). Measure the voltage between the terminals with the (+) probe on the No. 1 terminal and the (-) probe on the No. 2 terminal with the 2P connector connected. The voltage readings will not change under the light of a flashlight or a fluorescent lamp. Voltage should be:
- 3.6-3.7 V or more with the sensor out of direct sunlight.
- 3.3-3.5 V or less with the sensor in direct sunlight.
