Troubleshooting - BRN Wire Communication Line Test
WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's multiplex control unit from the driver's under-dash fuse/relay box.
- Carefully pry off the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
- Disconnect door multiplex connector A (20P).

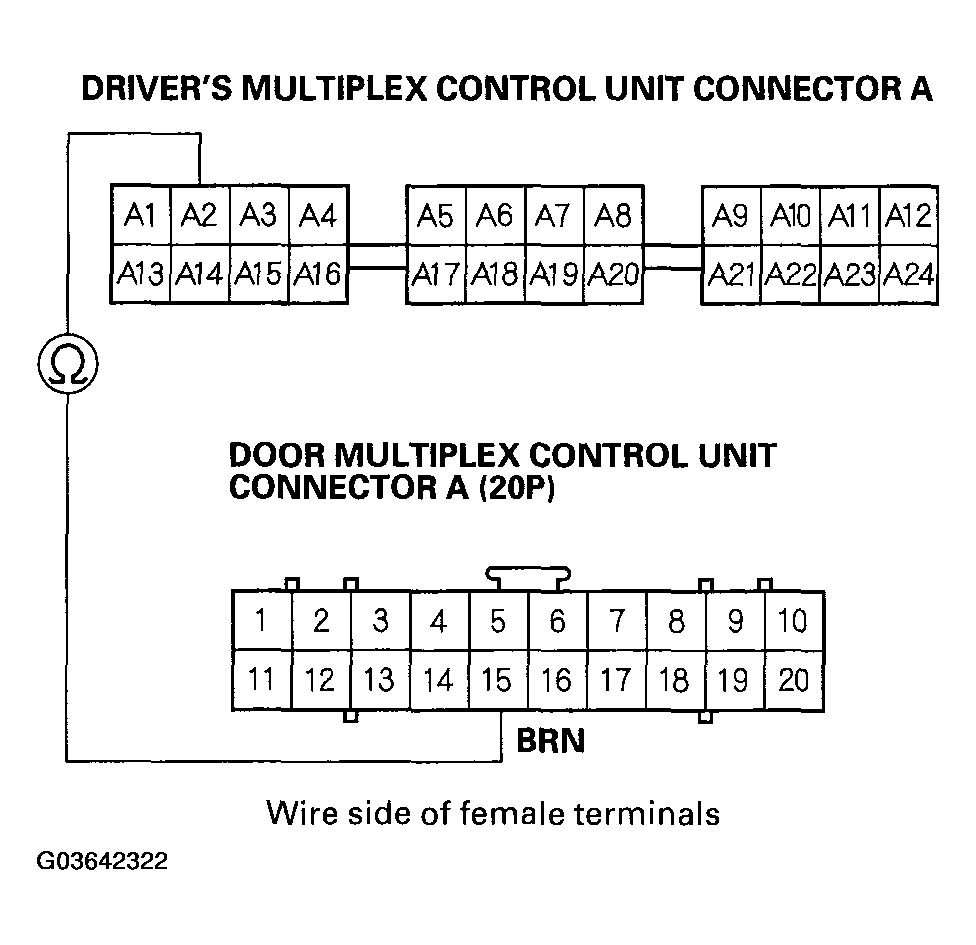

- Check for continuity between A2 terminal of the driver's under-dash fuse/relay box socket and No. 15 terminal of the door multiplex control unit connector A (20P).Fig 1: Checking Continuity Between A2 Terminal Of Driver's Under-Dash Fuse/Relay Box And No. 15 Terminal Of Door Multiplex Control Unit Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Replace the multiplex control unit most closely related to the failure.
- NO - Repair an open in the wire between the door multiplex connector and the driver's under-dash fuse/relay box. If the wire is OK, replace the under-dash fuse/relay box.
