C771 Connector End View

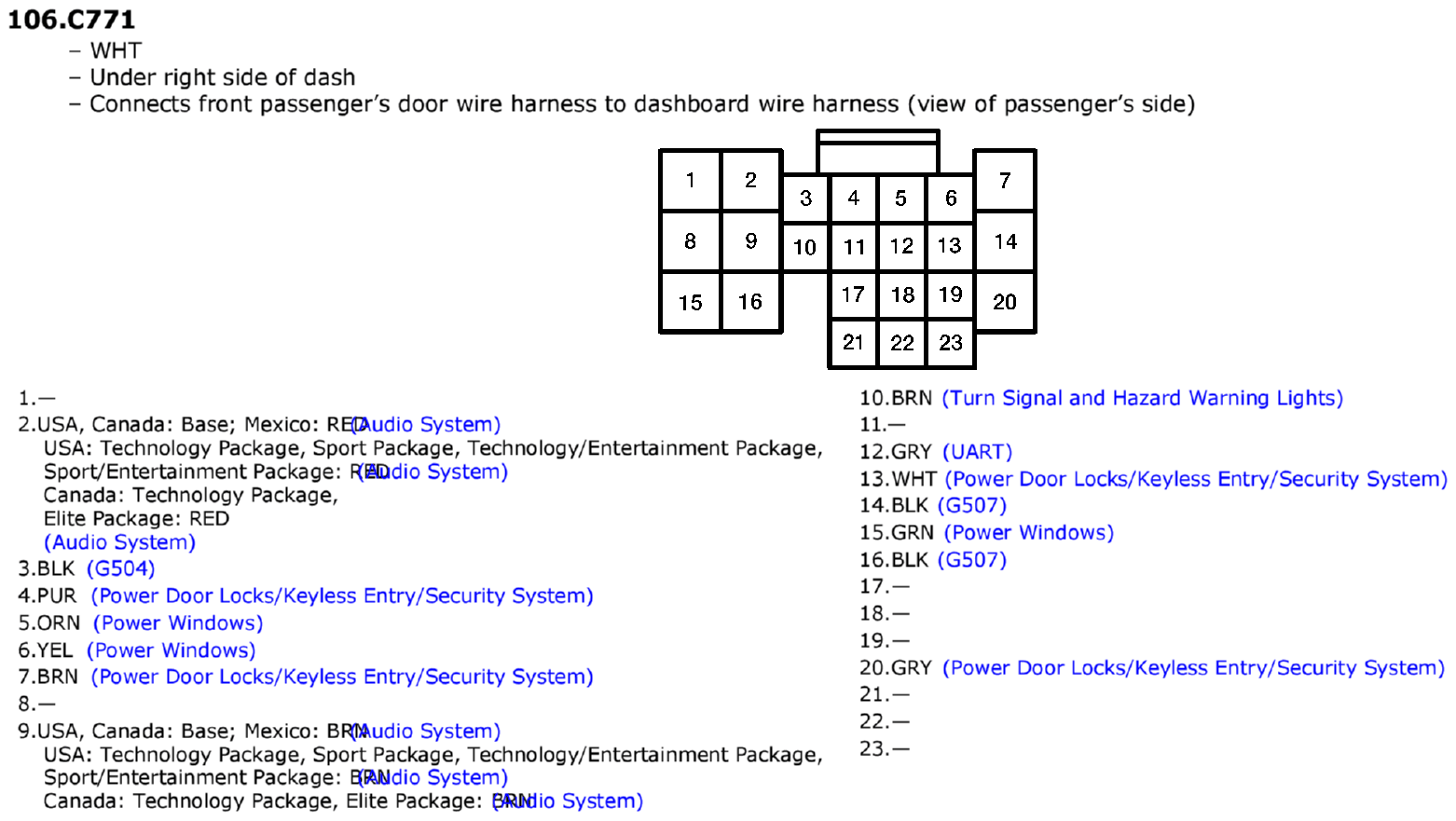

Fig 1: C771 Connector End View
GHHW7534Courtesy of AMERICAN HONDA MOTOR CO., INC.
