Navigation Function Selector Switch: Service and Repair

Navigation Switch Panel Removal/Installation

1. Remove the center panel.

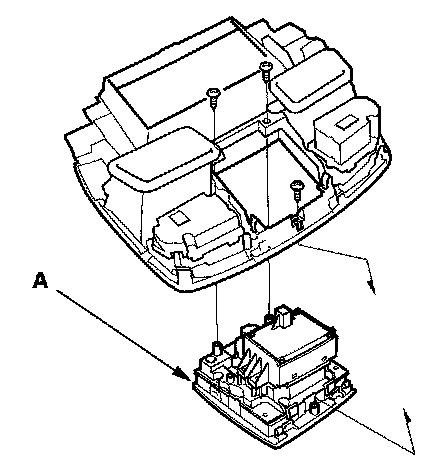

2. Remove the screws and navigation switch panel (A) from the canter panel.




3. Remove the screws (A) and jog dial (B) from the interface dial (C).
4. Disconnect the connector (D), then remove the interface dial.
5. If necessary, remove the screws (E) and cover (F), then remove the bulbs.
6. Install the dial in the reverse order of removal.
