Home >> Acura >> 2007 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Connector Views

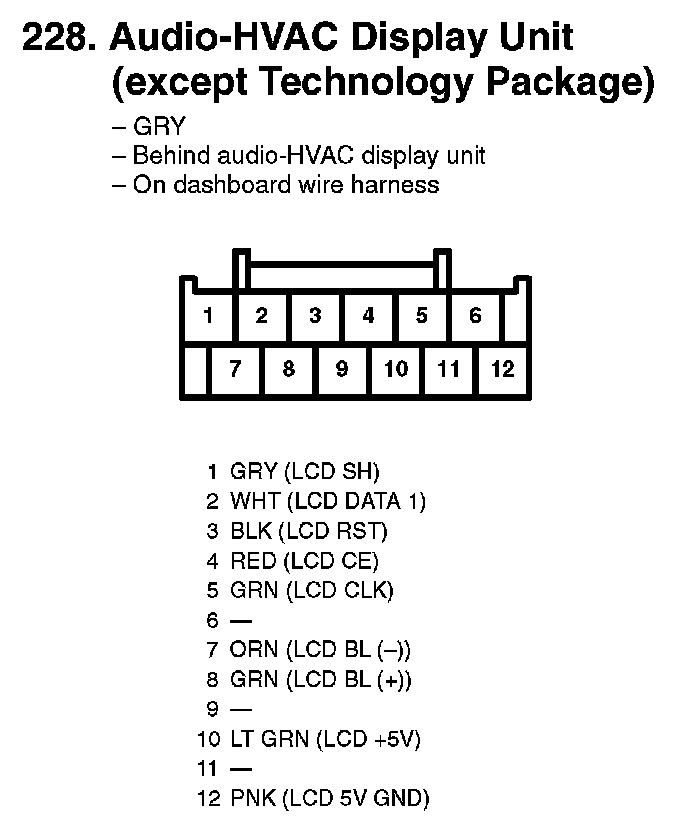

228. Audio-HVAC Display Unit (except Technology Package):

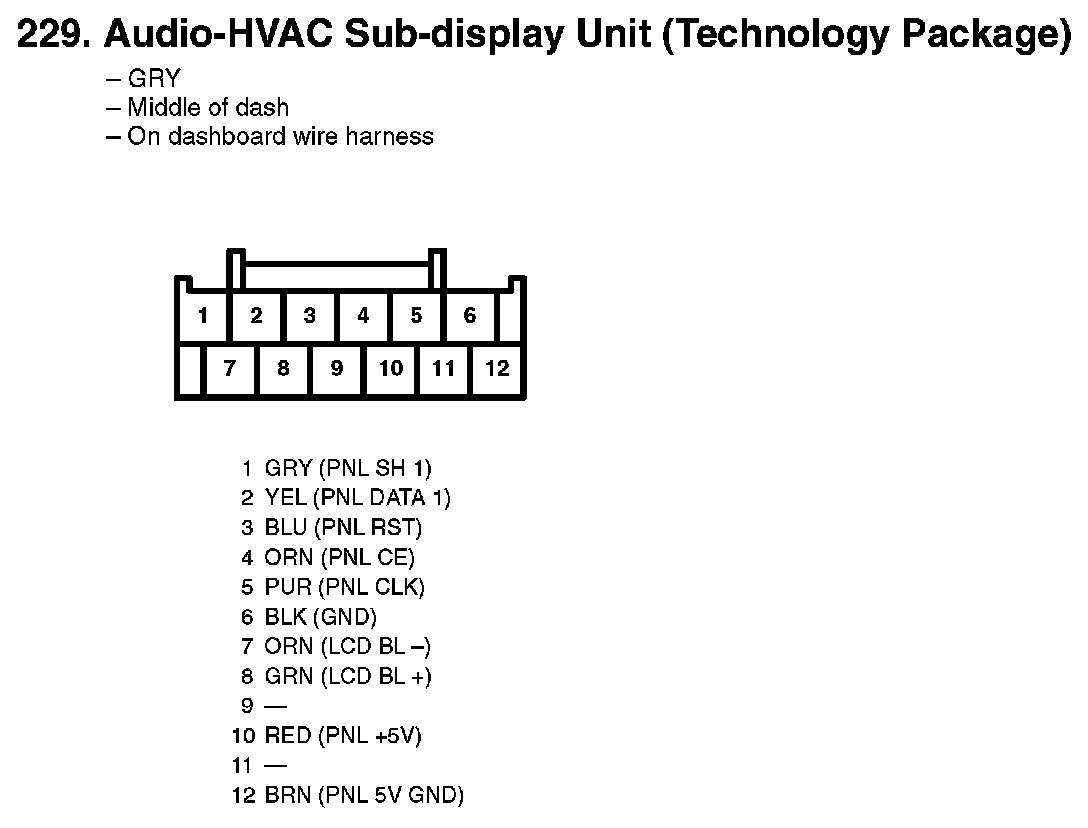

229. Audio-HVAC Sub-display Unit (Technology Package):

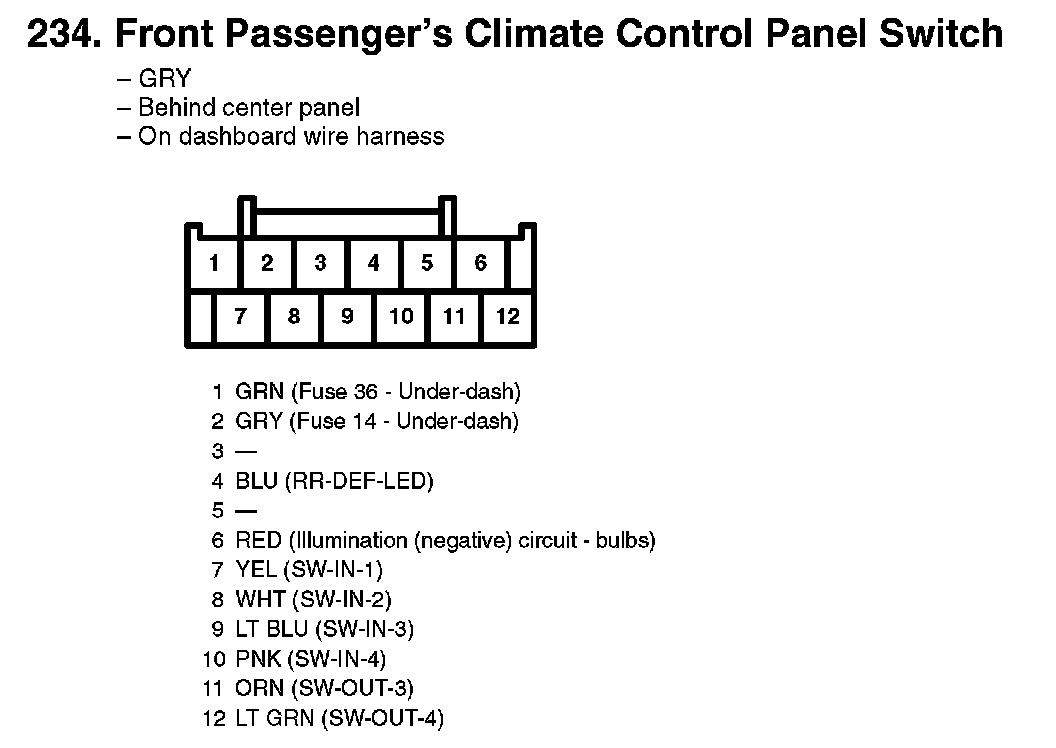

234. Front Passenger's Climate Control Panel Switch:

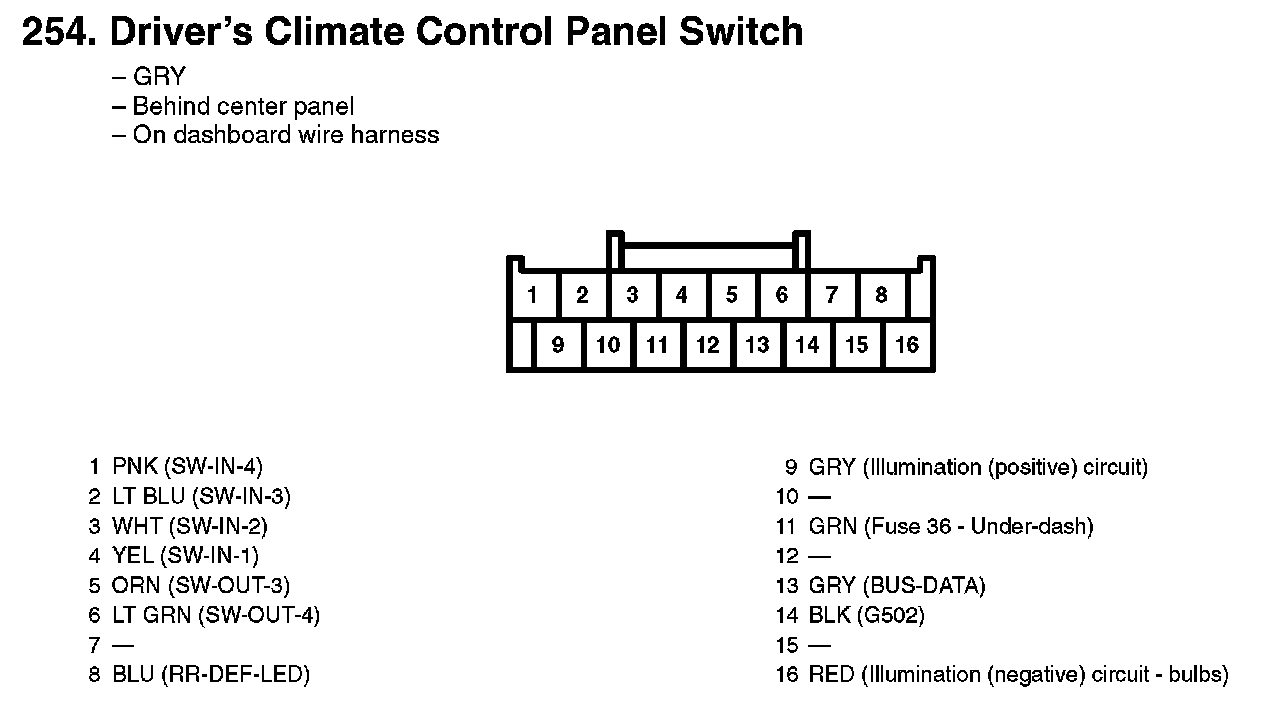

254. Driver's Climate Control Panel Switch:

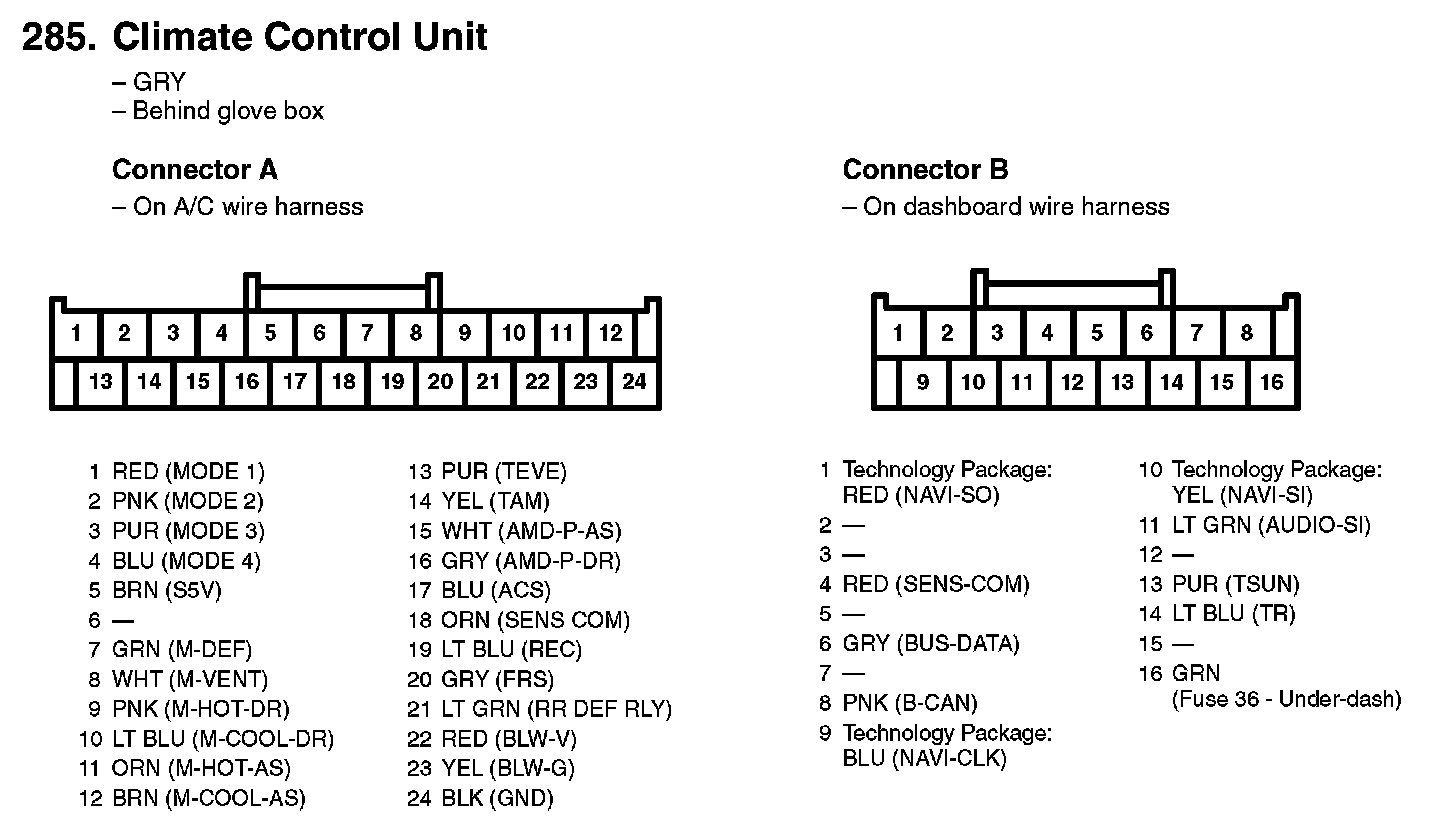

285. Climate Control Unit:
