Audio-HVAC Subdisplay Unit Removal/Installation

Audio-HVAC Subdisplay Unit Removal/Installation

(with navigation)

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

1. Remove the dashboard center upper panel.

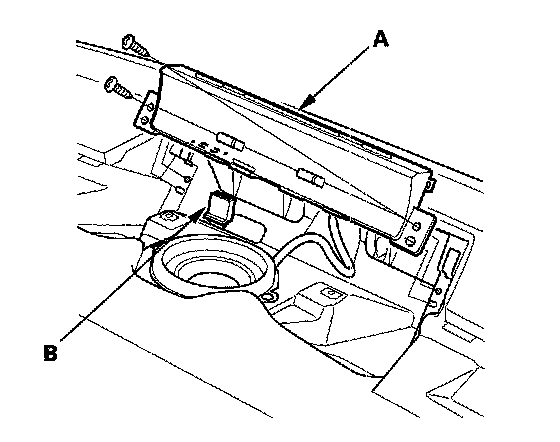

2. Remove the screws, then pull out the audio-HVAC subdisplay unit (A).
3. Disconnect the connector (B) and remove the audio-HVAC subdisplay unit.
4. Install the audio-HVAC subdisplay unit in the reverse order of removal.
