Electric Load Sensor: Service and Repair

ELD Replacement

1. Remove the under-hood fuse/relay box.

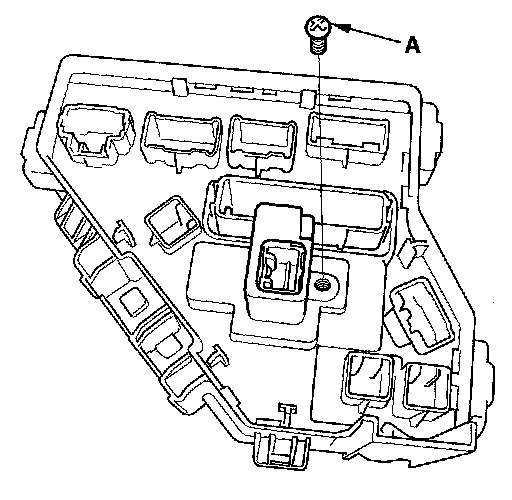

2. Remove the screw (A).

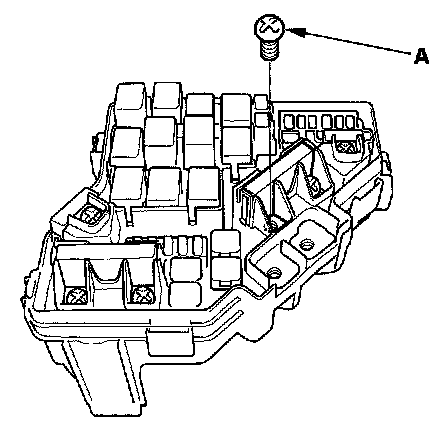

3. Turn the housing over, then remove the screw (A).

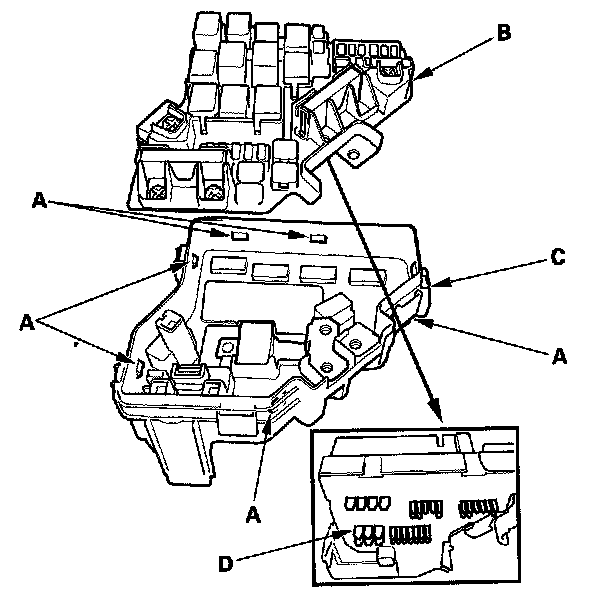

4. Turn the housing over again. Using two flat-tip screwdrivers, release the tabs (A), and pry up the fuse/relay box base (B) from the fuse/relay box housing (C).

NOTE: Make sure the terminals (D) are not bent or damaged.

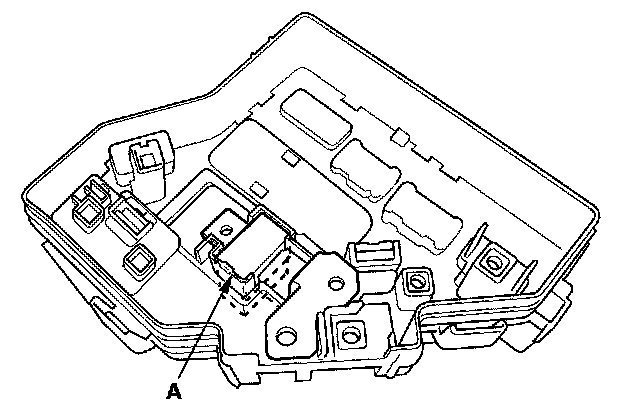

5. Remove the ELD (A).
6. Install the parts in the reverse order of removal.
