Information Bus: Locations

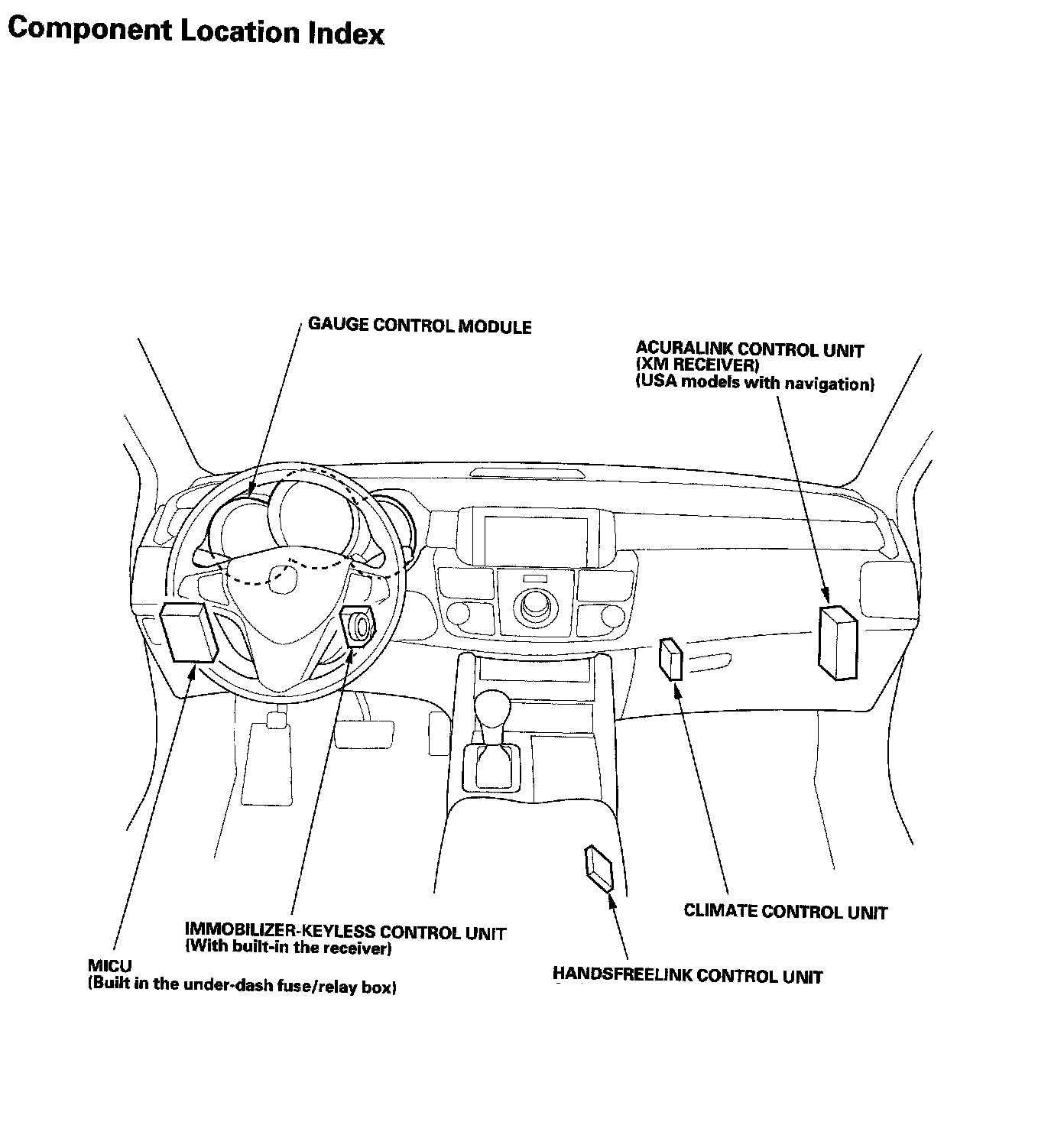

Multiplex Integrated Control System Component Location Index:

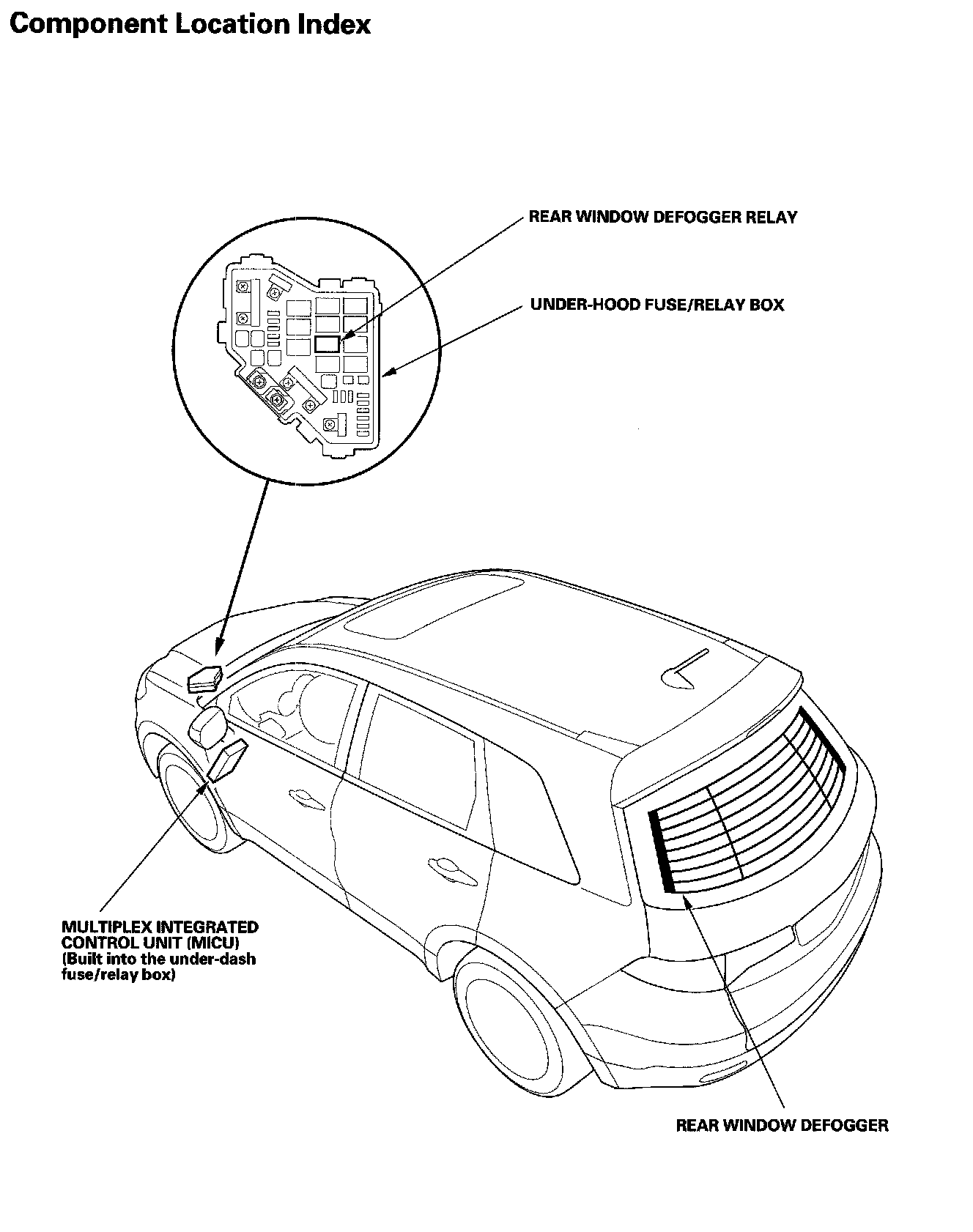

Rear Window Defogger Component Location Index:

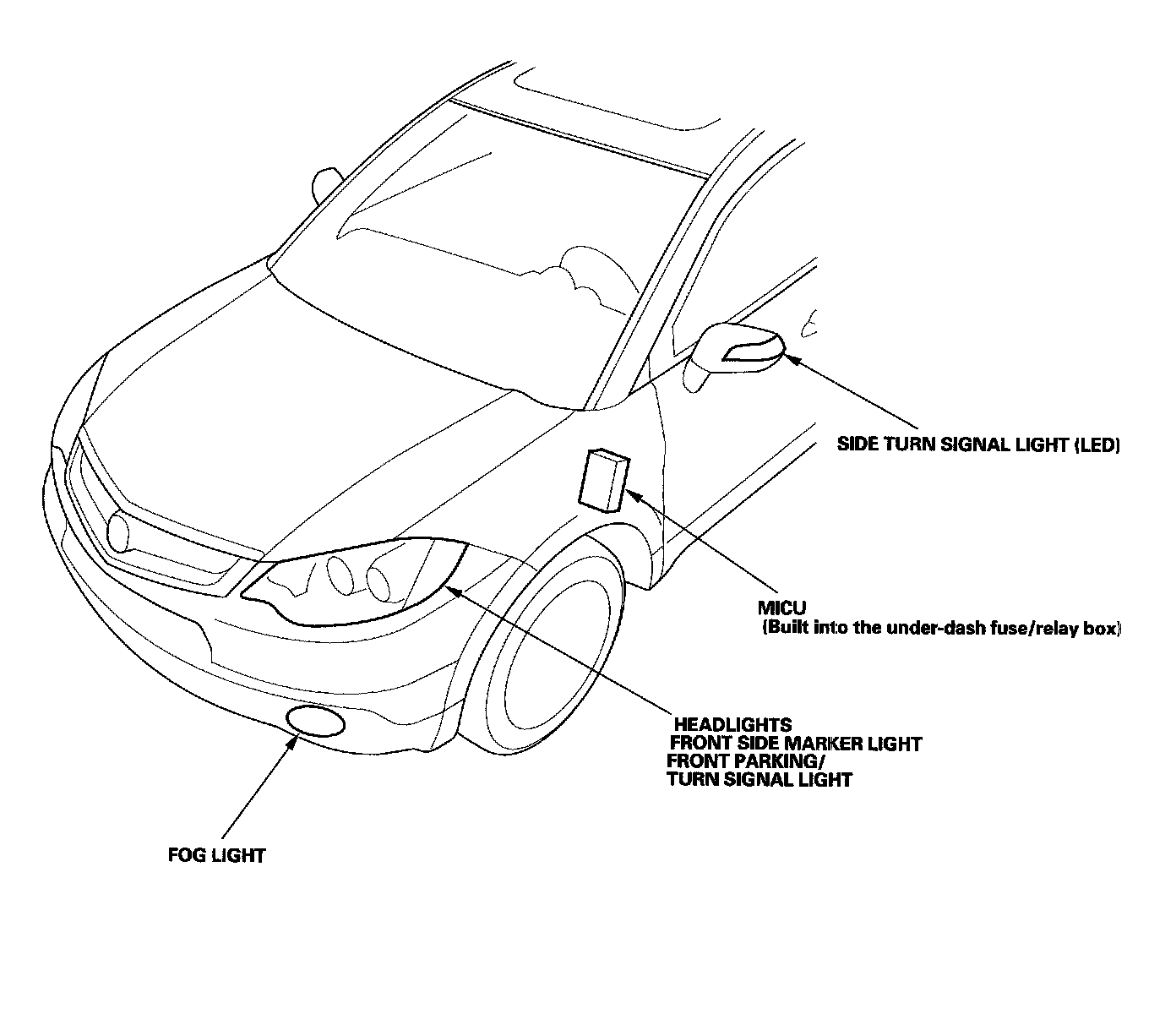

Exterior Lights Component Location Index:
