Transmission Position Sensor/Switch: Locations

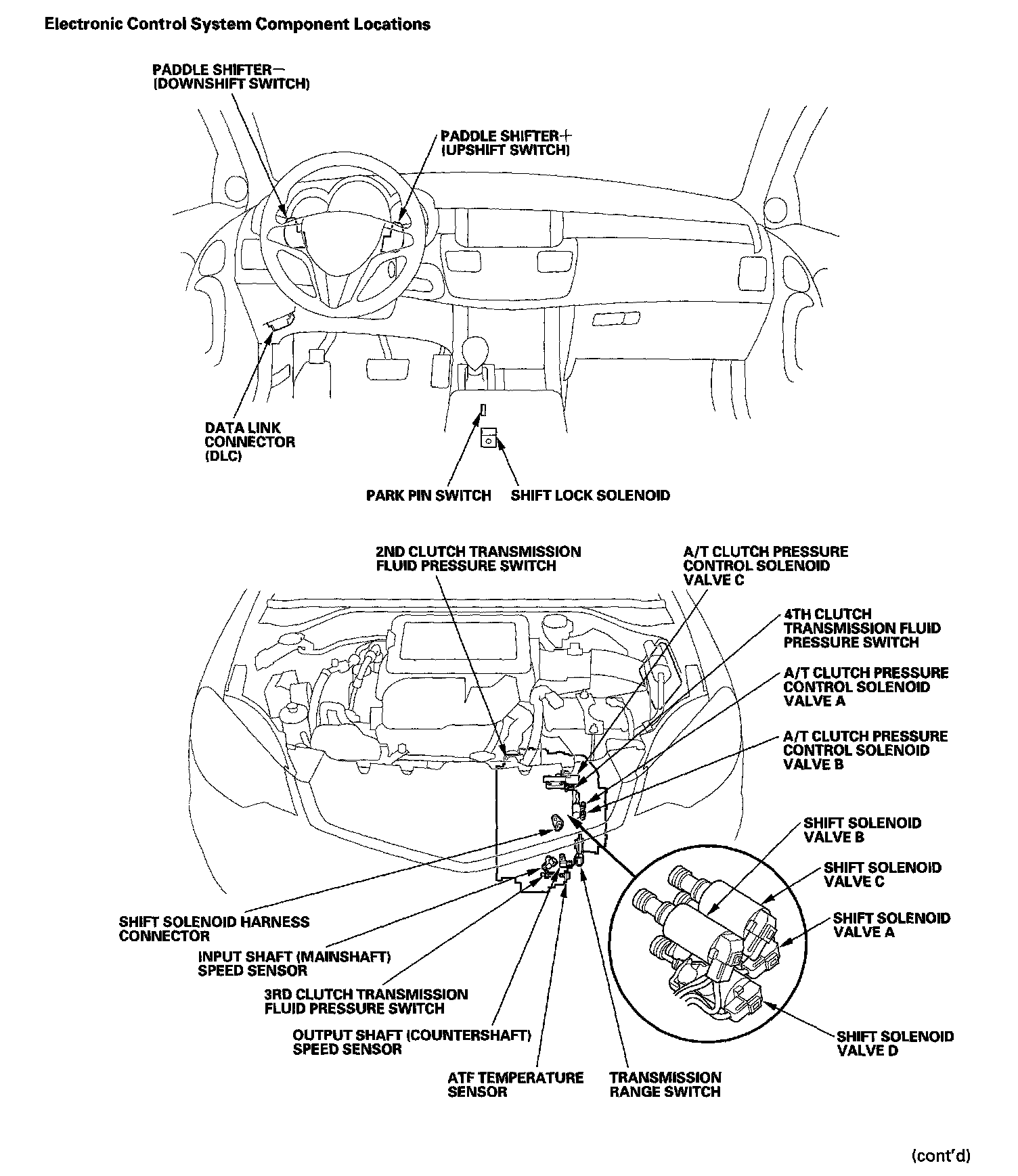

Electronic Control System Component Locations:

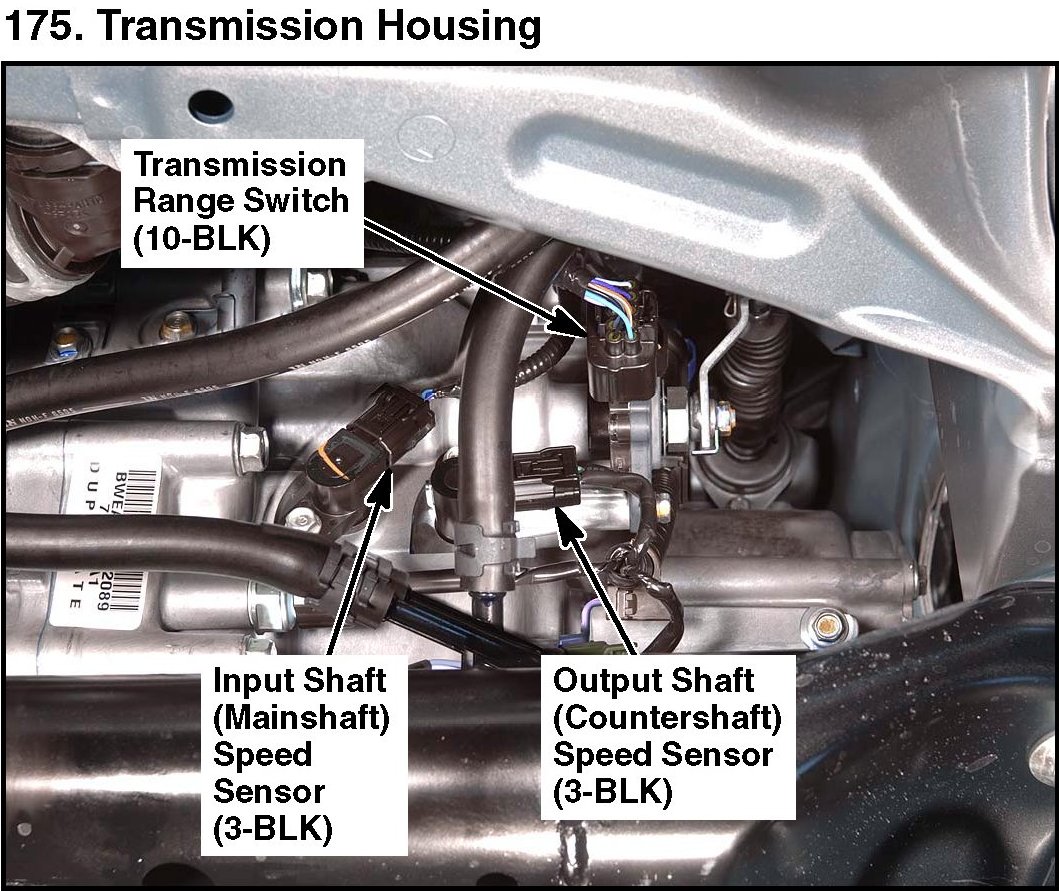

175. Transmission Housing:
