Keyless Start Control Module: Diagrams

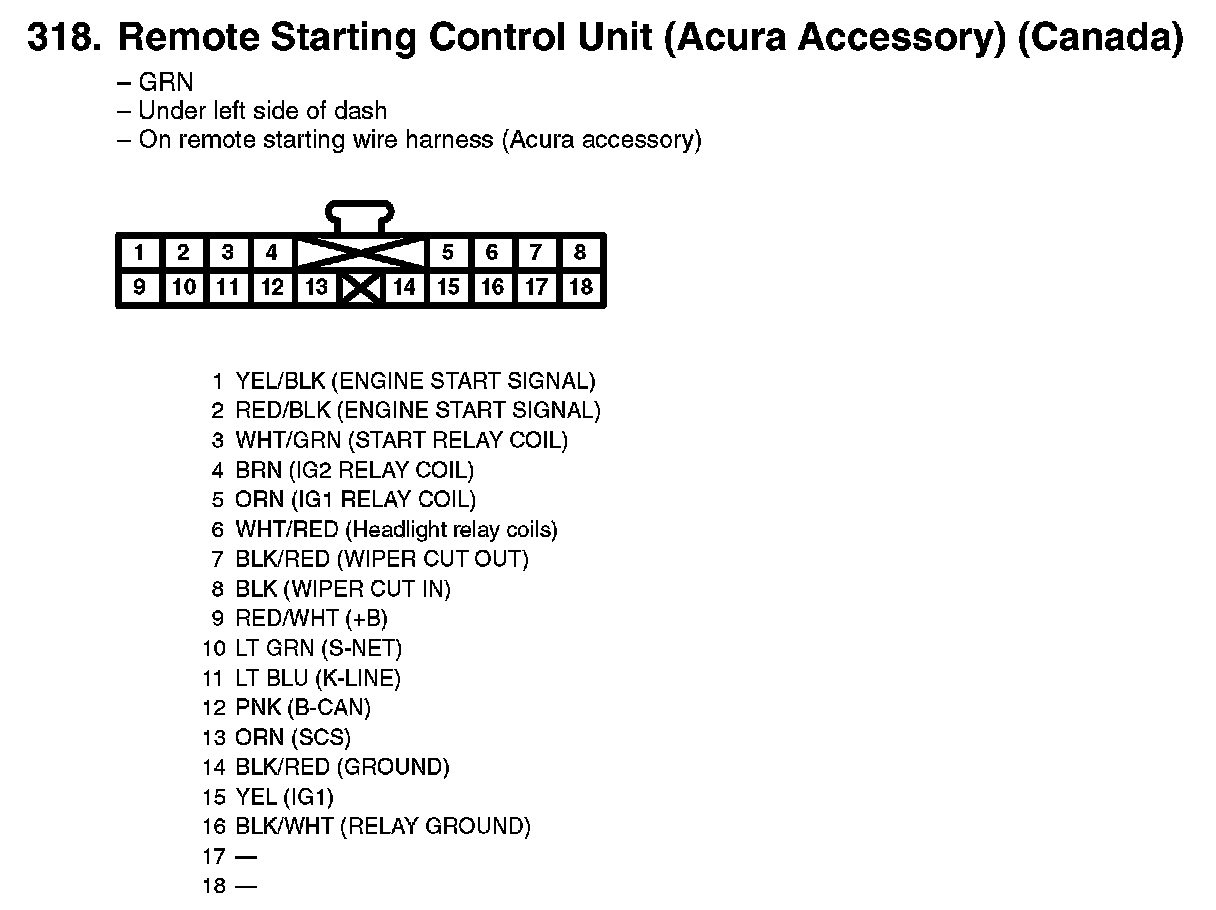

318. Remote Starting Control Unit (Acura Accessory) (Canada):
