Alignment

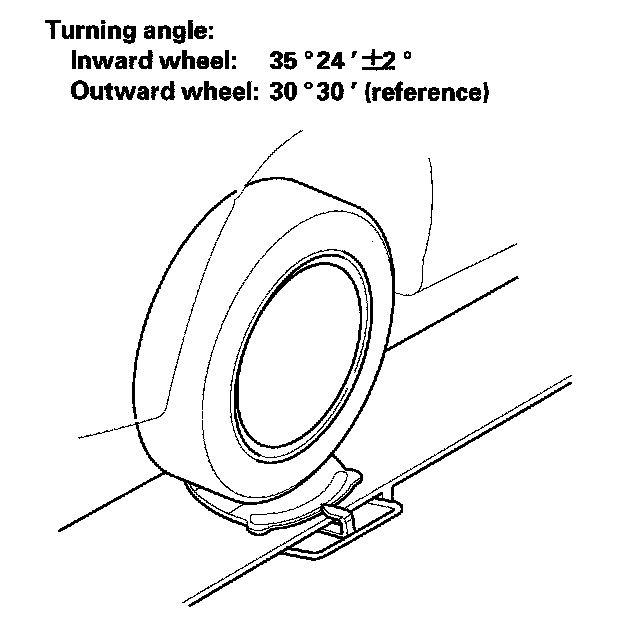

Turning angle





Caster angle
Caster angle: 2° 57' ± 1°

Camber angle
Front 0° 10' ± 45'
(Maximum difference between the front right and left side: 0° 30')
Rear -1° 00' ± 45'

Toe-in
Front toe-in 0 ± 2 mm (0 ± 0.08 in.)
Rear toe-in 2.5 ± 2 mm (0.10 ± 0.08 in.)
