System Specifications

Crankshaft Pulley
Tighten the bolt 49 N-m (5.0 kgf-m, 36 lbf-ft)
If you are using a new pulley bolt or new crankshaft, tighten the bolt to 177 N-m (18.0 kgf-m, 130 lbf-ft), loosen the bolt and tighten it 49 N-m (5.0 kgf-m, 36 lbf-ft).
Tighten the pulley bolt an additional 90°.

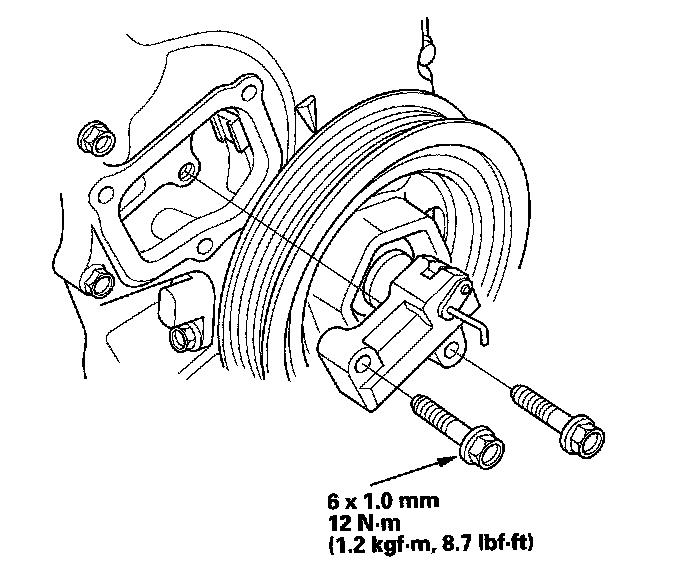

Auto-tensioner






Chain Case
