Charging System: Locations

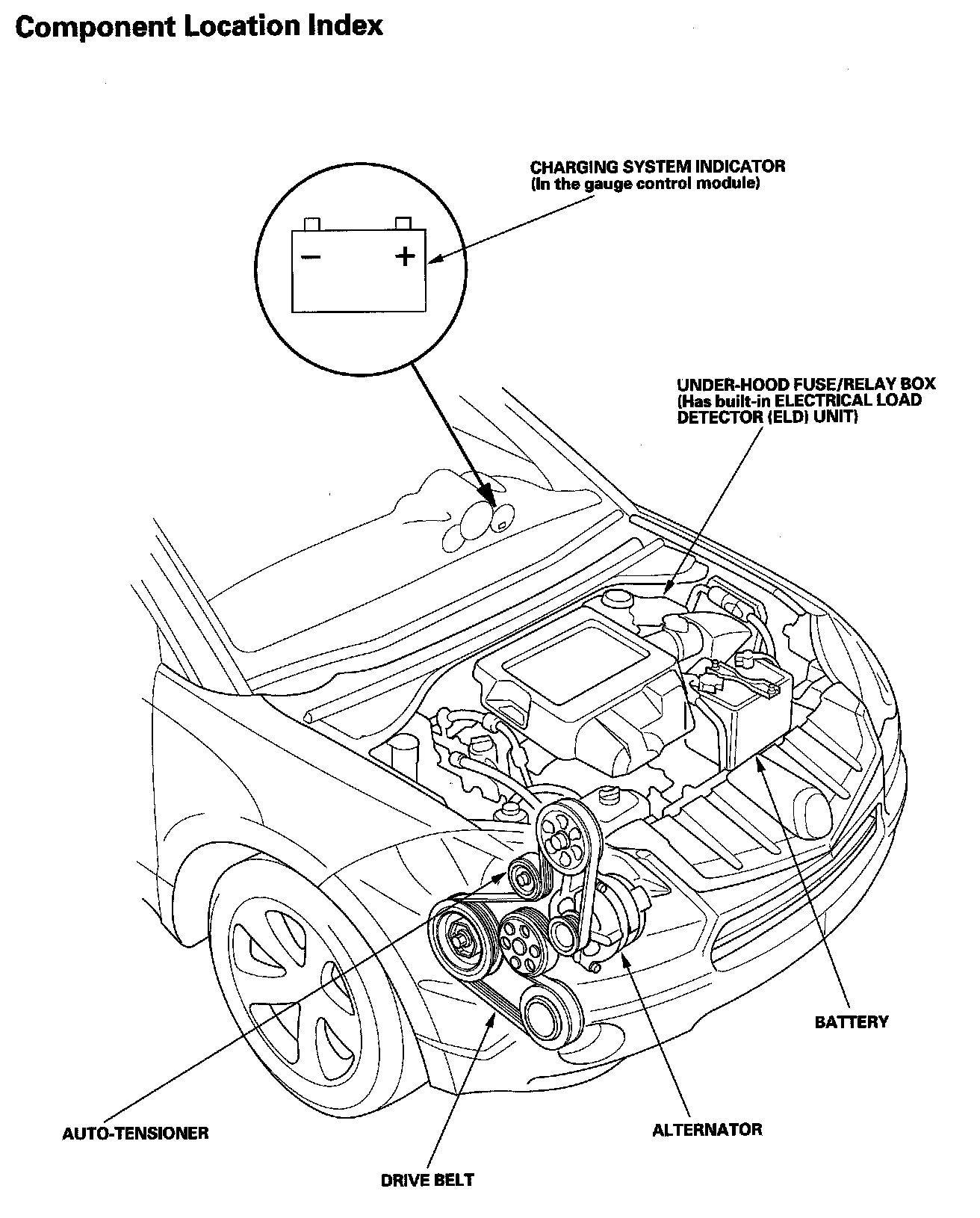

Charging System Component Location Index:

Ignition System Component Location Index:

Starting System Component Location Index:

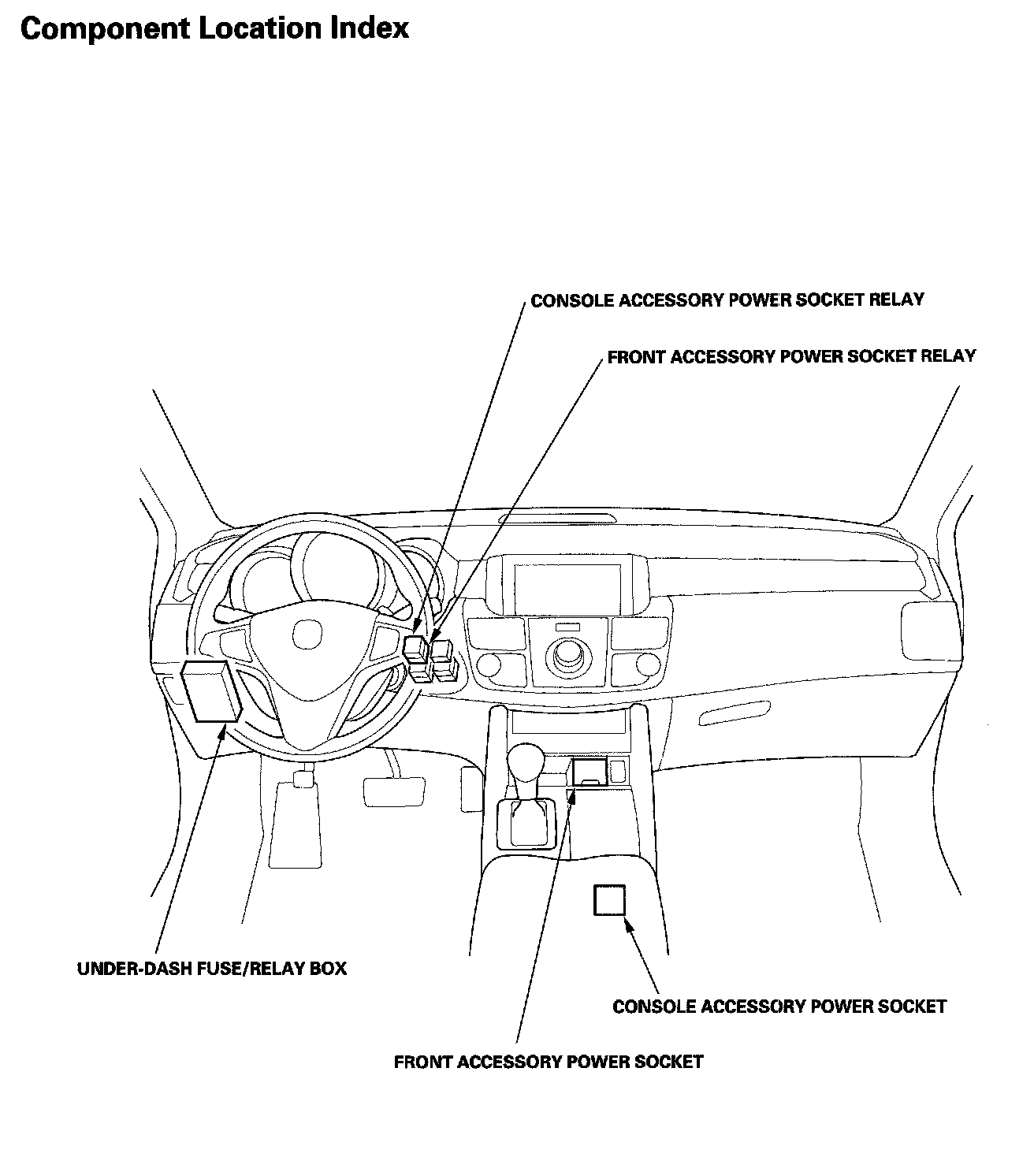

Accessory Power Sockets Component Location Index:

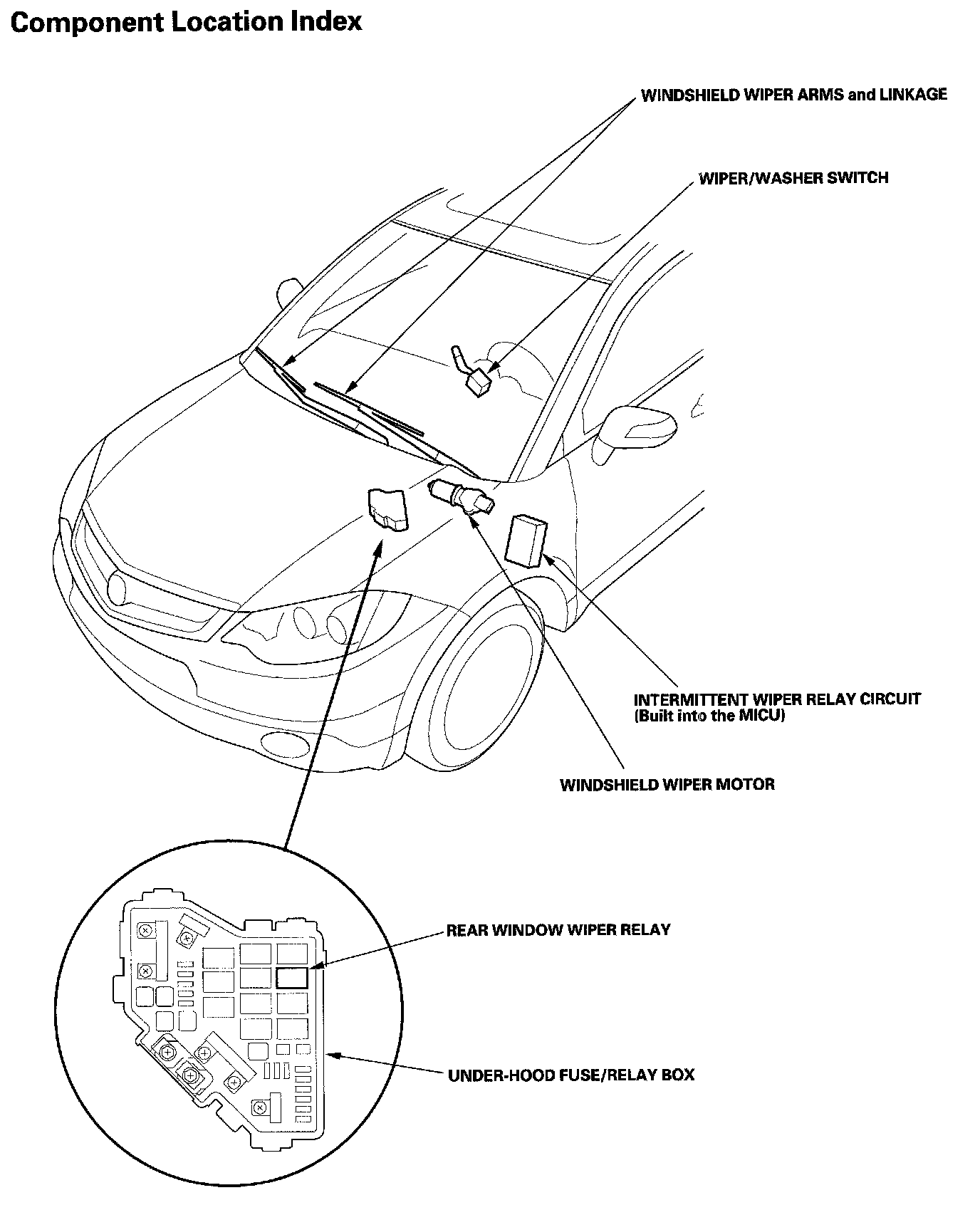

Wipers/Washers Component Location Index:

Power Windows Component Location Index:

Climate Control Component Location Index:

Rear Window Defogger Component Location Index:

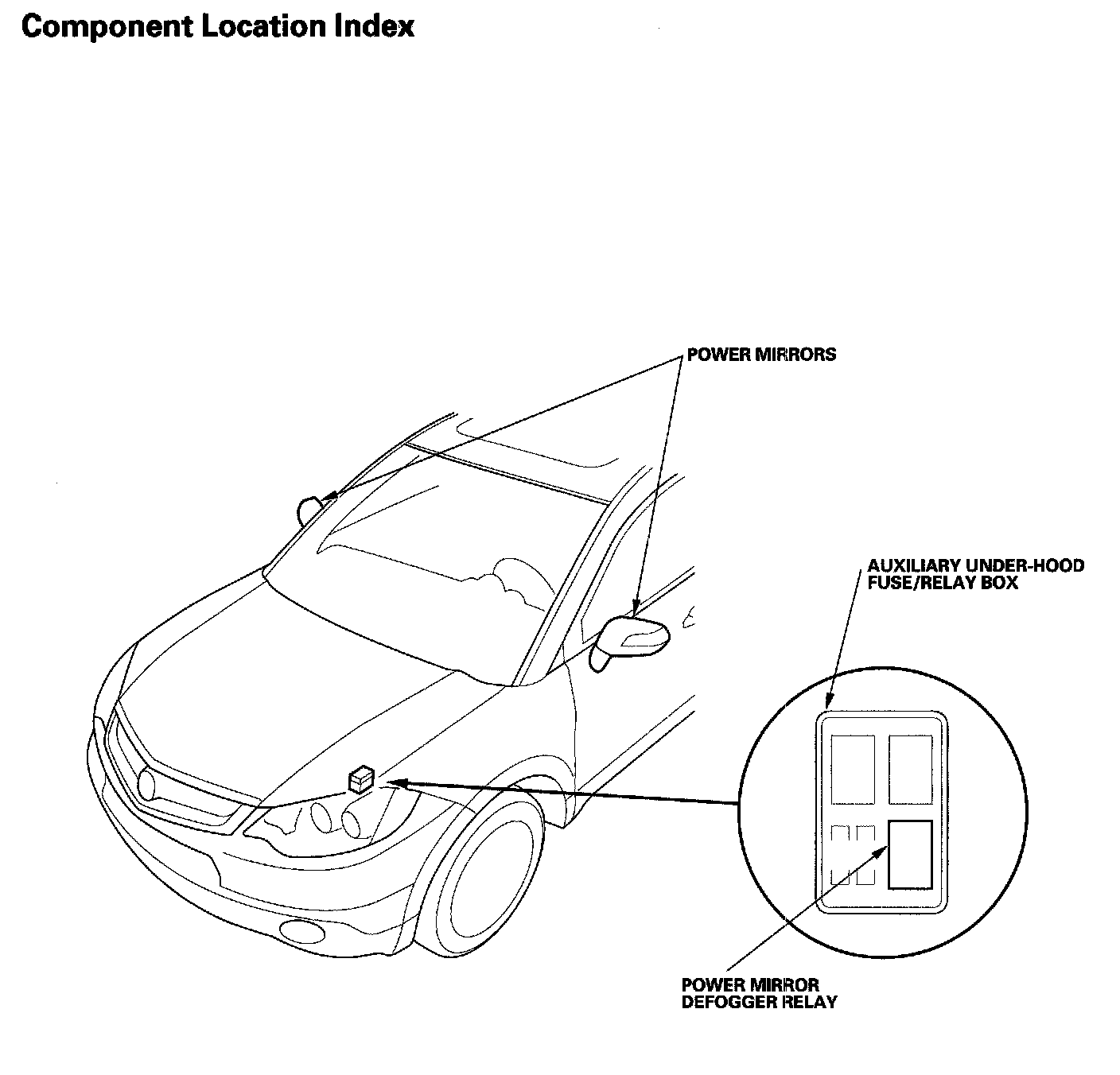

Power Mirrors Component Location Index:

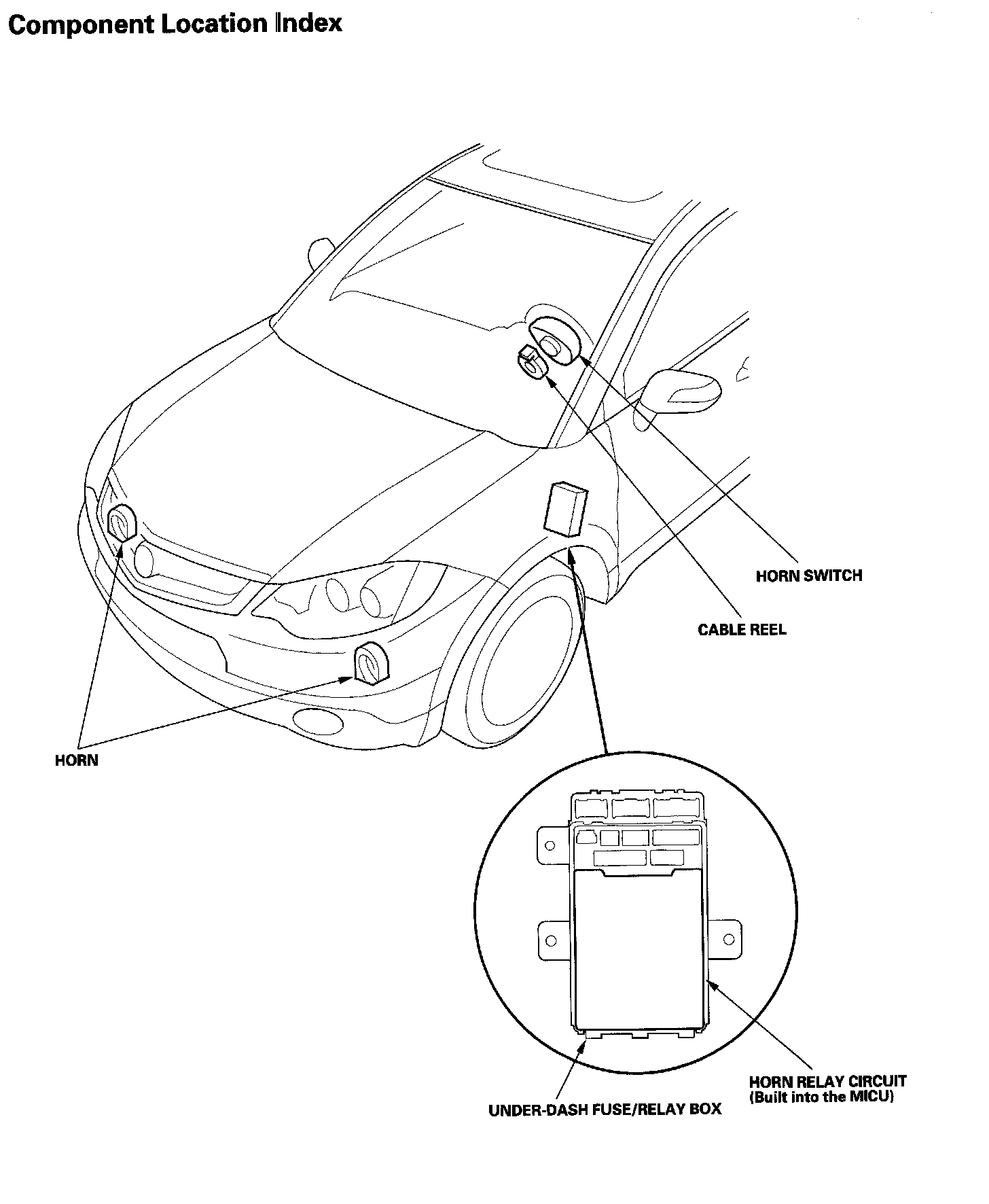

Horns Component Location Index:

Relay And Control Unit Locations Dashboard:

Relay And Control Unit Locations Engine Compartment:

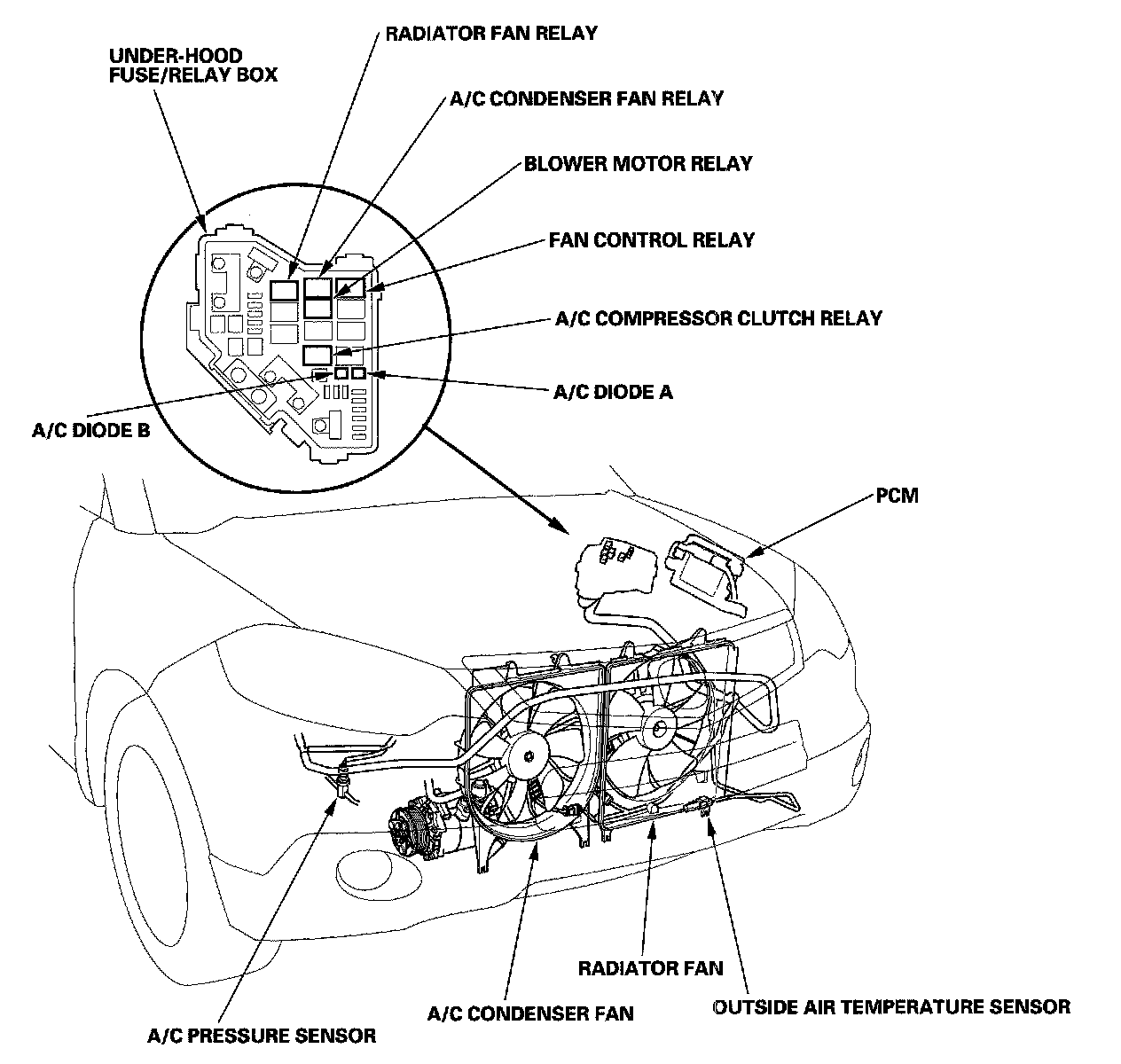

Fan Controls Component Location Index:

VSA (Vehicle Stability Assist) Component Location Index:

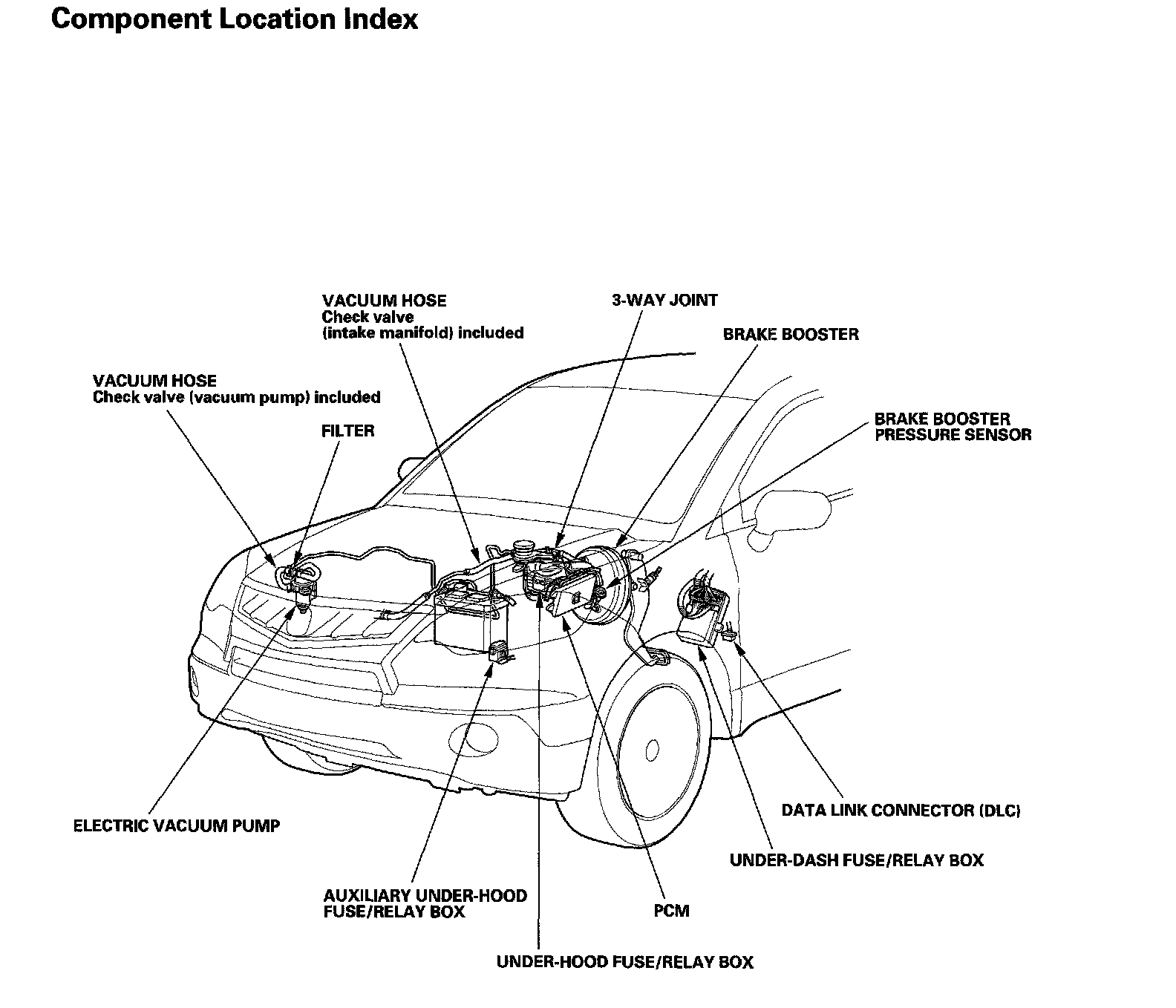

Electric Vacuum Pump Component Location Index:

Tire Pressure Monitoring Component Location Index:

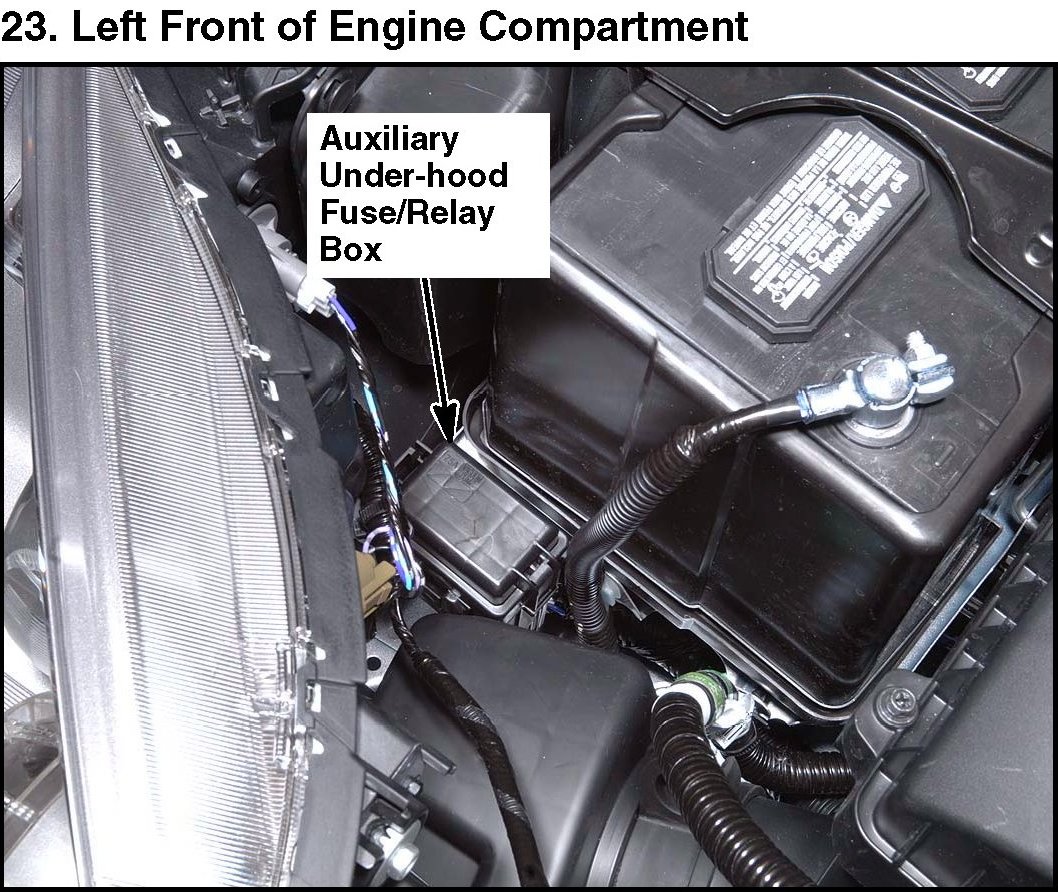

23. Left Front Of Engine Compartment:

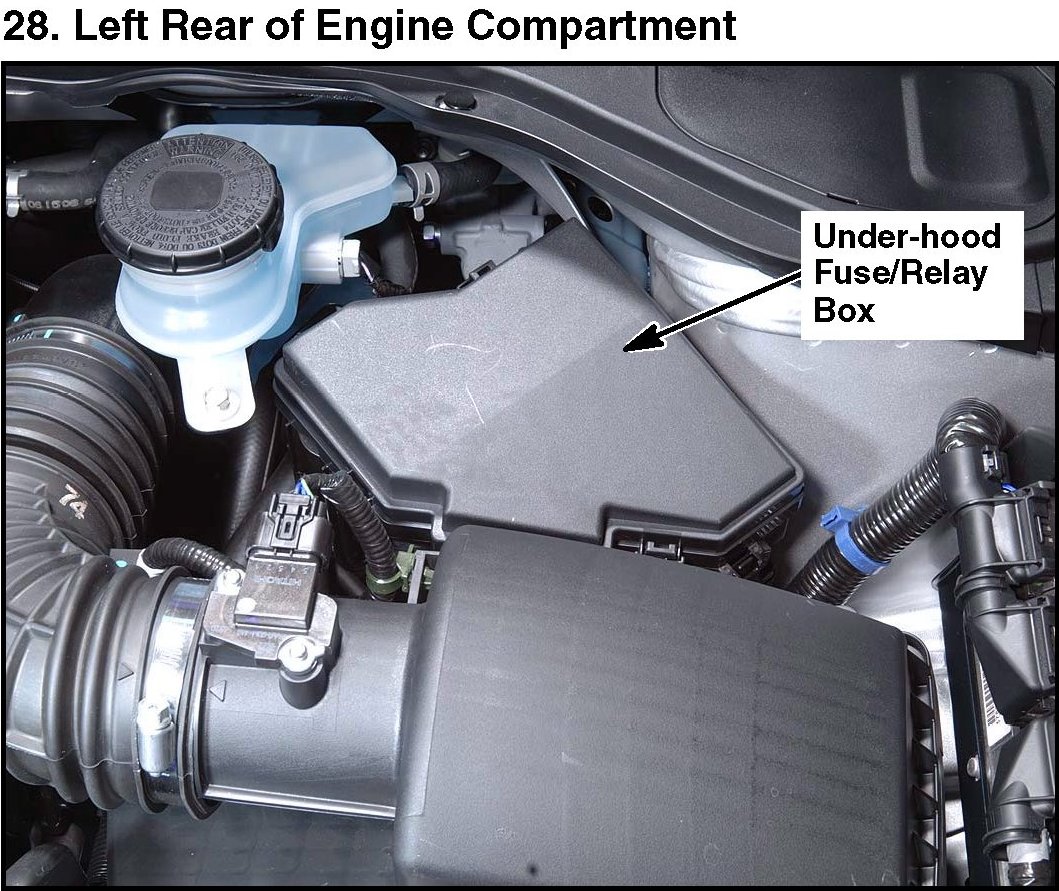

28. Left Rear Of Engine Compartment:

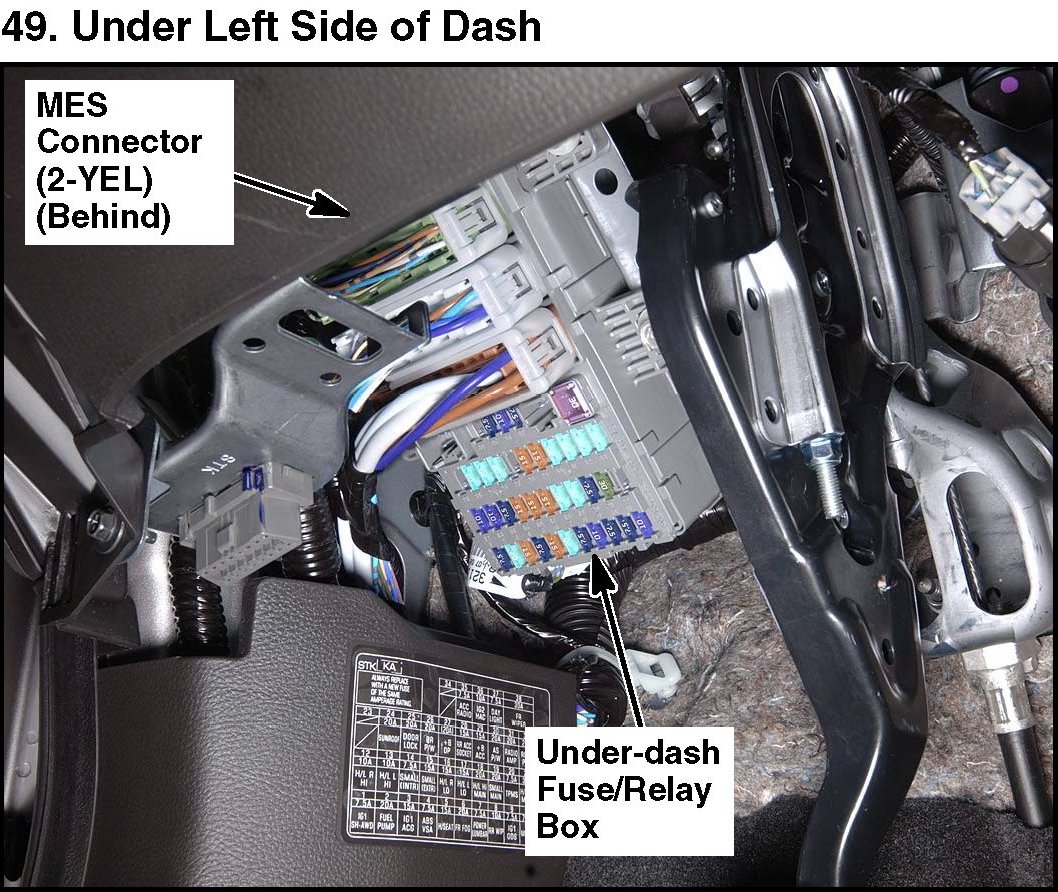

49. Under Left Side Of Dash:
