Audio Unit Connector D (32P)

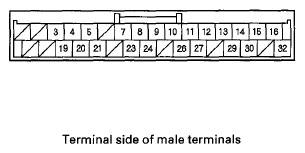

Fig 1: Identifying Audio Unit Connector D (32P)
G06223013Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio Unit Connector D (32P)

Audio Unit Connector D (32P) TERMINAL REFERENCE

Cavity Wire Connects to
D3 BRN Audio remote switch ground (REMOTE GND)
D4 ORN Stereo amplifier (AMP MUTE)
D5 GRY(1) Stereo amplifier (ELS SH GND)
D7 BLK Ground (GND) (G504)
D8 BLK Stereo amplifier (FL PRE-)
D9 GRY(1) Stereo amplifier (SHFR-FLGND)
D10 GRN Stereo amplifier (FR PRE-)
D11 PUR Stereo amplifier (RLPRE-)
D12 GRY(1) Stereo amplifier (SHRR-RLGND)
D13 BLU Stereo amplifier (RR PRE-)
D14 LT BLU Stereo amplifier (SUBW PRE-)
D15 GRY(1) Stereo amplifier (CTR-SUBW SH GND)
D16 BRN Stereo amplifier (CTR PRE-)
D19 PNK Audio remote switch (REMOTE)
D20 RED Stereo amplifier (ELS DATA-)
D21 GRN Stereo amplifier (ELS DATA+)
D23 YEL Stereo amplifier (SWD +B)
D24 WHT Stereo amplifier (FL PRE+)
D26 RED Stereo amplifier (FR PRE+)
D27 YEL Stereo amplifier (RL PRE+)
D29 ORN Stereo amplifier (RP PRE+)
D30 PNK Stereo amplifier (SUBWPRE+)
D32 LT GRN Stereo amplifier (CTR PRE+)
(1) The shield drain wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

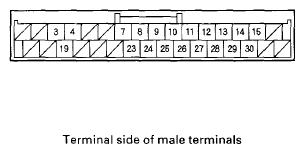

Fig 1: Identifying Audio Unit Connector D (32P)
G06223019Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio Unit Connector D (32P)

Audio Unit Connector D (32P) TERMINAL REFERENCE

Cavity Wire Connects to
D3 BRN Audio remote switch ground (REMOTE GND)
D4 ORN Stereo amplifier (AMP MUTE)
D7 BLK Ground (GND) (G504)
D8 PNK Stereo amplifier (FL PRE-)
D9 GRV Stereo amplifier (SH FL GND)
D10 RED Stereo amplifier (FR PRE-)
D11 PUR Stereo amplifier (RL PRE-)
D12 GRY(1) Stereo amplifier (SH RL GND)
D13 YEL Stereo amplifier (RR PRE-)
D14 PNK Stereo amplifier (SUBW PRE-)
D15 GRY(1) Stereo amplifier (SH SUBW GND)
D19 PNK Audio remote switch (REMOTE)
D23 YEL Stereo amplifier (SWD +B)
D24 BLU Stereo amplifier (FL PRE+)
D25 GRY(1) Stereo amplifier (SH FR GND)
D26 GRN Stereo amplifier (FR PRE+)
D27 LT BLU Stereo amplifier (RL PRE+)
D28 GRY(1) Stereo amplifier (SH RR GND)
D29 BRN Stereo amplifier (RR PRE+)
D30 BLU Stereo amplifier (SUBW PRE+)
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
