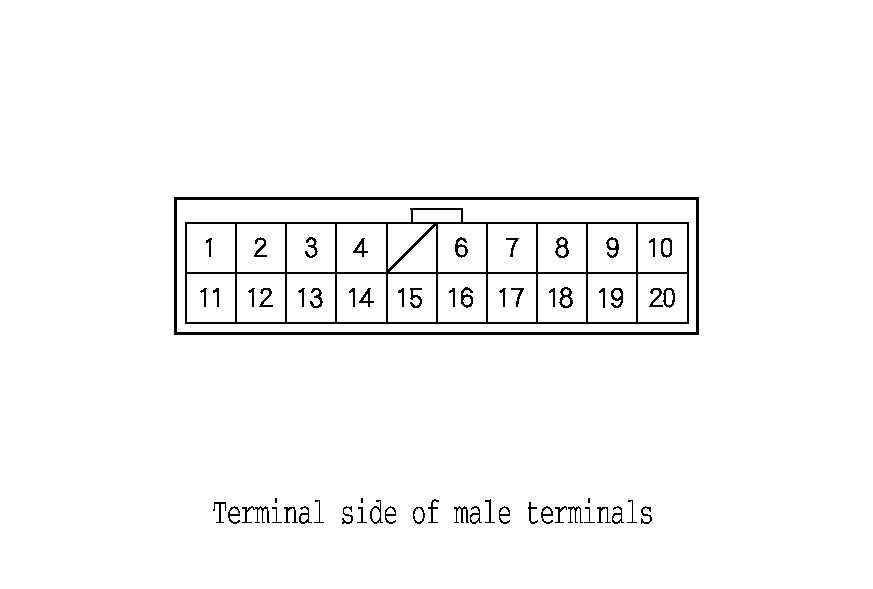

ACURALINK Control Unit (XM Receiver) Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC. ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR A (20P)
| Cavity |
Wire |
Connects to |
| A1 |
GRN |
N0.23 (10A) fuse in the under-hood fuse/relay box (+B) |
| A2 |
PUR |
N0.35 (7.5A) fuse in the under-hood fuse/relay box (ACC) |
| A3 |
GRN |
Navigation unit (NAVI COMM 3) |
| A4 |
RED |
Navigation unit (NAVI COMM 1 |
| A6 |
WHT |
Communication bus line (CAN HI) |
| A7 |
LT BLU |
Audio unit ,Navigation display unit (GA-NET BUS+) |
| A8 |
GRY |
Audio unit (AUDIO SH) |
| A9 |
BLK |
Audio unit (AUDIO L+) |
| A10 |
RED |
Audio unit (AUDIO R+) |
| A11 |
BLK |
Ground (GND) (G505) |
| A12 |
BRN |
N0.10 (7.5A) fuse in the under-hood fuse/relay box (IG1)) |
| A13 |
BLK |
Navigation unit (NAVI COMM 4) |
| A14 |
WHT |
Navigation unit (NAVI COMM 2) |
| A15 |
GRY * |
Navigation unit (NAVI COMM SH) |
| A16 |
RED |
Communication bus line (CAN LO) |
| A17 |
PUR |
Audio unit, Navigation display unit (GA-NET BUS -) |
| A18 |
GRY |
Audio unit, Navigation display unit (GA-NET BUS SH) |
| A19 |
GRN |
Audio unit,Navigation display unit (AUDIO L-) |
| A20 |
WHT |
Audio unit, Navigation display unit (AUDIO R-) |
