ACURALINK Control Unit (XM Receiver) Connector C (2P)

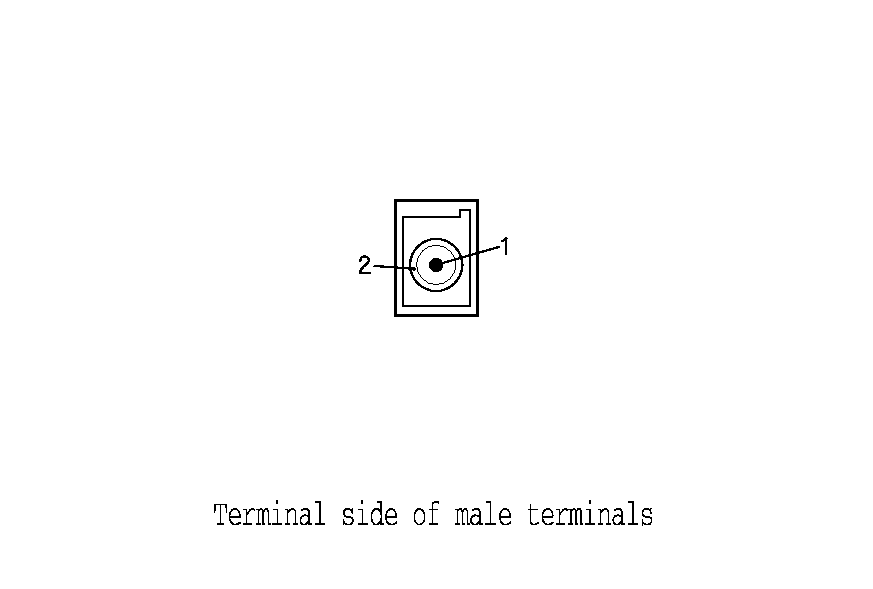

Fig 1: Identifying AcuraLink Control Unit (XM Receiver) Connector C (2P)
G00485316Courtesy of AMERICAN HONDA MOTOR CO., INC.
ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR C (2P)

Cavity  Wire  Connects to
C1 - AM/FM/XM antenna (SAT/TER)
C2 - AM/FM/XM antenna (SAT/TER SH)
