Motor Test

Remove the power window master switch (see POWER WINDOW SWITCH REPLACEMENT ), and disconnect the connectors.
Test the motor in each direction by connecting battery power and ground to the power window master switch 22P connector according to the table.

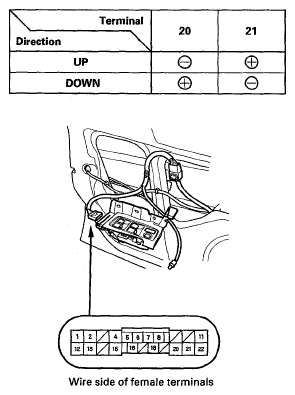

Fig 1: Identifying Power Window Master Switch And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
Disconnect the 6P connector from the driver's power window motor.
Check for continuity between the power window master switch 22P connector No. 20 and No. 21 terminals and the driver's power window motor 6P connector No. 1 and No. 4 terminals, respectively.
POWER WINDOW

MASTER SWITCH

22P CONNECTOR

No. 20 terminal

No. 21 terminal

DRIVER'S POWER

WINDOW MOTOR

6P CONNECTOR

No. 1 terminal

No. 4 terminal

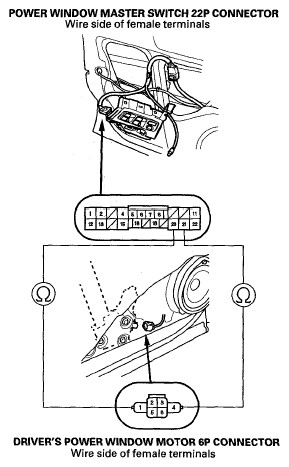

Fig 2: Checking Continuity Between Power Window Master Switch 22P Connector No. 20 And 21 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the wire harness is OK, replace the driver's power window motor.
Pulser Test
Do the power window master switch input test No. 5, No. 6, No. 7, and No. 11 terminals (see POWER WINDOW MASTER SWITCH INPUT TEST ).
