Connector End Views

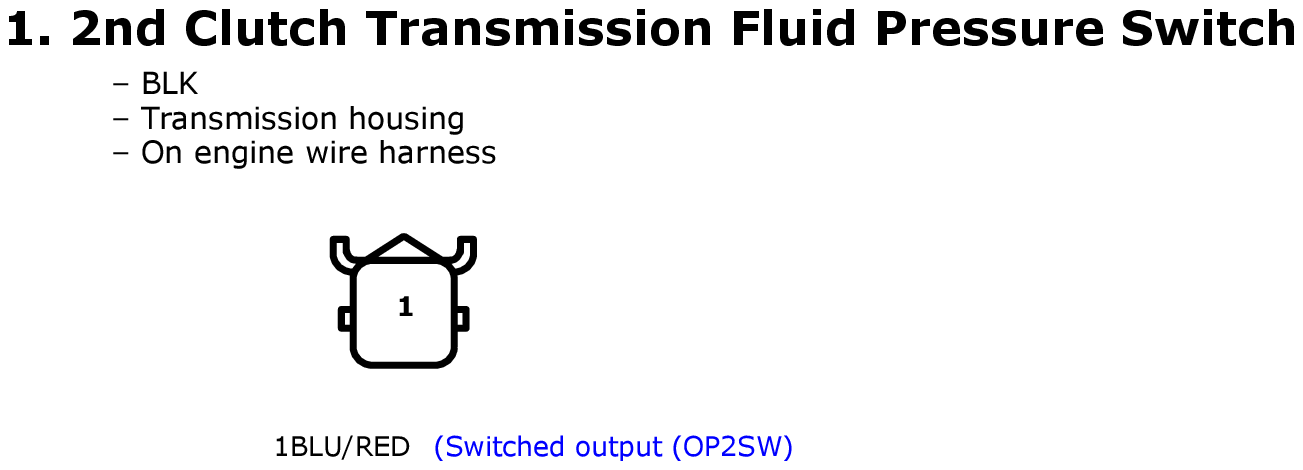

Fig 1: 2nd Clutch Transmission Fluid Pressure Switch Connector End View
GHHW8328Courtesy of AMERICAN HONDA MOTOR CO., INC.

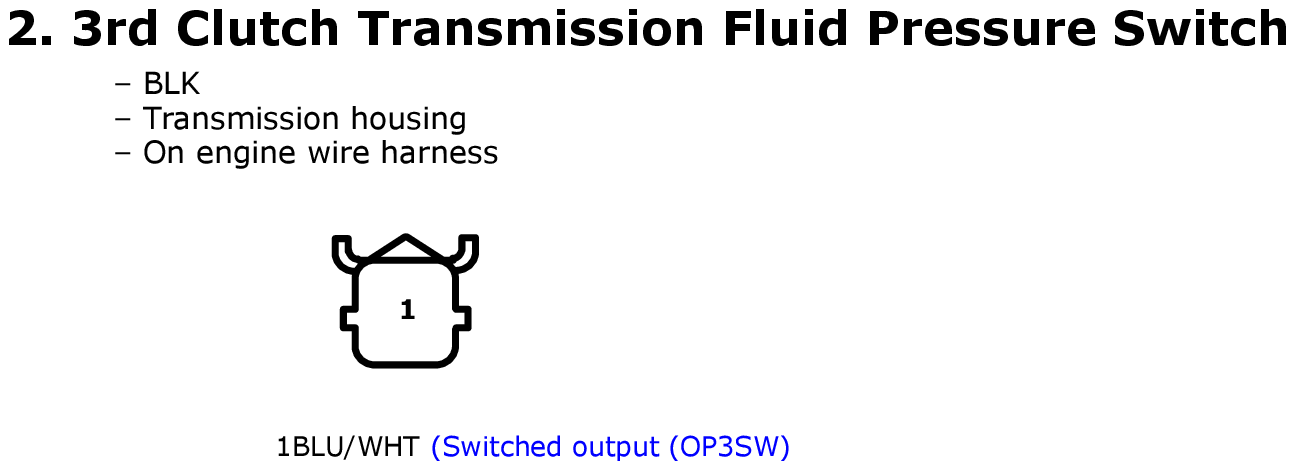

Fig 2: 3rd Clutch Transmission Fluid Pressure Switch Connector End View
GHHW8329Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: 4th Clutch Transmission Fluid Pressure Switch Connector End View
GHHW8330Courtesy of AMERICAN HONDA MOTOR CO., INC.

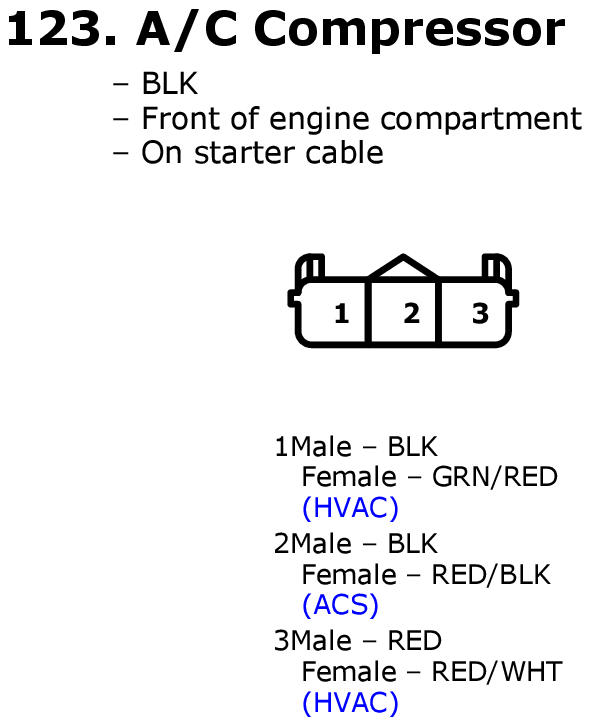

Fig 4: A/C Compressor Connector End View
GHHW8450Courtesy of AMERICAN HONDA MOTOR CO., INC.

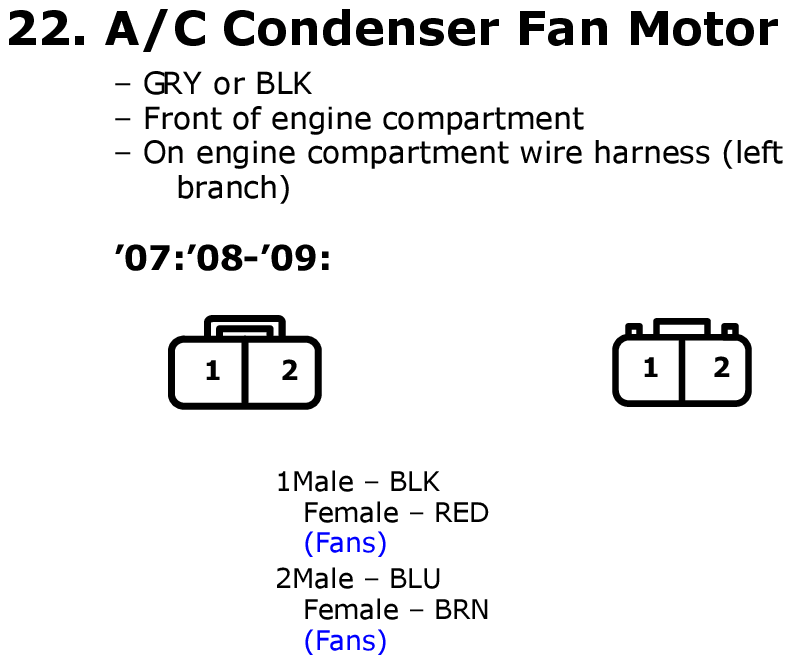

Fig 5: A/C Condenser Fan Motor Connector End View
GHHW8349Courtesy of AMERICAN HONDA MOTOR CO., INC.

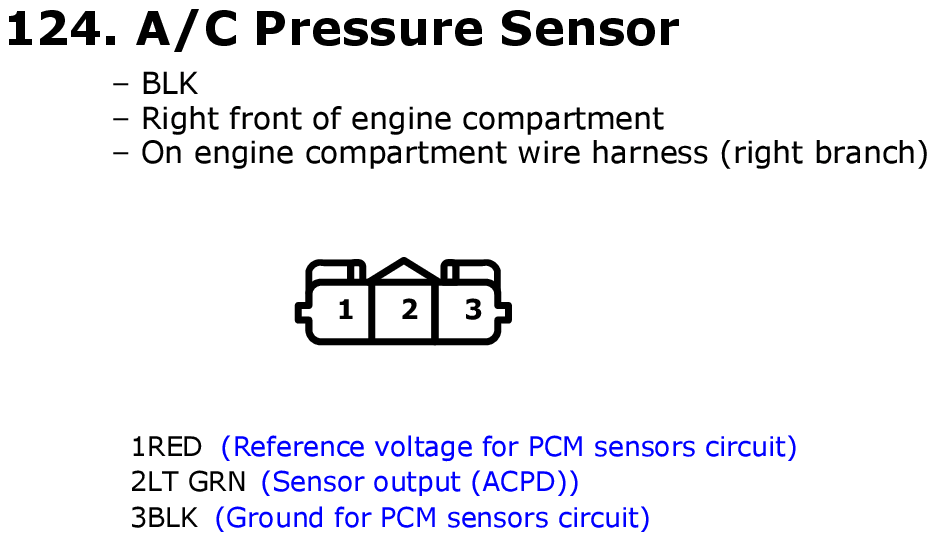

Fig 6: A/C Pressure Sensor Connector End View
GHHW8451Courtesy of AMERICAN HONDA MOTOR CO., INC.

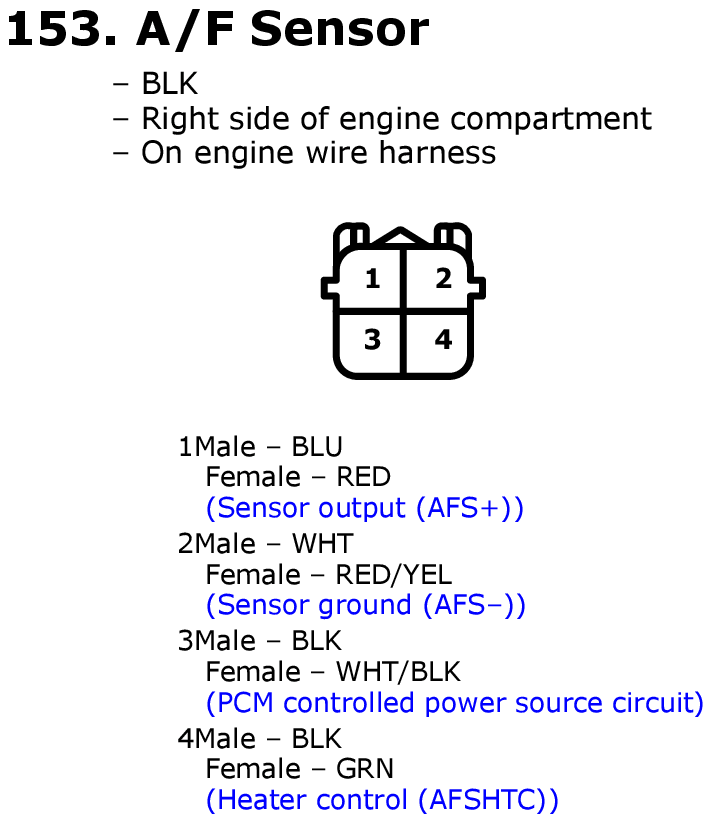

Fig 7: A/F Sensor Connector End View
GHHW8480Courtesy of AMERICAN HONDA MOTOR CO., INC.

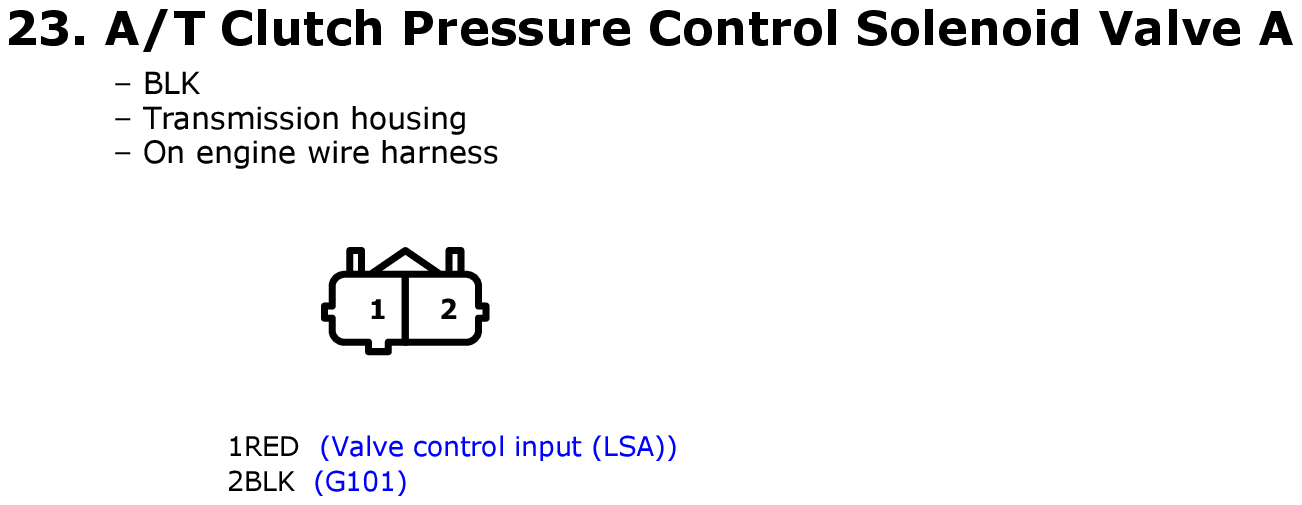

Fig 8: A/T Clutch Pressure Control Solenoid Valve A Connector End View
GHHW8350Courtesy of AMERICAN HONDA MOTOR CO., INC.

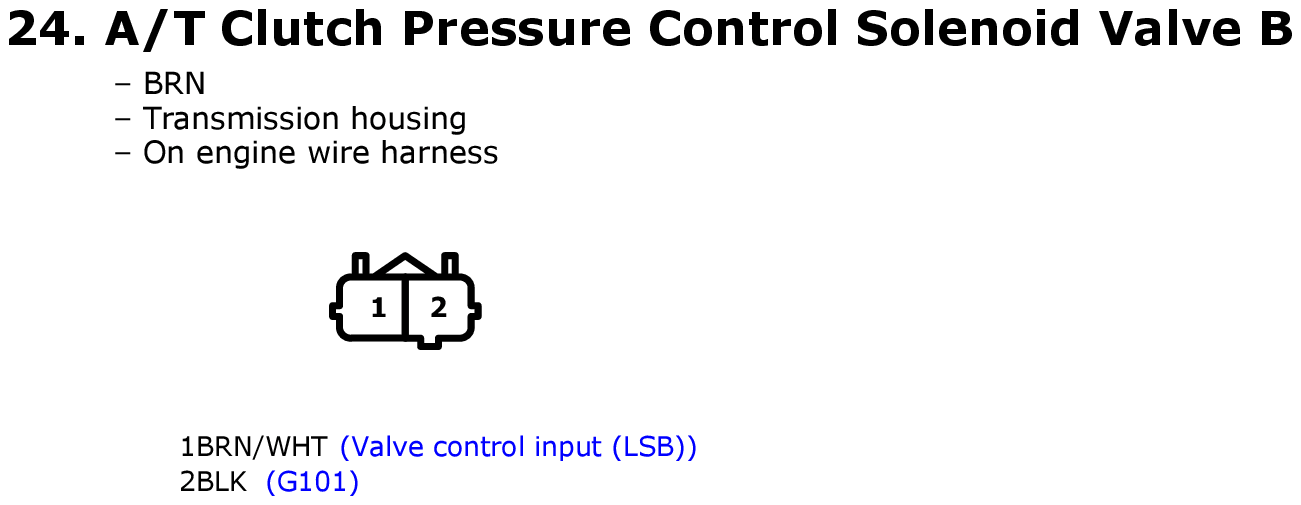

Fig 9: A/T Clutch Pressure Control Solenoid Valve B Connector End View
GHHW8351Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 10: A/T Clutch Pressure Control Solenoid Valve C Connector End View
GHHW8352Courtesy of AMERICAN HONDA MOTOR CO., INC.

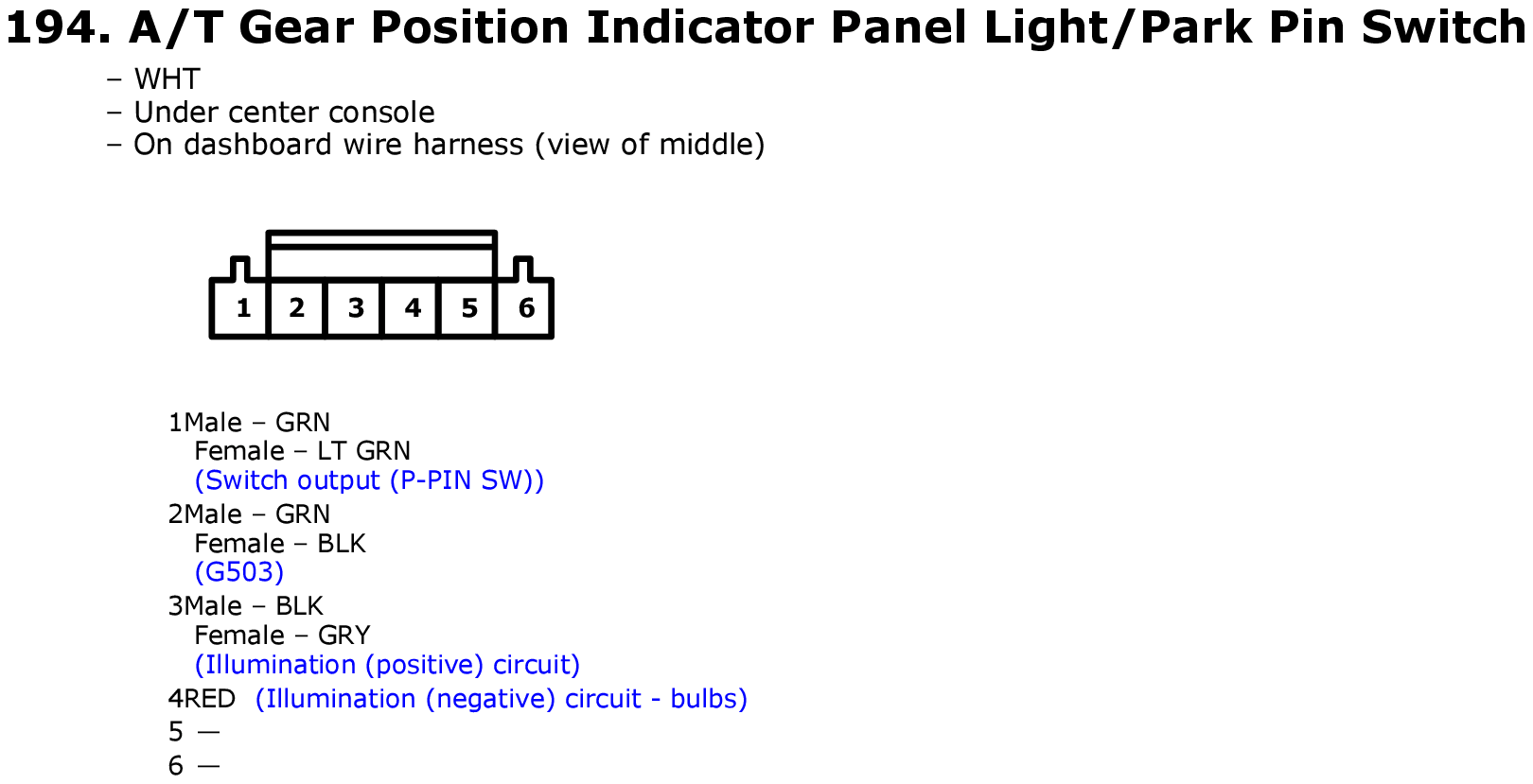

Fig 11: A/T Gear Position Indicator Panel Light/Park Pin Switch Connector End View
GHHW8521Courtesy of AMERICAN HONDA MOTOR CO., INC.

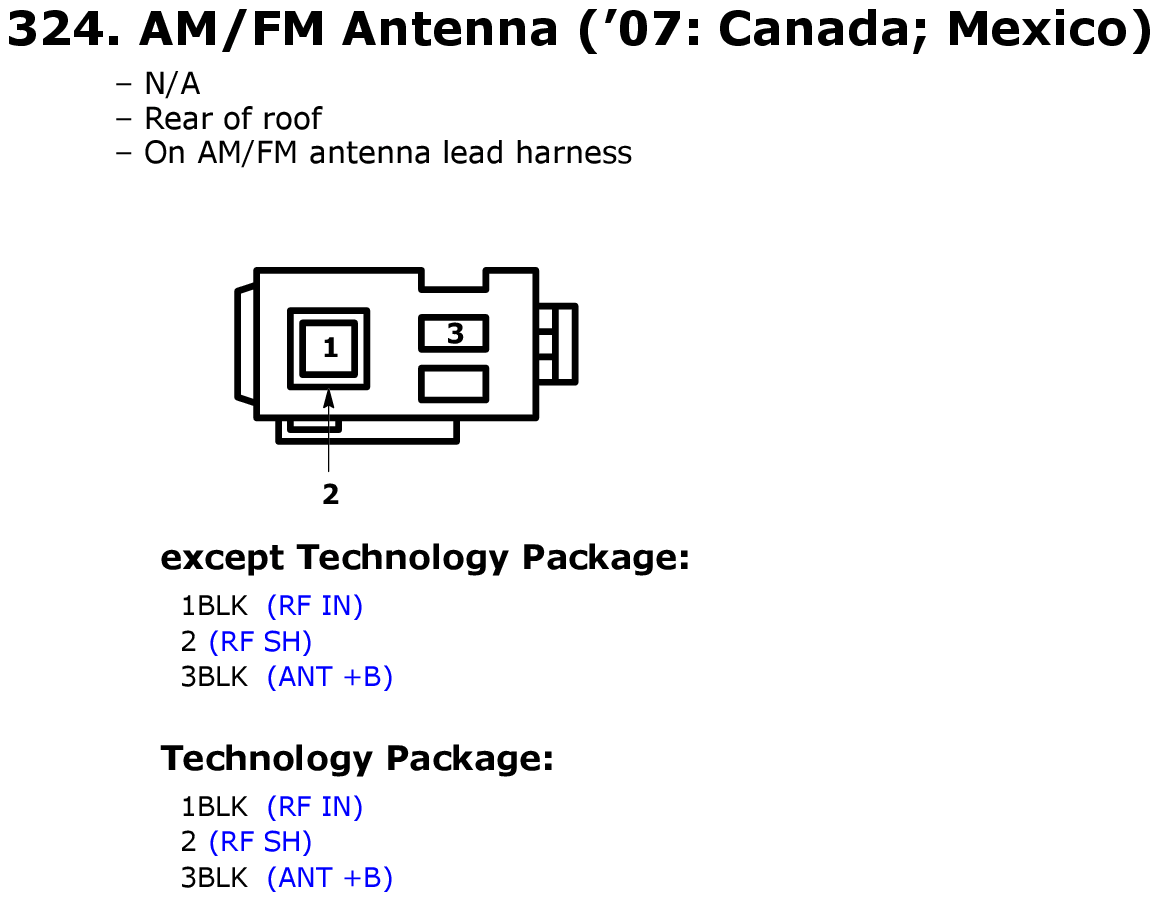

Fig 12: AM/FM Antenna Connector End View
GHHW8648Courtesy of AMERICAN HONDA MOTOR CO., INC.

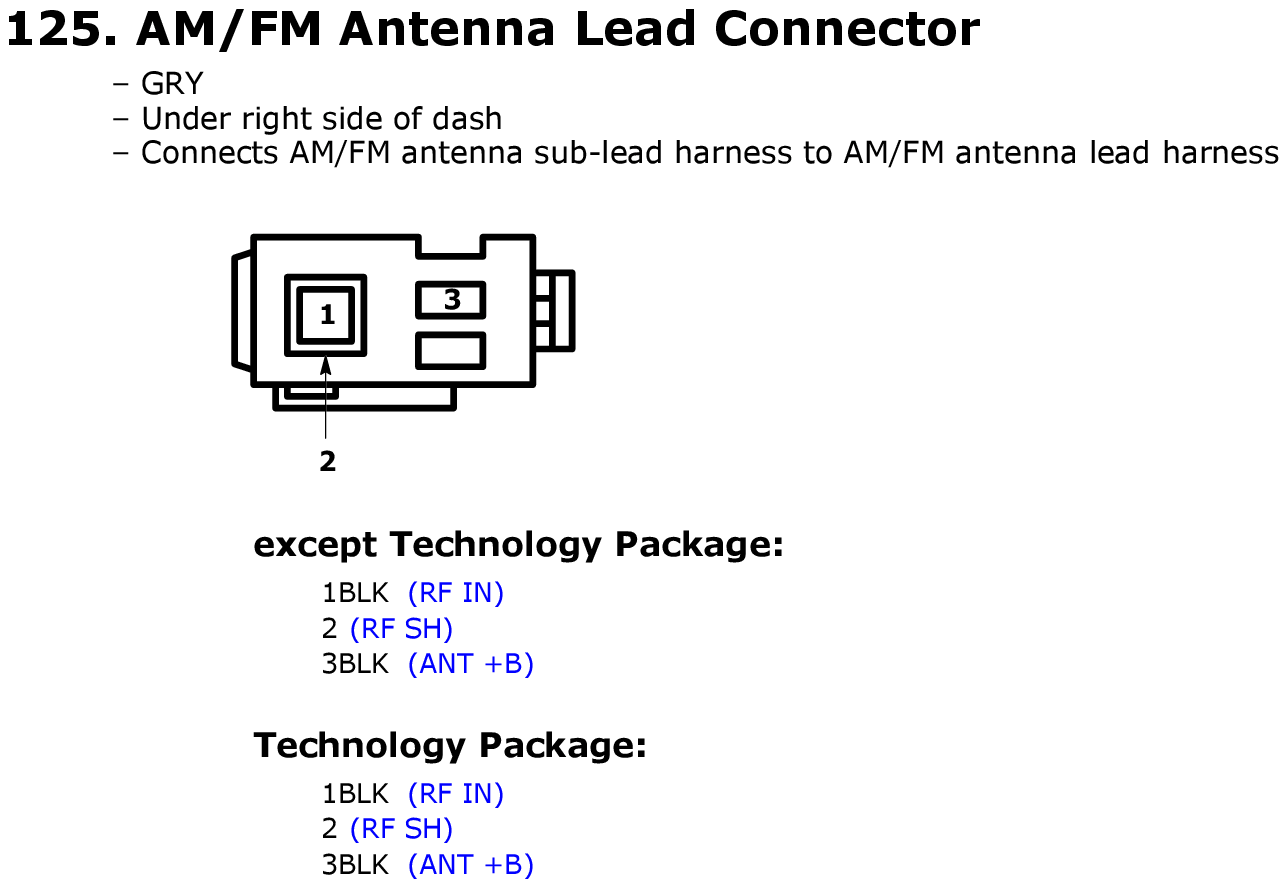

Fig 13: AM/FM Antenna Lead Connector End View
GHHW8452Courtesy of AMERICAN HONDA MOTOR CO., INC.

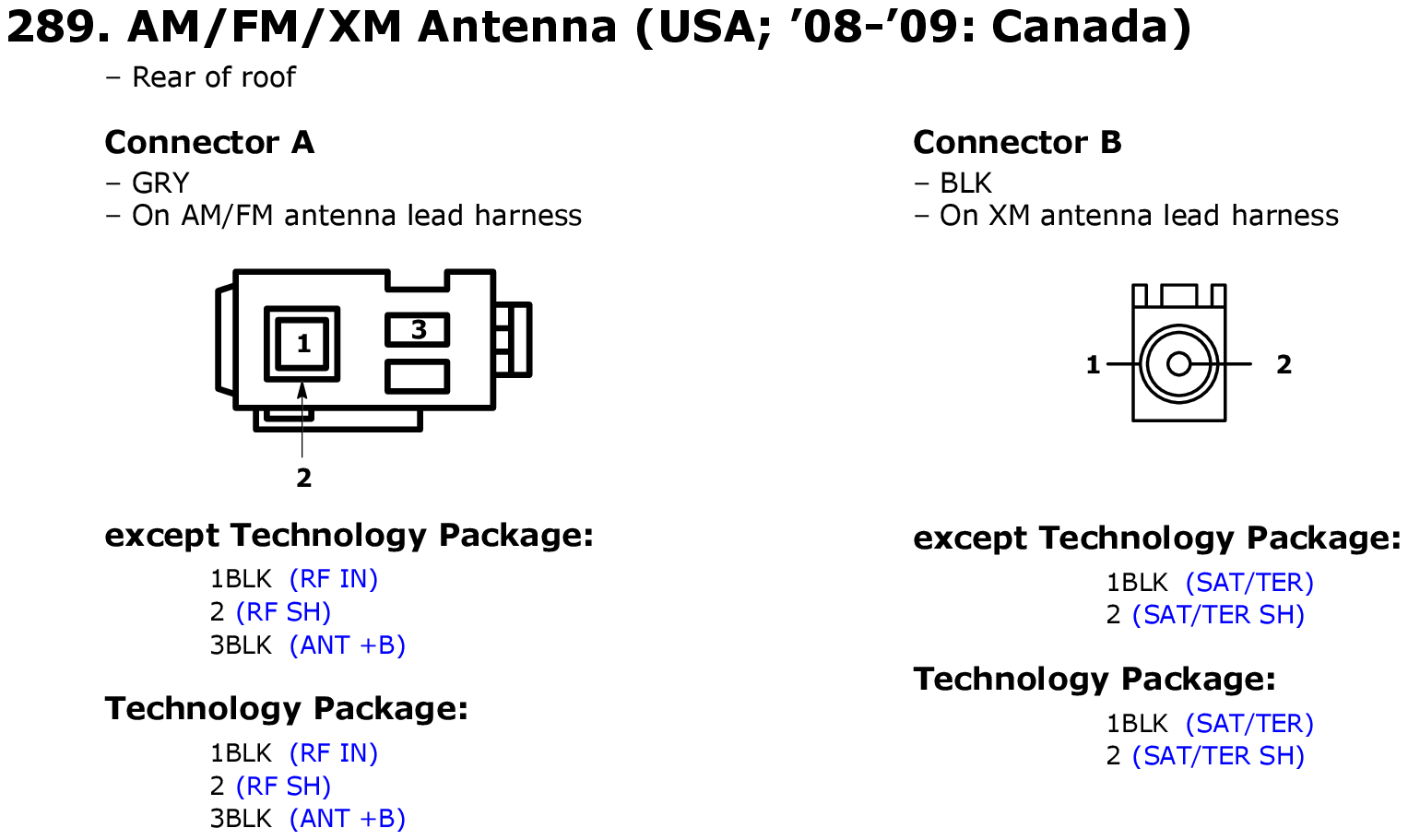

Fig 14: AM/FM/XM Antenna Connector End View
GHHW8616Courtesy of AMERICAN HONDA MOTOR CO., INC.

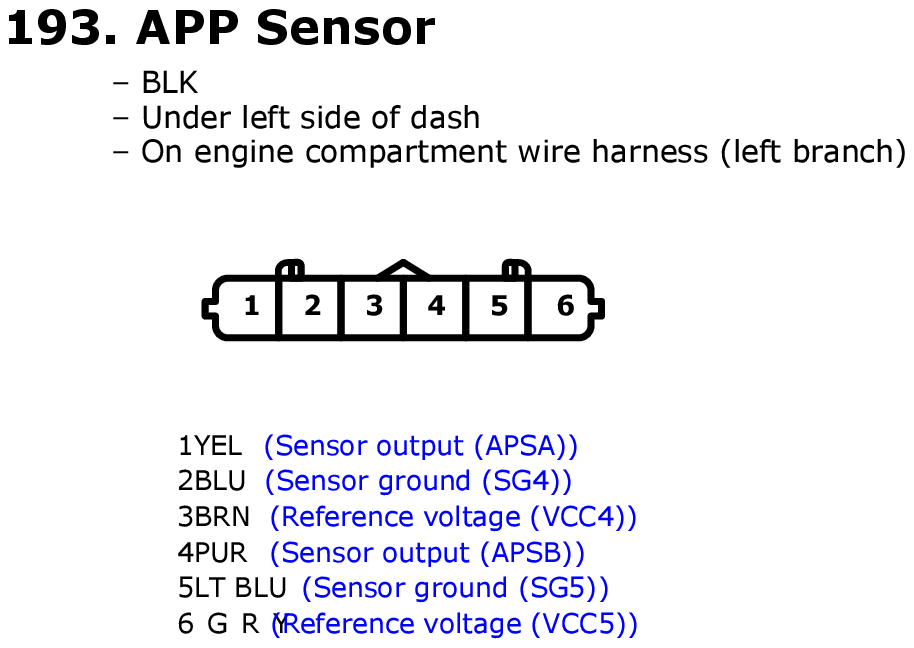

Fig 15: APP Sensor Connector End View
GHHW8520Courtesy of AMERICAN HONDA MOTOR CO., INC.

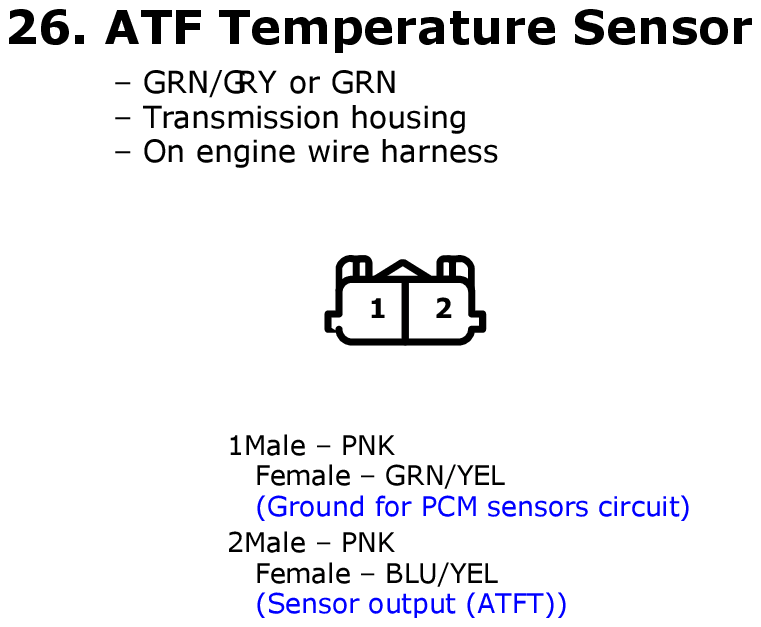

Fig 16: ATF Temperature Sensor Connector End View
GHHW8353Courtesy of AMERICAN HONDA MOTOR CO., INC.

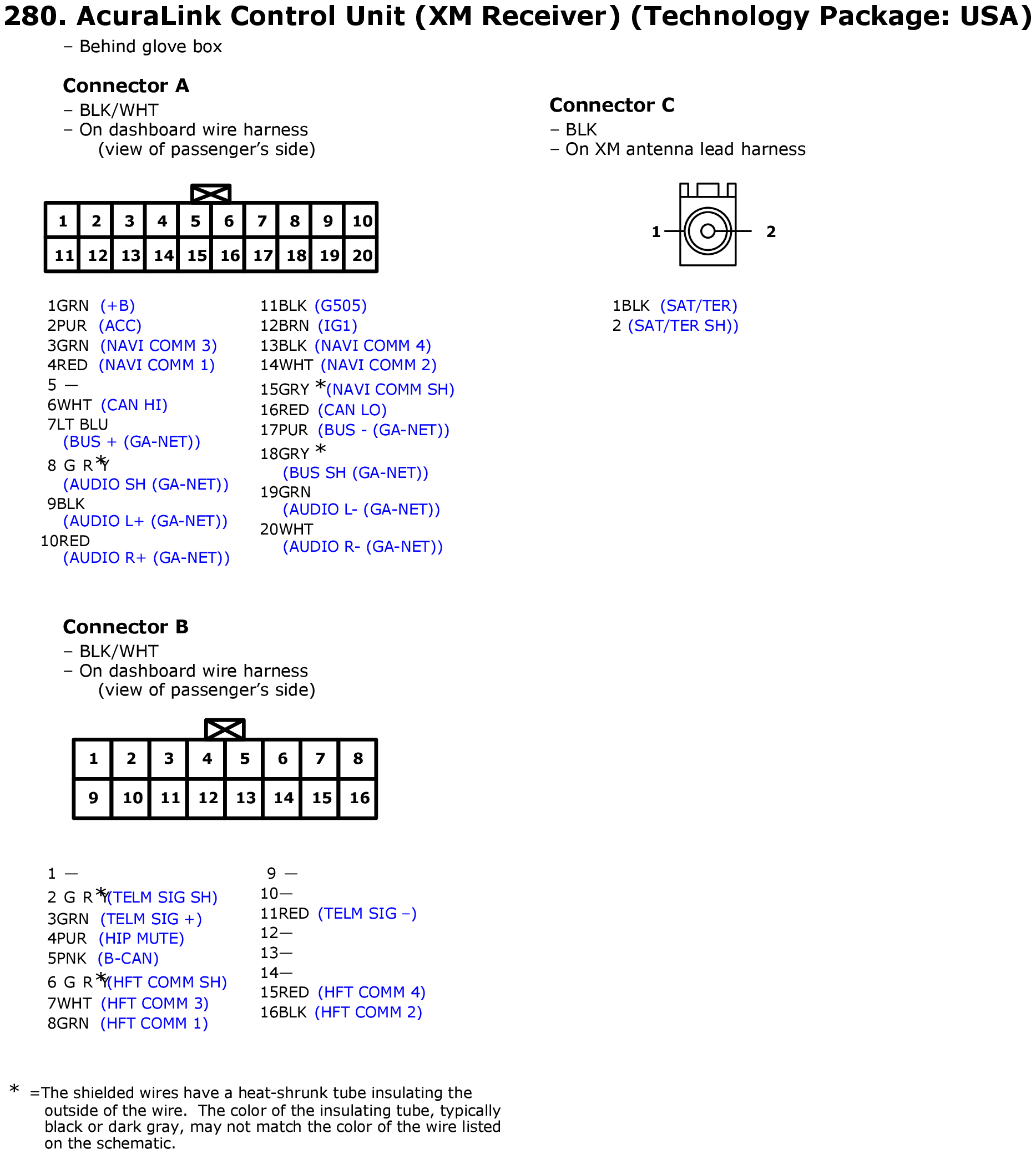

Fig 17: AcuraLink Control Unit (XM Receiver) Connector End View
GHHW8607Courtesy of AMERICAN HONDA MOTOR CO., INC.

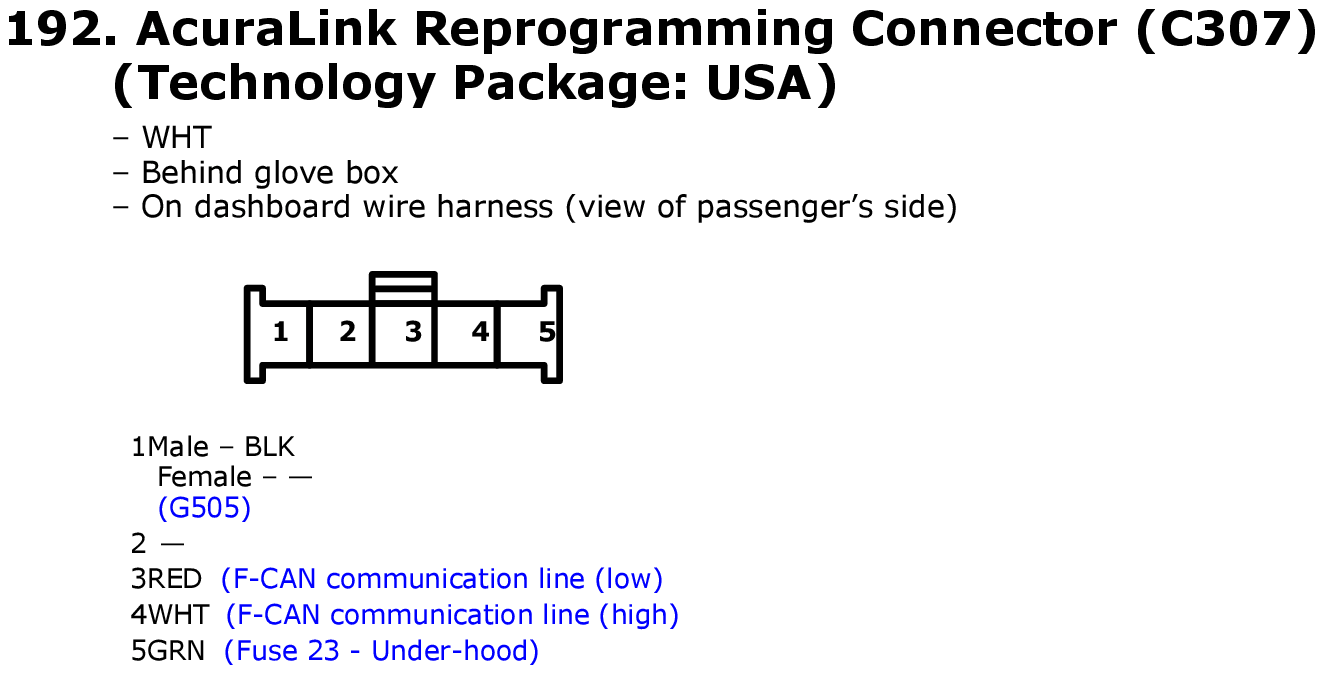

Fig 18: AcuraLink Reprogramming (C307) Connector End View
GHHW8519Courtesy of AMERICAN HONDA MOTOR CO., INC.

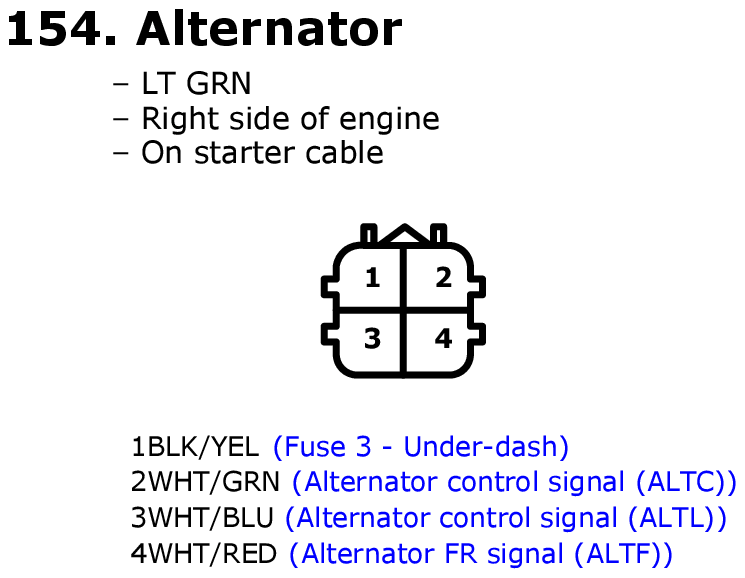

Fig 19: Alternator Connector End View
GHHW8481Courtesy of AMERICAN HONDA MOTOR CO., INC.

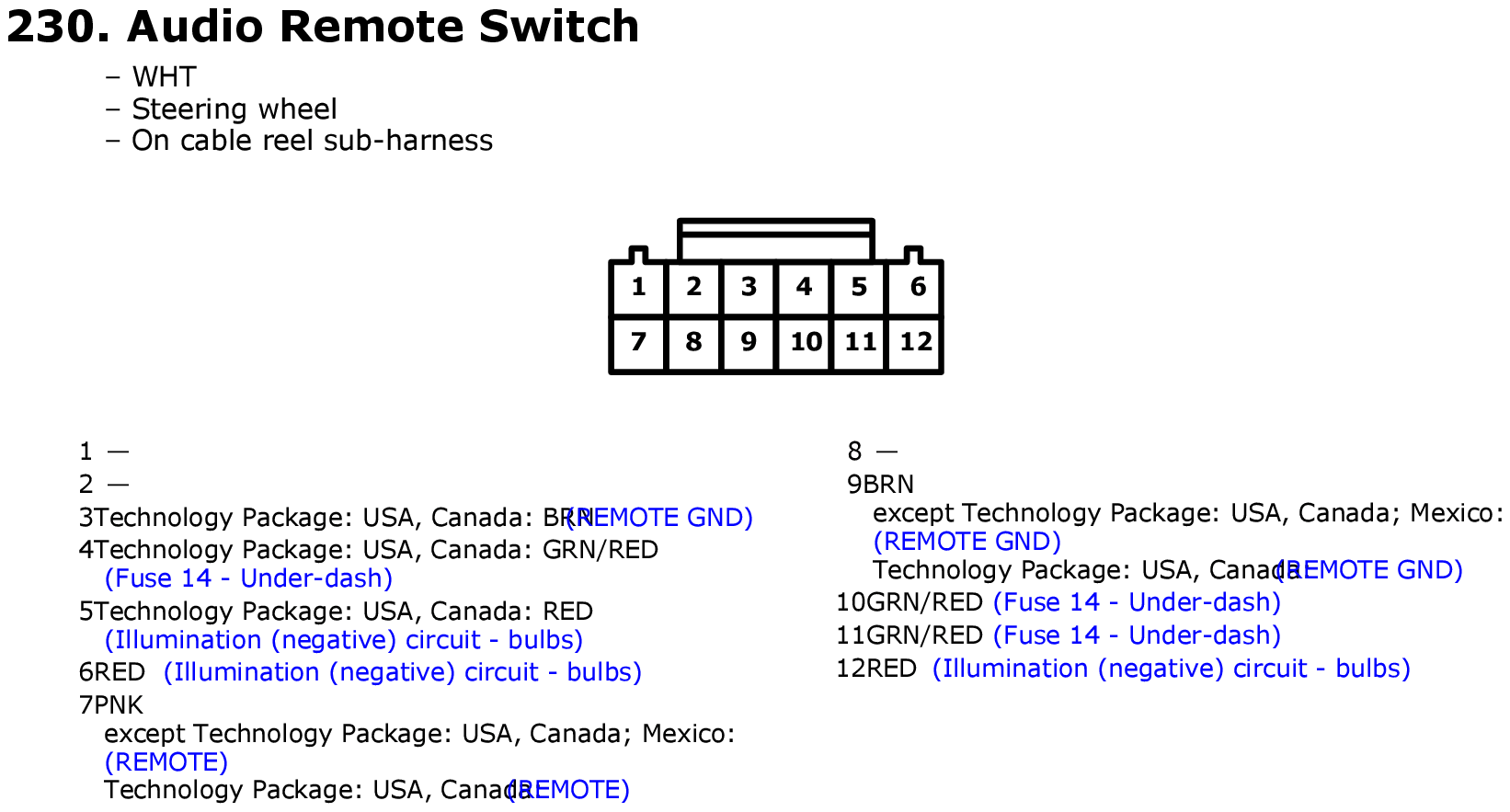

Fig 20: Audio Remote Switch Connector End View
GHHW8557Courtesy of AMERICAN HONDA MOTOR CO., INC.

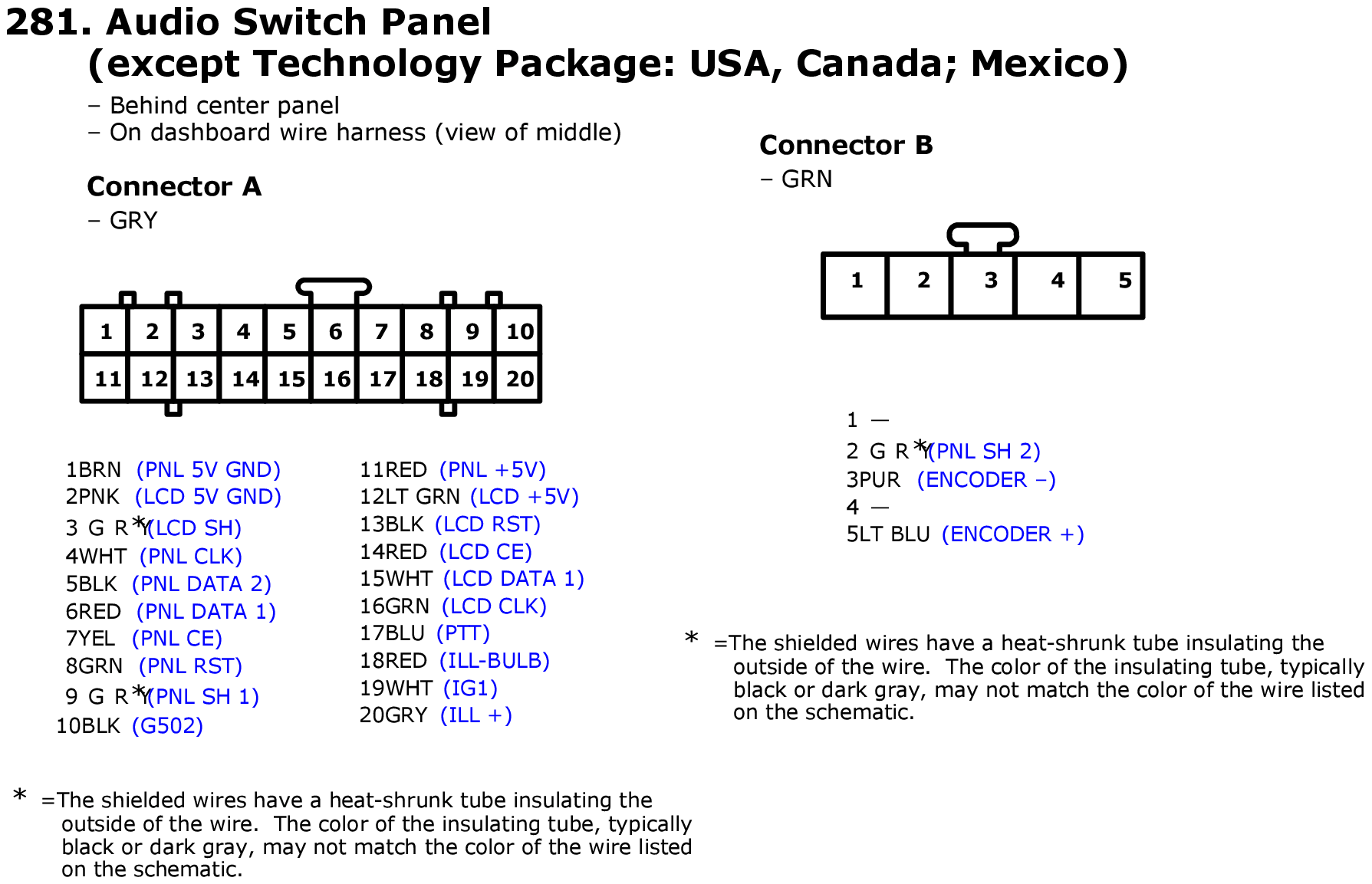

Fig 21: Audio Switch Panel Connector End View
GHHW8608Courtesy of AMERICAN HONDA MOTOR CO., INC.

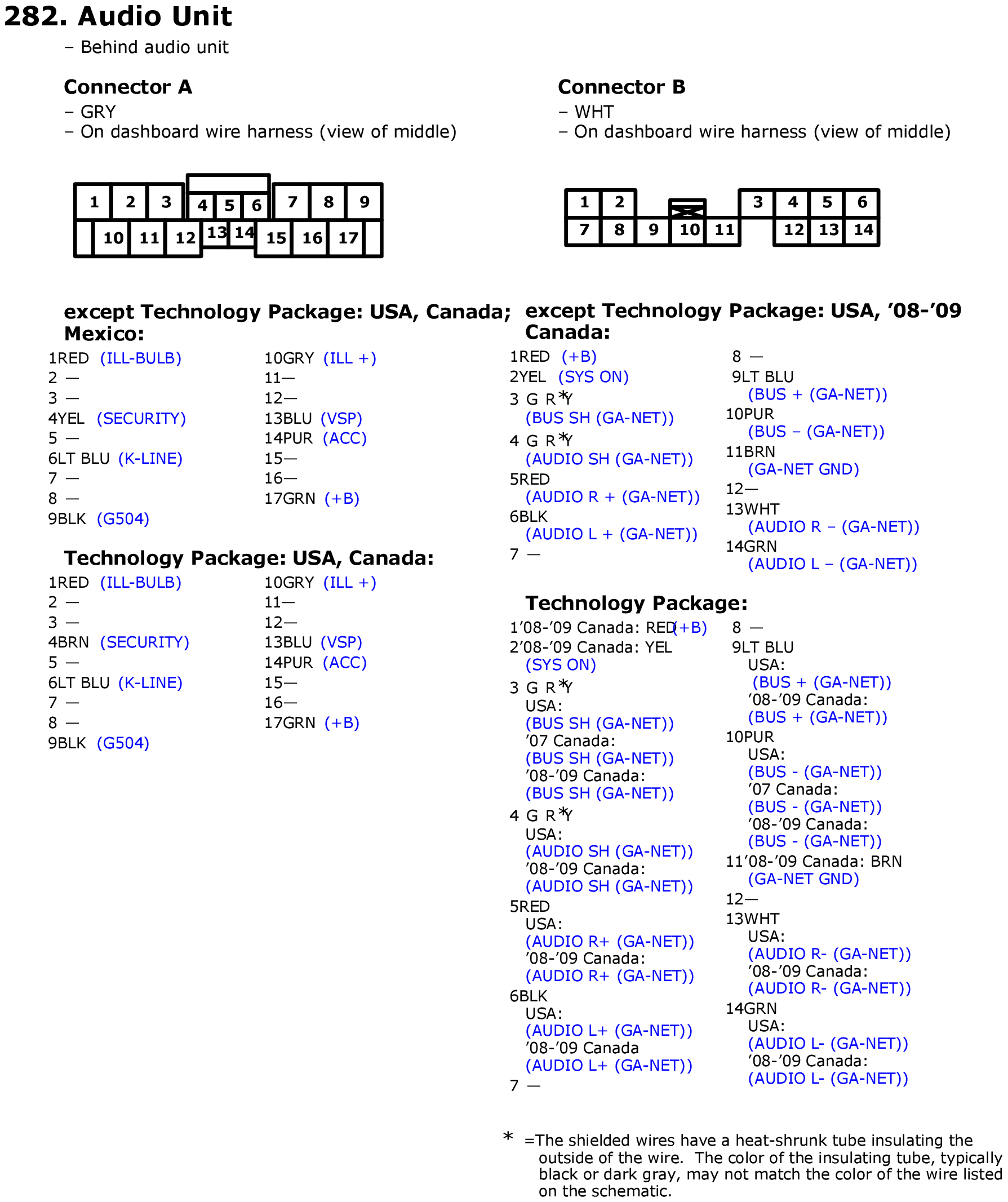

Fig 22: Audio Unit Connector End View
GHHW8609Courtesy of AMERICAN HONDA MOTOR CO., INC.

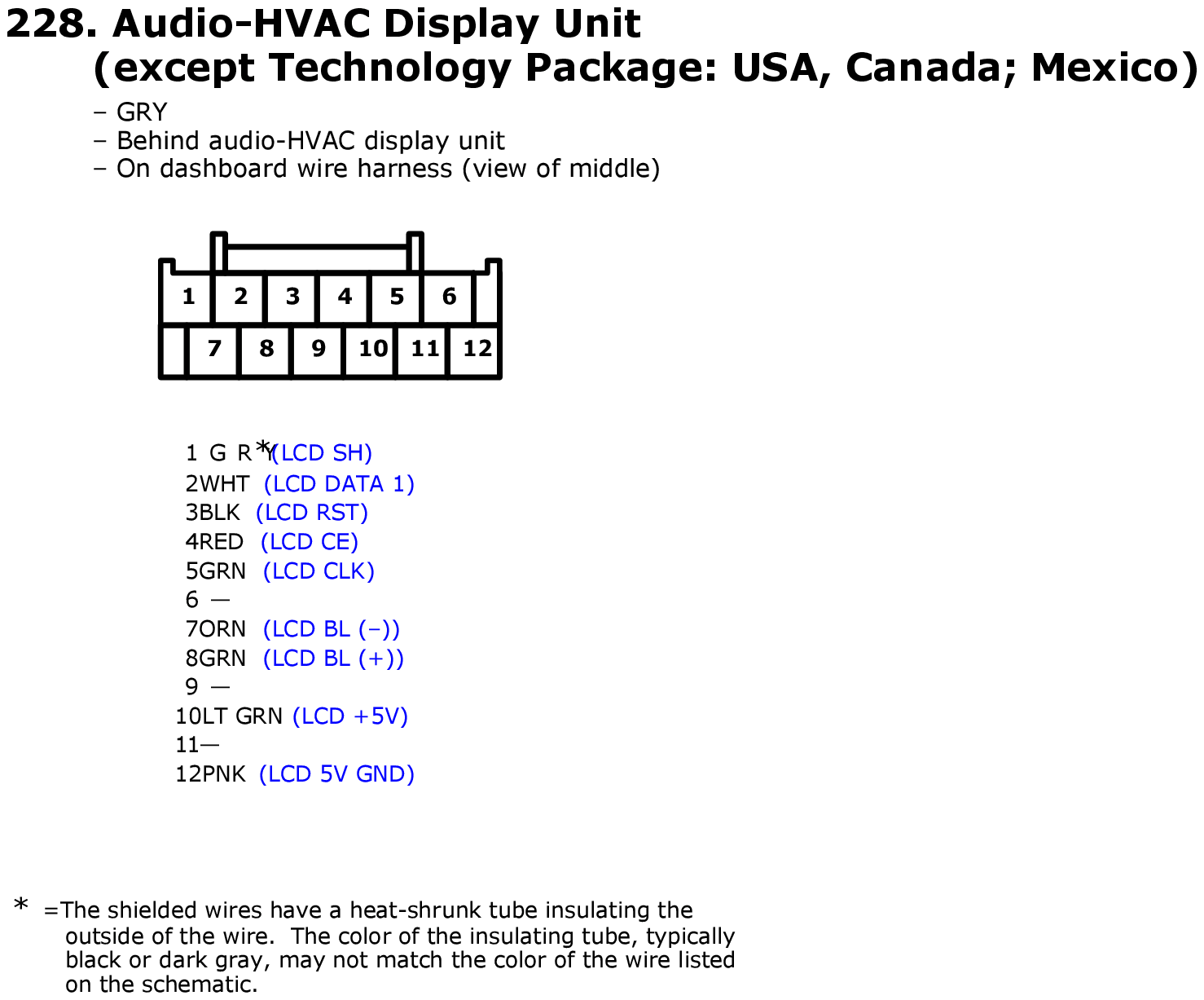

Fig 23: Audio-HVAC Display Unit Connector End View
GHHW8555Courtesy of AMERICAN HONDA MOTOR CO., INC.

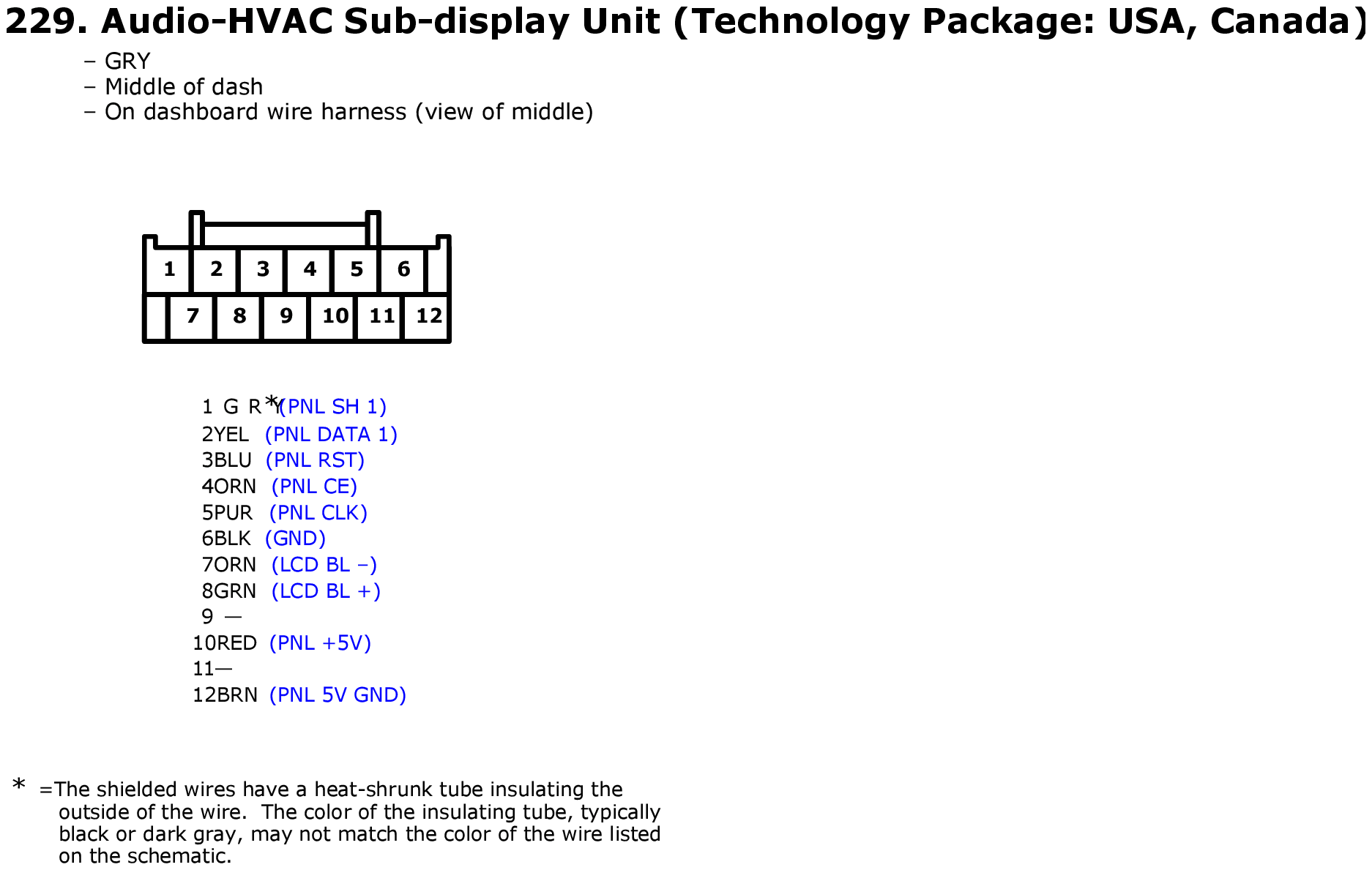

Fig 24: Audio-HVAC Sub-display Unit Connector End View
GHHW8556Courtesy of AMERICAN HONDA MOTOR CO., INC.

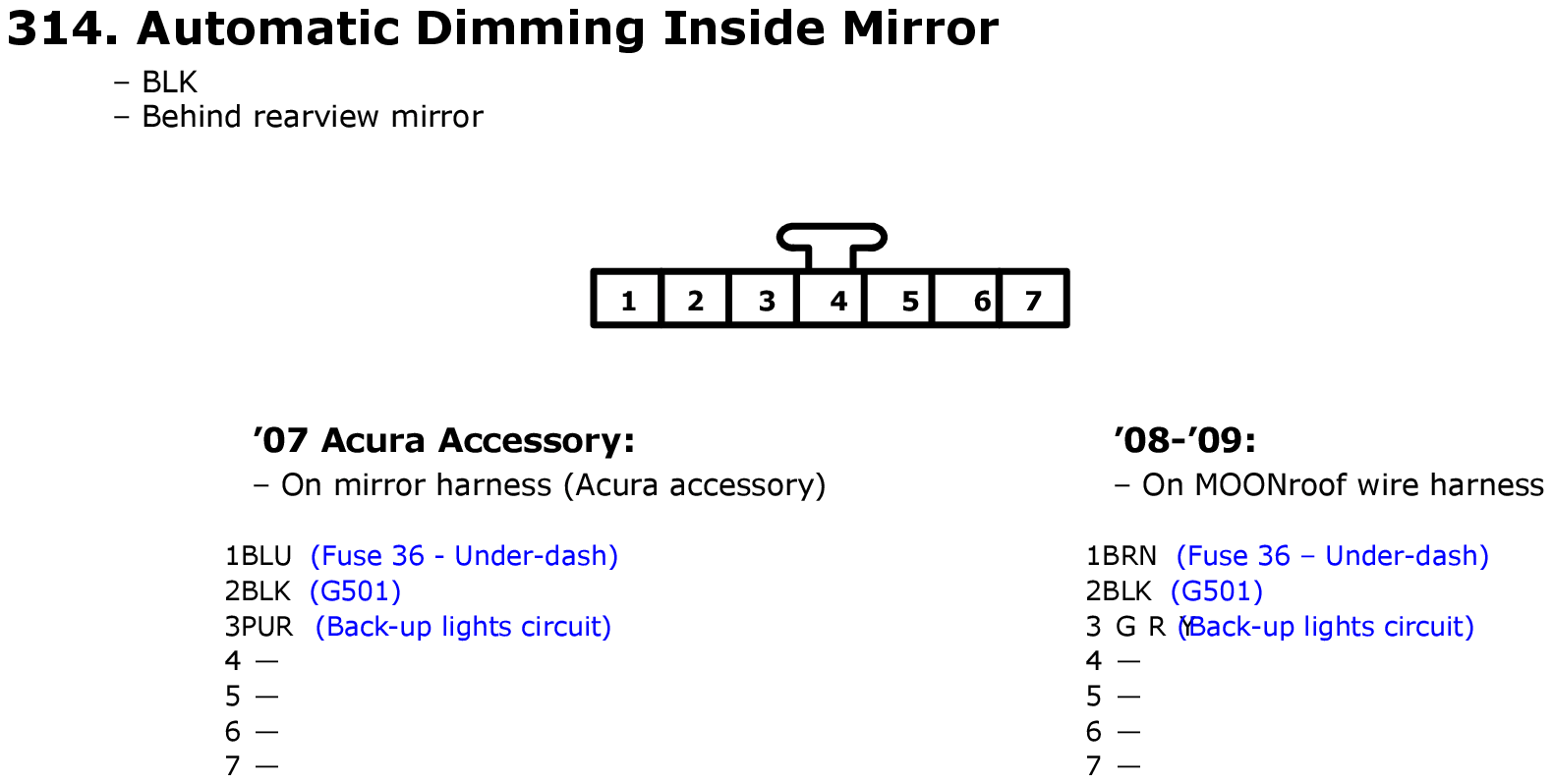

Fig 25: Automatic Dimming Inside Mirror Connector End View
GHHW8641Courtesy of AMERICAN HONDA MOTOR CO., INC.

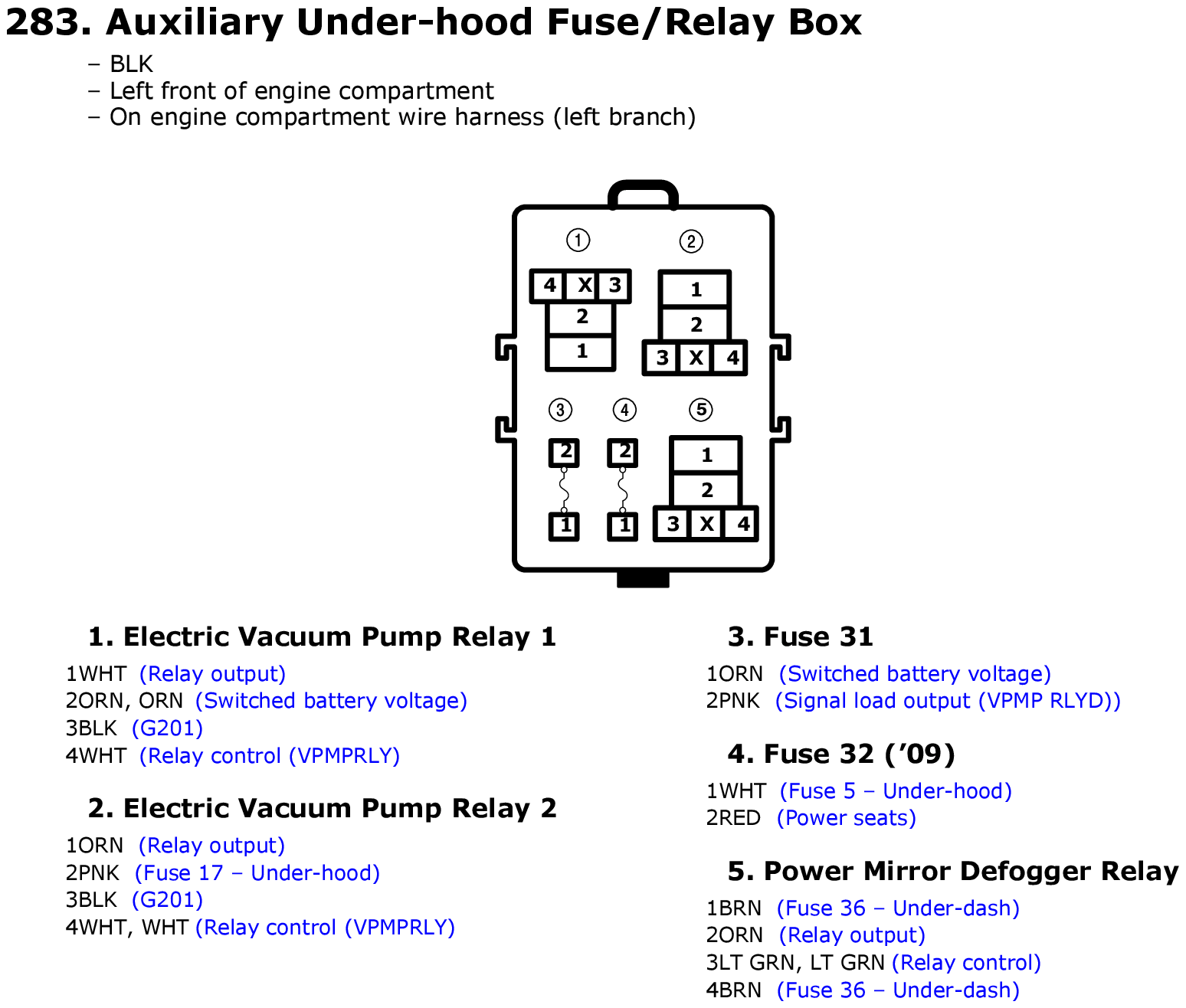

Fig 26: Auxiliary Under-hood Fuse/Relay Box Connector End View
GHHW8610Courtesy of AMERICAN HONDA MOTOR CO., INC.

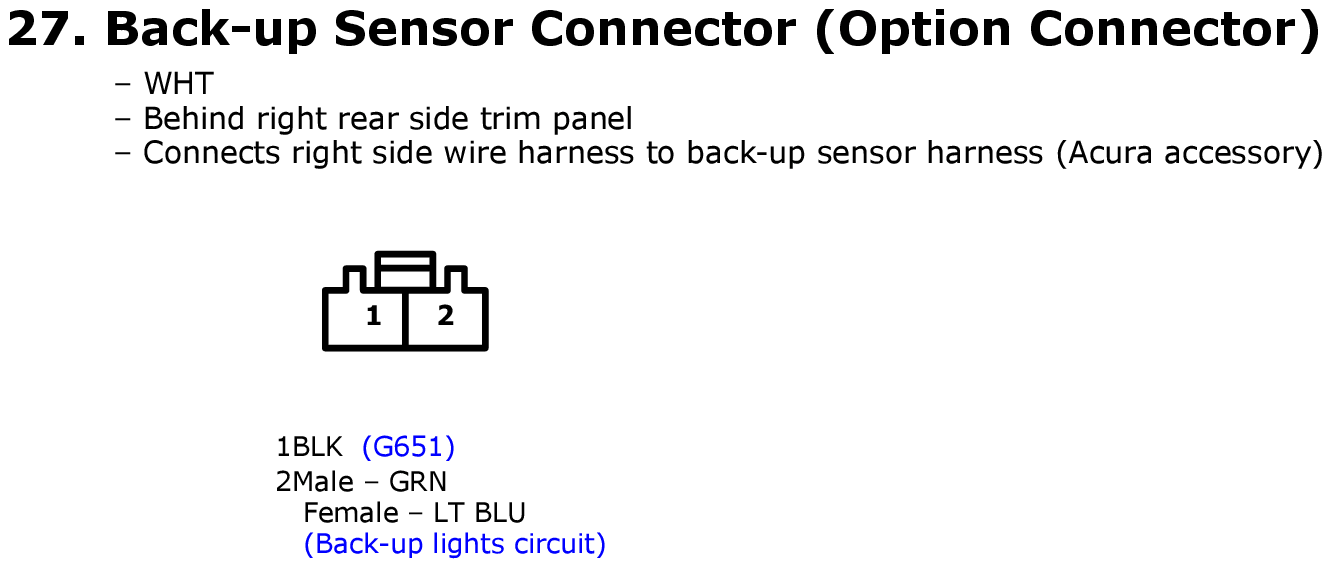

Fig 27: Back-up Sensor Connector End View
GHHW8354Courtesy of AMERICAN HONDA MOTOR CO., INC.

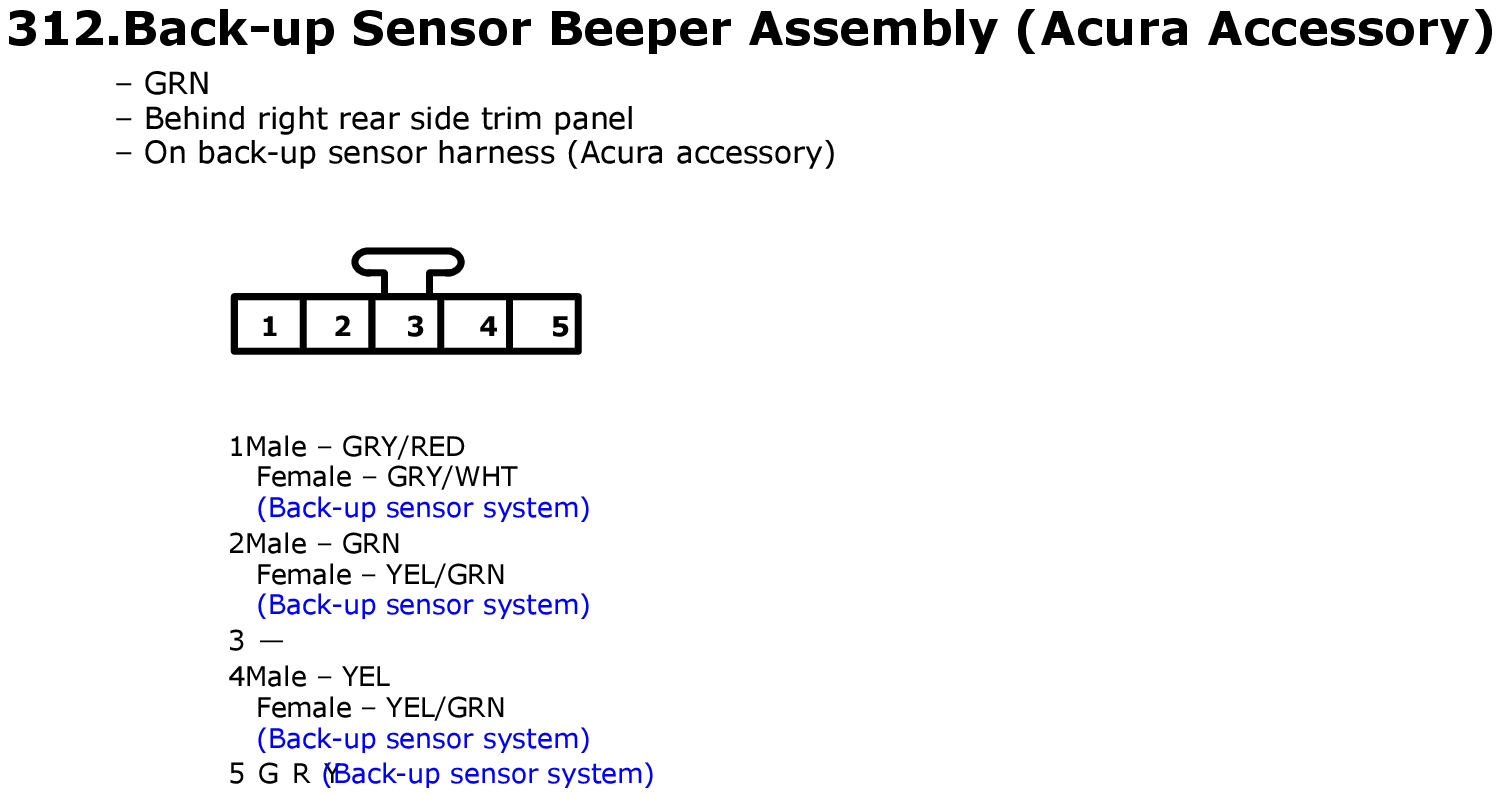

Fig 28: Back-up Sensor Beeper Assembly Connector End View
GHHW8639Courtesy of AMERICAN HONDA MOTOR CO., INC.

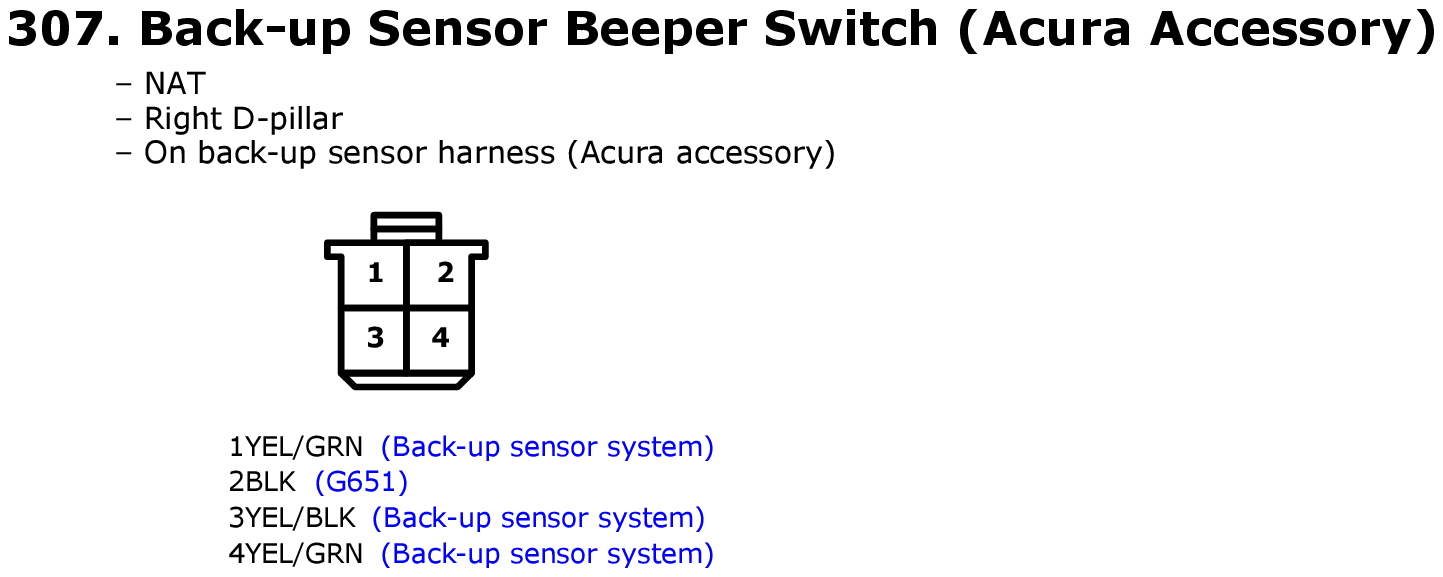

Fig 29: Back-up Sensor Beeper Switch Connector End View
GHHW8634Courtesy of AMERICAN HONDA MOTOR CO., INC.

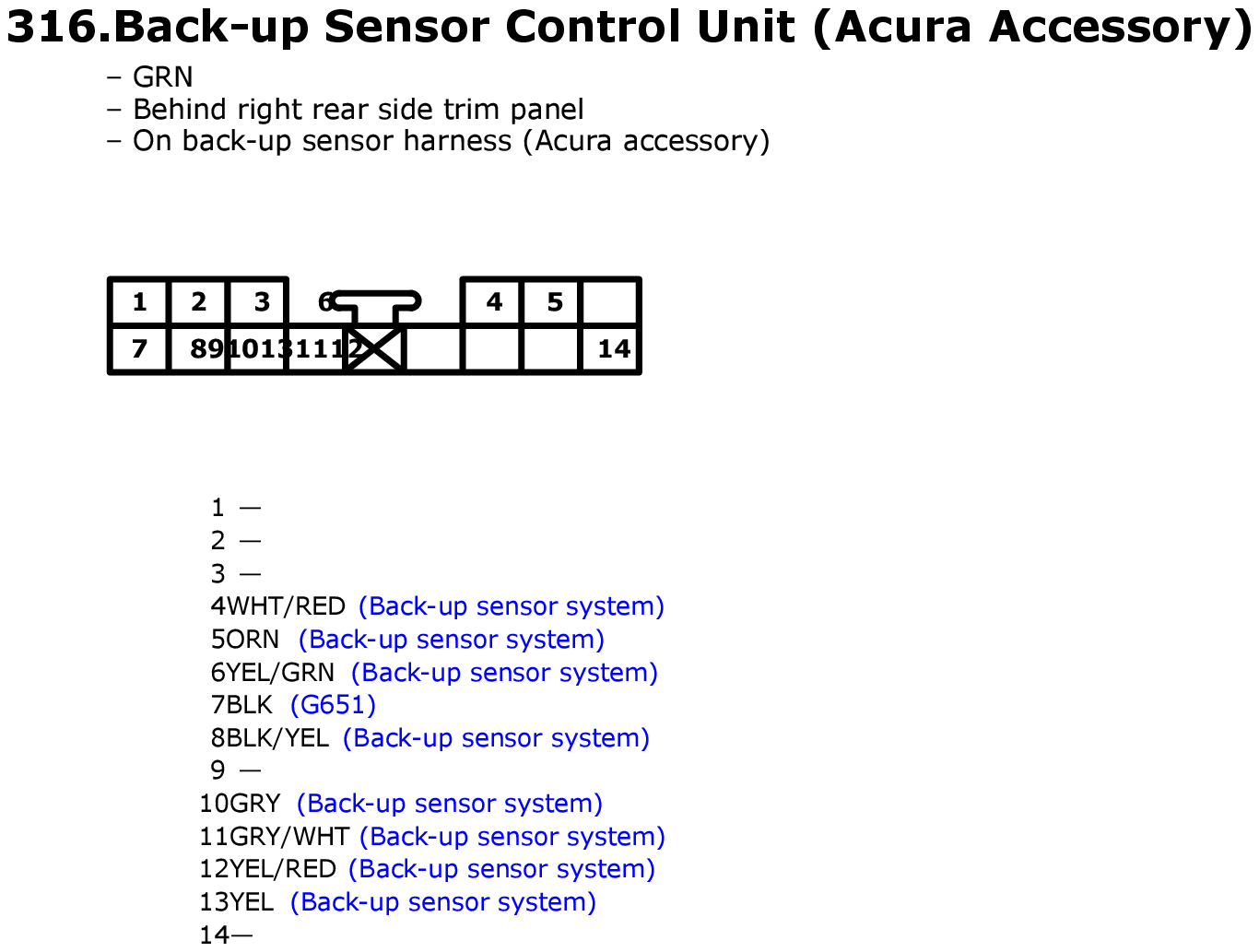

Fig 30: Back-up Sensor Control Unit Connector End View
GHHW8643Courtesy of AMERICAN HONDA MOTOR CO., INC.

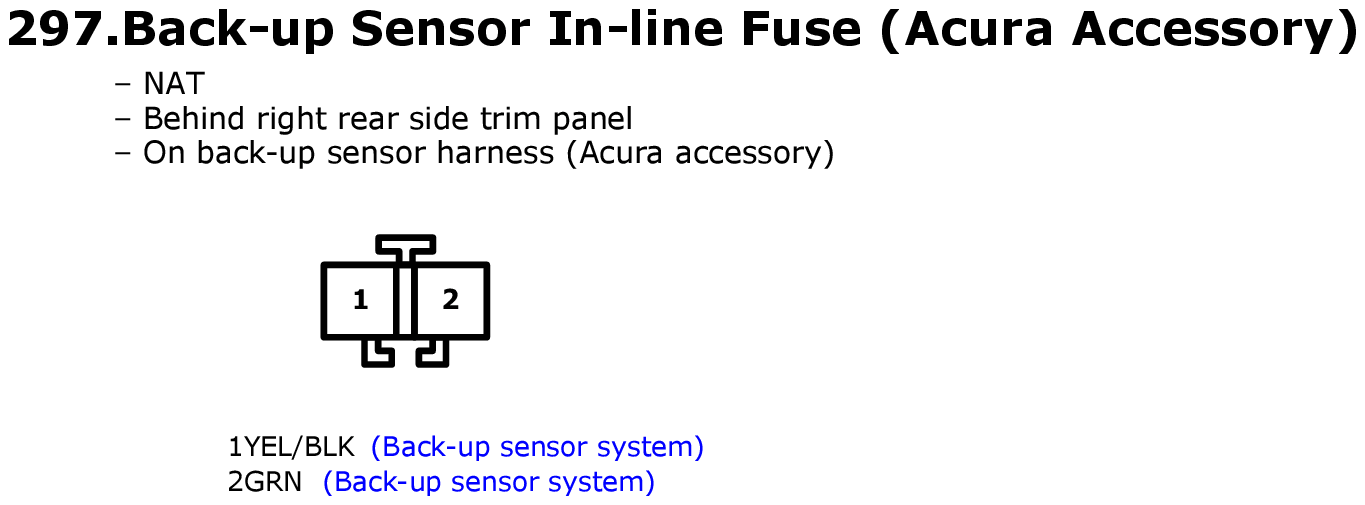

Fig 31: Back-up Sensor In-line Fuse Connector End View
GHHW8624Courtesy of AMERICAN HONDA MOTOR CO., INC.

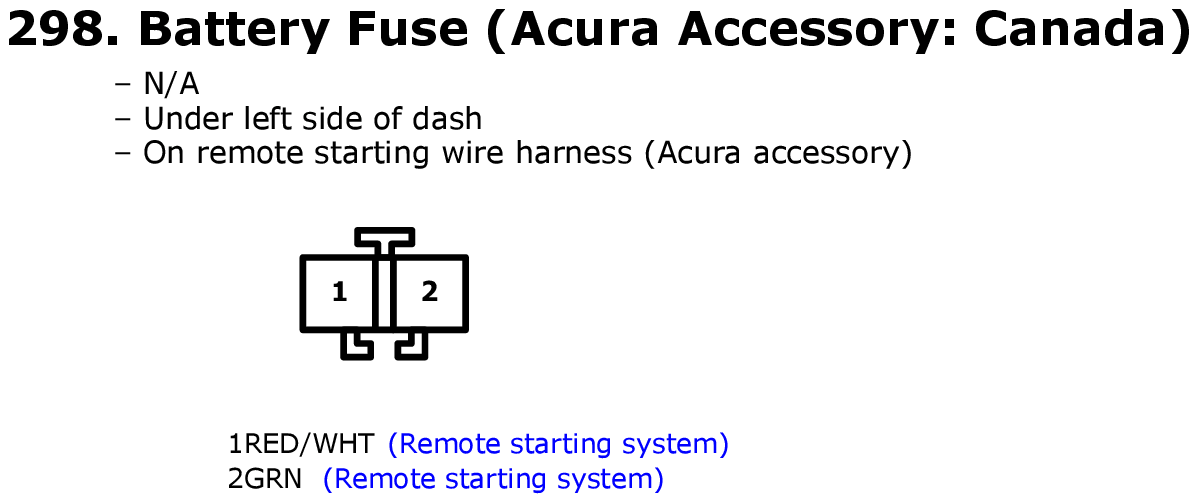

Fig 32: Battery Fuse Connector End View
GHHW8625Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 33: Blower Motor Connector End View
GHHW8355Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 34: Blower Power Transistor Connector End View
GHHW8482Courtesy of AMERICAN HONDA MOTOR CO., INC.

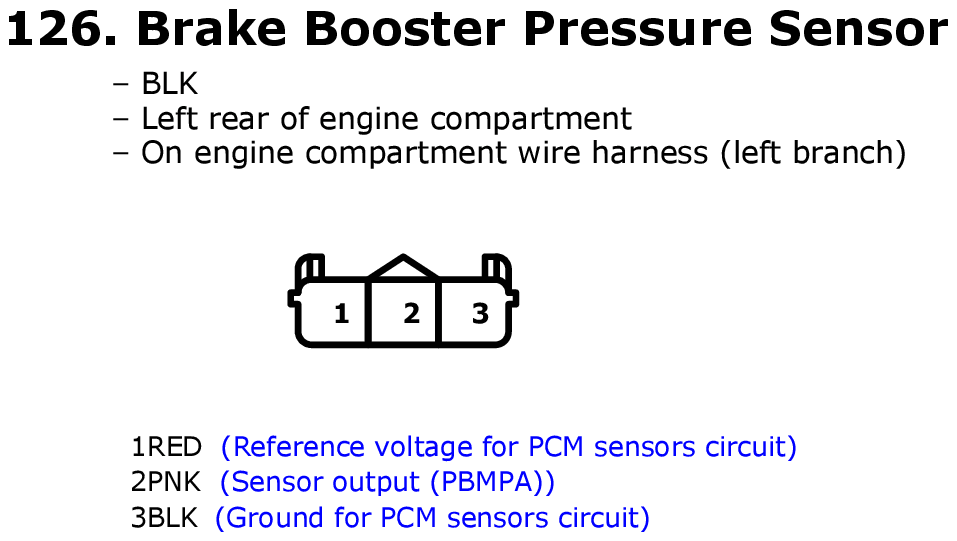

Fig 35: Brake Booster Pressure Sensor Connector End View
GHHW8453Courtesy of AMERICAN HONDA MOTOR CO., INC.

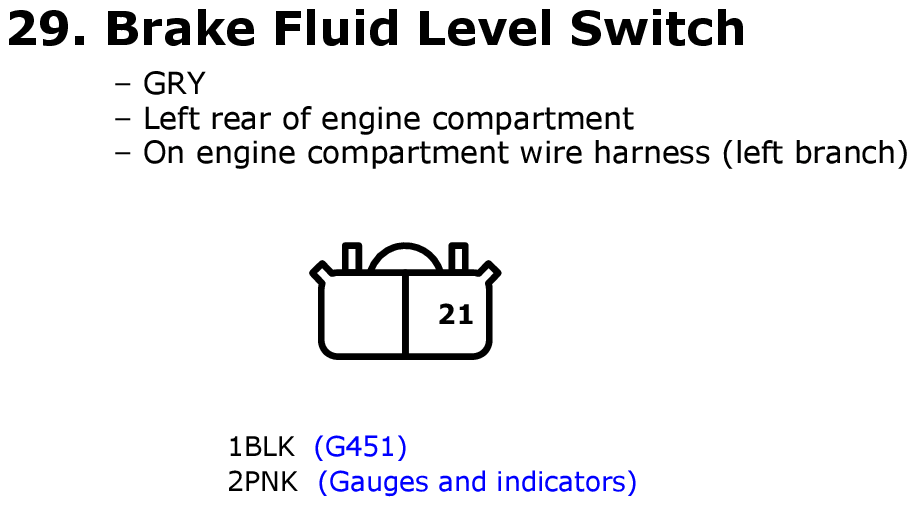

Fig 36: Brake Fluid Level Switch Connector End View
GHHW8356Courtesy of AMERICAN HONDA MOTOR CO., INC.

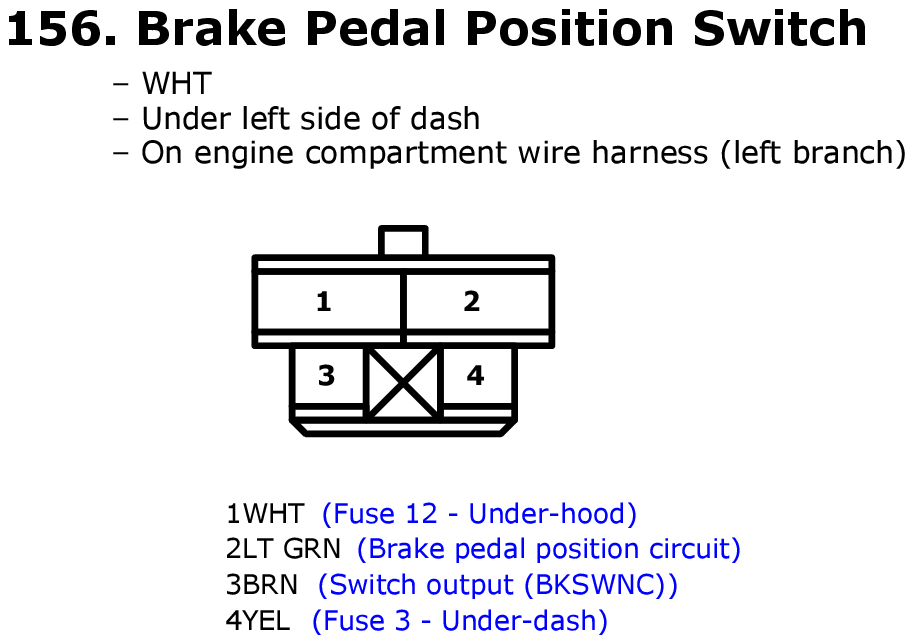

Fig 37: Brake Pedal Position Switch Connector End View
GHHW8483Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 38: C101 Connector End View
GHHW8347Courtesy of AMERICAN HONDA MOTOR CO., INC.

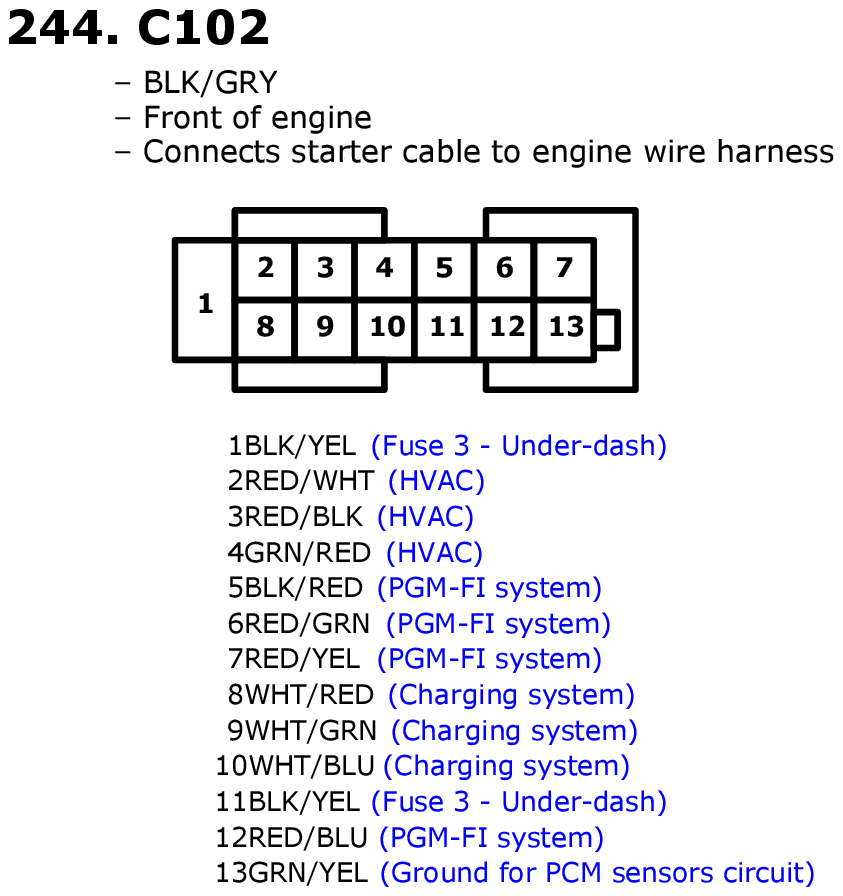

Fig 39: C102 Connector End View
GHHW8571Courtesy of AMERICAN HONDA MOTOR CO., INC.

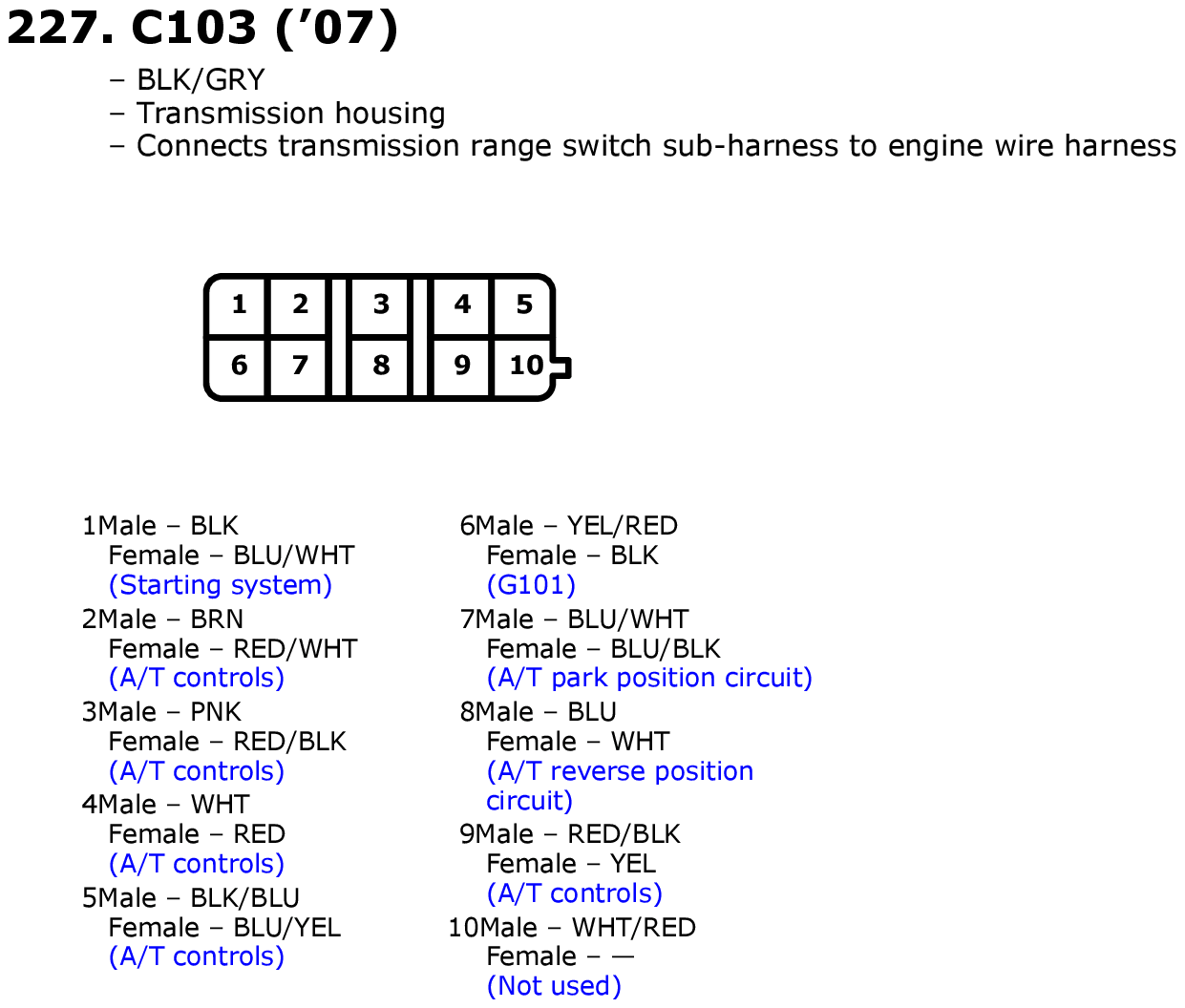

Fig 40: C103 Connector End View
GHHW8554Courtesy of AMERICAN HONDA MOTOR CO., INC.

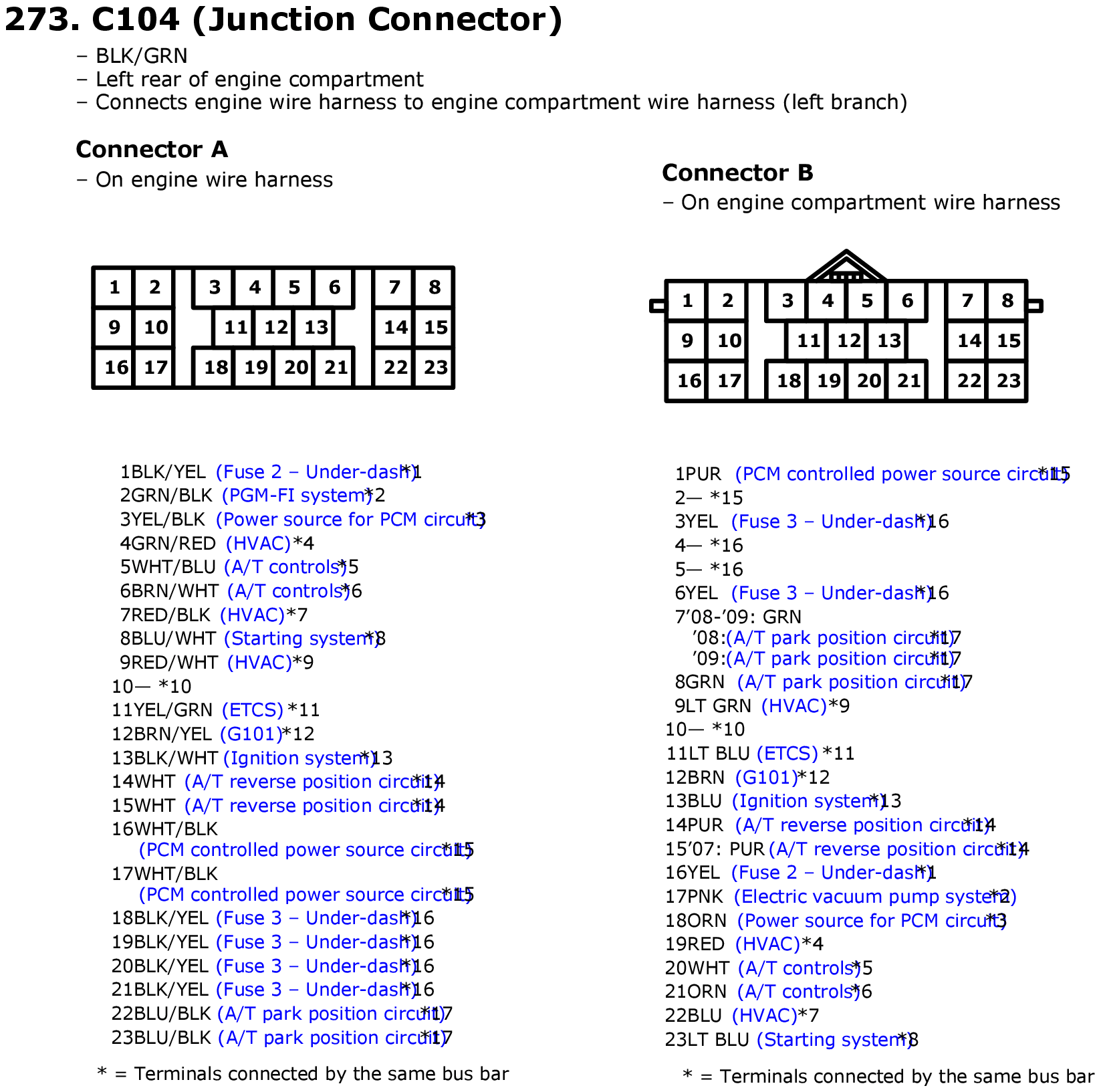

Fig 41: C104 (Junction Connector) Connector End View
GHHW8600Courtesy of AMERICAN HONDA MOTOR CO., INC.

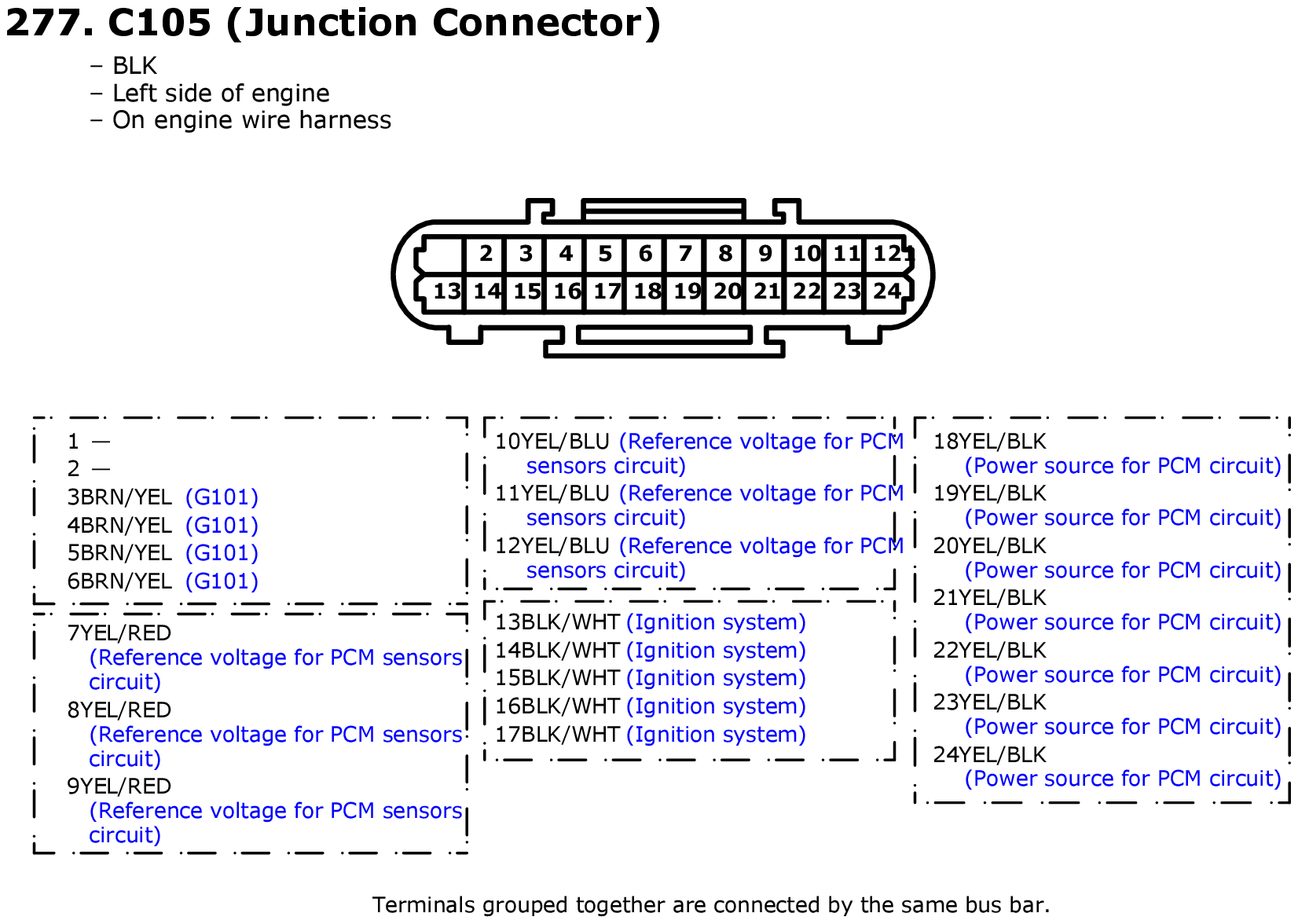

Fig 42: C105 (Junction Connector) Connector End View
GHHW8604Courtesy of AMERICAN HONDA MOTOR CO., INC.

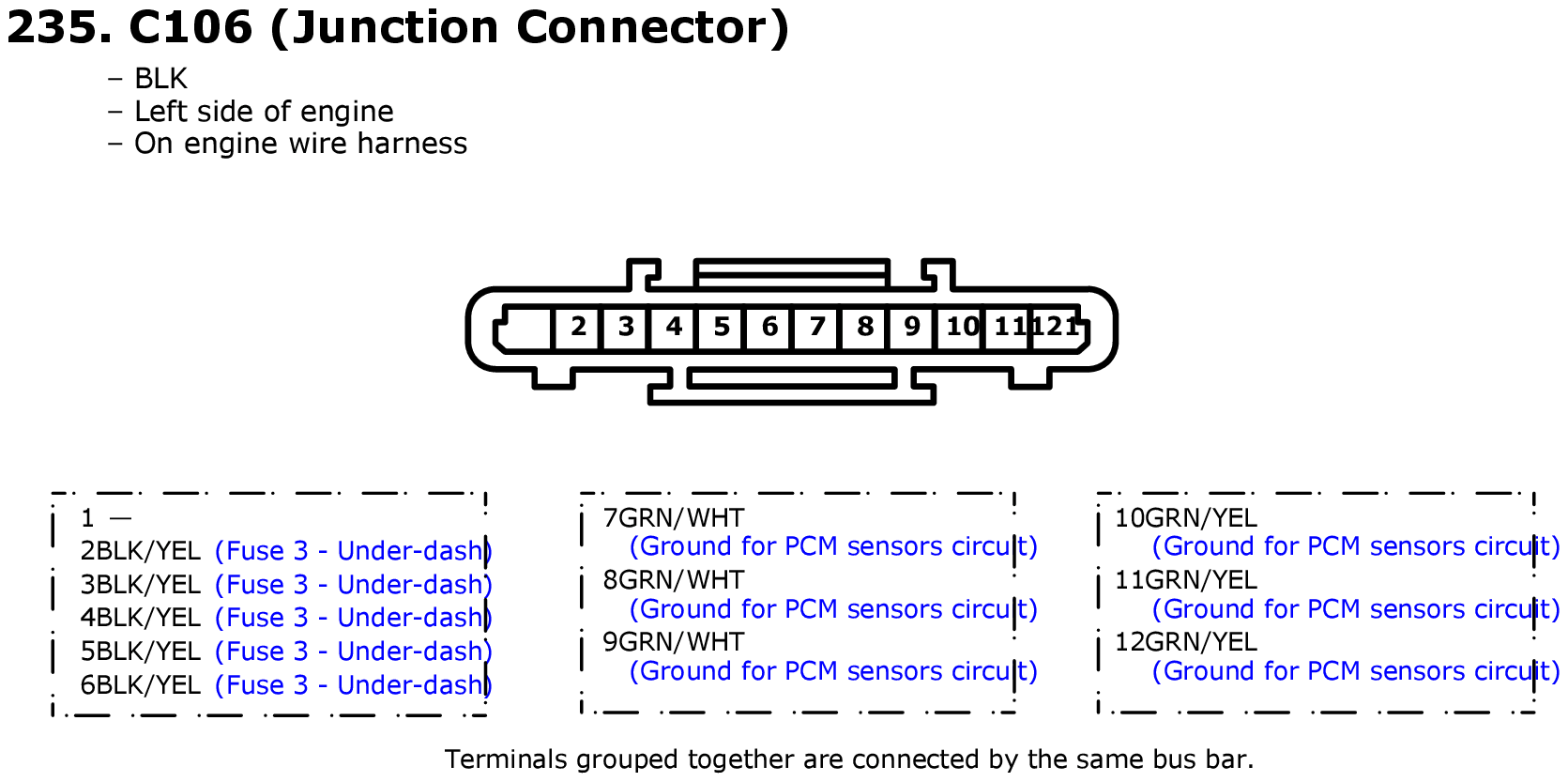

Fig 43: C106 (Junction Connector) Connector End View
GHHW8562Courtesy of AMERICAN HONDA MOTOR CO., INC.

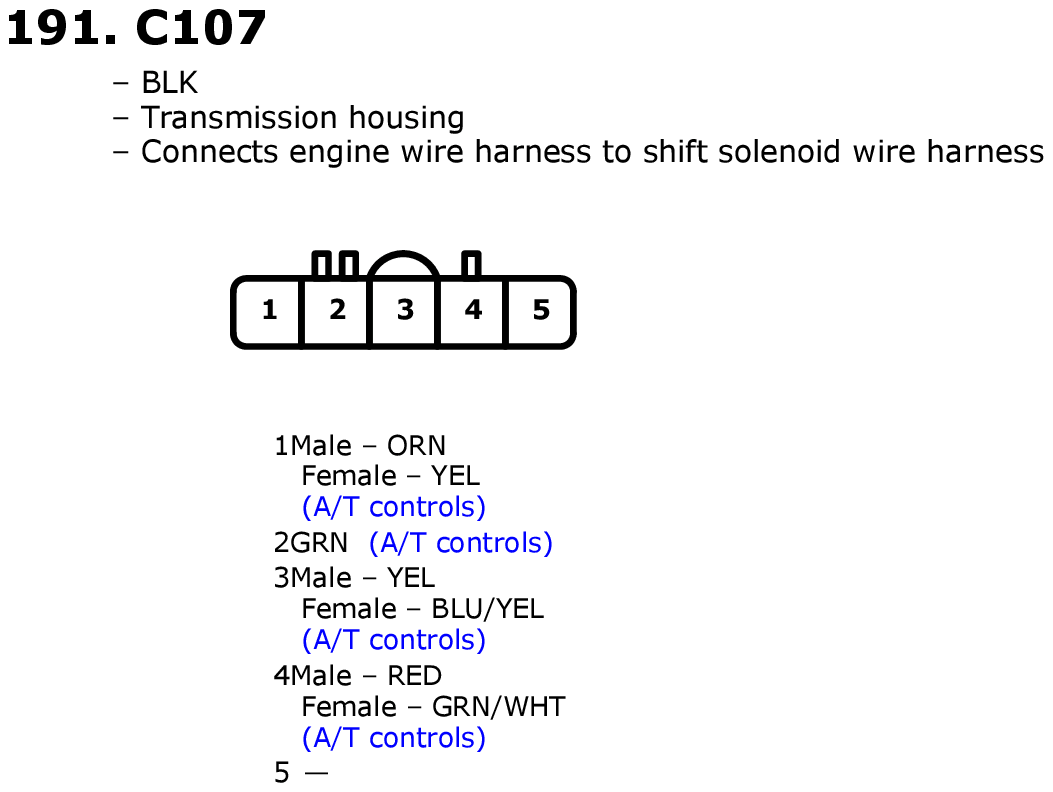

Fig 44: C107 Connector End View
GHHW8518Courtesy of AMERICAN HONDA MOTOR CO., INC.

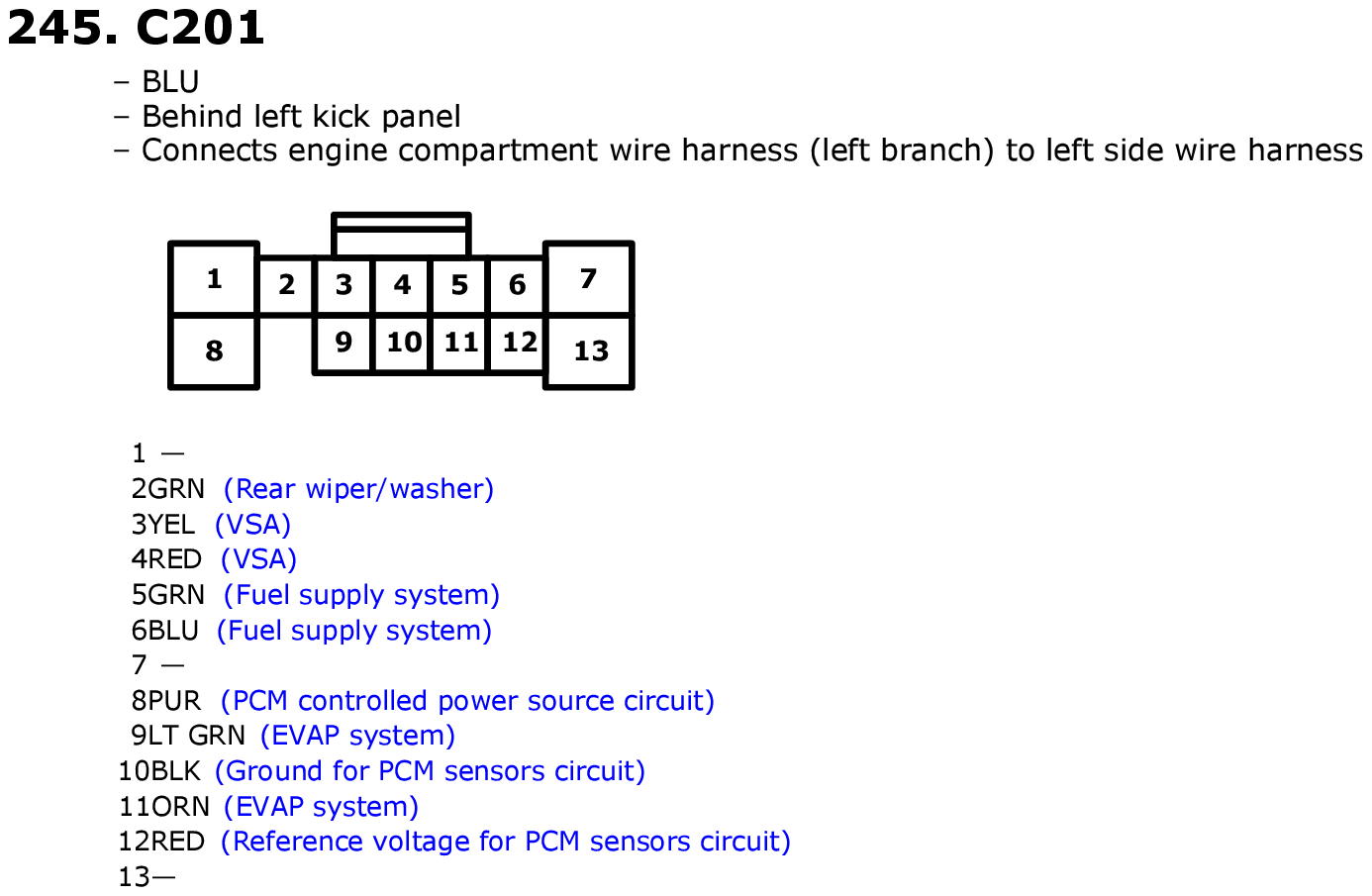

Fig 45: C201 Connector End View
GHHW8572Courtesy of AMERICAN HONDA MOTOR CO., INC.

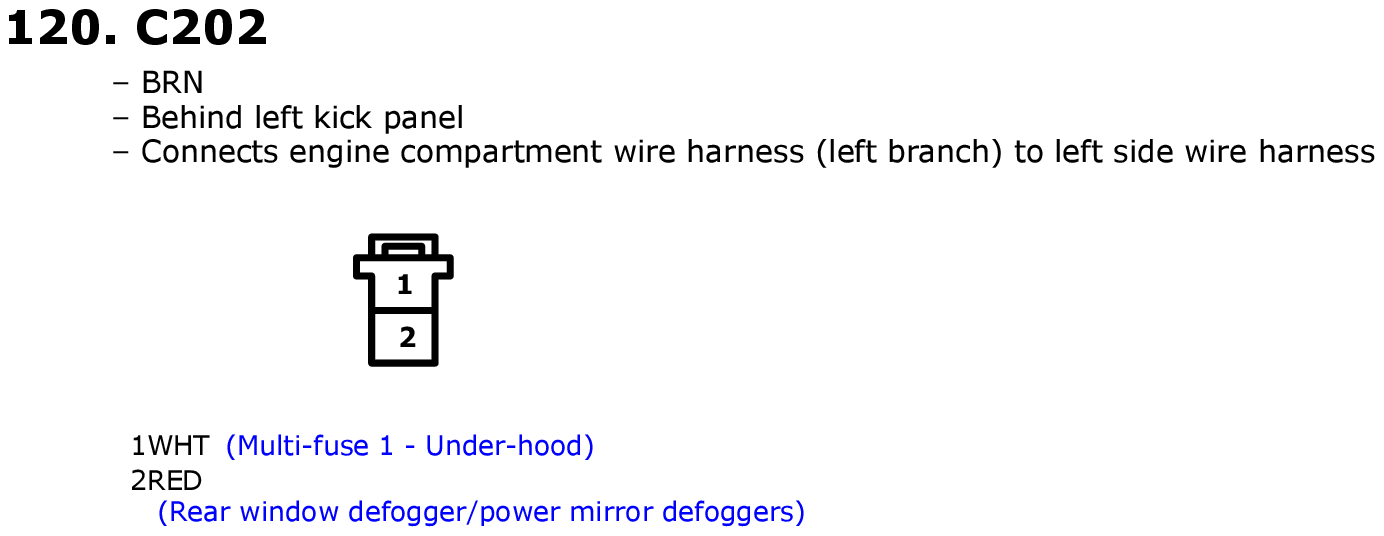

Fig 46: C202 Connector End View
GHHW8447Courtesy of AMERICAN HONDA MOTOR CO., INC.

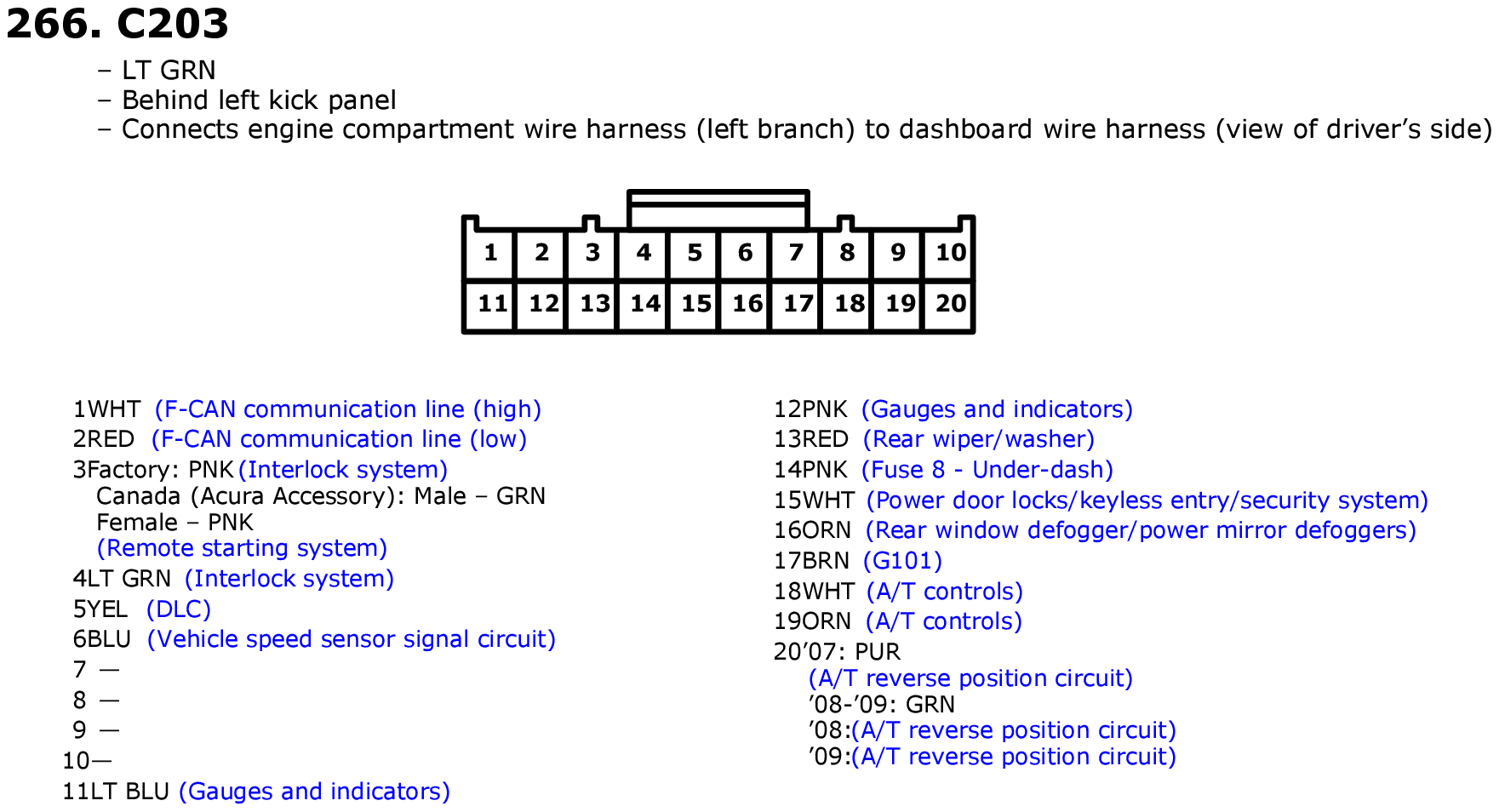

Fig 47: C203 Connector End View
GHHW8593Courtesy of AMERICAN HONDA MOTOR CO., INC.

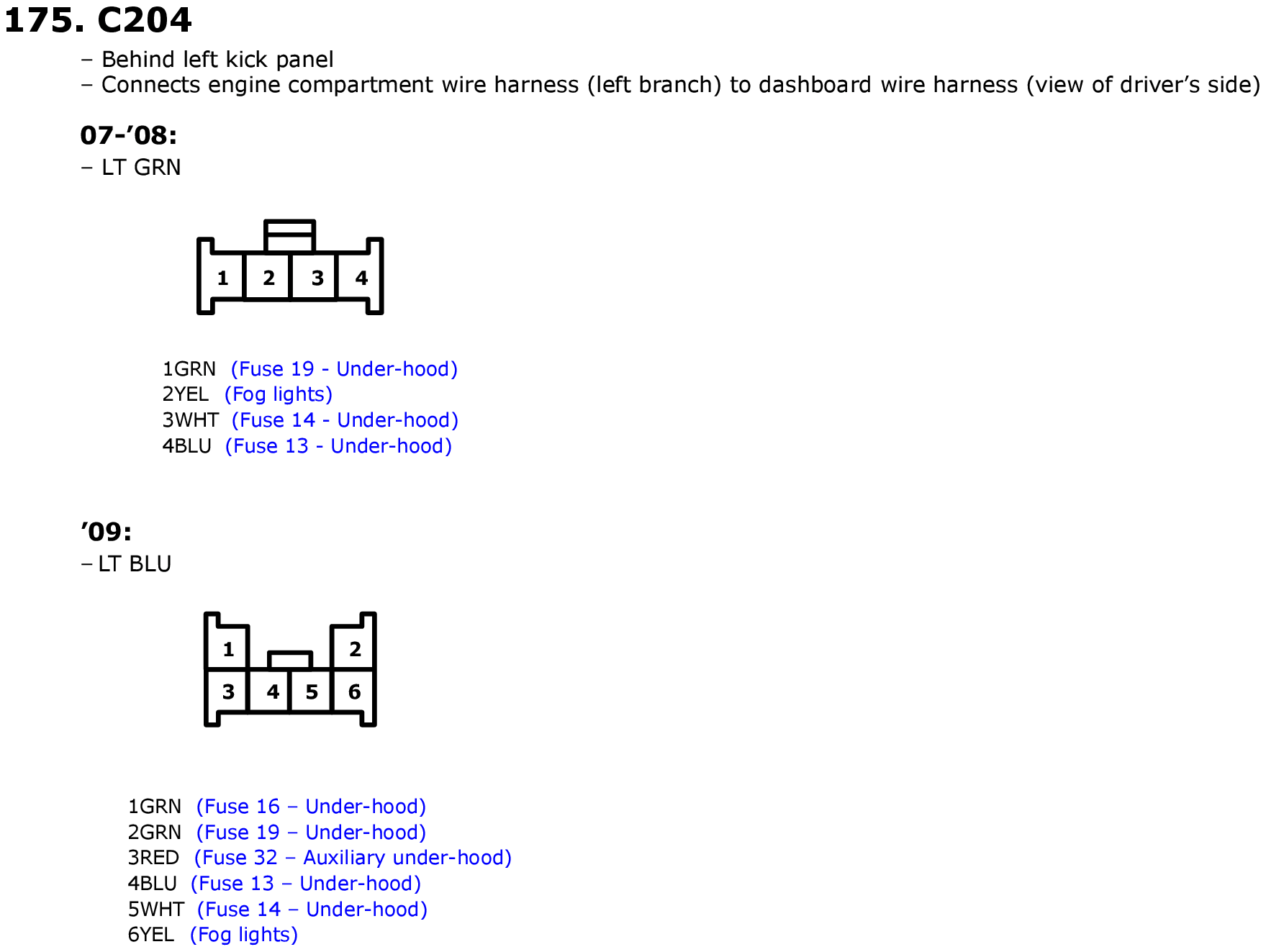

Fig 48: C204 Connector End View
GHHW8502Courtesy of AMERICAN HONDA MOTOR CO., INC.

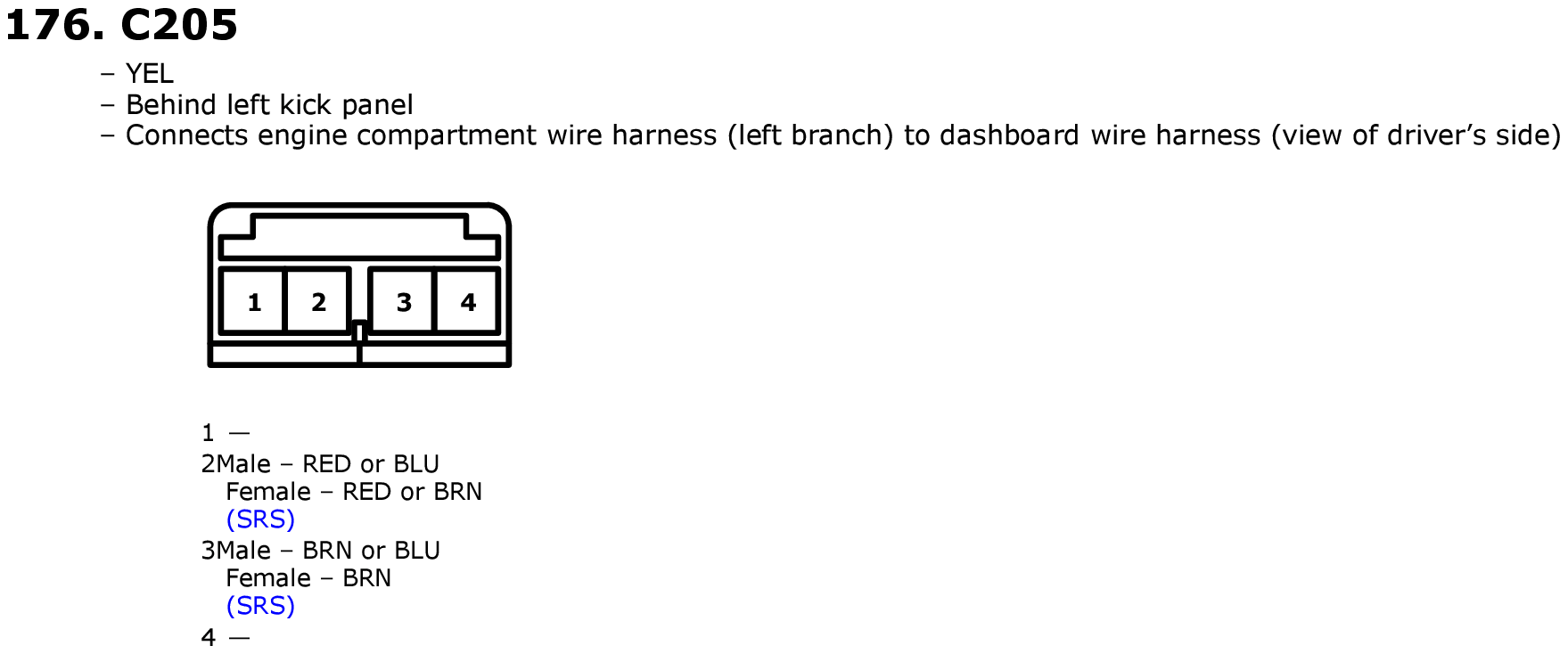

Fig 49: C205 Connector End View
GHHW8503Courtesy of AMERICAN HONDA MOTOR CO., INC.

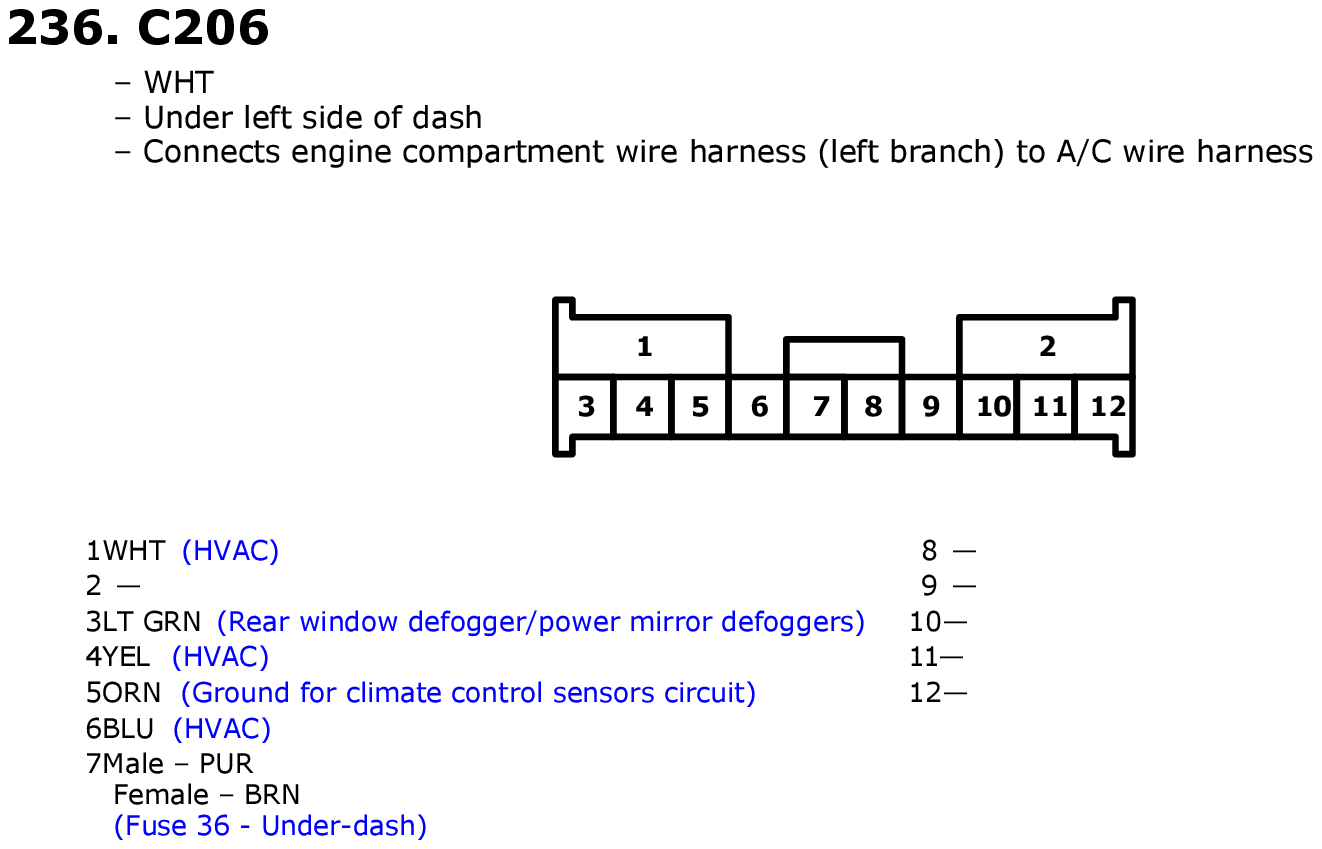

Fig 50: C206 Connector End View
GHHW8563Courtesy of AMERICAN HONDA MOTOR CO., INC.

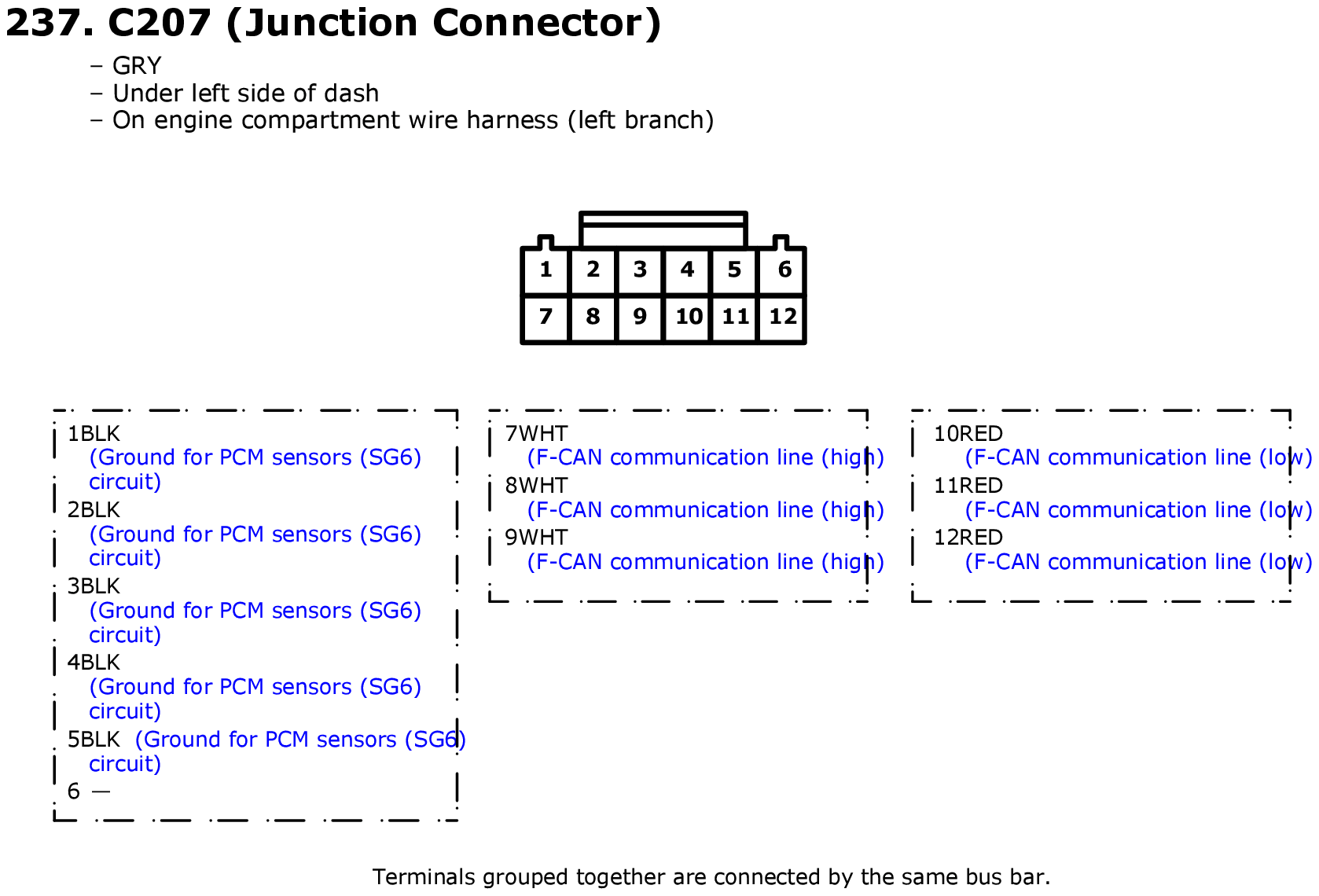

Fig 51: C207 (Junction Connector) Connector End View
GHHW8564Courtesy of AMERICAN HONDA MOTOR CO., INC.

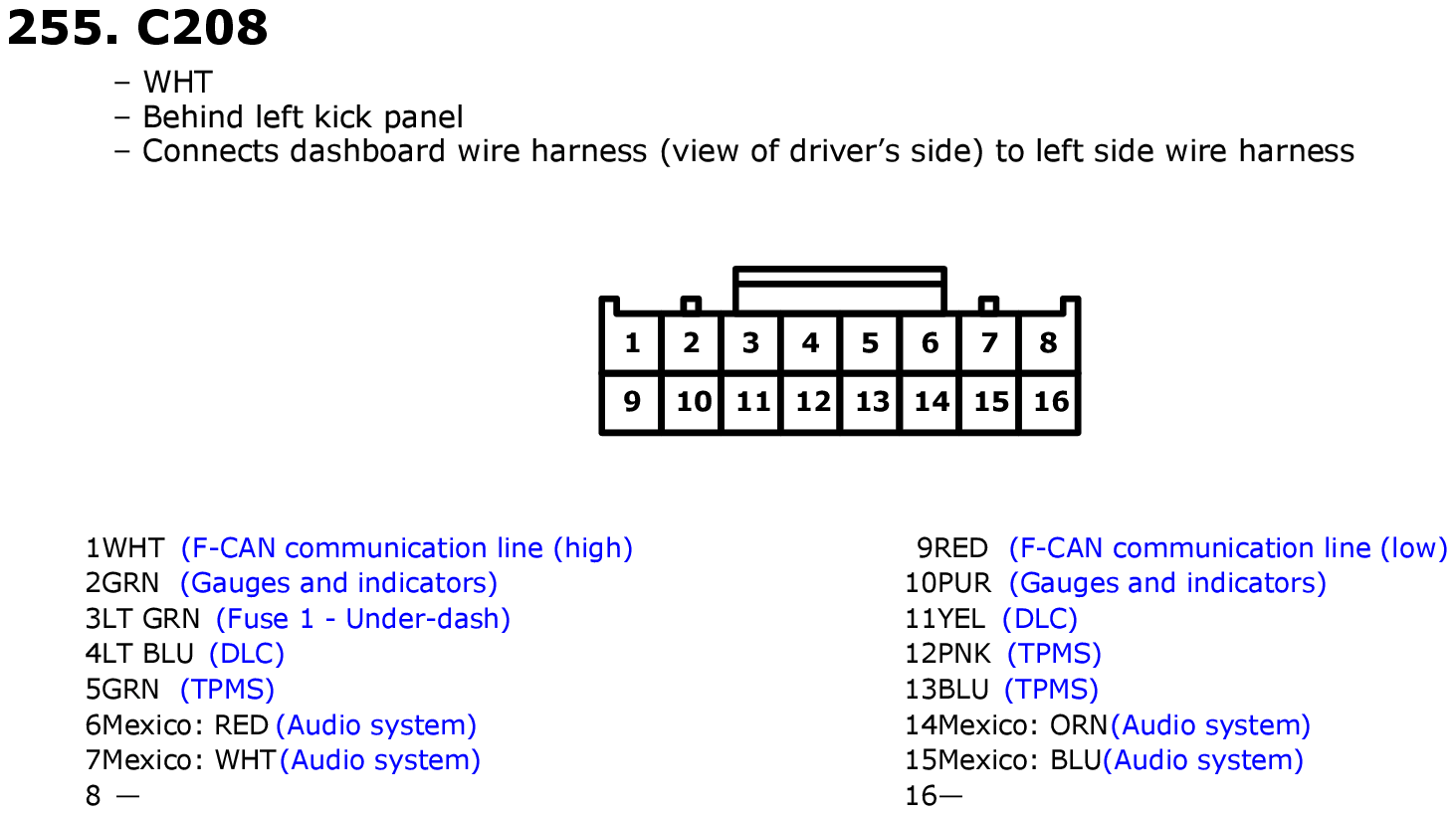

Fig 52: C208 Connector End View
GHHW8582Courtesy of AMERICAN HONDA MOTOR CO., INC.

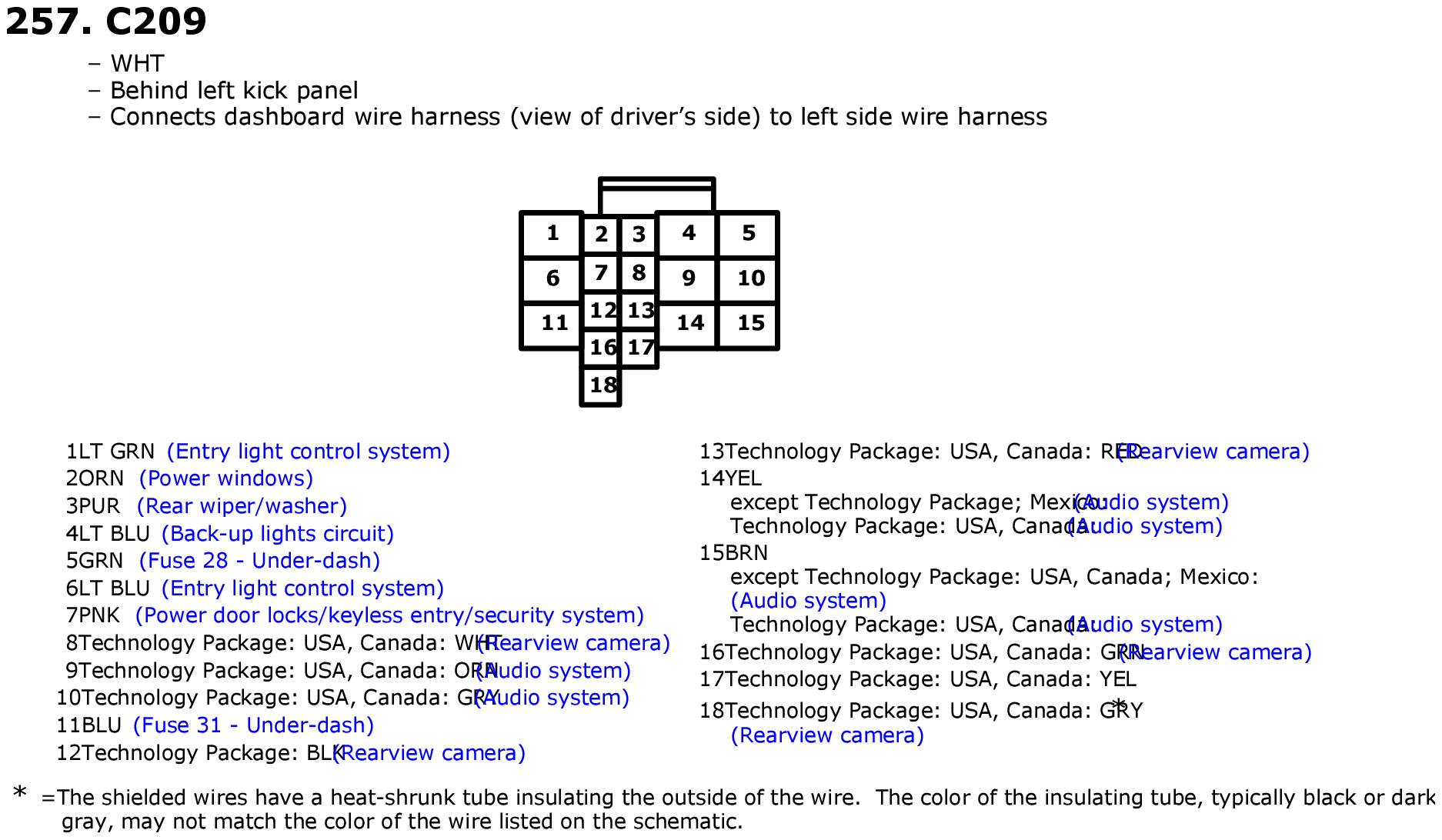

Fig 53: C209 Connector End View
GHHW8584Courtesy of AMERICAN HONDA MOTOR CO., INC.

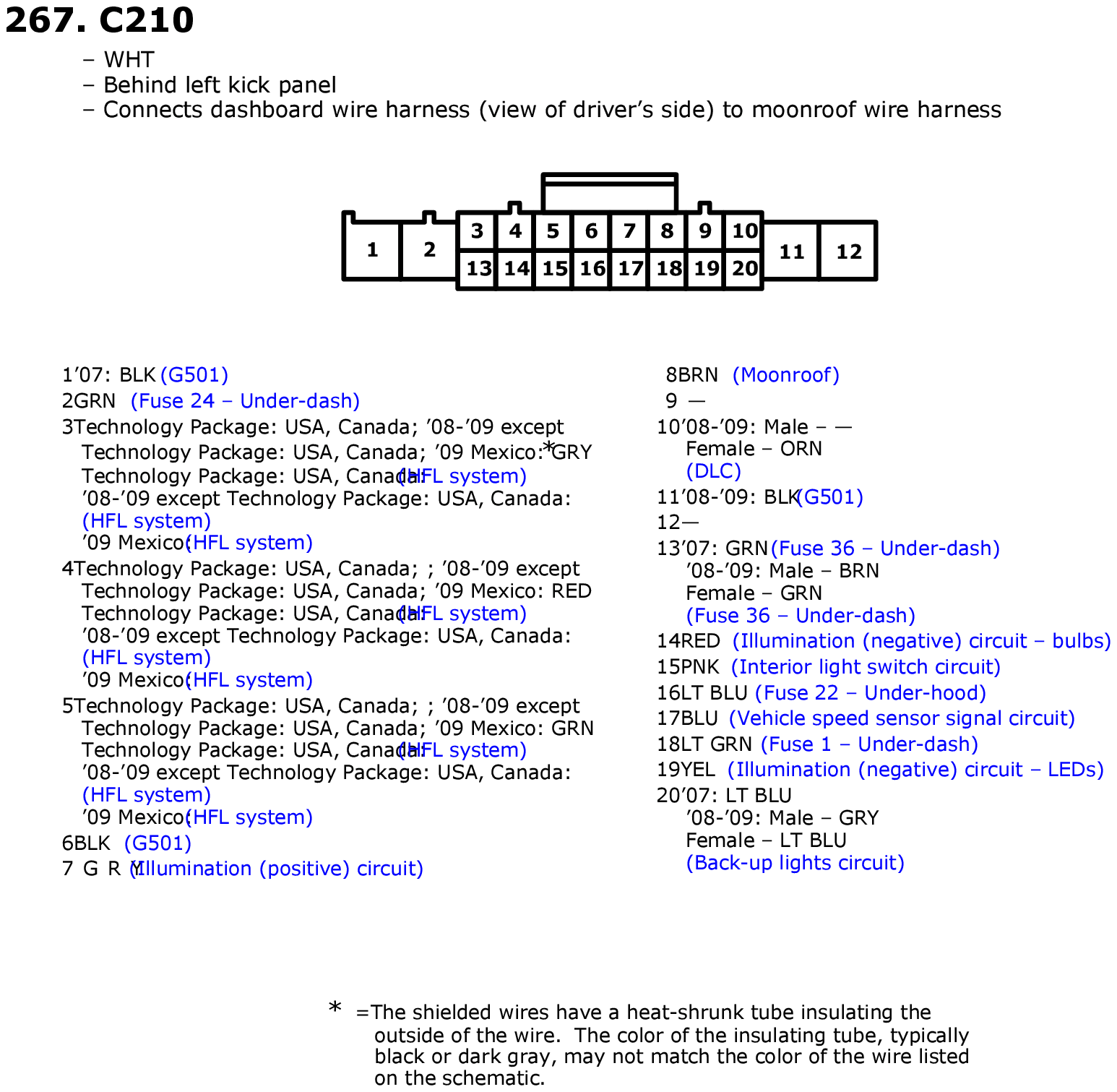

Fig 54: C210 Connector End View
GHHW8594Courtesy of AMERICAN HONDA MOTOR CO., INC.

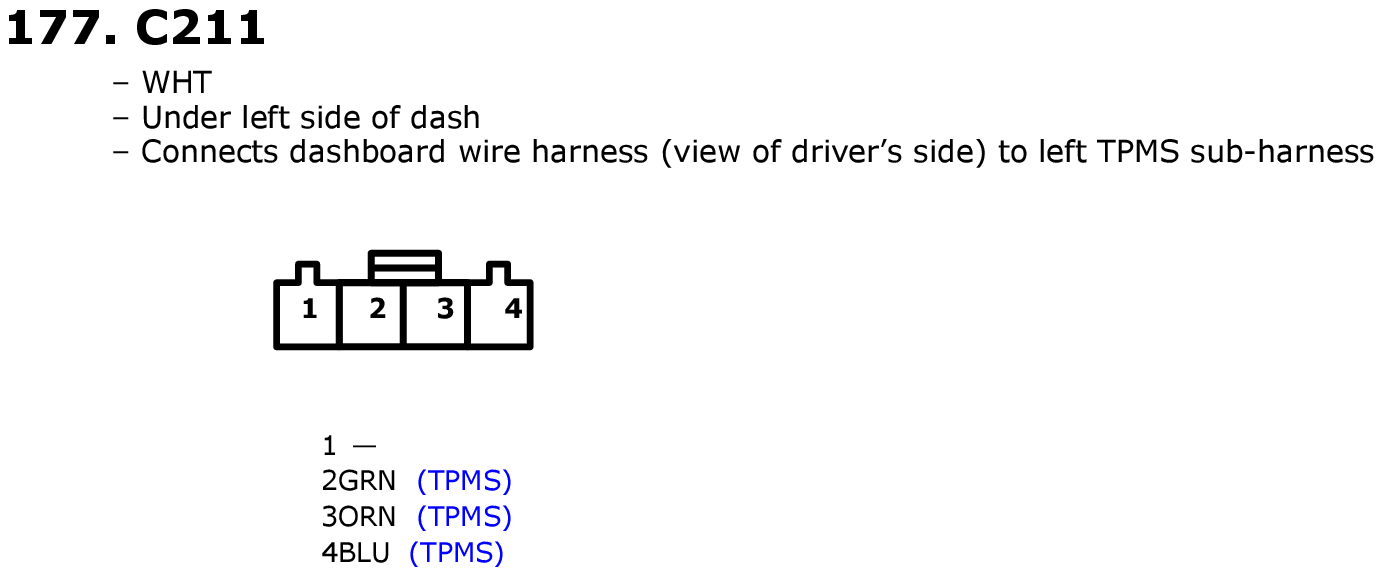

Fig 55: C211 Connector End View
GHHW8504Courtesy of AMERICAN HONDA MOTOR CO., INC.

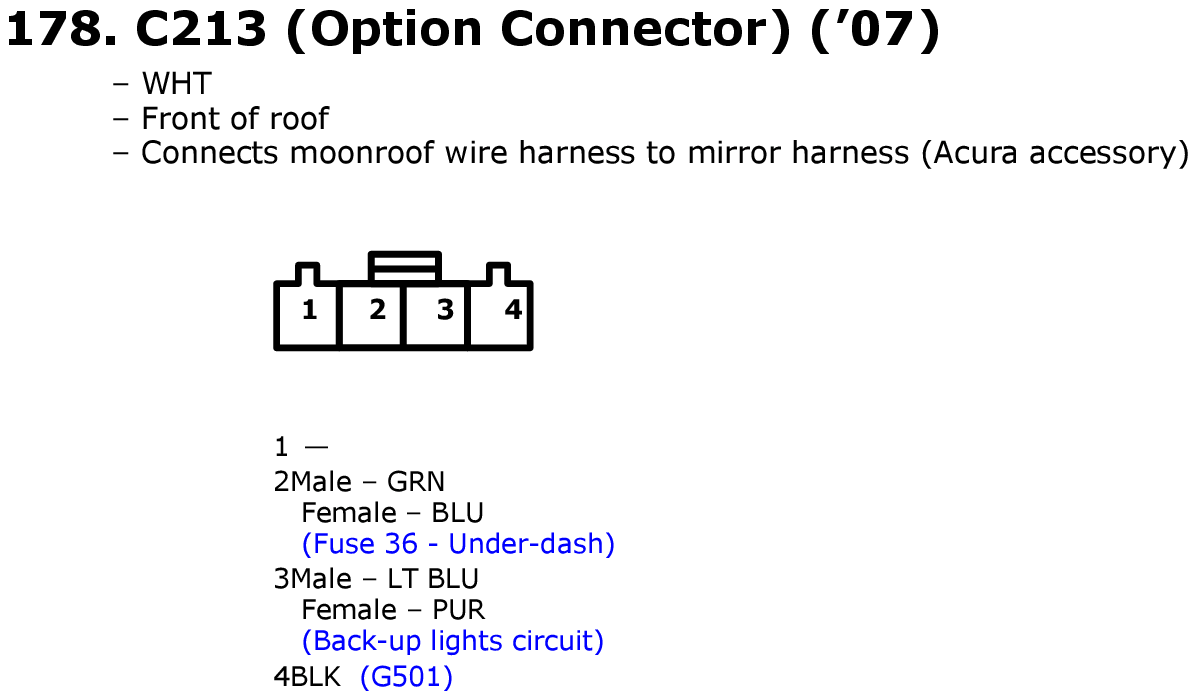

Fig 56: C213 (Option Connector) Connector End View
GHHW8505Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 57: C301 Connector End View
GHHW8448Courtesy of AMERICAN HONDA MOTOR CO., INC.

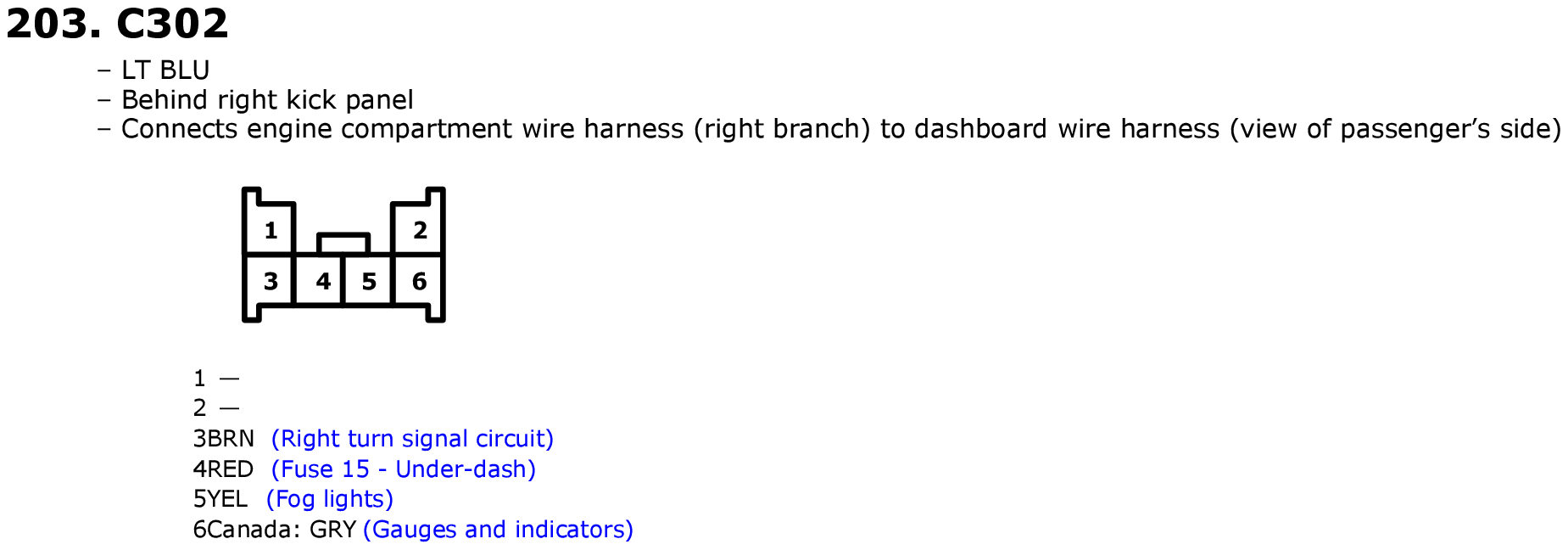

Fig 58: C302 Connector End View
GHHW8530Courtesy of AMERICAN HONDA MOTOR CO., INC.

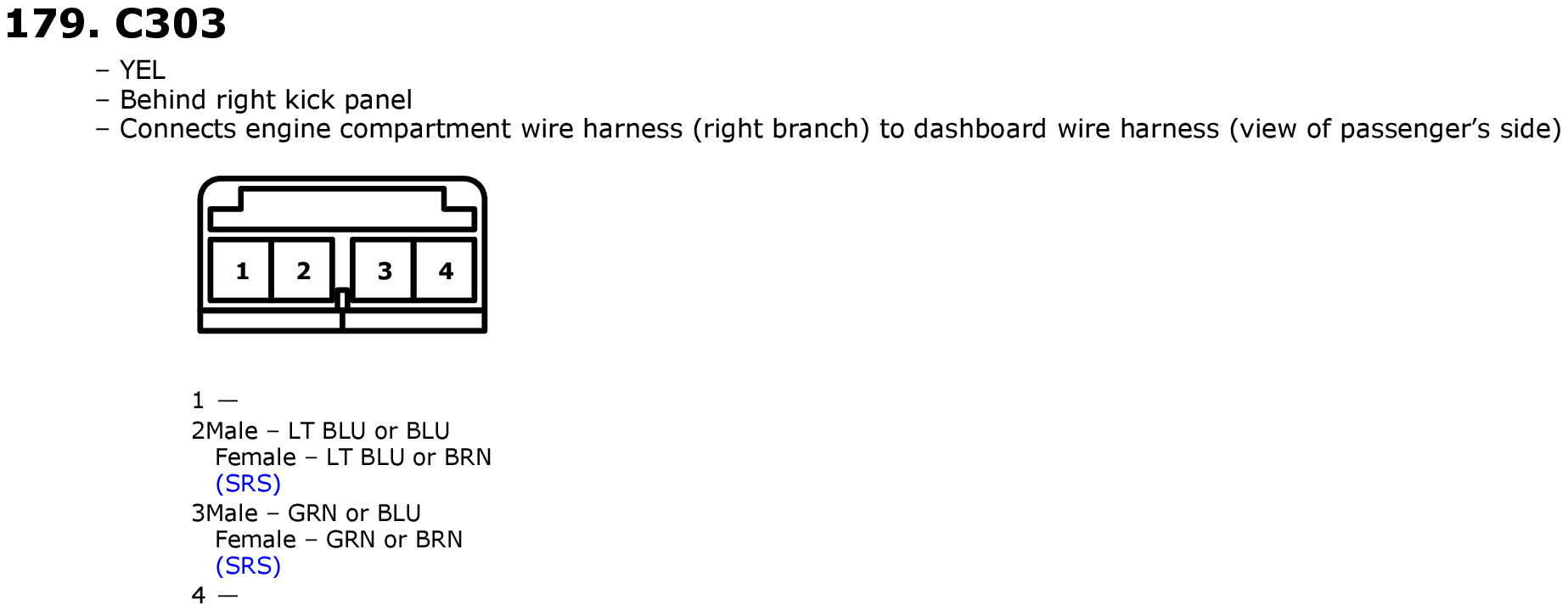

Fig 59: C303 Connector End View
GHHW8506Courtesy of AMERICAN HONDA MOTOR CO., INC.

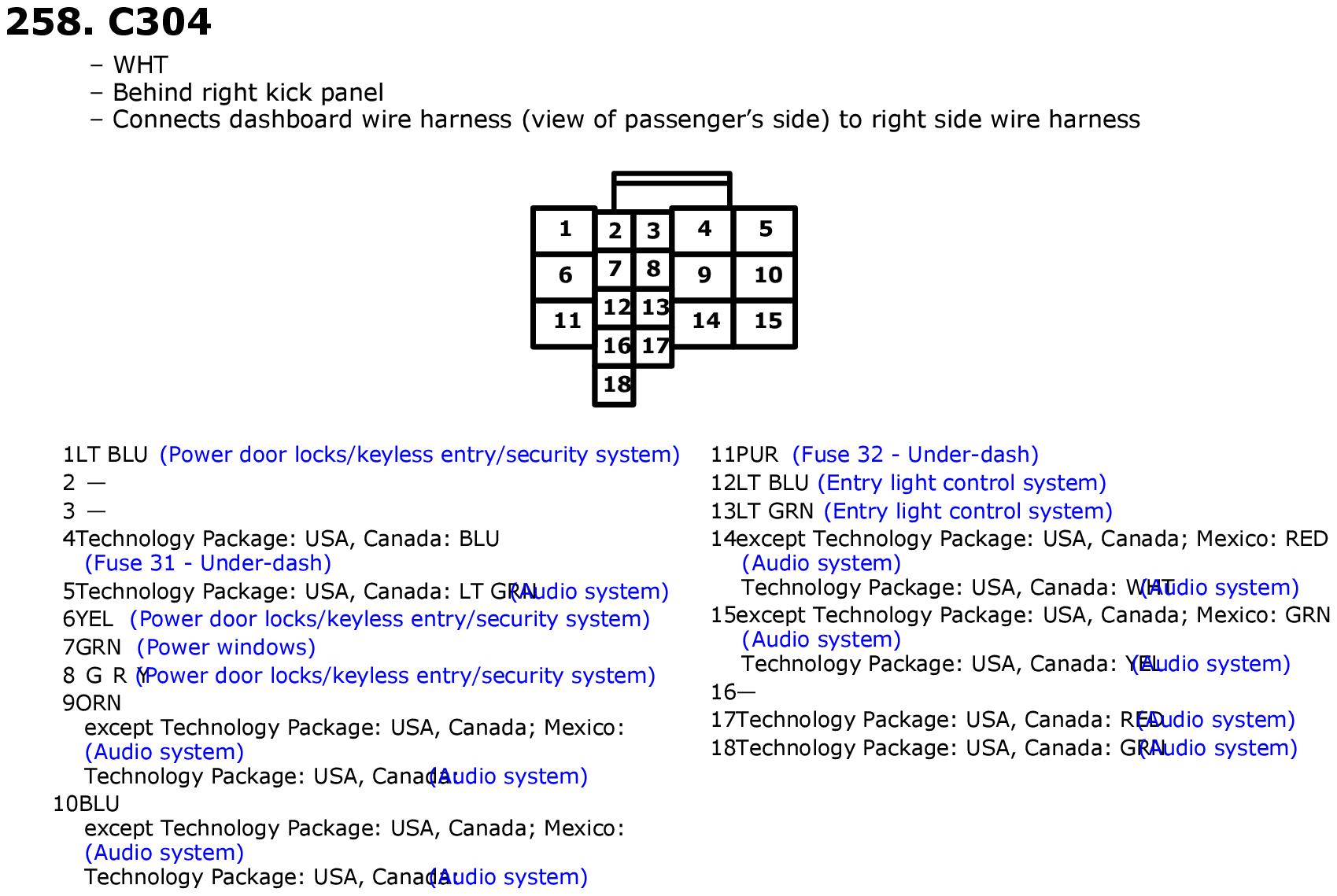

Fig 60: C304 Connector End View
GHHW8585Courtesy of AMERICAN HONDA MOTOR CO., INC.

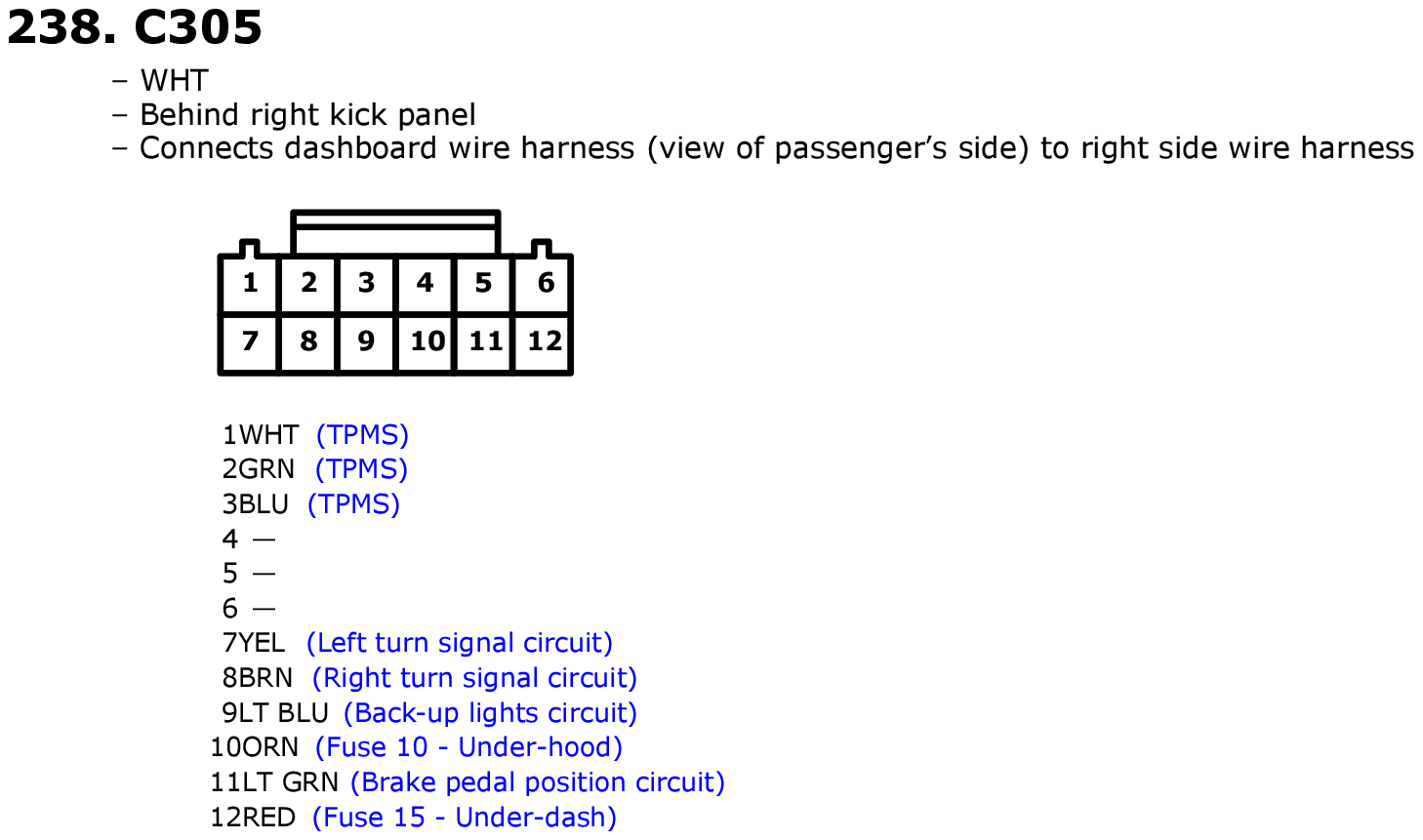

Fig 61: C305 Connector End View
GHHW8565Courtesy of AMERICAN HONDA MOTOR CO., INC.

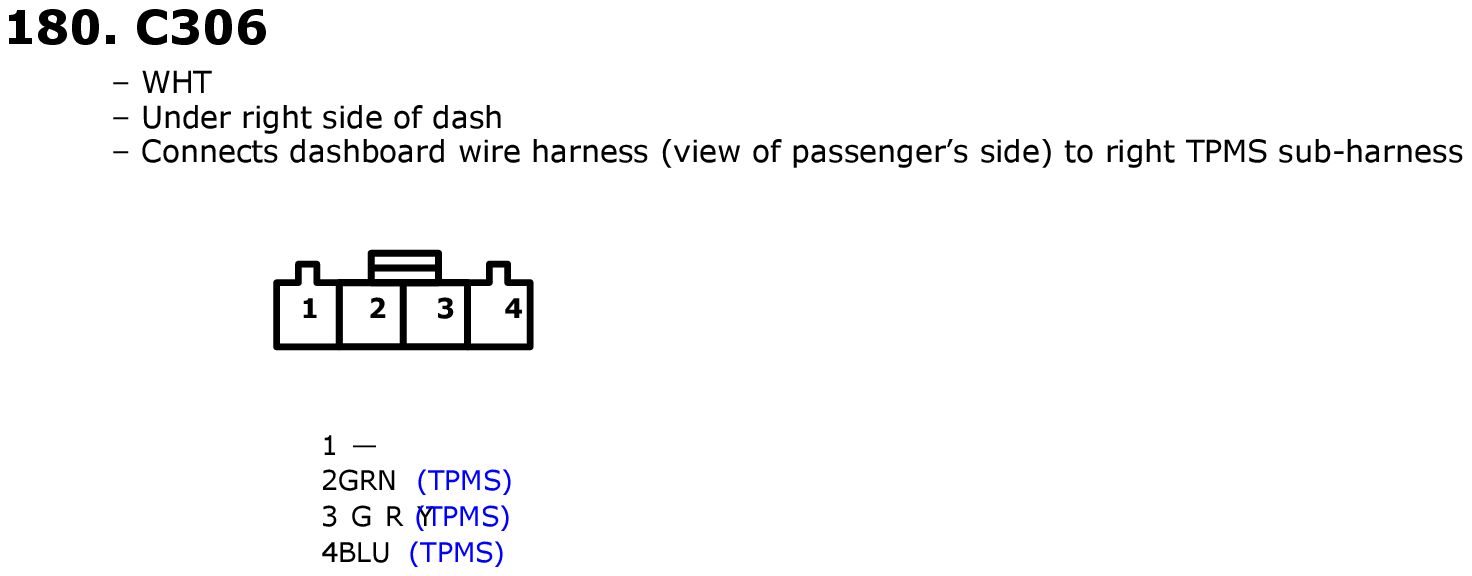

Fig 62: C306 Connector End View
GHHW8507Courtesy of AMERICAN HONDA MOTOR CO., INC.

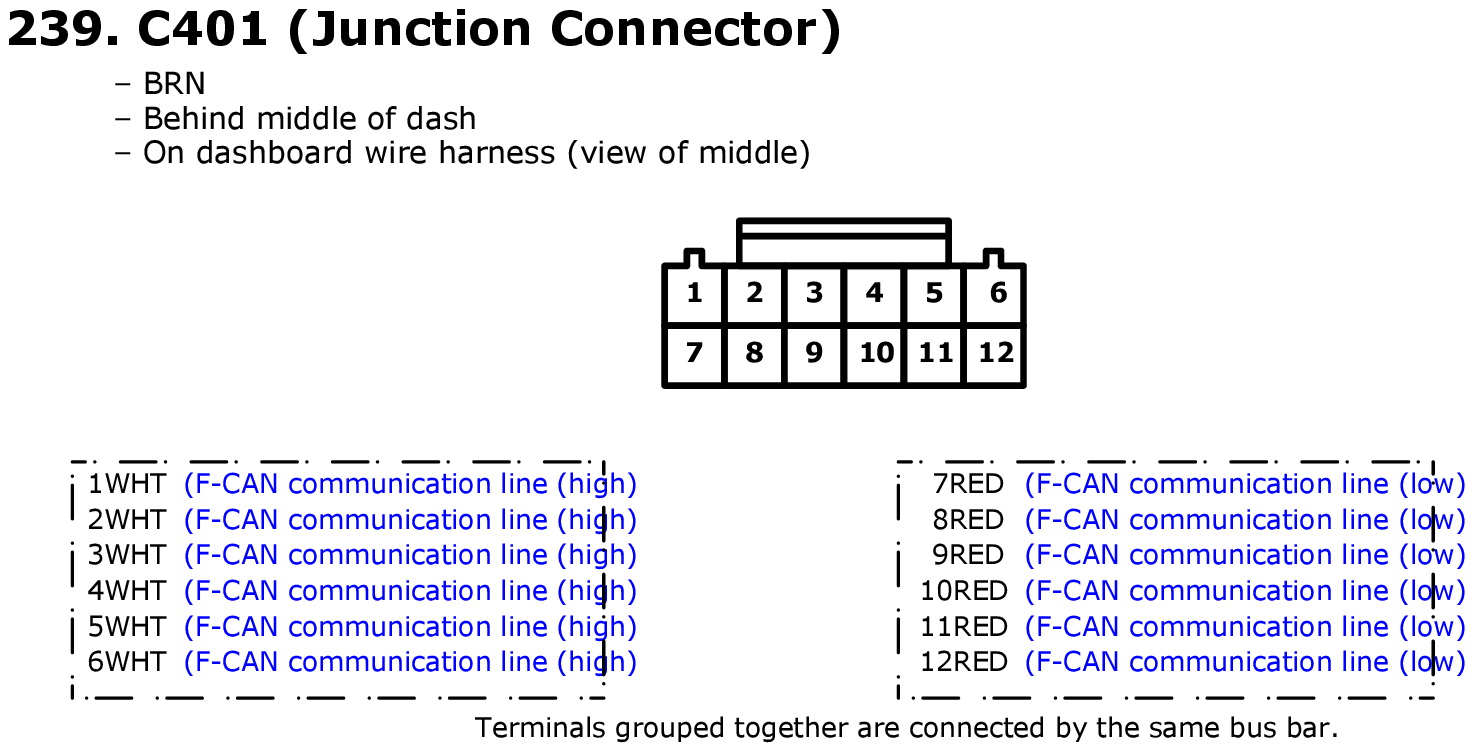

Fig 63: C401 (Junction Connector) Connector End View
GHHW8566Courtesy of AMERICAN HONDA MOTOR CO., INC.

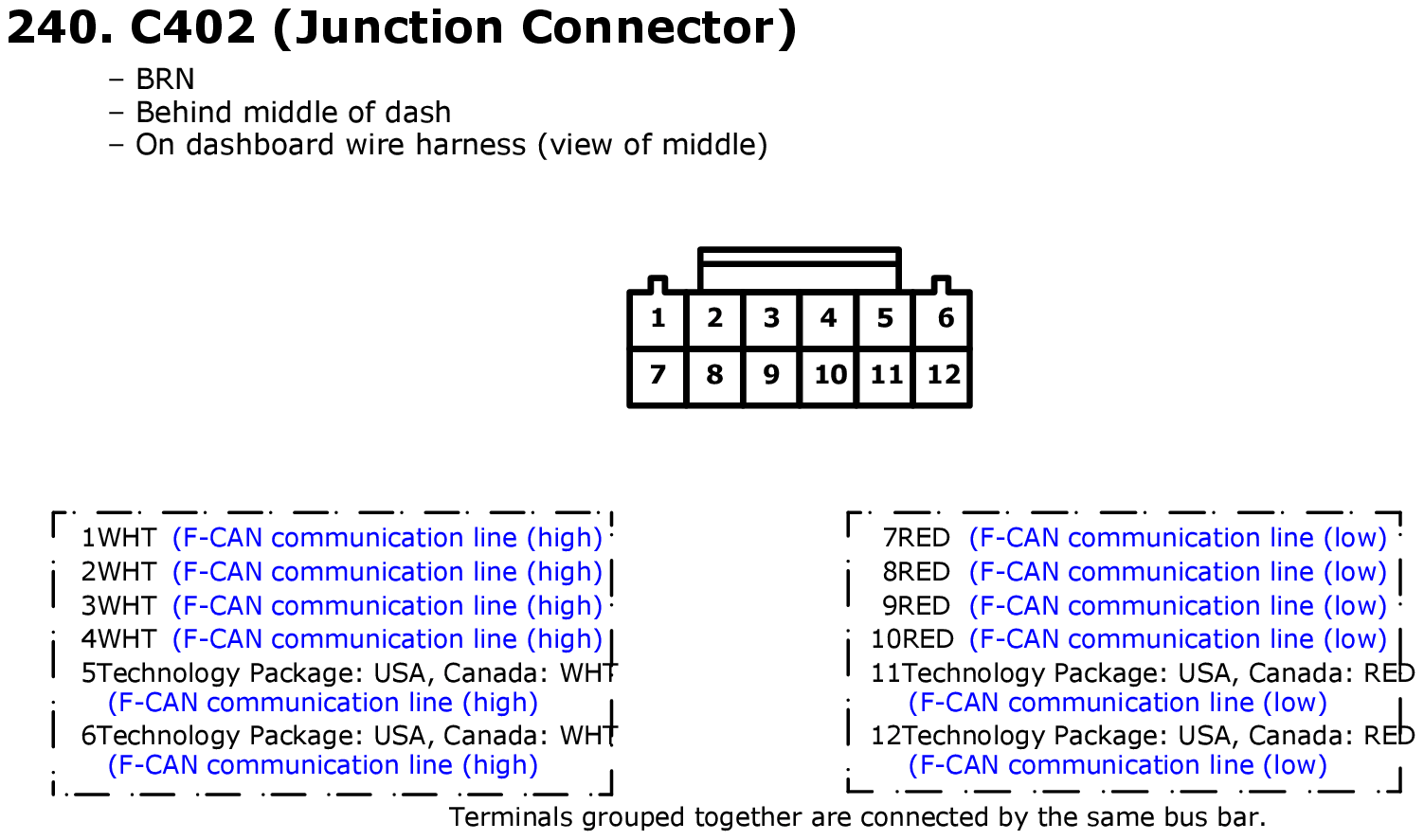

Fig 64: C402 (Junction Connector) Connector End View
GHHW8567Courtesy of AMERICAN HONDA MOTOR CO., INC.

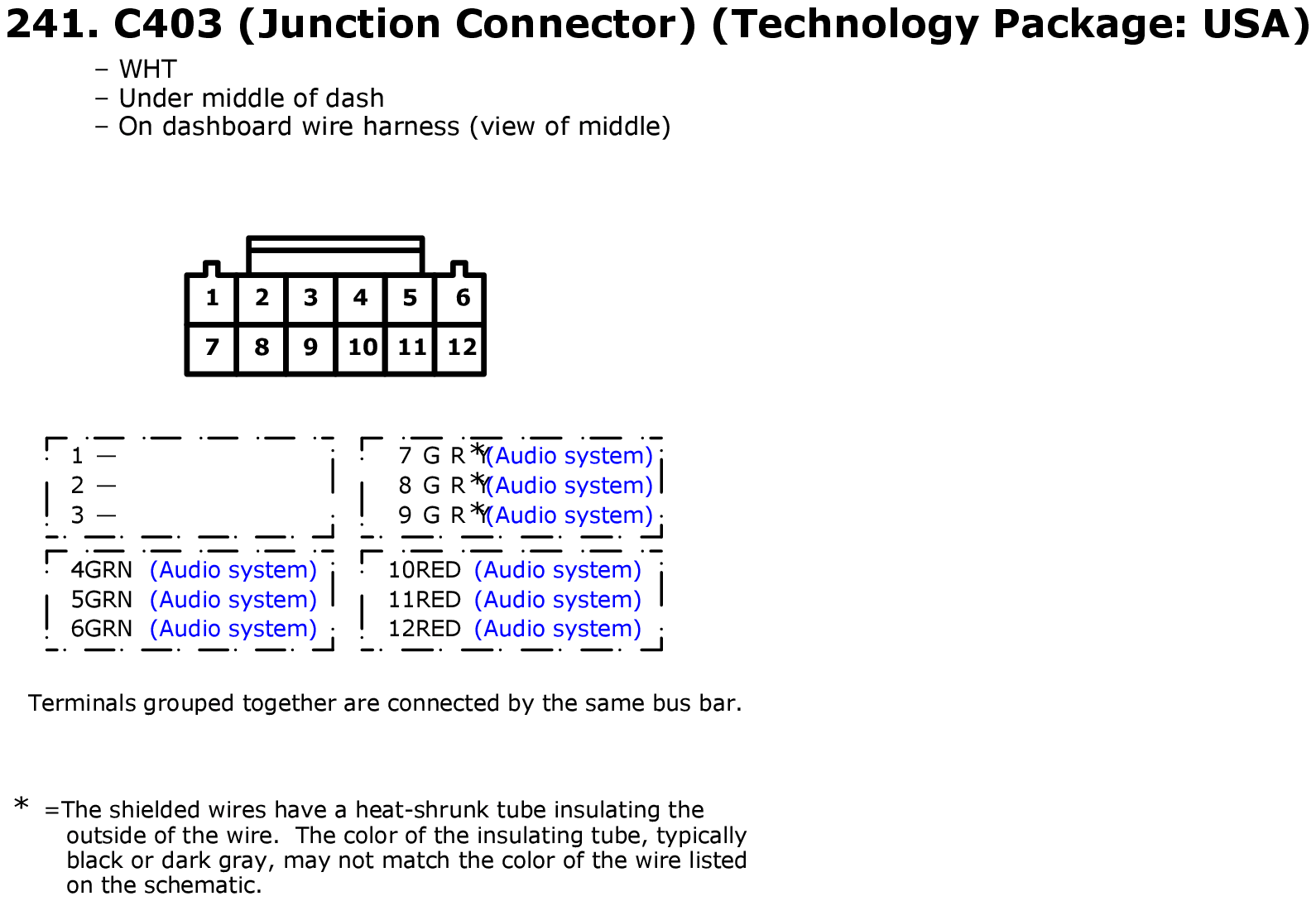

Fig 65: C403 (Junction Connector) Connector End View
GHHW8568Courtesy of AMERICAN HONDA MOTOR CO., INC.

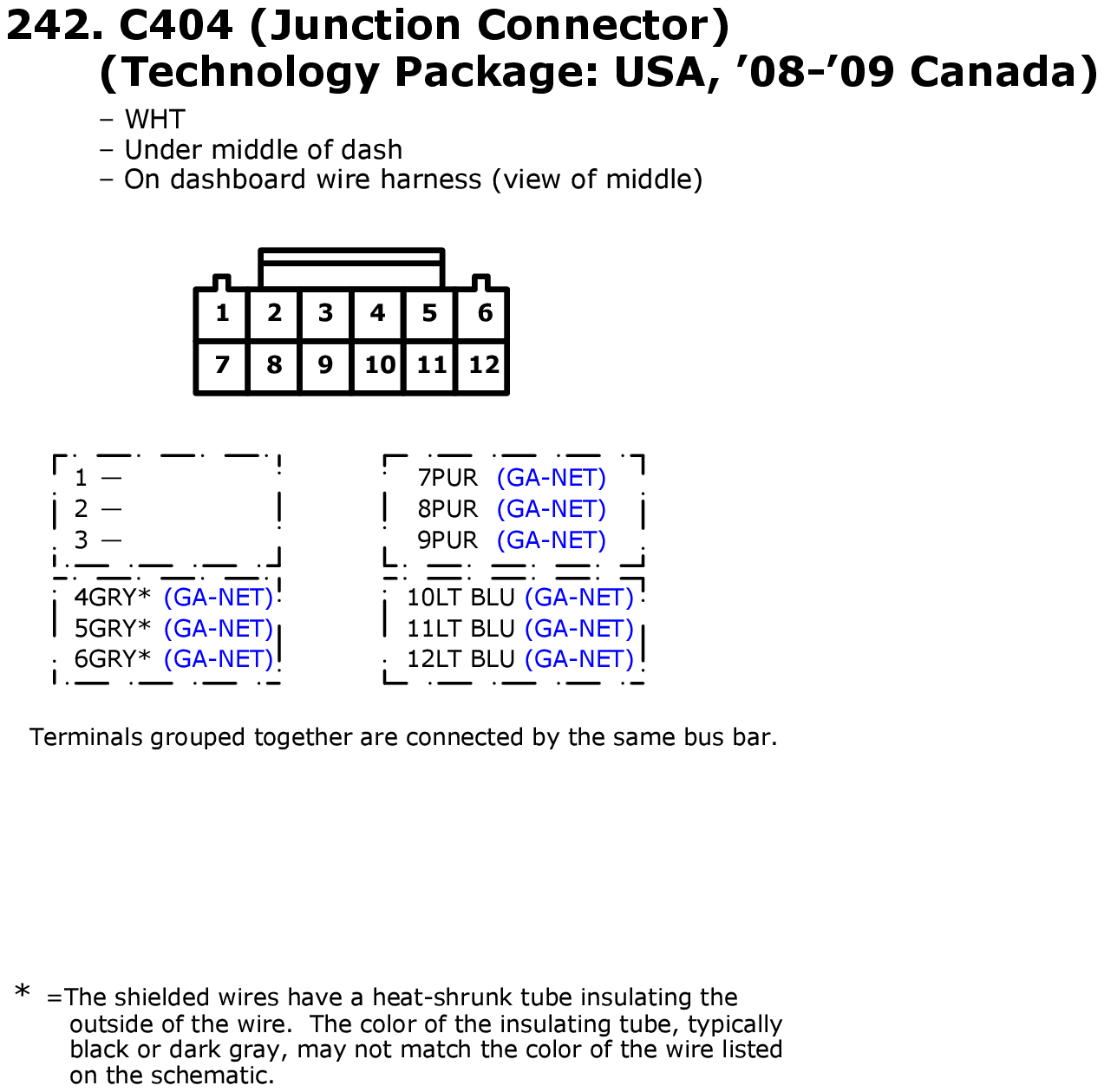

Fig 66: C404 (Junction Connector) Connector End View
GHHW8569Courtesy of AMERICAN HONDA MOTOR CO., INC.

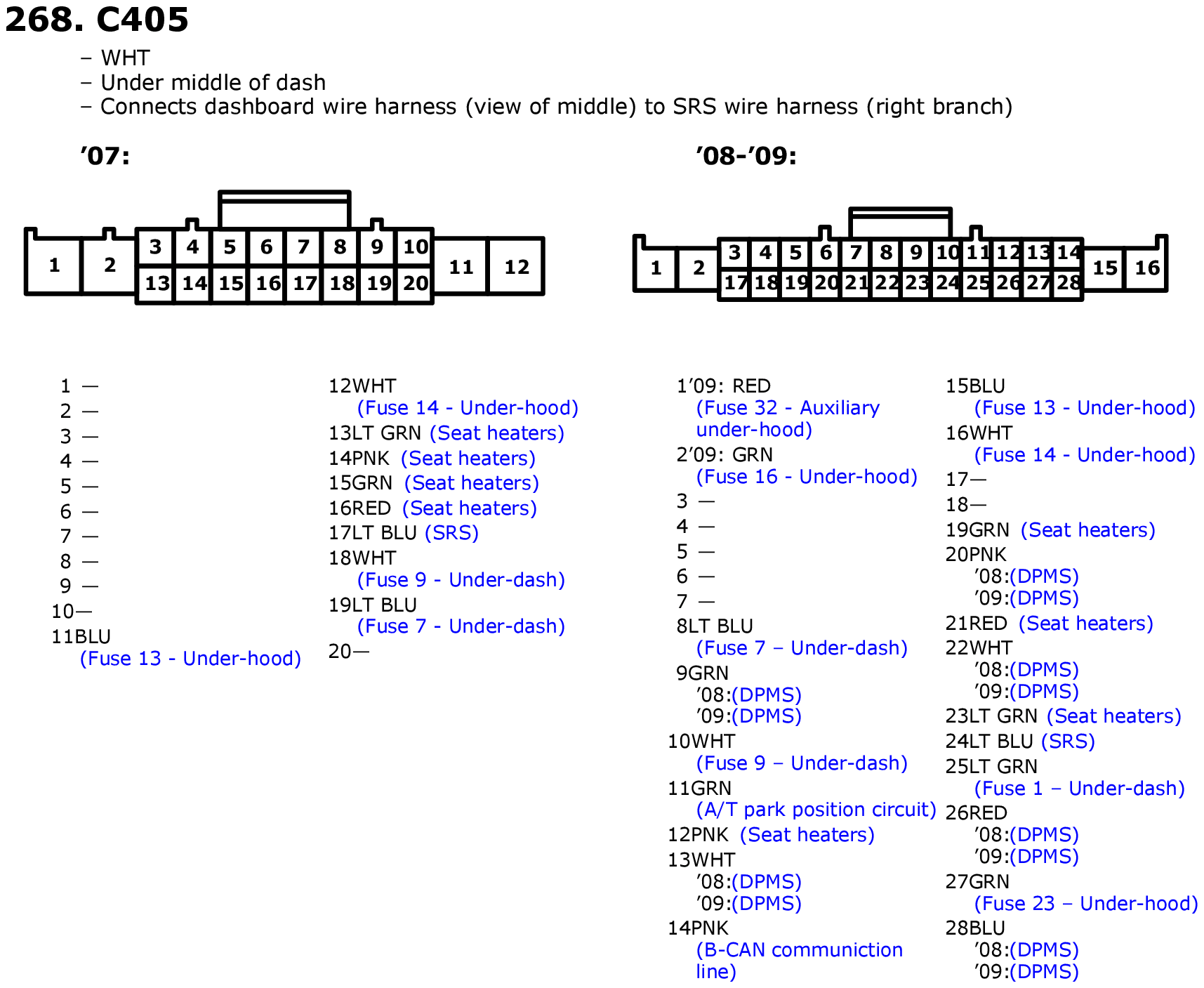

Fig 67: C405 Connector End View
GHHW8595Courtesy of AMERICAN HONDA MOTOR CO., INC.

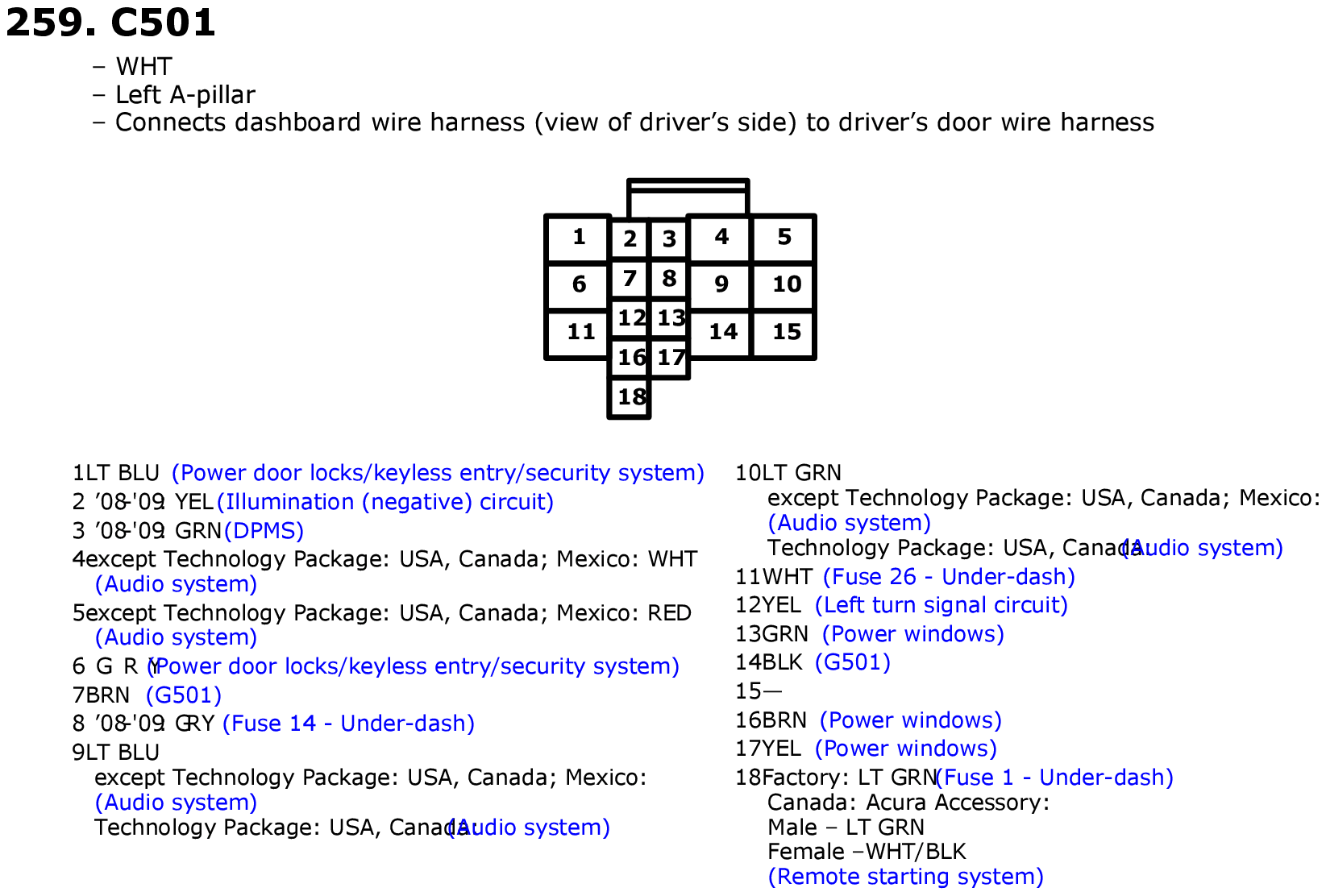

Fig 68: C501 Connector End View
GHHW8586Courtesy of AMERICAN HONDA MOTOR CO., INC.

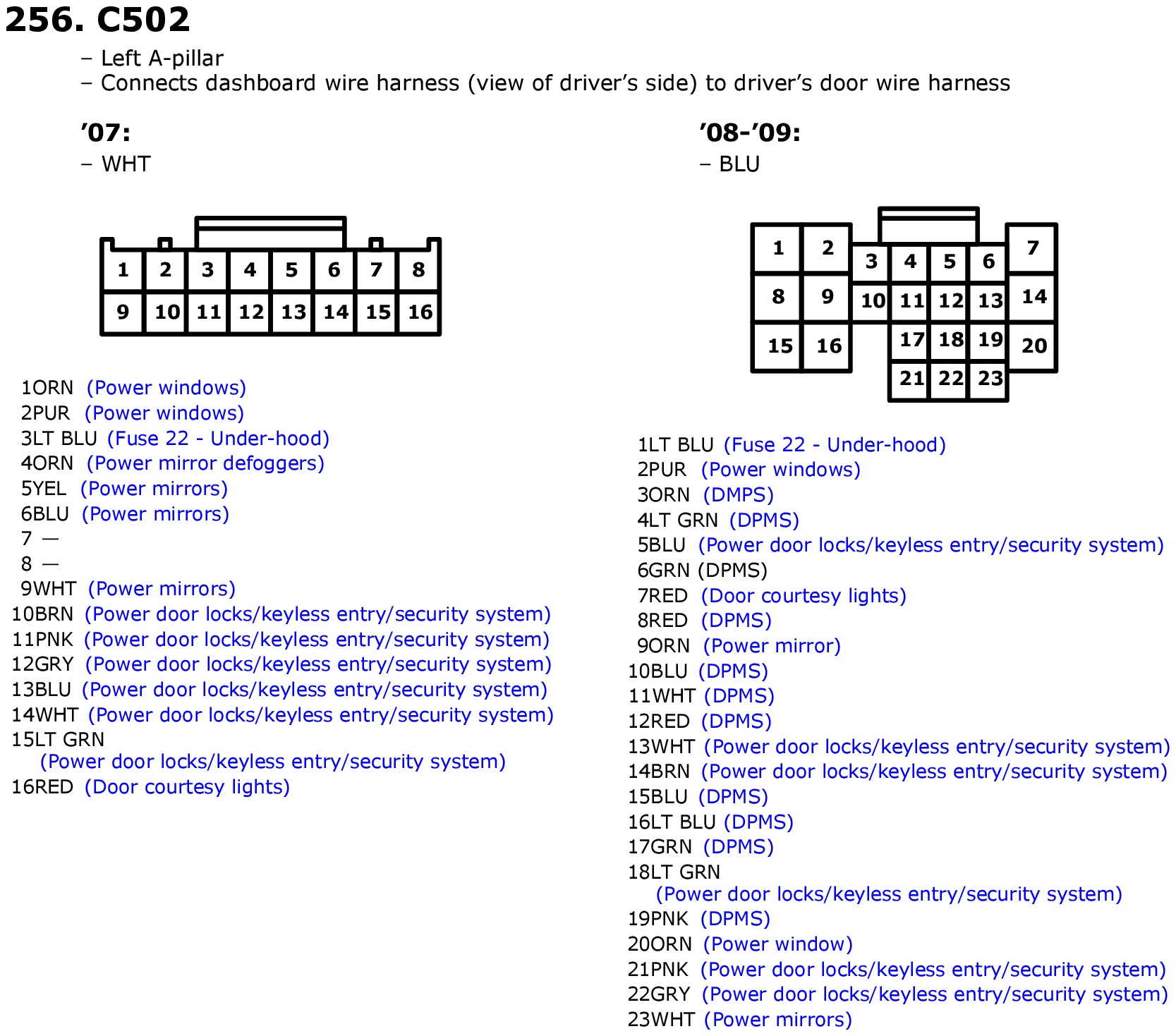

Fig 69: C502 Connector End View
GHHW8583Courtesy of AMERICAN HONDA MOTOR CO., INC.

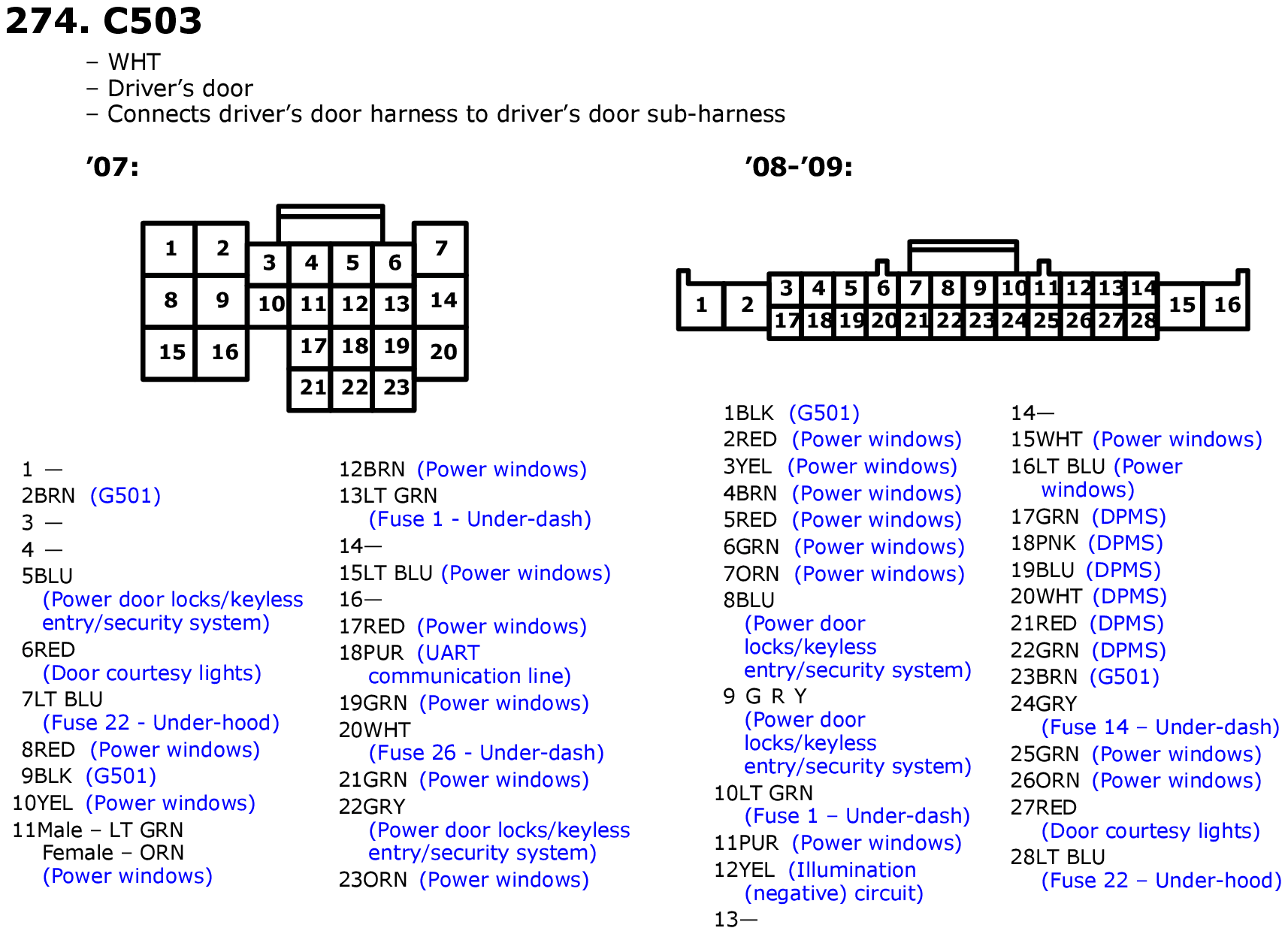

Fig 70: C503 Connector End View
GHHW8601Courtesy of AMERICAN HONDA MOTOR CO., INC.

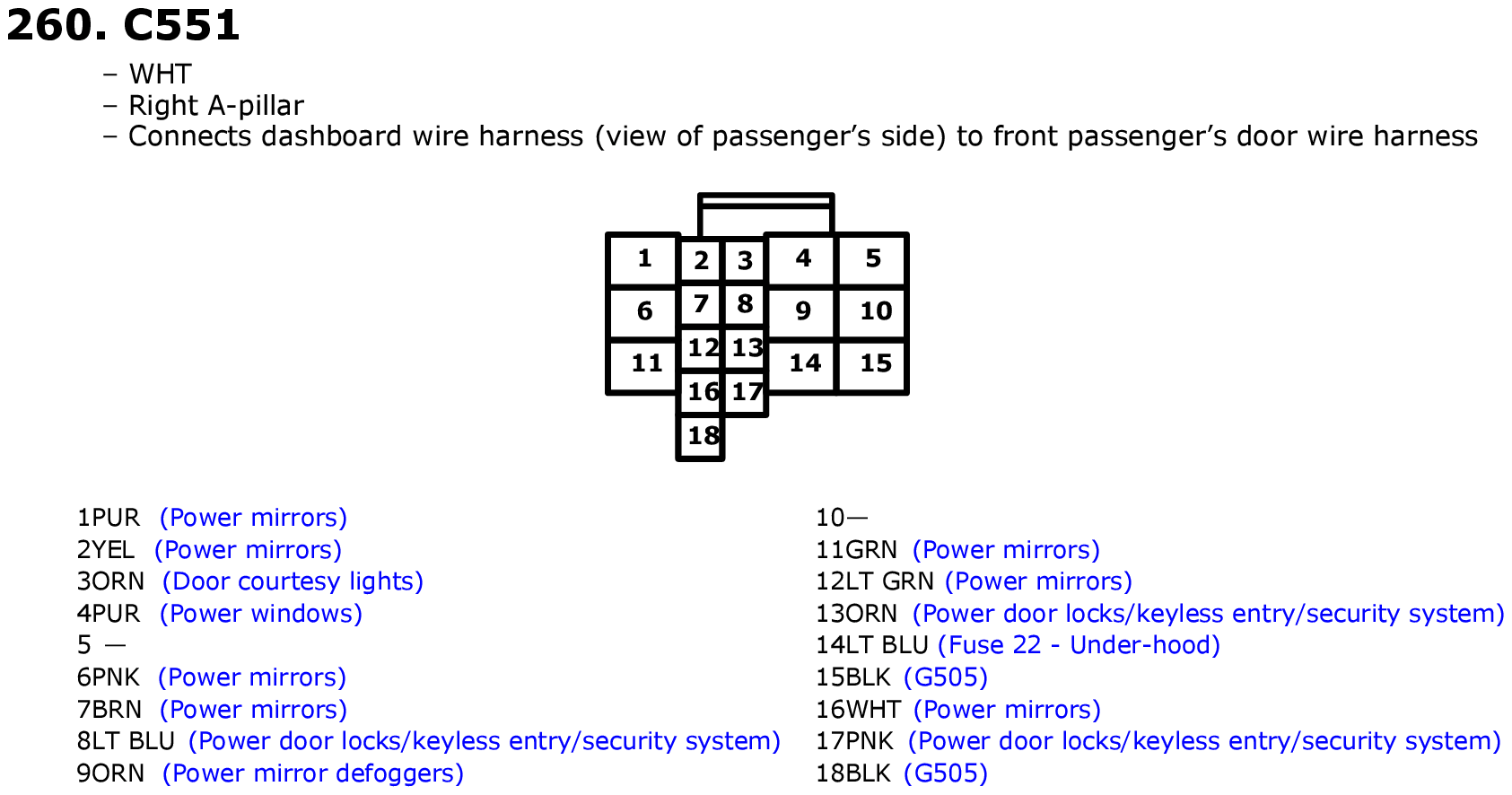

Fig 71: C551 Connector End View
GHHW8587Courtesy of AMERICAN HONDA MOTOR CO., INC.

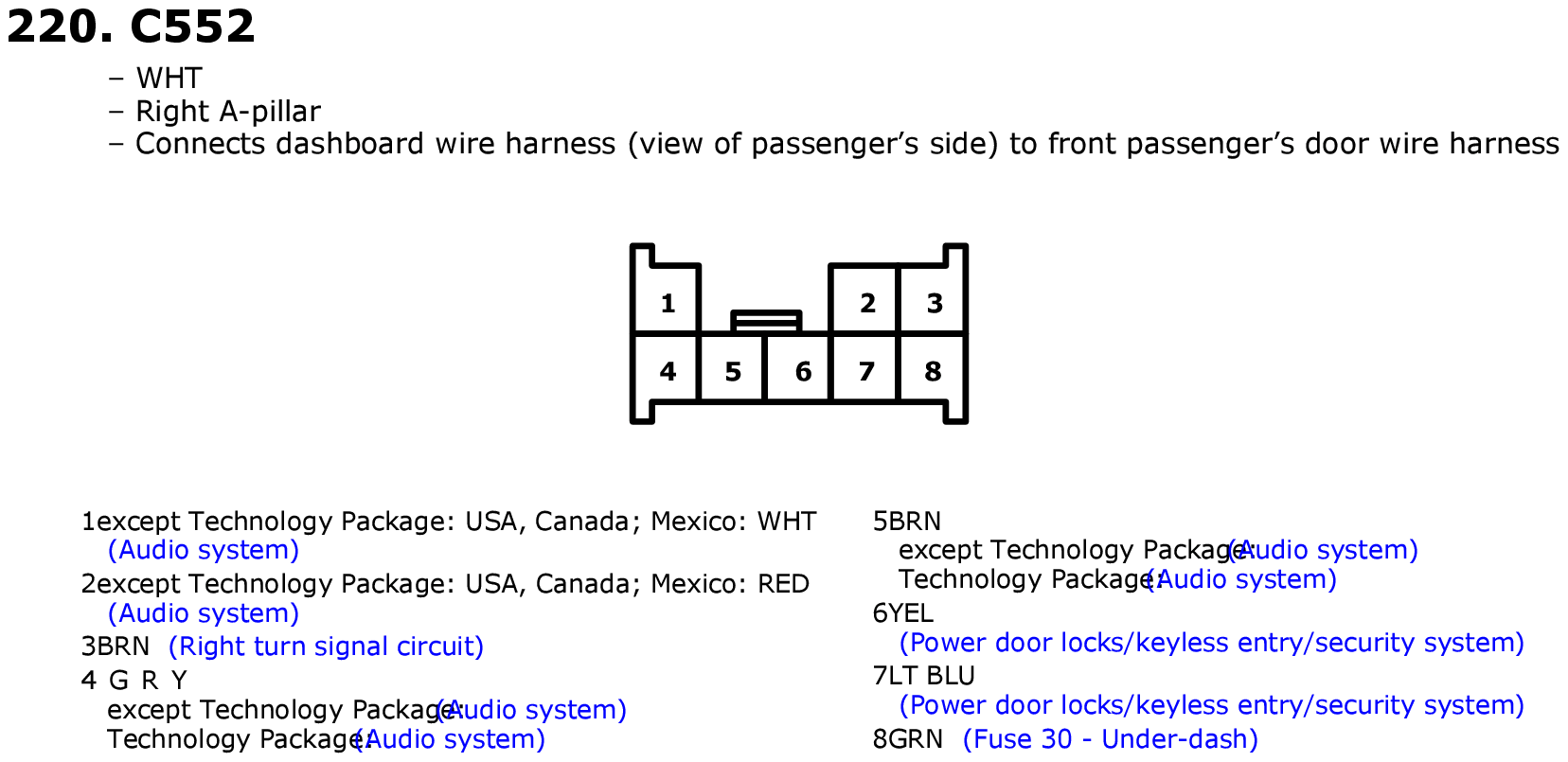

Fig 72: C552 Connector End View
GHHW8547Courtesy of AMERICAN HONDA MOTOR CO., INC.

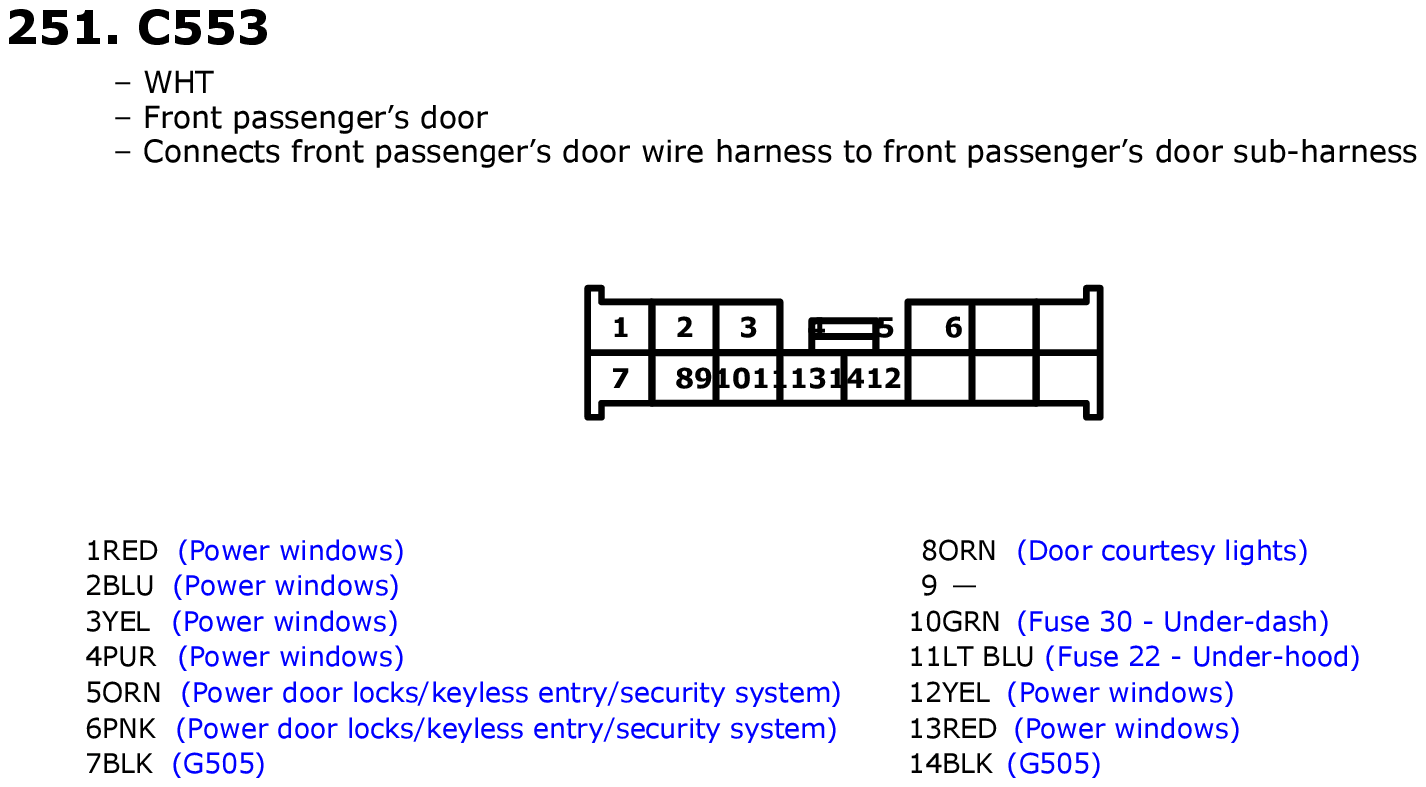

Fig 73: C553 Connector End View
GHHW8578Courtesy of AMERICAN HONDA MOTOR CO., INC.

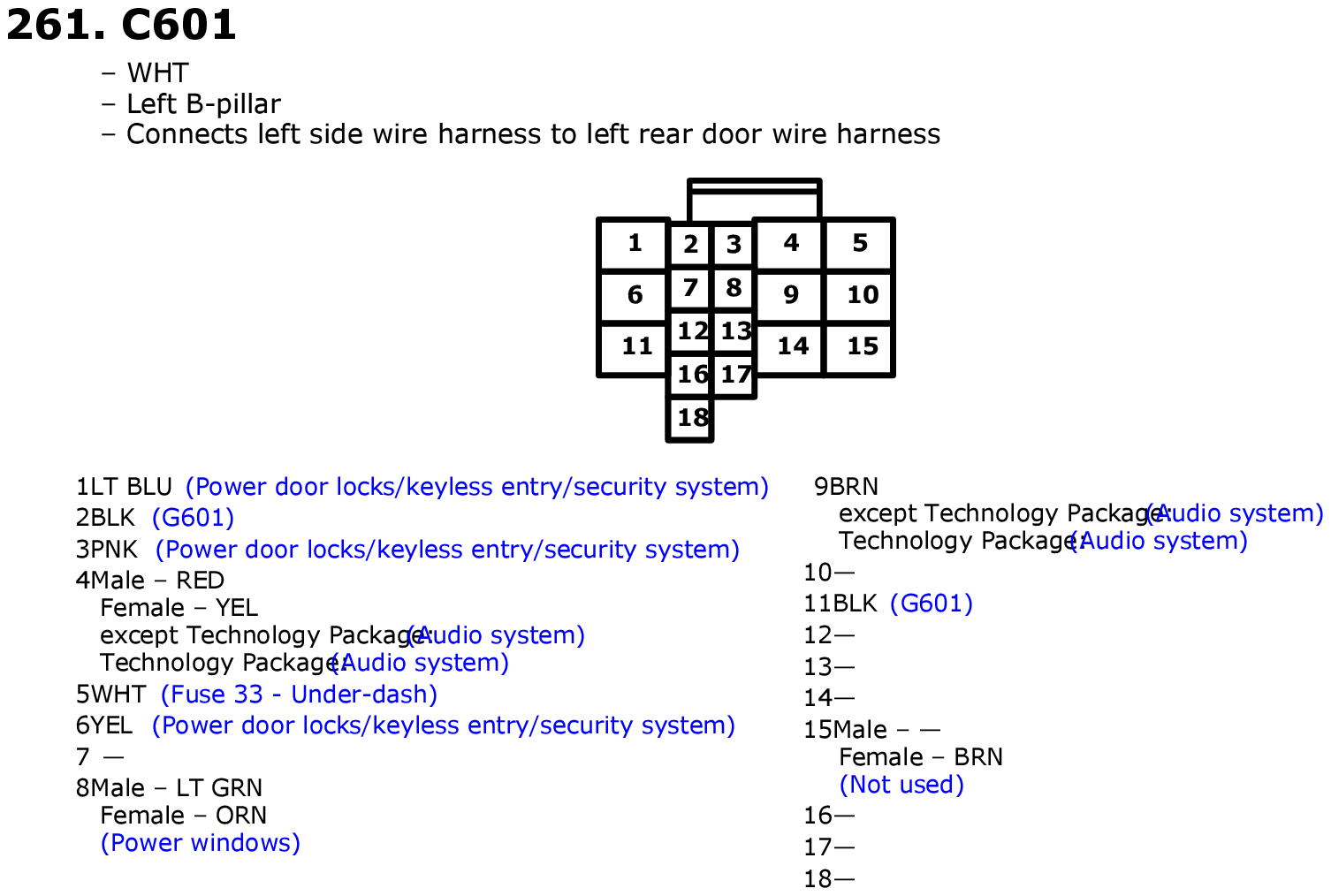

Fig 74: C601 Connector End View
GHHW8588Courtesy of AMERICAN HONDA MOTOR CO., INC.

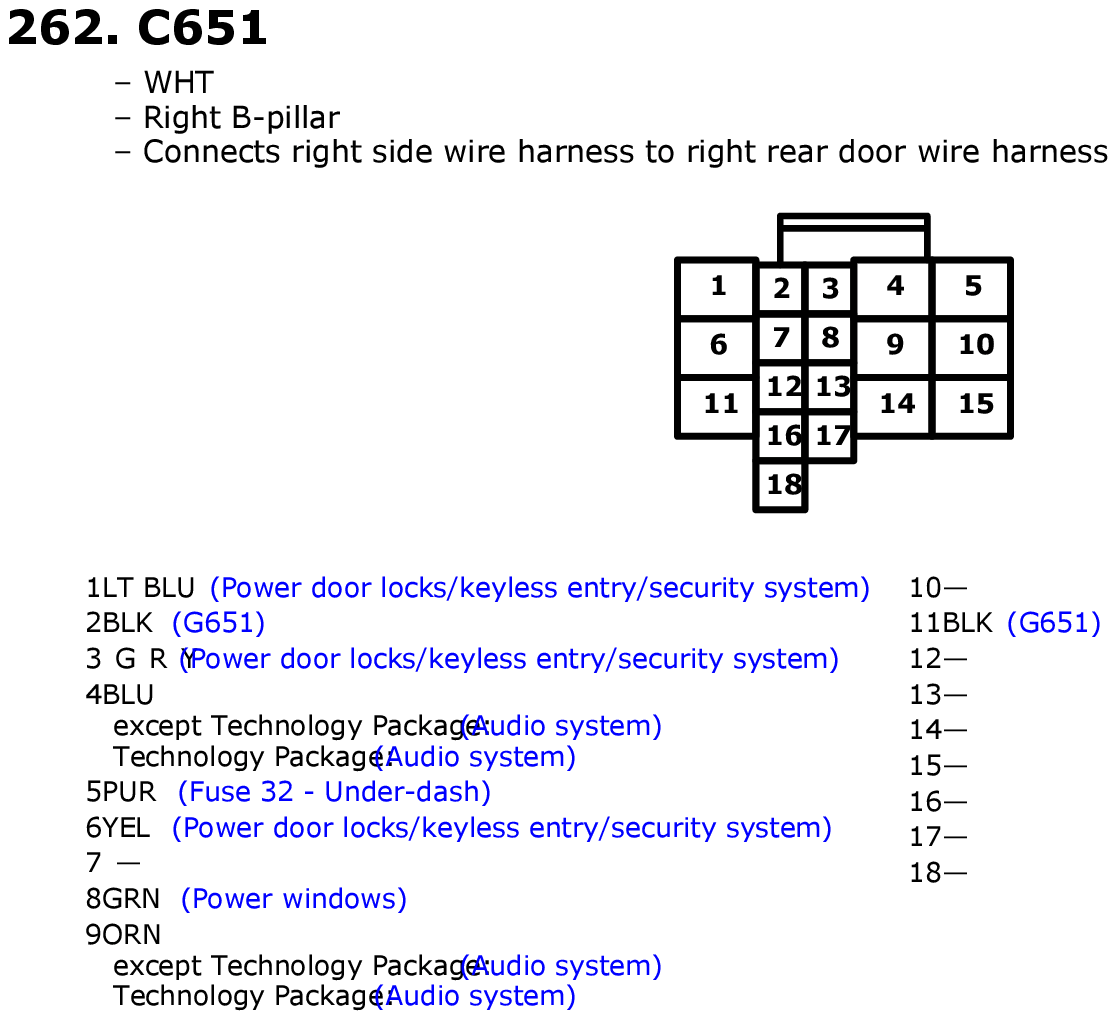

Fig 75: C651 Connector End View
GHHW8589Courtesy of AMERICAN HONDA MOTOR CO., INC.

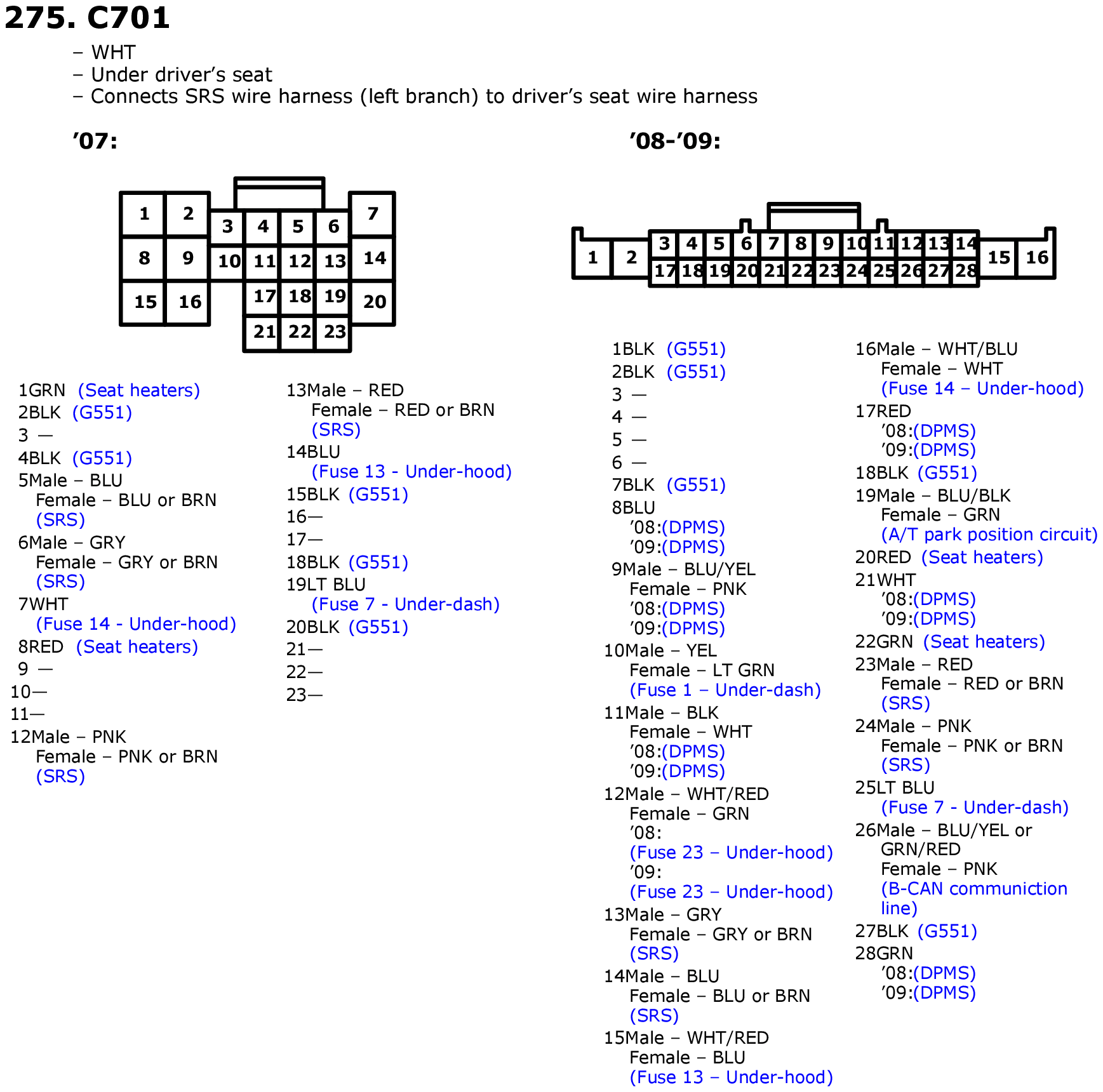

Fig 76: C701 Connector End View
GHHW8602Courtesy of AMERICAN HONDA MOTOR CO., INC.

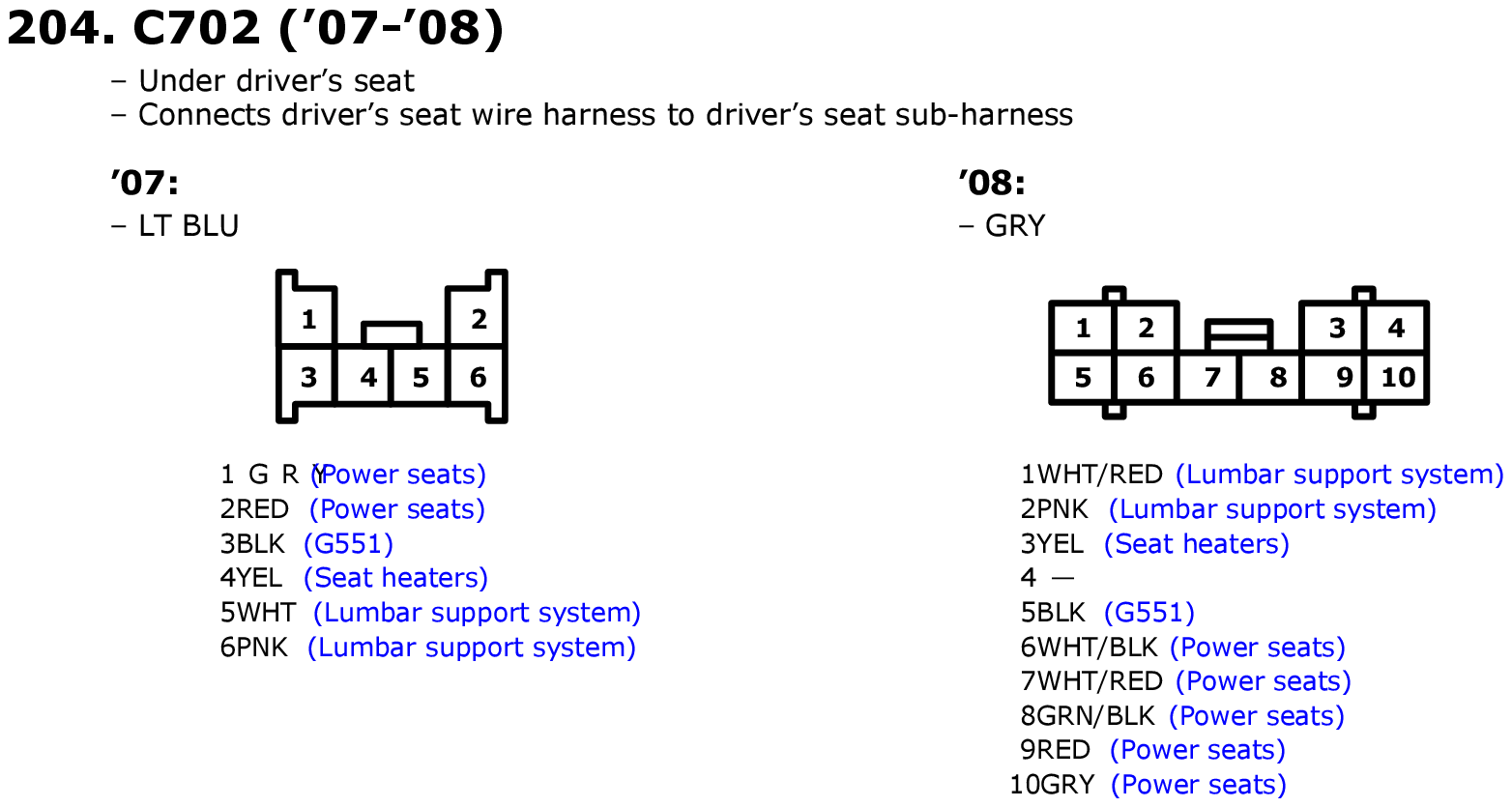

Fig 77: C702 Connector End View
GHHW8531Courtesy of AMERICAN HONDA MOTOR CO., INC.

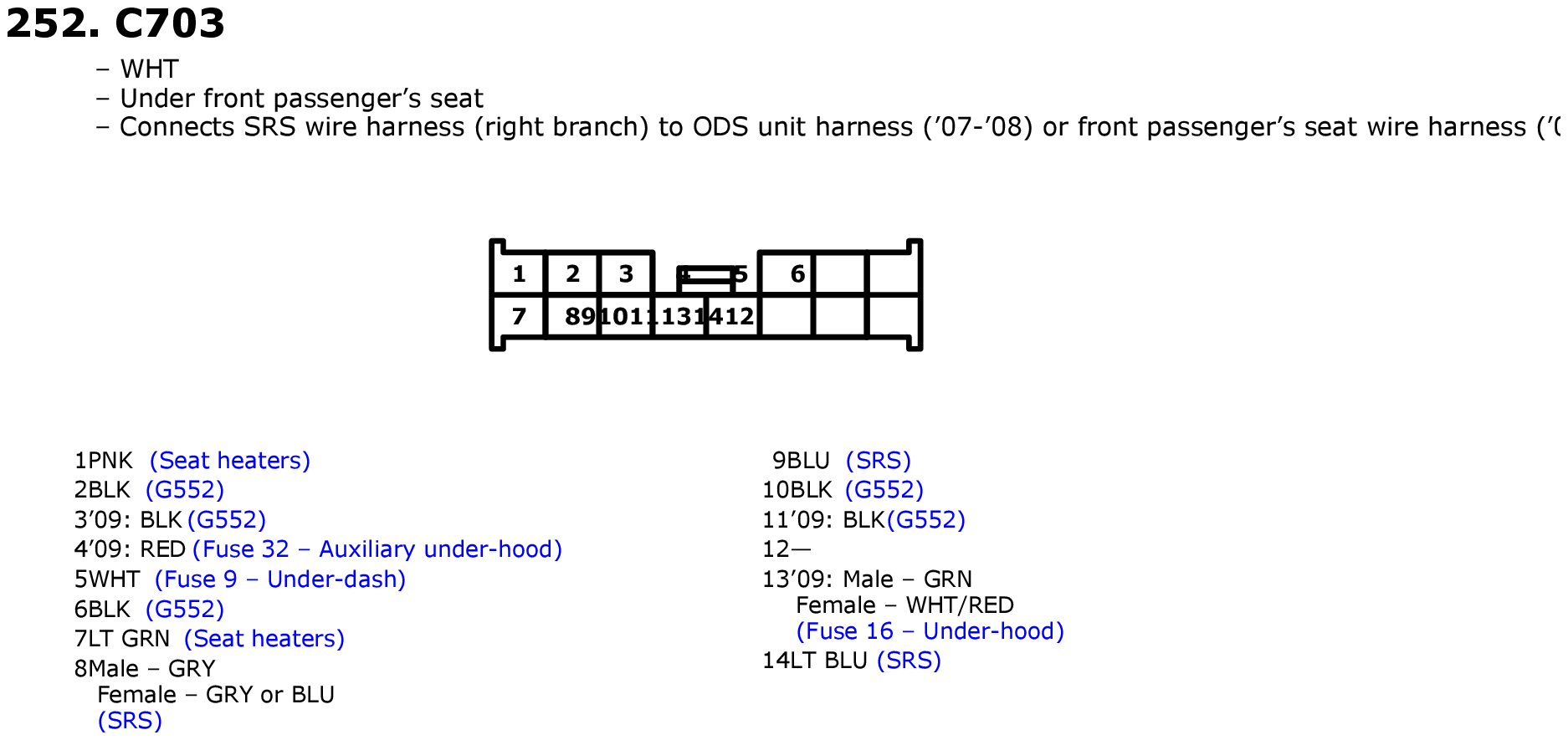

Fig 78: C703 Connector End View
GHHW8579Courtesy of AMERICAN HONDA MOTOR CO., INC.

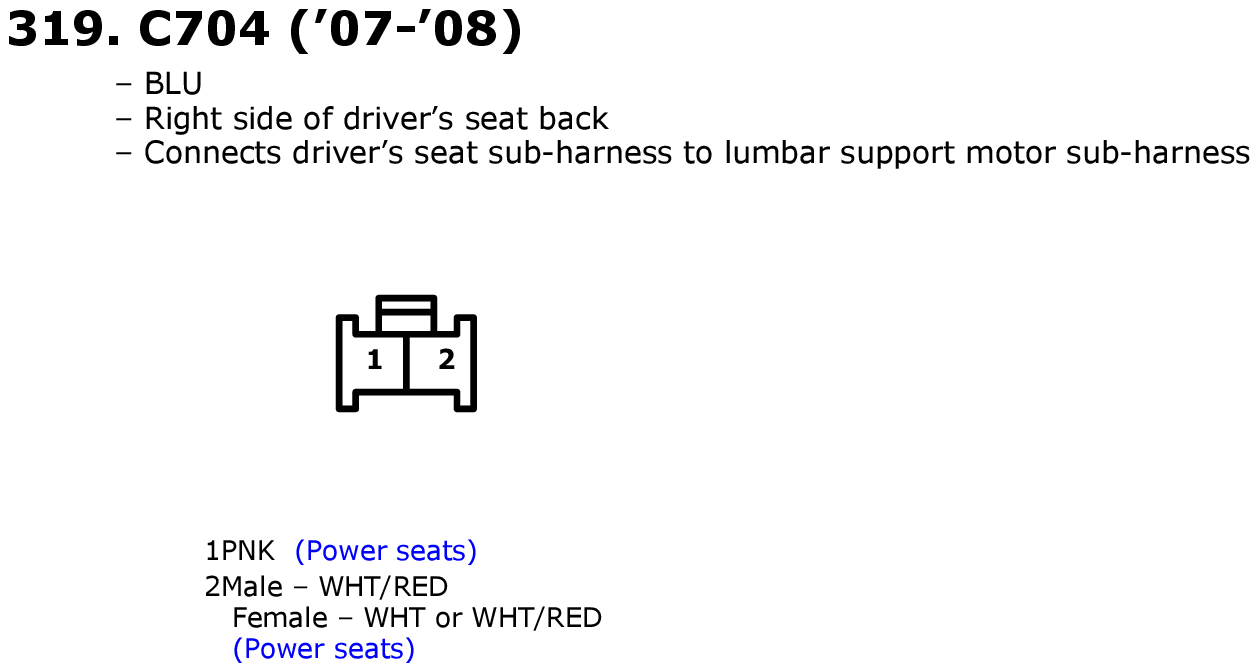

Fig 79: C704 Connector End View
GHHW8646Courtesy of AMERICAN HONDA MOTOR CO., INC.

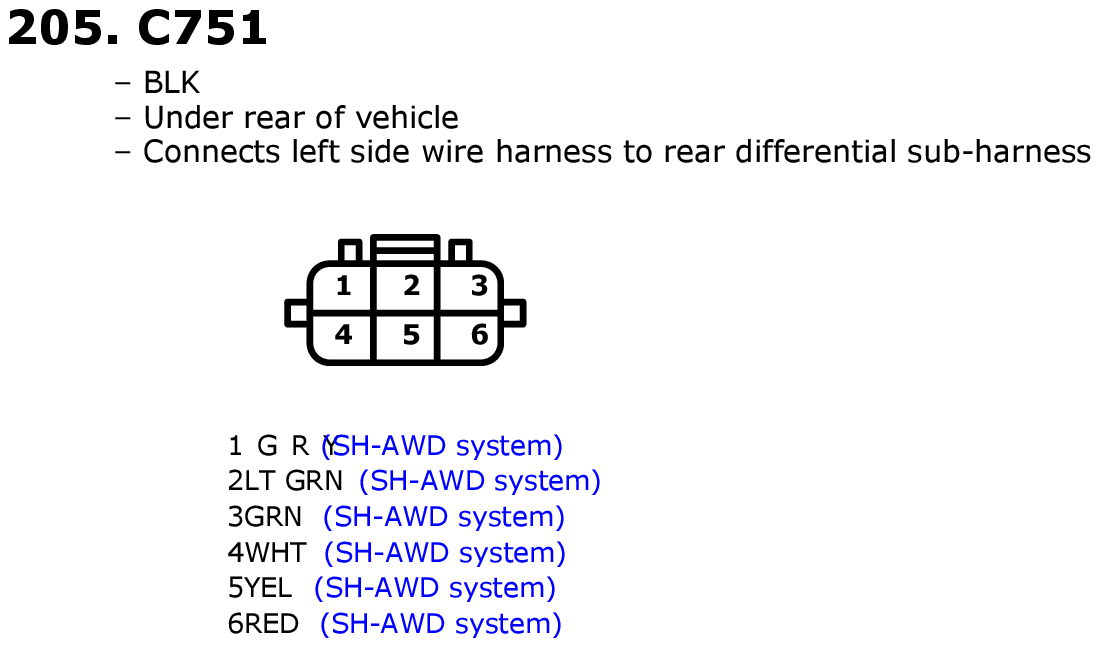

Fig 80: C751 Connector End View
GHHW8532Courtesy of AMERICAN HONDA MOTOR CO., INC.

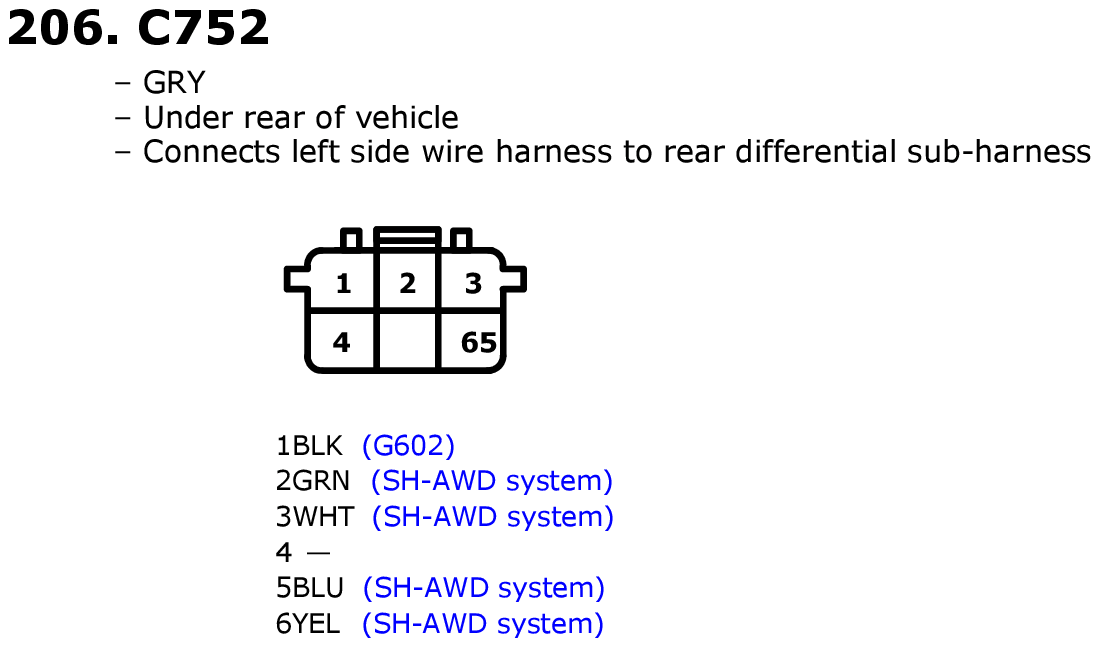

Fig 81: C752 Connector End View
GHHW8533Courtesy of AMERICAN HONDA MOTOR CO., INC.

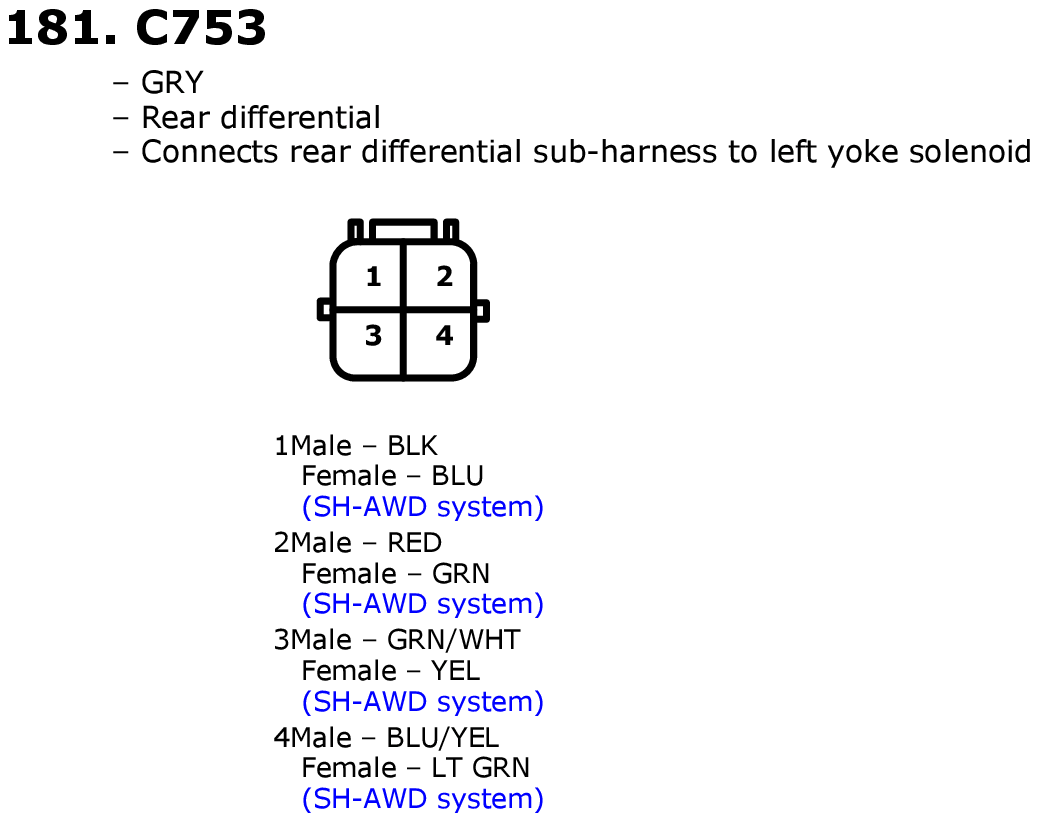

Fig 82: C753 Connector End View
GHHW8508Courtesy of AMERICAN HONDA MOTOR CO., INC.

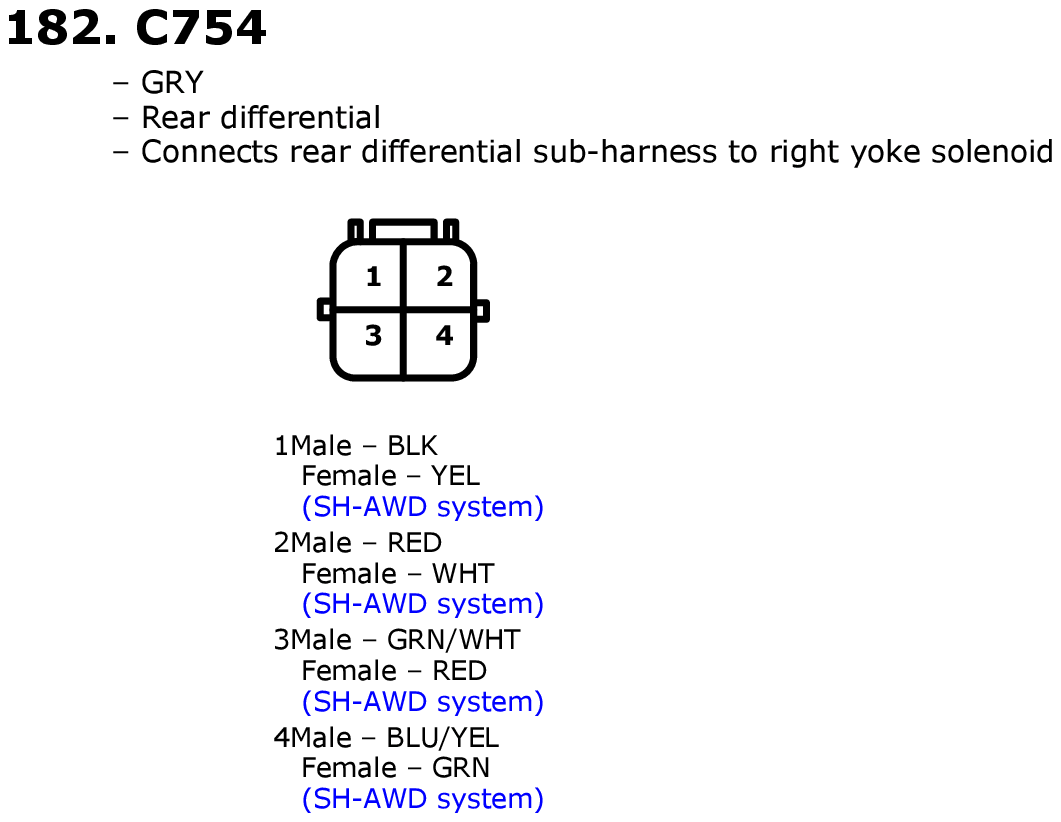

Fig 83: C754 Connector End View
GHHW8509Courtesy of AMERICAN HONDA MOTOR CO., INC.

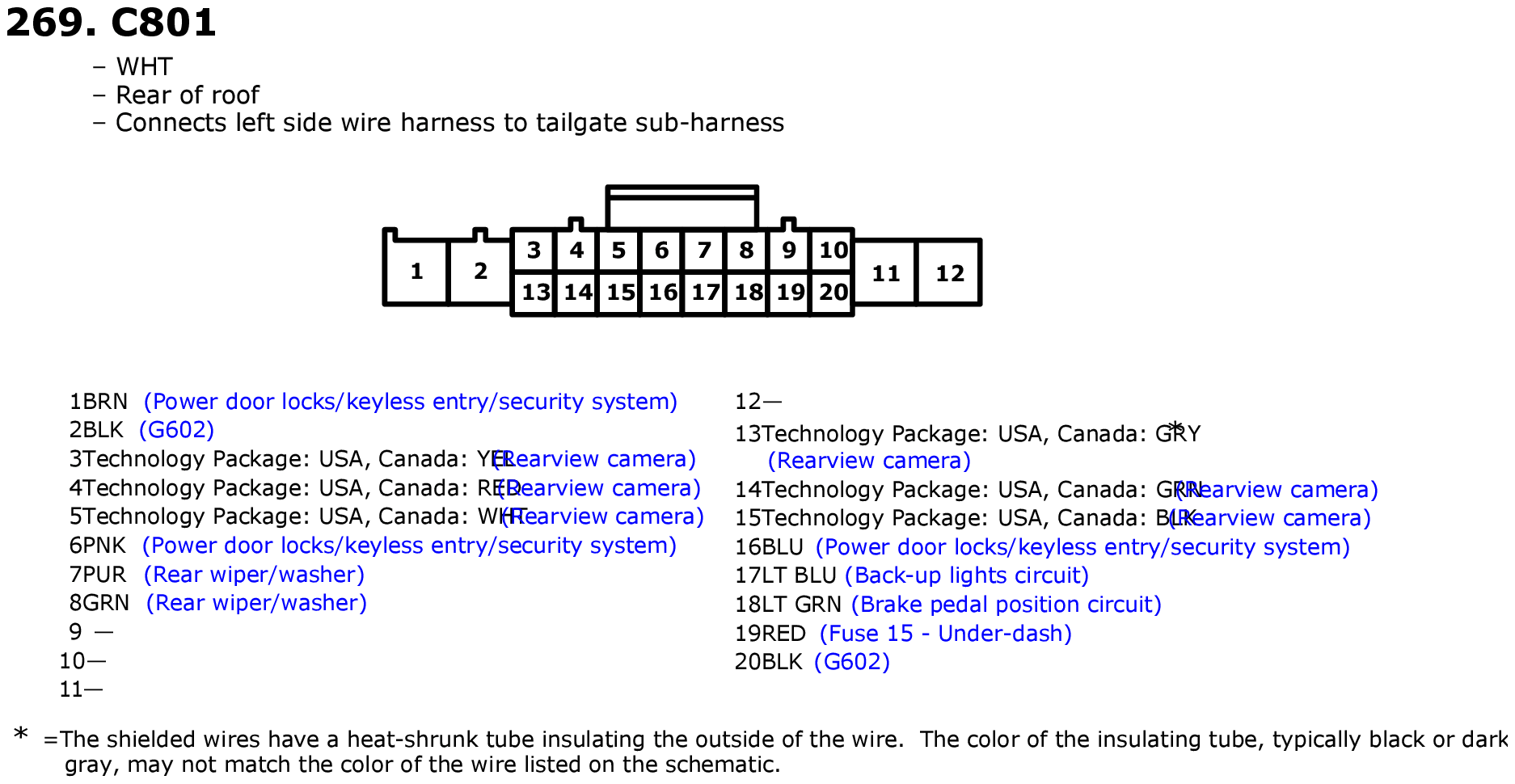

Fig 84: C801 Connector End View
GHHW8596Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 85: C802 Connector End View
GHHW8449Courtesy of AMERICAN HONDA MOTOR CO., INC.

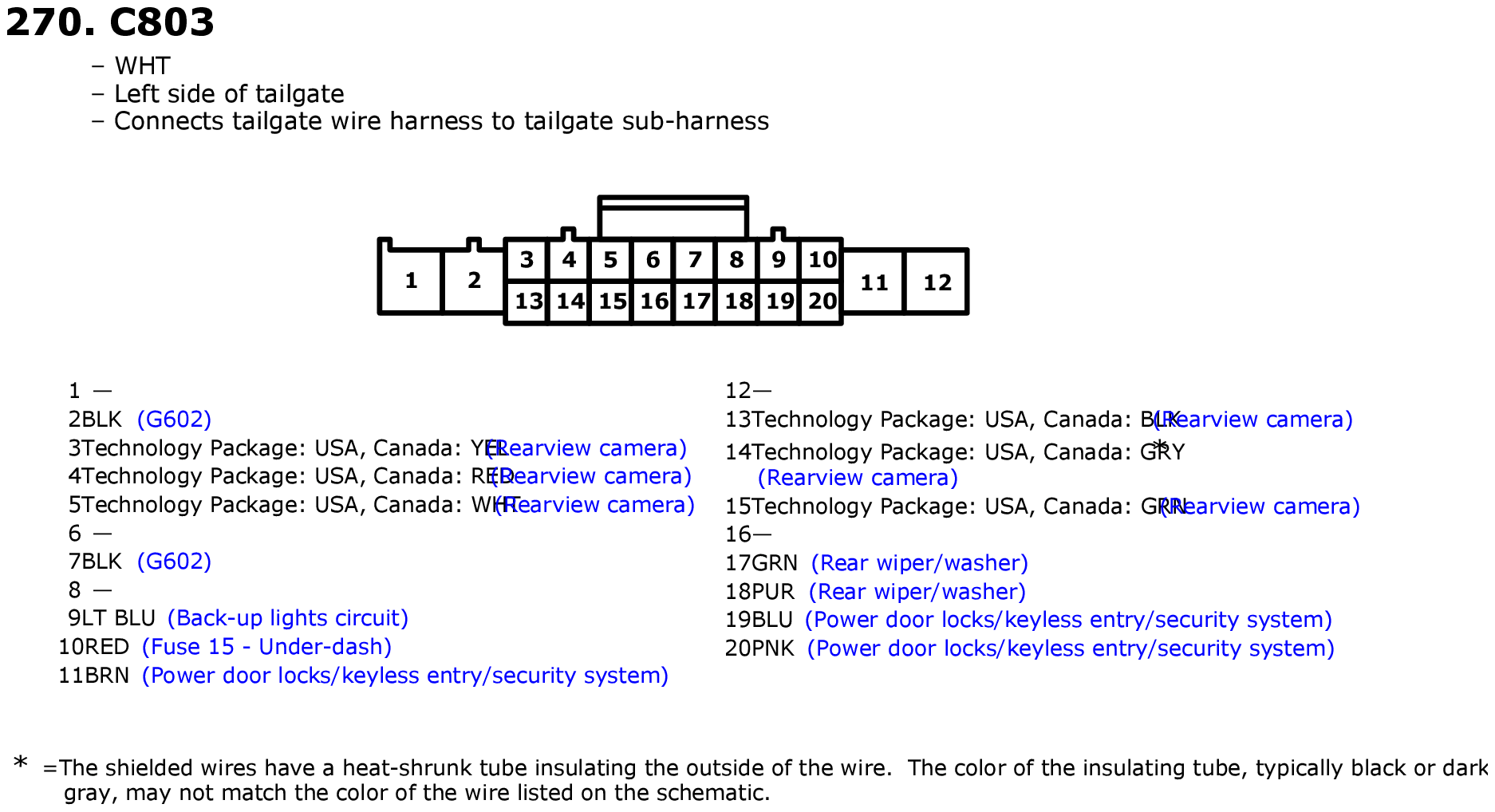

Fig 86: C803 Connector End View
GHHW8597Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 87: C804 Connector End View
GHHW8348Courtesy of AMERICAN HONDA MOTOR CO., INC.

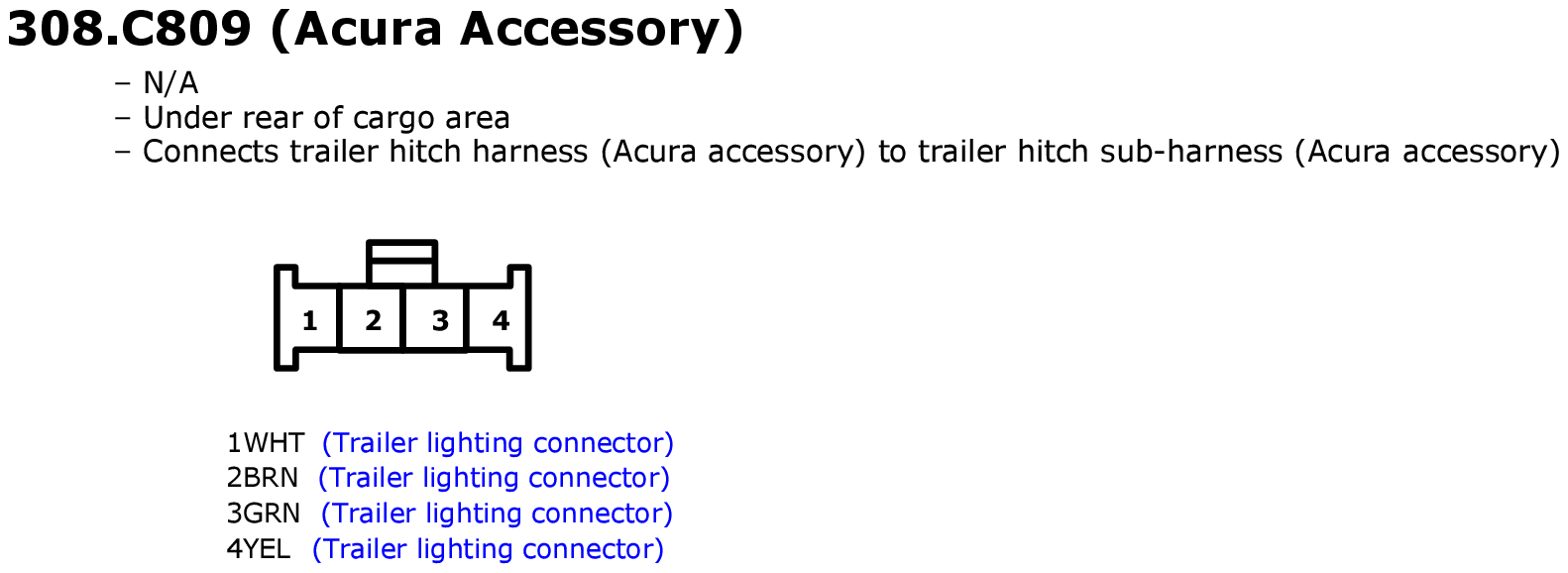

Fig 88: C809 Connector End View
GHHW8635Courtesy of AMERICAN HONDA MOTOR CO., INC.

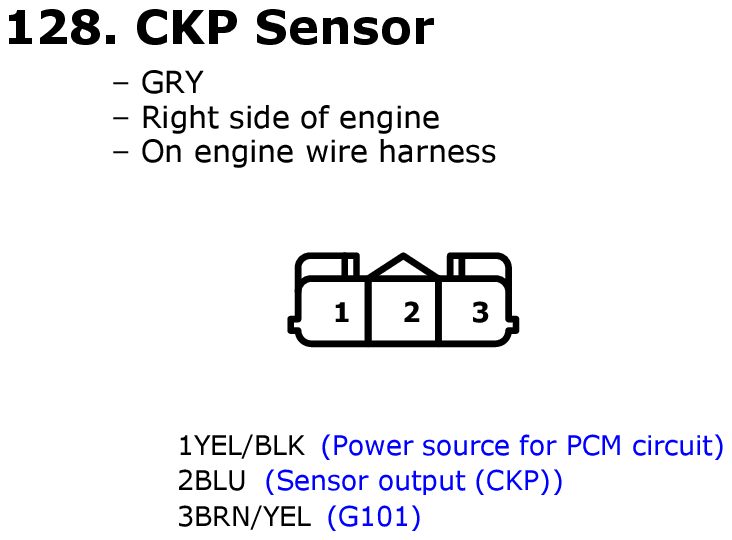

Fig 89: CKP Sensor Connector End View
GHHW8455Courtesy of AMERICAN HONDA MOTOR CO., INC.

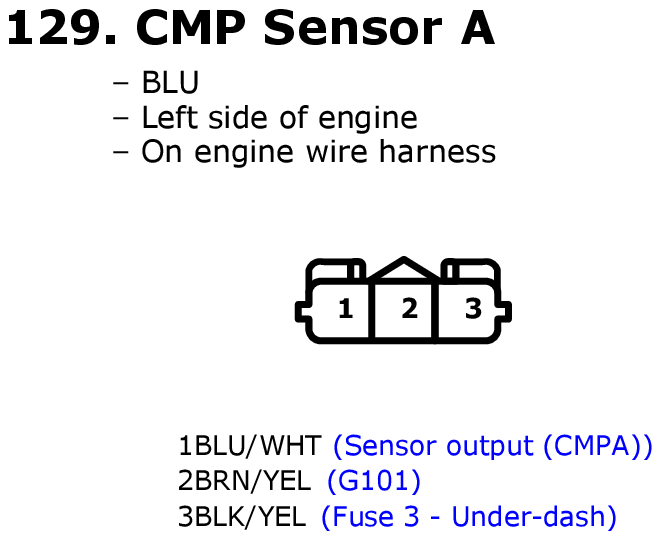

Fig 90: CMP Sensor A Connector End View
GHHW8456Courtesy of AMERICAN HONDA MOTOR CO., INC.

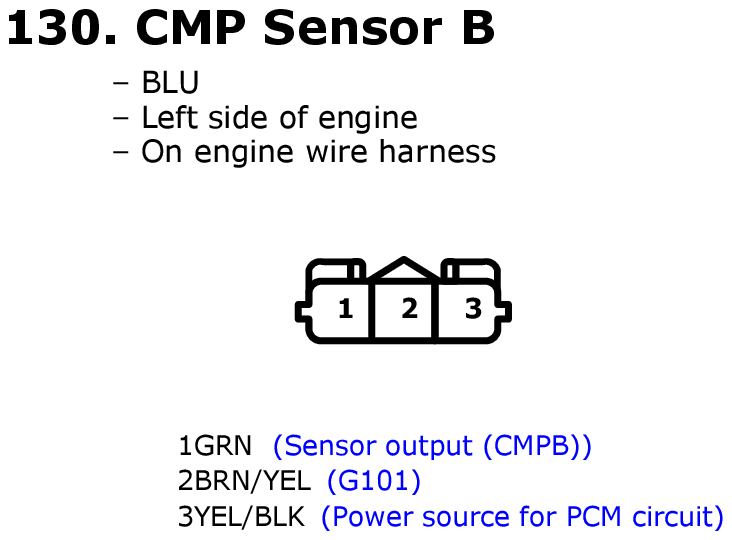

Fig 91: CMP Sensor B Connector End View
GHHW8457Courtesy of AMERICAN HONDA MOTOR CO., INC.

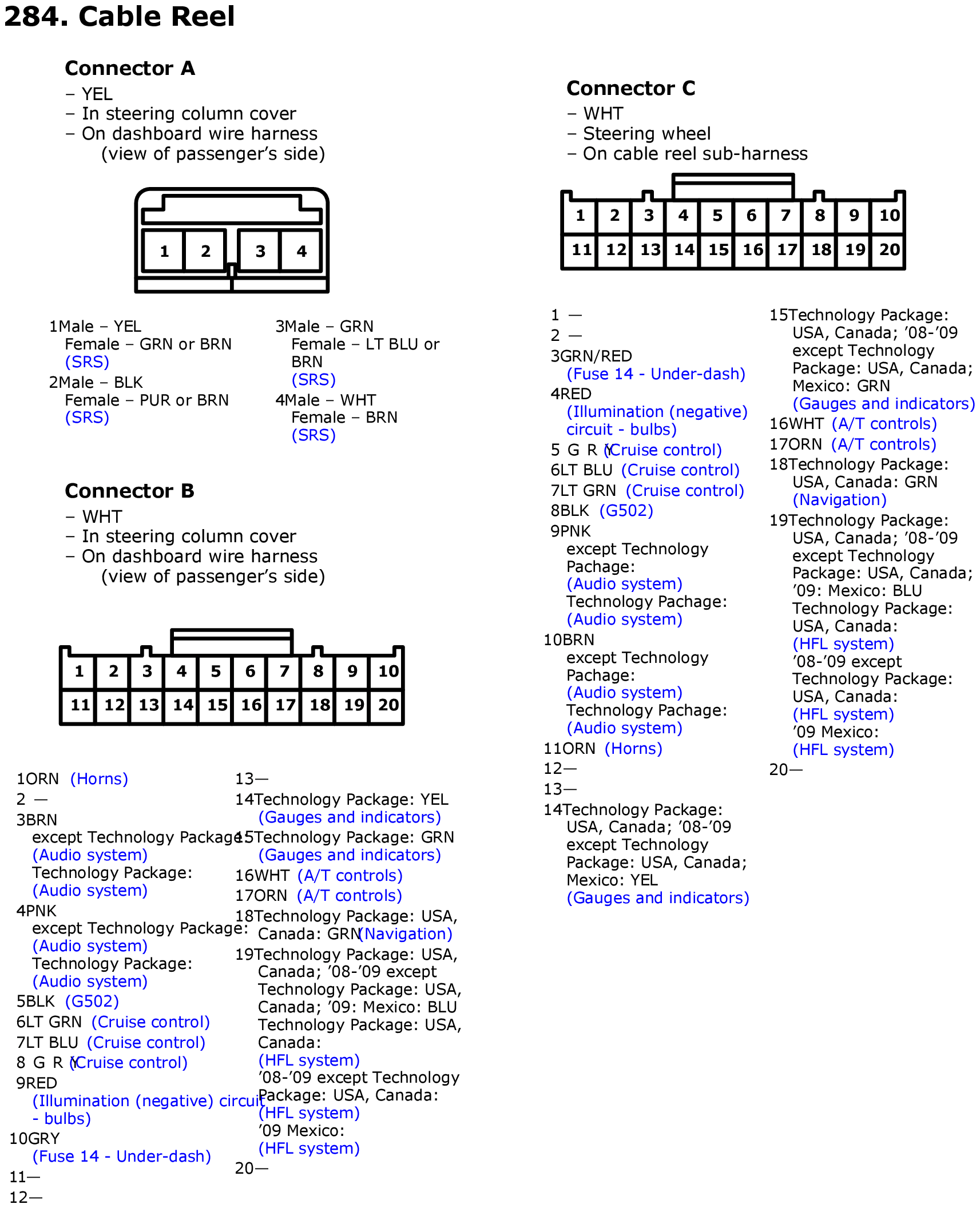

Fig 92: Cable Reel Connector End View
GHHW8611Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 93: Cargo Area Light Connector End View
GHHW8357Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 94: Ceiling Light Connector End View
GHHW8454Courtesy of AMERICAN HONDA MOTOR CO., INC.

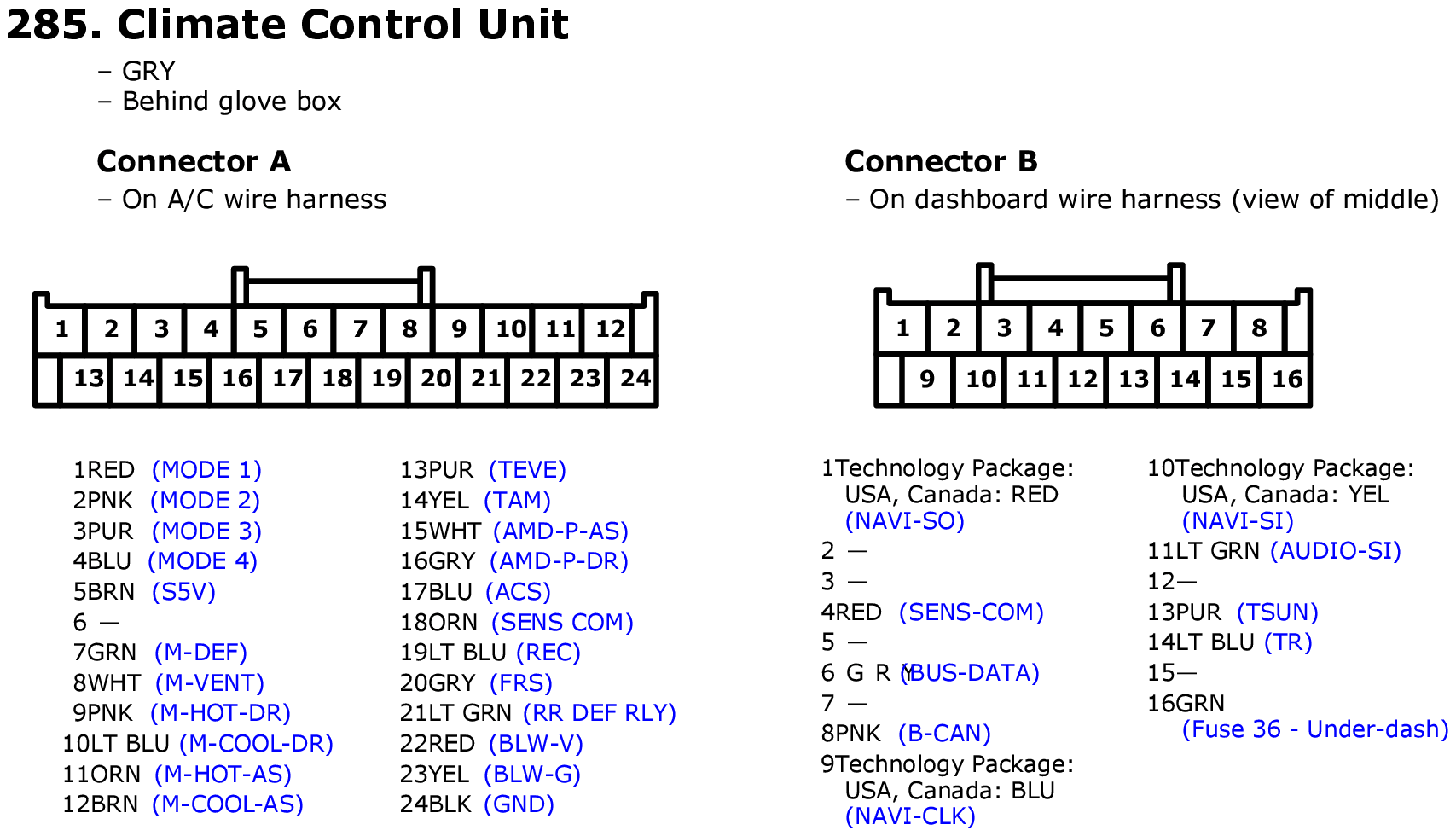

Fig 95: Climate Control Unit Connector End View
GHHW8612Courtesy of AMERICAN HONDA MOTOR CO., INC.

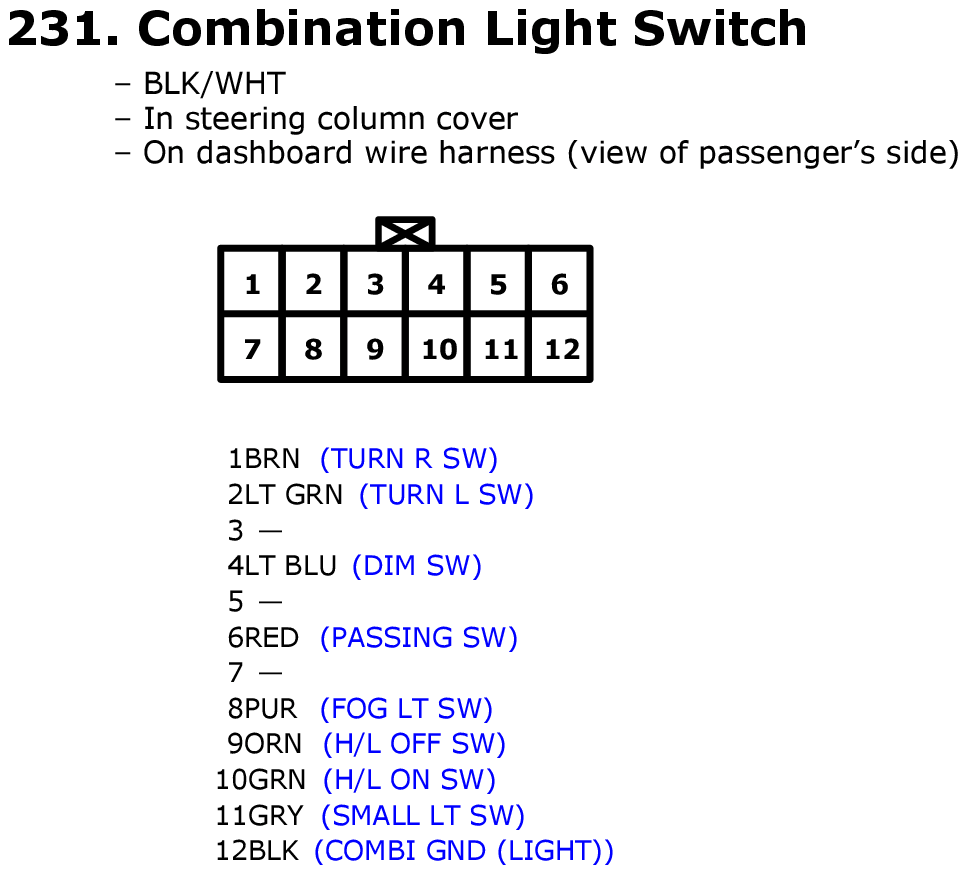

Fig 96: Combination Light Switch Connector End View
GHHW8558Courtesy of AMERICAN HONDA MOTOR CO., INC.

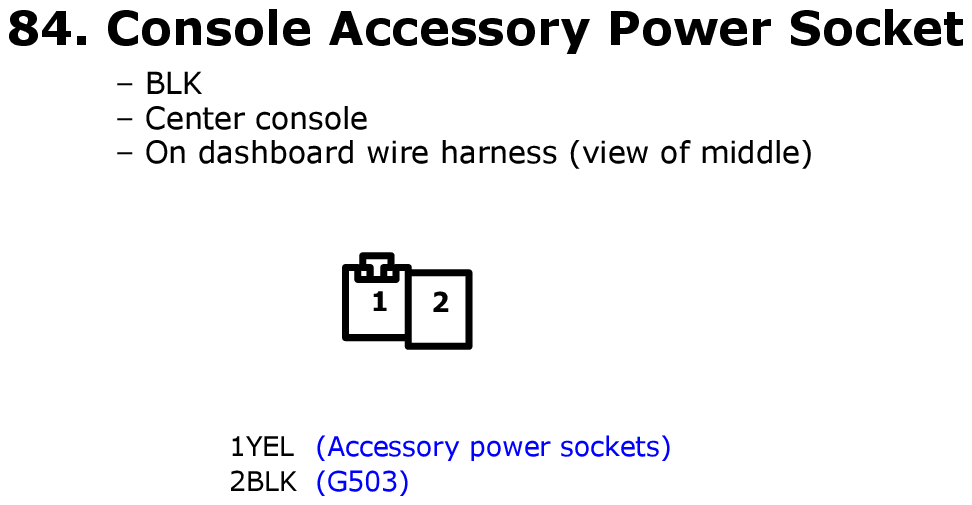

Fig 97: Console Accessory Power Socket Connector End View
GHHW8411Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 98: Console Box Light Connector End View
GHHW8358Courtesy of AMERICAN HONDA MOTOR CO., INC.

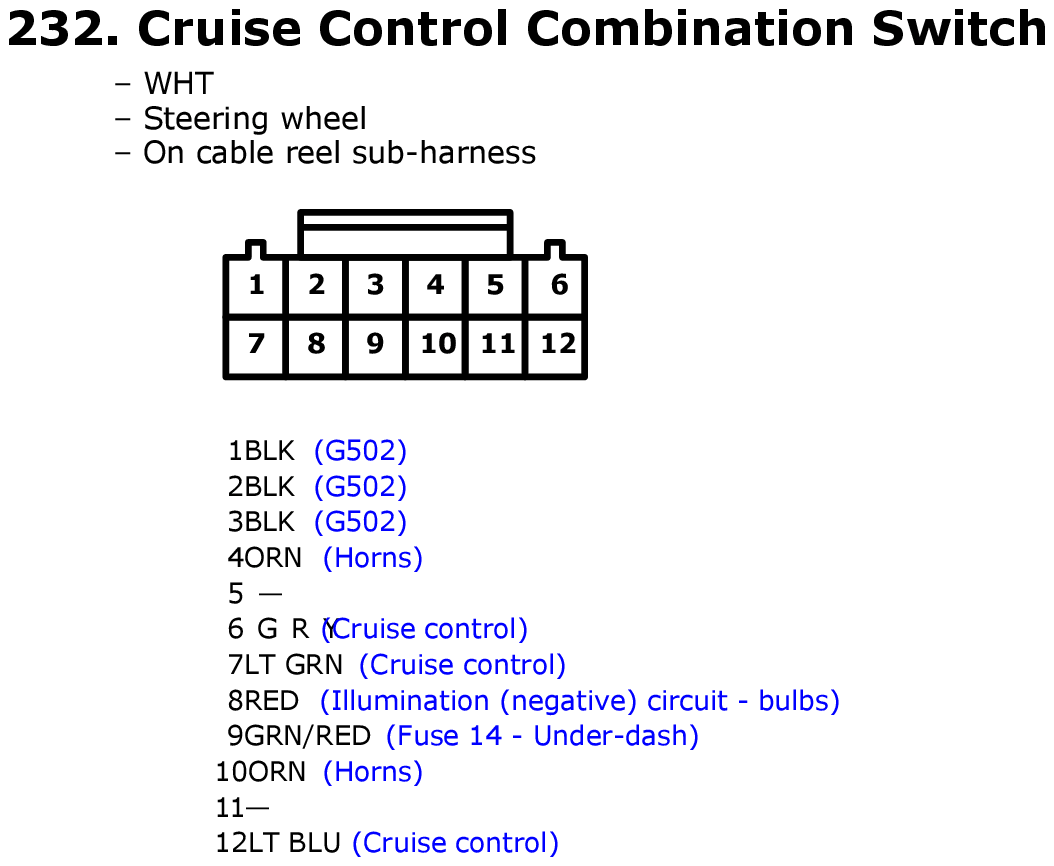

Fig 99: Cruise Control Combination Switch Connector End View
GHHW8559Courtesy of AMERICAN HONDA MOTOR CO., INC.

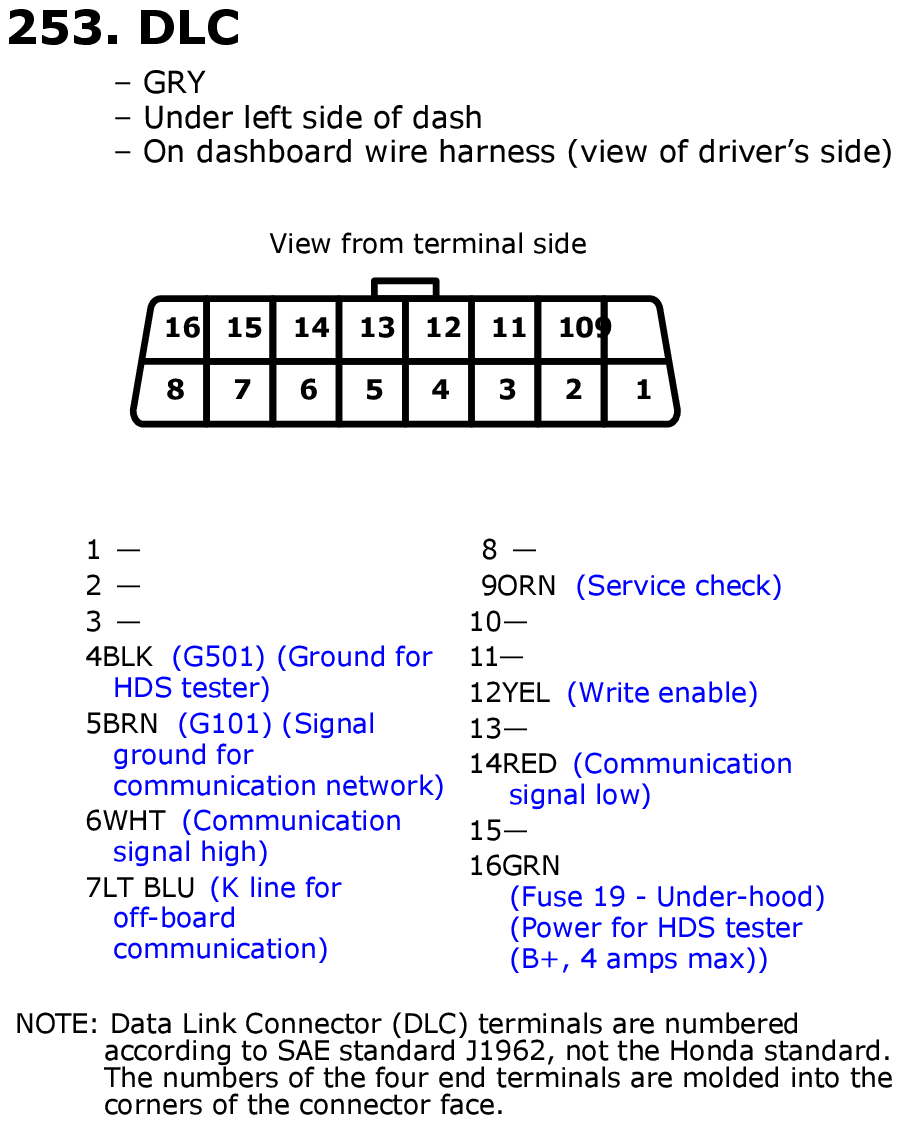

Fig 100: DLC Connector End View
GHHW8580Courtesy of AMERICAN HONDA MOTOR CO., INC.

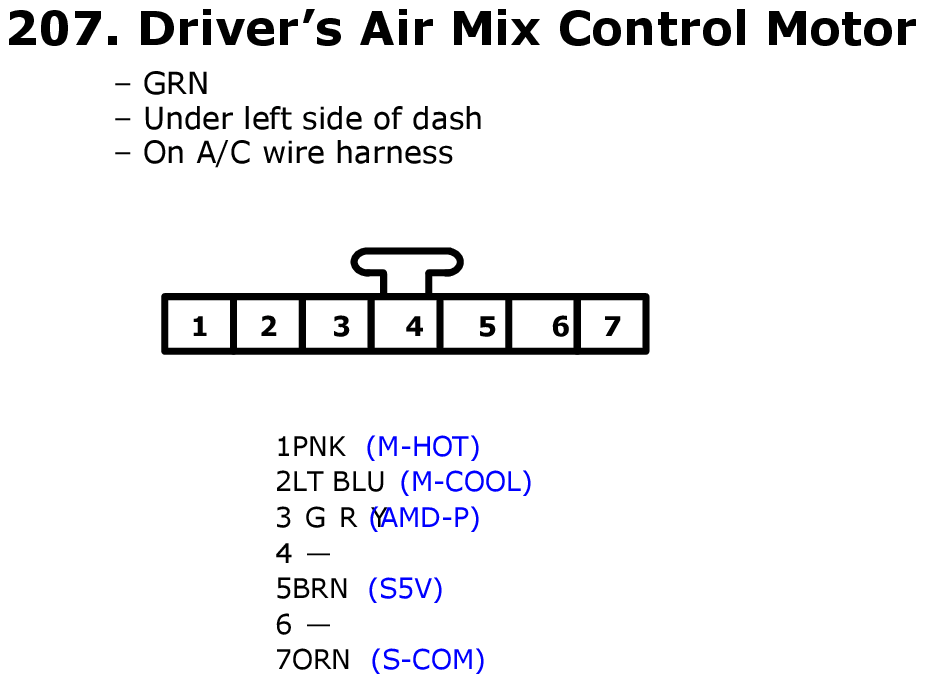

Fig 101: Driver's Air Mix Control Motor Connector End View
GHHW8534Courtesy of AMERICAN HONDA MOTOR CO., INC.

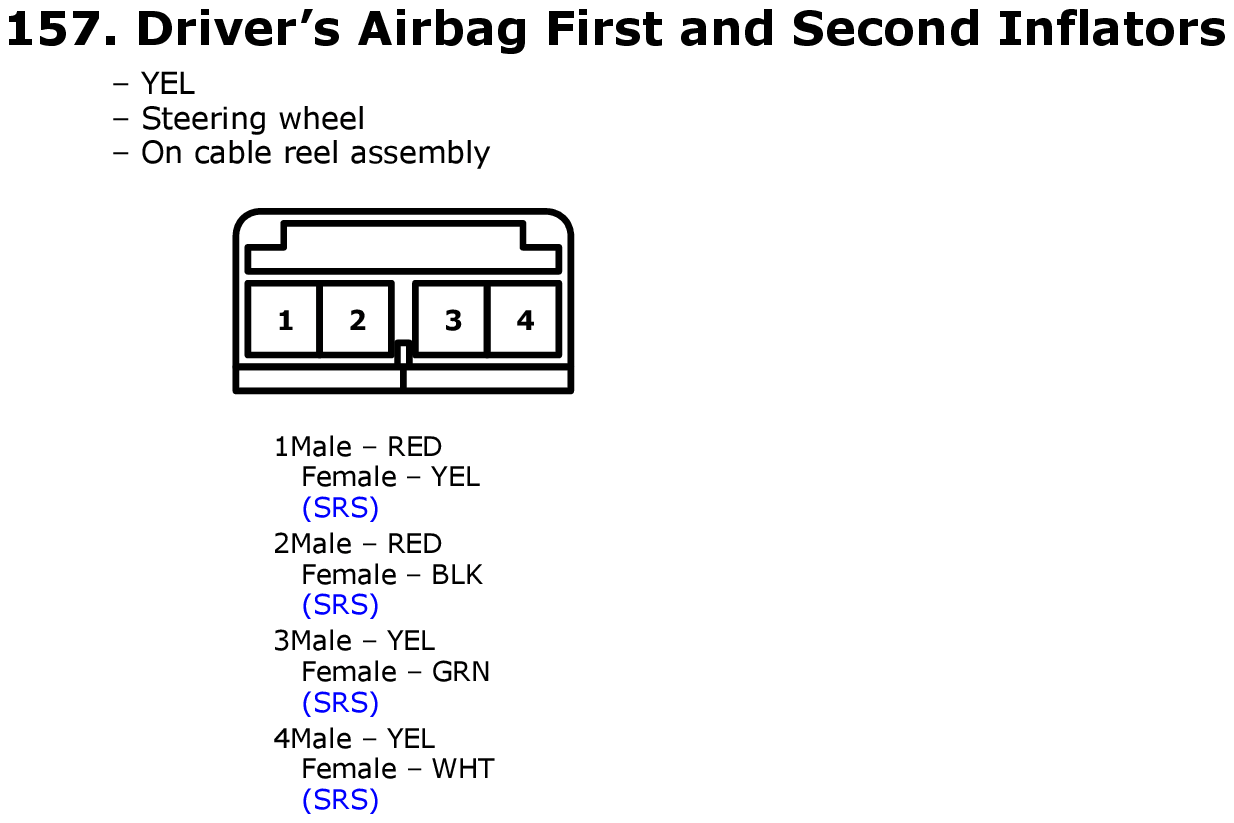

Fig 102: Driver's Airbag First and Second Inflators Connector End View
GHHW8484Courtesy of AMERICAN HONDA MOTOR CO., INC.

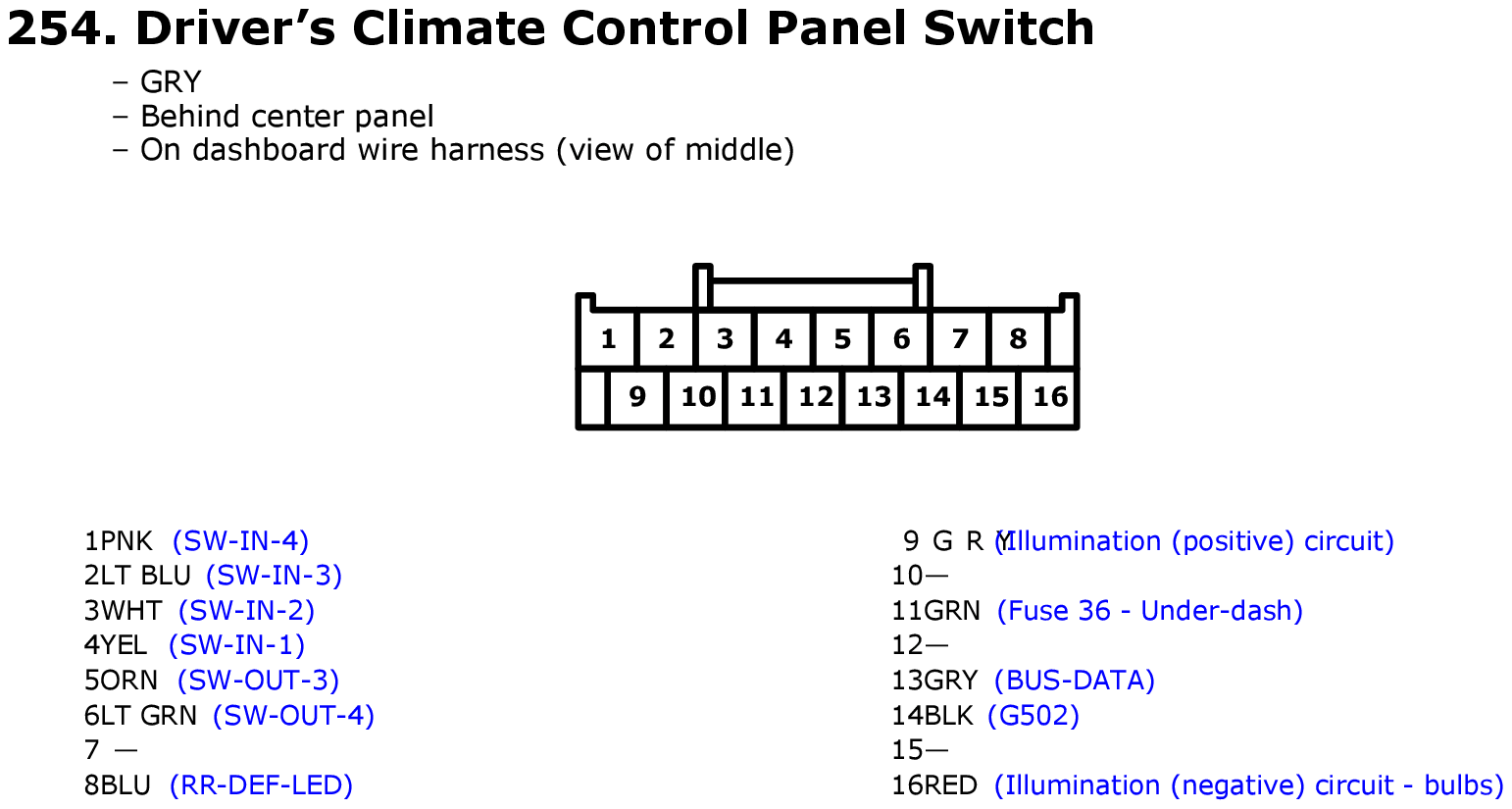

Fig 103: Driver's Climate Control Panel Switch Connector End View
GHHW8581Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 104: Driver's Door Courtesy Light Connector End View
GHHW8360Courtesy of AMERICAN HONDA MOTOR CO., INC.

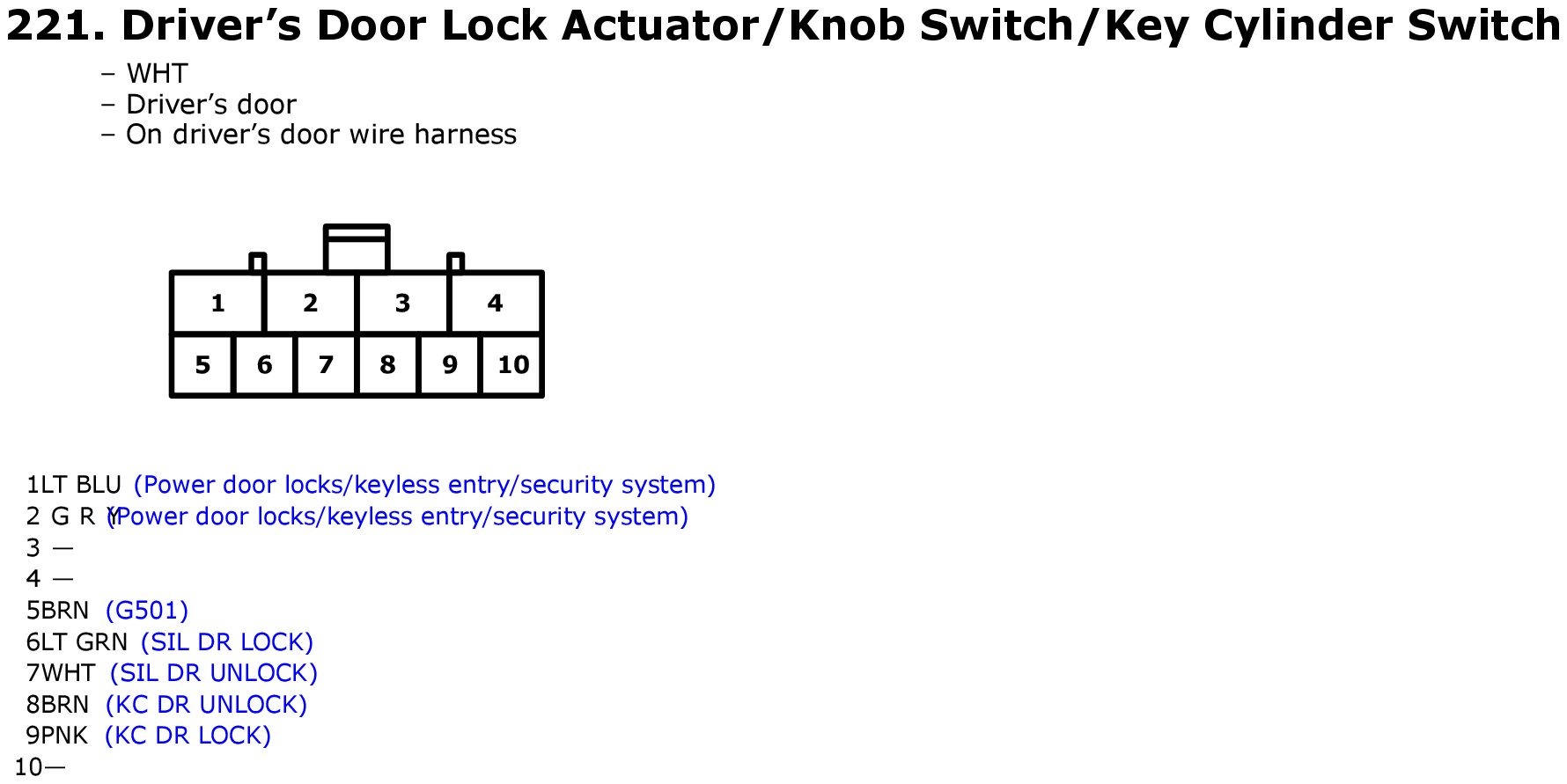

Fig 105: Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector End View
GHHW8548Courtesy of AMERICAN HONDA MOTOR CO., INC.

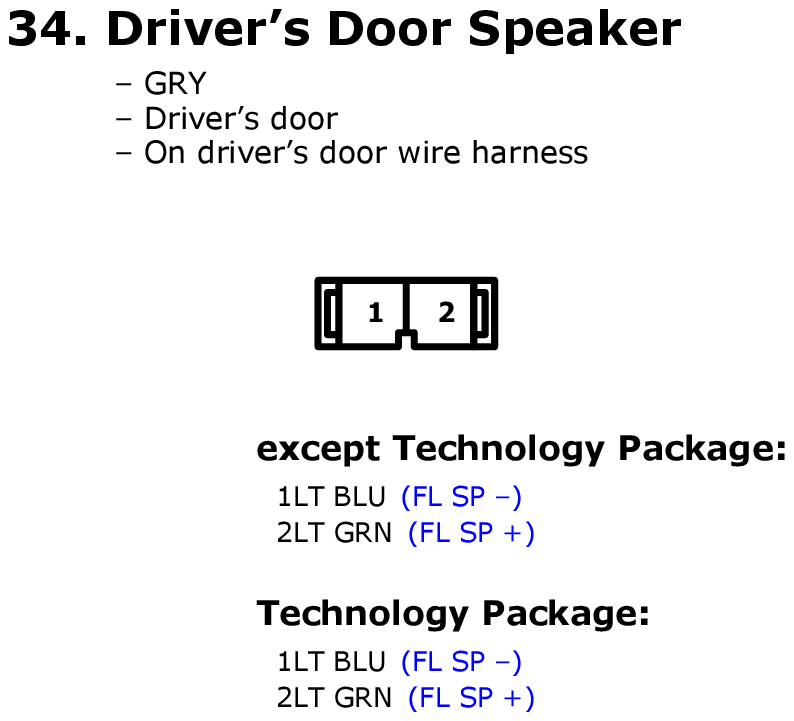

Fig 106: Driver's Door Speaker Connector End View
GHHW8361Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 107: Driver's Door Switch Connector End View
GHHW8331Courtesy of AMERICAN HONDA MOTOR CO., INC.

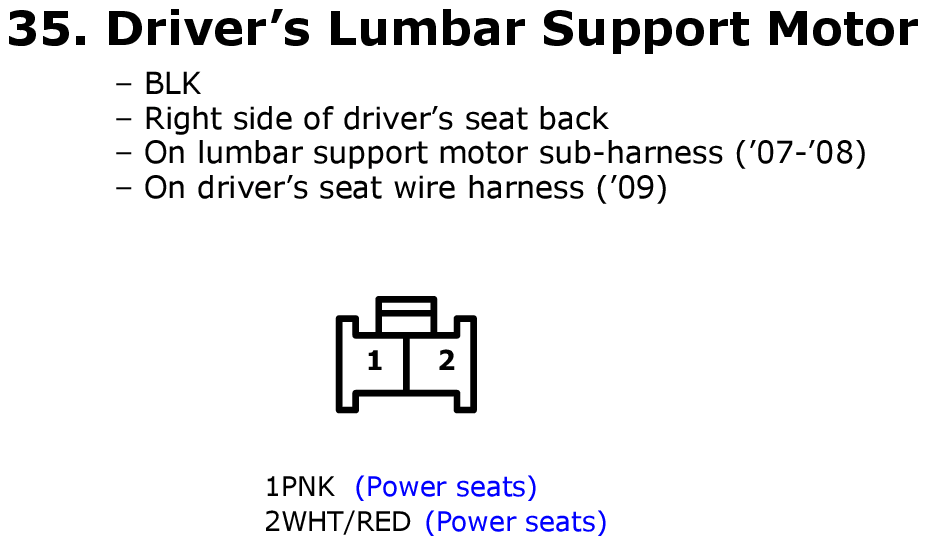

Fig 108: Driver's Lumbar Support Motor Connector End View
GHHW8362Courtesy of AMERICAN HONDA MOTOR CO., INC.

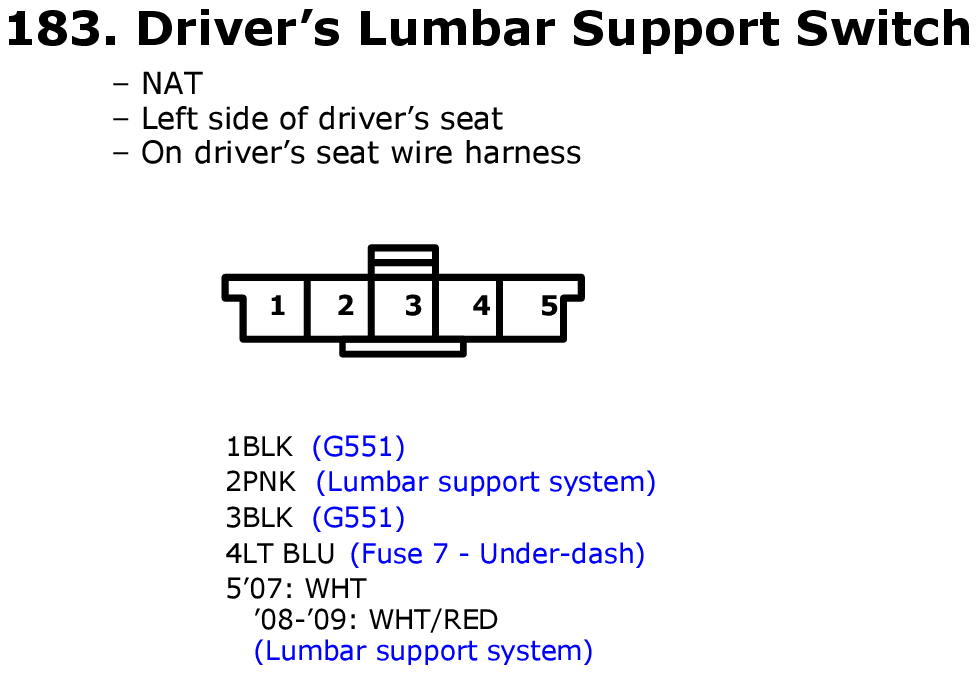

Fig 109: Driver's Lumbar Support Switch Connector End View
GHHW8510Courtesy of AMERICAN HONDA MOTOR CO., INC.

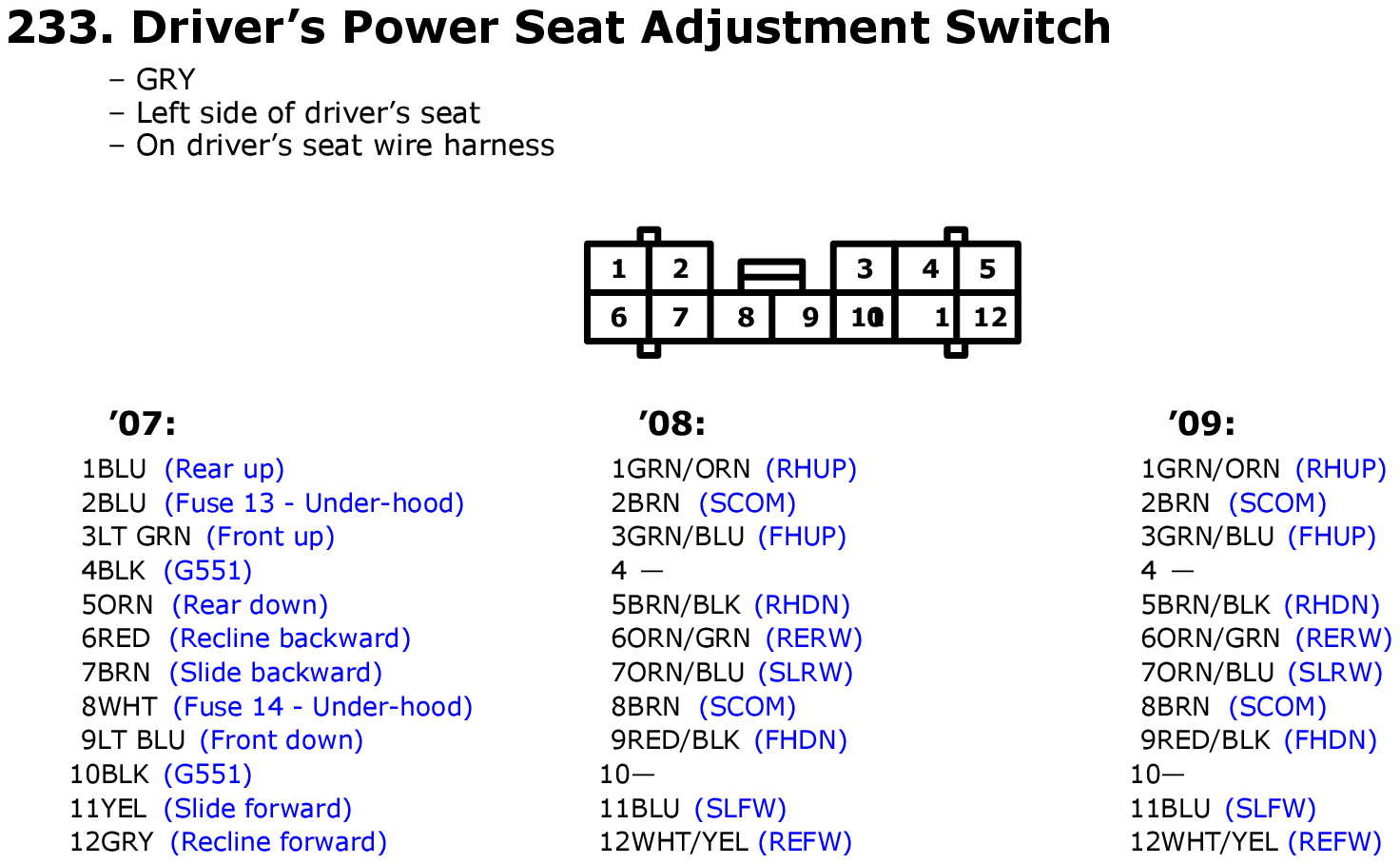

Fig 110: Driver's Power Seat Adjustment Switch Connector End View
GHHW8560Courtesy of AMERICAN HONDA MOTOR CO., INC.

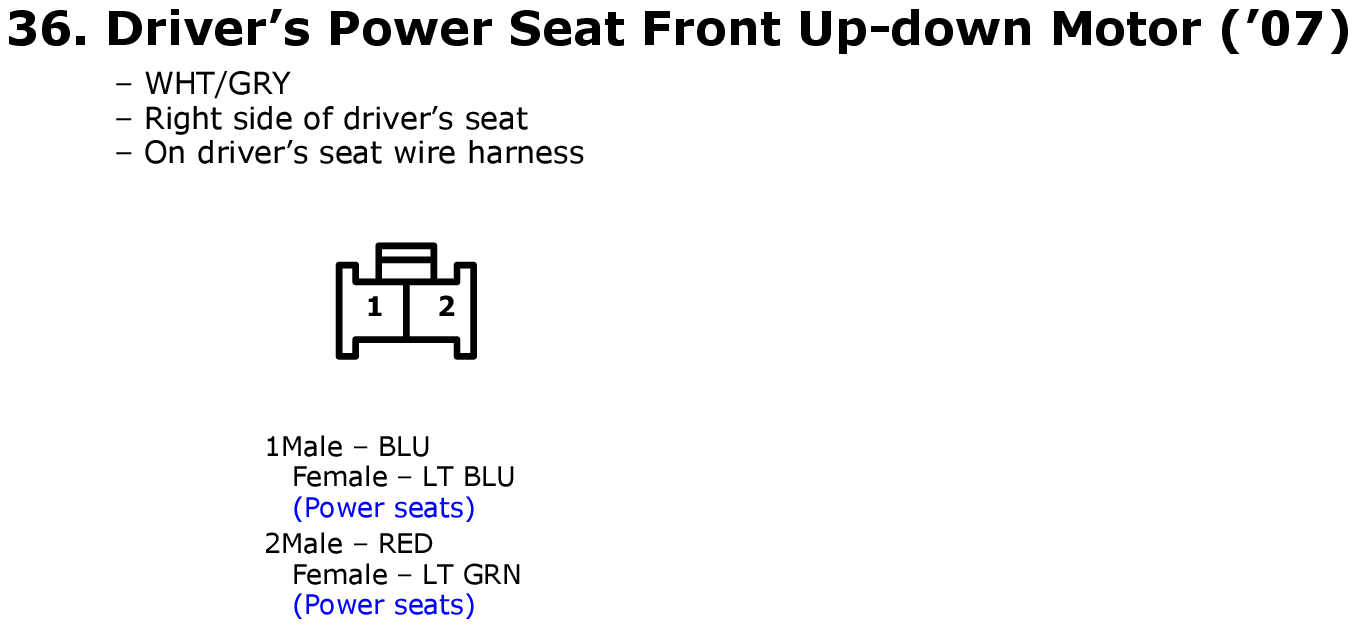

Fig 111: Driver's Power Seat Front Up-down Motor Connector End View
GHHW8363Courtesy of AMERICAN HONDA MOTOR CO., INC.

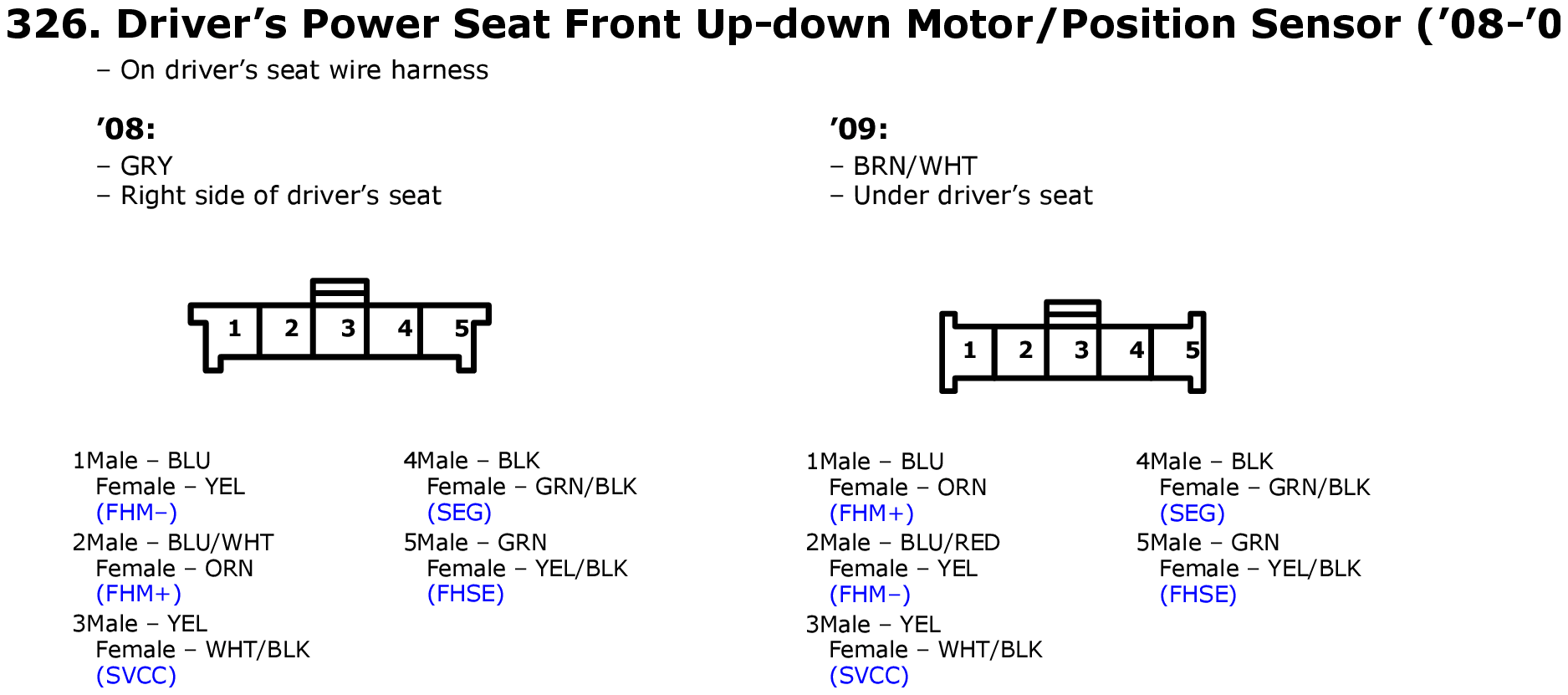

Fig 112: Driver's Power Seat Front Up-down Motor/Position Sensor Connector End View
GHHW8650Courtesy of AMERICAN HONDA MOTOR CO., INC.

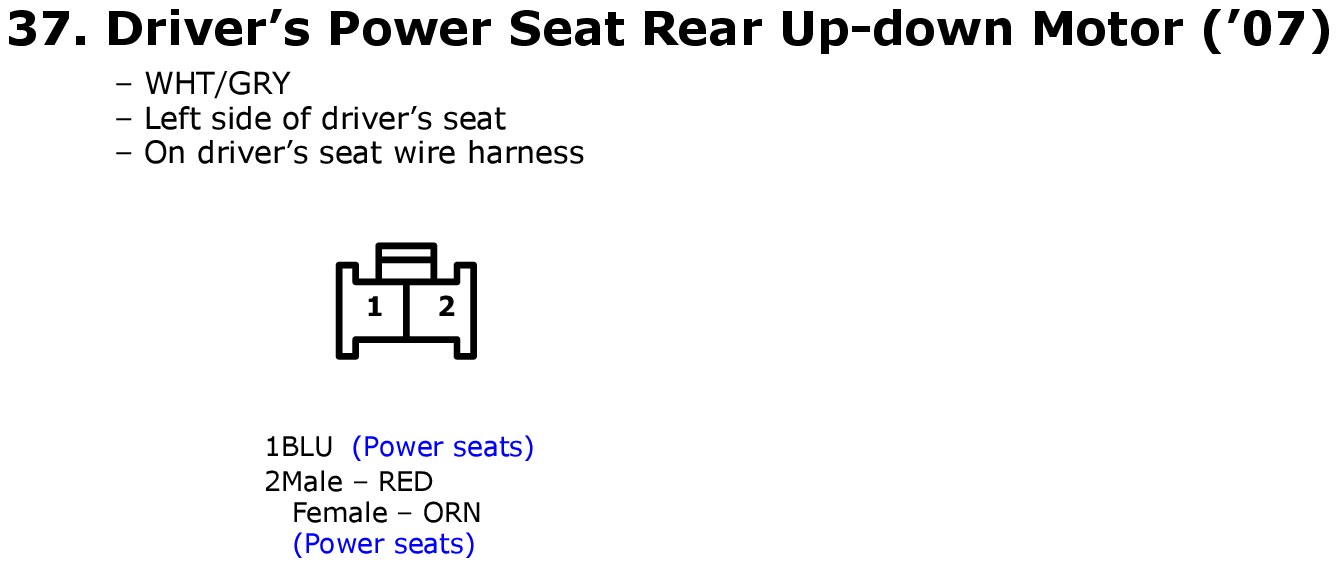

Fig 113: Driver's Power Seat Rear Up-down Motor Connector End View
GHHW8364Courtesy of AMERICAN HONDA MOTOR CO., INC.

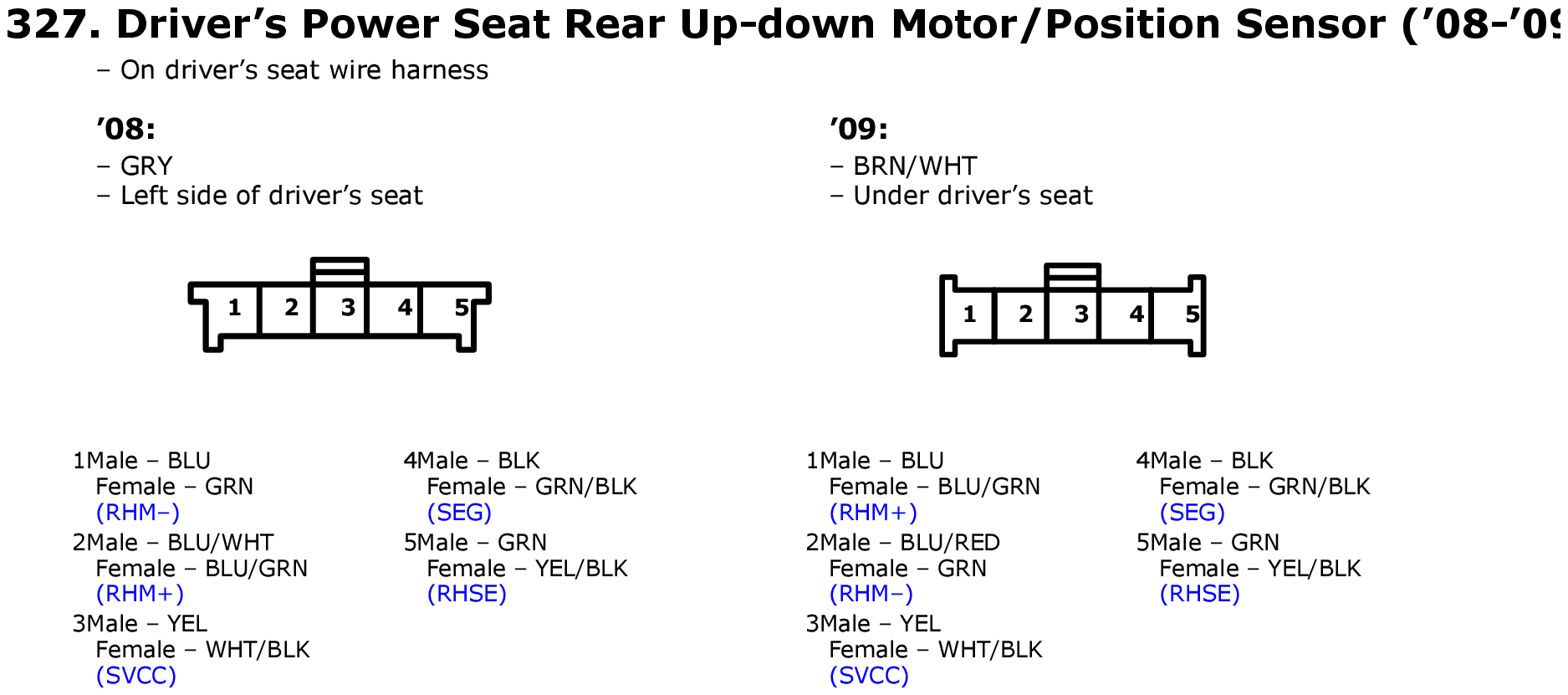

Fig 114: Driver's Power Seat Rear Up-down Motor/Position Sensor Connector End View
GHHW8651Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 115: Driver's Power Seat Recline Motor Connector End View
GHHW8365Courtesy of AMERICAN HONDA MOTOR CO., INC.

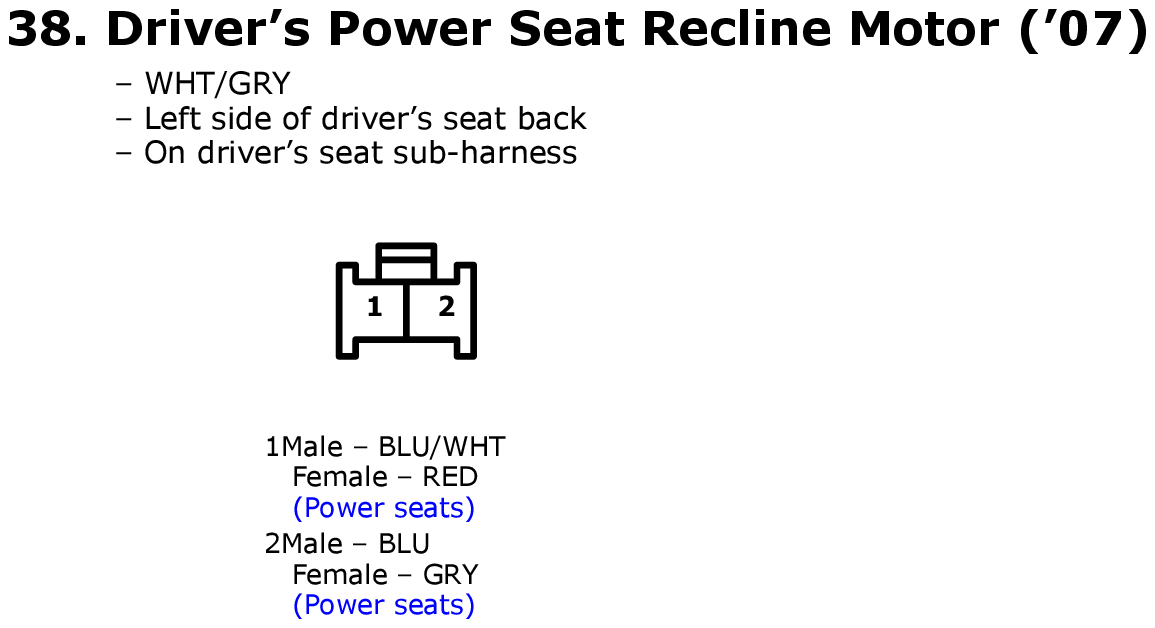

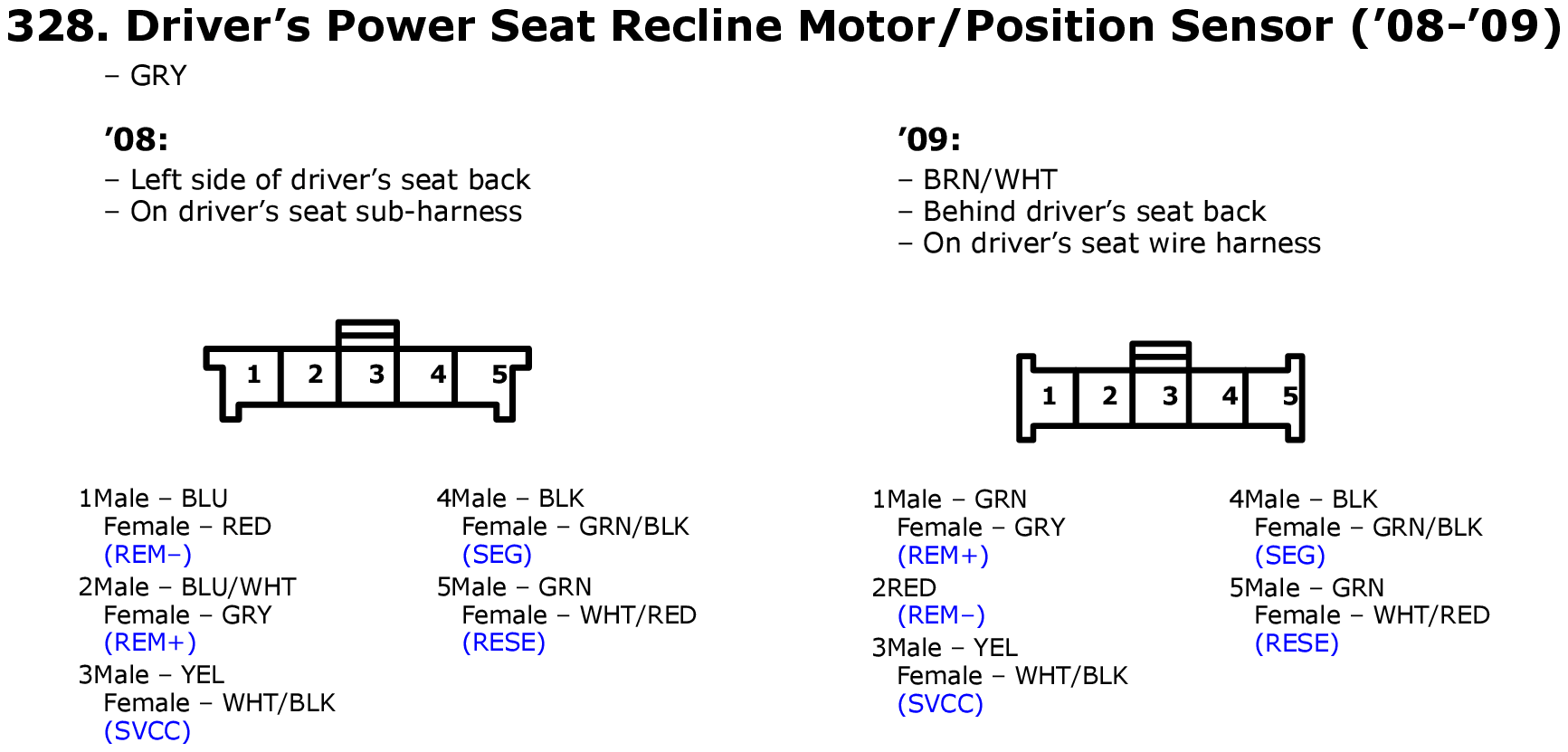

Fig 116: Driver's Power Seat Recline Motor/Position Sensor Connector End View
GHHW8652Courtesy of AMERICAN HONDA MOTOR CO., INC.

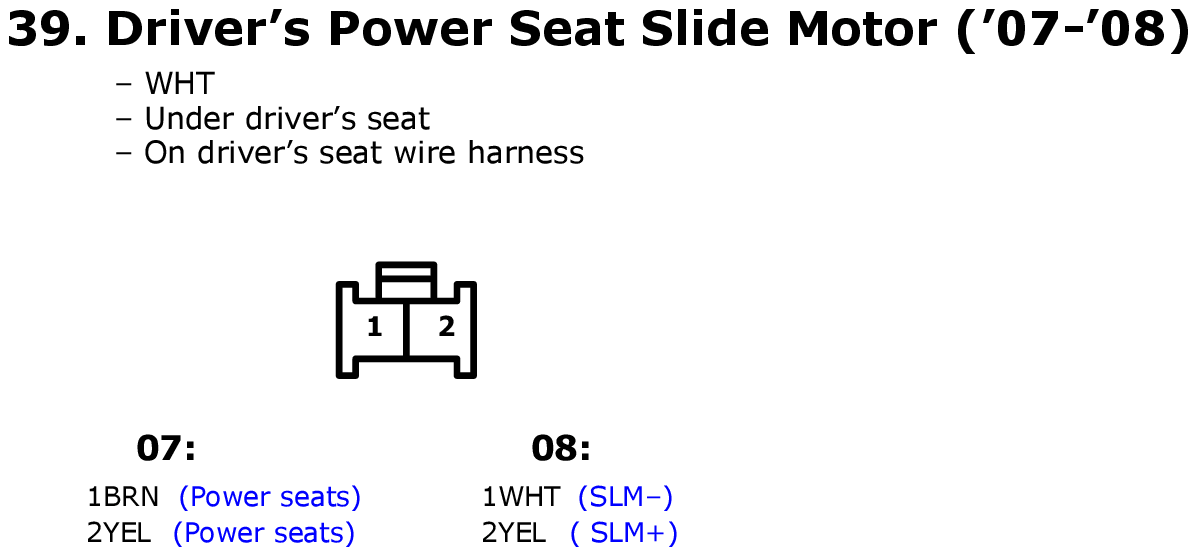

Fig 117: Driver's Power Seat Slide Motor Connector End View
GHHW8366Courtesy of AMERICAN HONDA MOTOR CO., INC.

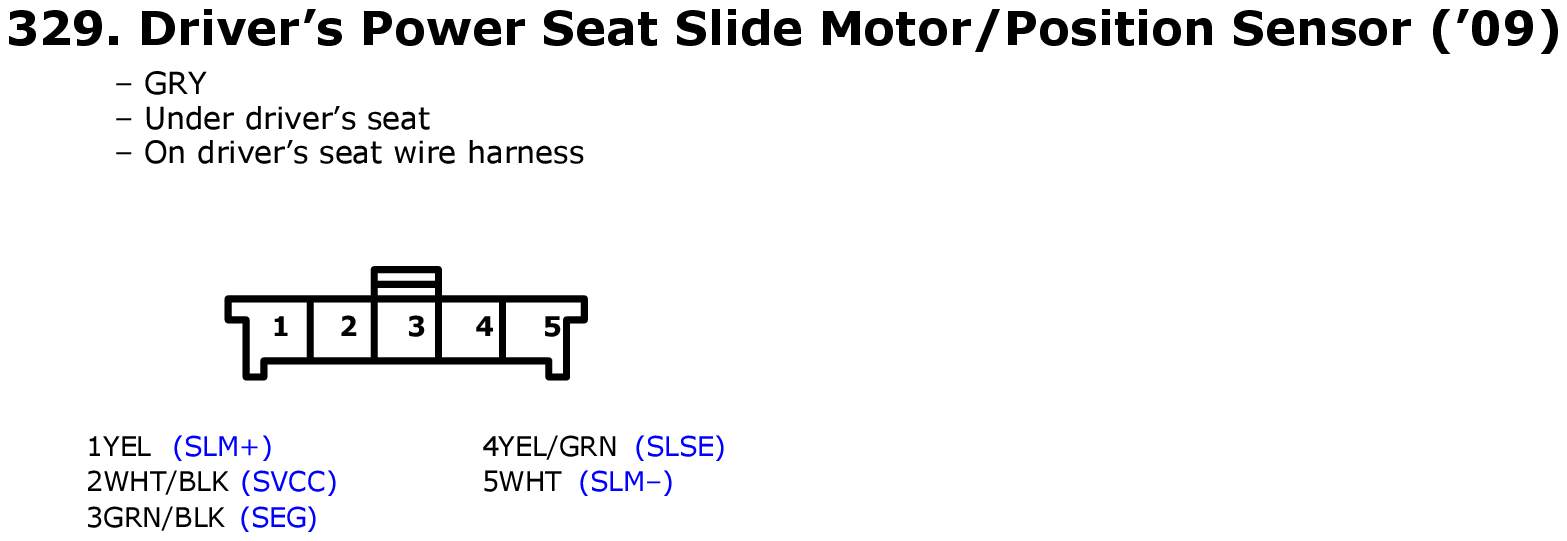

Fig 118: Driver's Power Seat Slide Motor/Position Sensor Connector End View
GHHW8653Courtesy of AMERICAN HONDA MOTOR CO., INC.

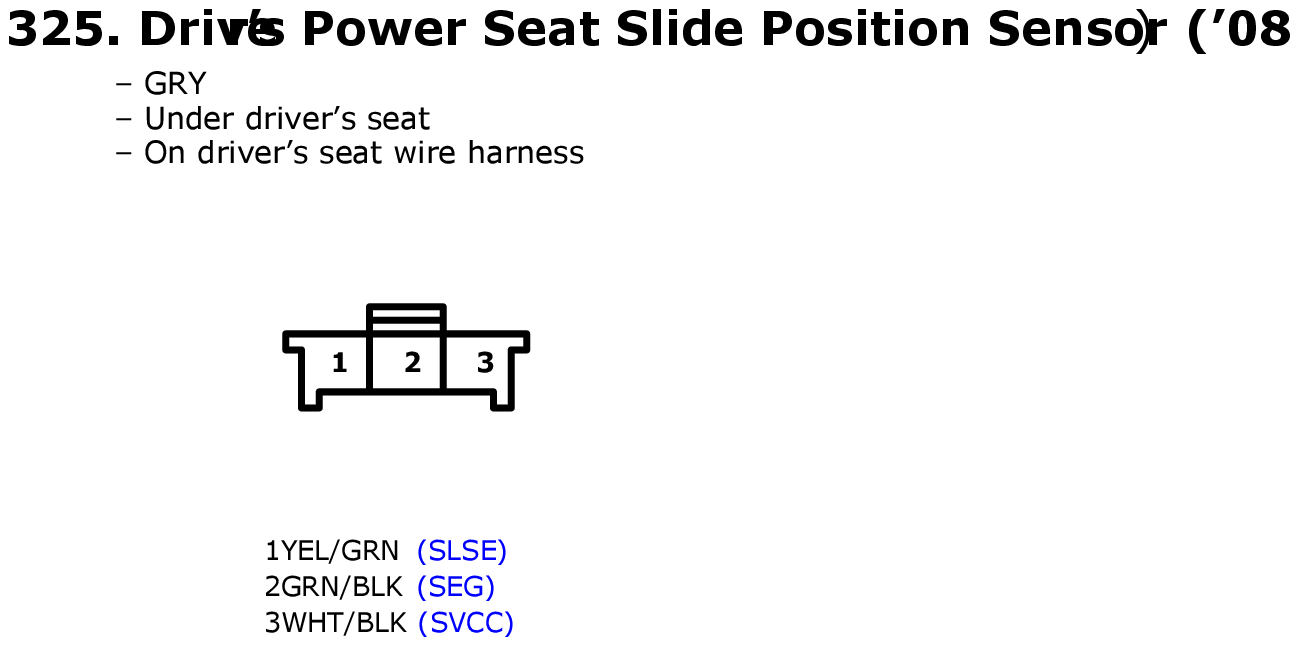

Fig 119: Driver's Power Seat Slide Position Sensor Connector End View
GHHW8649Courtesy of AMERICAN HONDA MOTOR CO., INC.

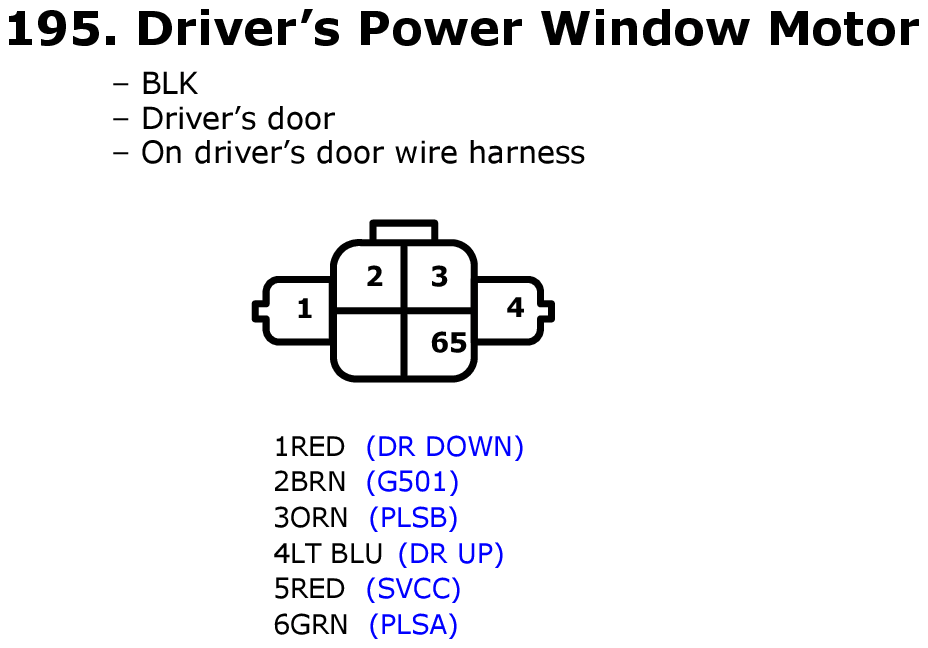

Fig 120: Driver's Power Window Motor Connector End View
GHHW8522Courtesy of AMERICAN HONDA MOTOR CO., INC.

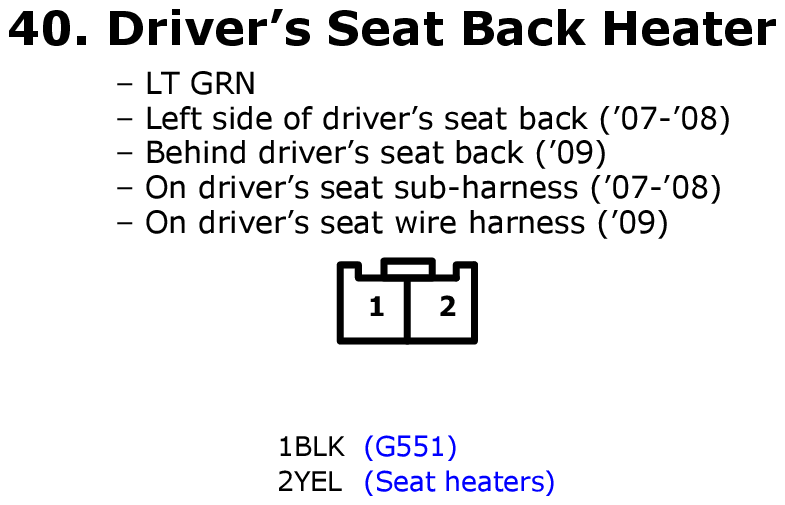

Fig 121: Driver's Seat Back Heater Connector End View
GHHW8367Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 122: Driver's Seat Belt Buckle Switch Connector End View
GHHW8458Courtesy of AMERICAN HONDA MOTOR CO., INC.

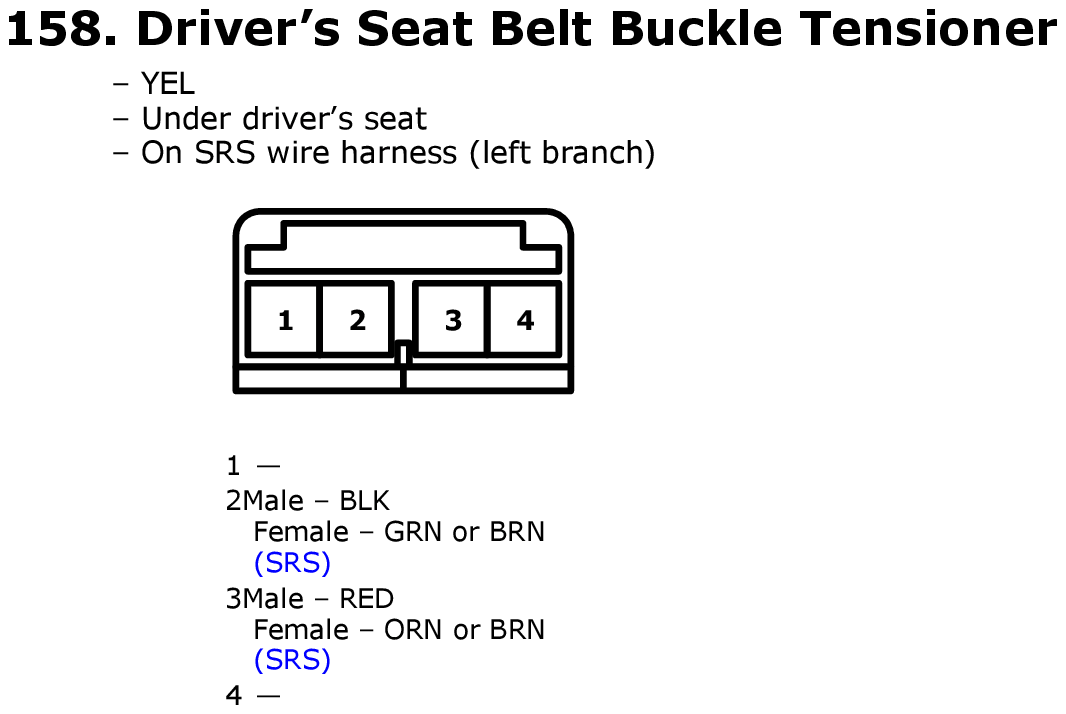

Fig 123: Driver's Seat Belt Buckle Tensioner Connector End View
GHHW8485Courtesy of AMERICAN HONDA MOTOR CO., INC.

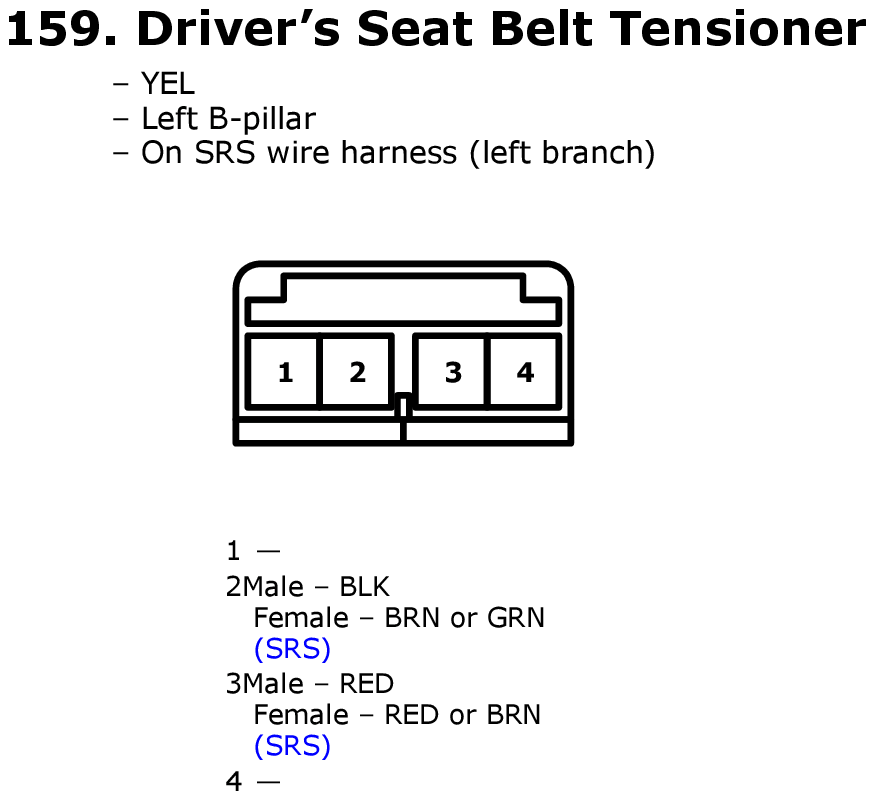

Fig 124: Driver's Seat Belt Tensioner Connector End View
GHHW8486Courtesy of AMERICAN HONDA MOTOR CO., INC.

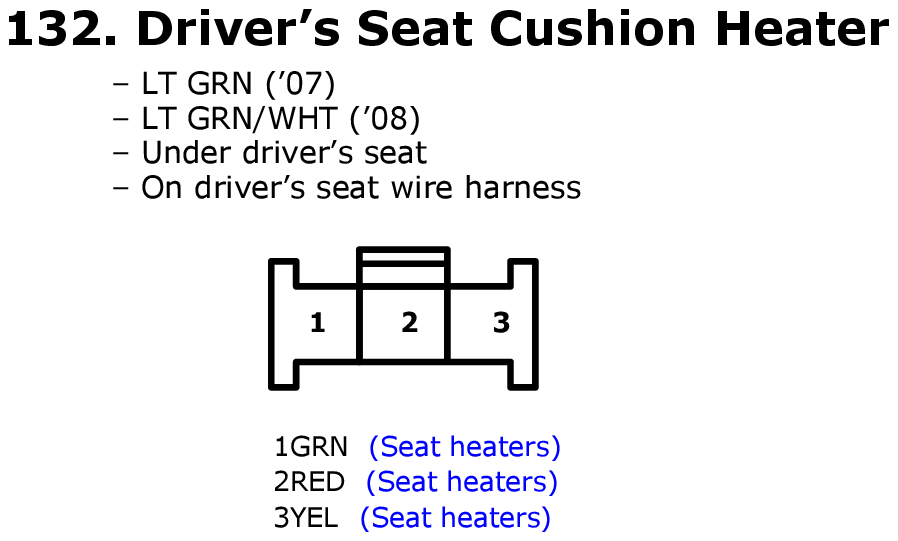

Fig 125: Driver's Seat Cushion Heater Connector End View
GHHW8459Courtesy of AMERICAN HONDA MOTOR CO., INC.

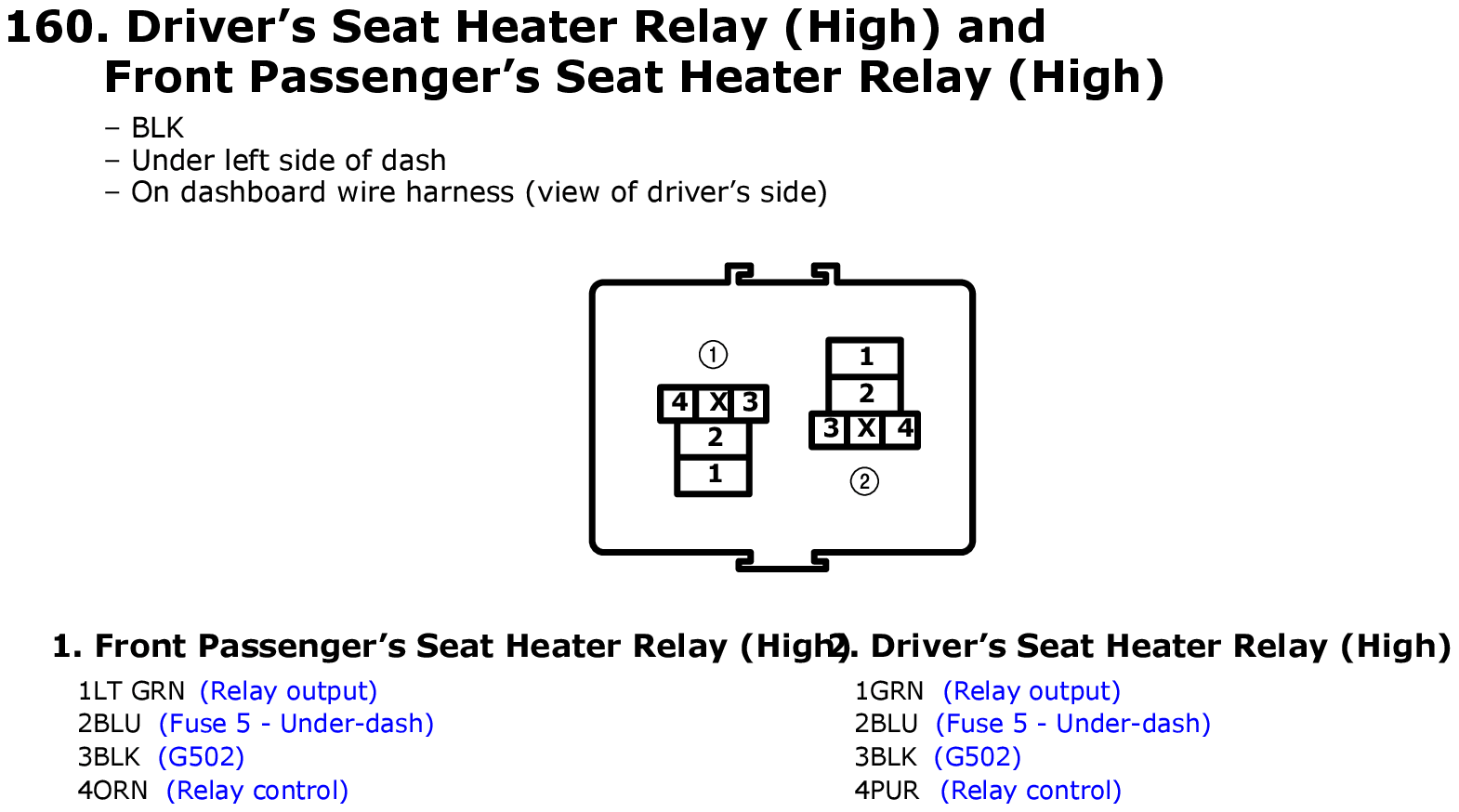

Fig 126: Driver's Seat Heater Relay (High) and Front Passenger's Seat Heater Relay (High) Connector End View
GHHW8487Courtesy of AMERICAN HONDA MOTOR CO., INC.

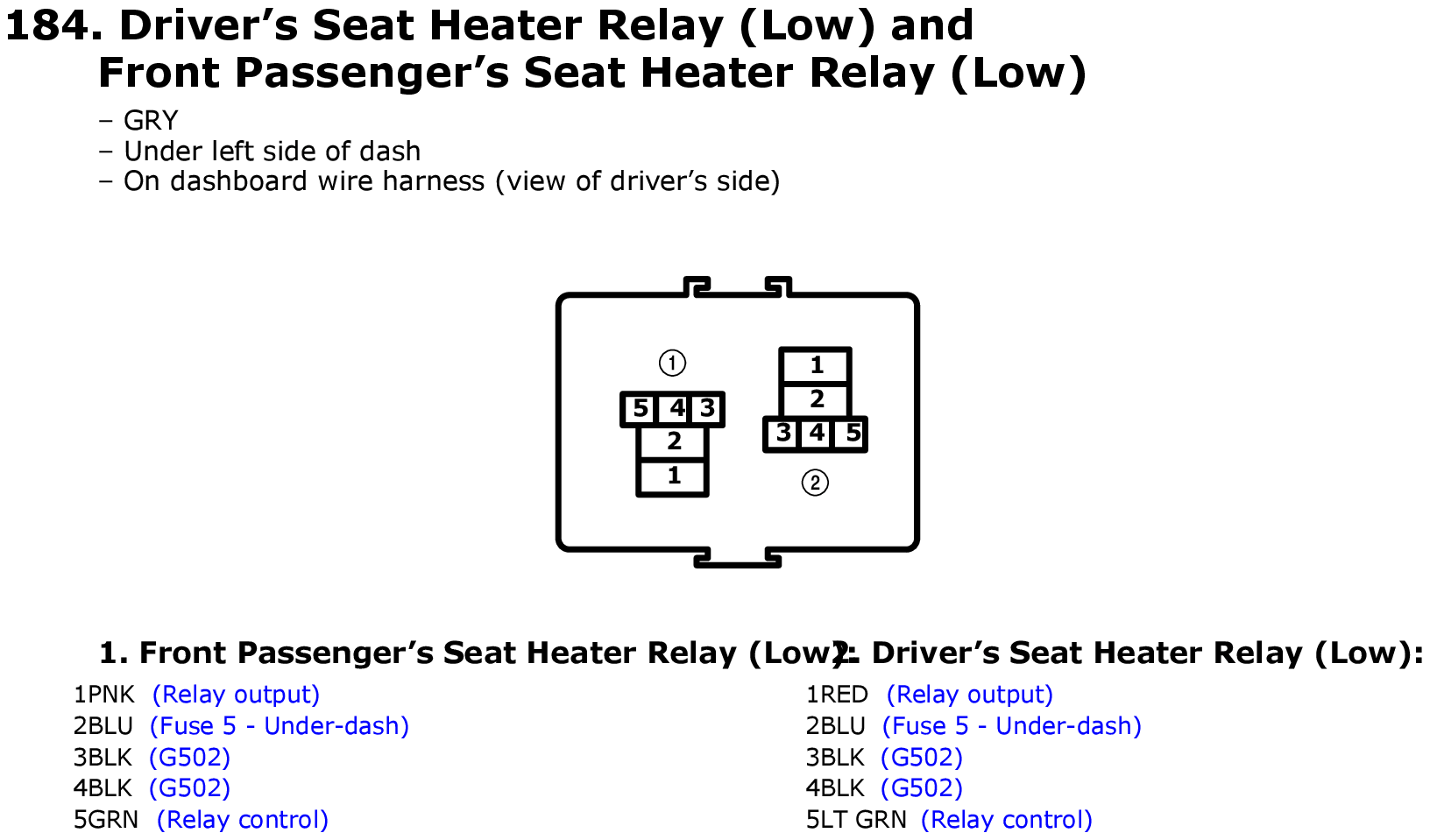

Fig 127: Driver's Seat Heater Relay (Low) and Front Passenger's Seat Heater Relay (Low) Connector End View
GHHW8511Courtesy of AMERICAN HONDA MOTOR CO., INC.

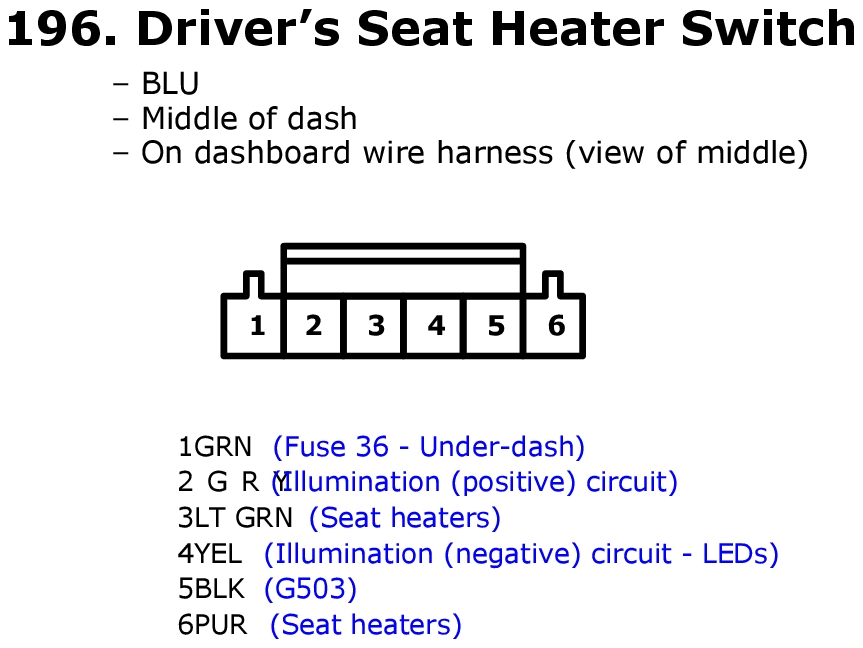

Fig 128: Driver's Seat Heater Switch Connector End View
GHHW8523Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 129: Driver's Seat Position Sensor Connector End View
GHHW8368Courtesy of AMERICAN HONDA MOTOR CO., INC.

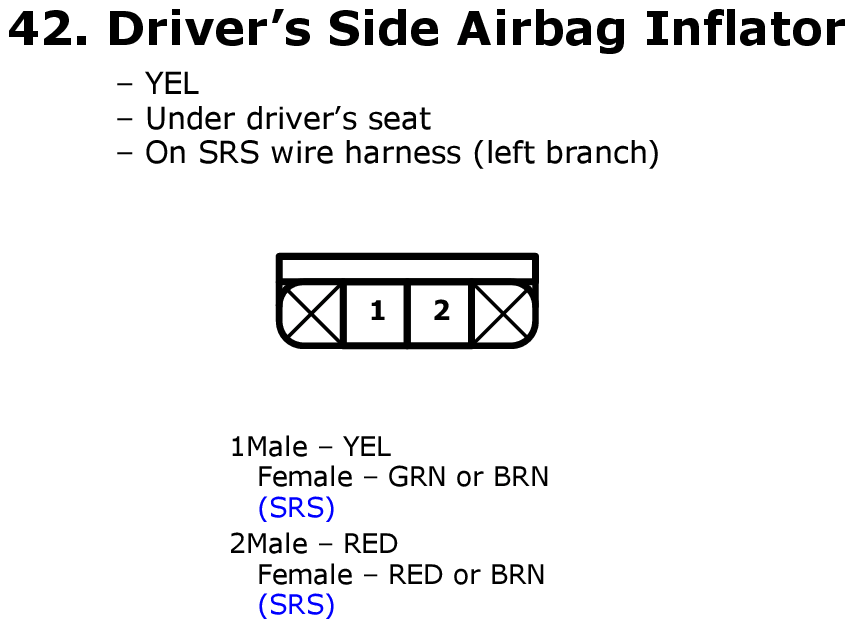

Fig 130: Driver's Side Airbag Inflator Connector End View
GHHW8369Courtesy of AMERICAN HONDA MOTOR CO., INC.

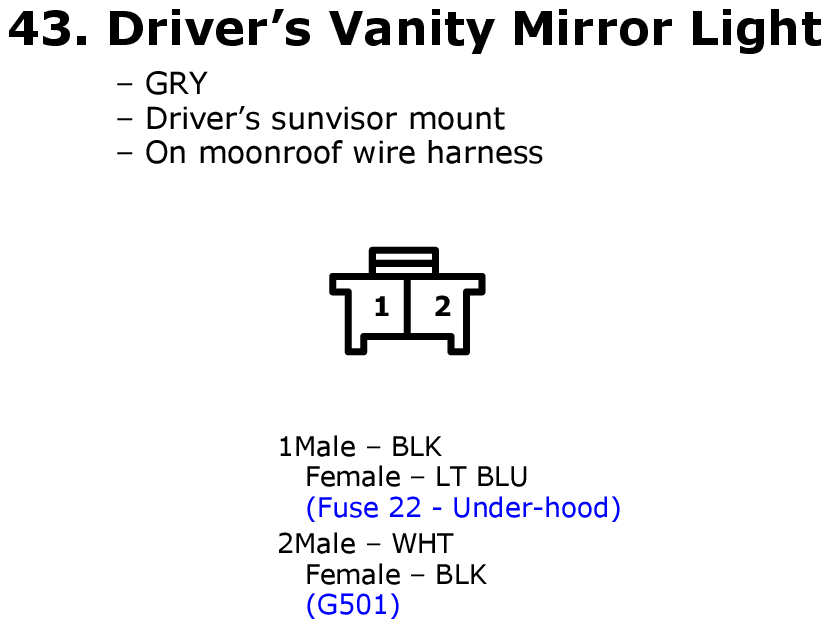

Fig 131: Driver's Vanity Mirror Light Connector End View
GHHW8370Courtesy of AMERICAN HONDA MOTOR CO., INC.

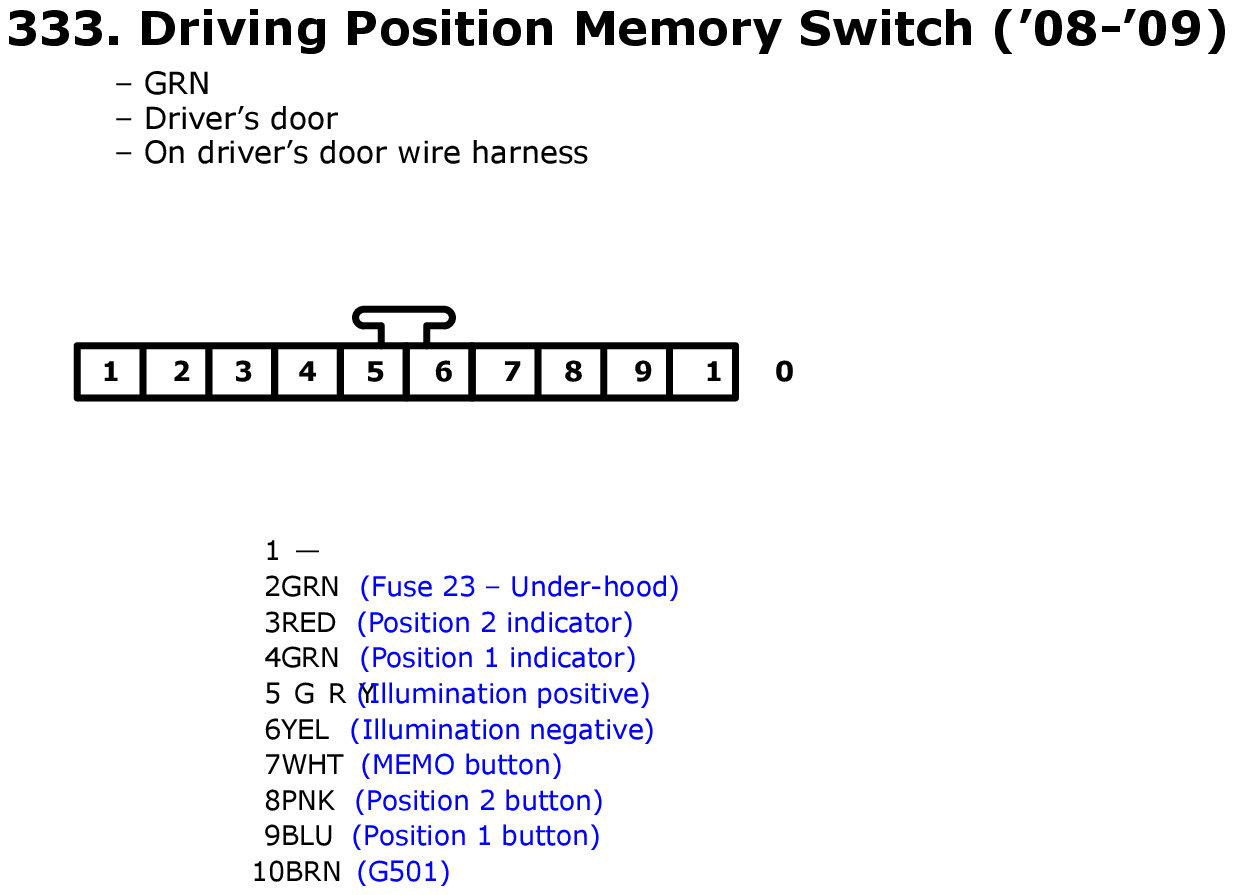

Fig 132: Driving Position Memory Switch Connector End View
GHHW8656Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 133: ECT Sensor 1 Connector End View
GHHW8371Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 134: ECT Sensor 2 Connector End View
GHHW8372Courtesy of AMERICAN HONDA MOTOR CO., INC.

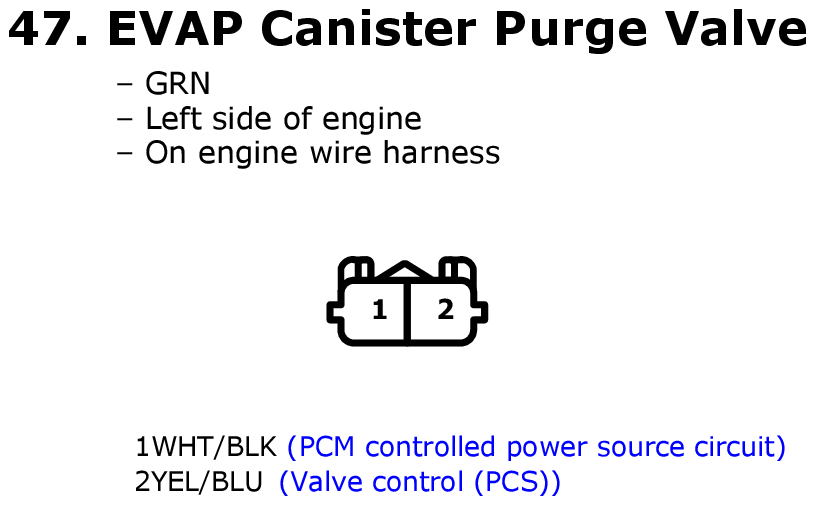

Fig 135: EVAP Canister Purge Valve Connector End View
GHHW8374Courtesy of AMERICAN HONDA MOTOR CO., INC.

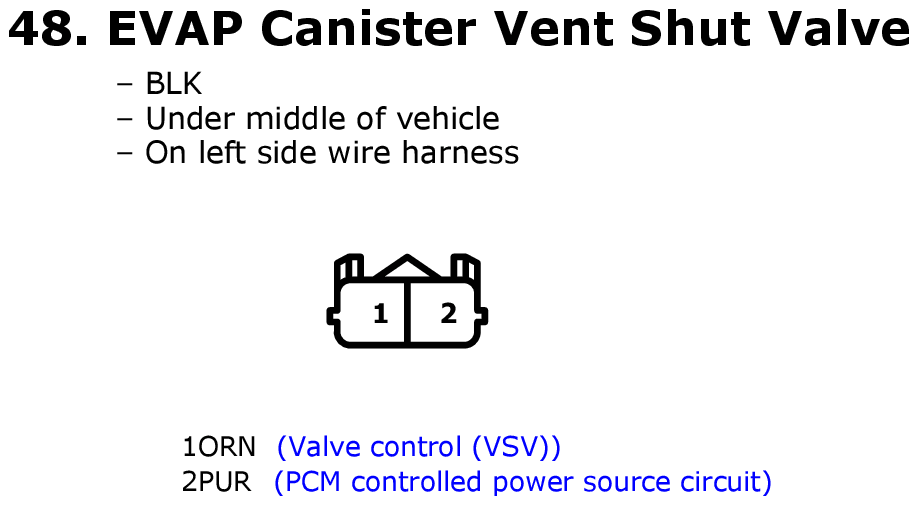

Fig 136: EVAP Canister Vent Shut Valve Connector End View
GHHW8375Courtesy of AMERICAN HONDA MOTOR CO., INC.

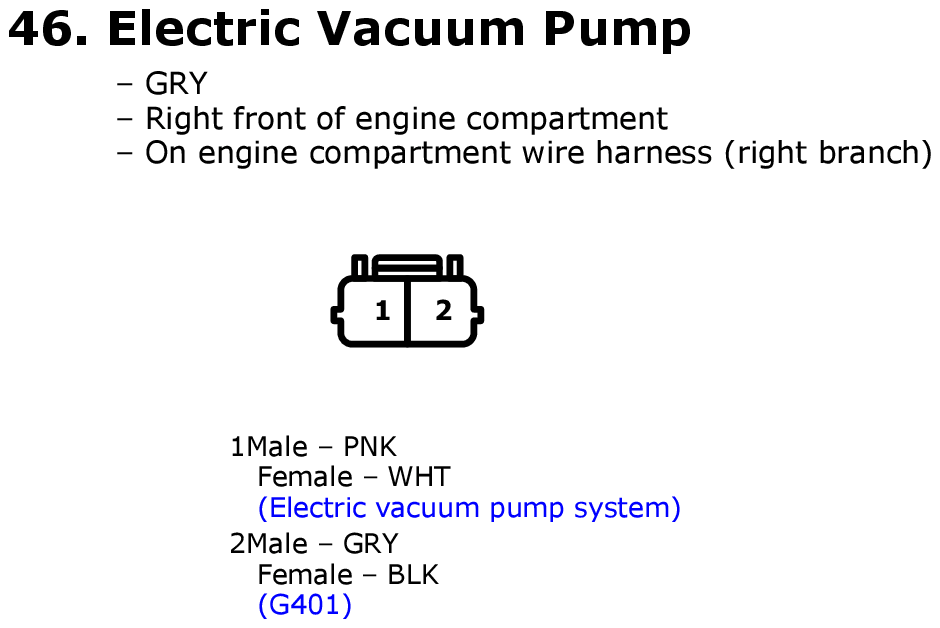

Fig 137: Electric Vacuum Pump Connector End View
GHHW8373Courtesy of AMERICAN HONDA MOTOR CO., INC.

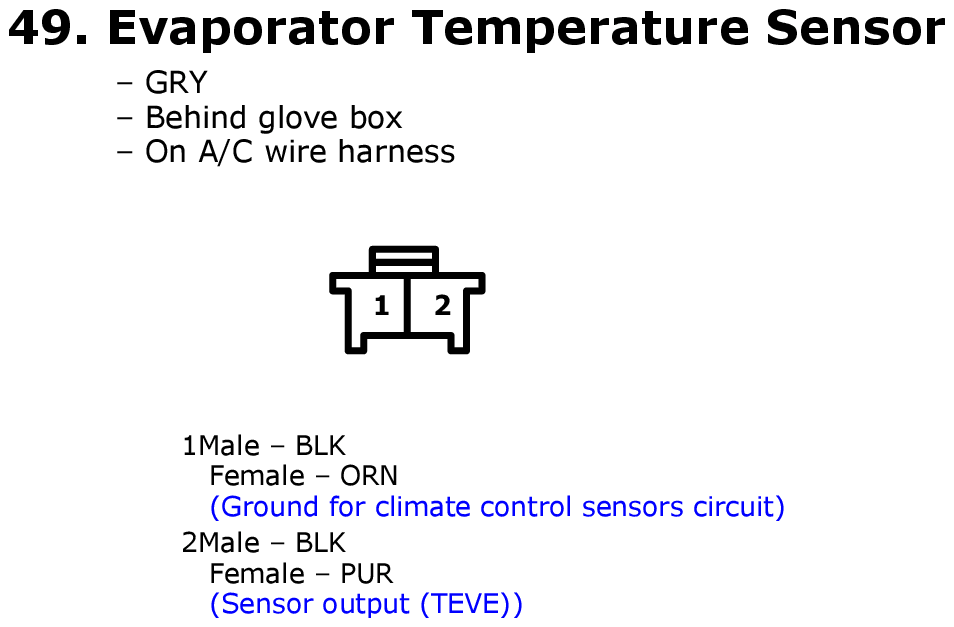

Fig 138: Evaporator Temperature Sensor Connector End View
GHHW8376Courtesy of AMERICAN HONDA MOTOR CO., INC.

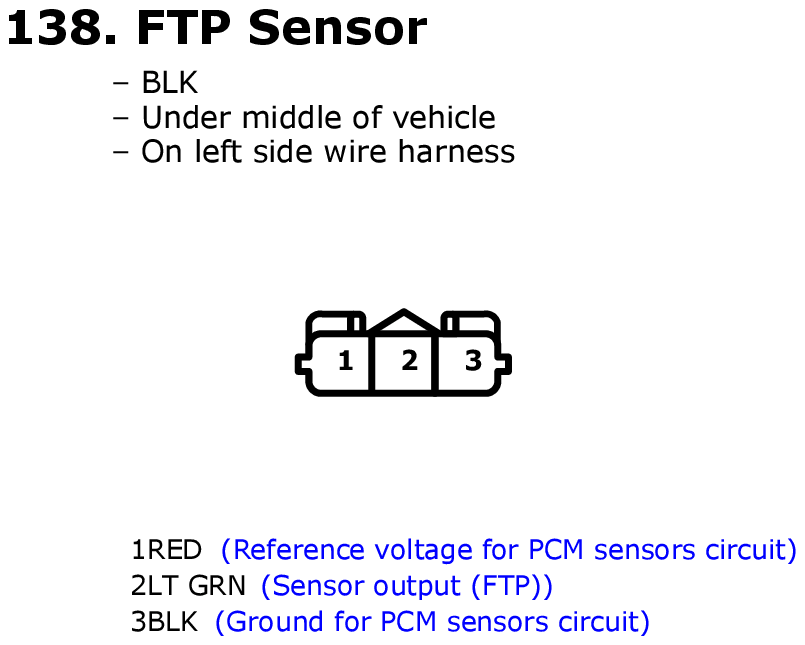

Fig 139: FTP Sensor Connector End View
GHHW8465Courtesy of AMERICAN HONDA MOTOR CO., INC.

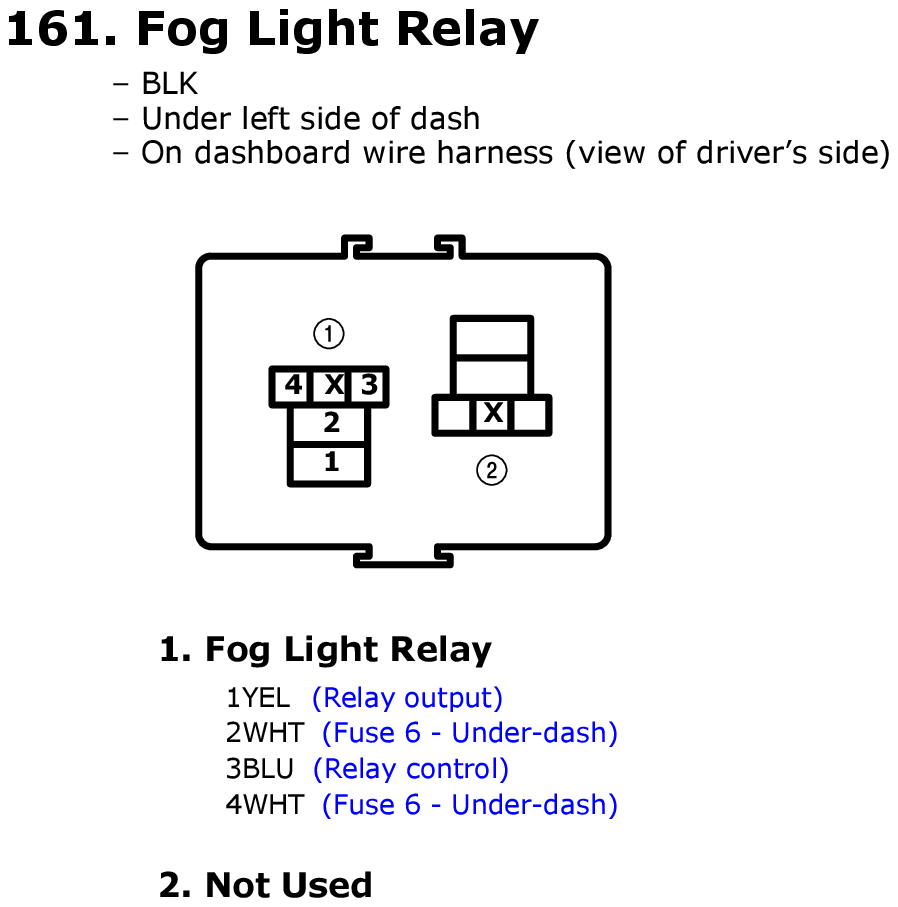

Fig 140: Fog Light Relay Connector End View
GHHW8488Courtesy of AMERICAN HONDA MOTOR CO., INC.

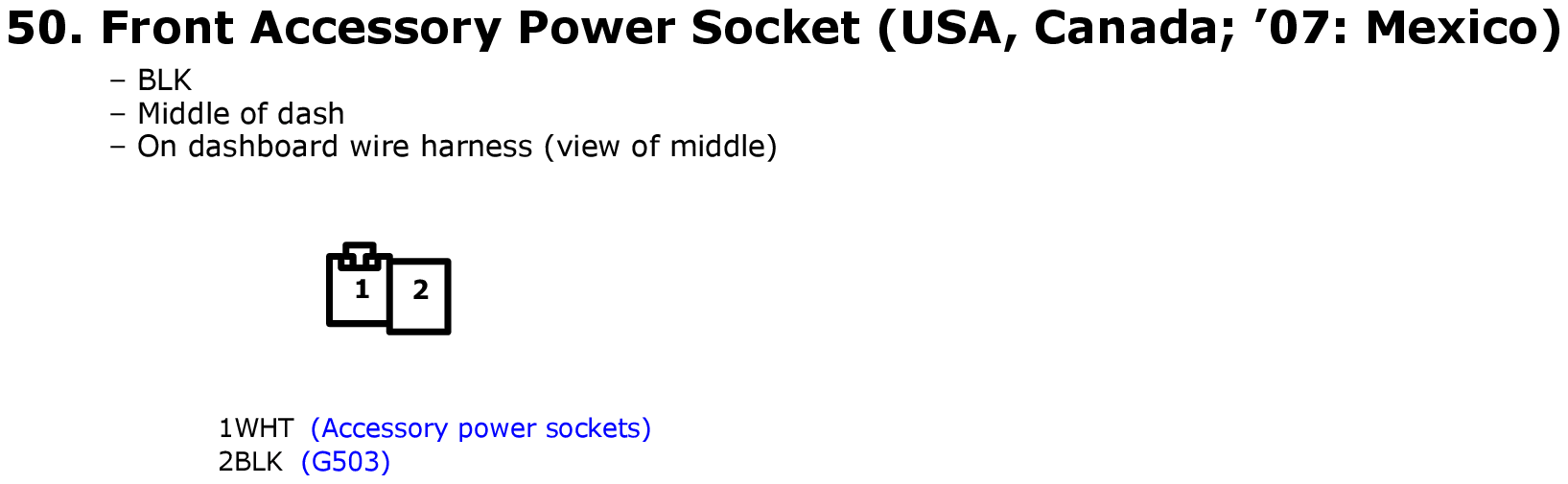

Fig 141: Front Accessory Power Socket Connector End View
GHHW8377Courtesy of AMERICAN HONDA MOTOR CO., INC.

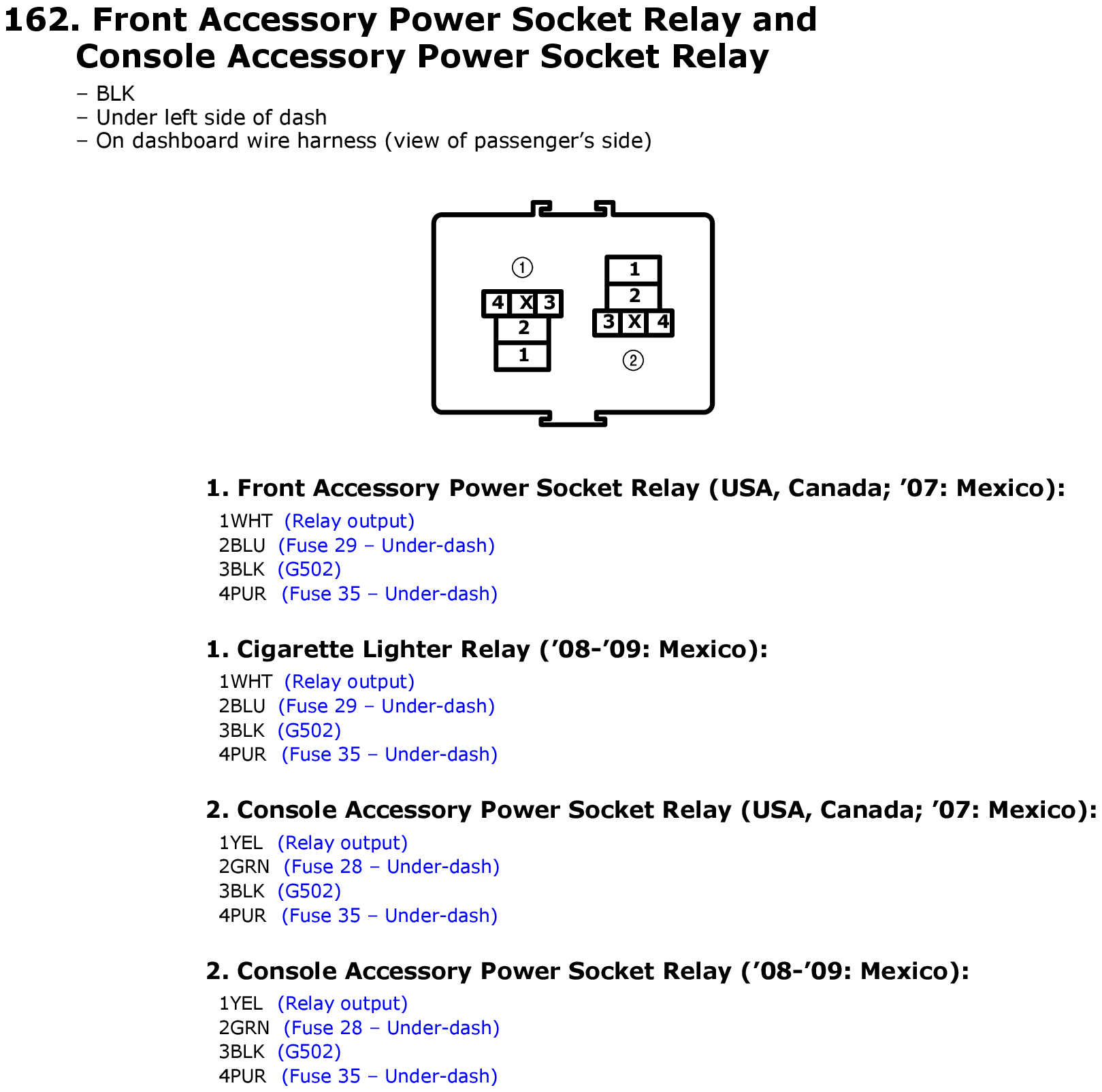

Fig 142: Front Accessory Power Socket Relay, Cigarette Lighter Relay and Console Accessory Power Socket Relay Connector End View
GHHW8489Courtesy of AMERICAN HONDA MOTOR CO., INC.

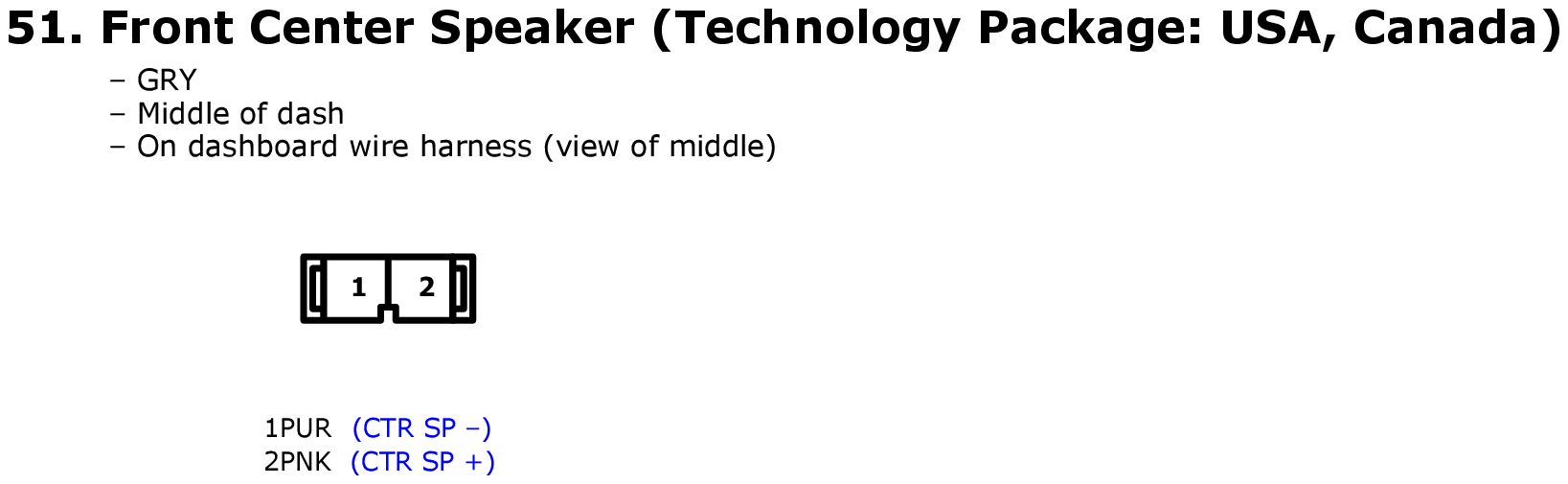

Fig 143: Front Center Speaker Connector End View
GHHW8378Courtesy of AMERICAN HONDA MOTOR CO., INC.

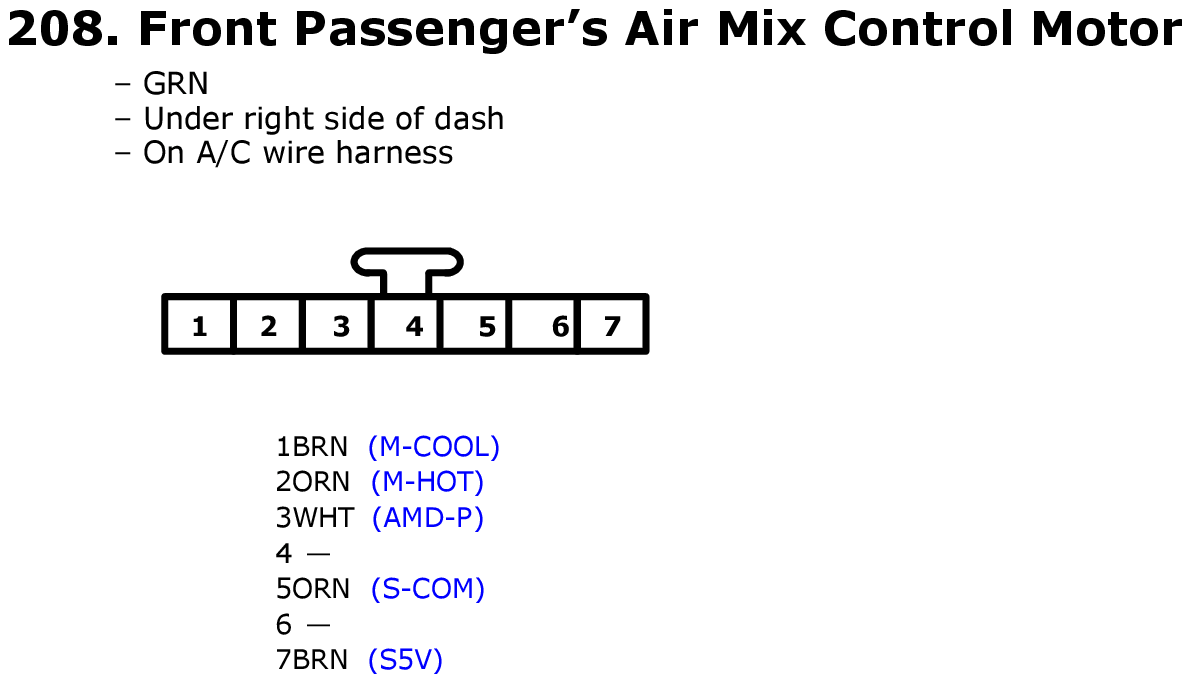

Fig 144: Front Passenger's Air Mix Control Motor Connector End View
GHHW8535Courtesy of AMERICAN HONDA MOTOR CO., INC.

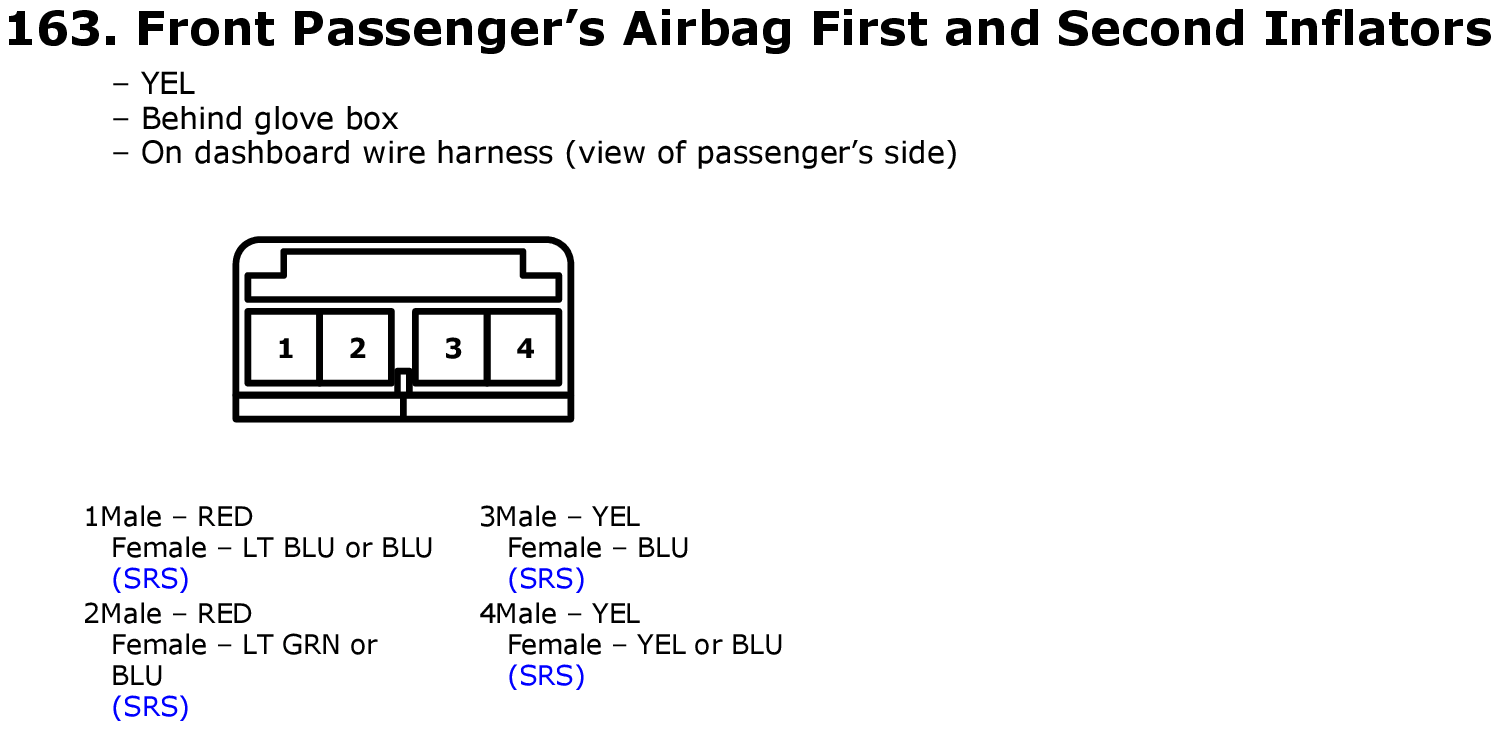

Fig 145: Front Passenger's Airbag First and Second Inflators Connector End View
GHHW8490Courtesy of AMERICAN HONDA MOTOR CO., INC.

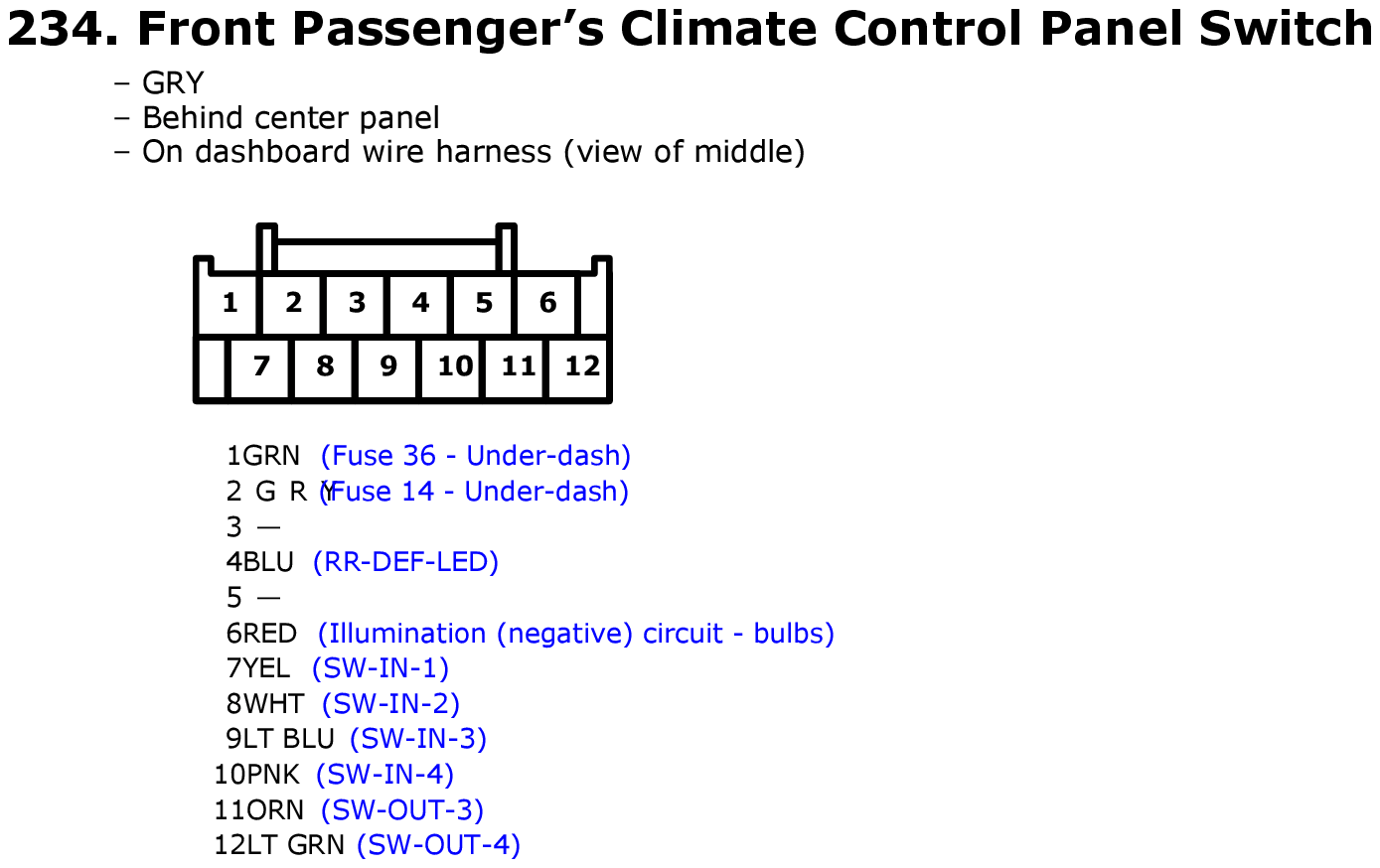

Fig 146: Front Passenger's Climate Control Panel Switch Connector End View
GHHW8561Courtesy of AMERICAN HONDA MOTOR CO., INC.

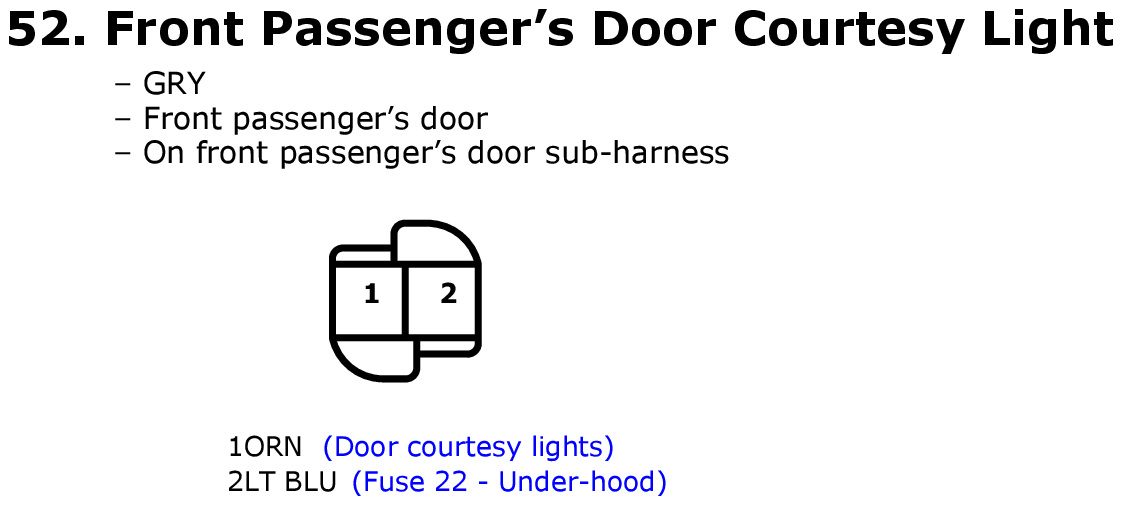

Fig 147: Front Passenger's Door Courtesy Light Connector End View
GHHW8379Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 148: Front Passenger's Door Lock Actuator/Knob Switch Connector End View
GHHW8549Courtesy of AMERICAN HONDA MOTOR CO., INC.

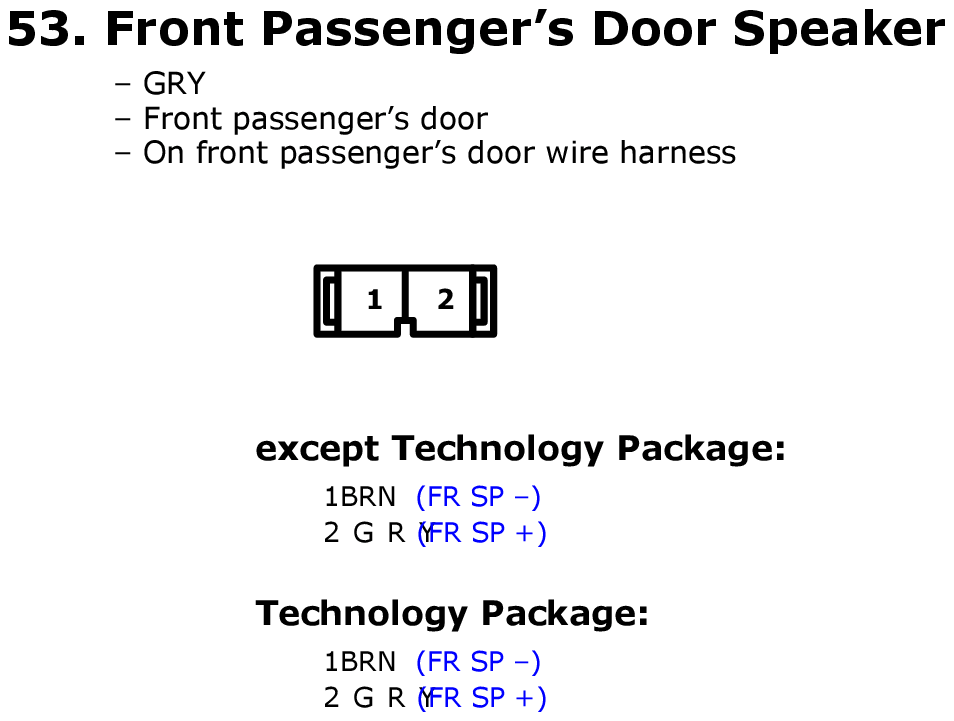

Fig 149: Front Passenger's Door Speaker Connector End View
GHHW8380Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 150: Front Passenger's Door Switch Connector End View
GHHW8332Courtesy of AMERICAN HONDA MOTOR CO., INC.

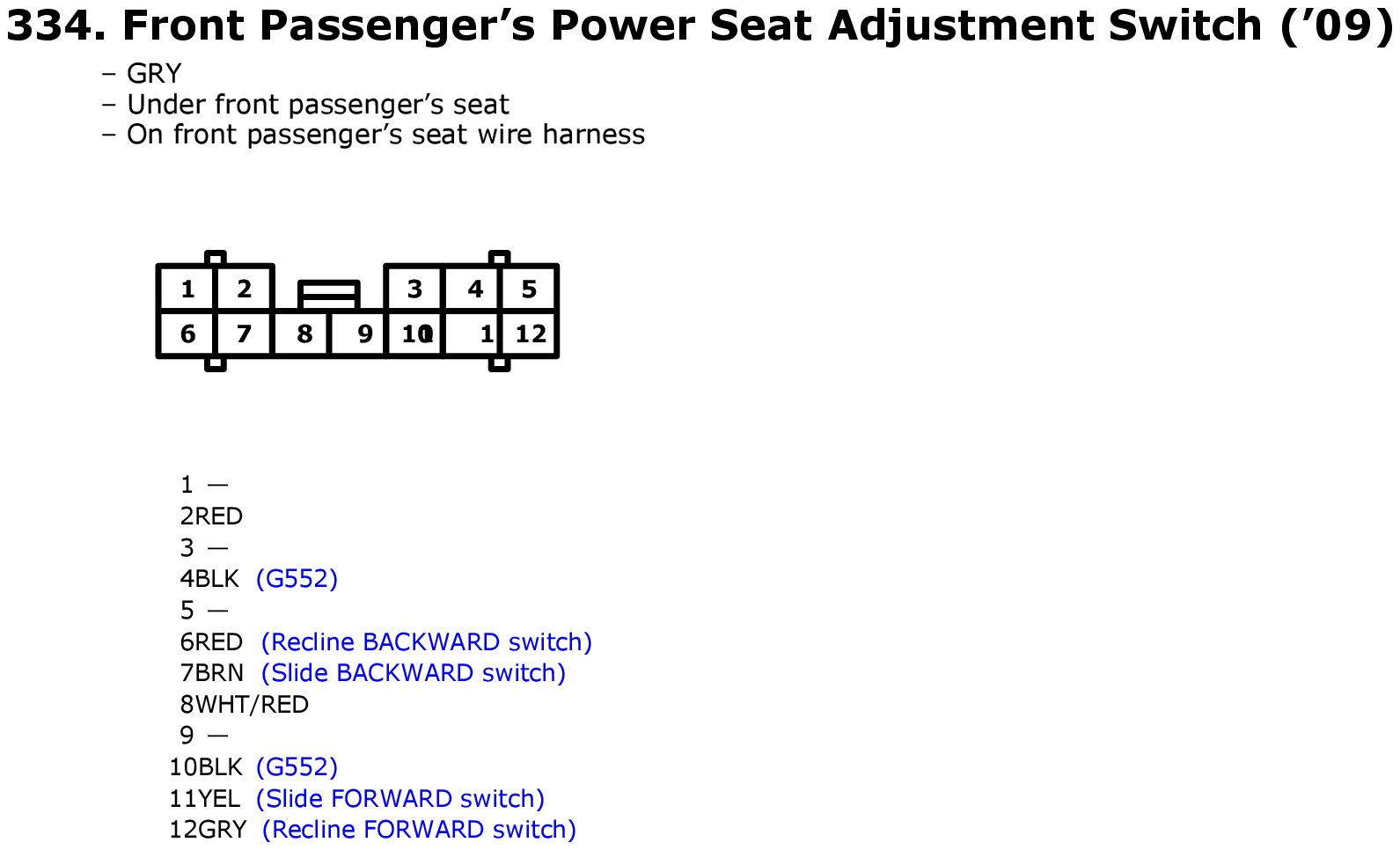

Fig 151: Front Passenger's Power Seat Adjustment Switch Connector End View
GHHW8657Courtesy of AMERICAN HONDA MOTOR CO., INC.

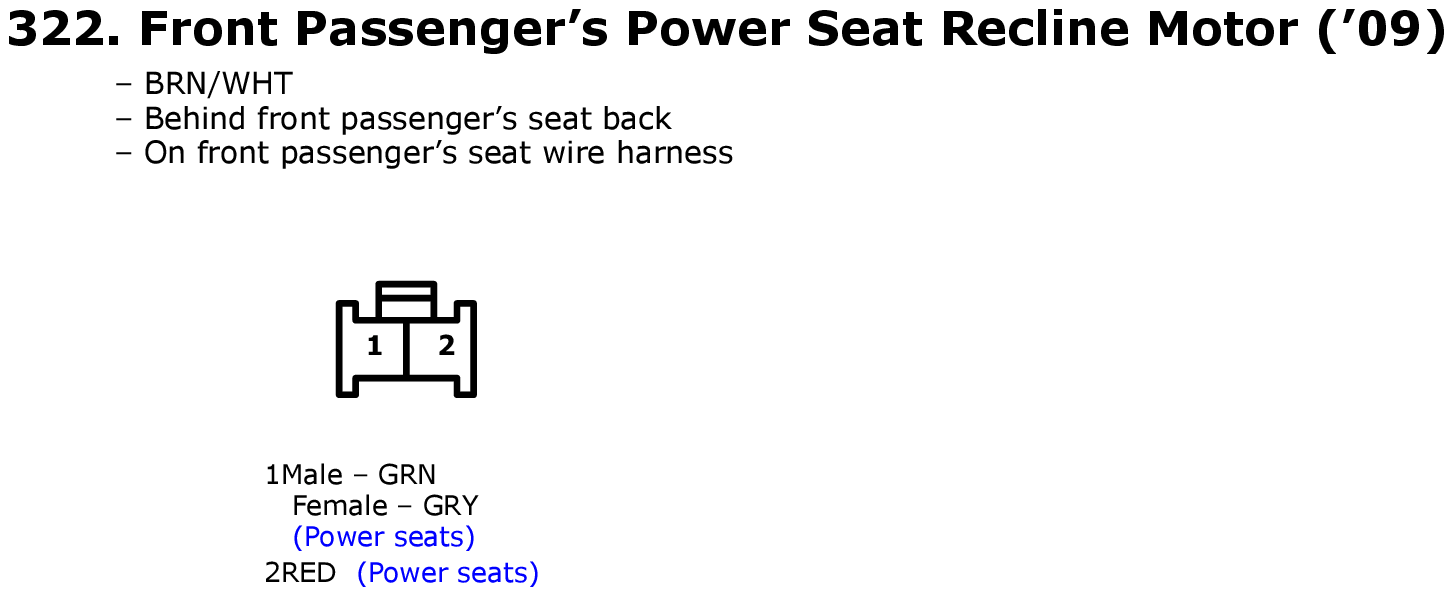

Fig 152: Front Passenger's Power Seat Recline Motor Connector End View
GHHW8647Courtesy of AMERICAN HONDA MOTOR CO., INC.

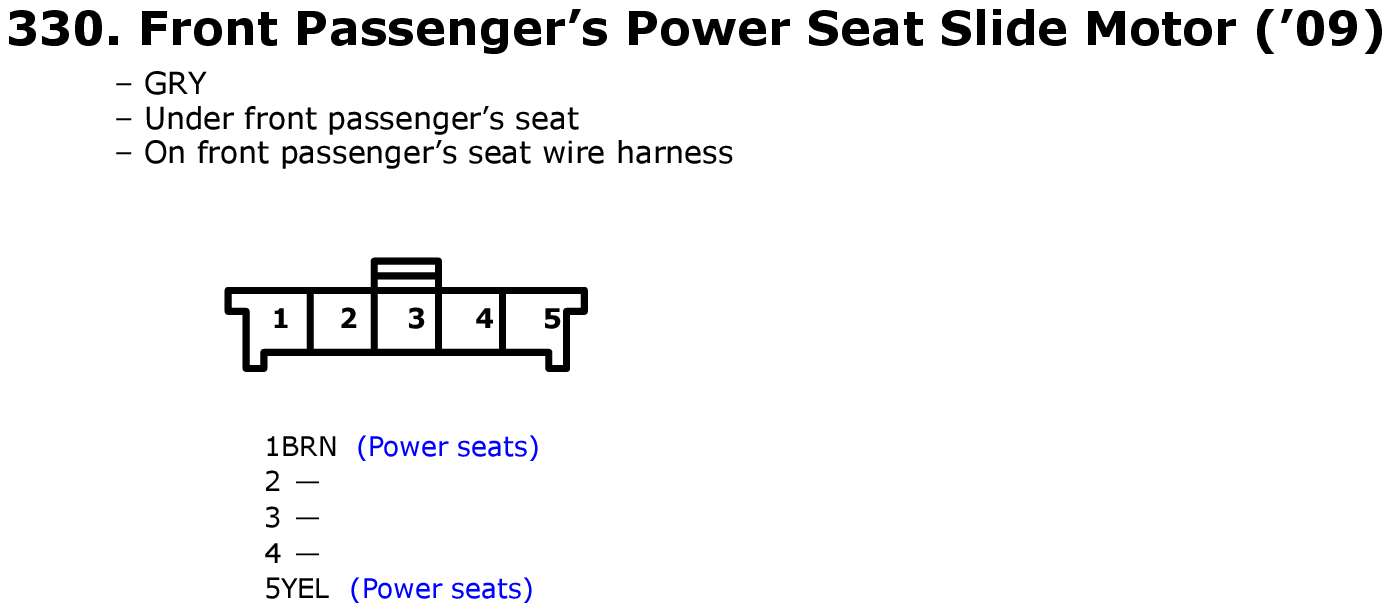

Fig 153: Front Passenger's Power Seat Slide Motor Connector End View
GHHW8654Courtesy of AMERICAN HONDA MOTOR CO., INC.

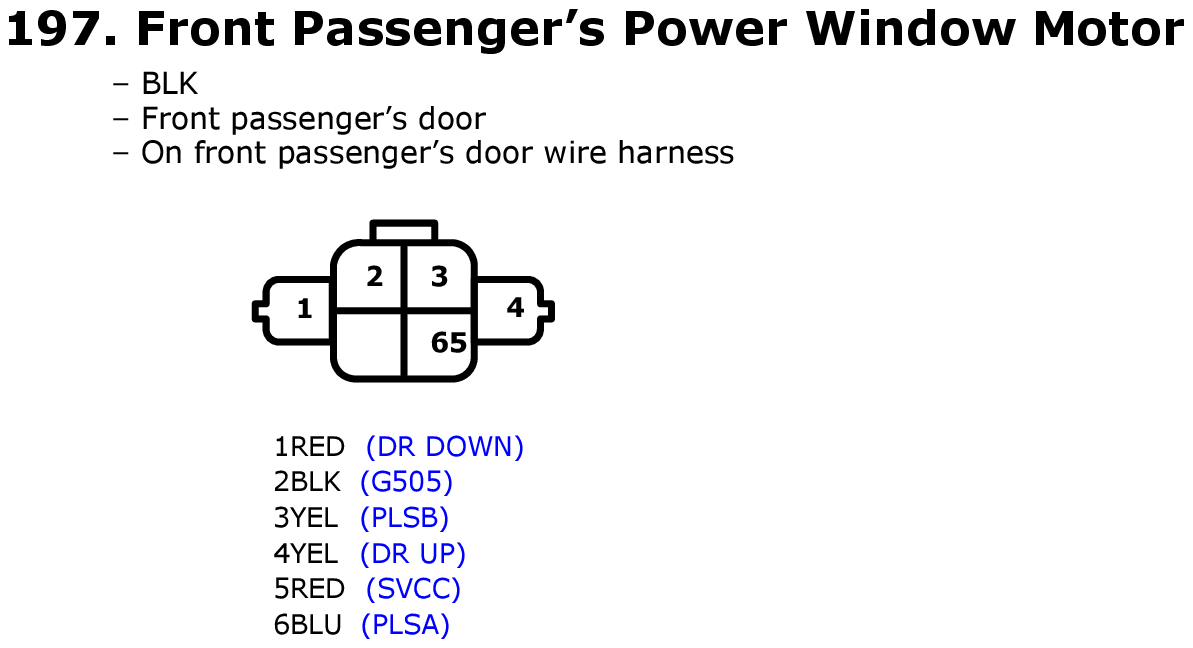

Fig 154: Front Passenger's Power Window Motor Connector End View
GHHW8524Courtesy of AMERICAN HONDA MOTOR CO., INC.

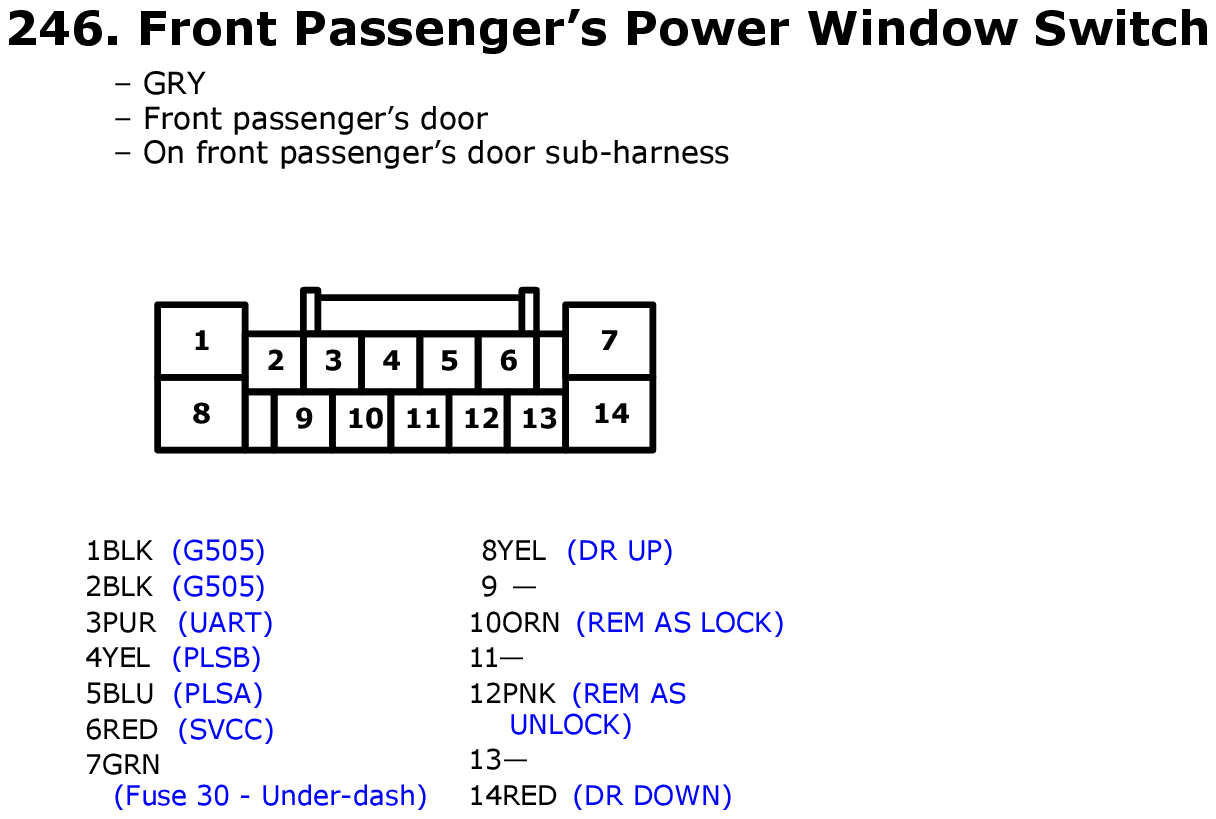

Fig 155: Front Passenger's Power Window Switch Connector End View
GHHW8573Courtesy of AMERICAN HONDA MOTOR CO., INC.

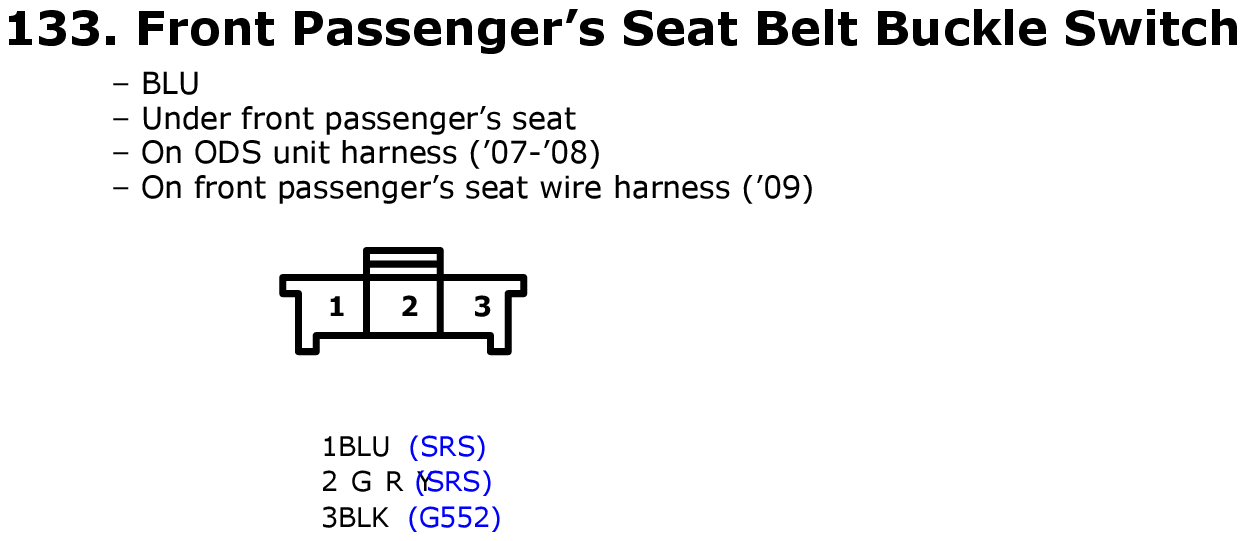

Fig 156: Front Passenger's Seat Belt Buckle Switch Connector End View
GHHW8460Courtesy of AMERICAN HONDA MOTOR CO., INC.

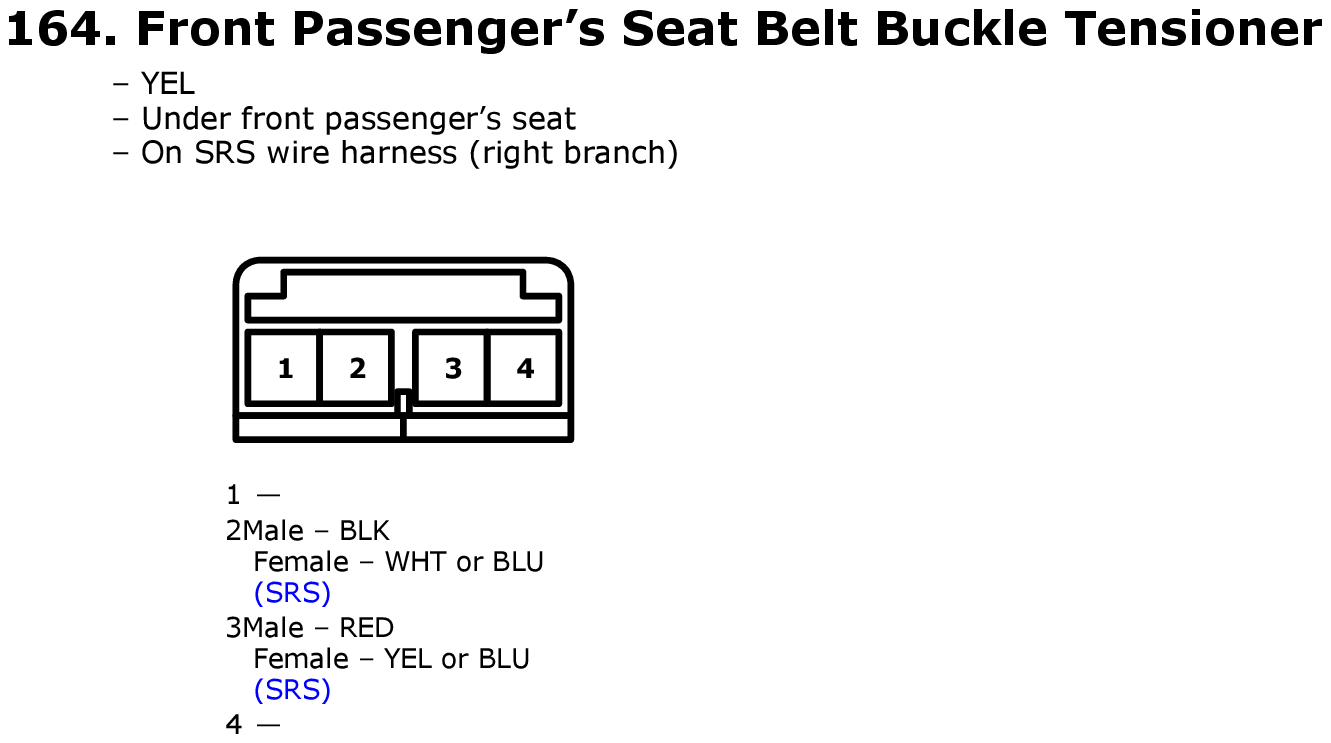

Fig 157: Front Passenger's Seat Belt Buckle Tensioner Connector End View
GHHW8491Courtesy of AMERICAN HONDA MOTOR CO., INC.

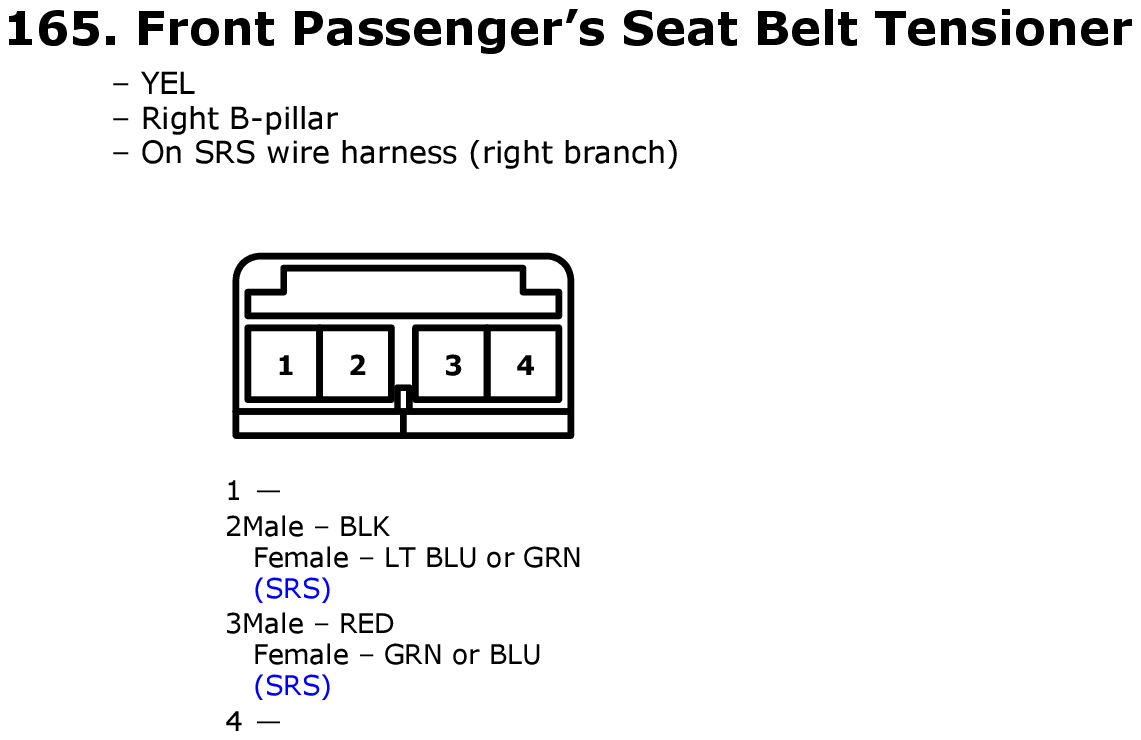

Fig 158: Front Passenger's Seat Belt Tensioner Connector End View
GHHW8492Courtesy of AMERICAN HONDA MOTOR CO., INC.

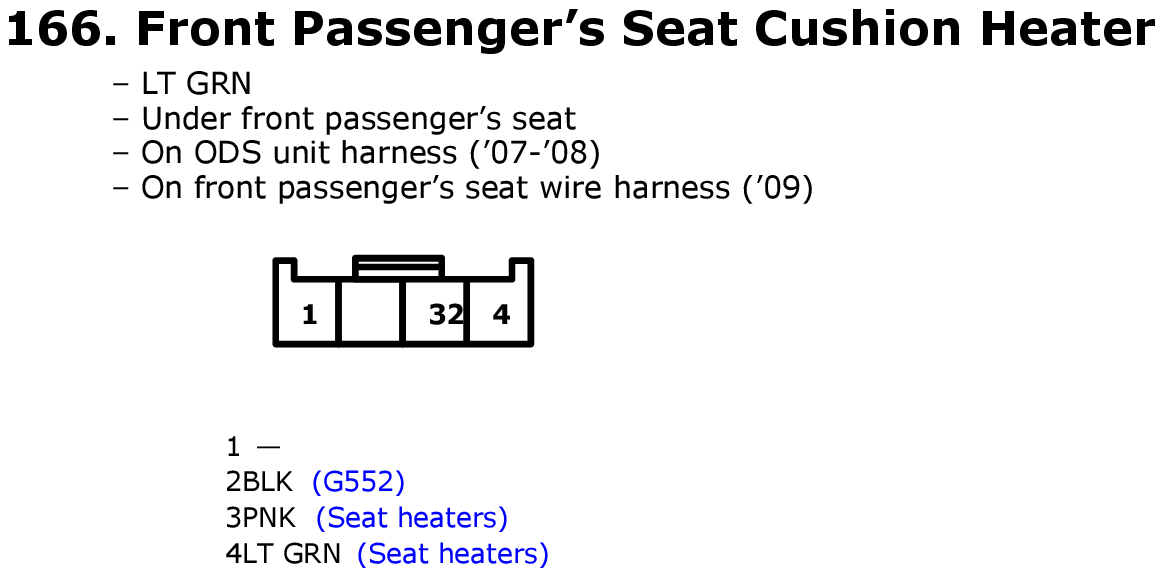

Fig 159: Front Passenger's Seat Cushion Heater Connector End View
GHHW8493Courtesy of AMERICAN HONDA MOTOR CO., INC.

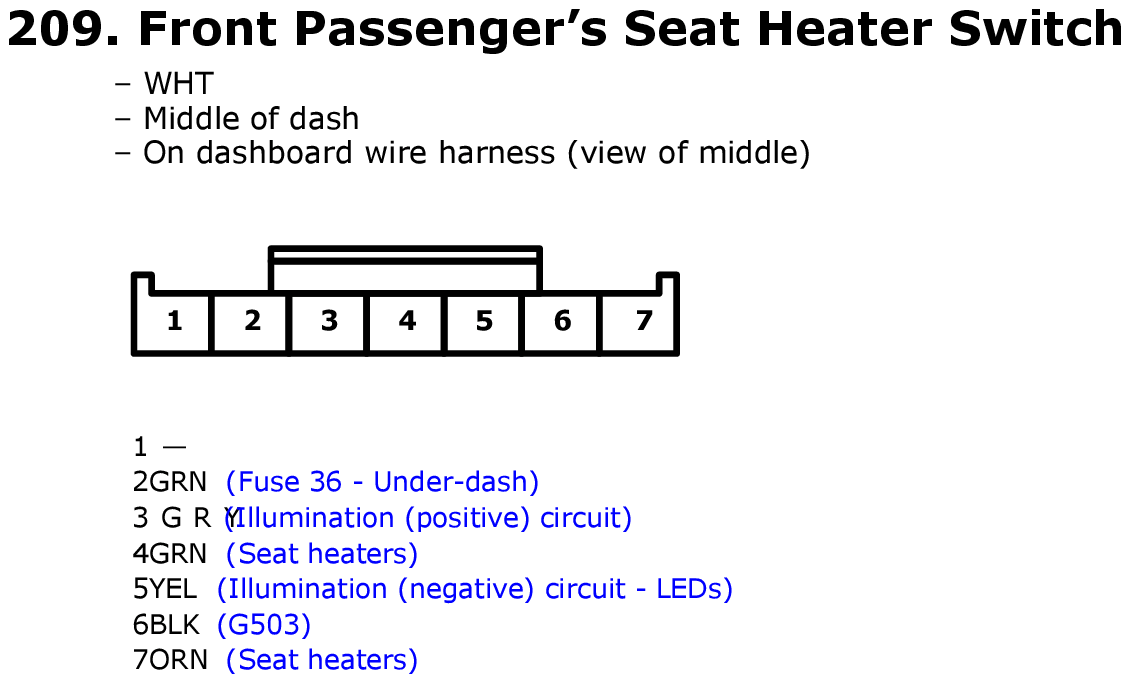

Fig 160: Front Passenger's Seat Heater Switch Connector End View
GHHW8536Courtesy of AMERICAN HONDA MOTOR CO., INC.

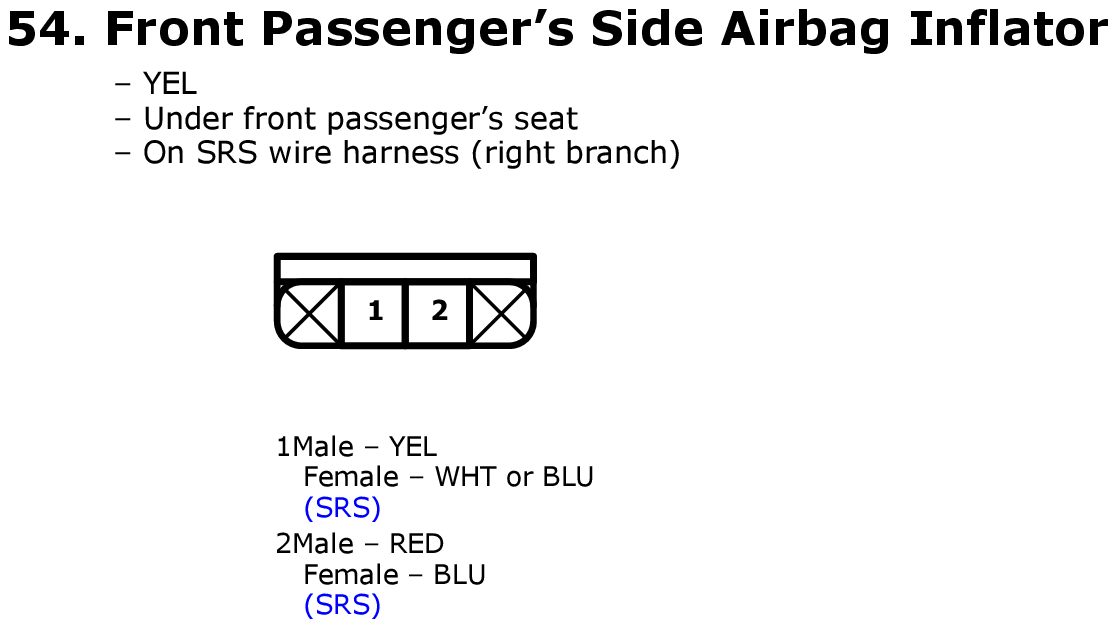

Fig 161: Front Passenger's Side Airbag Inflator Connector End View
GHHW8381Courtesy of AMERICAN HONDA MOTOR CO., INC.

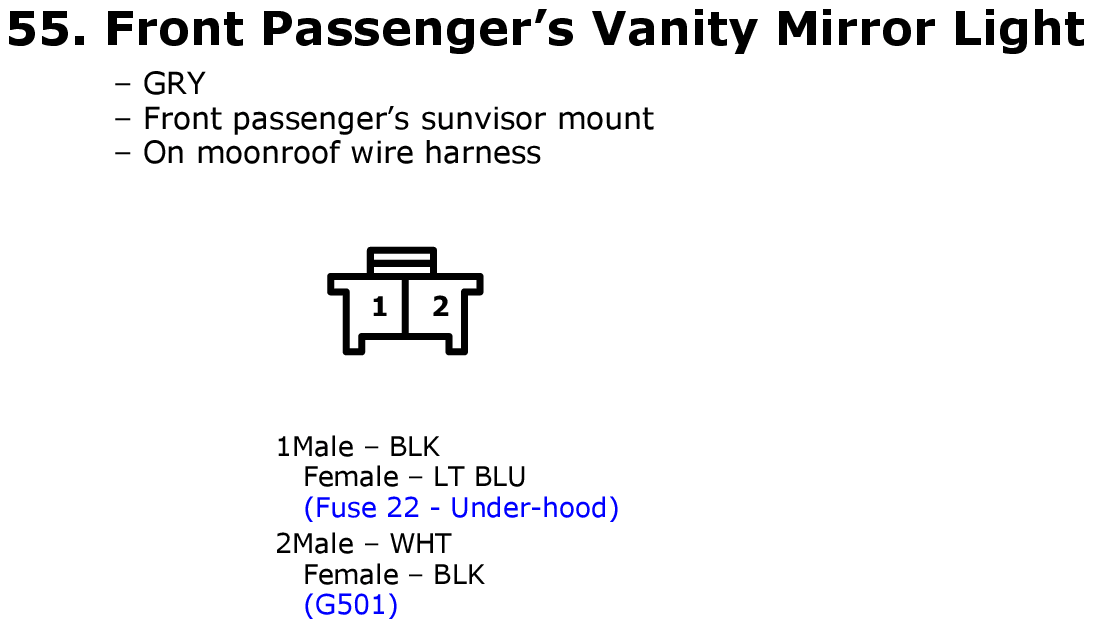

Fig 162: Front Passenger's Vanity Mirror Light Connector End View
GHHW8382Courtesy of AMERICAN HONDA MOTOR CO., INC.

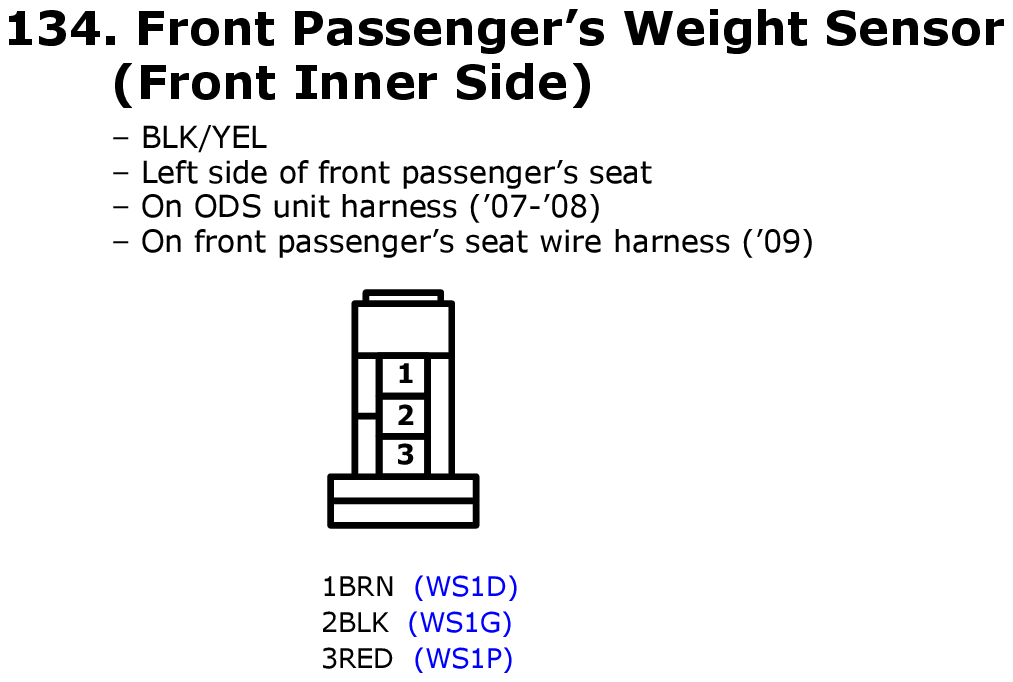

Fig 163: Front Passenger's Weight Sensor (Front Inner Side) Connector End View
GHHW8461Courtesy of AMERICAN HONDA MOTOR CO., INC.

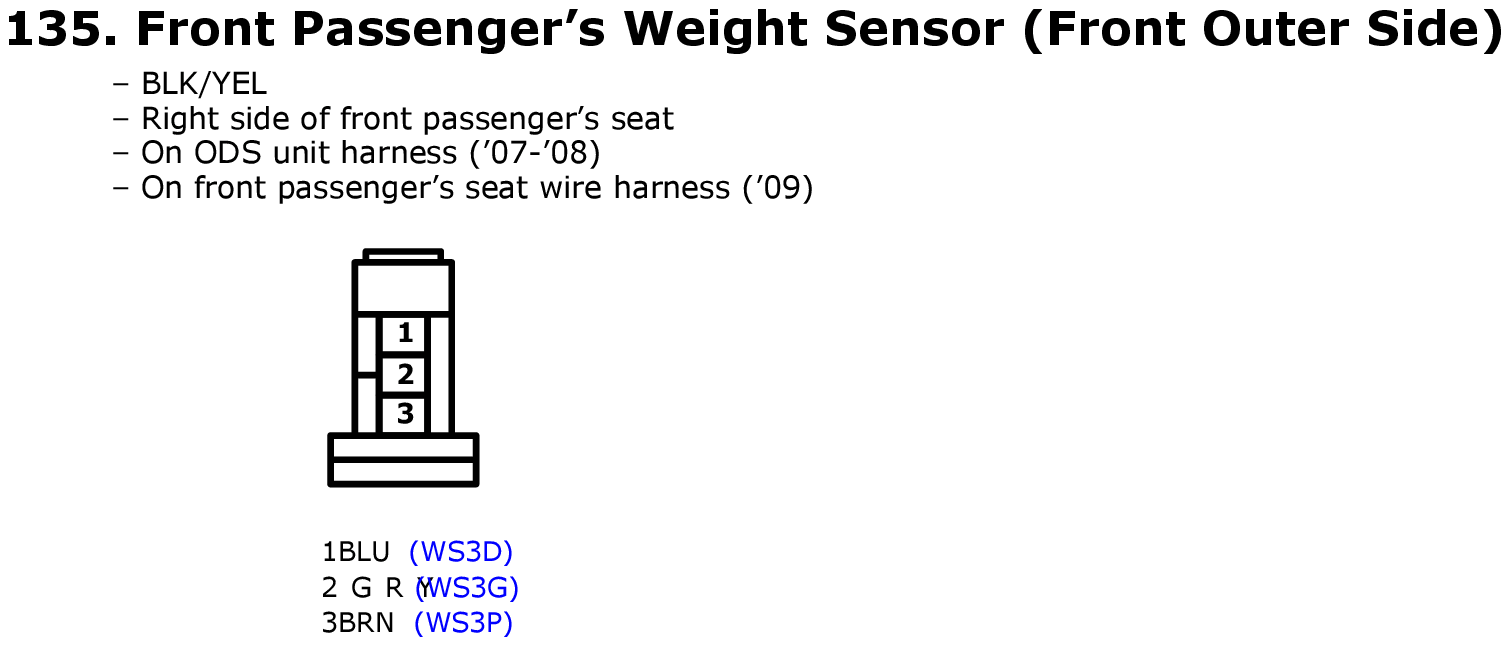

Fig 164: Front Passenger's Weight Sensor (Front Outer Side) Connector End View
GHHW8462Courtesy of AMERICAN HONDA MOTOR CO., INC.

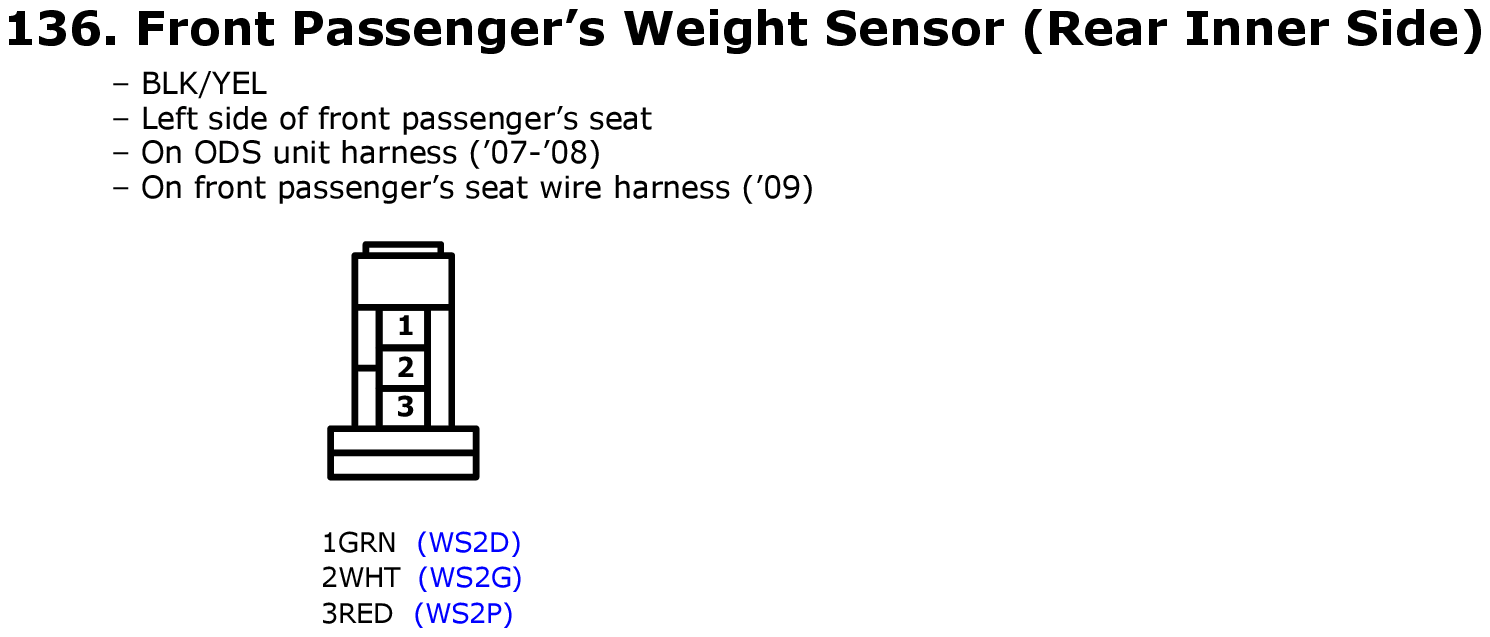

Fig 165: Front Passenger's Weight Sensor (Rear Inner Side) Connector End View
GHHW8463Courtesy of AMERICAN HONDA MOTOR CO., INC.

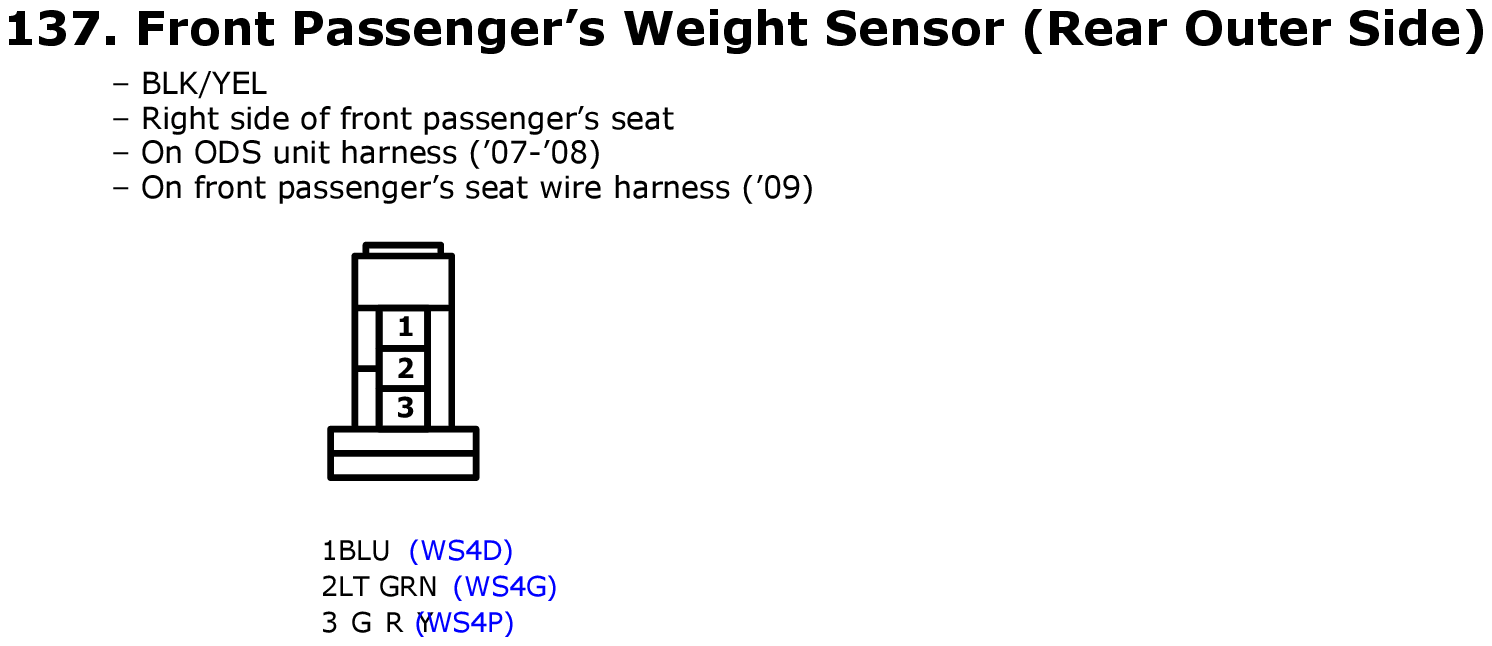

Fig 166: Front Passenger's Weight Sensor (Rear Outer Side) Connector End View
GHHW8464Courtesy of AMERICAN HONDA MOTOR CO., INC.

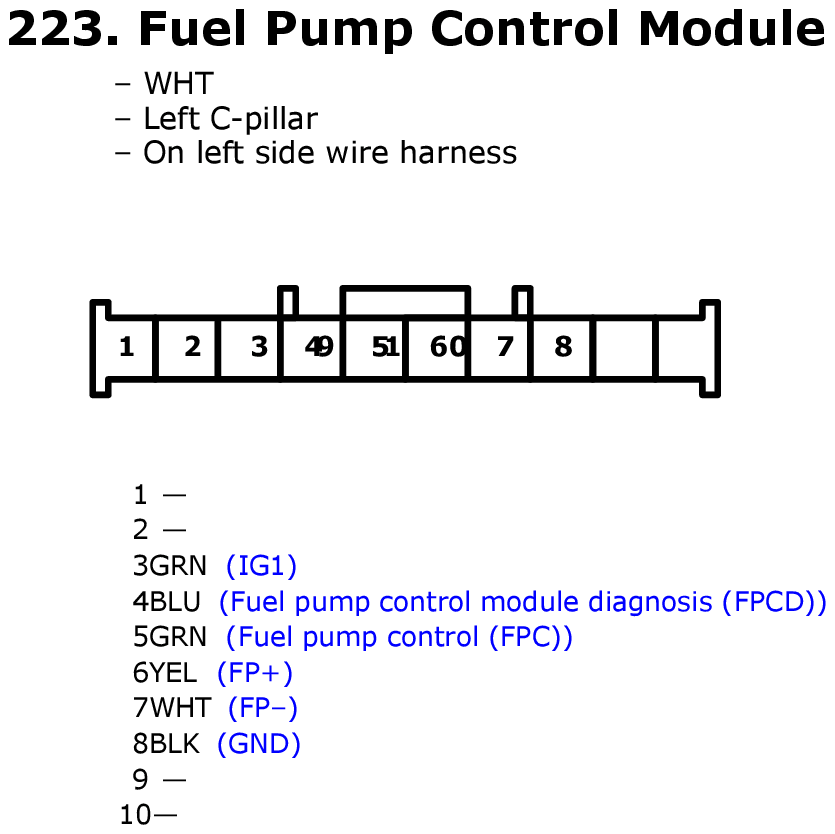

Fig 167: Fuel Pump Control Module Connector End View
GHHW8550Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 168: Fuel Tank Unit Connector End View
GHHW8494Courtesy of AMERICAN HONDA MOTOR CO., INC.

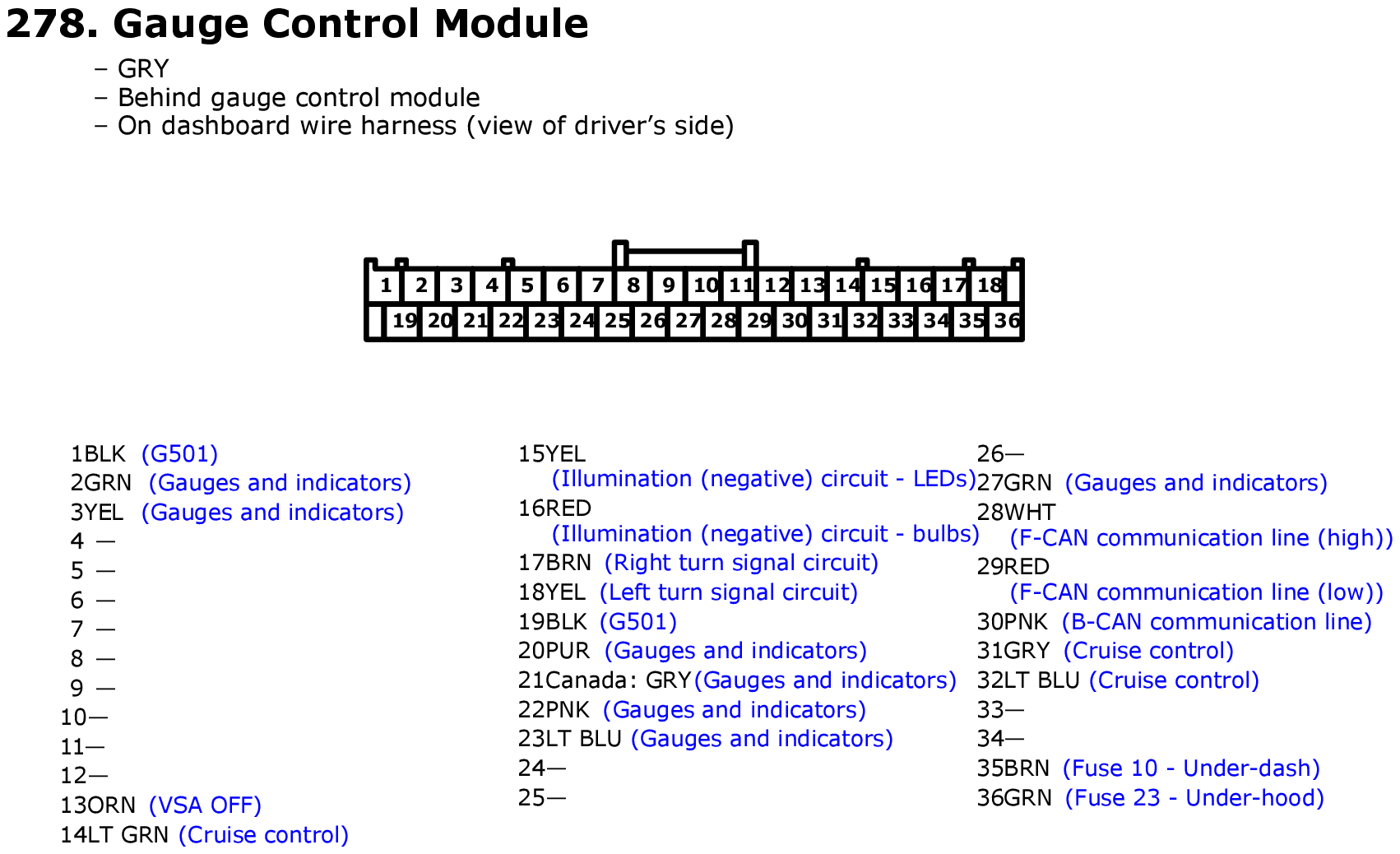

Fig 169: Gauge Control Module Connector End View
GHHW8605Courtesy of AMERICAN HONDA MOTOR CO., INC.

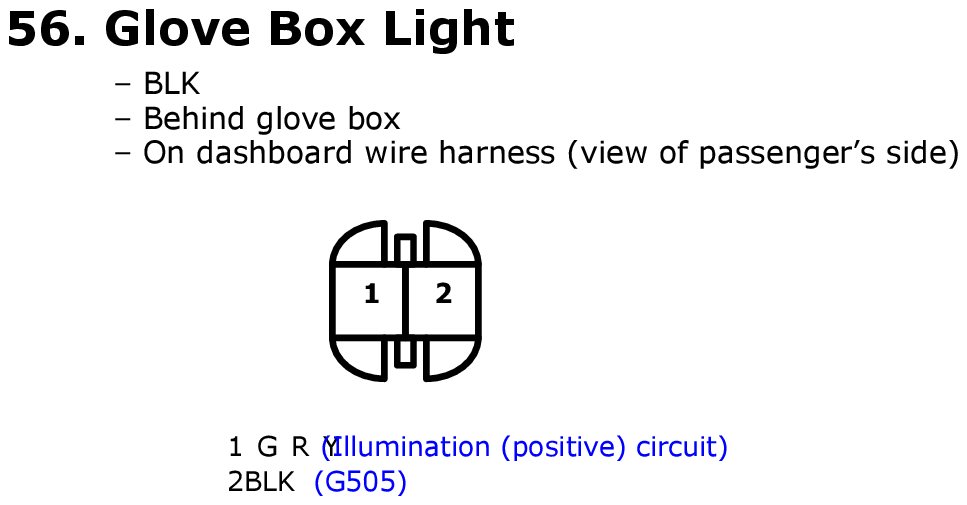

Fig 170: Glove Box Light Connector End View
GHHW8383Courtesy of AMERICAN HONDA MOTOR CO., INC.

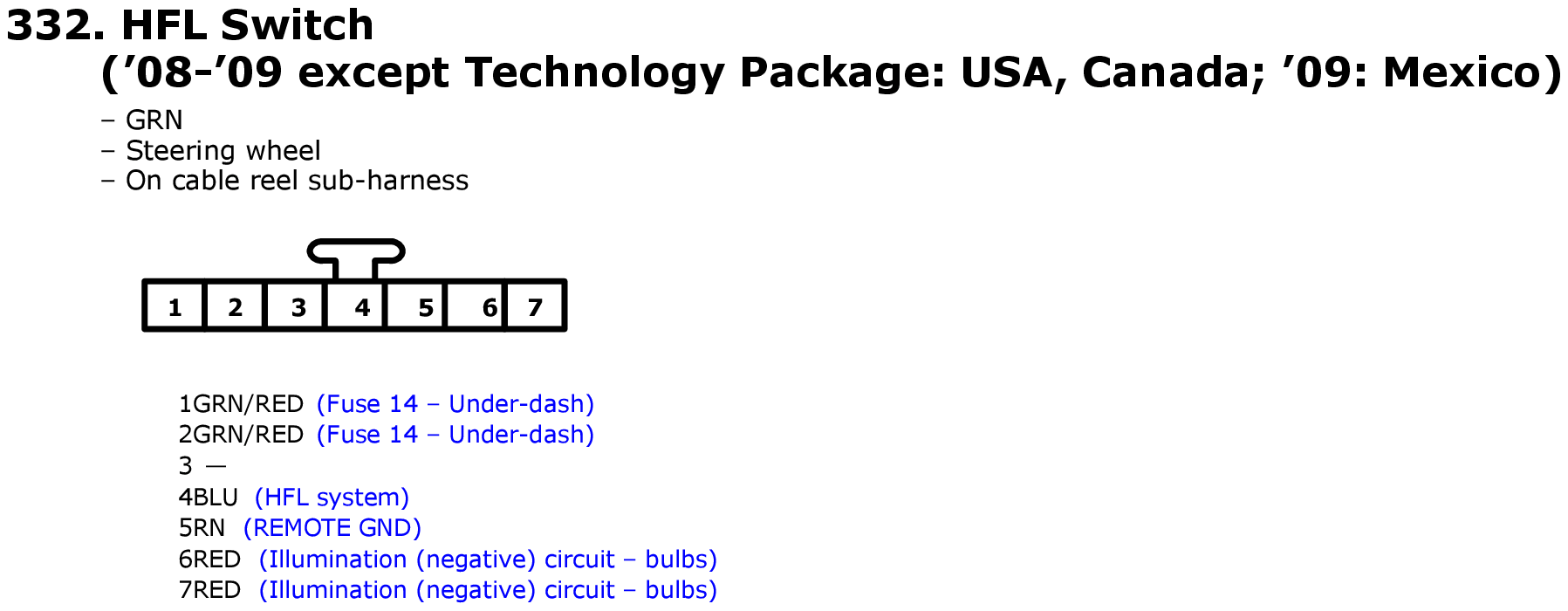

Fig 171: HFL Switch Connector End View
GHHW8655Courtesy of AMERICAN HONDA MOTOR CO., INC.

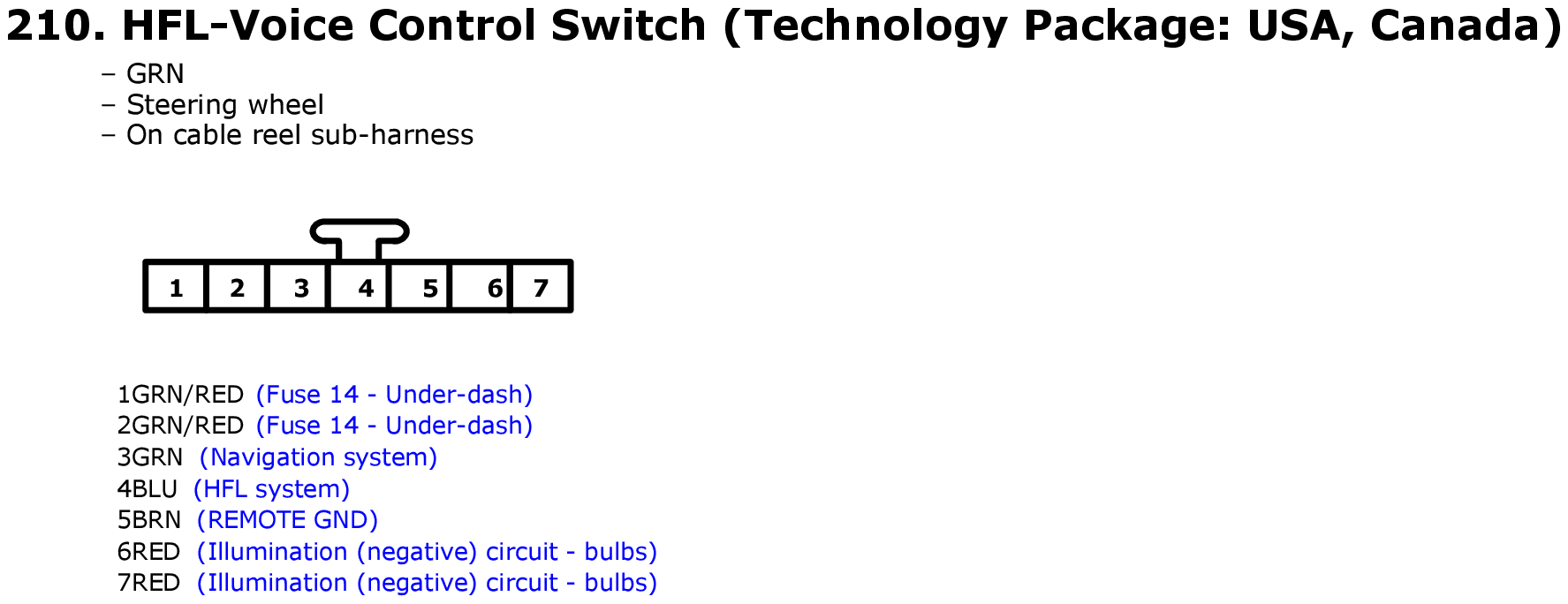

Fig 172: HFL-Voice Control Switch Connector End View
GHHW8537Courtesy of AMERICAN HONDA MOTOR CO., INC.

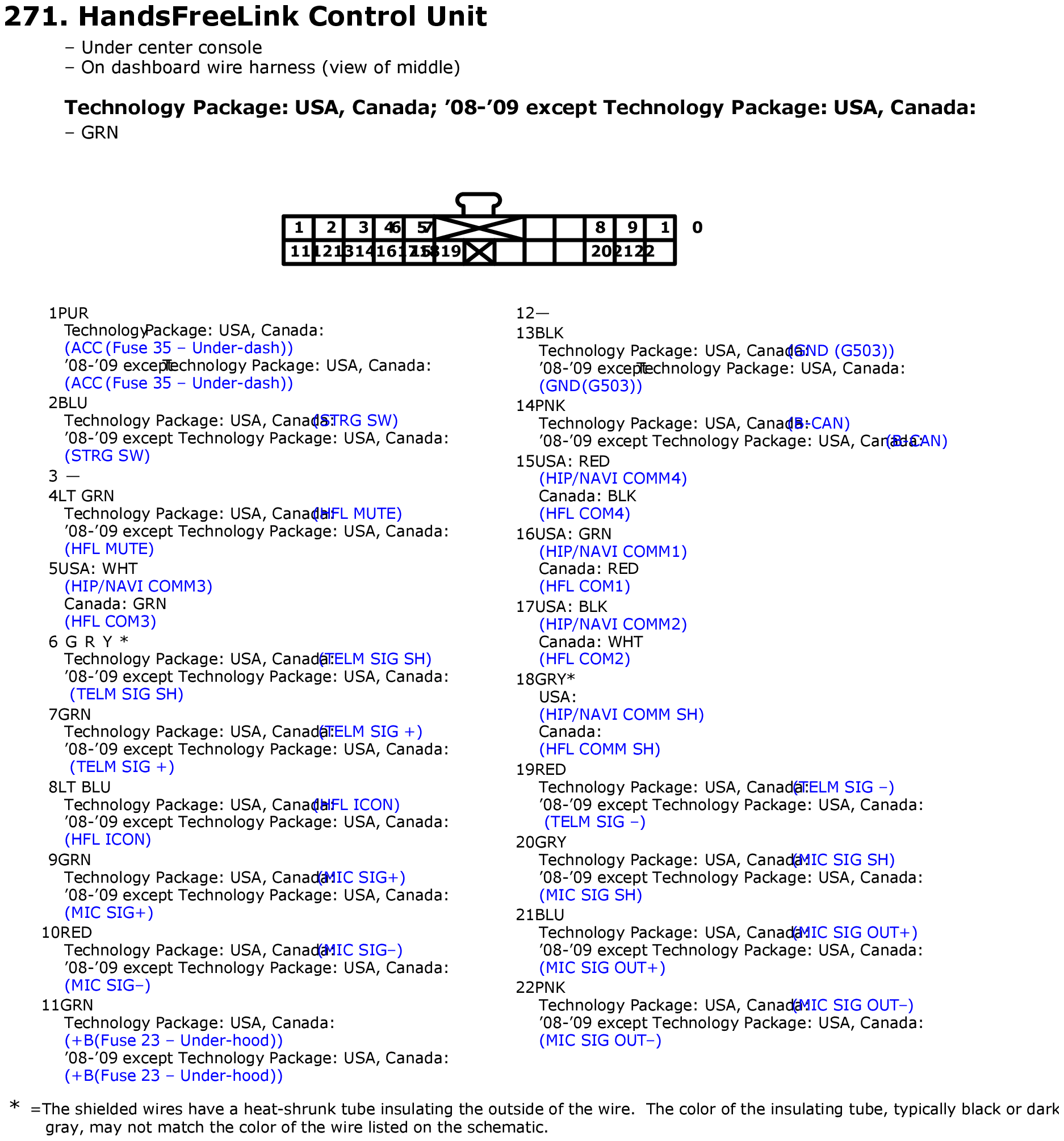

Fig 173: HandsFreeLink Control Unit Connector End View
GHHW8598Courtesy of AMERICAN HONDA MOTOR CO., INC.

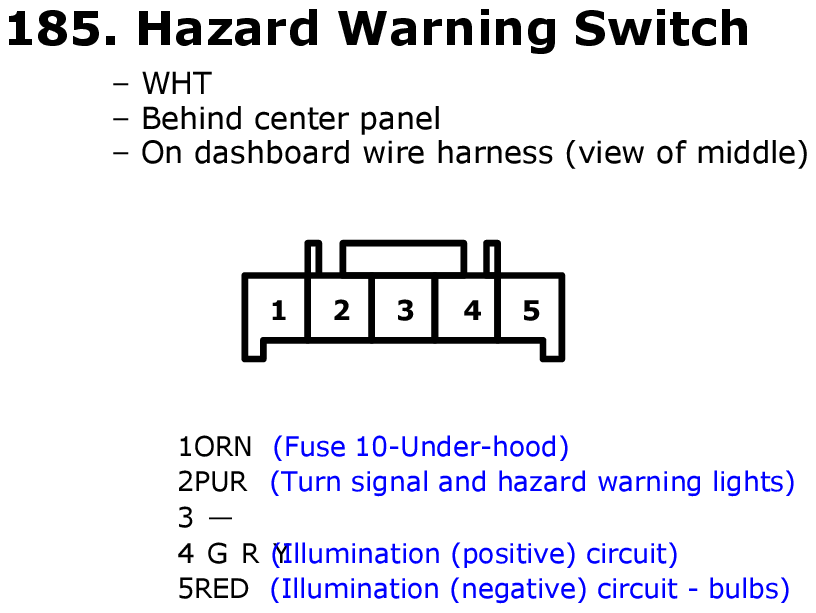

Fig 174: Hazard Warning Switch Connector End View
GHHW8512Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 175: High Horn Connector End View
GHHW8333Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 176: High Mount Brake Light Connector End View
GHHW8384Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 177: Horn Switch Connector End View
GHHW8334Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 178: IAT Sensor 2 Connector End View
GHHW8385Courtesy of AMERICAN HONDA MOTOR CO., INC.

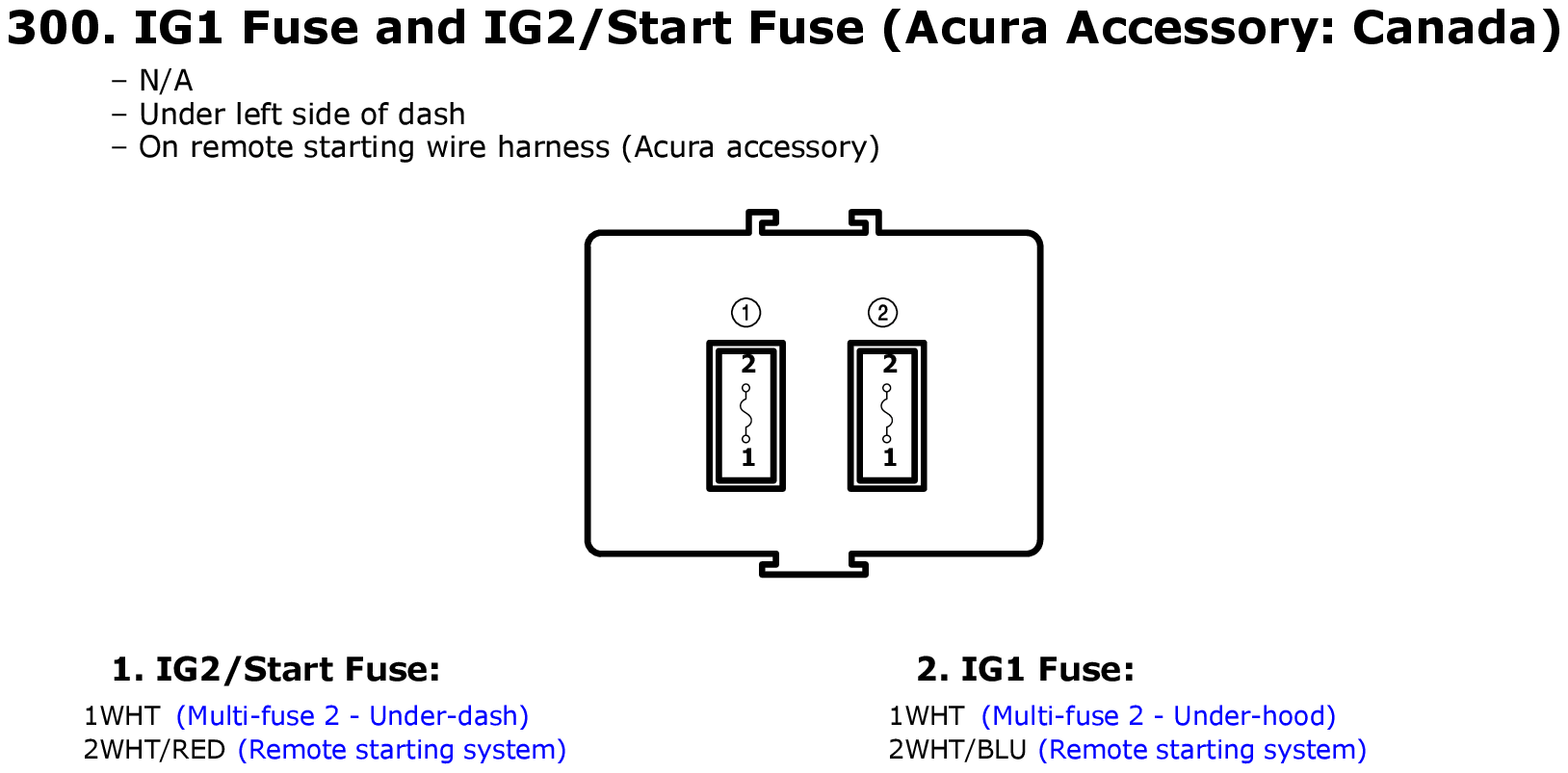

Fig 179: IG1 Fuse and IG2/Start Fuse Connector End View
GHHW8627Courtesy of AMERICAN HONDA MOTOR CO., INC.

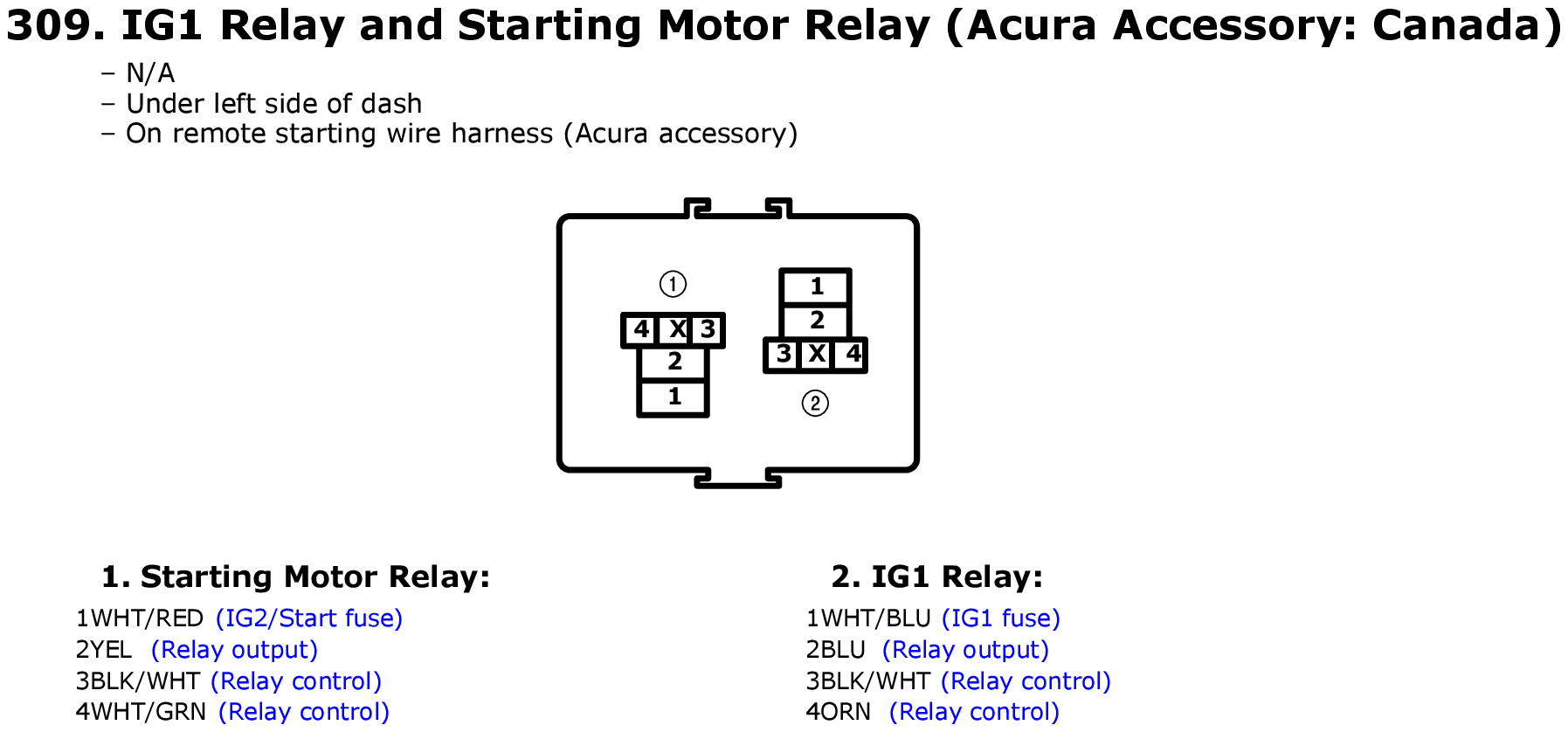

Fig 180: IG1 Relay and Start Relay Connector End View
GHHW8636Courtesy of AMERICAN HONDA MOTOR CO., INC.

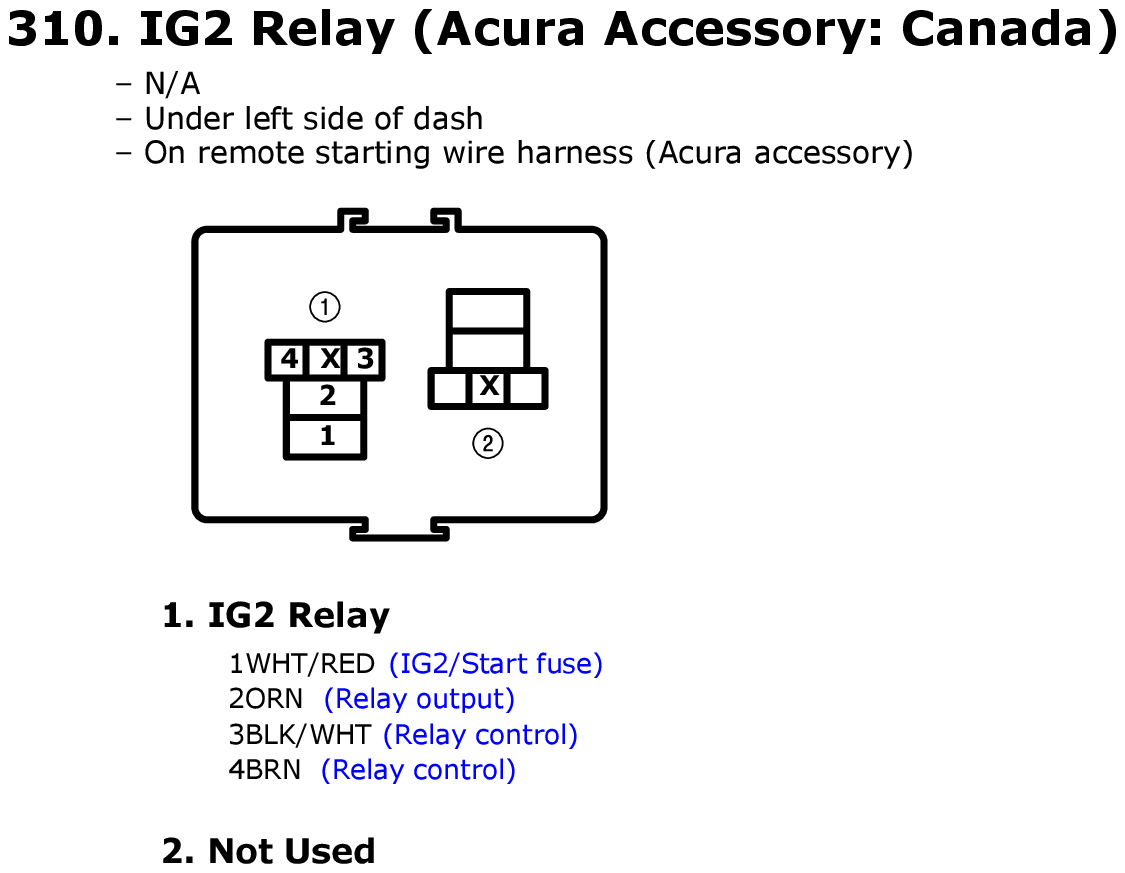

Fig 181: IG2 Relay Connector End View
GHHW8637Courtesy of AMERICAN HONDA MOTOR CO., INC.

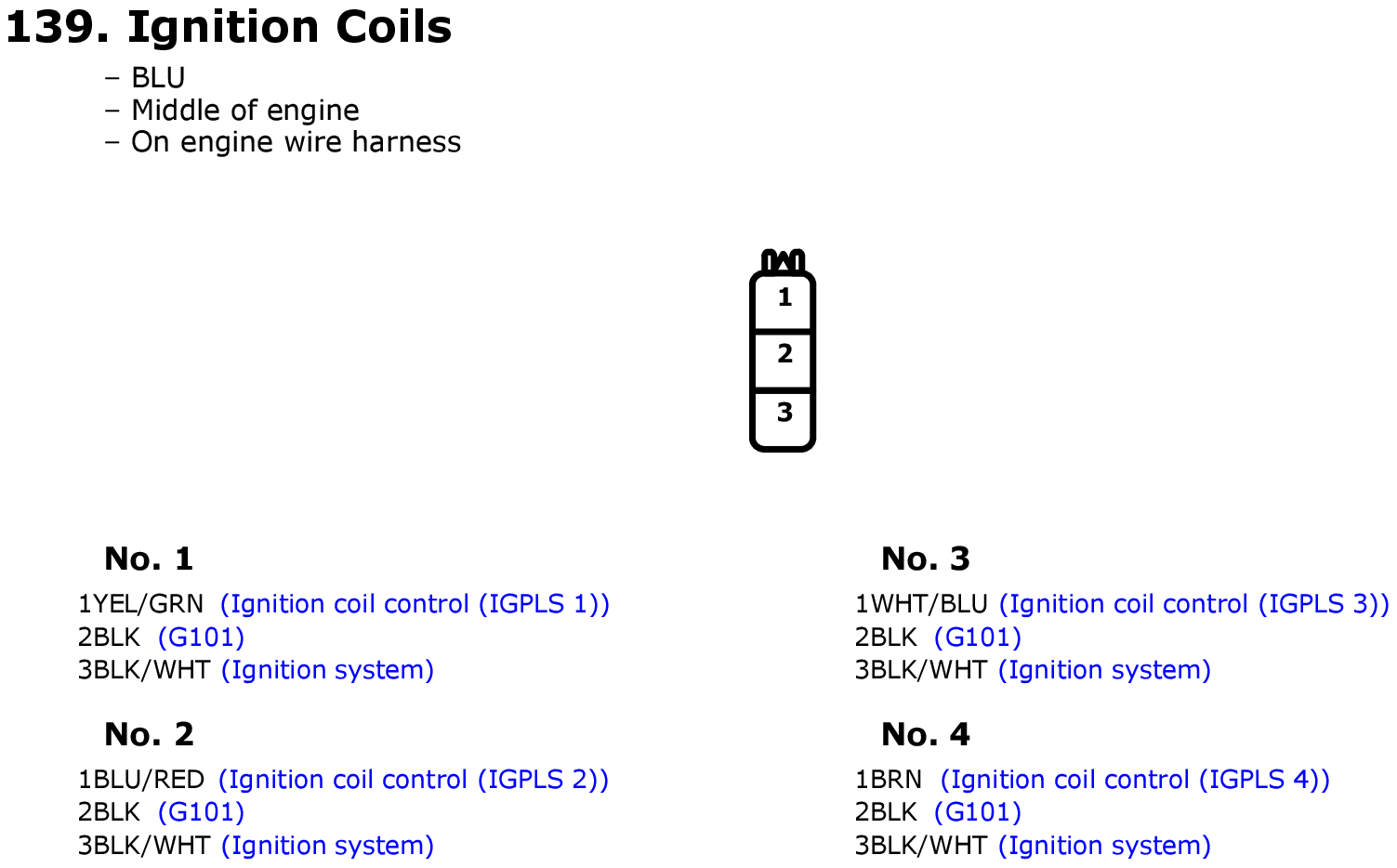

Fig 182: Ignition Coils Connector End View
GHHW8466Courtesy of AMERICAN HONDA MOTOR CO., INC.

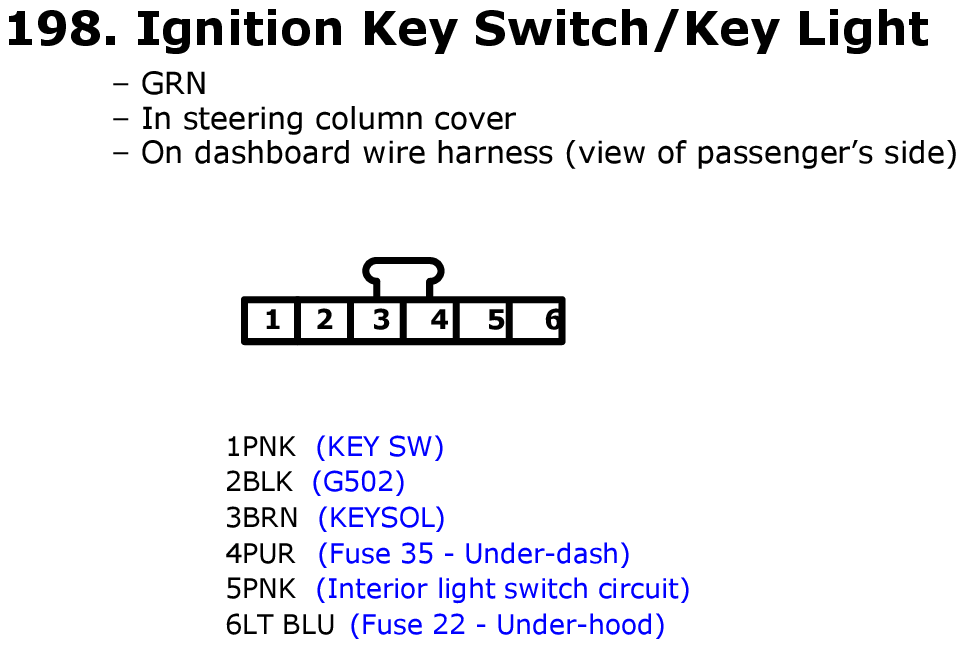

Fig 183: Ignition Key Switch/Key Light Connector End View
GHHW8525Courtesy of AMERICAN HONDA MOTOR CO., INC.

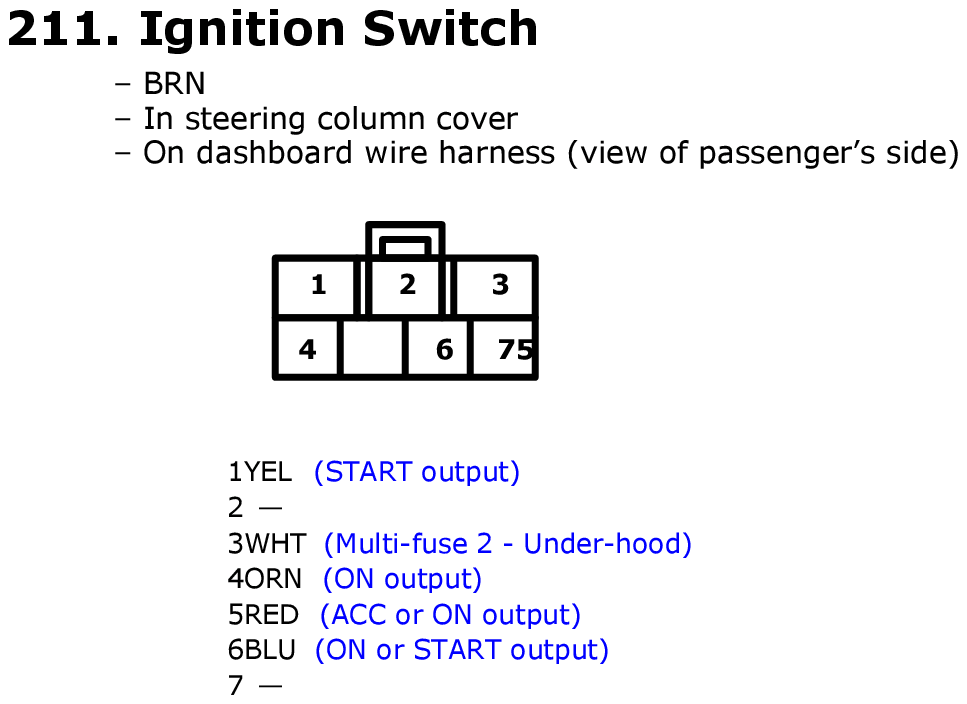

Fig 184: Ignition Switch Connector End View
GHHW8538Courtesy of AMERICAN HONDA MOTOR CO., INC.

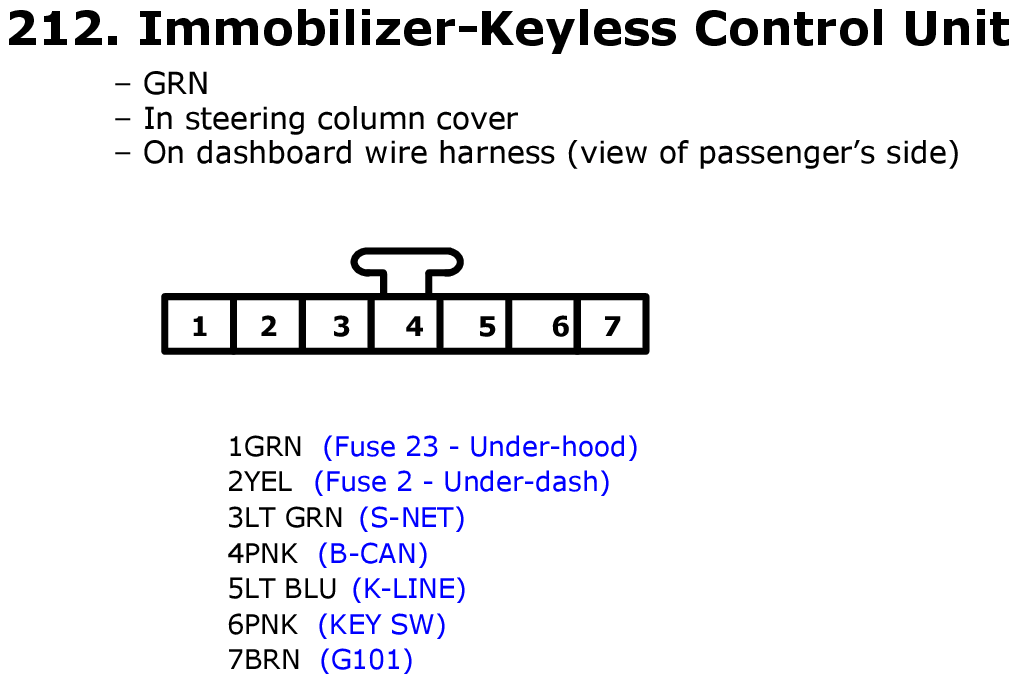

Fig 185: Immobilizer-Keyless Control Unit Connector End View
GHHW8539Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 186: In-car Temperature Sensor Connector End View
GHHW8386Courtesy of AMERICAN HONDA MOTOR CO., INC.

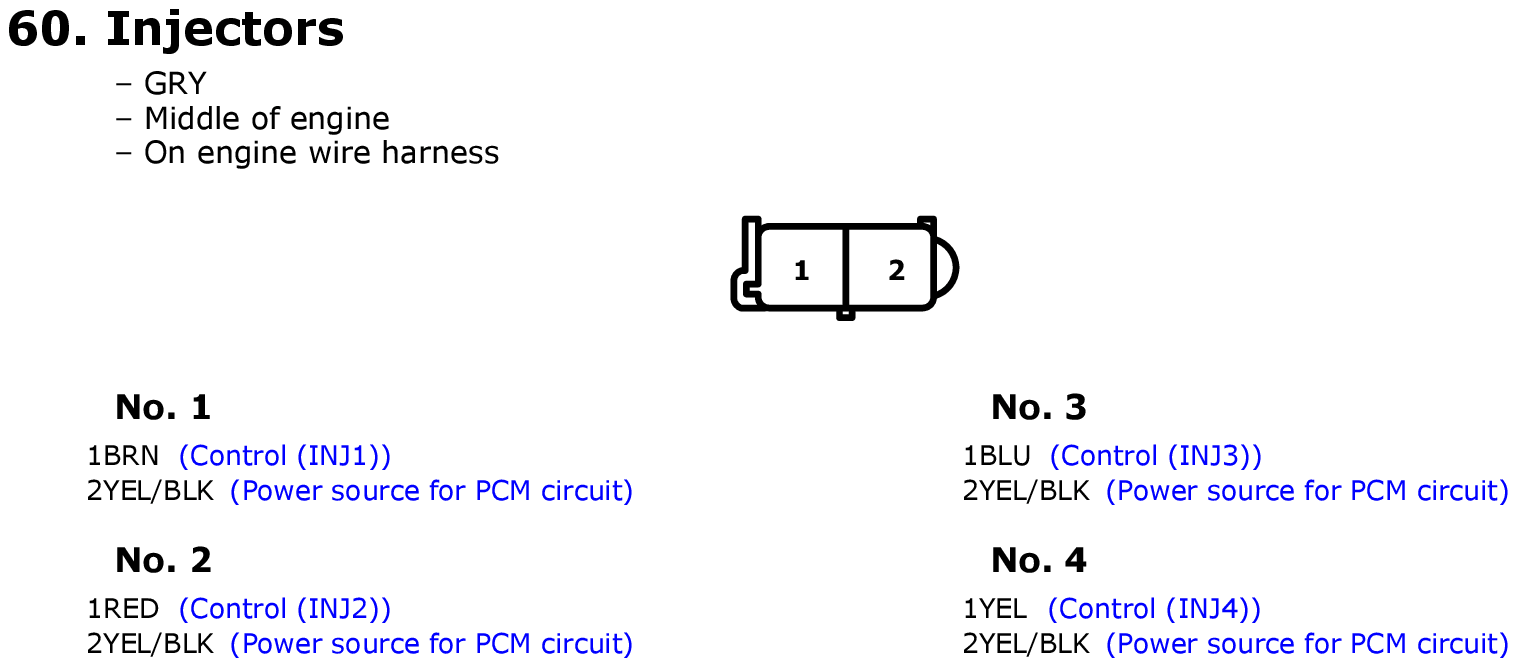

Fig 187: Injectors Connector End View
GHHW8387Courtesy of AMERICAN HONDA MOTOR CO., INC.

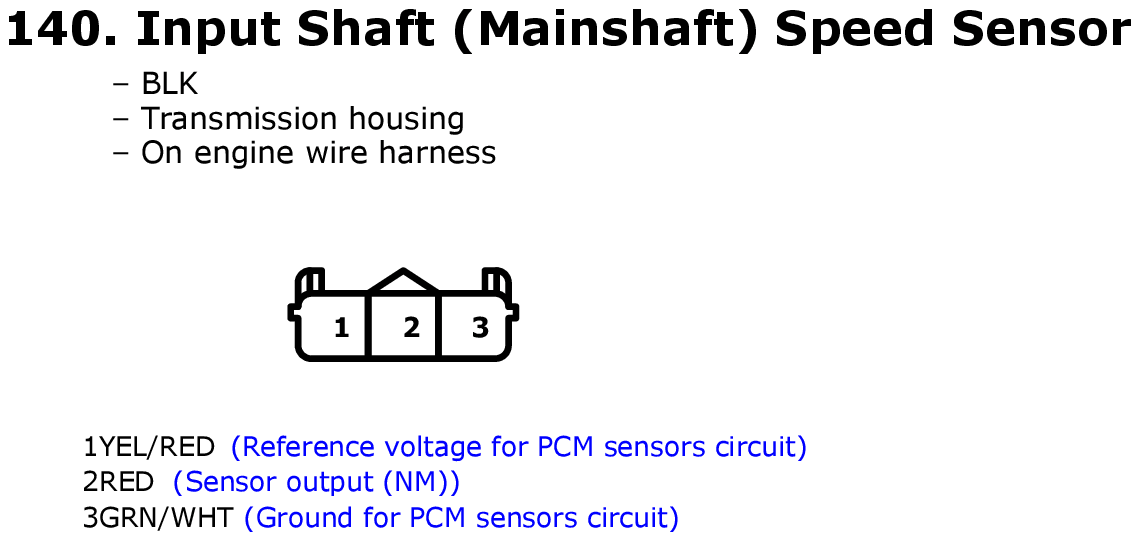

Fig 188: Input Shaft (Mainshaft) Speed Sensor Connector End View
GHHW8467Courtesy of AMERICAN HONDA MOTOR CO., INC.

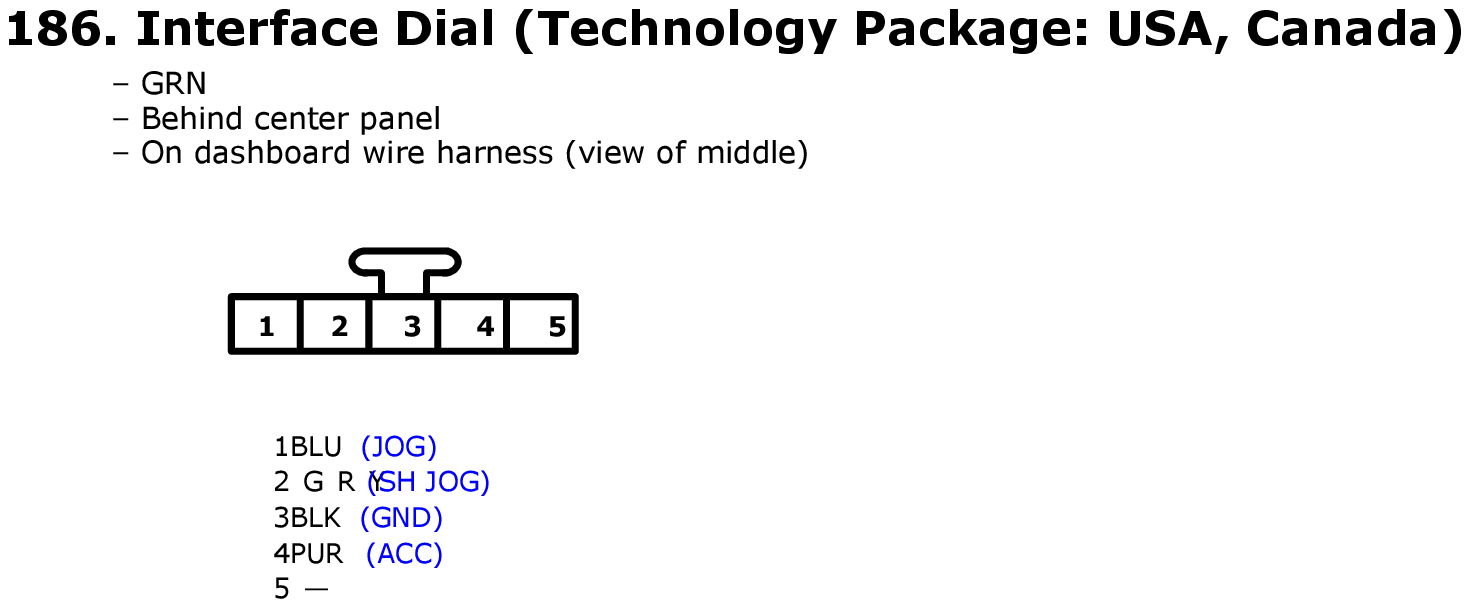

Fig 189: Interface Dial Connector End View
GHHW8513Courtesy of AMERICAN HONDA MOTOR CO., INC.

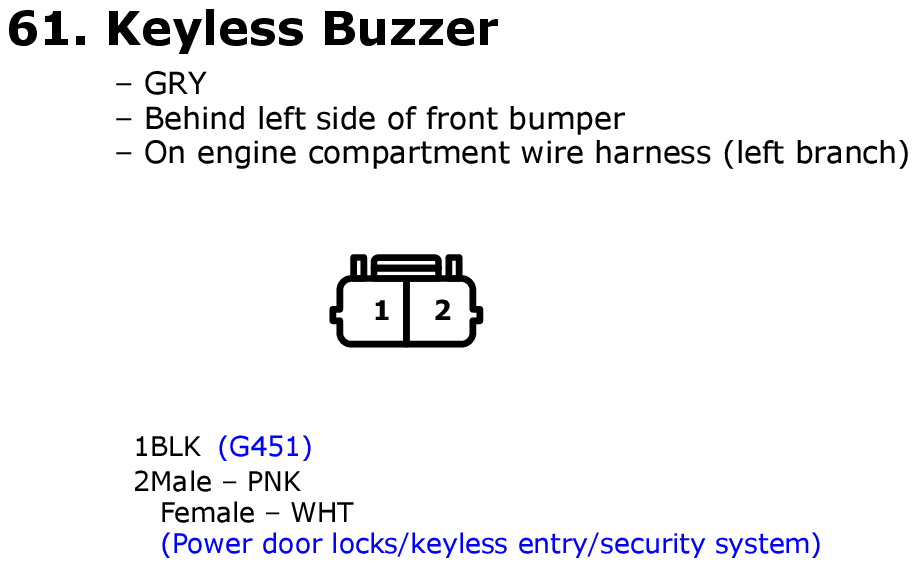

Fig 190: Keyless Buzzer Connector End View
GHHW8388Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 191: Knock Sensor Connector End View
GHHW8335Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 192: Left Back-up Light Connector End View
GHHW8389Courtesy of AMERICAN HONDA MOTOR CO., INC.

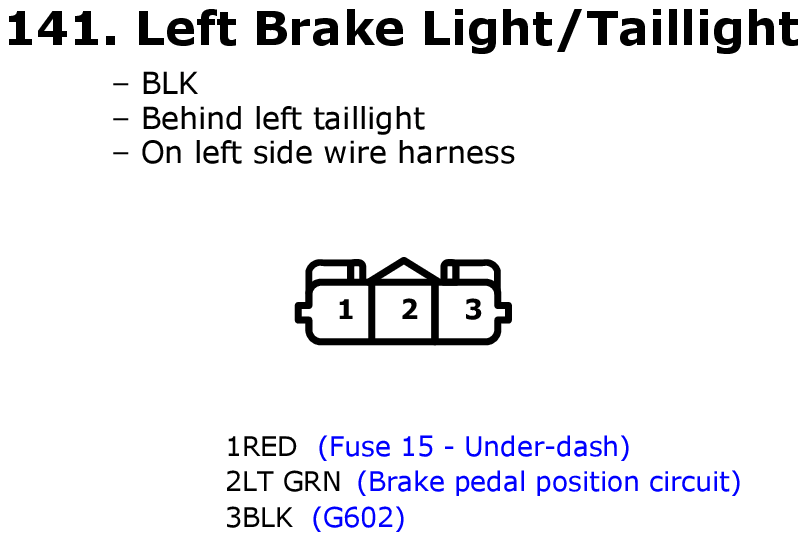

Fig 193: Left Brake Light/Taillight Connector End View
GHHW8468Courtesy of AMERICAN HONDA MOTOR CO., INC.

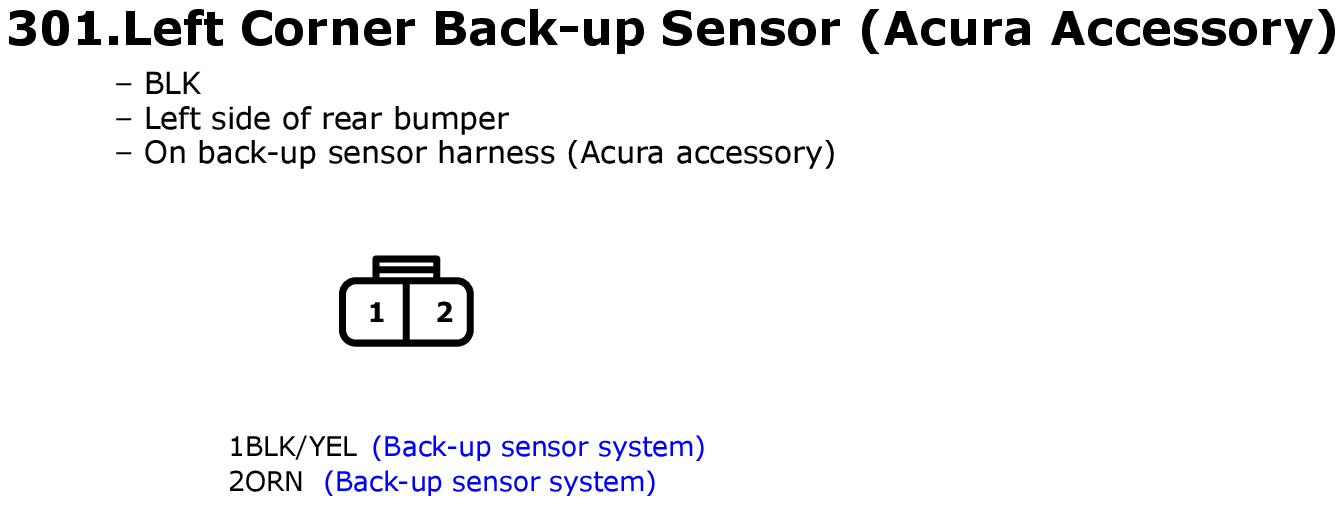

Fig 194: Left Corner Back-up Sensor Connector End View
GHHW8628Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 195: Left Fog Light Connector End View
GHHW8390Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 196: Left Front Impact Sensor Connector End View
GHHW8391Courtesy of AMERICAN HONDA MOTOR CO., INC.

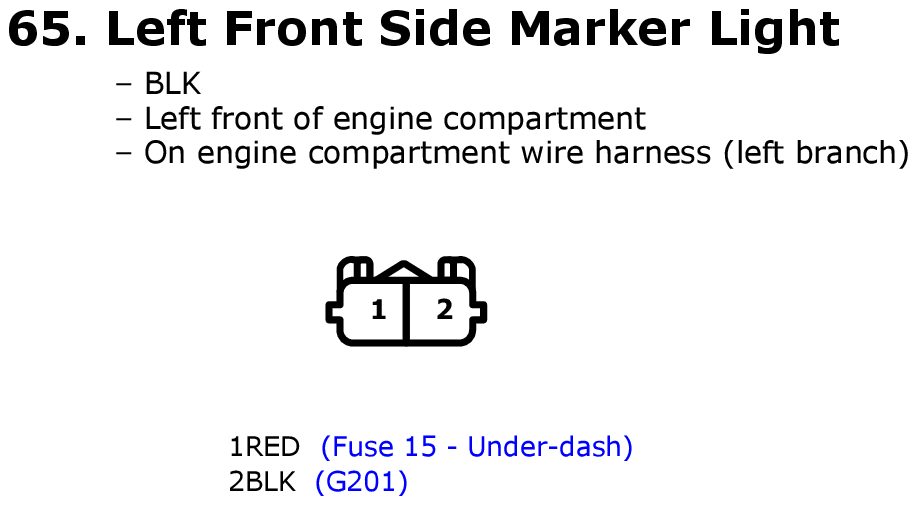

Fig 197: Left Front Side Marker Light Connector End View
GHHW8392Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 198: Left Front TPMS Initiator Connector End View
GHHW8469Courtesy of AMERICAN HONDA MOTOR CO., INC.

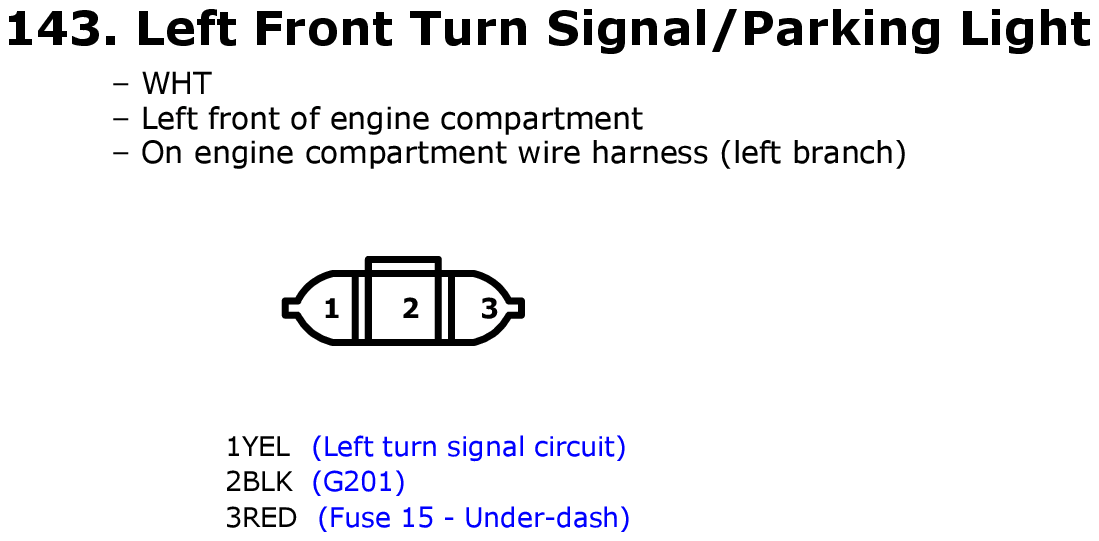

Fig 199: Left Front Turn Signal/Parking Light Connector End View
GHHW8470Courtesy of AMERICAN HONDA MOTOR CO., INC.

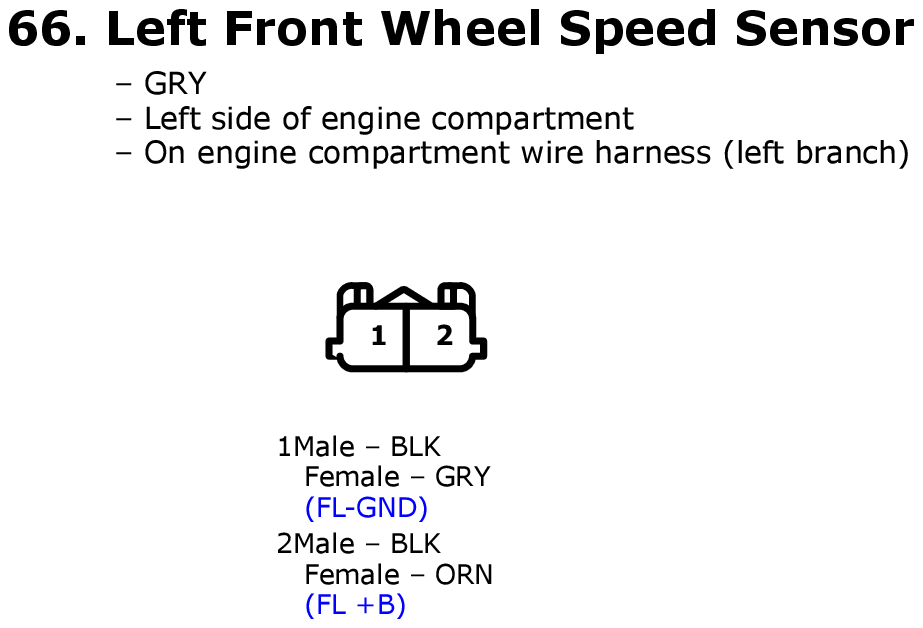

Fig 200: Left Front Wheel Speed Sensor Connector End View
GHHW8393Courtesy of AMERICAN HONDA MOTOR CO., INC.

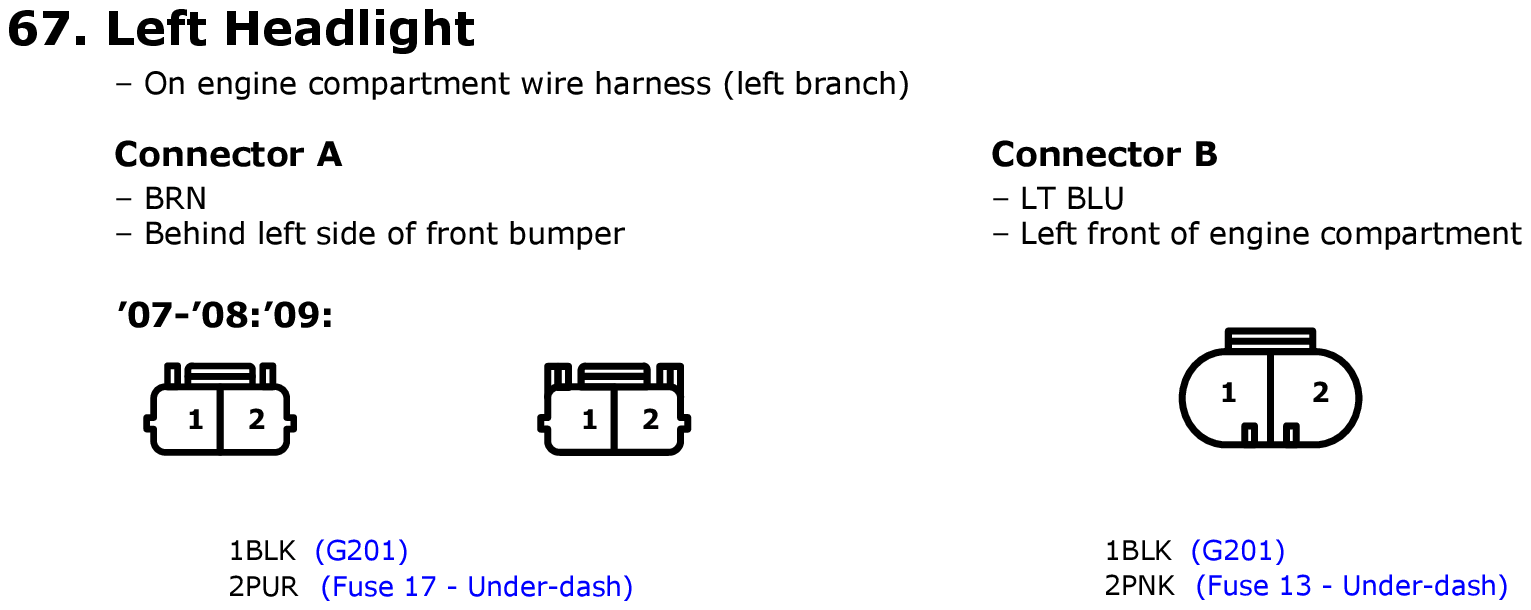

Fig 201: Left Headlight Connector End View
GHHW8394Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 202: Left Inner Taillight Connector End View
GHHW8396Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 203: Left License Plate Light Connector End View
GHHW8395Courtesy of AMERICAN HONDA MOTOR CO., INC.

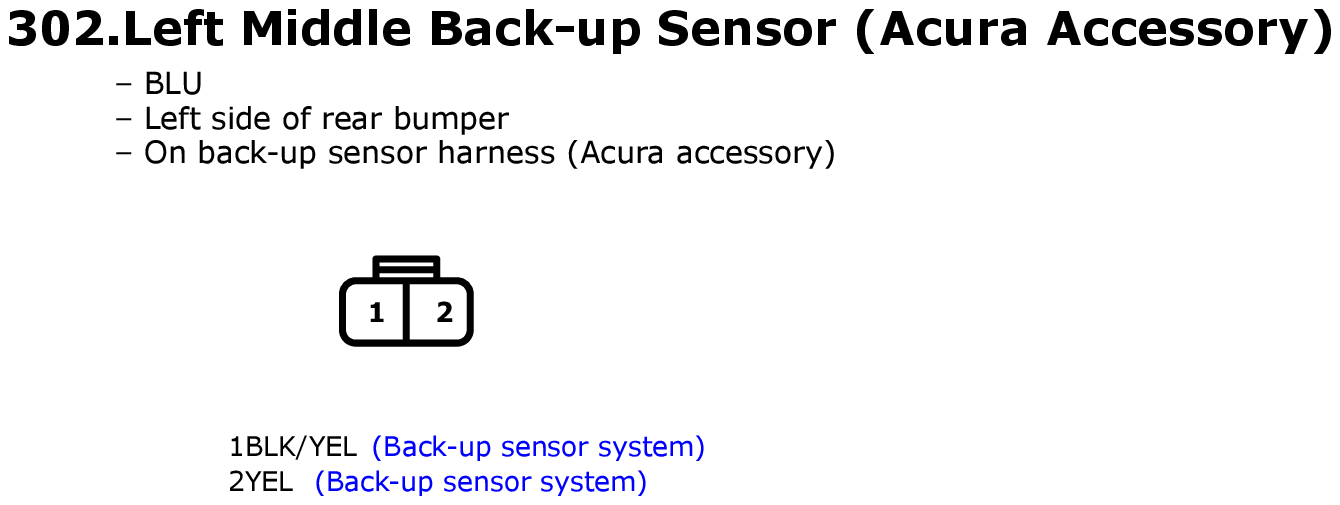

Fig 204: Left Middle Back-up Sensor Connector End View
GHHW8629Courtesy of AMERICAN HONDA MOTOR CO., INC.

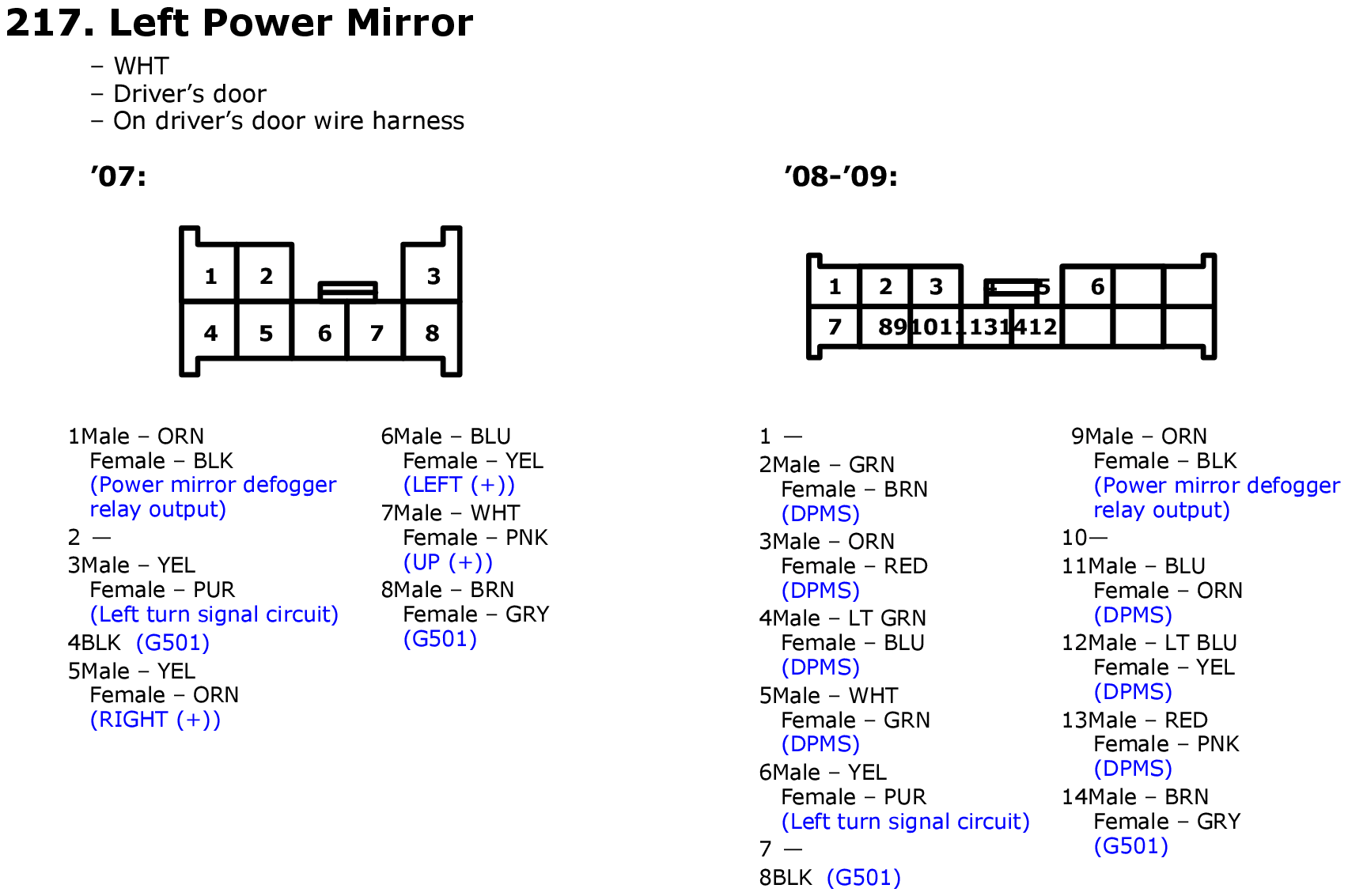

Fig 205: Left Power Mirror Connector End View
GHHW8544Courtesy of AMERICAN HONDA MOTOR CO., INC.

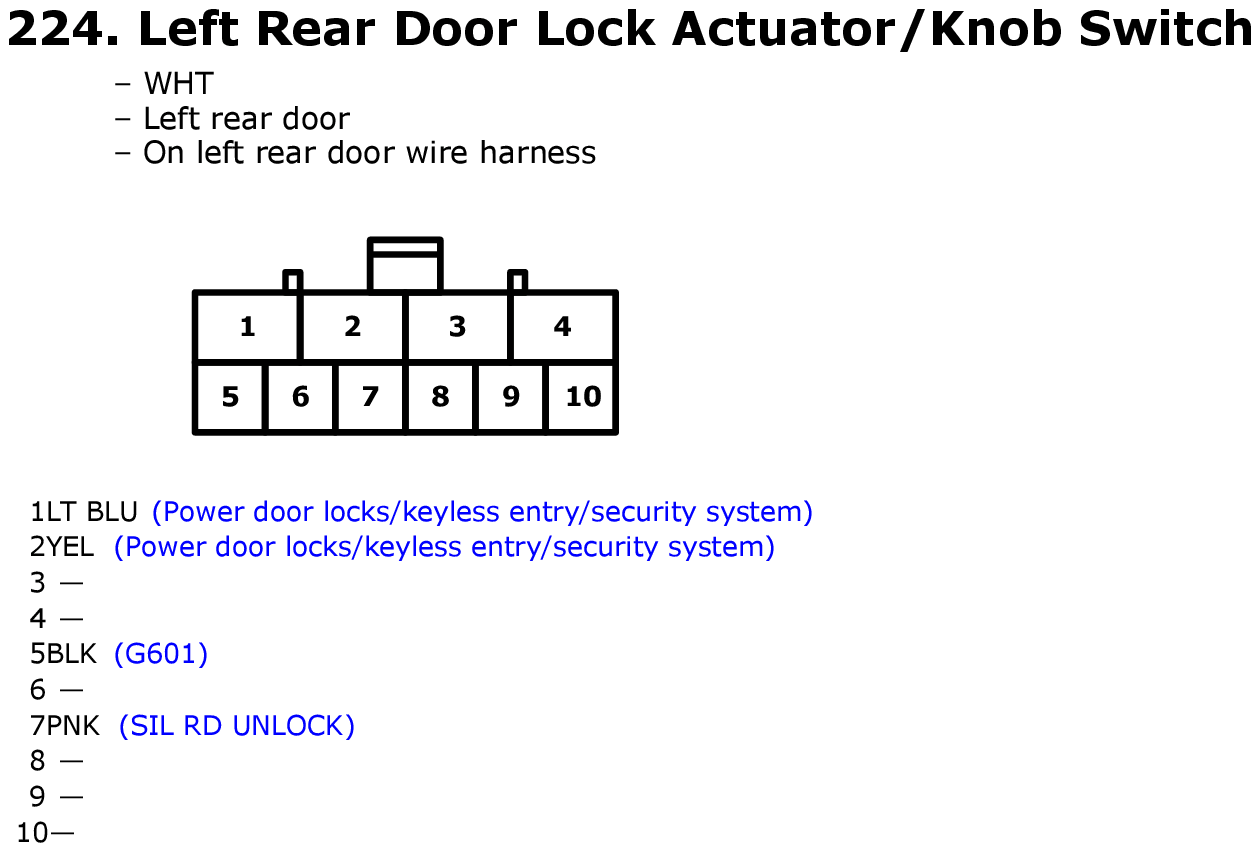

Fig 206: Left Rear Door Lock Actuator/Knob Switch Connector End View
GHHW8551Courtesy of AMERICAN HONDA MOTOR CO., INC.

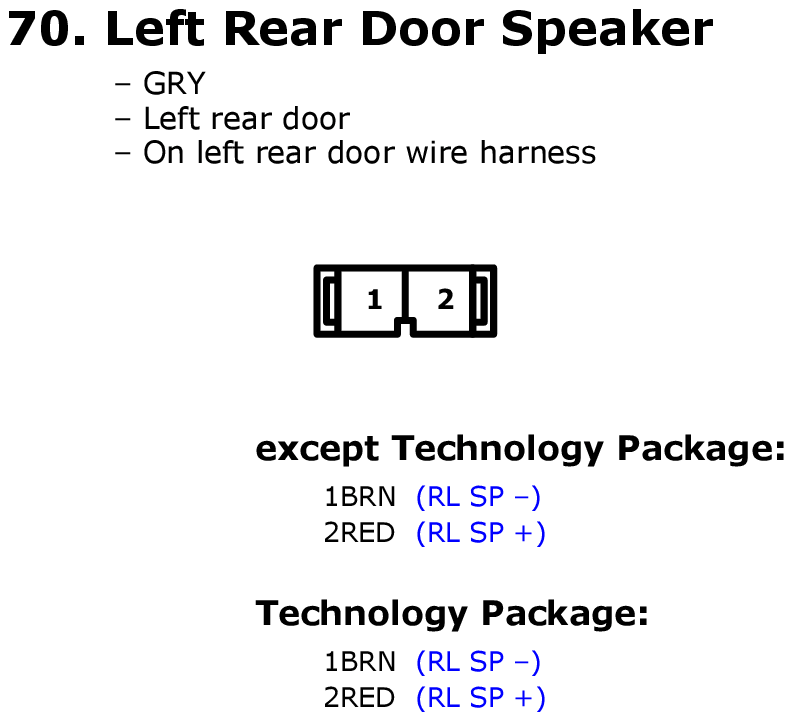

Fig 207: Left Rear Door Speaker Connector End View
GHHW8397Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 208: Left Rear Door Switch Connector End View
GHHW8336Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 209: Left Rear Power Window Motor Connector End View
GHHW8398Courtesy of AMERICAN HONDA MOTOR CO., INC.

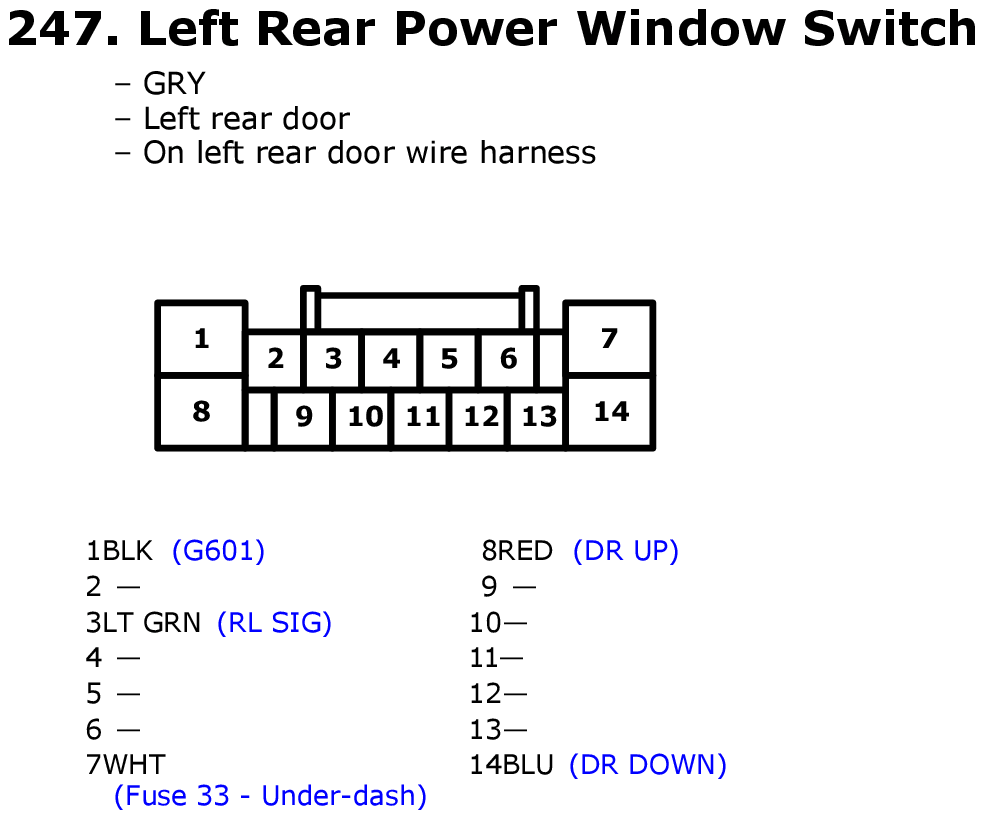

Fig 210: Left Rear Power Window Switch Connector End View
GHHW8574Courtesy of AMERICAN HONDA MOTOR CO., INC.

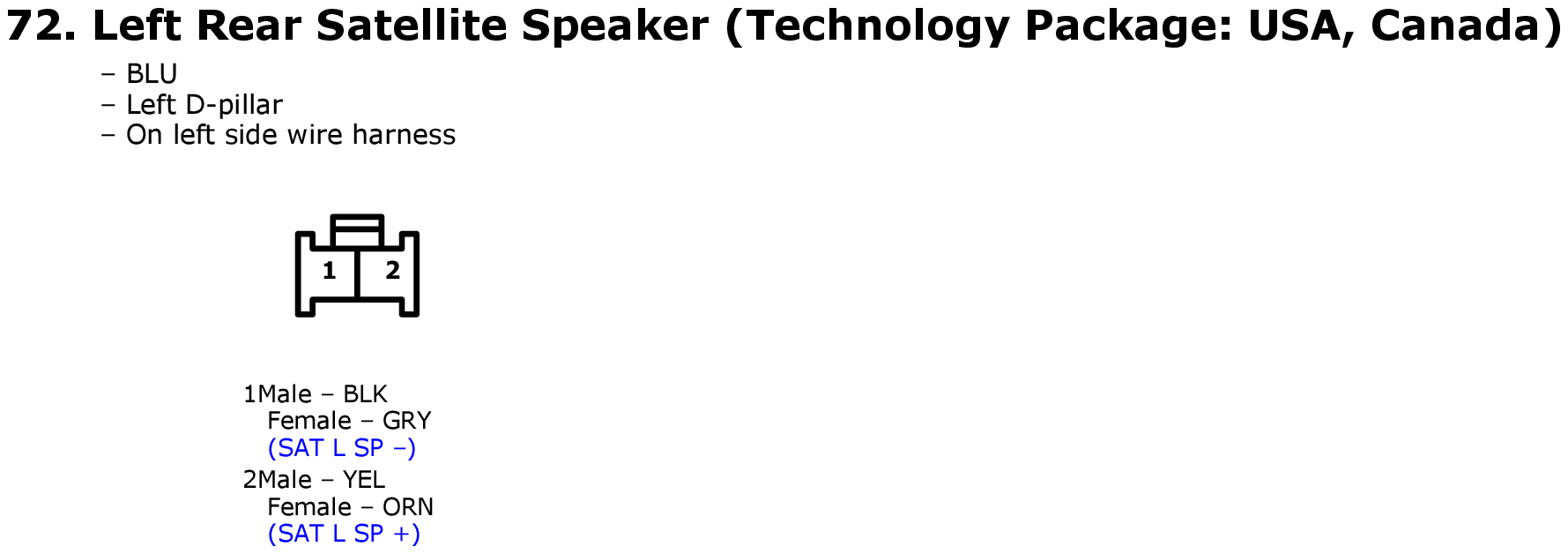

Fig 211: Left Rear Satellite Speaker Connector End View
GHHW8399Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 212: Left Rear Side Marker Light Connector End View
GHHW8400Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 213: Left Rear TPMS Initiator Connector End View
GHHW8471Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 214: Left Rear Turn Signal Light Connector End View
GHHW8401Courtesy of AMERICAN HONDA MOTOR CO., INC.

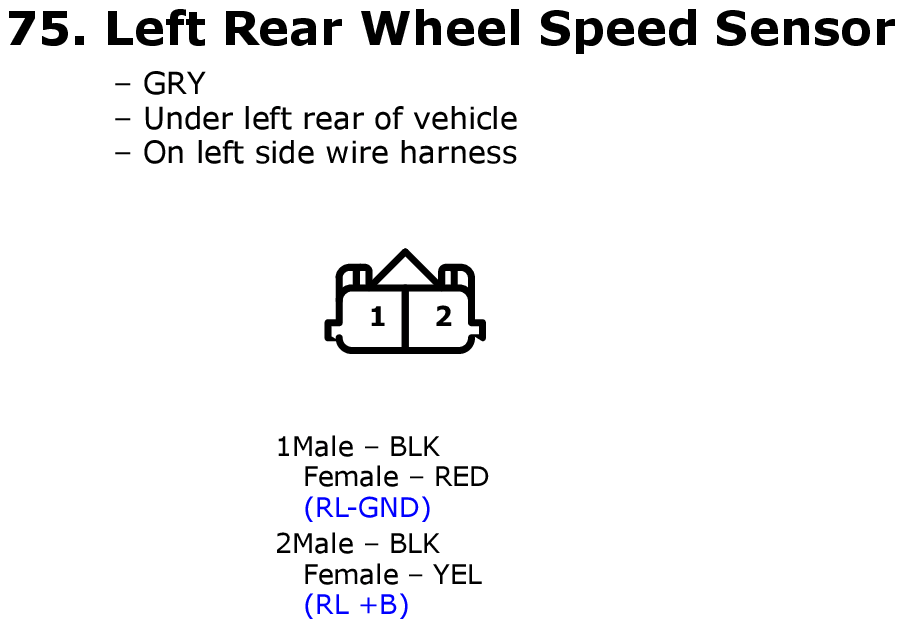

Fig 215: Left Rear Wheel Speed Sensor Connector End View
GHHW8402Courtesy of AMERICAN HONDA MOTOR CO., INC.

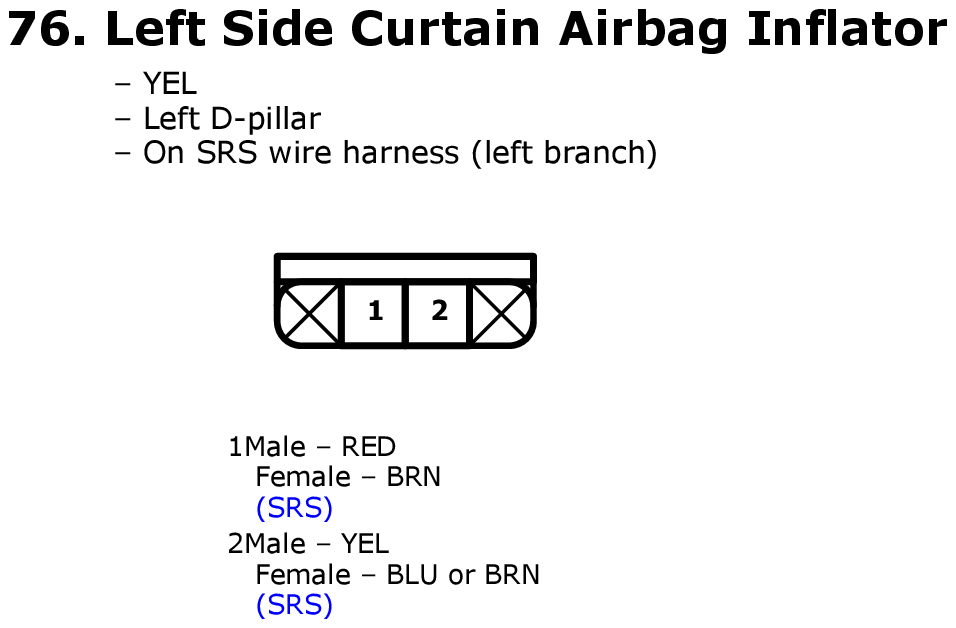

Fig 216: Left Side Curtain Airbag Inflator Connector End View
GHHW8403Courtesy of AMERICAN HONDA MOTOR CO., INC.

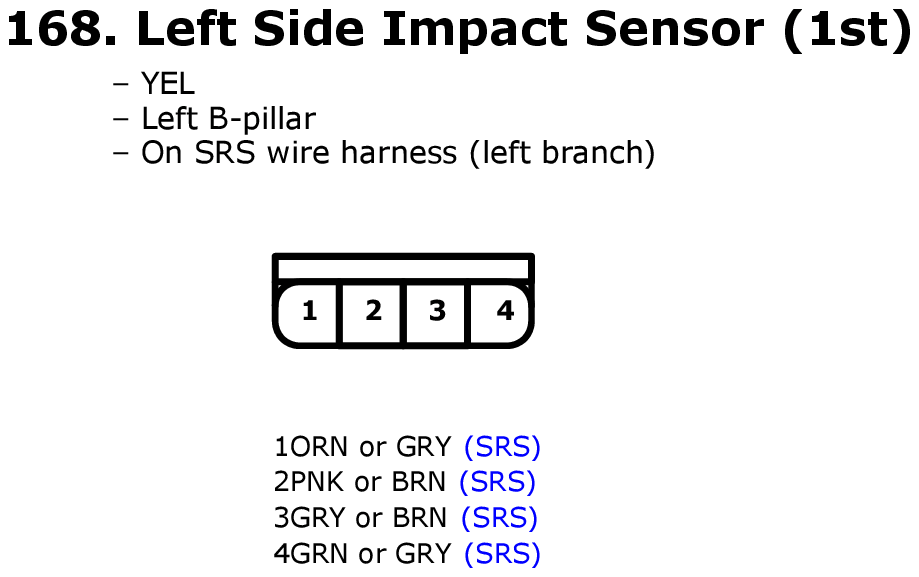

Fig 217: Left Side Impact Sensor (1st) Connector End View
GHHW8495Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 218: Left Side Impact Sensor (2nd) Connector End View
GHHW8404Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 219: Left Side Turn Signal Light Connector End View
GHHW8405Courtesy of AMERICAN HONDA MOTOR CO., INC.

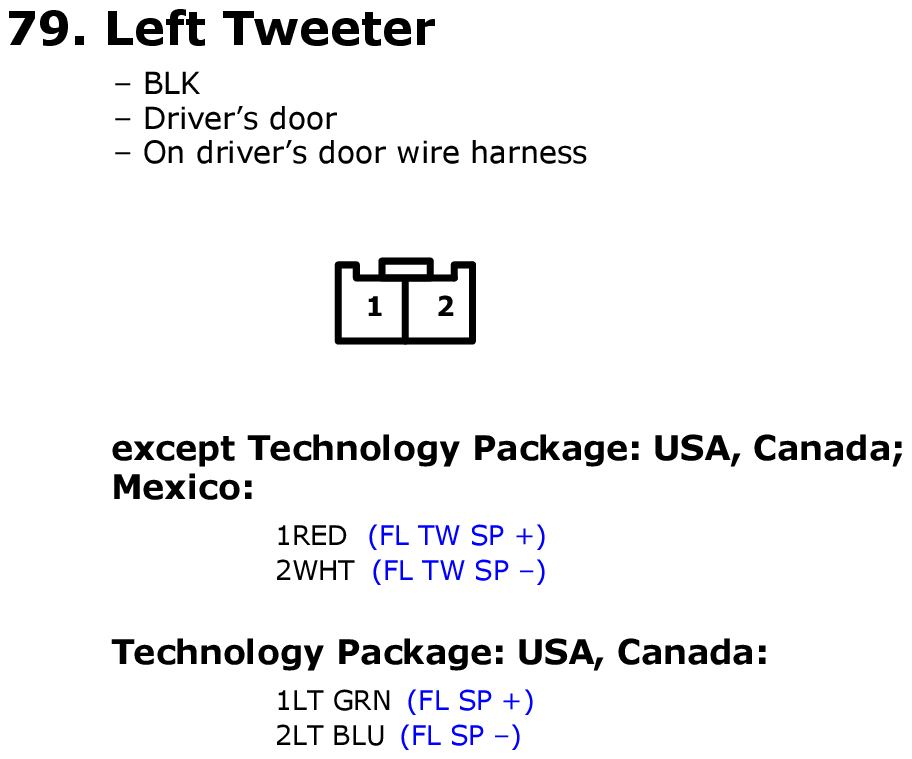

Fig 220: Left Tweeter Connector End View
GHHW8406Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 221: Low Horn Connector End View
GHHW8337Courtesy of AMERICAN HONDA MOTOR CO., INC.

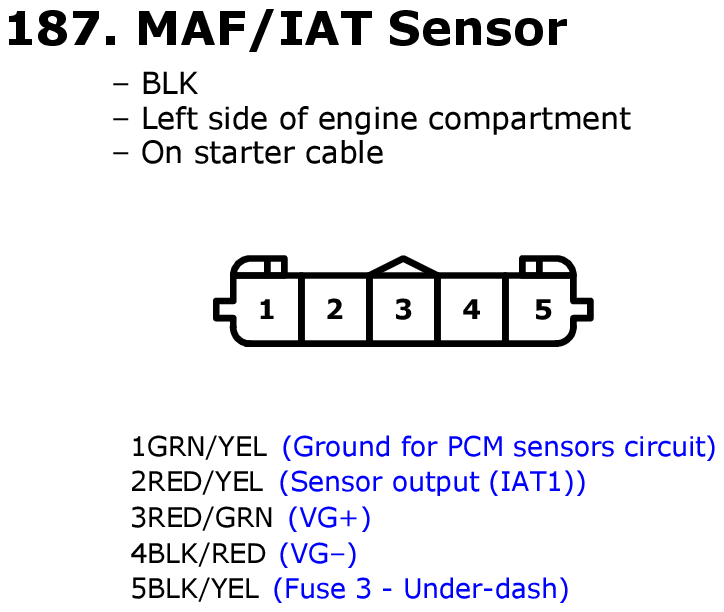

Fig 222: MAF/IAT Sensor Connector End View
GHHW8514Courtesy of AMERICAN HONDA MOTOR CO., INC.

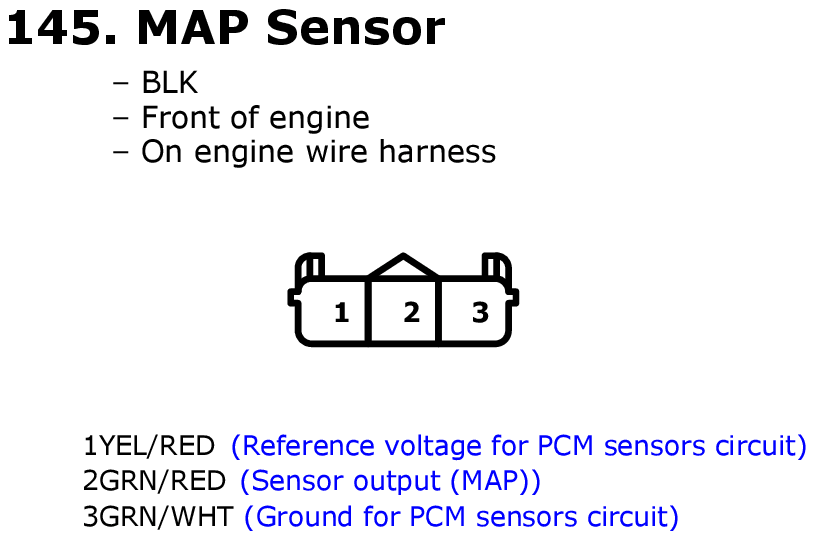

Fig 223: MAP Sensor Connector End View
GHHW8472Courtesy of AMERICAN HONDA MOTOR CO., INC.

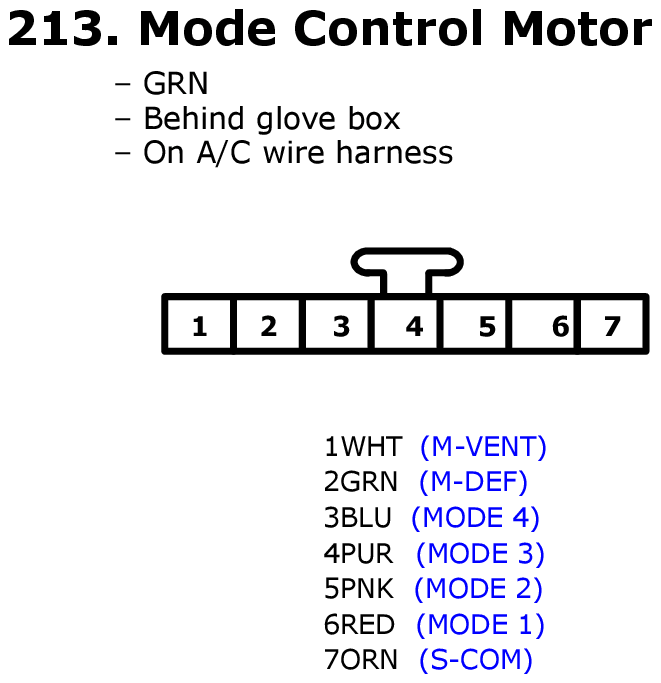

Fig 224: Mode Control Motor Connector End View
GHHW8540Courtesy of AMERICAN HONDA MOTOR CO., INC.

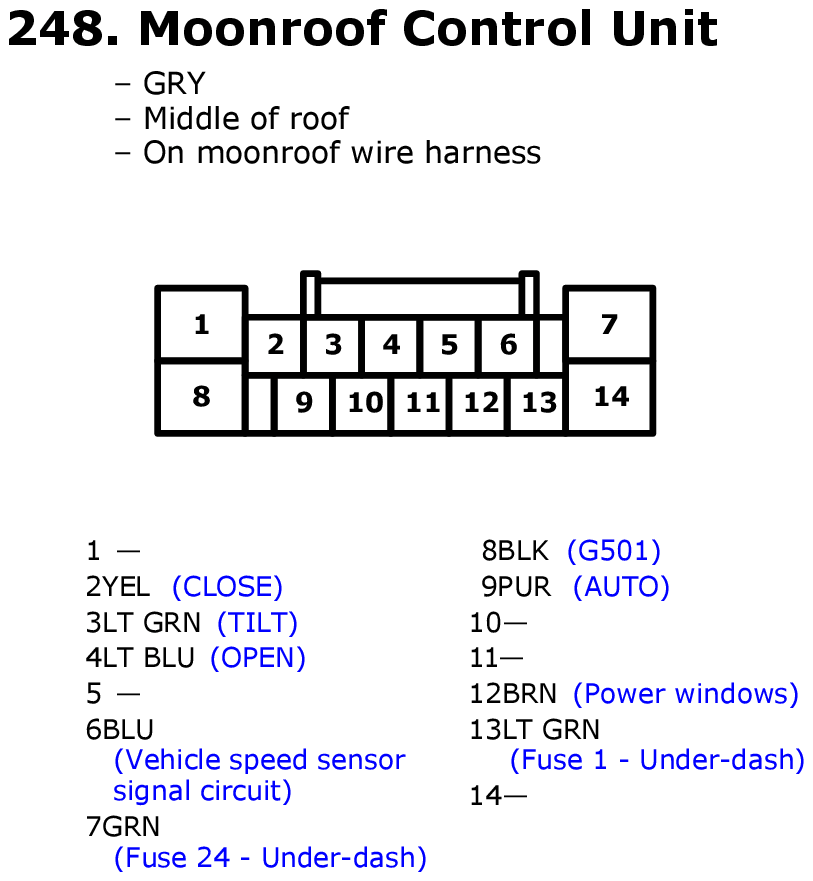

Fig 225: Moonroof Control Unit Connector End View
GHHW8575Courtesy of AMERICAN HONDA MOTOR CO., INC.

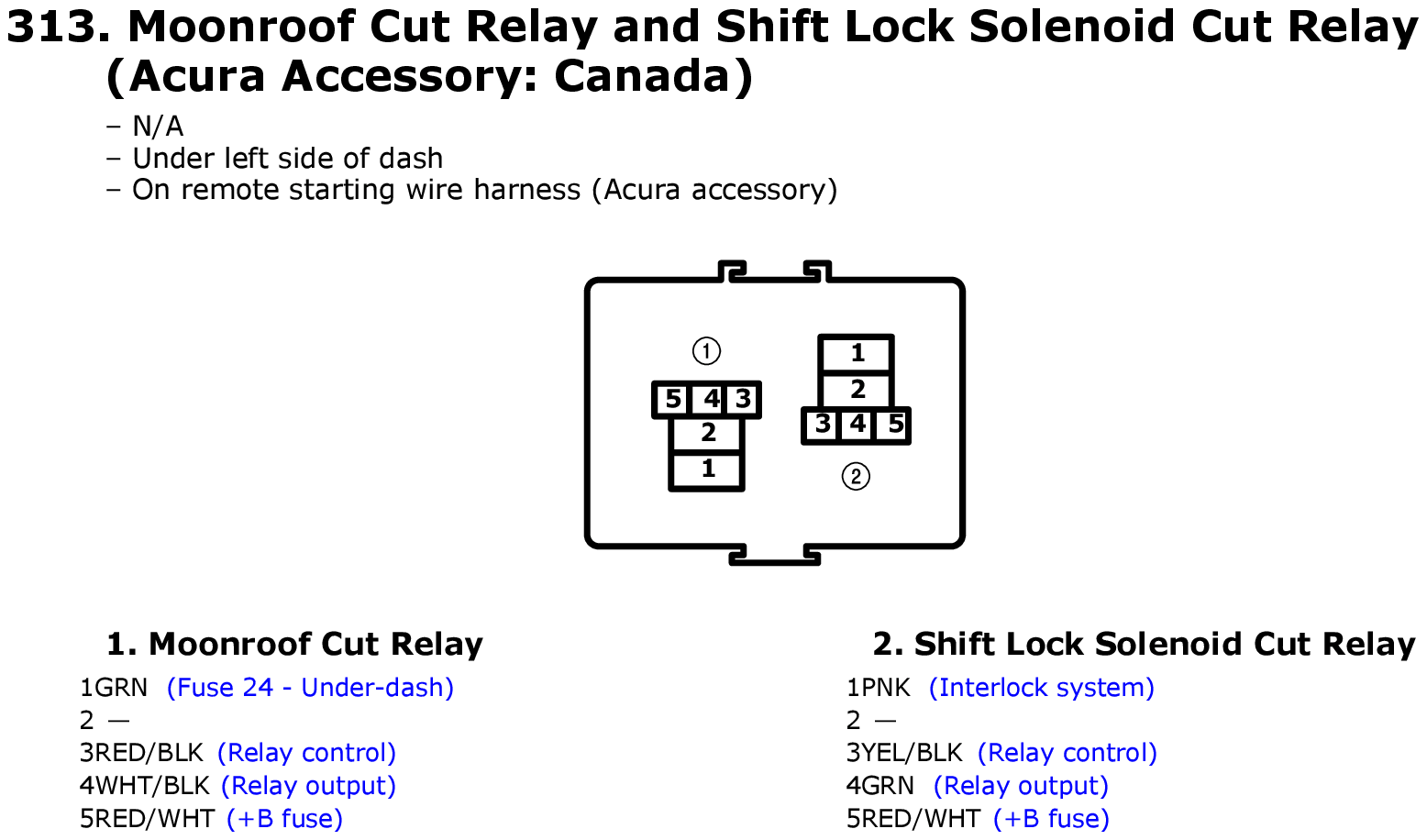

Fig 226: Moonroof Cut Relay and Shift Lock Solenoid Cut Relay Connector End View
GHHW8640Courtesy of AMERICAN HONDA MOTOR CO., INC.

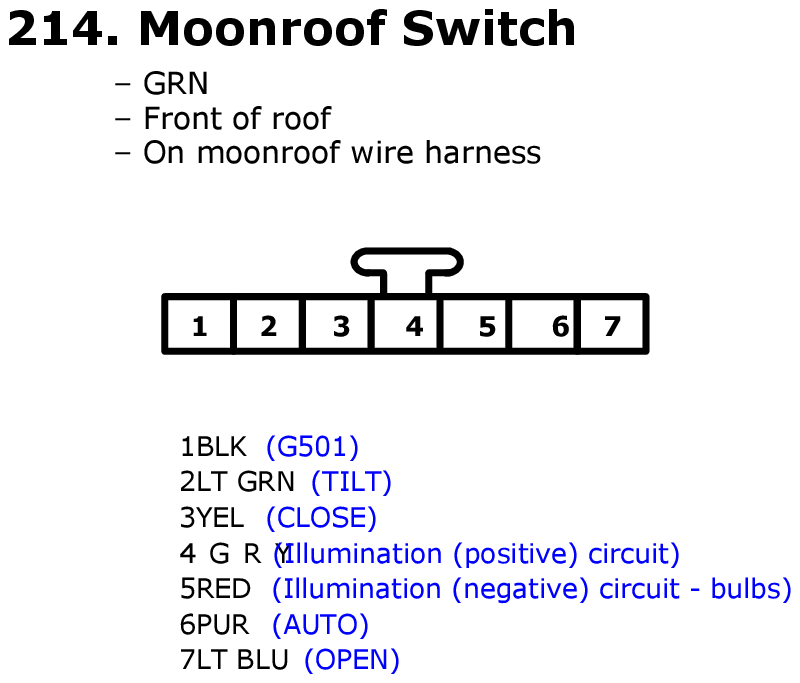

Fig 227: Moonroof Switch Connector End View
GHHW8541Courtesy of AMERICAN HONDA MOTOR CO., INC.

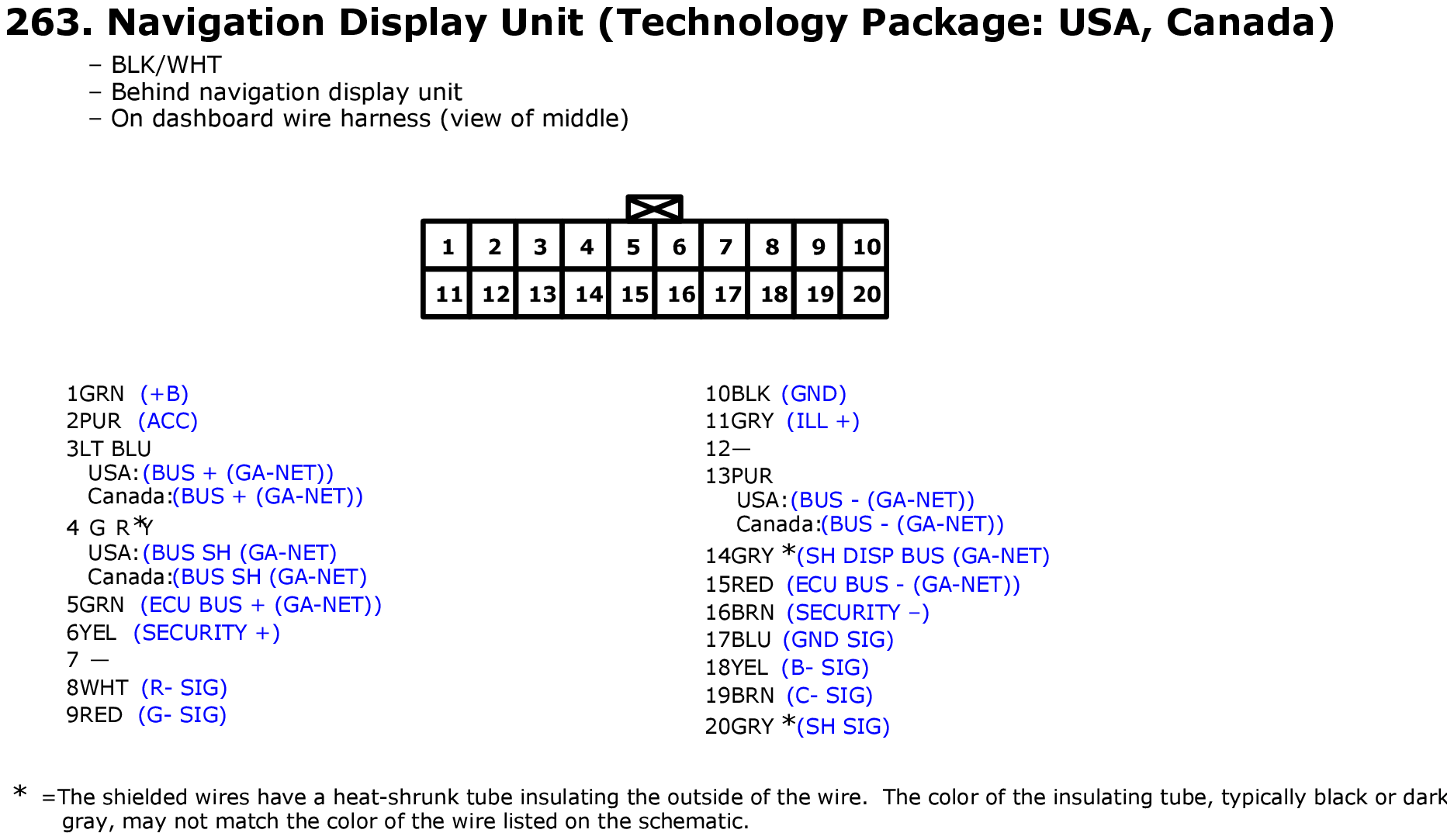

Fig 228: Navigation Display Unit Connector End View
GHHW8590Courtesy of AMERICAN HONDA MOTOR CO., INC.

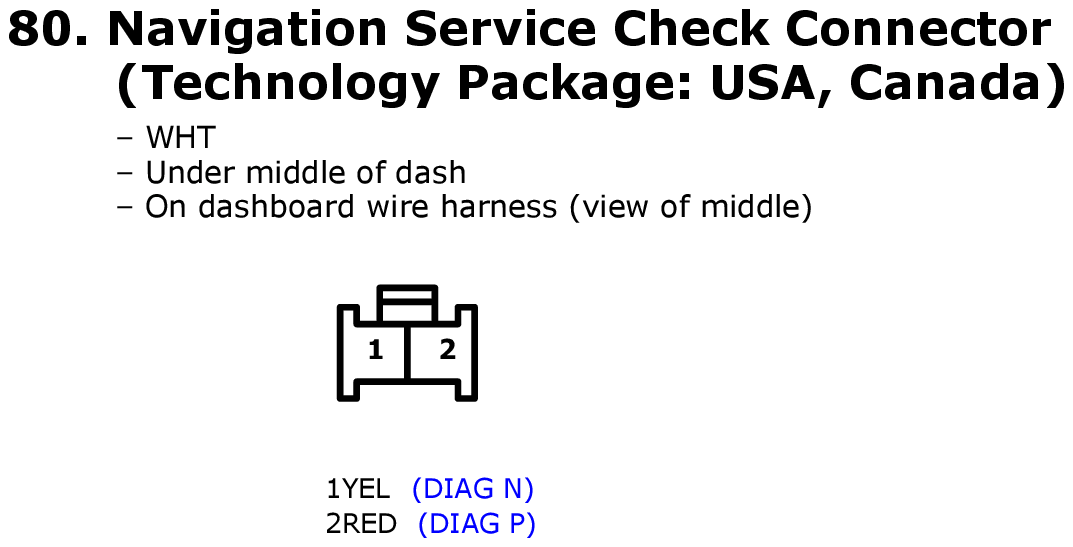

Fig 229: Navigation Service Check Connector End View
GHHW8407Courtesy of AMERICAN HONDA MOTOR CO., INC.

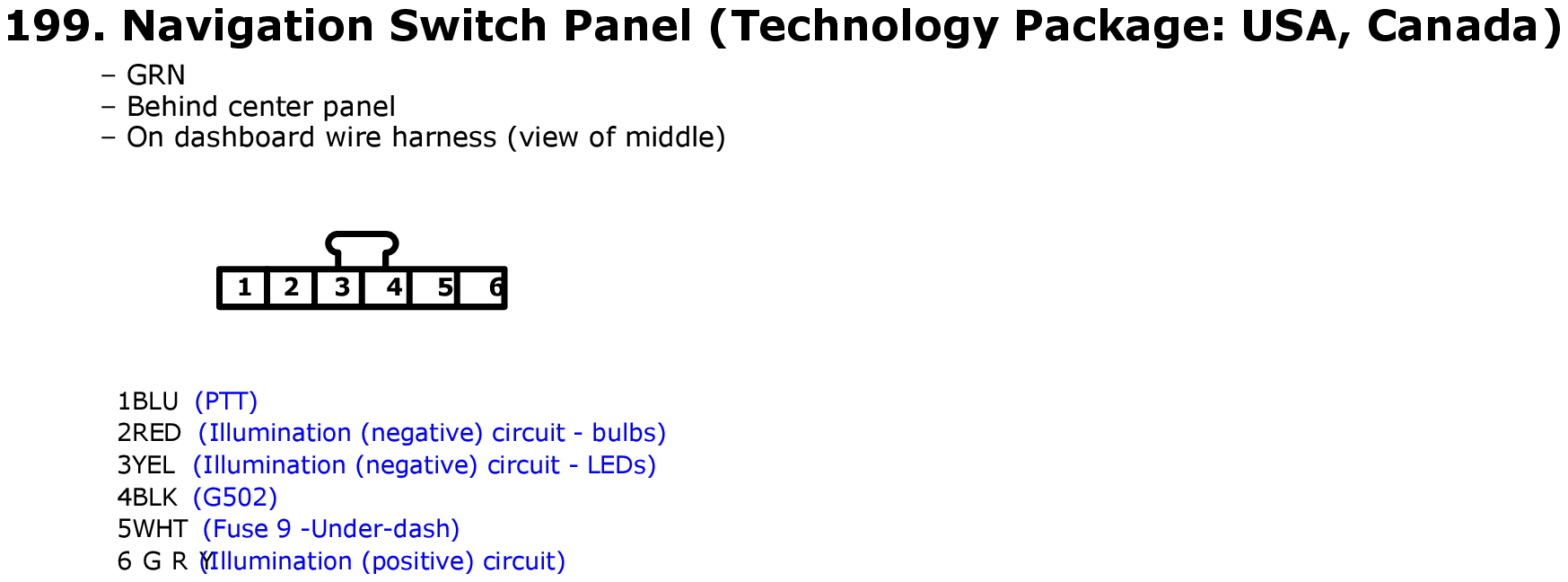

Fig 230: Navigation Switch Panel Connector End View
GHHW8526Courtesy of AMERICAN HONDA MOTOR CO., INC.

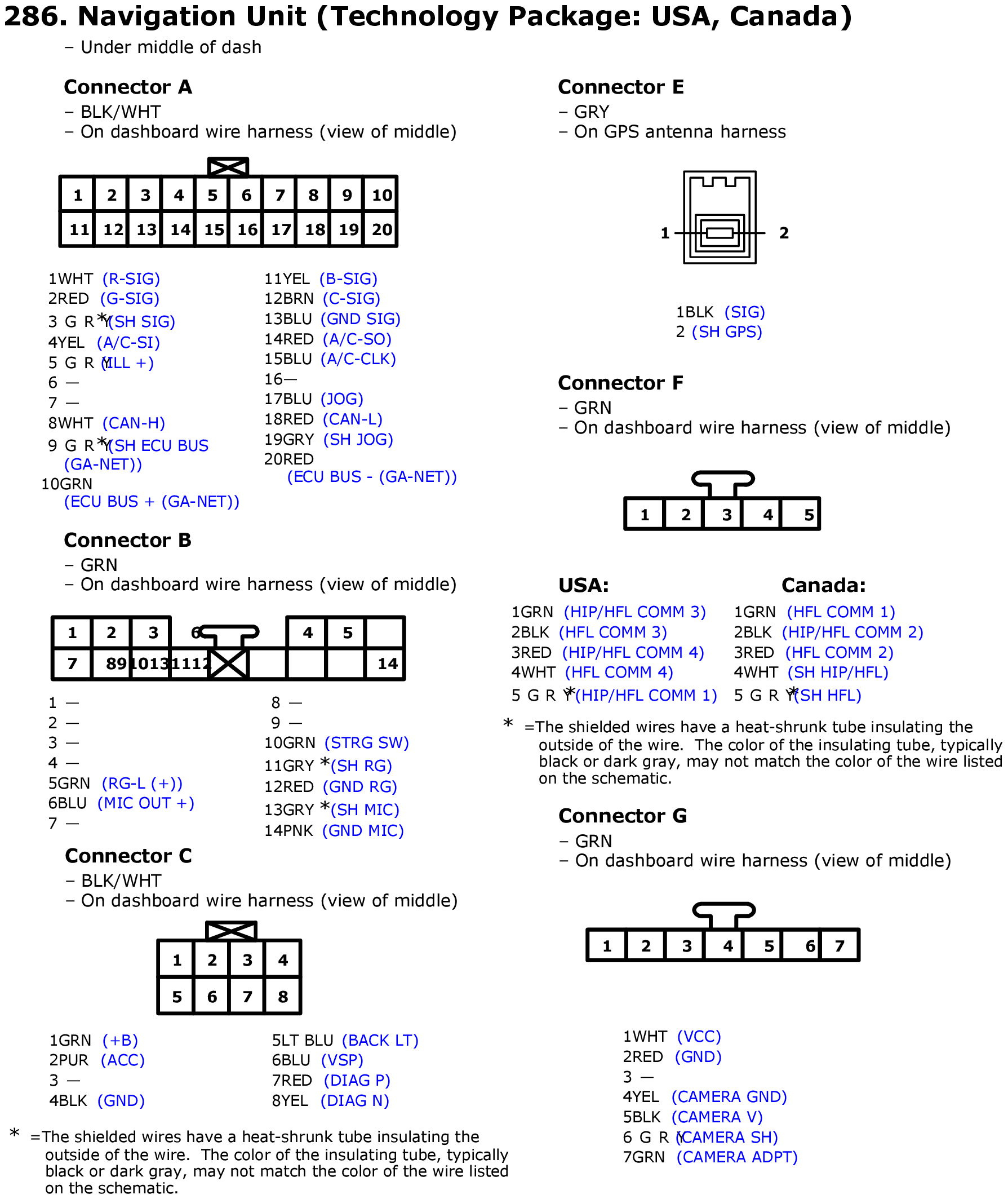

Fig 231: Navigation Unit Connector End View
GHHW8613Courtesy of AMERICAN HONDA MOTOR CO., INC.

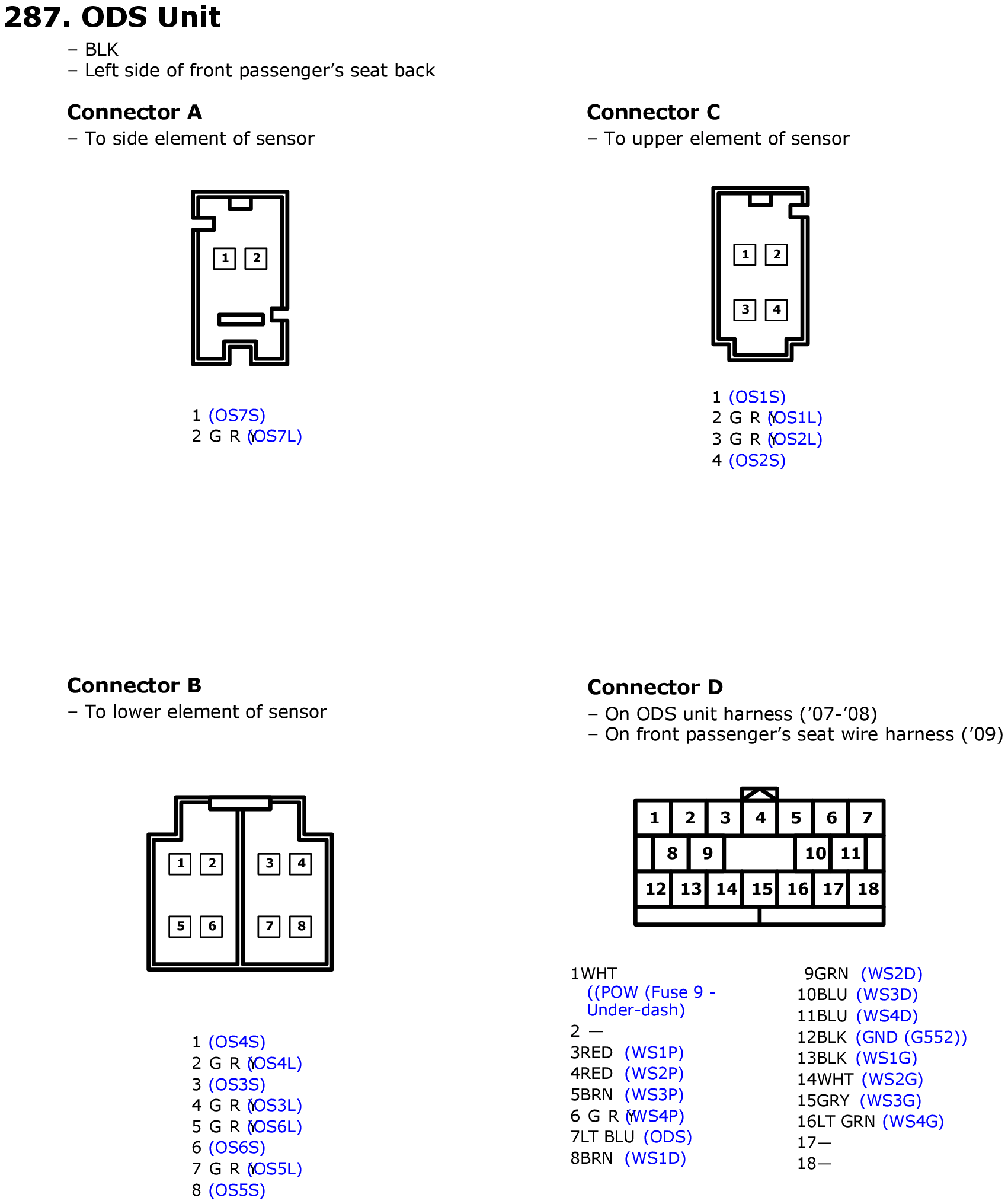

Fig 232: ODS Unit Connector End View
GHHW8614Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 233: Oil Pressure Switch Connector End View
GHHW8338Courtesy of AMERICAN HONDA MOTOR CO., INC.

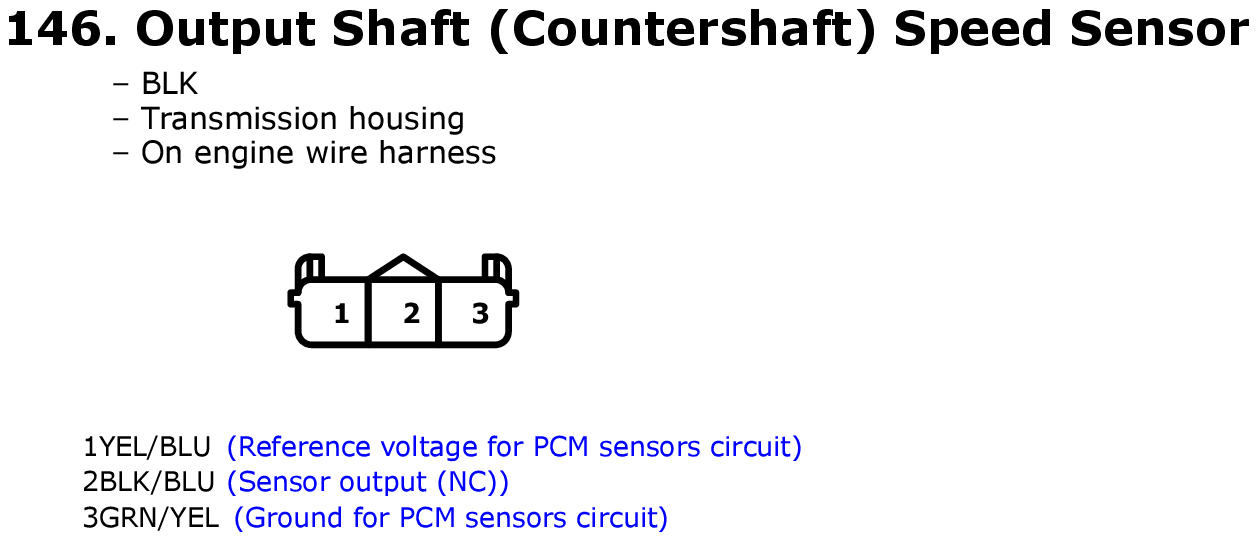

Fig 234: Output Shaft (Countershaft) Speed Sensor Connector End View
GHHW8473Courtesy of AMERICAN HONDA MOTOR CO., INC.

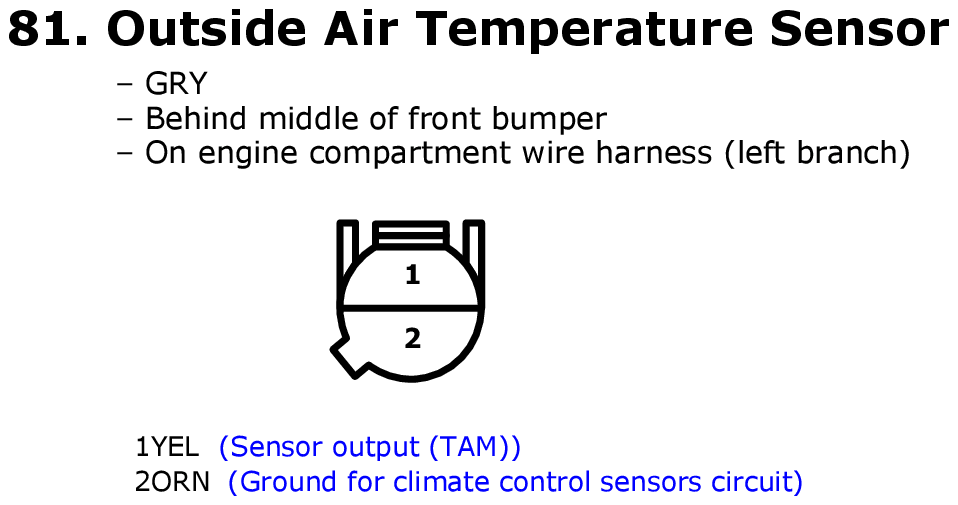

Fig 235: Outside Air Temperature Sensor Connector End View
GHHW8408Courtesy of AMERICAN HONDA MOTOR CO., INC.

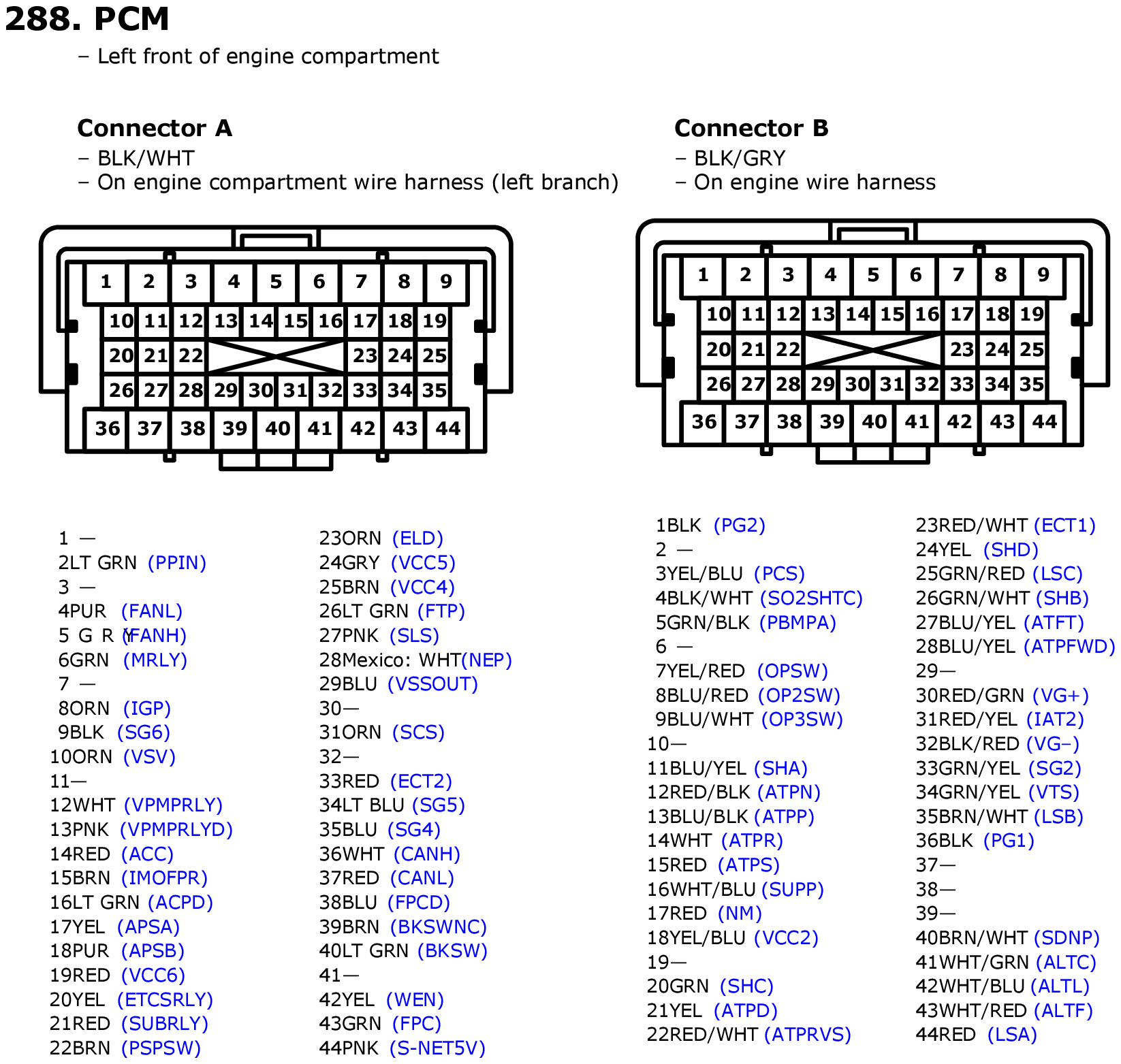

Fig 236: PCM Connector End View
GHHW8615Courtesy of AMERICAN HONDA MOTOR CO., INC.

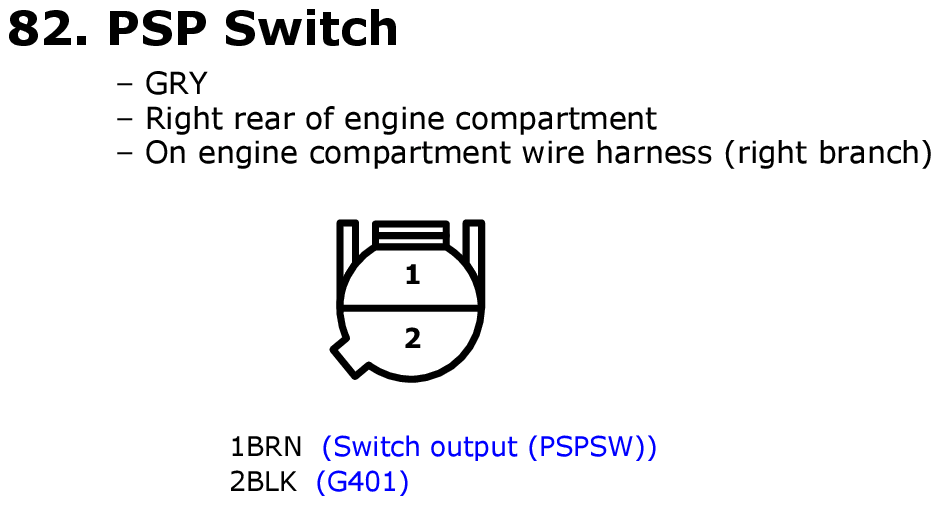

Fig 237: PSP Switch Connector End View
GHHW8409Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 238: Parking Brake Switch Connector End View
GHHW8339Courtesy of AMERICAN HONDA MOTOR CO., INC.

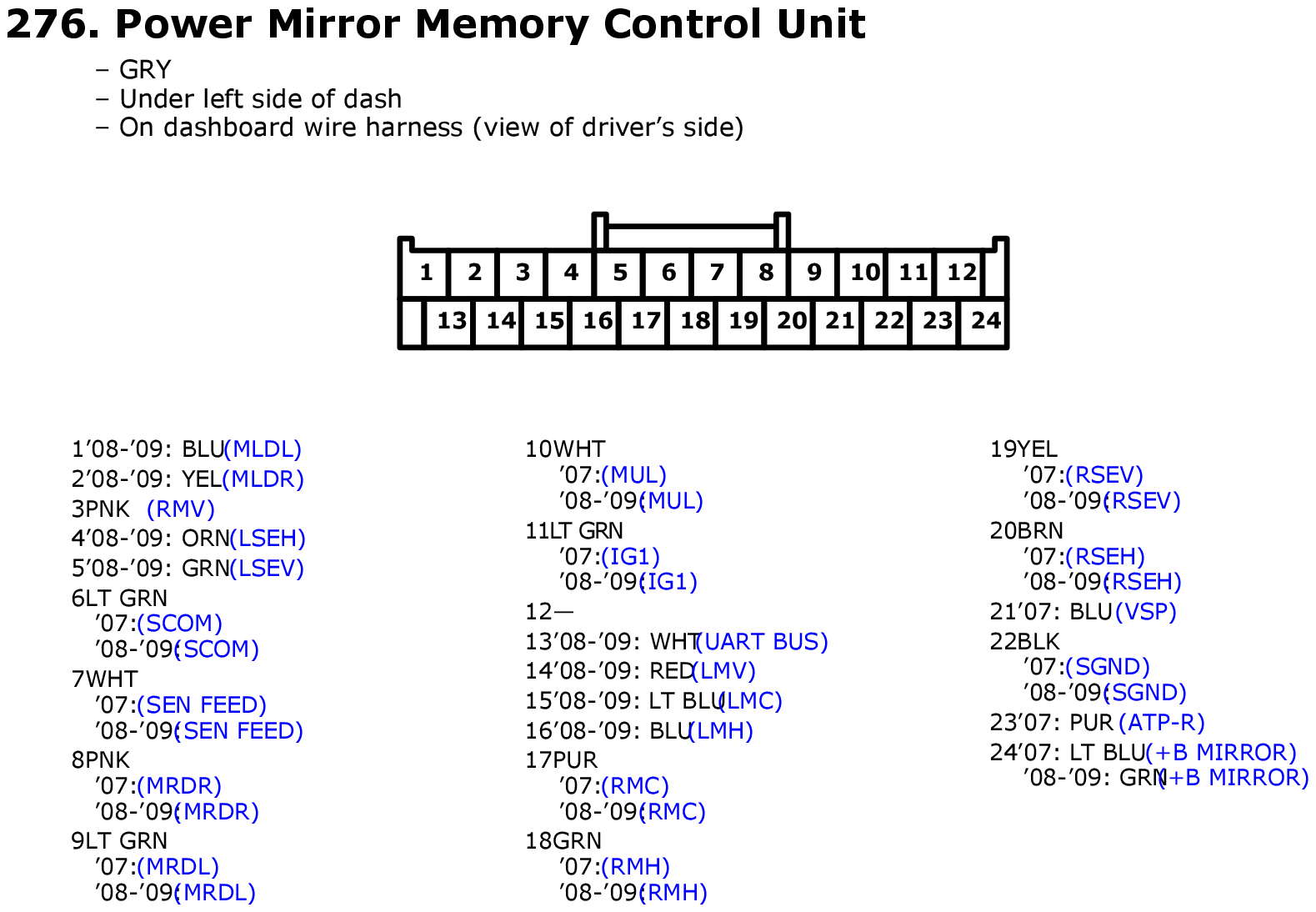

Fig 239: Power Mirror Memory Control Unit Connector End View
GHHW8603Courtesy of AMERICAN HONDA MOTOR CO., INC.

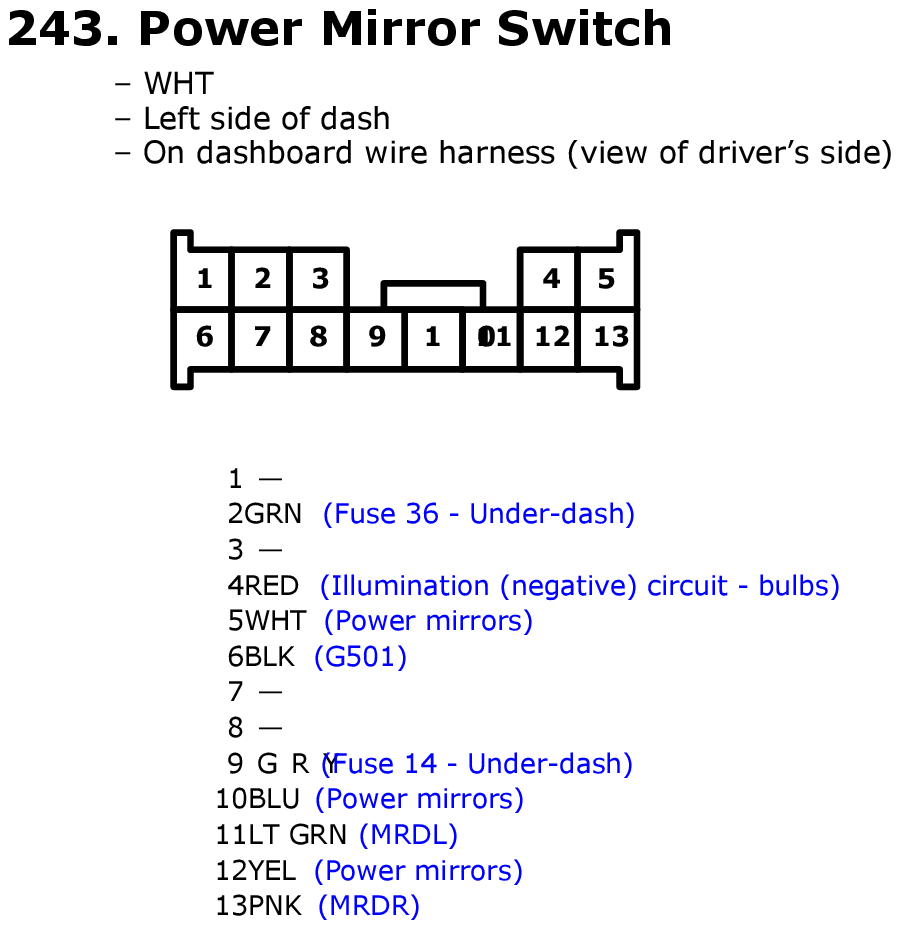

Fig 240: Power Mirror Switch Connector End View
GHHW8570Courtesy of AMERICAN HONDA MOTOR CO., INC.

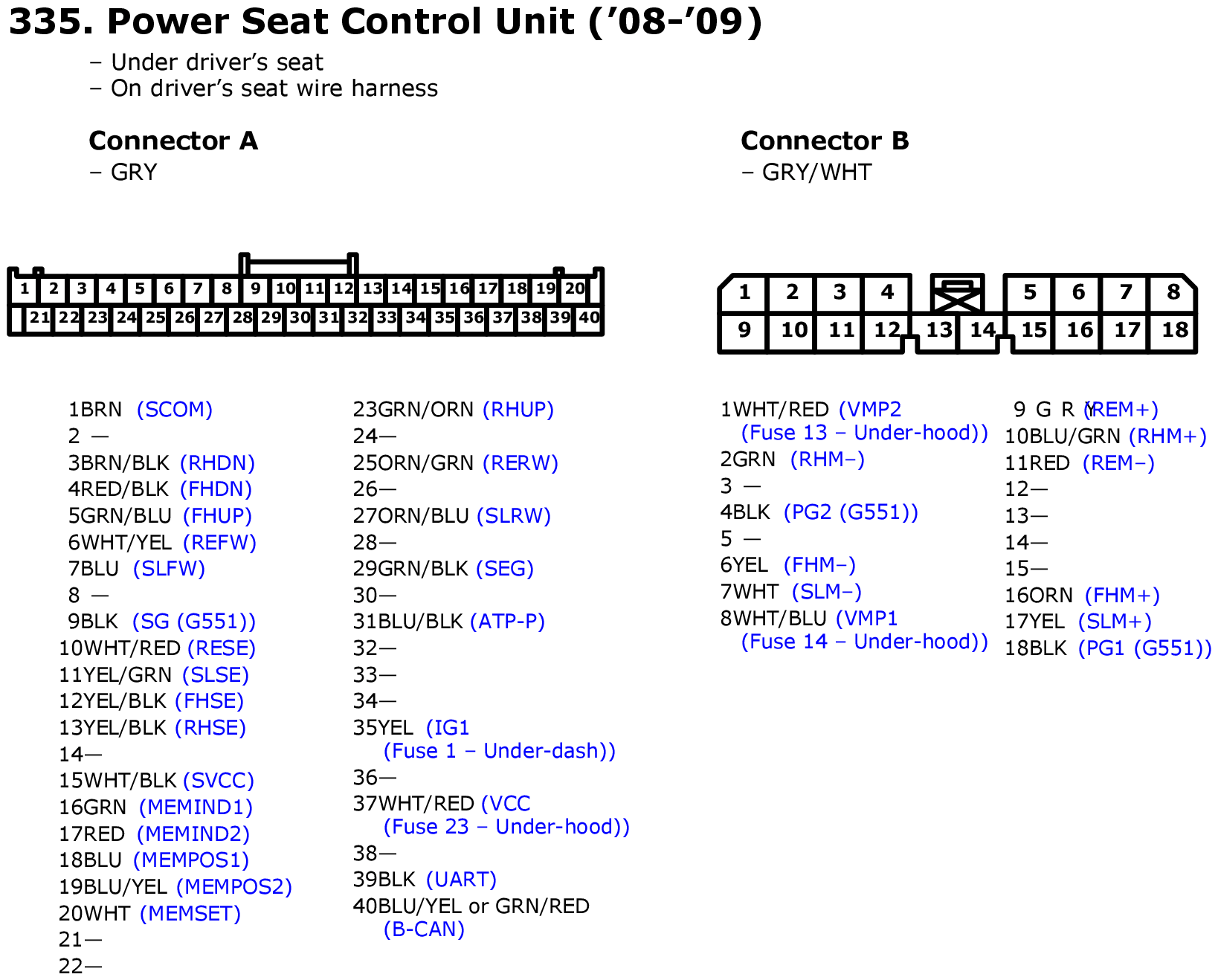

Fig 241: Power Seat Control Unit Connector End View
GHHW8658Courtesy of AMERICAN HONDA MOTOR CO., INC.

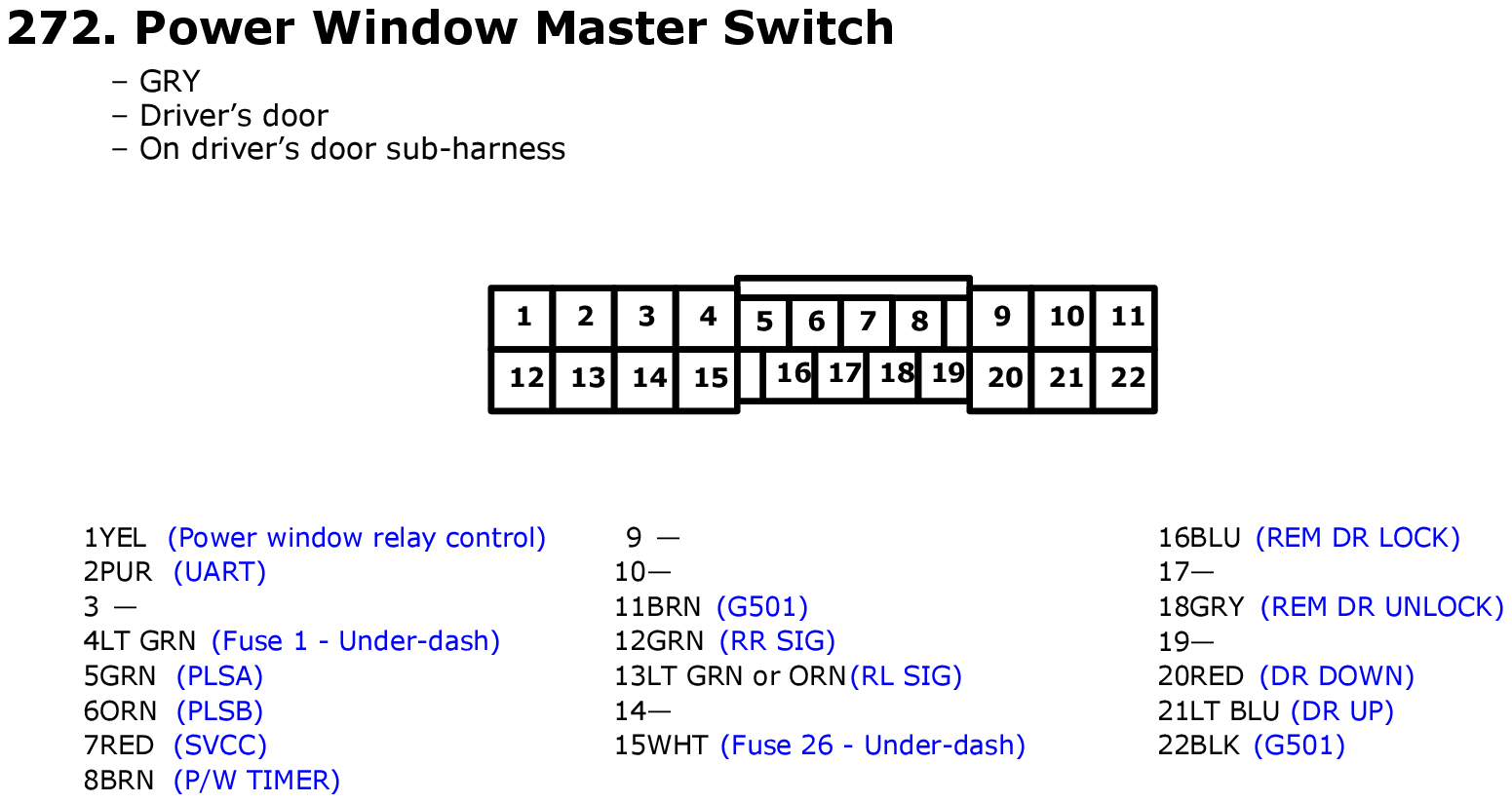

Fig 242: Power Window Master Switch Connector End View
GHHW8599Courtesy of AMERICAN HONDA MOTOR CO., INC.

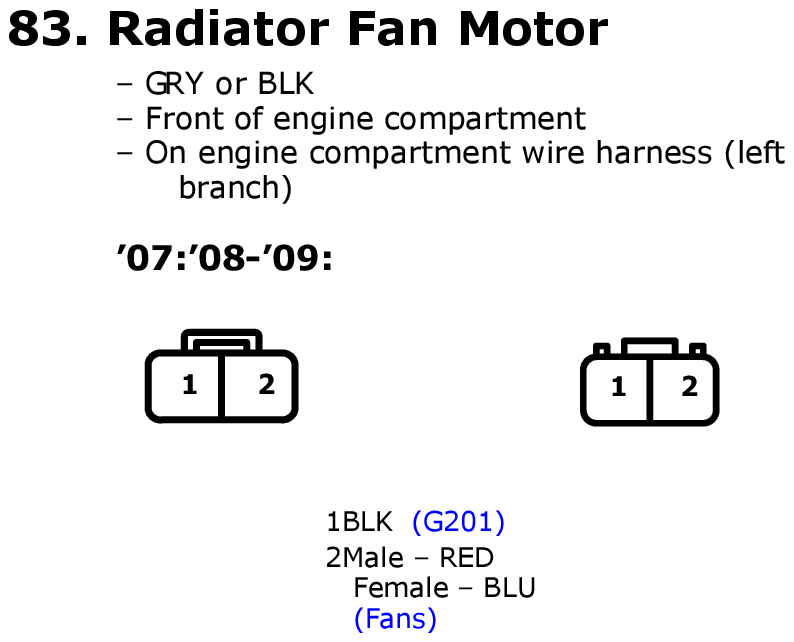

Fig 243: Radiator Fan Motor Connector End View
GHHW8410Courtesy of AMERICAN HONDA MOTOR CO., INC.

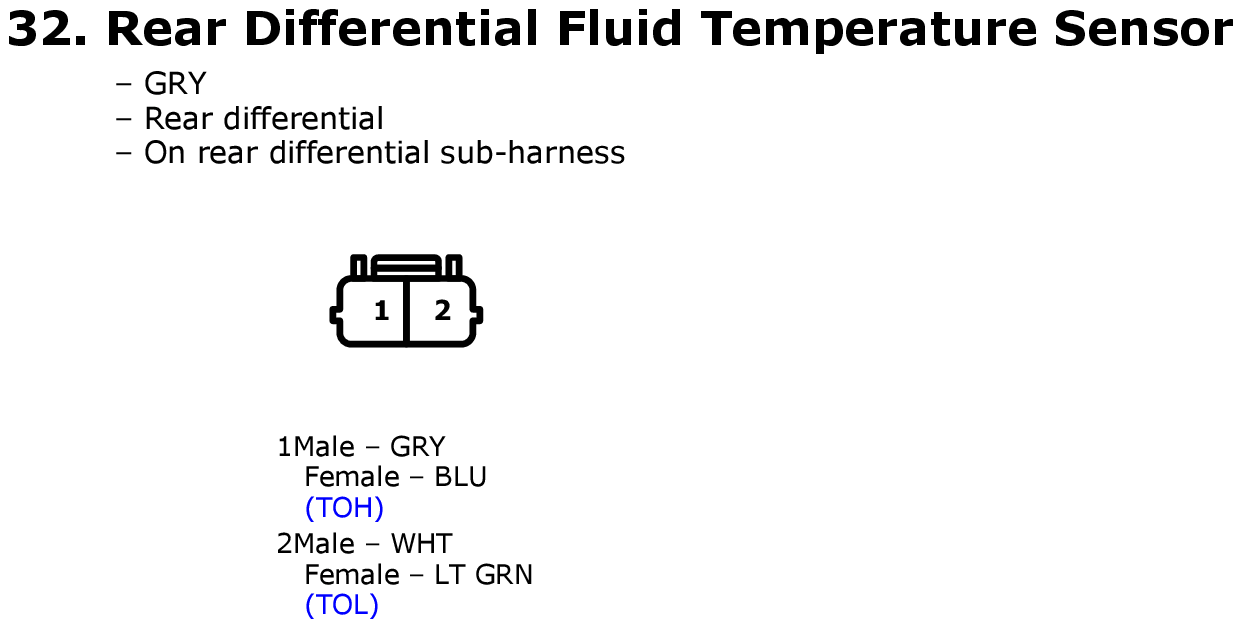

Fig 244: Rear Differential Fluid Temperature Sensor Connector End View
GHHW8359Courtesy of AMERICAN HONDA MOTOR CO., INC.

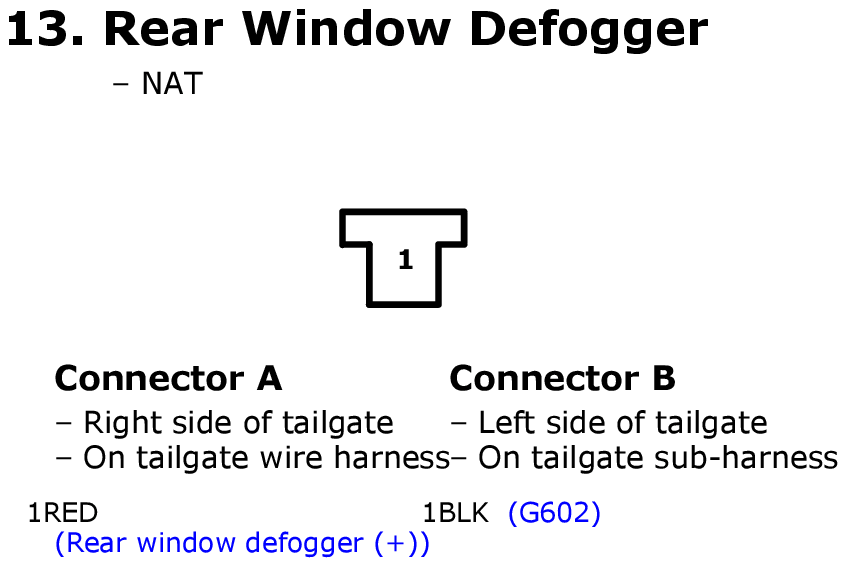

Fig 245: Rear Window Defogger Connector End View
GHHW8340Courtesy of AMERICAN HONDA MOTOR CO., INC.

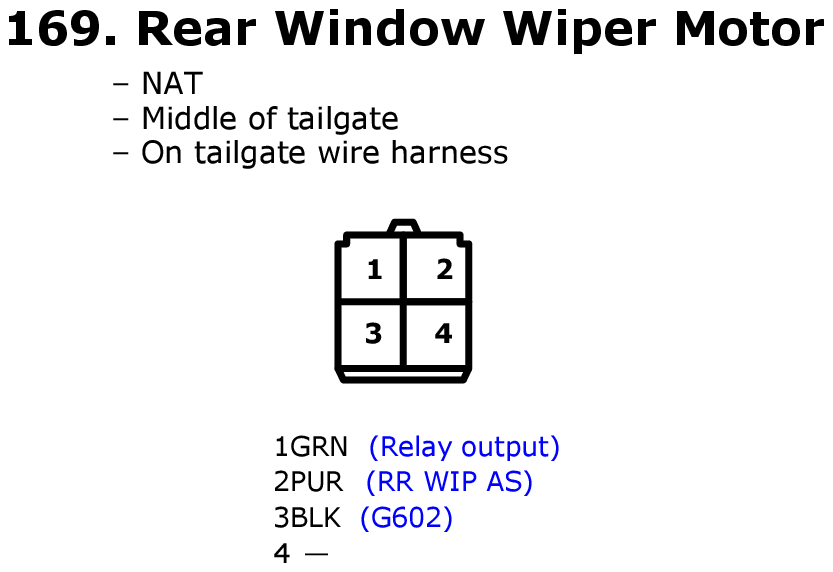

Fig 246: Rear Window Wiper Motor Connector End View
GHHW8496Courtesy of AMERICAN HONDA MOTOR CO., INC.

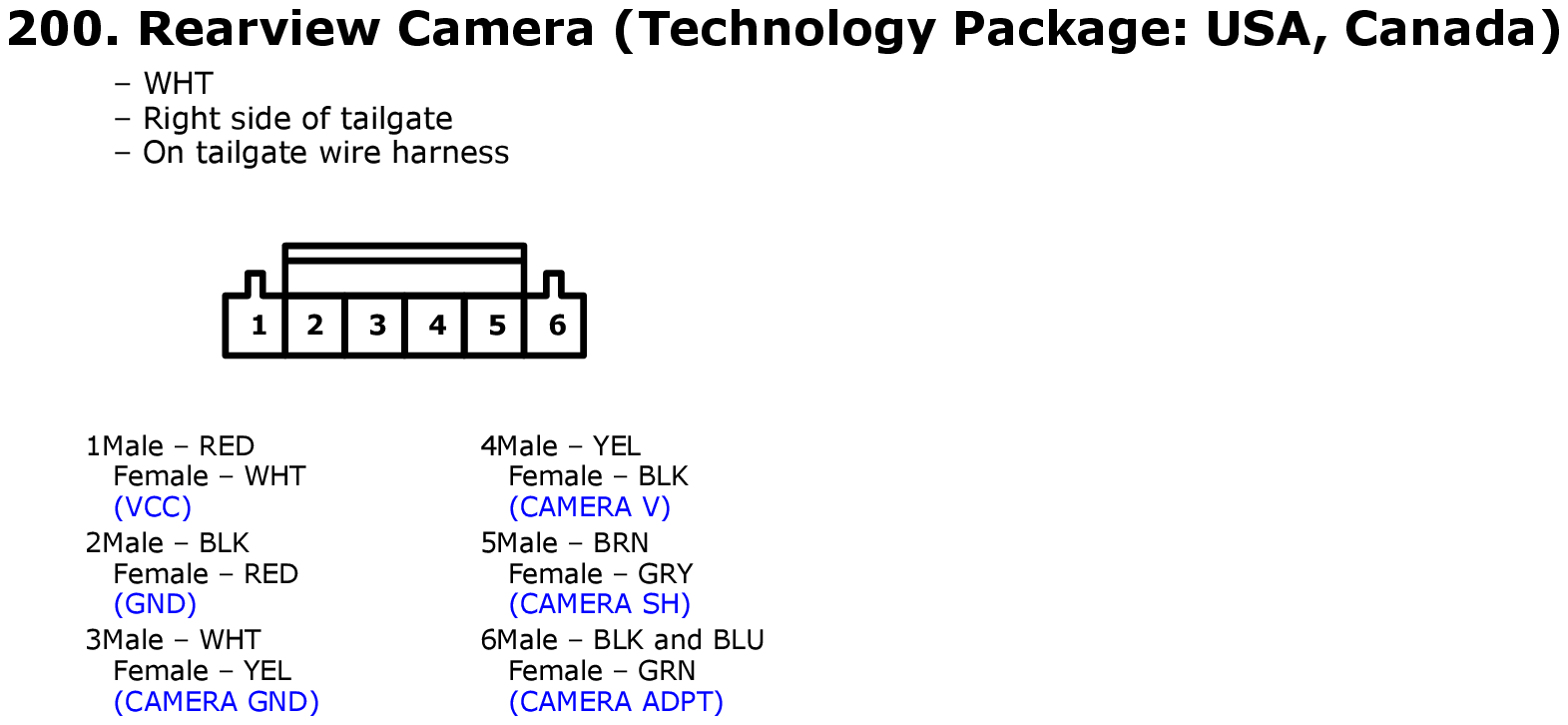

Fig 247: Rearview Camera Connector End View
GHHW8527Courtesy of AMERICAN HONDA MOTOR CO., INC.

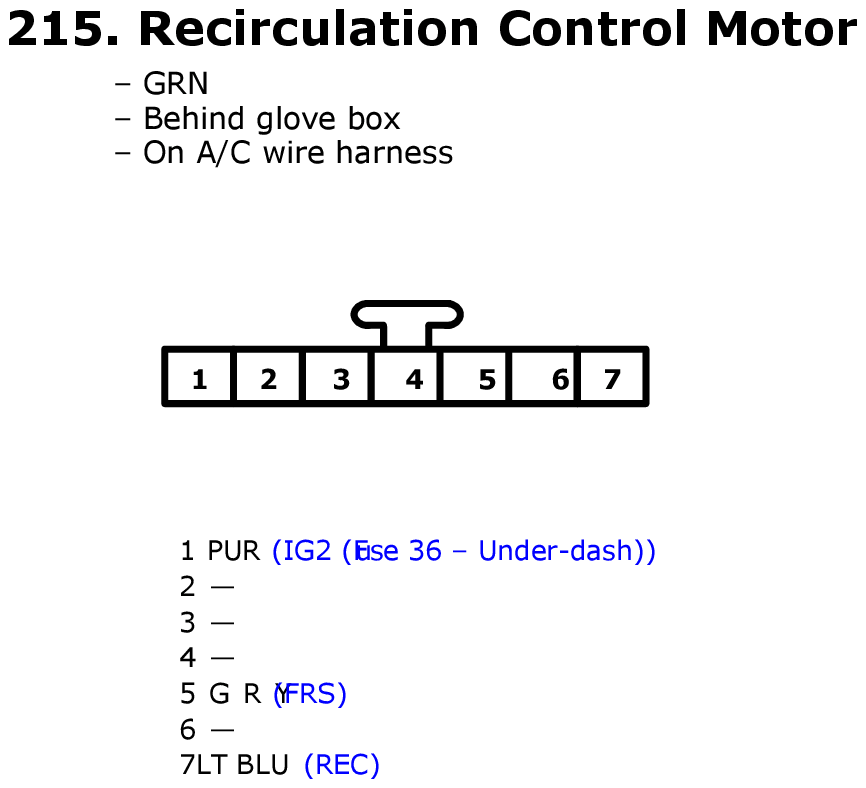

Fig 248: Recirculation Control Motor Connector End View
GHHW8542Courtesy of AMERICAN HONDA MOTOR CO., INC.

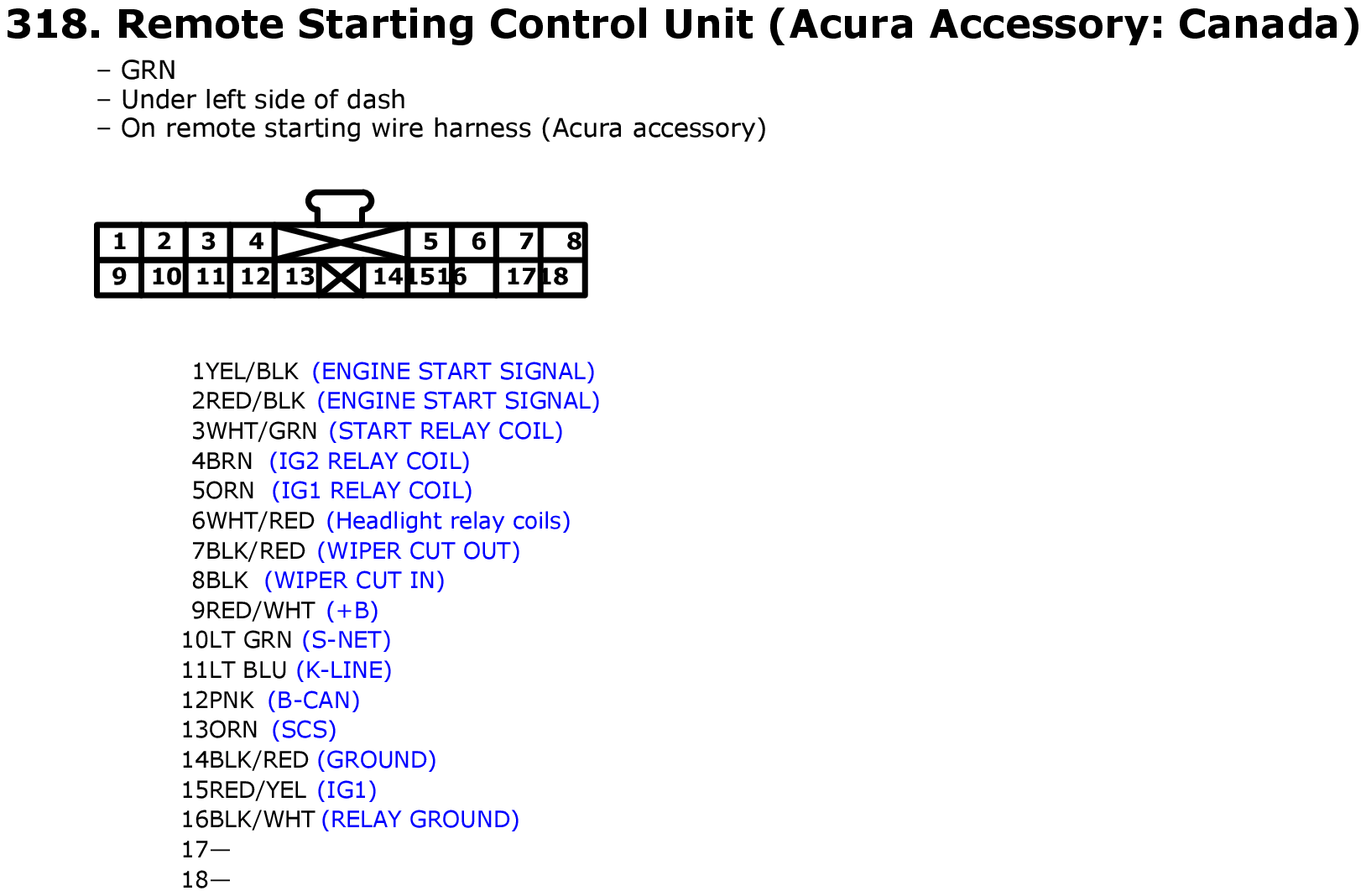

Fig 249: Remote Starting Control Unit Connector End View
GHHW8645Courtesy of AMERICAN HONDA MOTOR CO., INC.

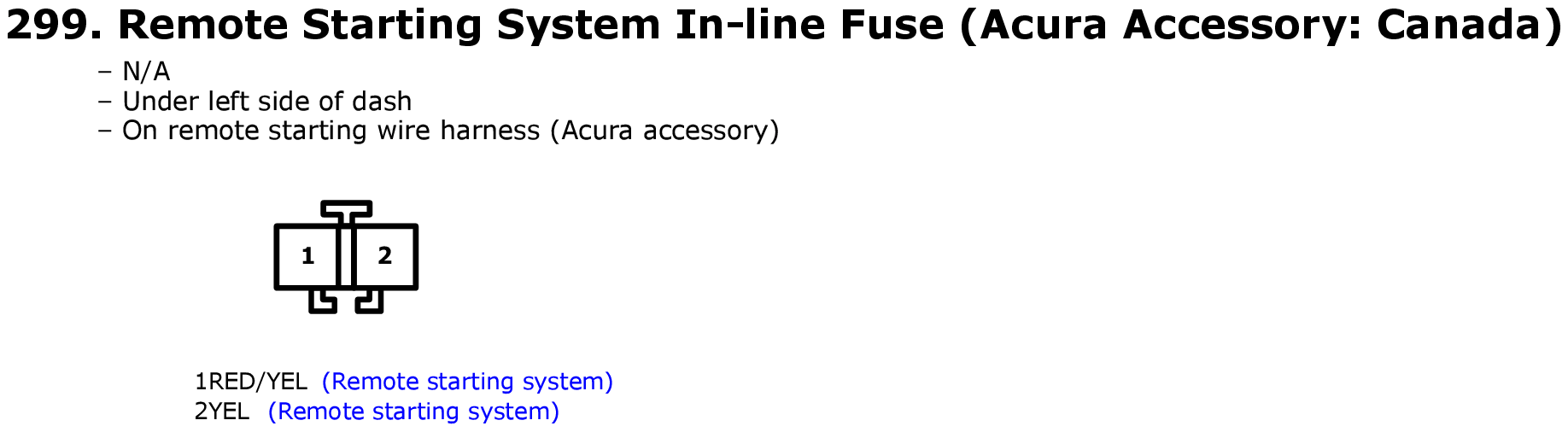

Fig 250: Remote Starting System In-line Fuse Connector End View
GHHW8626Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 251: Right Back-up Light Connector End View
GHHW8412Courtesy of AMERICAN HONDA MOTOR CO., INC.

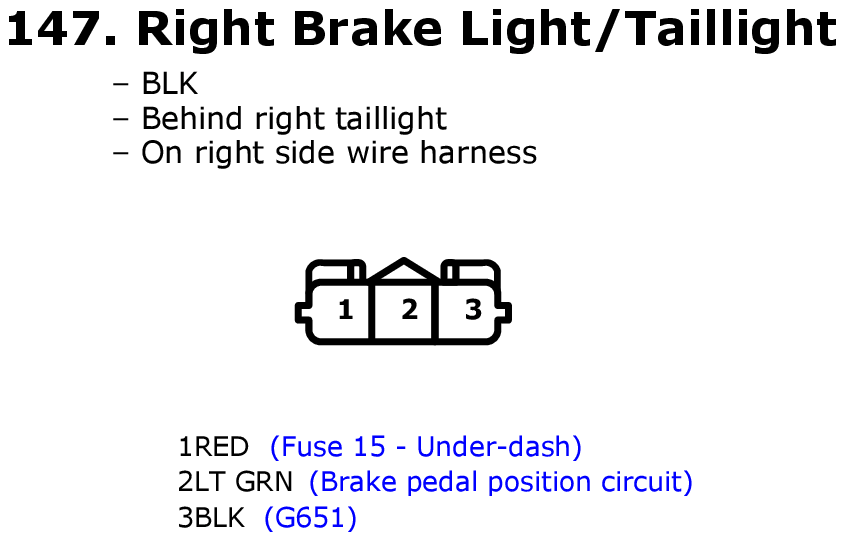

Fig 252: Right Brake Light/Taillight Connector End View
GHHW8474Courtesy of AMERICAN HONDA MOTOR CO., INC.

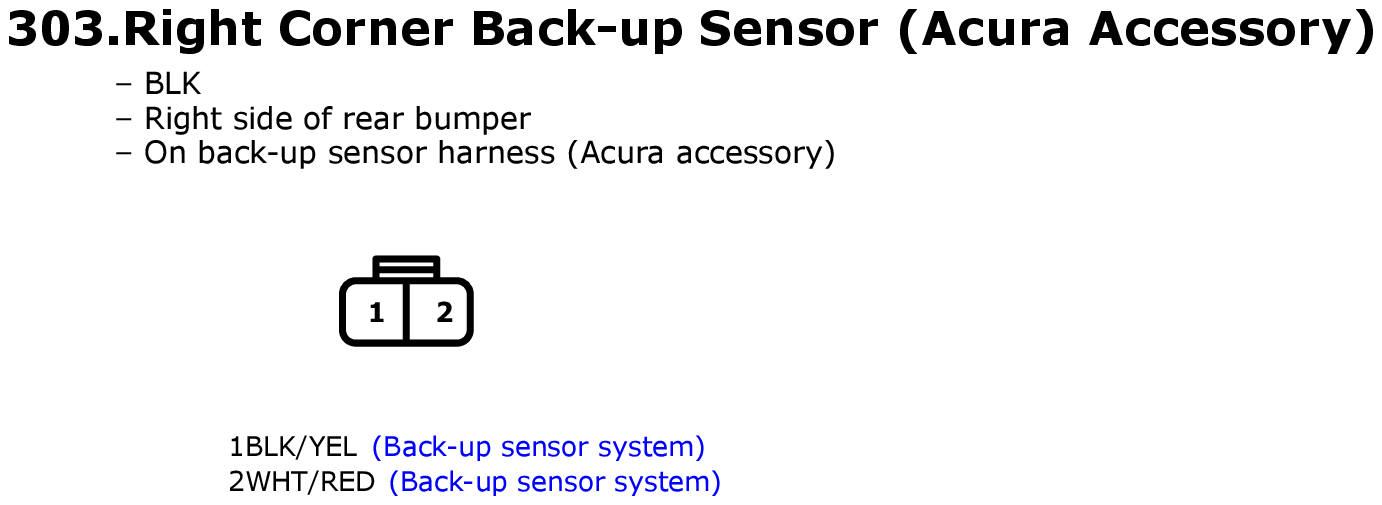

Fig 253: Right Corner Back-up Sensor Connector End View
GHHW8630Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 254: Right Fog Light Connector End View
GHHW8413Courtesy of AMERICAN HONDA MOTOR CO., INC.

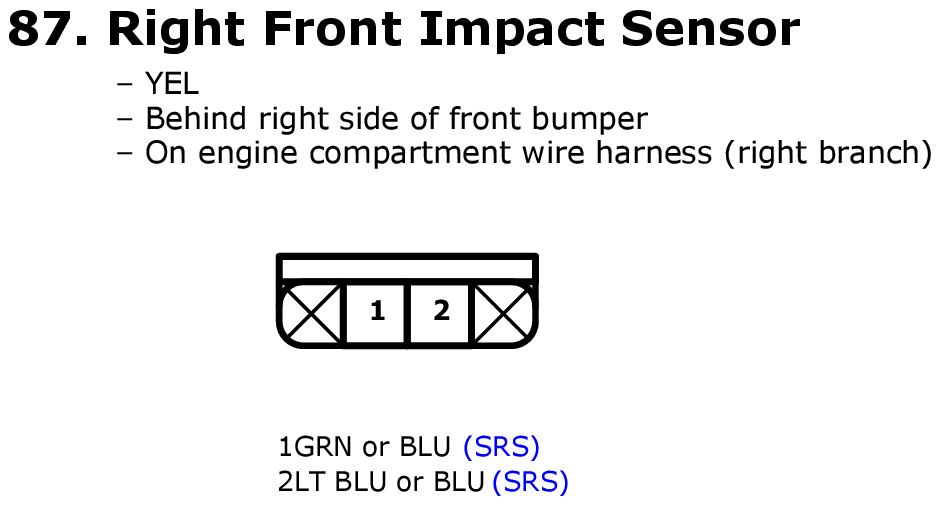

Fig 255: Right Front Impact Sensor Connector End View
GHHW8414Courtesy of AMERICAN HONDA MOTOR CO., INC.

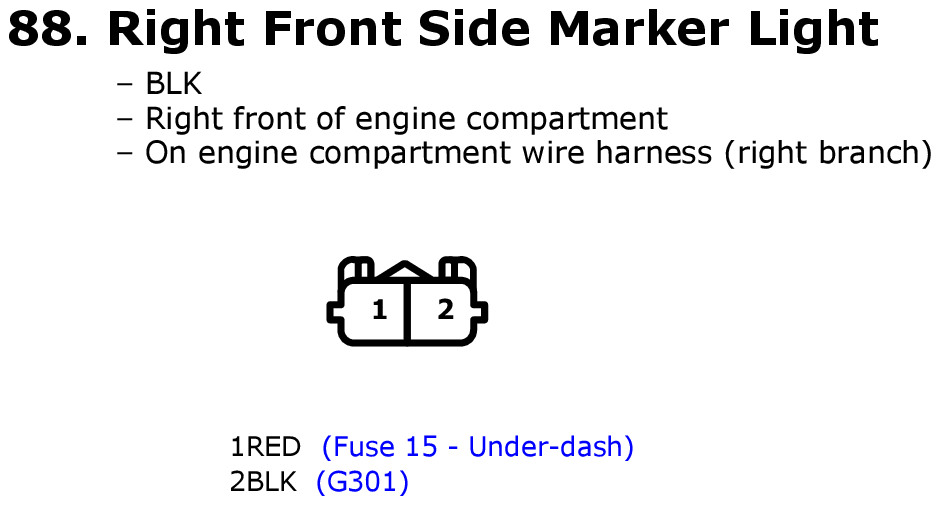

Fig 256: Right Front Side Marker Light Connector End View
GHHW8415Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 257: Right Front TPMS Initiator Connector End View
GHHW8475Courtesy of AMERICAN HONDA MOTOR CO., INC.

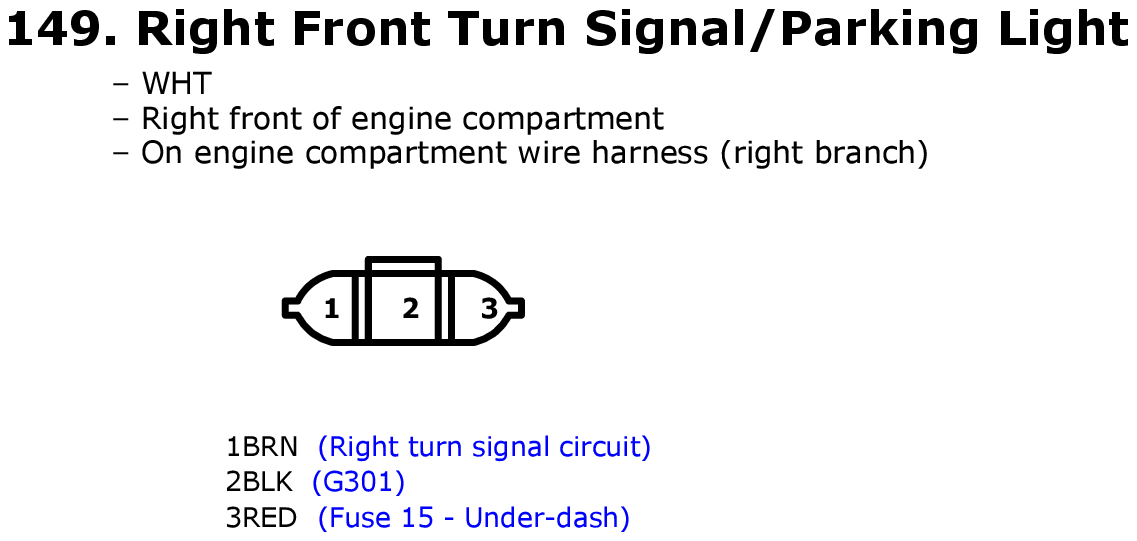

Fig 258: Right Front Turn Signal/Parking Light Connector End View
GHHW8476Courtesy of AMERICAN HONDA MOTOR CO., INC.

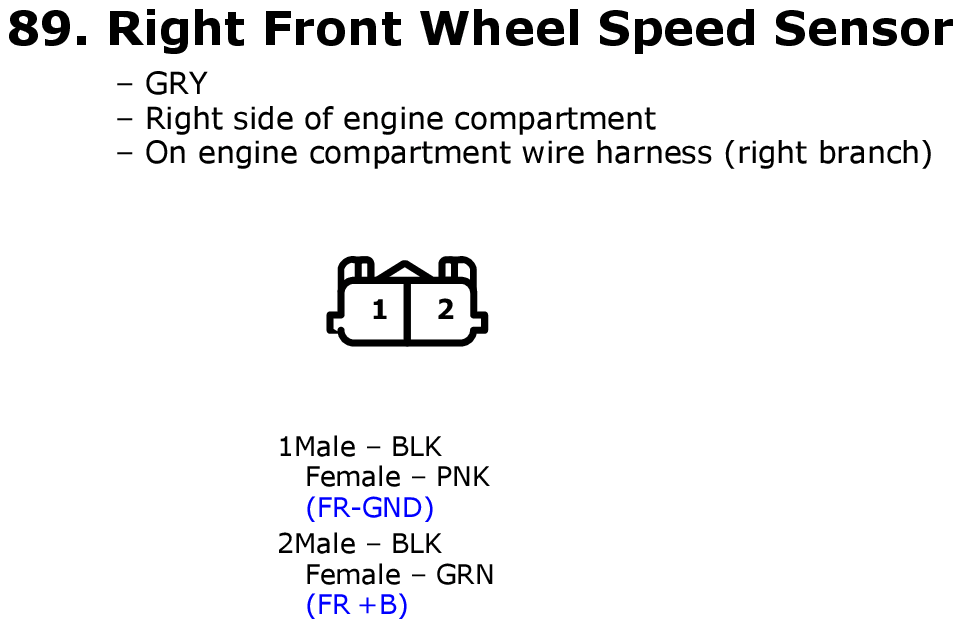

Fig 259: Right Front Wheel Speed Sensor Connector End View
GHHW8416Courtesy of AMERICAN HONDA MOTOR CO., INC.

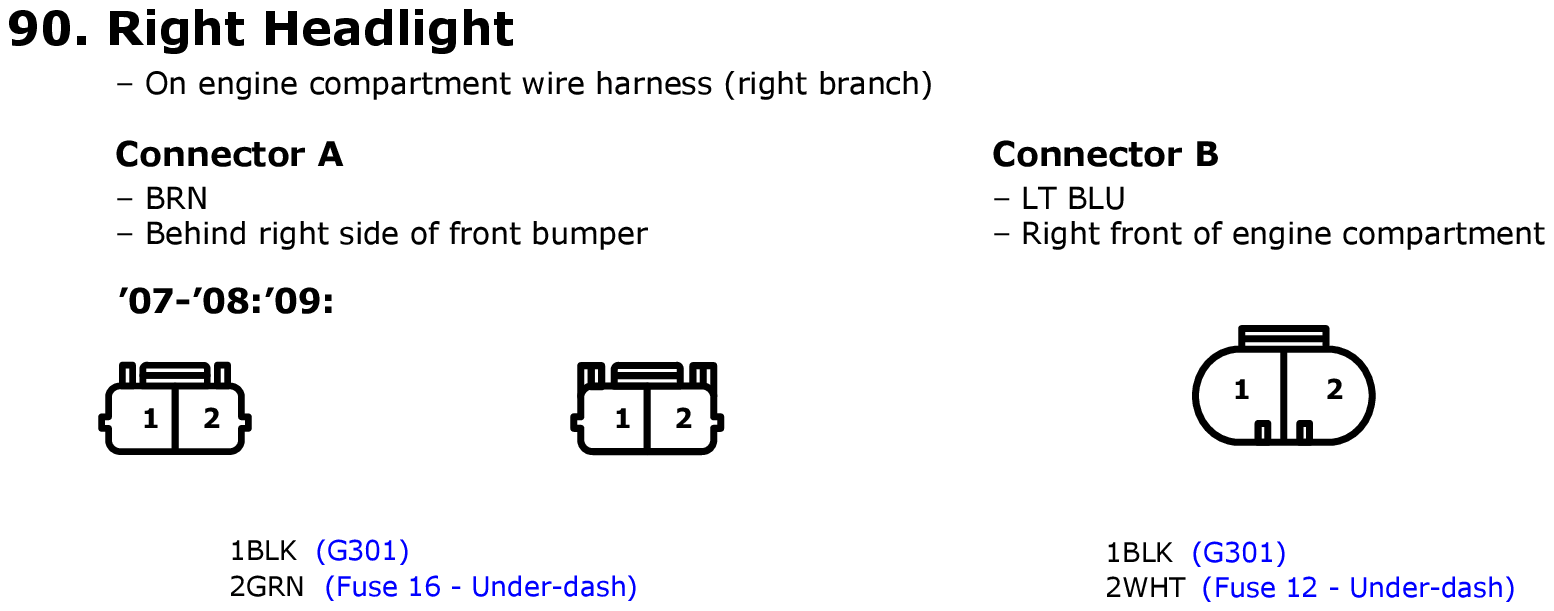

Fig 260: Right Headlight Connector End View
GHHW8417Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 261: Right Inner Taillight Connector End View
GHHW8419Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 262: Right License Plate Light Connector End View
GHHW8418Courtesy of AMERICAN HONDA MOTOR CO., INC.

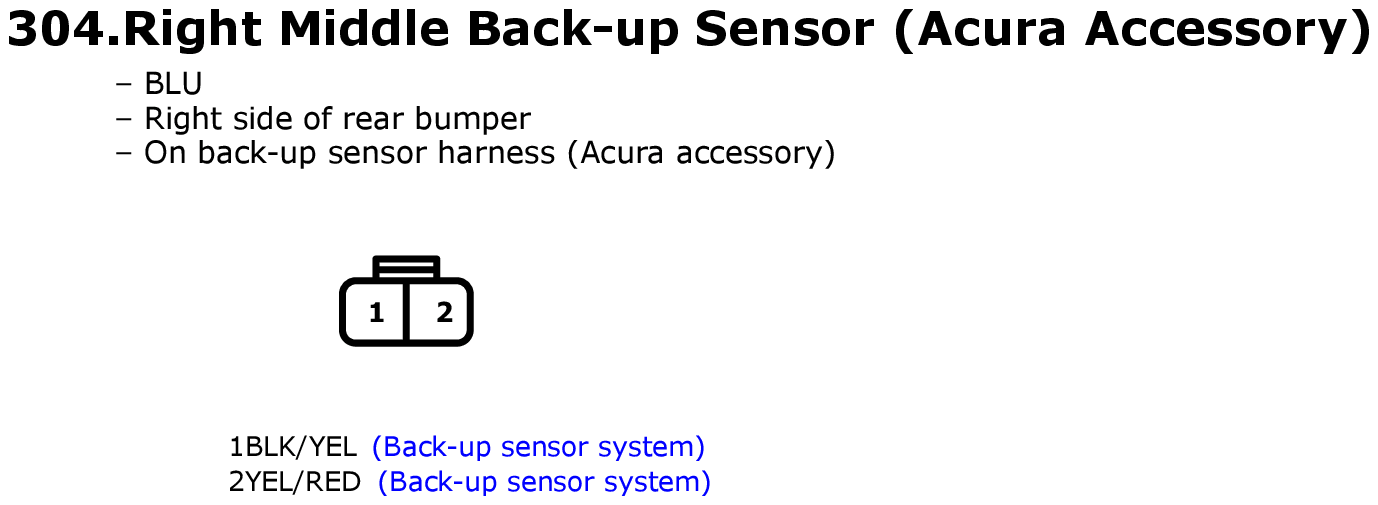

Fig 263: Right Middle Back-up Sensor Connector End View
GHHW8631Courtesy of AMERICAN HONDA MOTOR CO., INC.

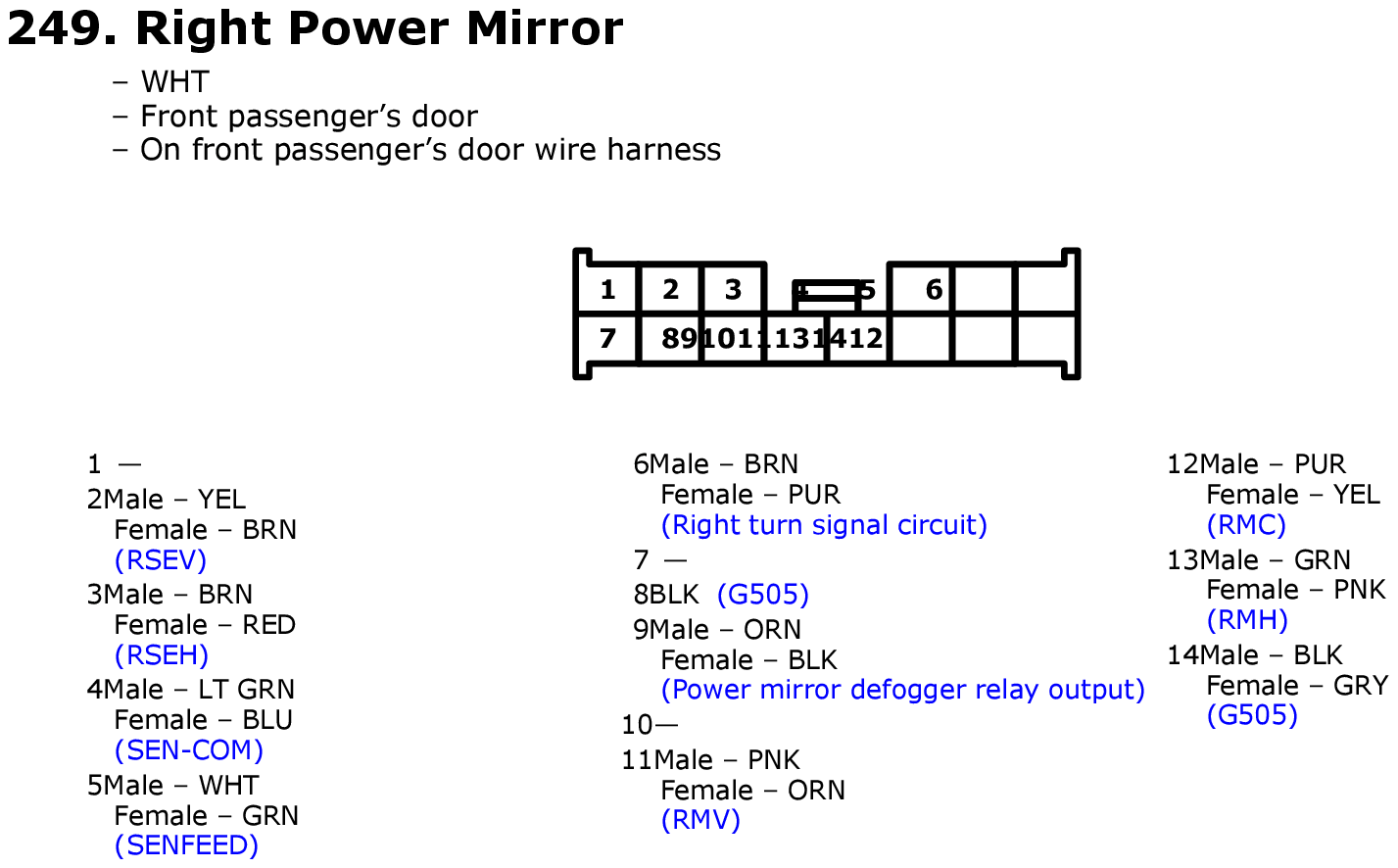

Fig 264: Right Power Mirror Connector End View
GHHW8576Courtesy of AMERICAN HONDA MOTOR CO., INC.

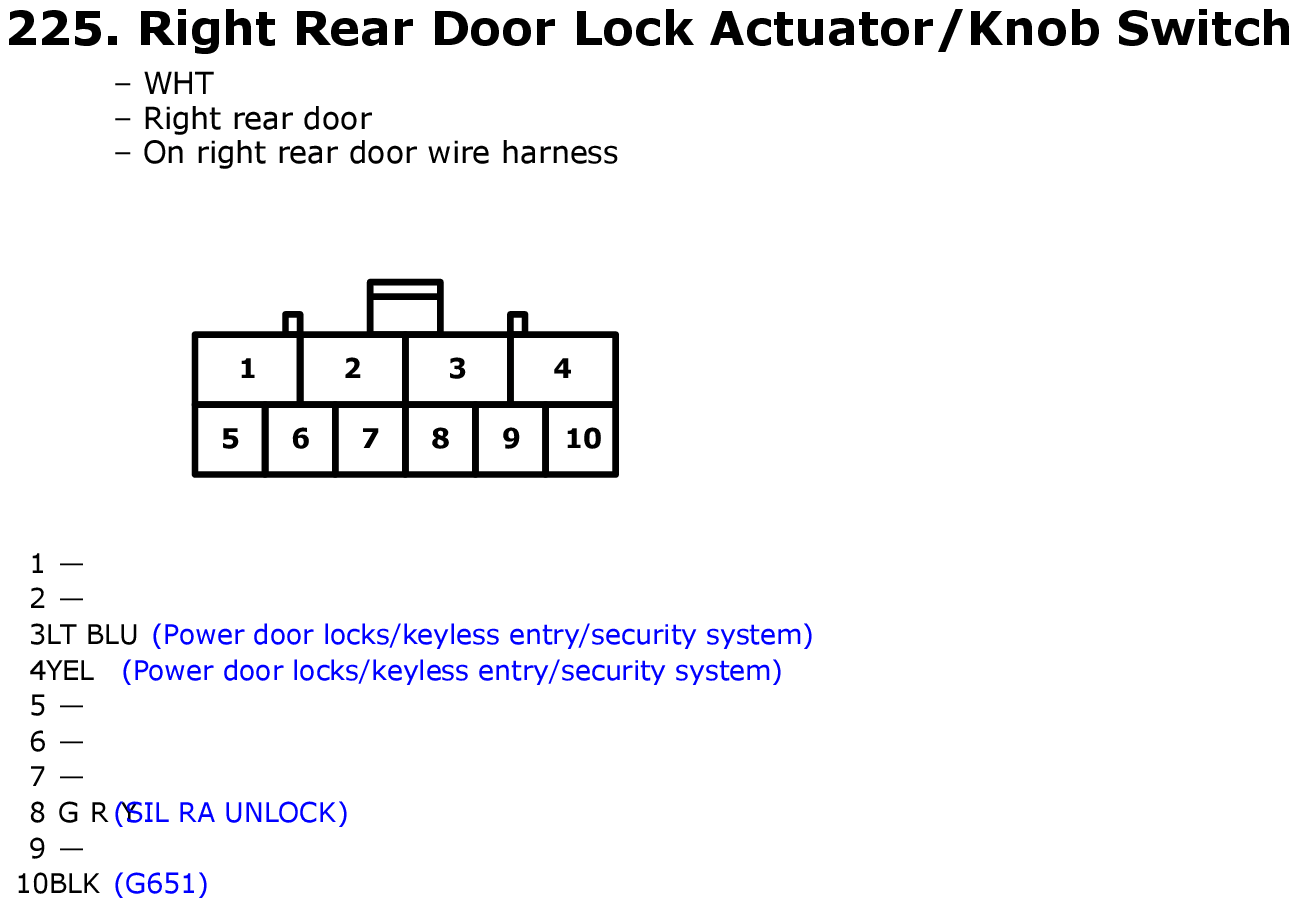

Fig 265: Right Rear Door Lock Actuator/Knob Switch Connector End View
GHHW8552Courtesy of AMERICAN HONDA MOTOR CO., INC.

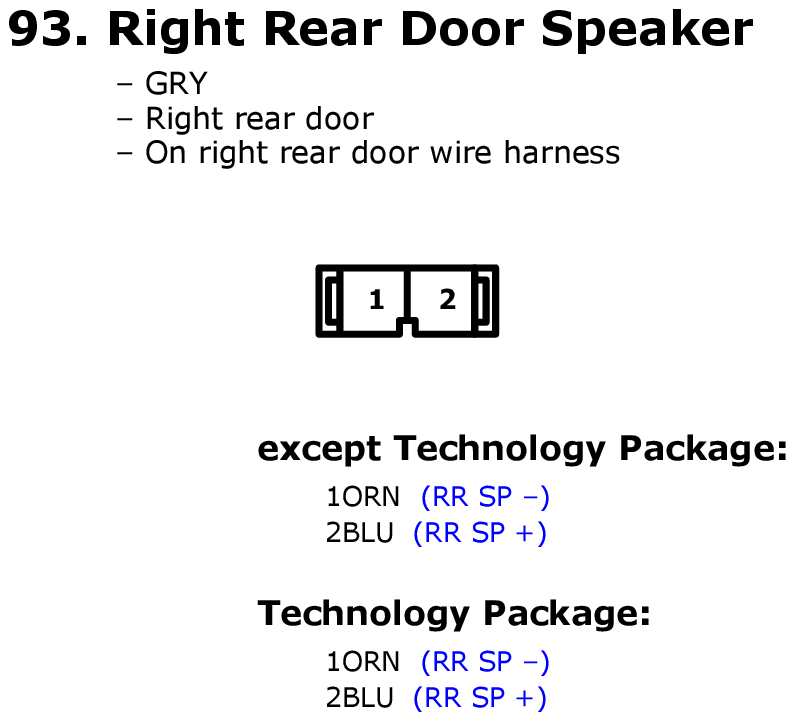

Fig 266: Right Rear Door Speaker Connector End View
GHHW8420Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 267: Right Rear Door Switch Connector End View
GHHW8341Courtesy of AMERICAN HONDA MOTOR CO., INC.

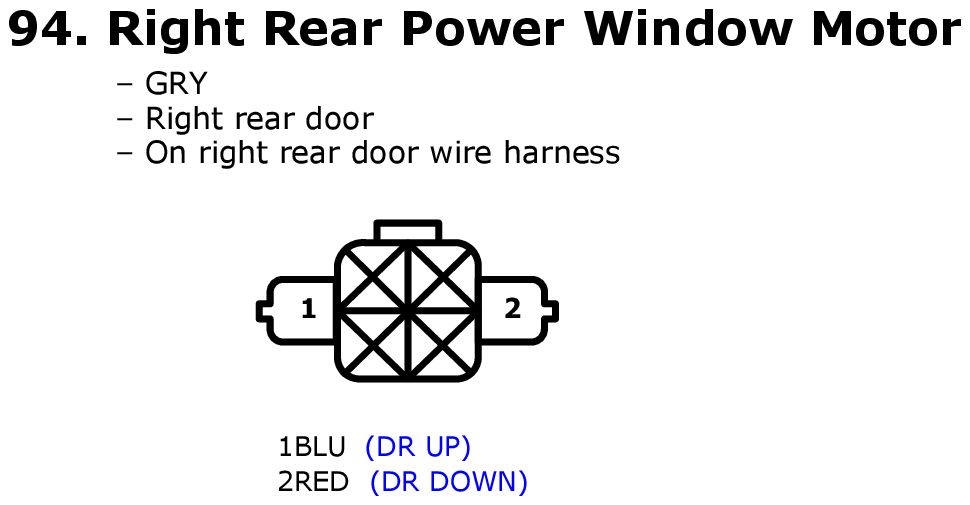

Fig 268: Right Rear Power Window Motor Connector End View
GHHW8421Courtesy of AMERICAN HONDA MOTOR CO., INC.

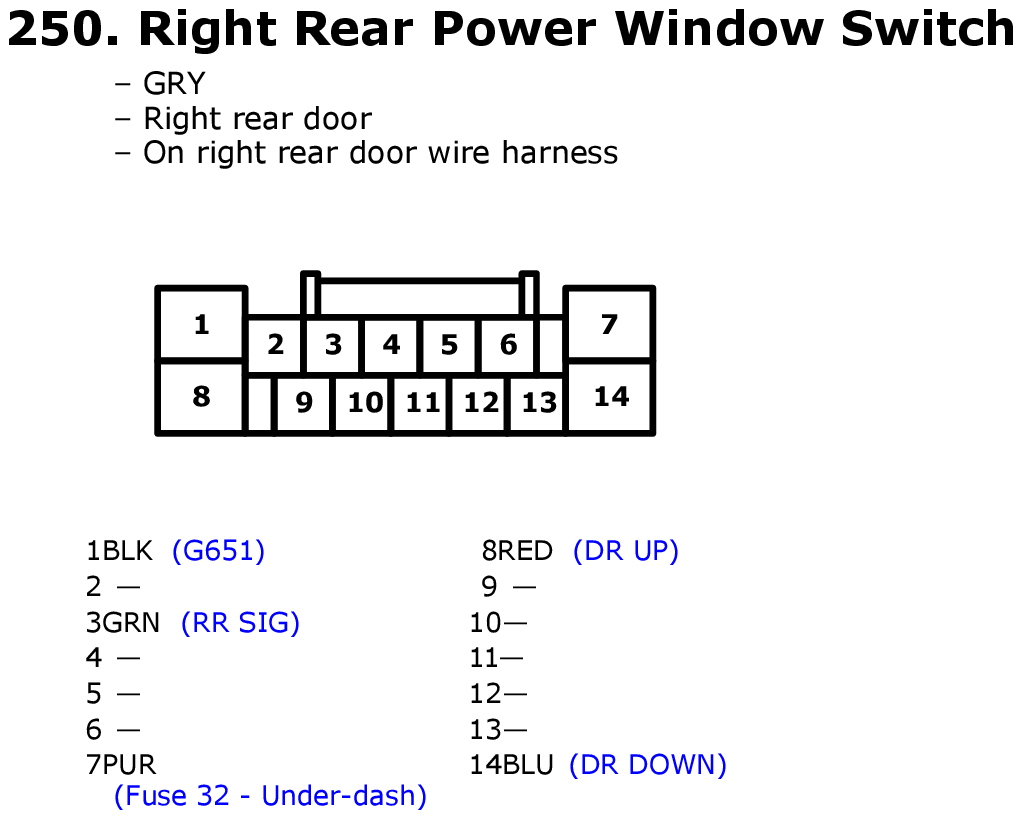

Fig 269: Right Rear Power Window Switch Connector End View
GHHW8577Courtesy of AMERICAN HONDA MOTOR CO., INC.

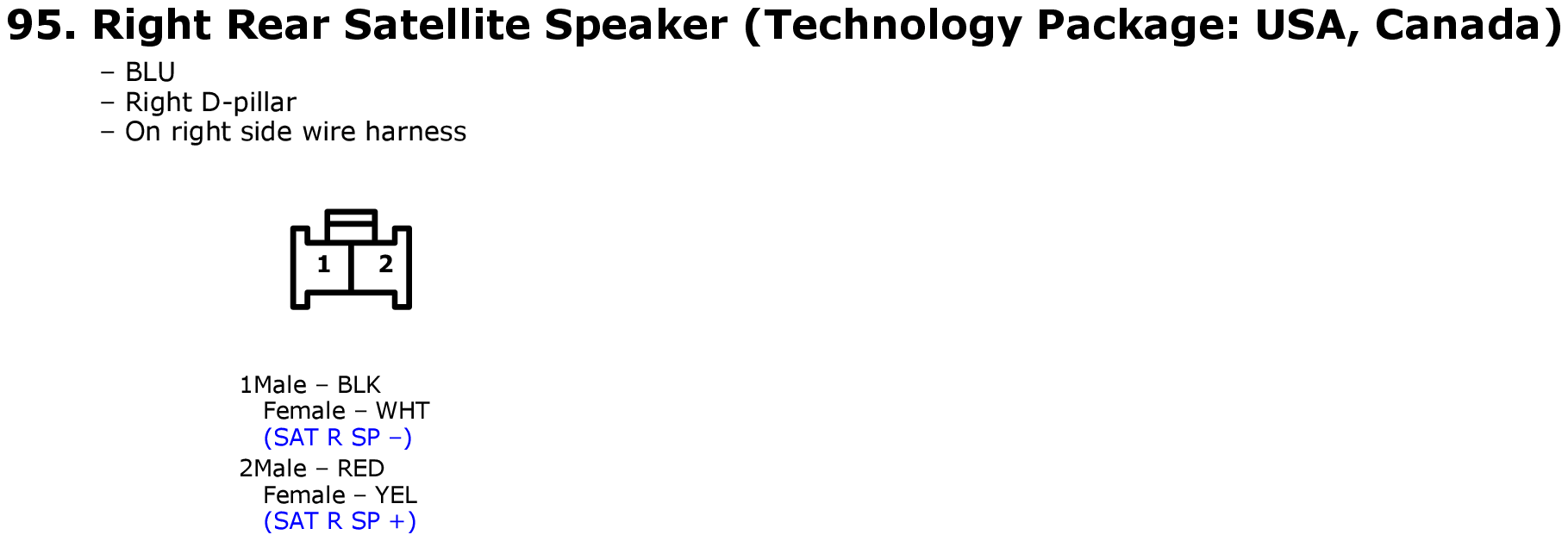

Fig 270: Right Rear Satellite Speaker Connector End View
GHHW8422Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 271: Right Rear Side Marker Light Connector End View
GHHW8423Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 272: Right Rear TPMS Initiator Connector End View
GHHW8477Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 273: Right Rear Turn Signal Light Connector End View
GHHW8424Courtesy of AMERICAN HONDA MOTOR CO., INC.

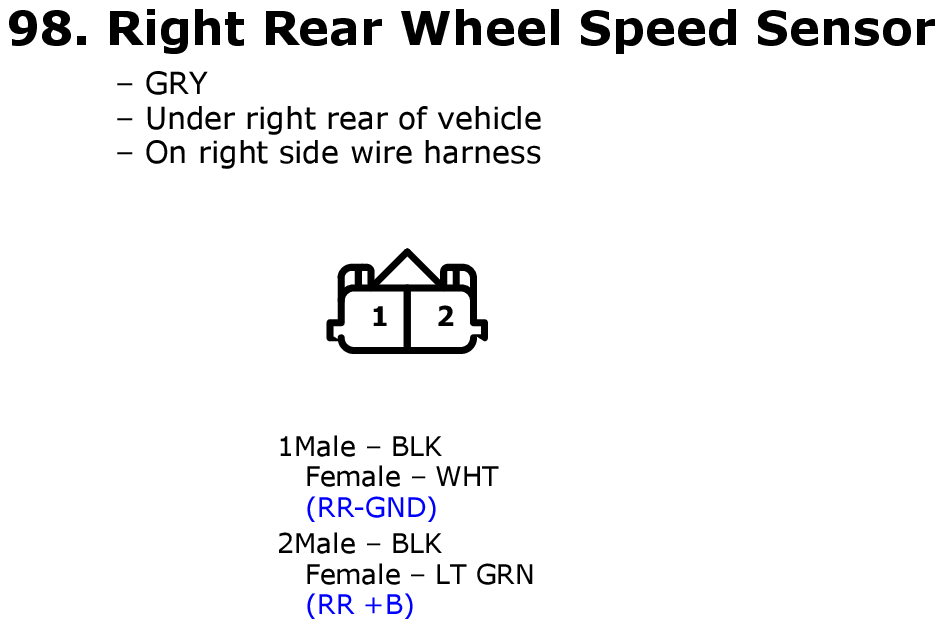

Fig 274: Right Rear Wheel Speed Sensor Connector End View
GHHW8425Courtesy of AMERICAN HONDA MOTOR CO., INC.

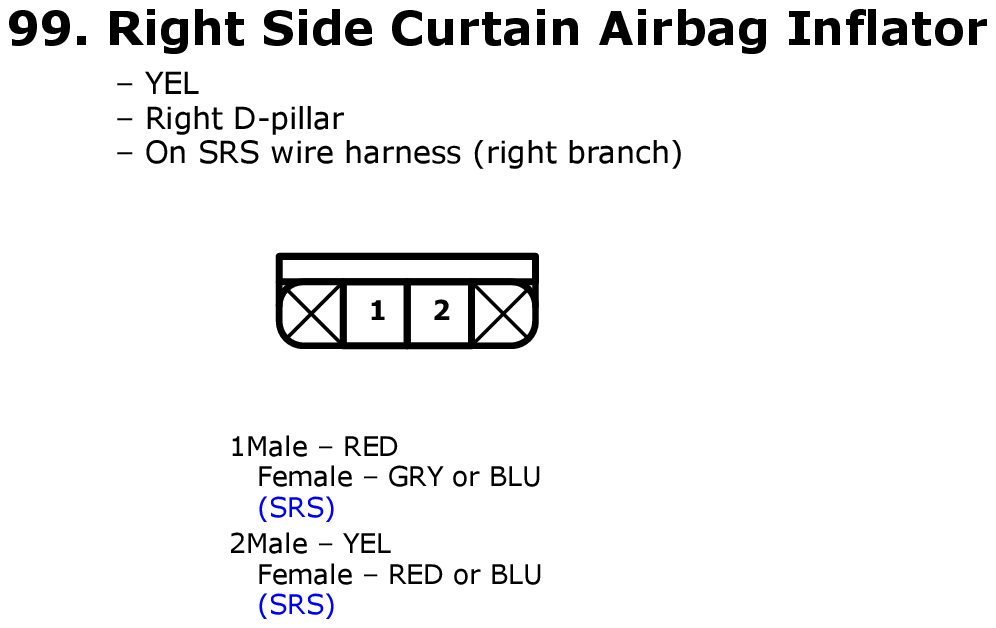

Fig 275: Right Side Curtain Airbag Inflator Connector End View
GHHW8426Courtesy of AMERICAN HONDA MOTOR CO., INC.

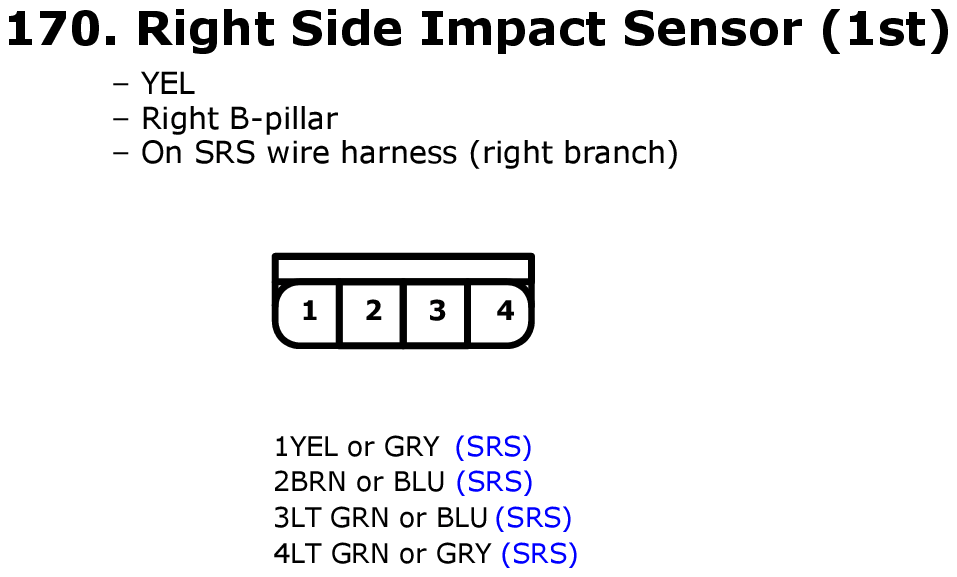

Fig 276: Right Side Impact Sensor (1st) Connector End View
GHHW8497Courtesy of AMERICAN HONDA MOTOR CO., INC.

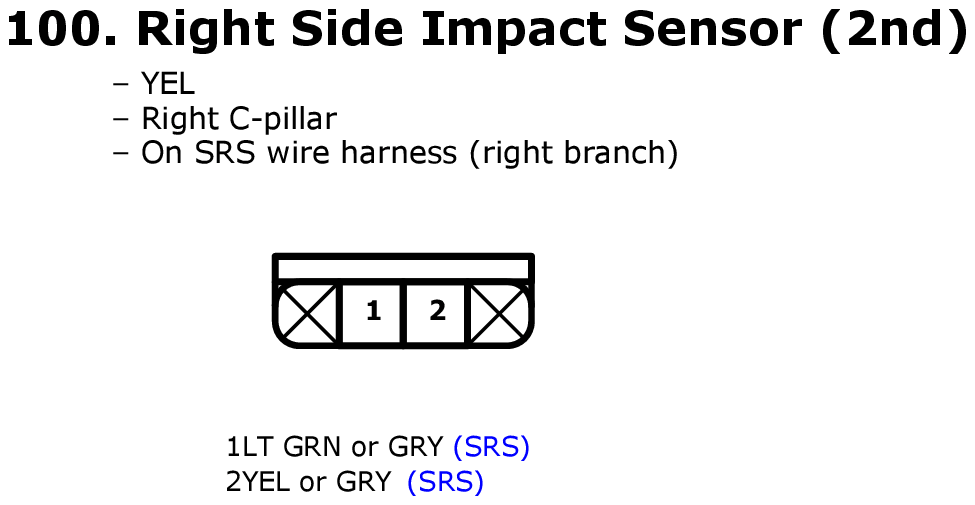

Fig 277: Right Side Impact Sensor (2nd) Connector End View
GHHW8427Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 278: Right Side Turn Signal Light Connector End View
GHHW8428Courtesy of AMERICAN HONDA MOTOR CO., INC.

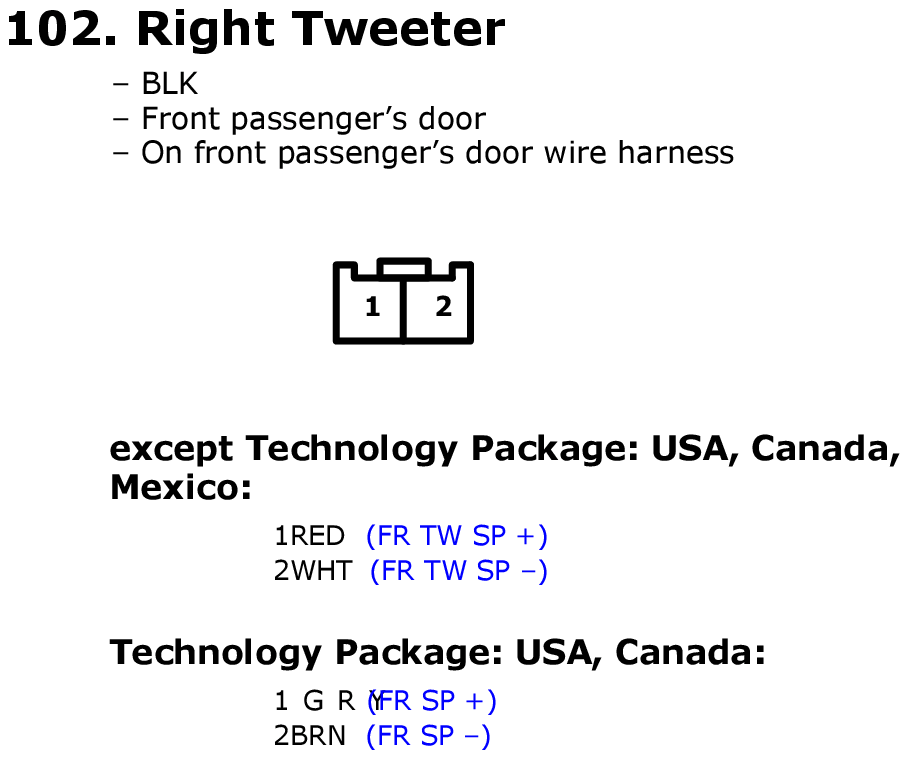

Fig 279: Right TweeterConnector End View
GHHW8429Courtesy of AMERICAN HONDA MOTOR CO., INC.

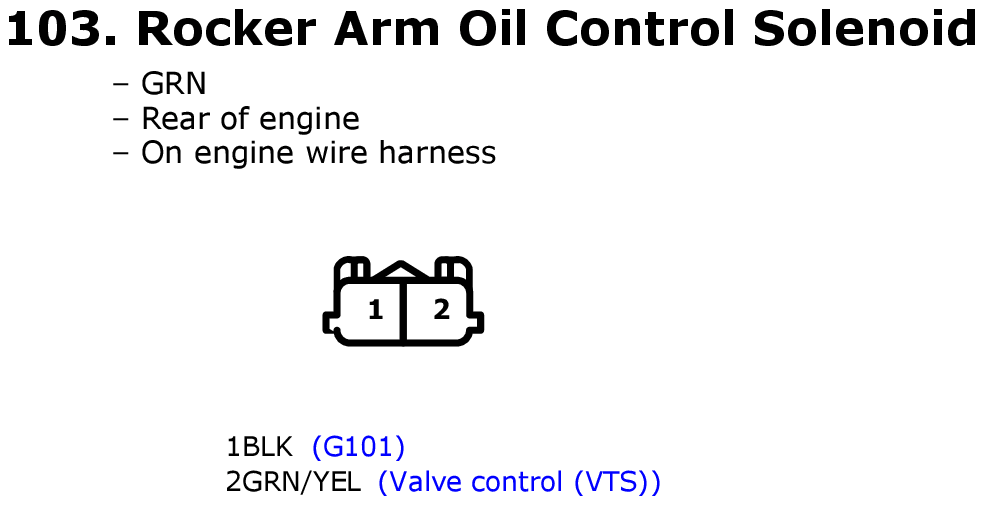

Fig 280: Rocker Arm Oil Control Solenoid Connector End View
GHHW8430Courtesy of AMERICAN HONDA MOTOR CO., INC.

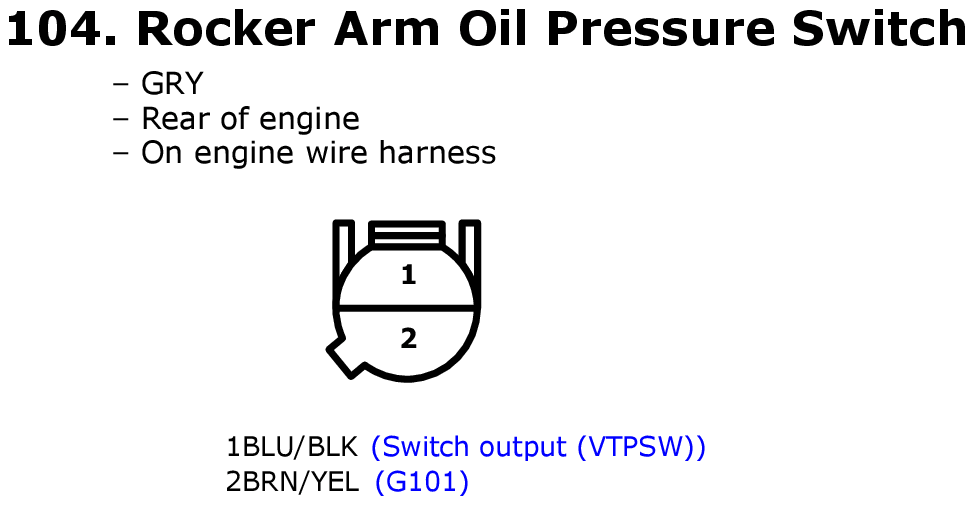

Fig 281: Rocker Arm Oil Pressure Switch Connector End View
GHHW8431Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 282: Roll Rate Sensor Connector End View
GHHW8432Courtesy of AMERICAN HONDA MOTOR CO., INC.

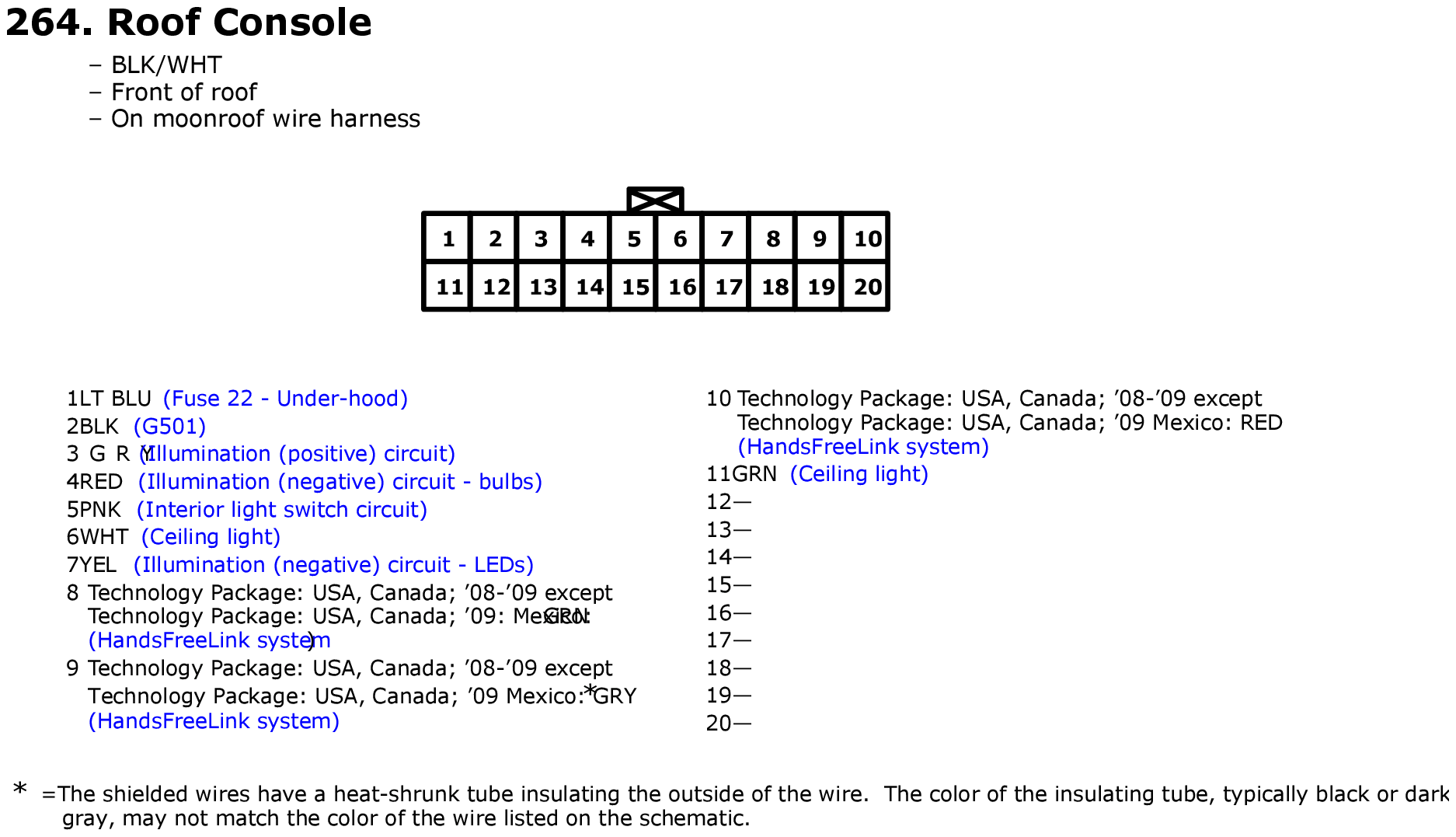

Fig 283: Roof Console Connector End View
GHHW8591Courtesy of AMERICAN HONDA MOTOR CO., INC.

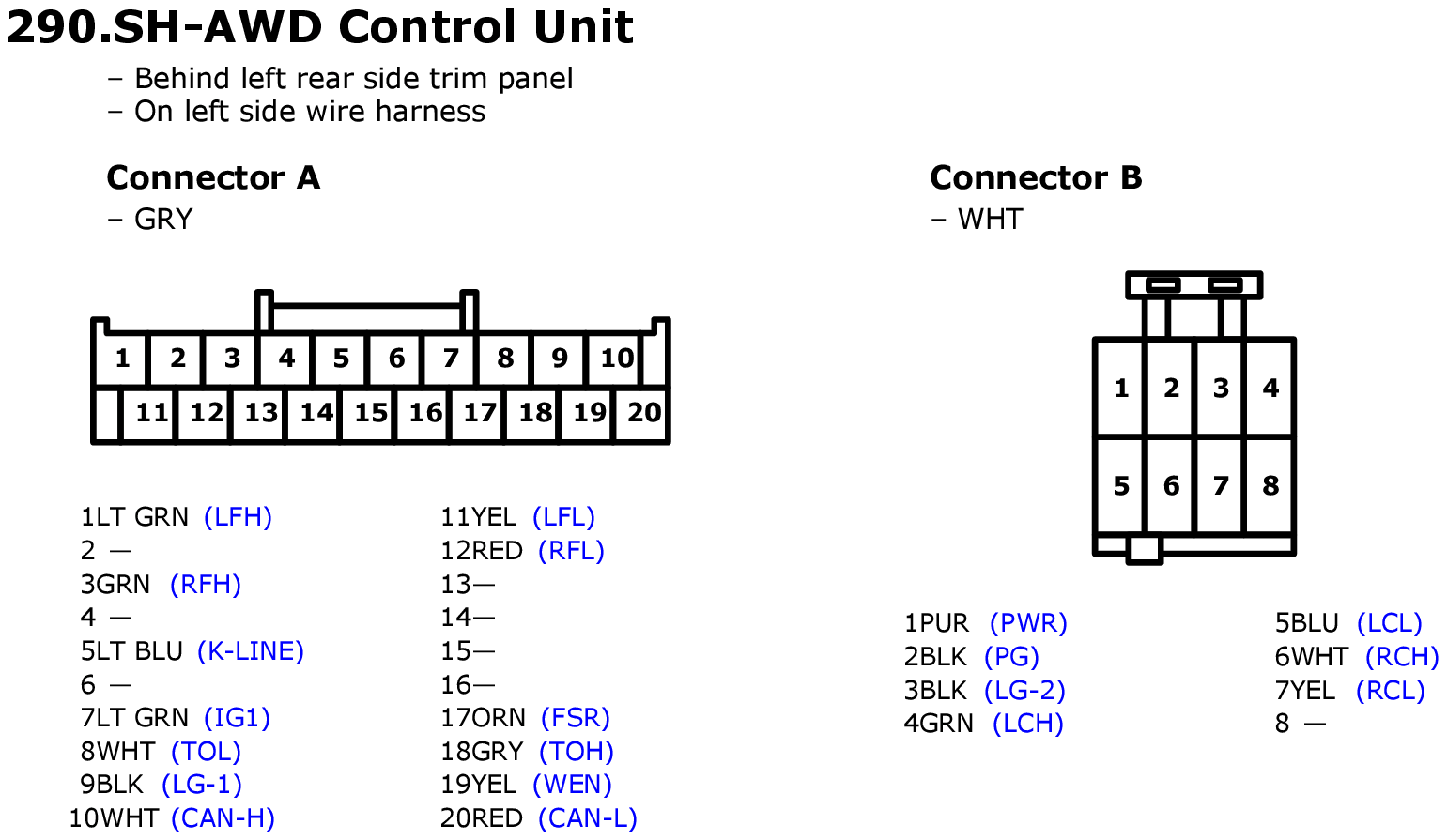

Fig 284: SH-AWD Control Unit Connector End View
GHHW8617Courtesy of AMERICAN HONDA MOTOR CO., INC.

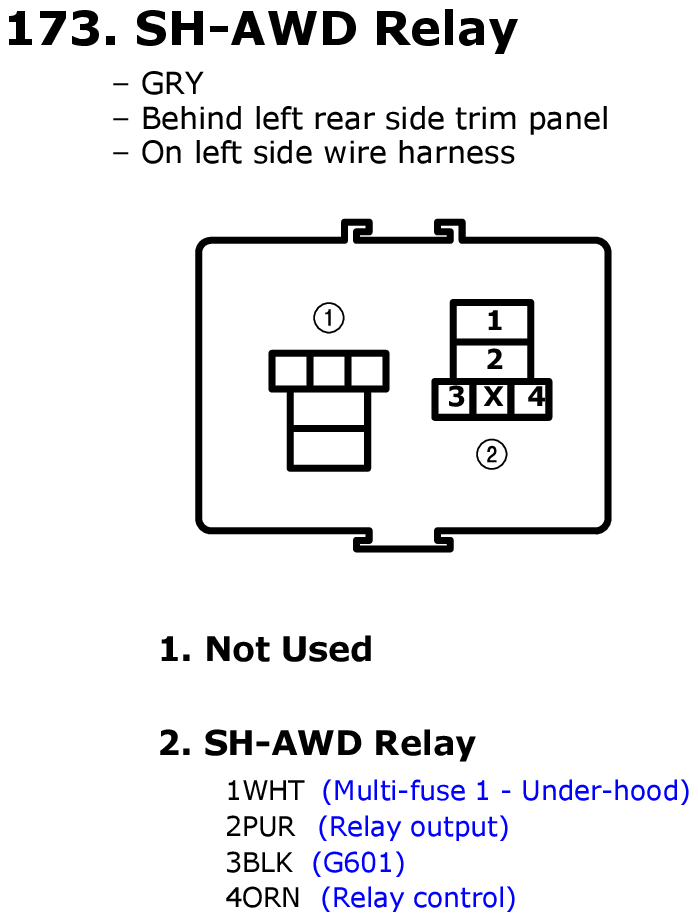

Fig 285: SH-AWD Relay Connector End View
GHHW8500Courtesy of AMERICAN HONDA MOTOR CO., INC.

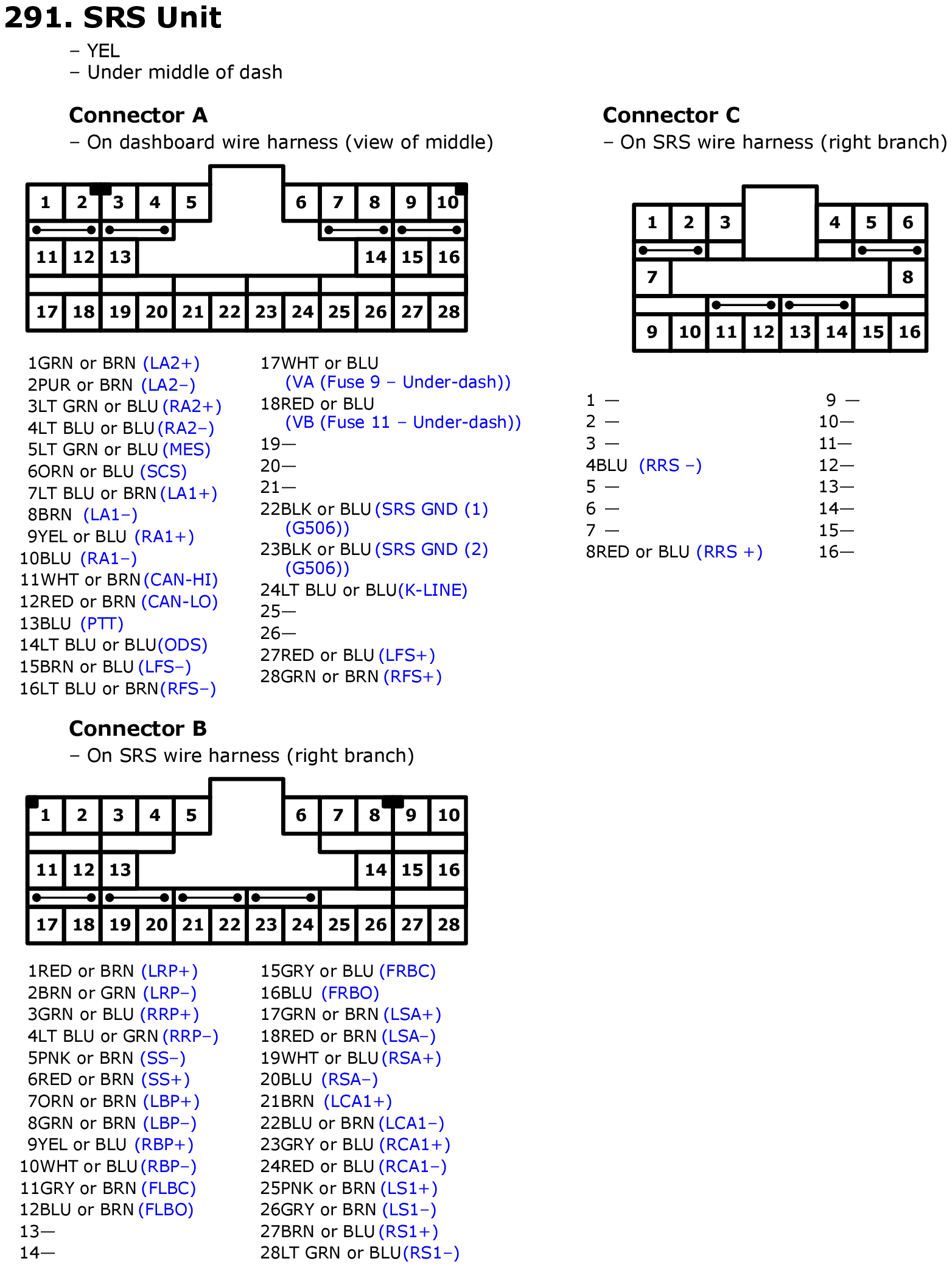

Fig 286: SRS Unit Connector End View
GHHW8618Courtesy of AMERICAN HONDA MOTOR CO., INC.

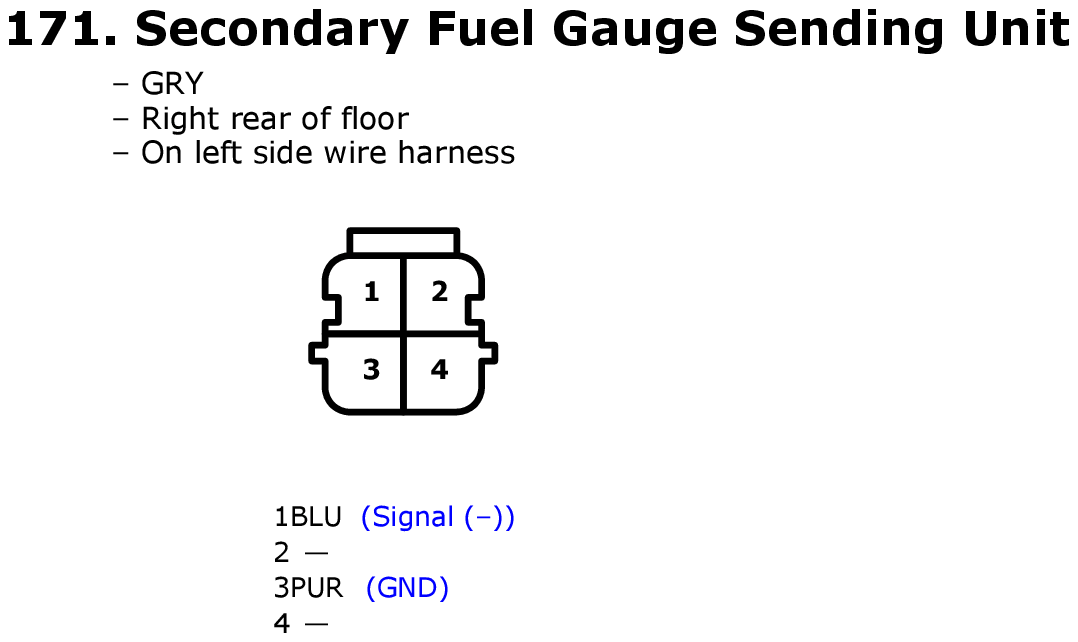

Fig 287: Secondary Fuel Gauge Sending Unit Connector End View
GHHW8498Courtesy of AMERICAN HONDA MOTOR CO., INC.

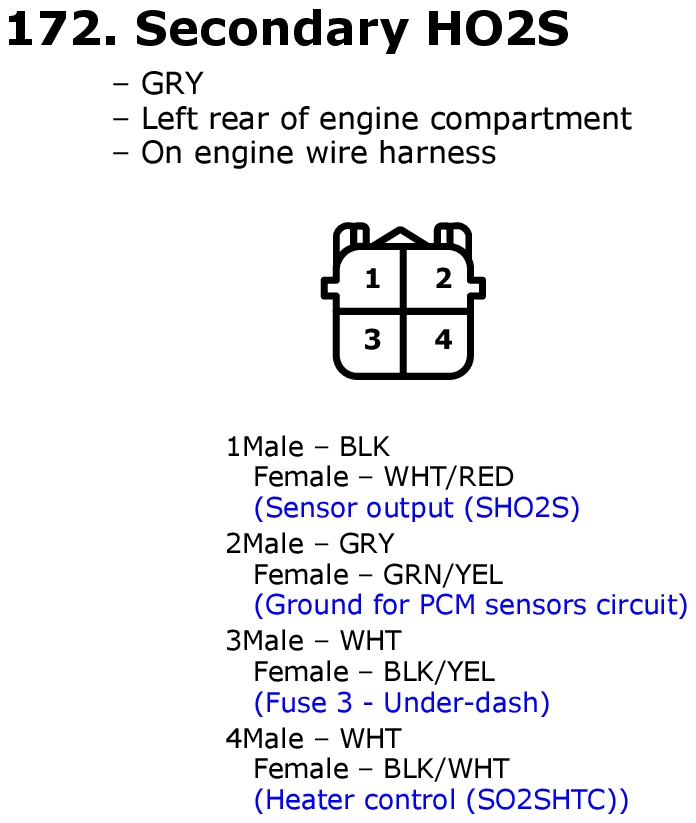

Fig 288: Secondary HO2S Connector End View
GHHW8499Courtesy of AMERICAN HONDA MOTOR CO., INC.

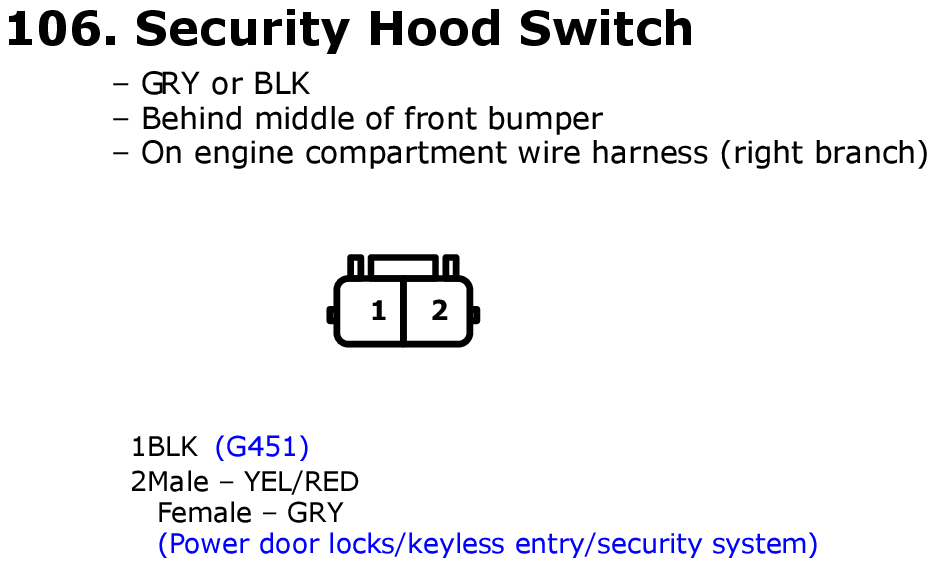

Fig 289: Security Hood SwitchConnector End View
GHHW8433Courtesy of AMERICAN HONDA MOTOR CO., INC.

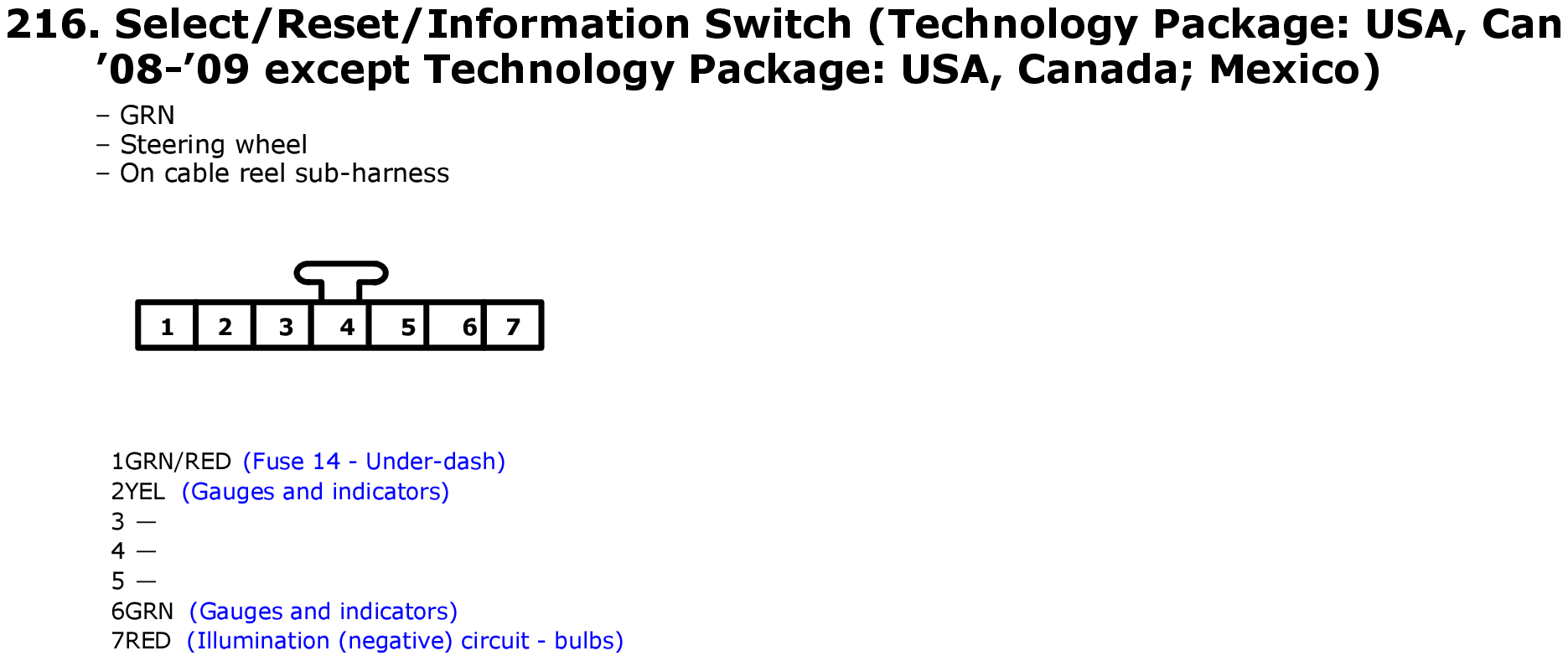

Fig 290: Select/Reset/Information SwitchConnector End View
GHHW8543Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 291: Shift Control Solenoid Valve A Connector End View
GHHW8342Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 292: Shift Control Solenoid Valve B Connector End View
GHHW8343Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 293: Shift Control Solenoid Valve C Connector End View
GHHW8344Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 294: Shift Control Solenoid Valve D Connector End View
GHHW8345Courtesy of AMERICAN HONDA MOTOR CO., INC.

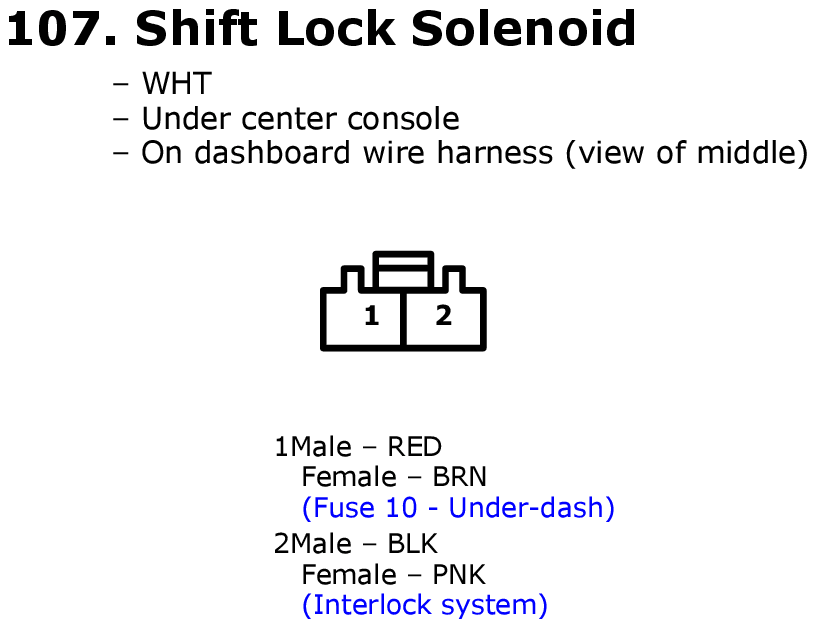

Fig 295: Shift Lock Solenoid Connector End View
GHHW8434Courtesy of AMERICAN HONDA MOTOR CO., INC.

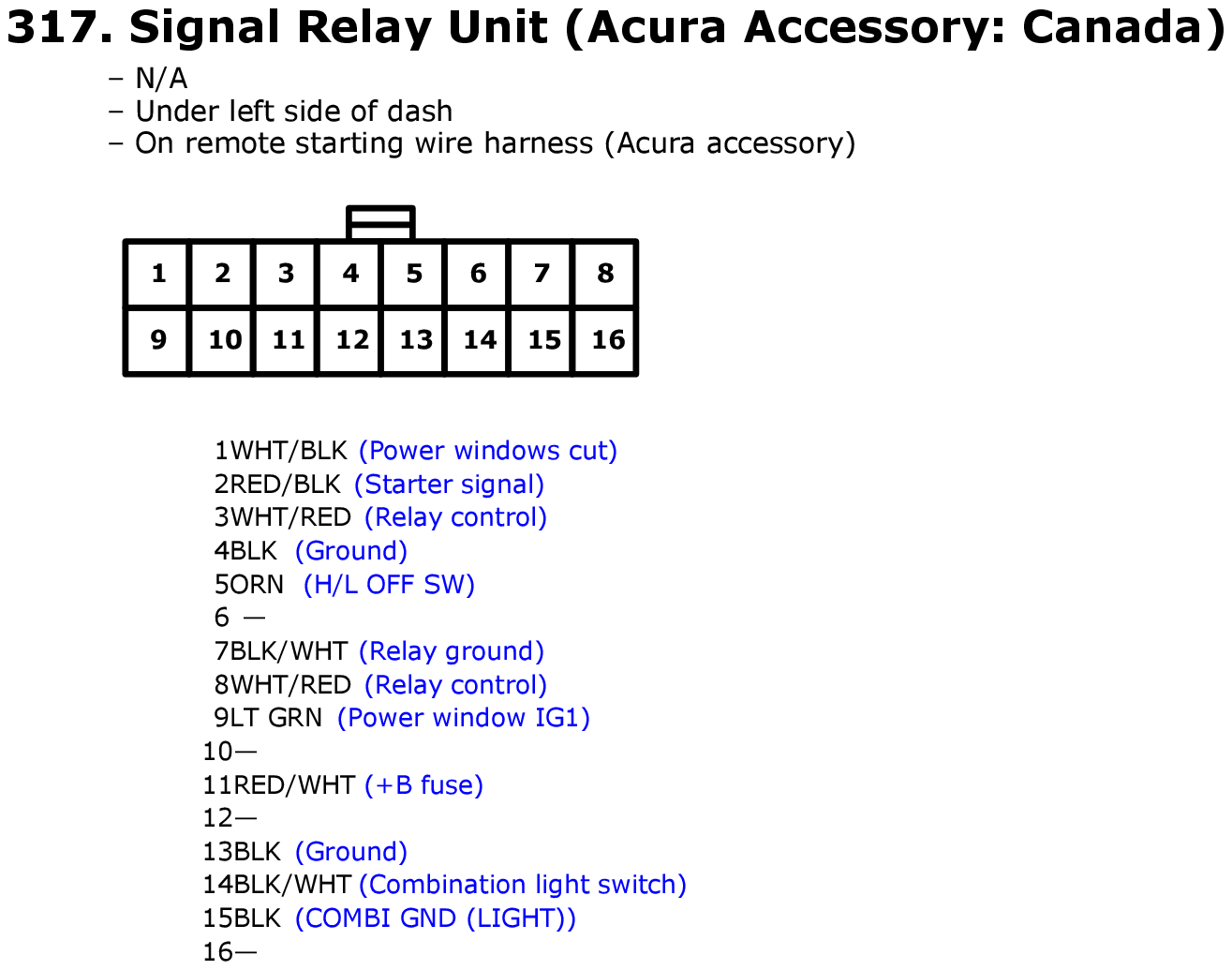

Fig 296: Signal Relay UnitConnector End View
GHHW8644Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 297: Starter Solenoid Connector End View
GHHW8346Courtesy of AMERICAN HONDA MOTOR CO., INC.

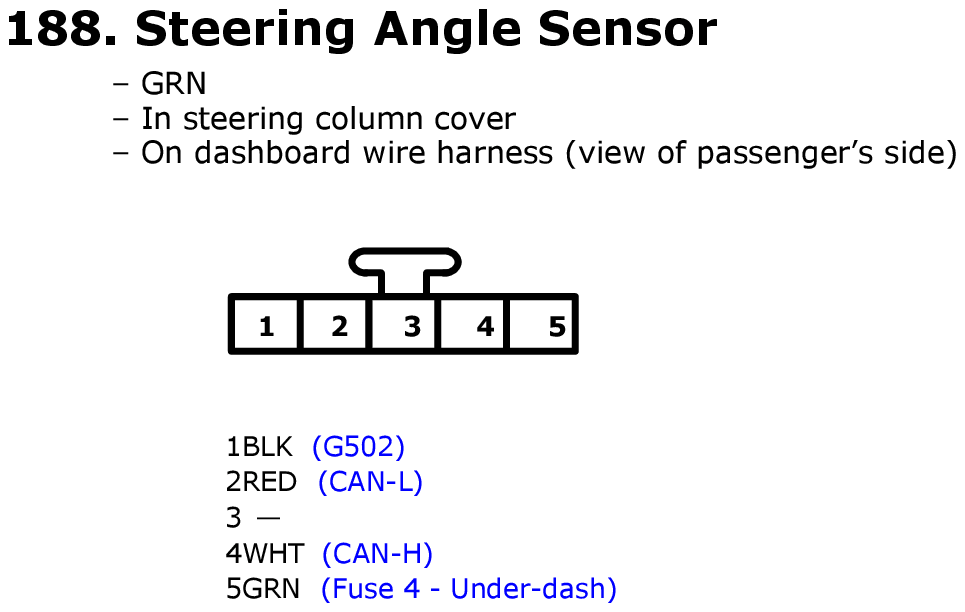

Fig 298: Steering Angle Sensor Connector End View
GHHW8515Courtesy of AMERICAN HONDA MOTOR CO., INC.

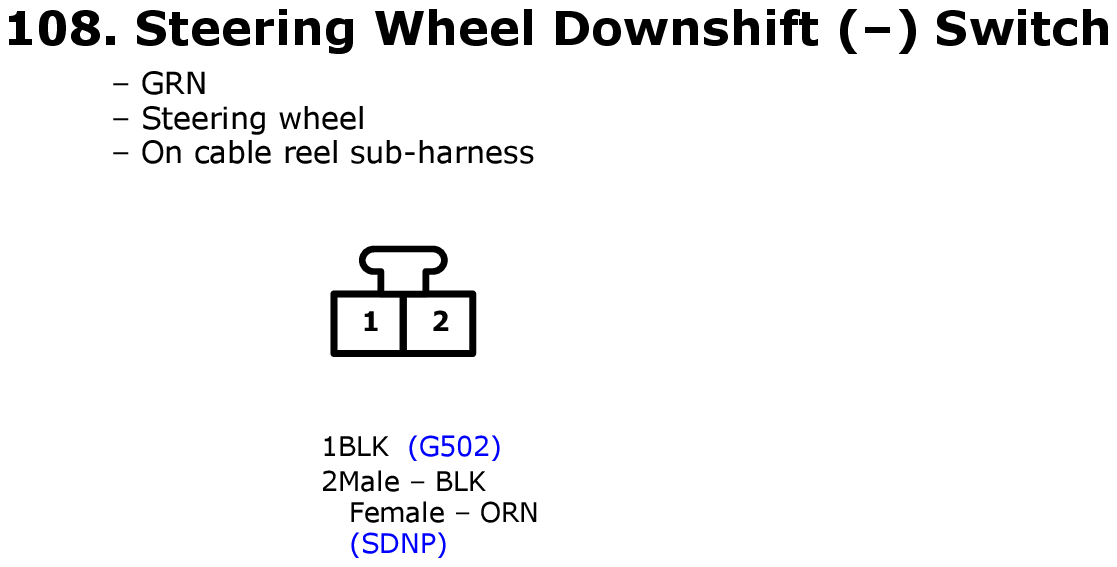

Fig 299: Steering Wheel Downshift (-) Switch Connector End View
GHHW8435Courtesy of AMERICAN HONDA MOTOR CO., INC.

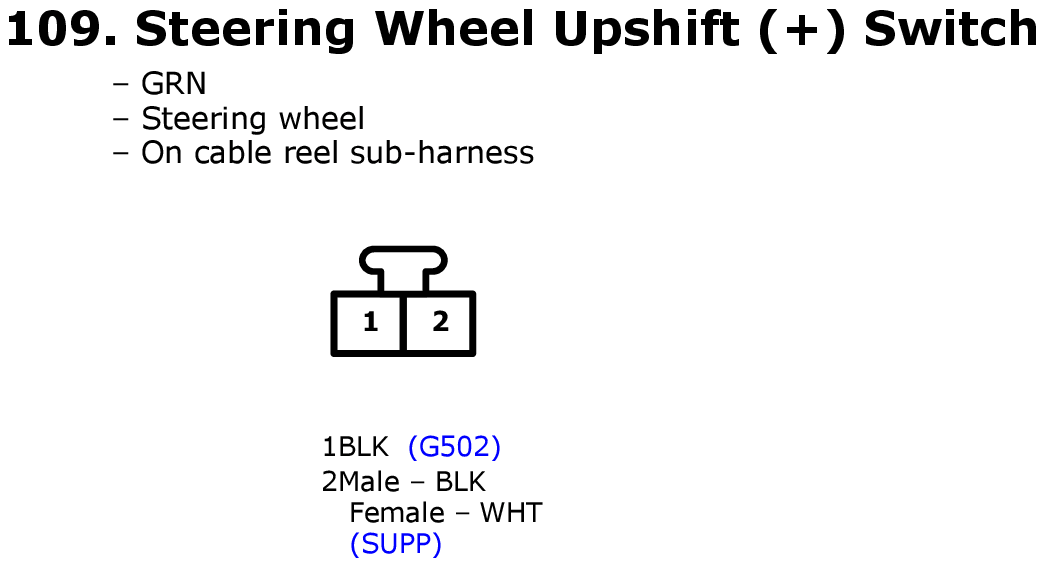

Fig 300: Steering Wheel Upshift (+) Switch Connector End View
GHHW8436Courtesy of AMERICAN HONDA MOTOR CO., INC.

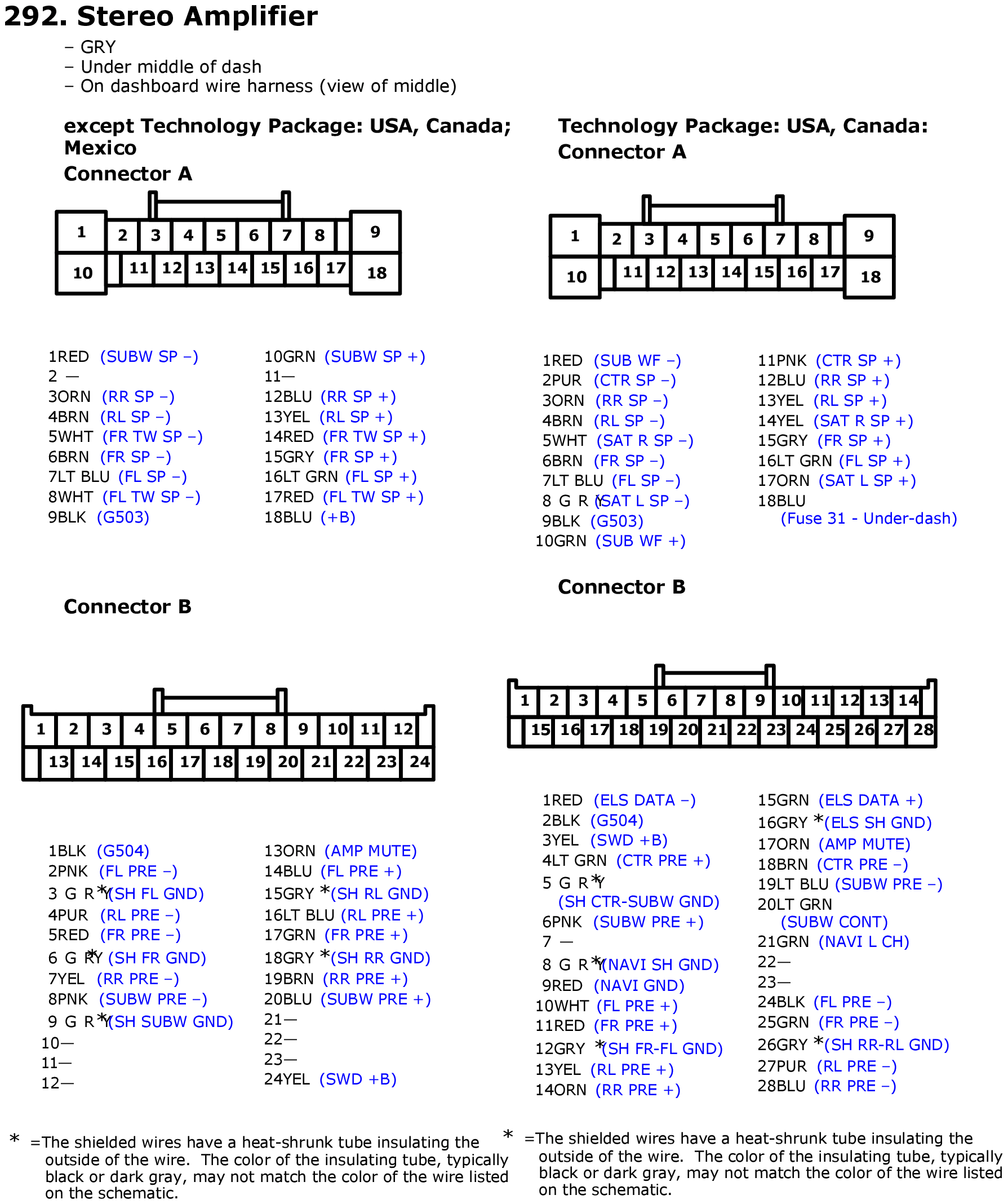

Fig 301: Stereo Amplifier Connector End View
GHHW8619Courtesy of AMERICAN HONDA MOTOR CO., INC.

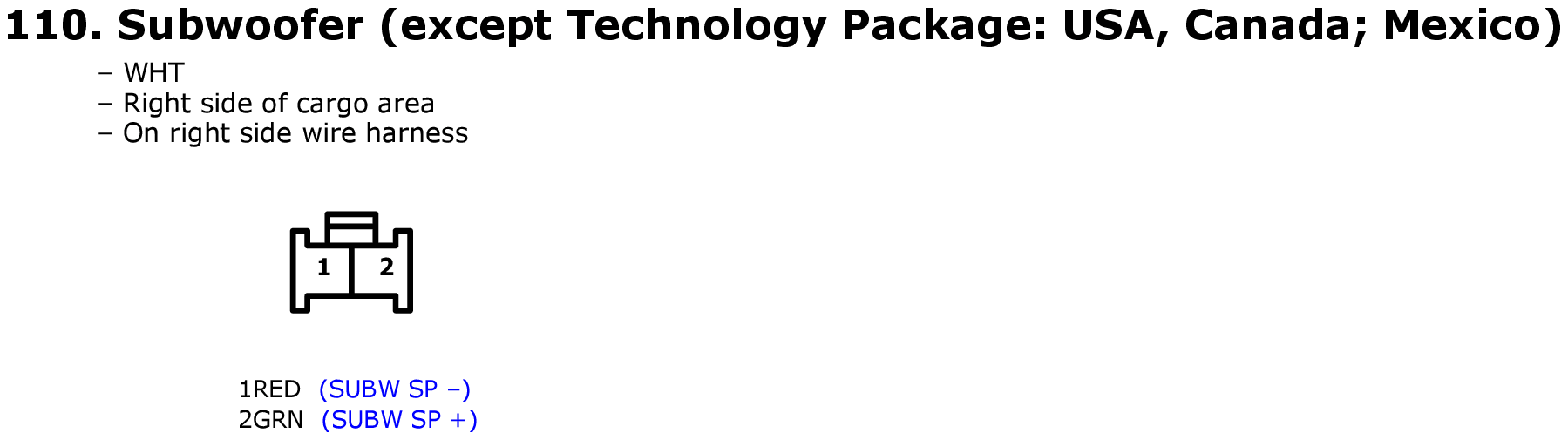

Fig 302: Subwoofer Connector End View
GHHW8437Courtesy of AMERICAN HONDA MOTOR CO., INC.

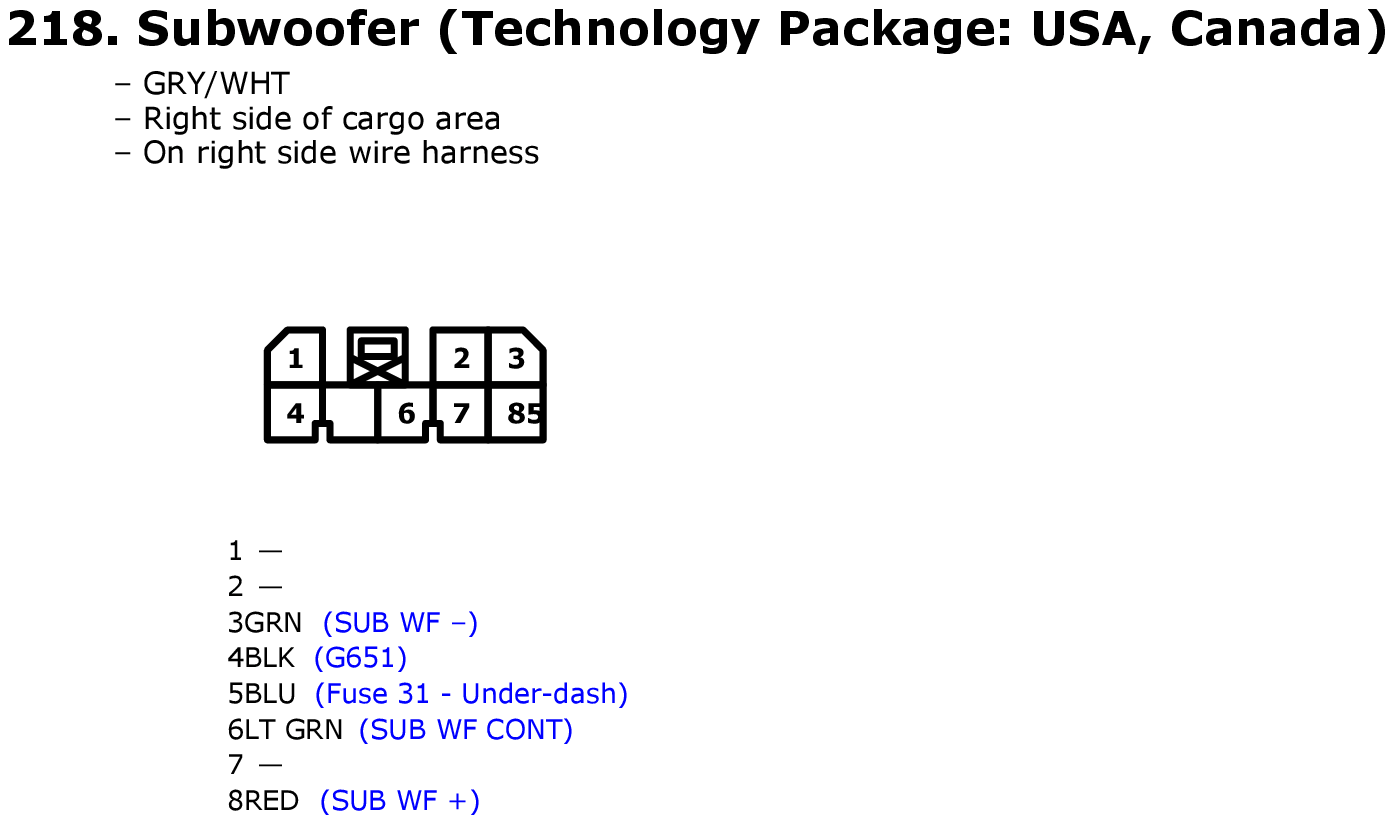

Fig 303: Subwoofer Connector End View
GHHW8545Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 304: Sunlight Sensor Connector End View
GHHW8438Courtesy of AMERICAN HONDA MOTOR CO., INC.

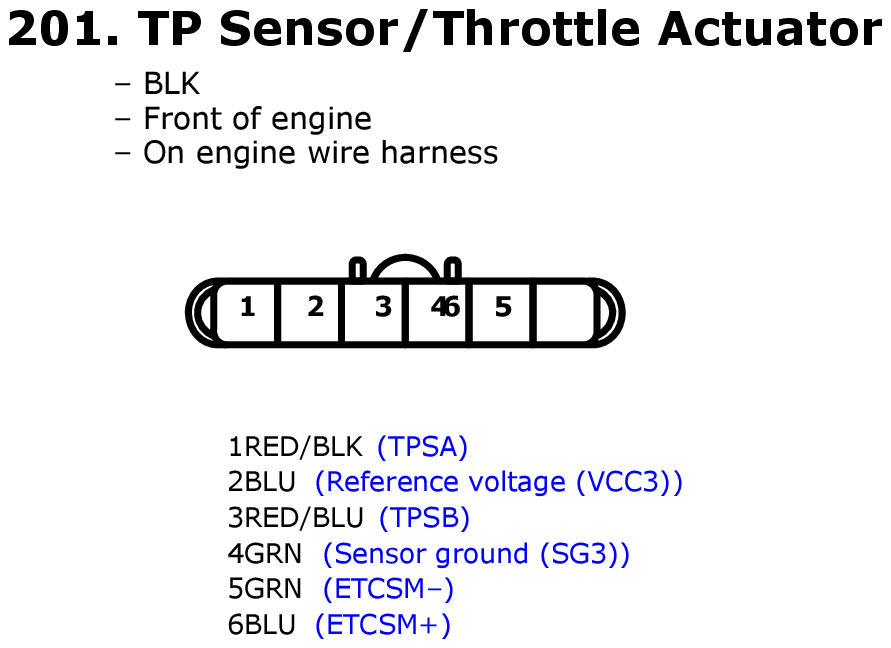

Fig 305: TP Sensor/Throttle Actuator Connector End View
GHHW8528Courtesy of AMERICAN HONDA MOTOR CO., INC.

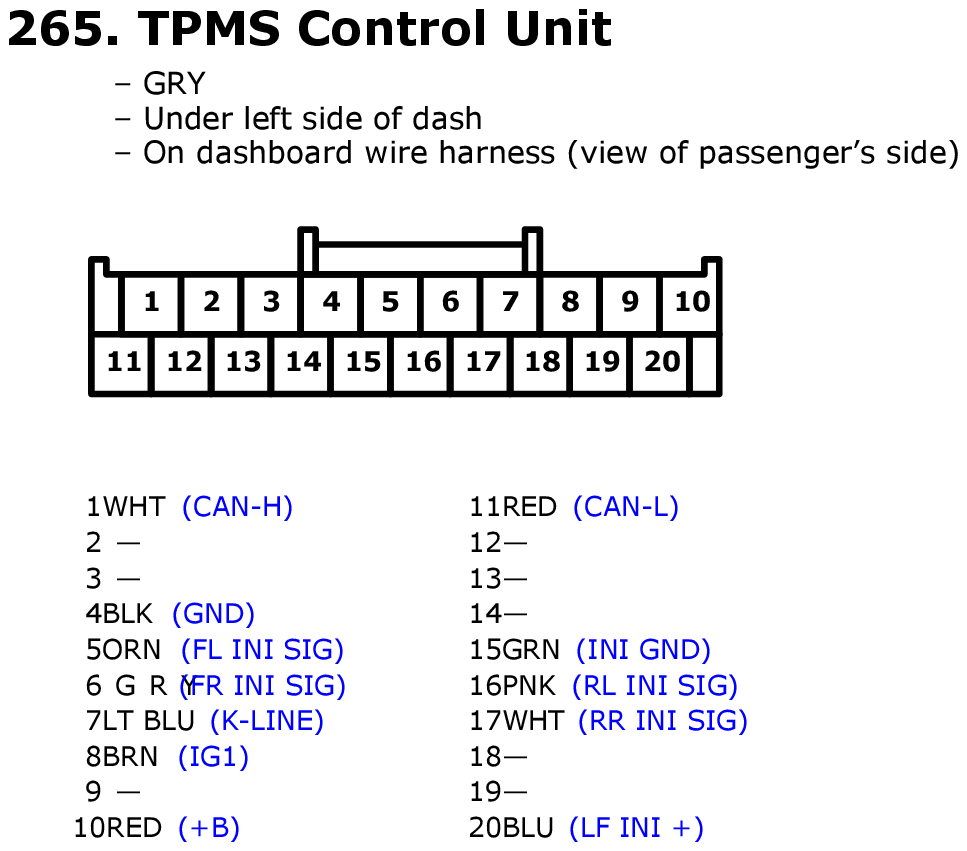

Fig 306: TPMS Control Unit Connector End View
GHHW8592Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 307: Tailgate Latch Switch Connector End View
GHHW8439Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 308: Tailgate Outer Handle Switch Connector End View
GHHW8478Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 309: Tailgate Release Actuator Connector End View
GHHW8440Courtesy of AMERICAN HONDA MOTOR CO., INC.

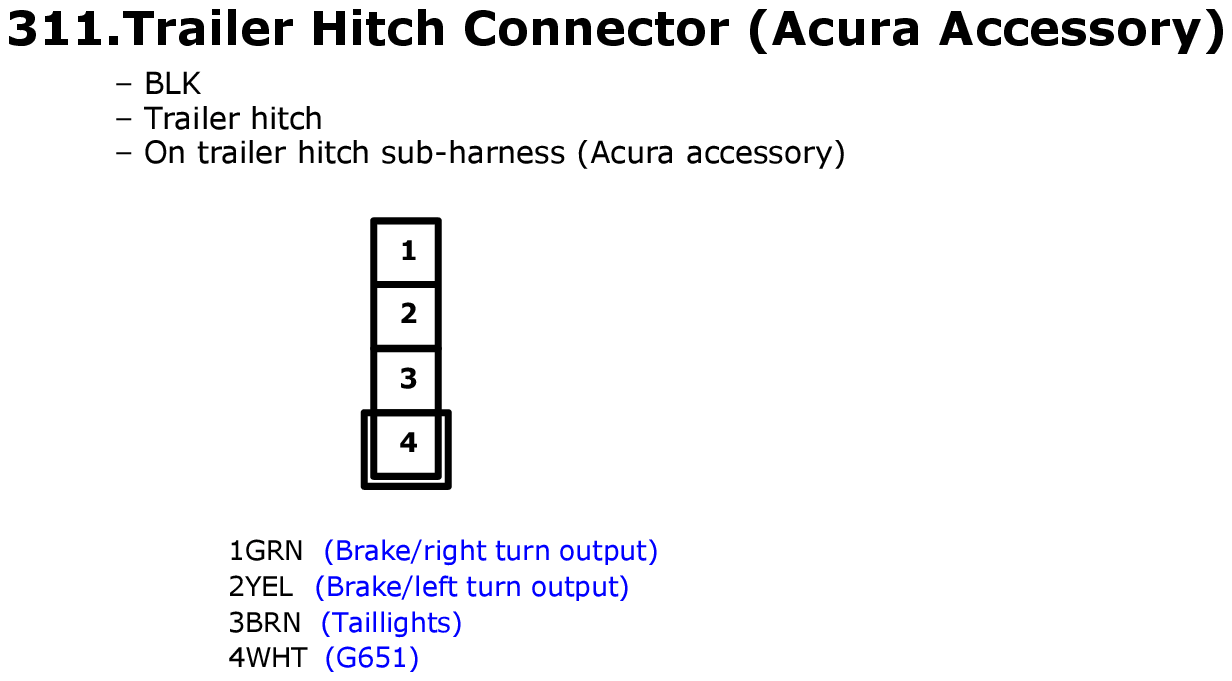

Fig 310: Trailer Hitch Connector End View
GHHW8638Courtesy of AMERICAN HONDA MOTOR CO., INC.

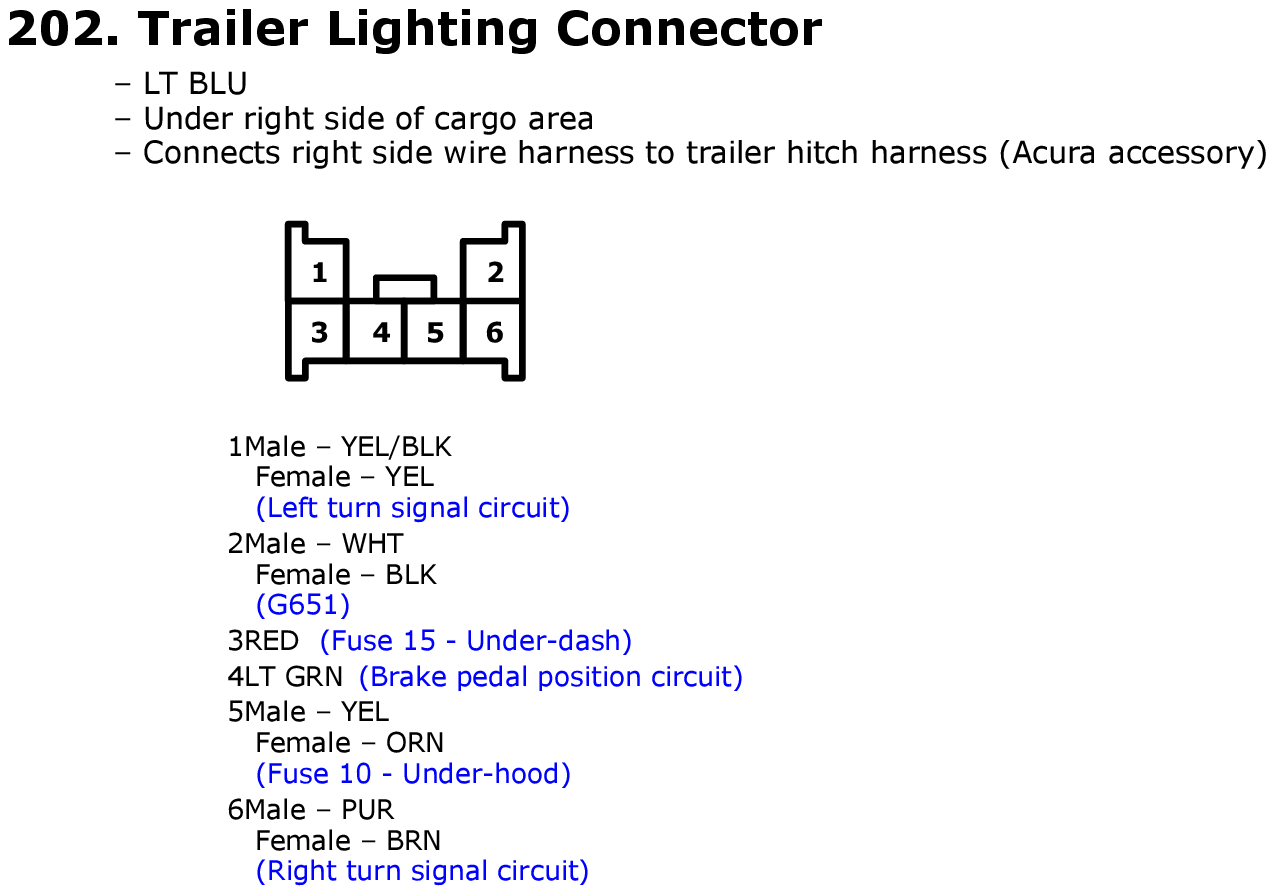

Fig 311: Trailer Lighting Connector End View
GHHW8529Courtesy of AMERICAN HONDA MOTOR CO., INC.

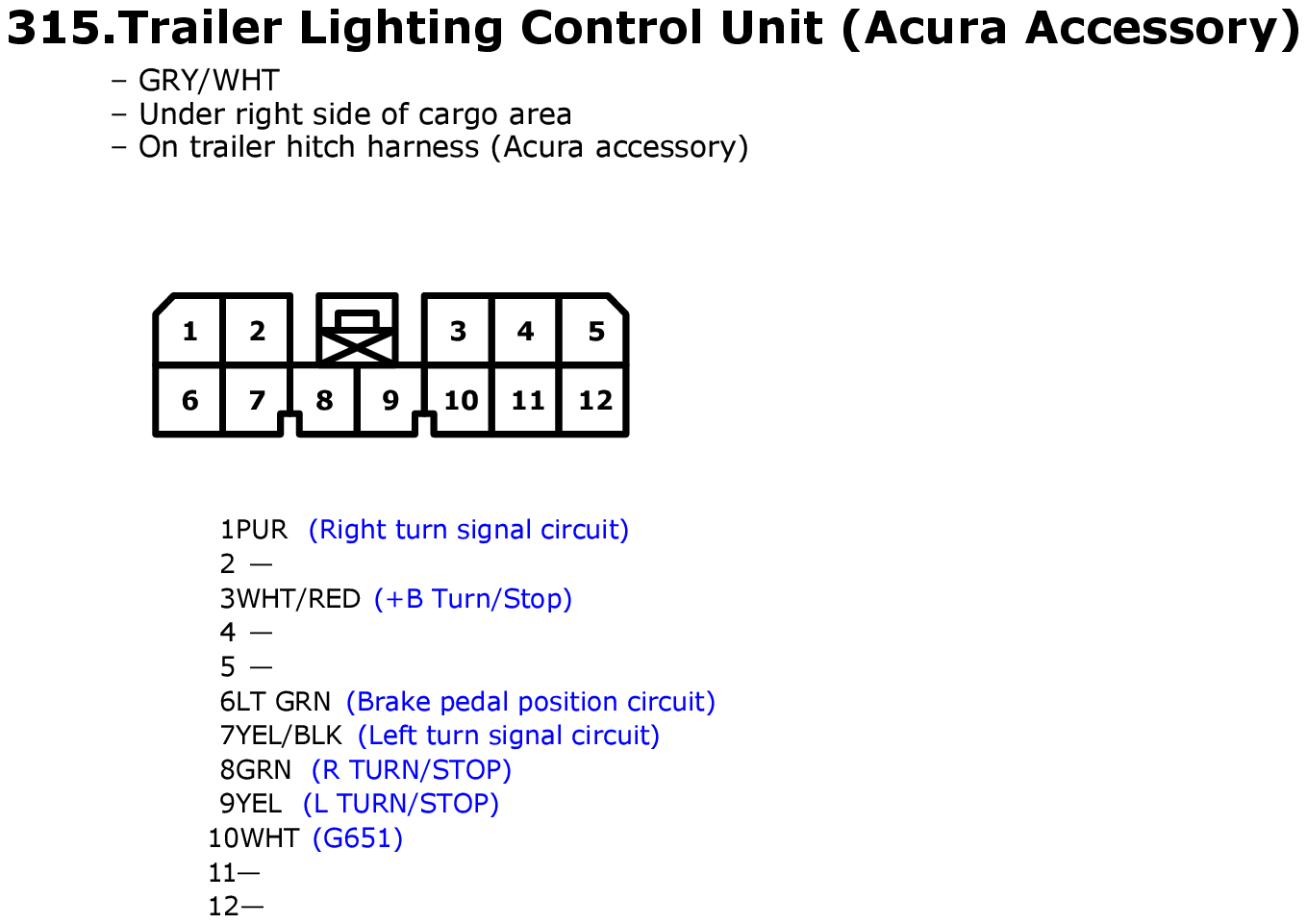

Fig 312: Trailer Lighting Control Unit Connector End View
GHHW8642Courtesy of AMERICAN HONDA MOTOR CO., INC.

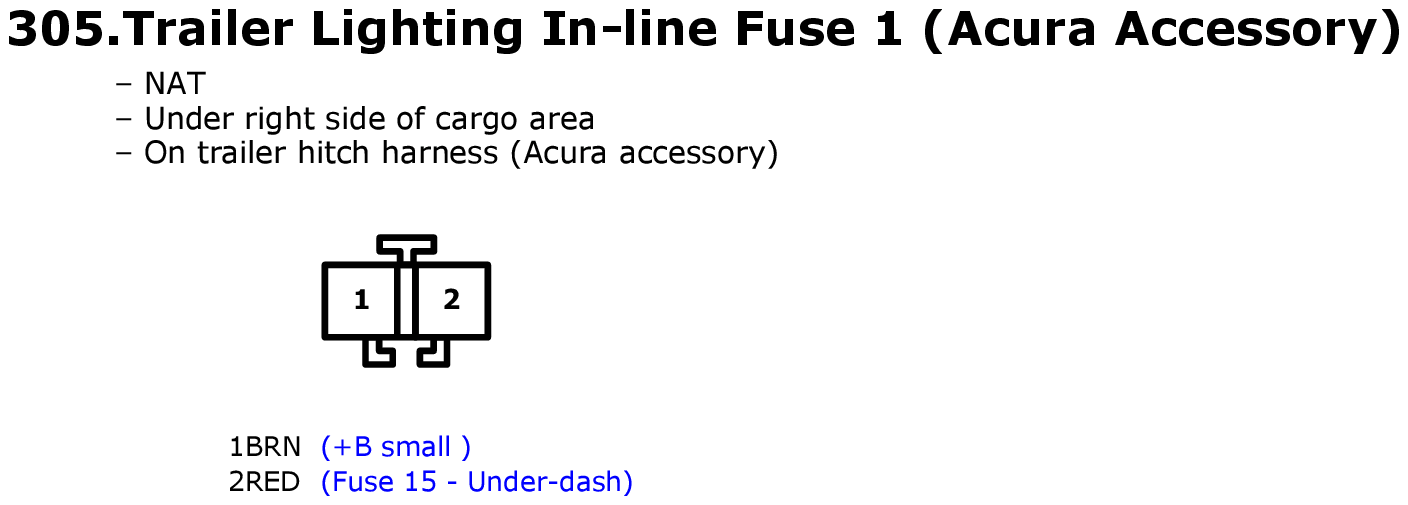

Fig 313: Trailer Lighting In-line Fuse 1 Connector End View
GHHW8632Courtesy of AMERICAN HONDA MOTOR CO., INC.

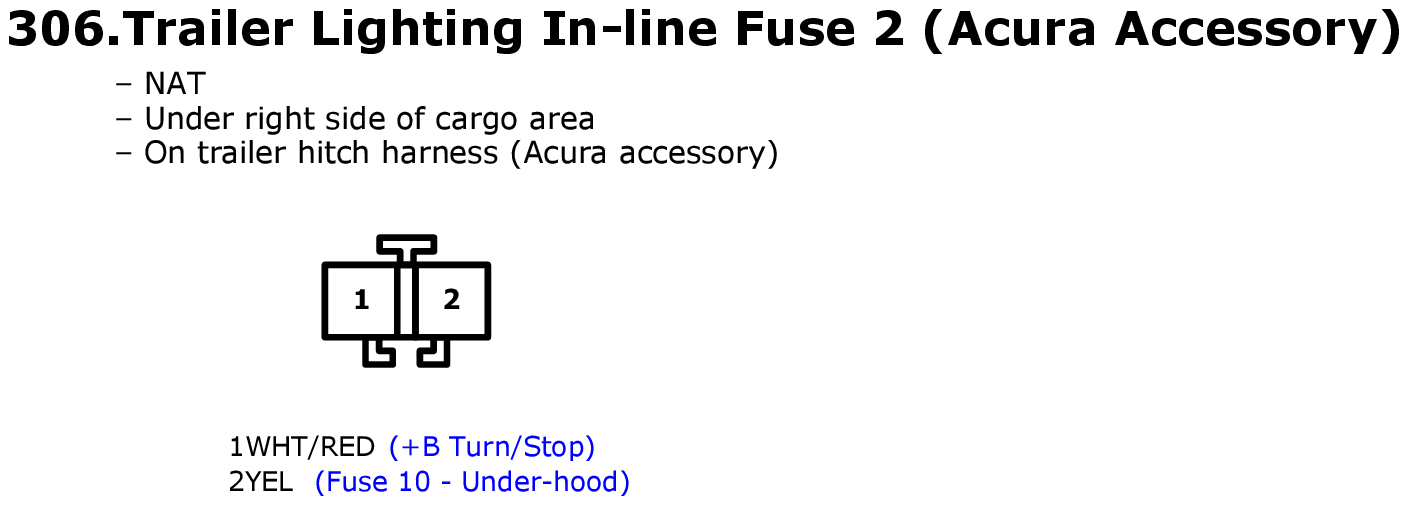

Fig 314: Trailer Lighting In-line Fuse 2 Connector End View
GHHW8633Courtesy of AMERICAN HONDA MOTOR CO., INC.

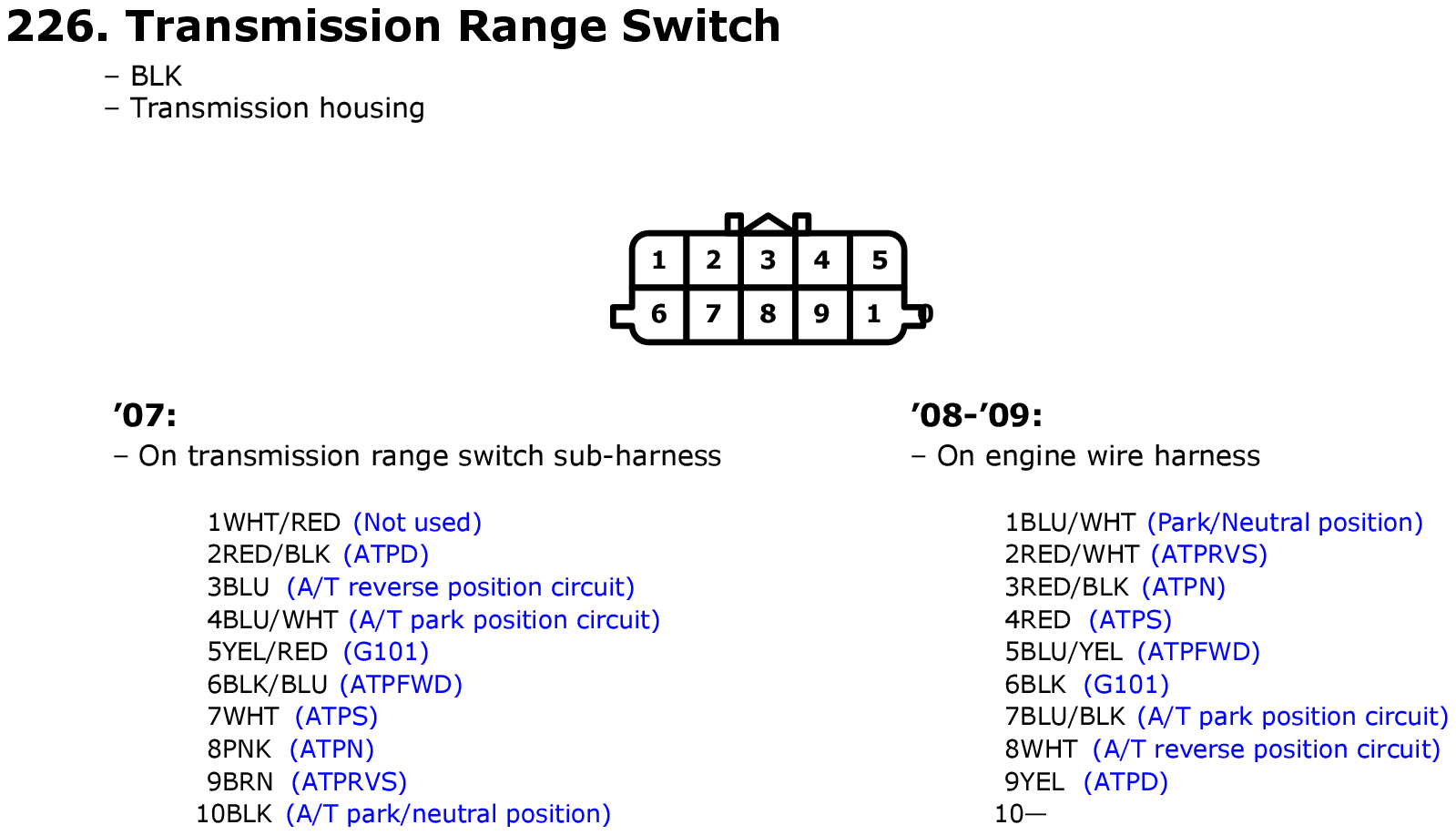

Fig 315: Transmission Range Switch Connector End View
GHHW8553Courtesy of AMERICAN HONDA MOTOR CO., INC.

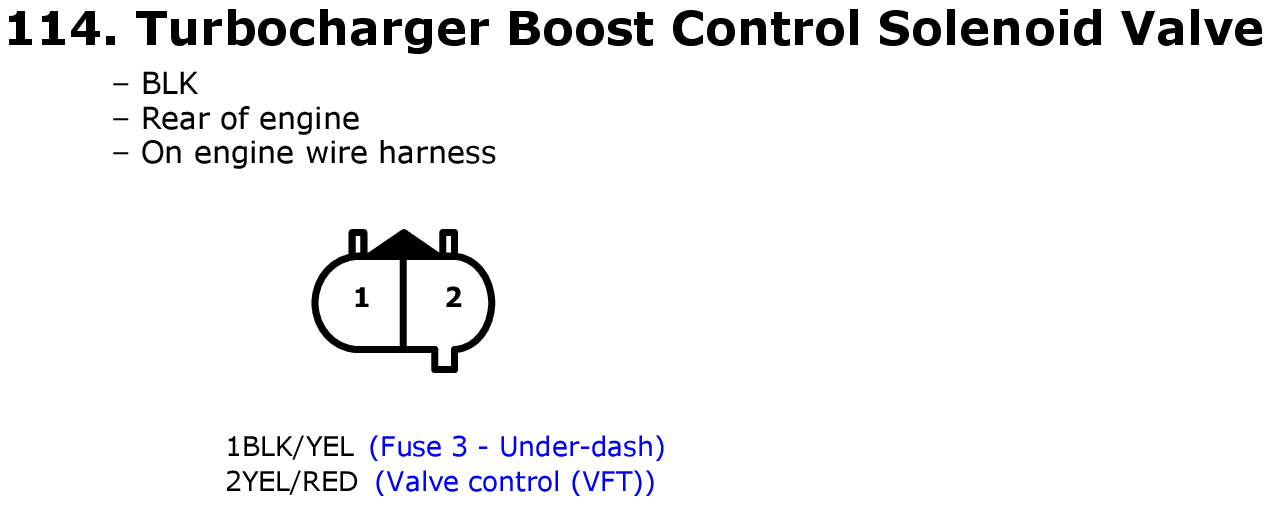

Fig 316: Turbocharger Boost Control Solenoid Valve Connector End View
GHHW8441Courtesy of AMERICAN HONDA MOTOR CO., INC.

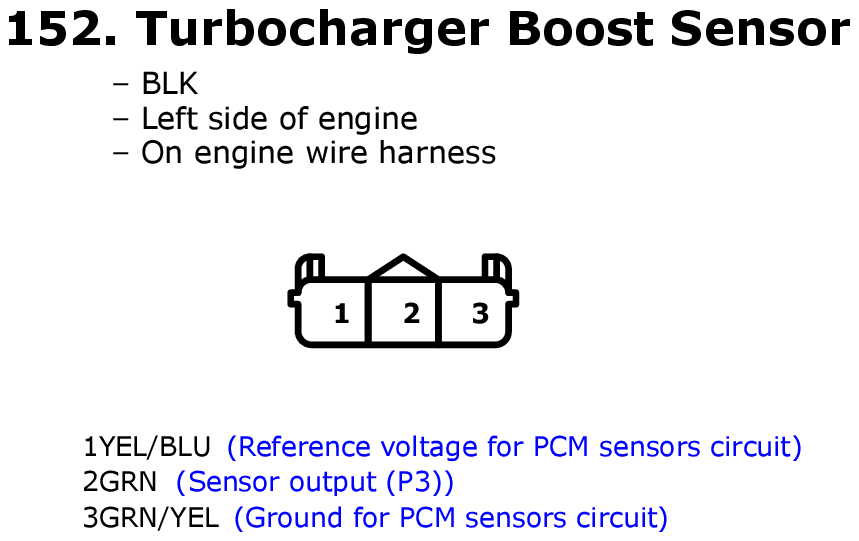

Fig 317: Turbocharger Boost Sensor Connector End View
GHHW8479Courtesy of AMERICAN HONDA MOTOR CO., INC.

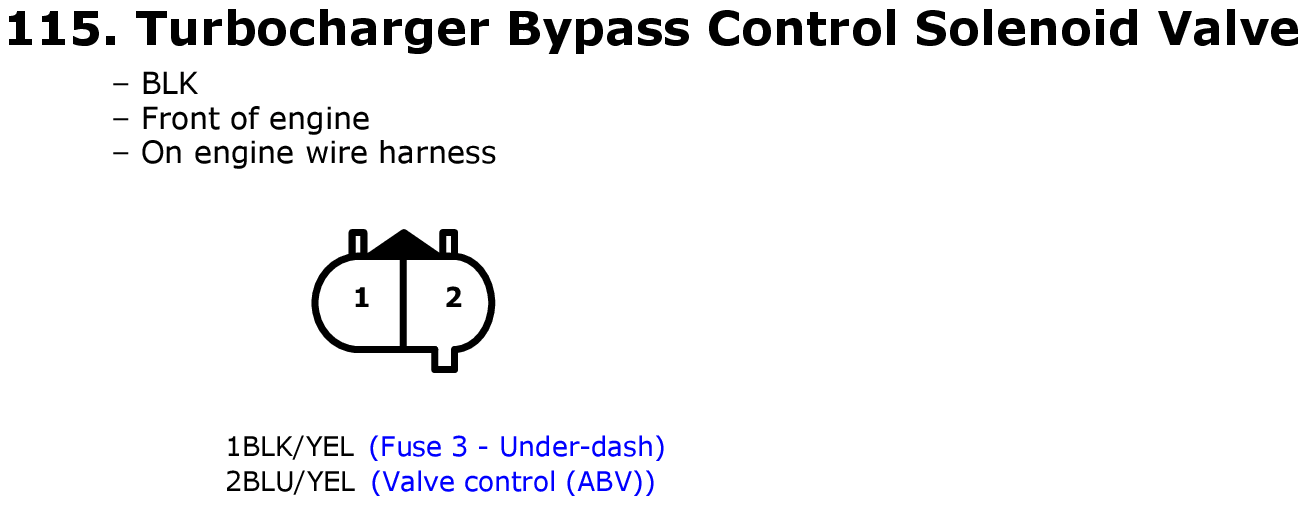

Fig 318: Turbocharger Bypass Control Solenoid Valve Connector End View
GHHW8442Courtesy of AMERICAN HONDA MOTOR CO., INC.

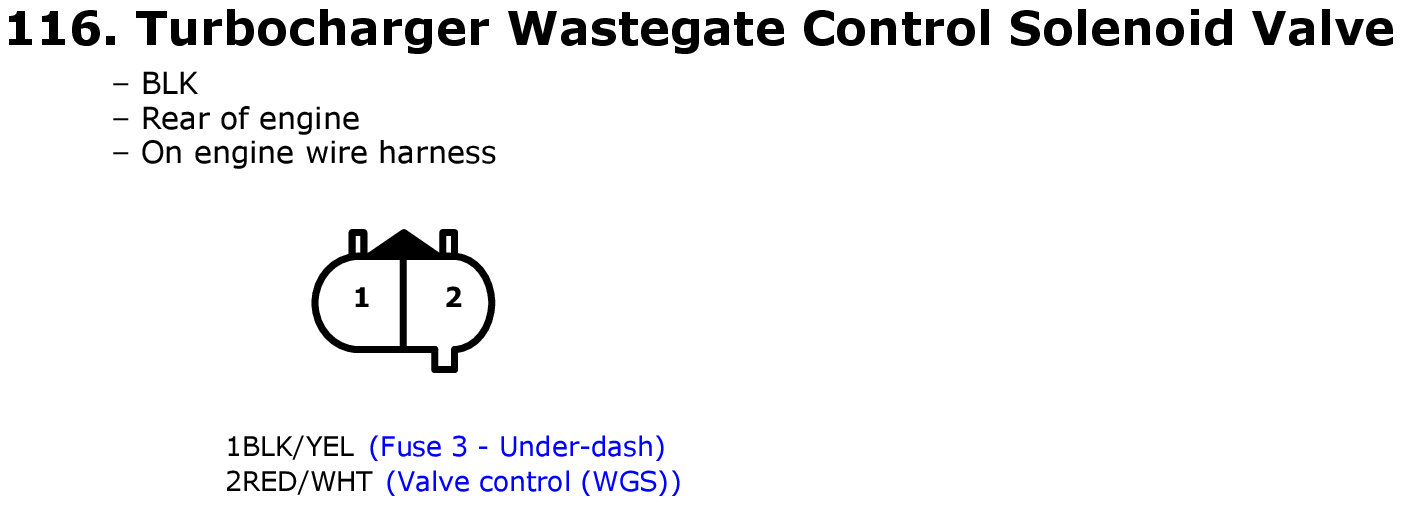

Fig 319: Turbocharger Wastegate Control Solenoid Valve Connector End View
GHHW8443Courtesy of AMERICAN HONDA MOTOR CO., INC.

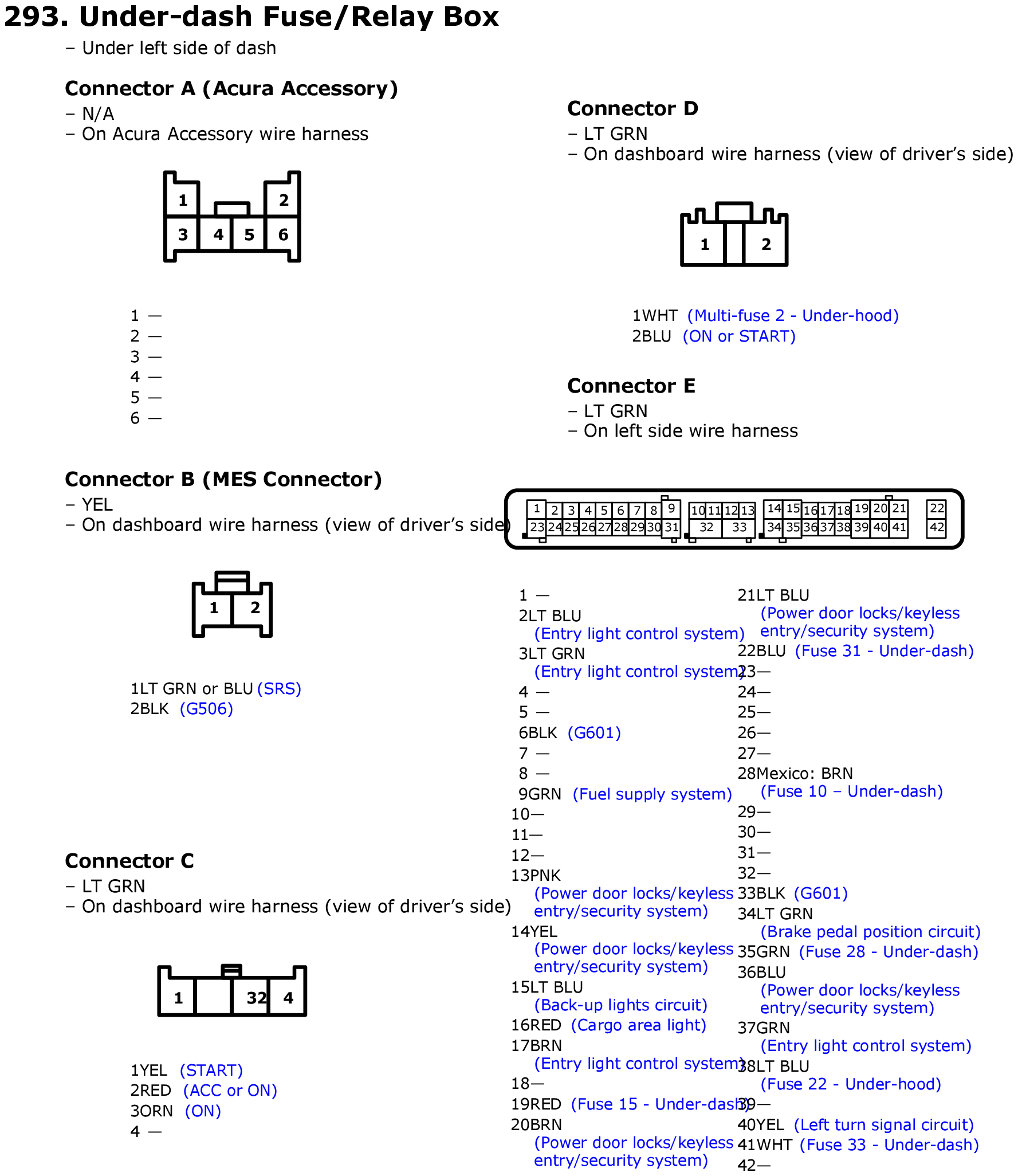

Fig 320: Under-dash Fuse/Relay Box Connector End View
GHHW8620Courtesy of AMERICAN HONDA MOTOR CO., INC.

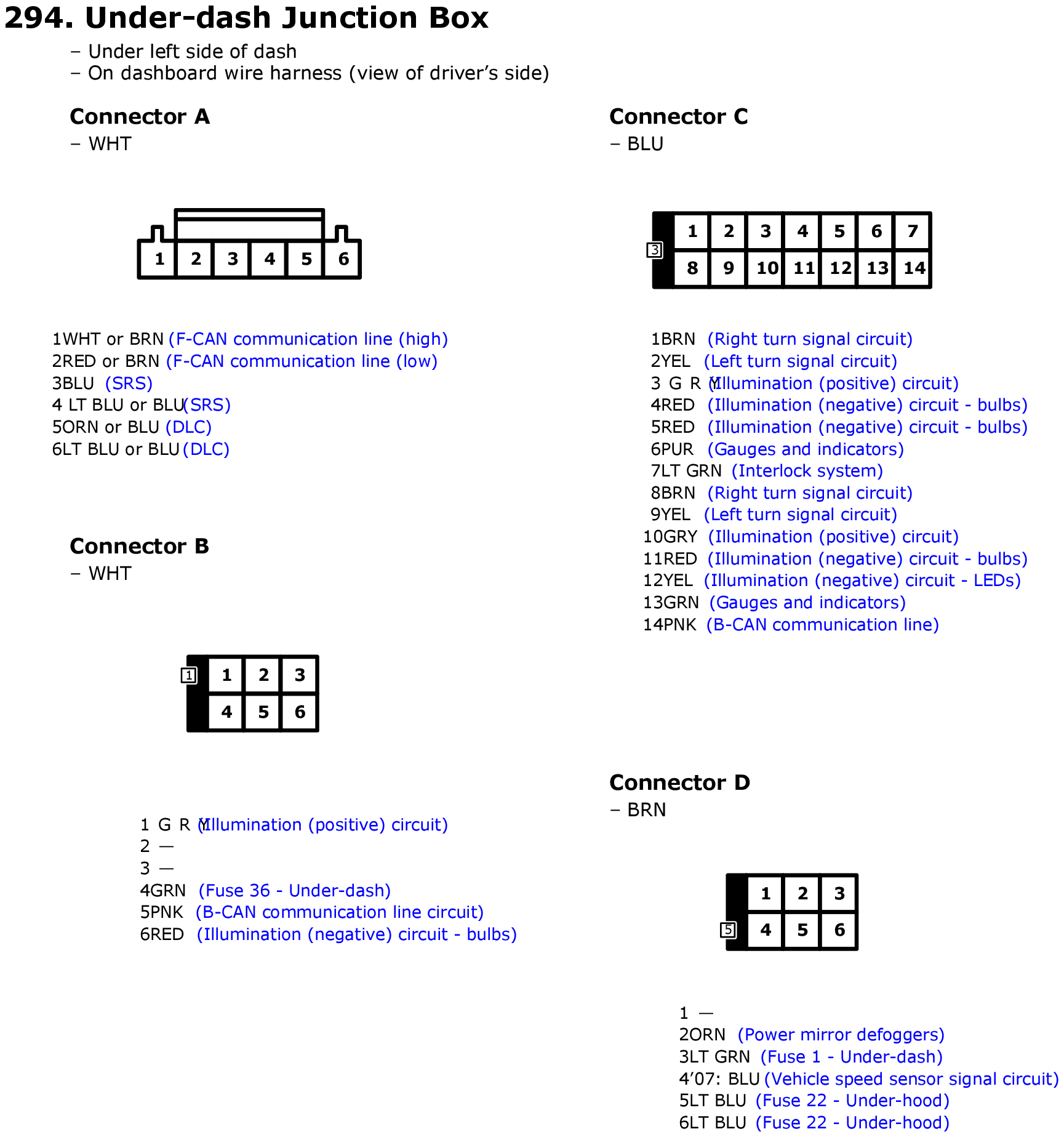

Fig 321: Under-dash Junction Box Connector End View
GHHW8621Courtesy of AMERICAN HONDA MOTOR CO., INC.

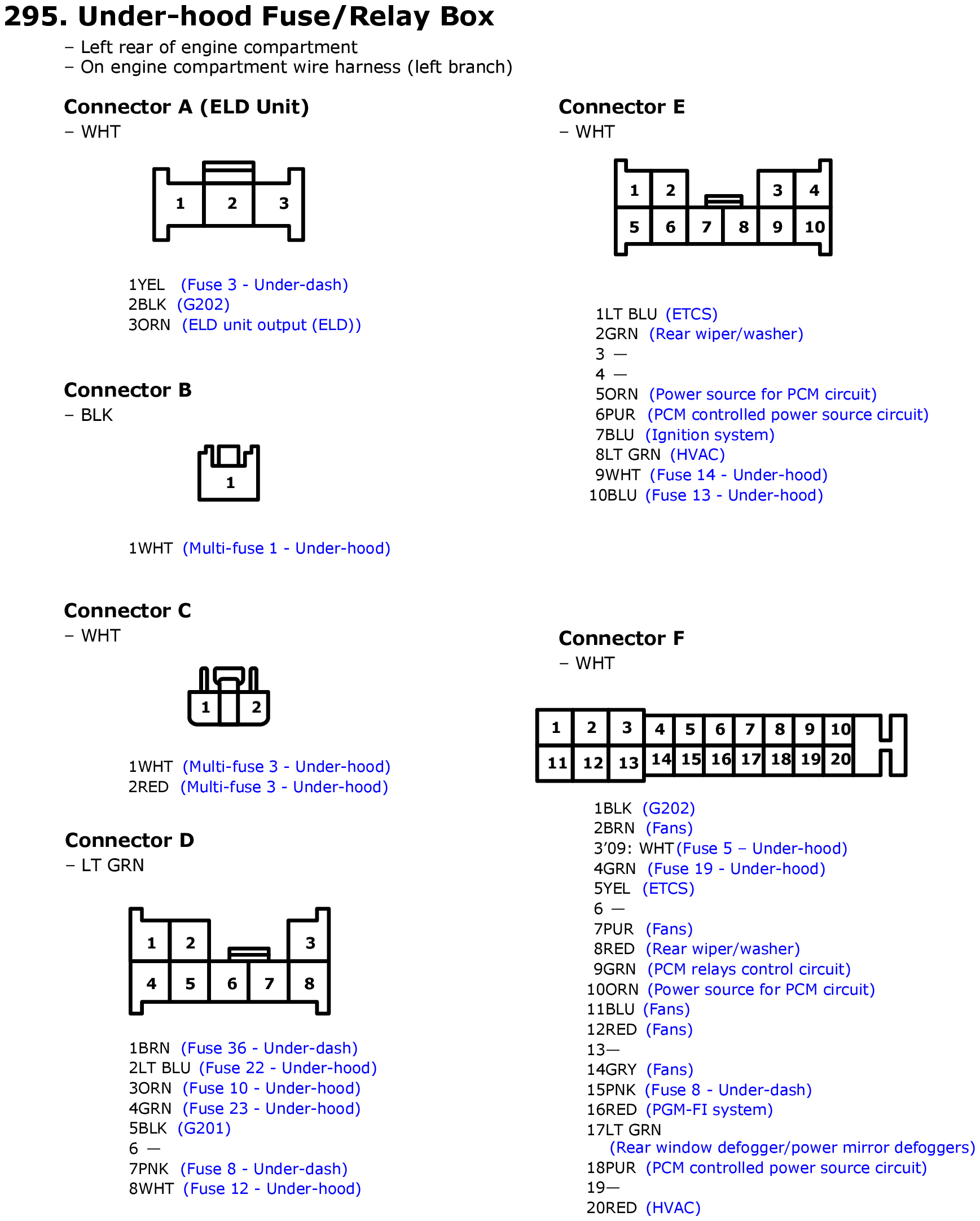

Fig 322: Under-hood Fuse/Relay Box Connector End View
GHHW8622Courtesy of AMERICAN HONDA MOTOR CO., INC.

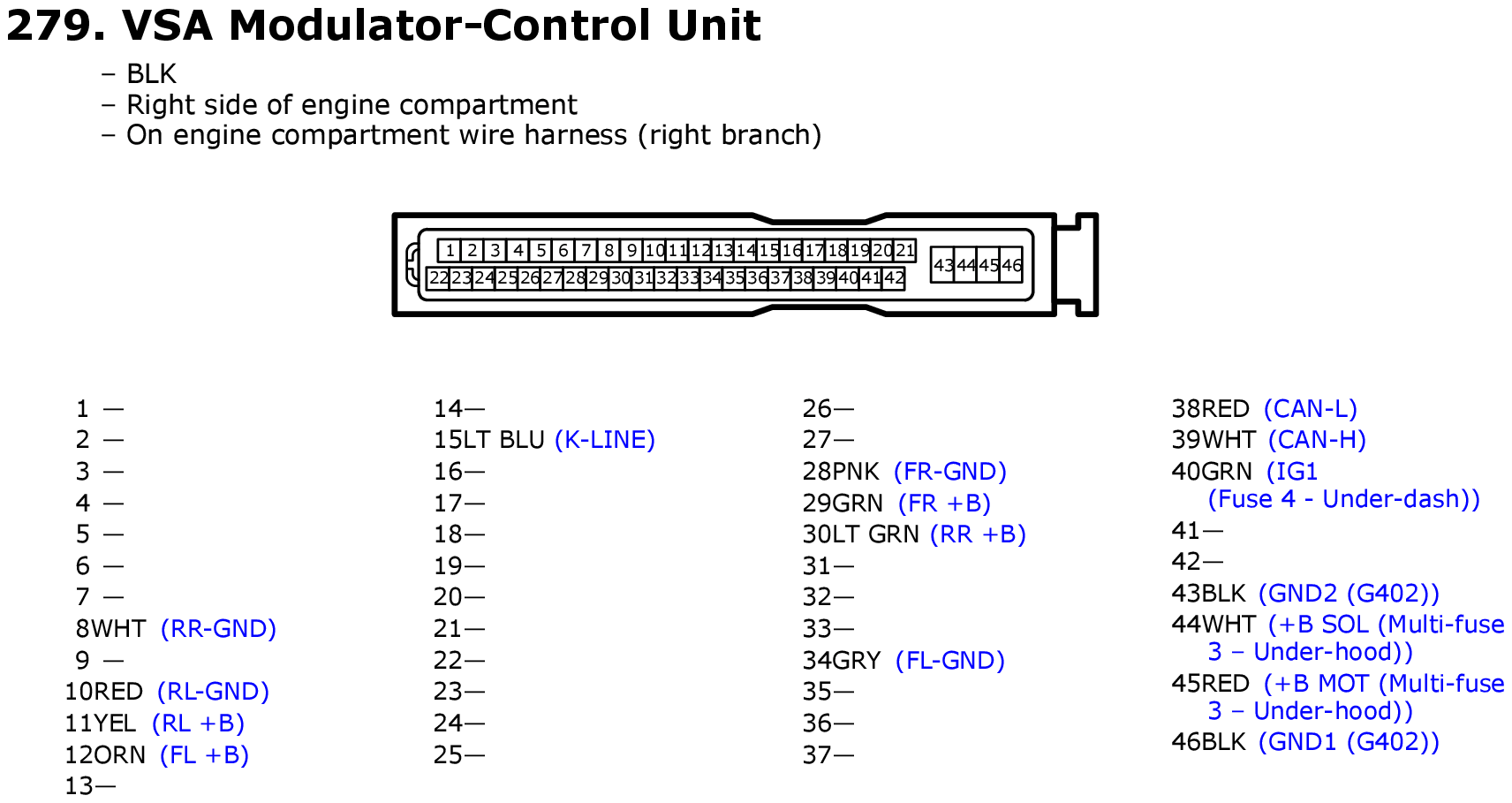

Fig 323: VSA Modulator-Control Unit Connector End View
GHHW8606Courtesy of AMERICAN HONDA MOTOR CO., INC.

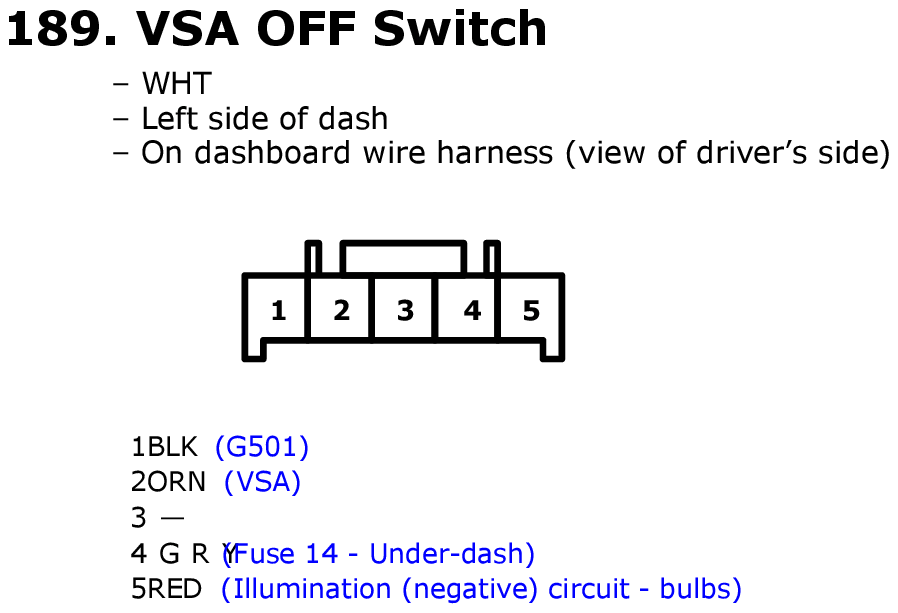

Fig 324: VSA OFF Switch Connector End View
GHHW8516Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 325: VTC Oil Control Solenoid Valve Connector End View
GHHW8444Courtesy of AMERICAN HONDA MOTOR CO., INC.

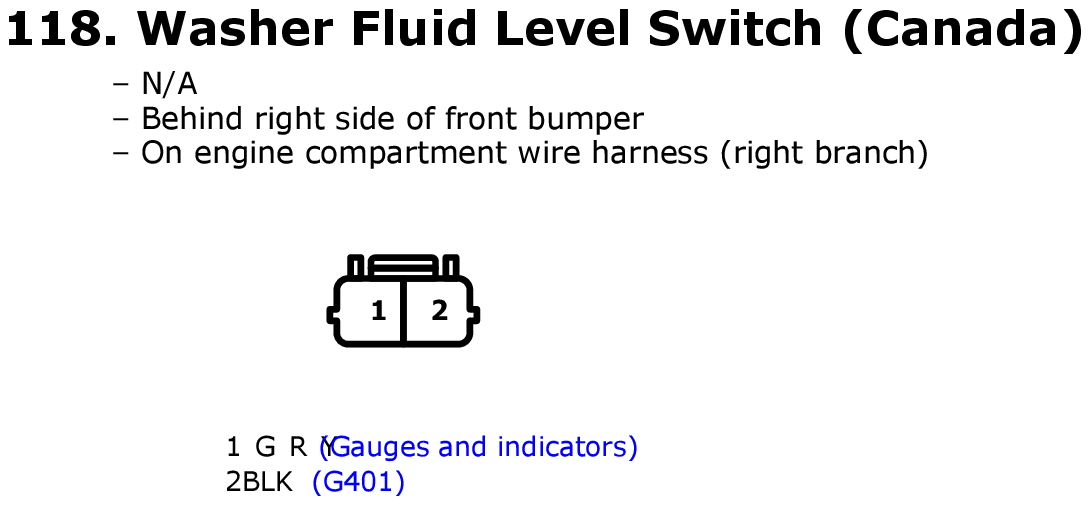

Fig 326: Washer Fluid Level Switch Connector End View
GHHW8445Courtesy of AMERICAN HONDA MOTOR CO., INC.

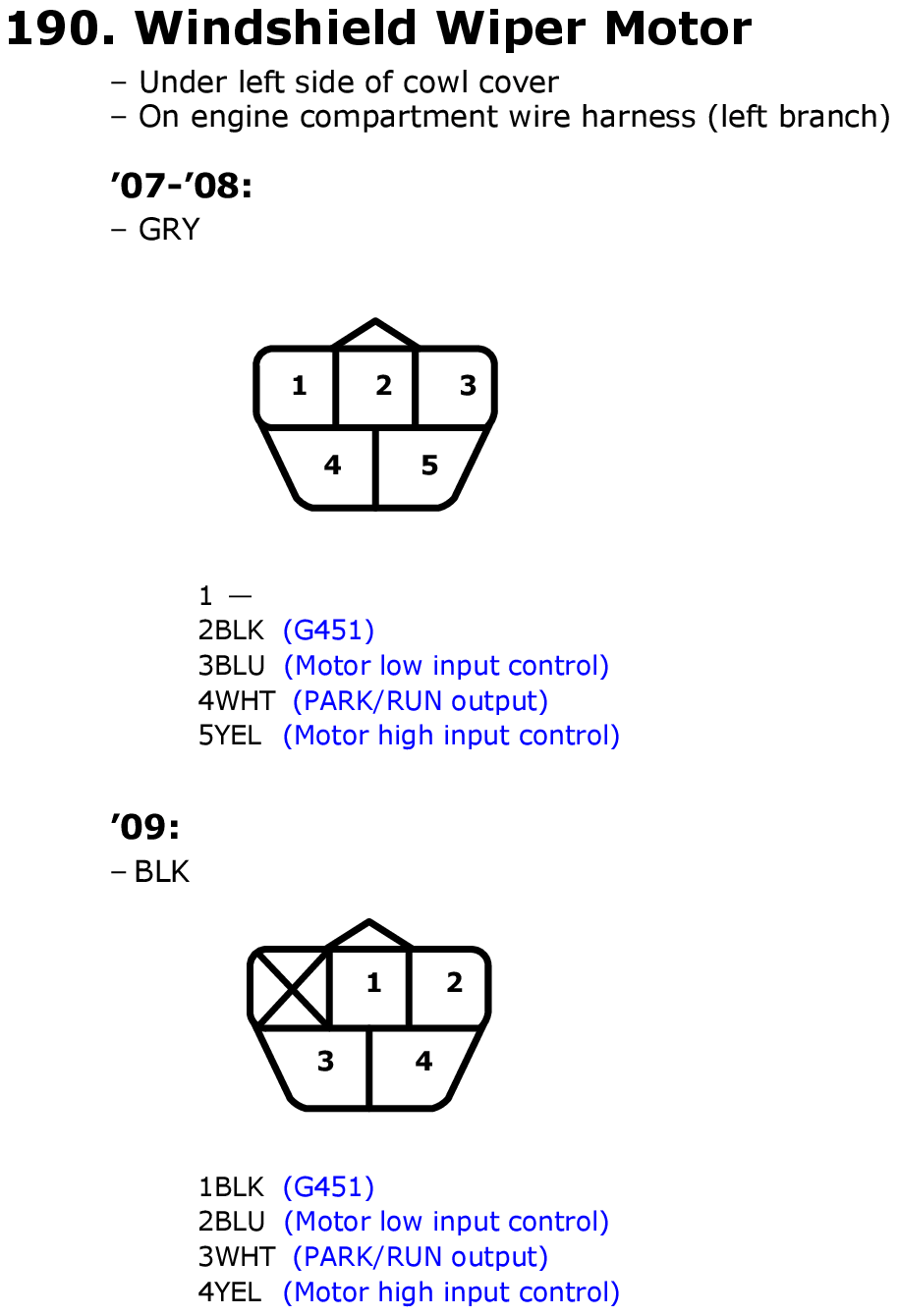

Fig 327: Windshield Wiper Motor Connector End View
GHHW8517Courtesy of AMERICAN HONDA MOTOR CO., INC.

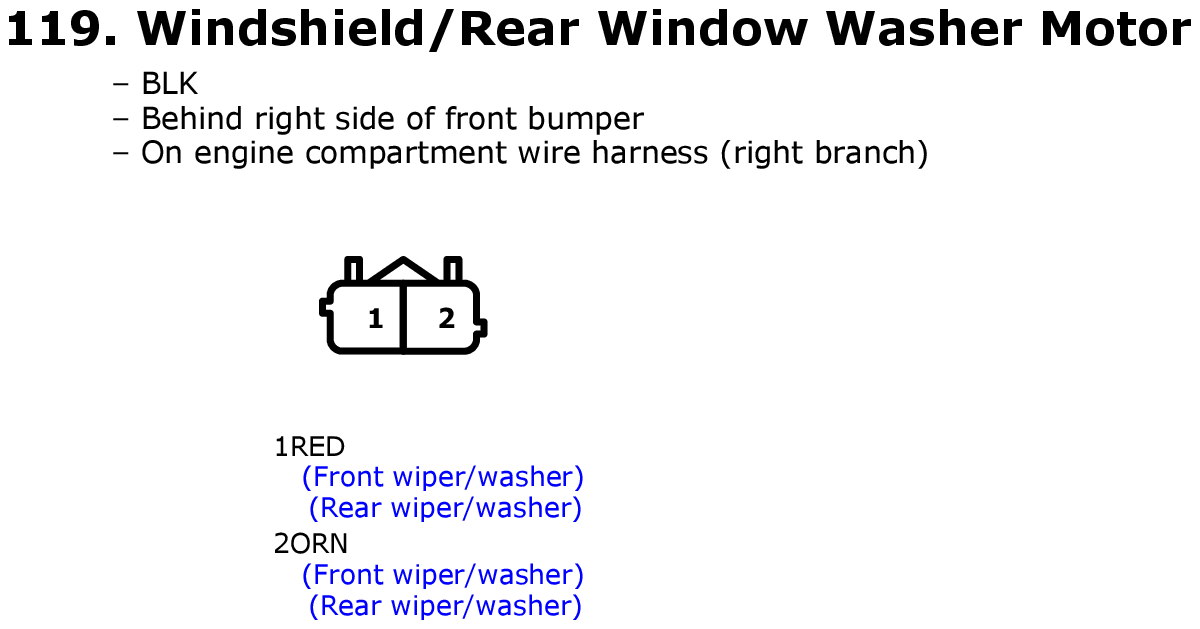

Fig 328: Windshield/Rear Window Washer Motor Connector End View
GHHW8446Courtesy of AMERICAN HONDA MOTOR CO., INC.

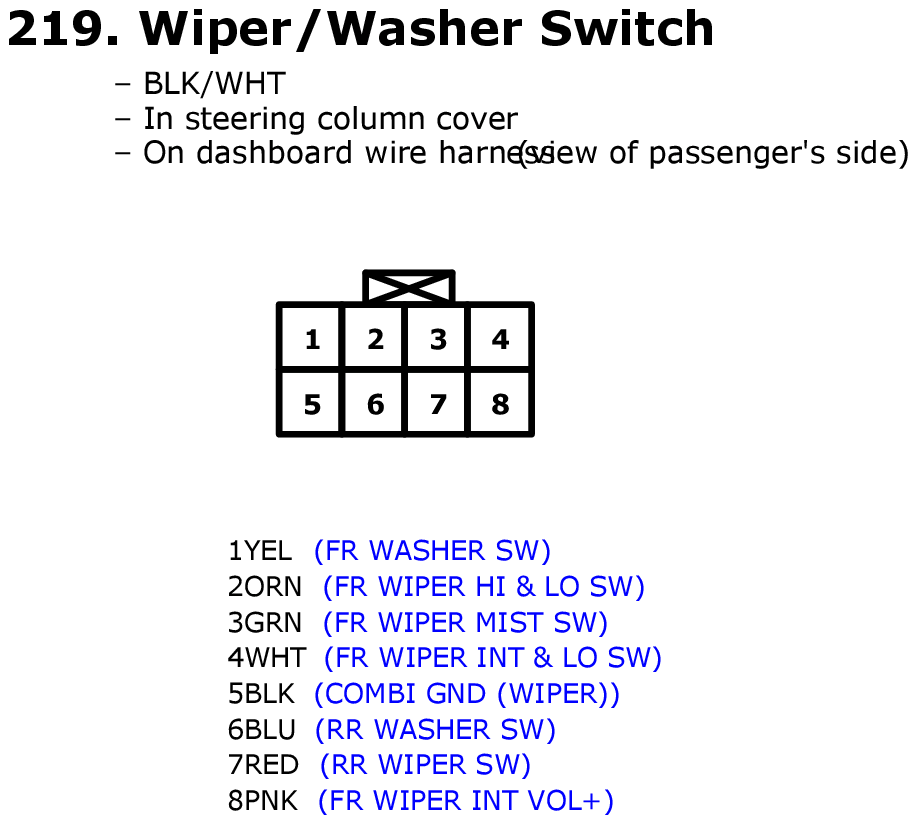

Fig 329: Wiper/Washer Switch Connector End View
GHHW8546Courtesy of AMERICAN HONDA MOTOR CO., INC.

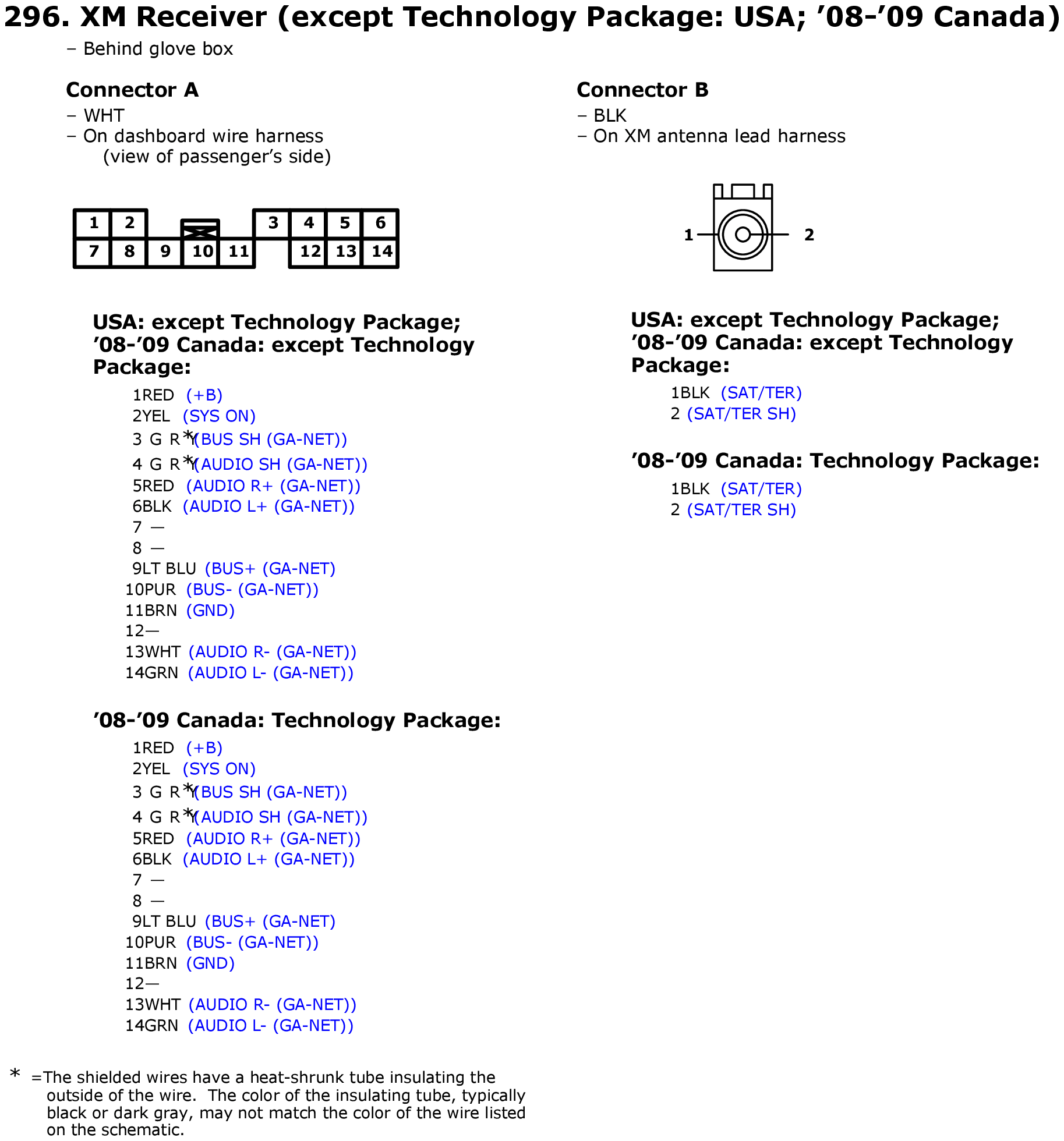

Fig 330: XM Receiver Connector End View
GHHW8623Courtesy of AMERICAN HONDA MOTOR CO., INC.

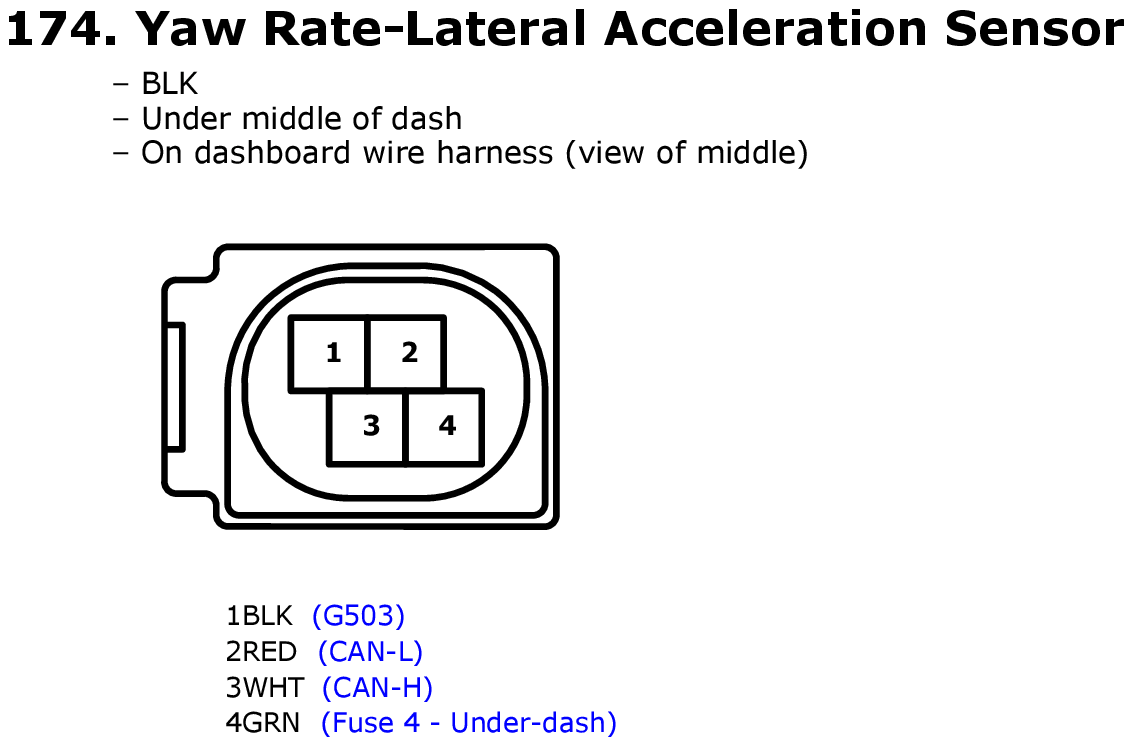

Fig 331: Yaw Rate-Lateral Acceleration Sensor Connector End View
GHHW8501Courtesy of AMERICAN HONDA MOTOR CO., INC.
scientia non olet · About LEMON Manuals
