Alarm Module: Service and Repair

Immobilizer Control Unit-Receiver Replacement

1. Remove the driver's dashboard lower cover.

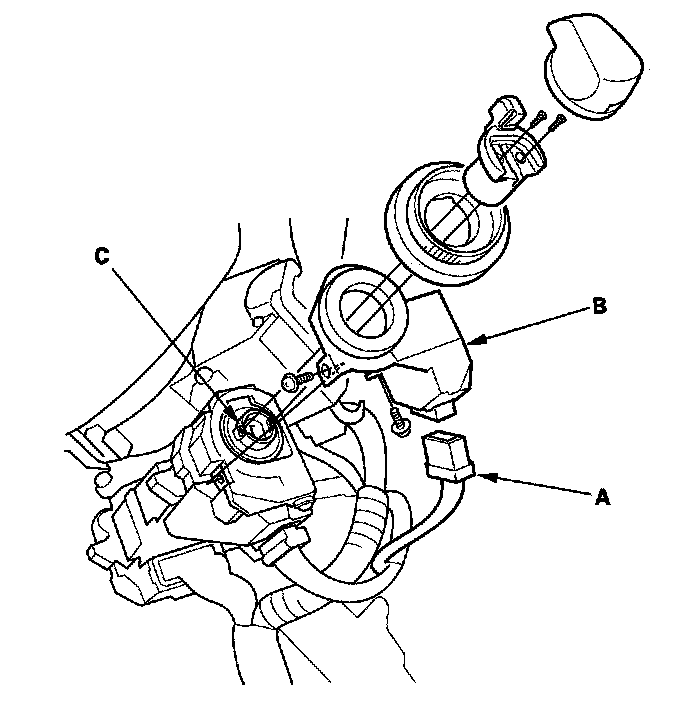

2. Remove the steering column covers.
3. Remove the ignition switch knob.




4. Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).
5. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (C).
6. Install the immobilizer control unit-receiver in the reverse order of removal.
7. After replacement. check the immobilizer system.
