Power Window Switch

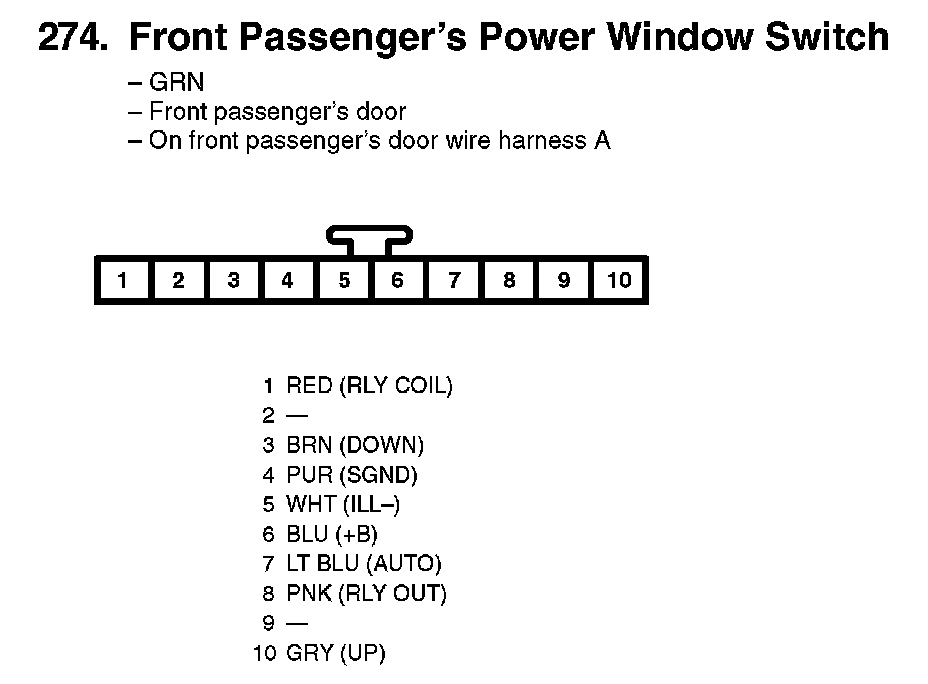

274. Front Passenger's Power Window Switch:

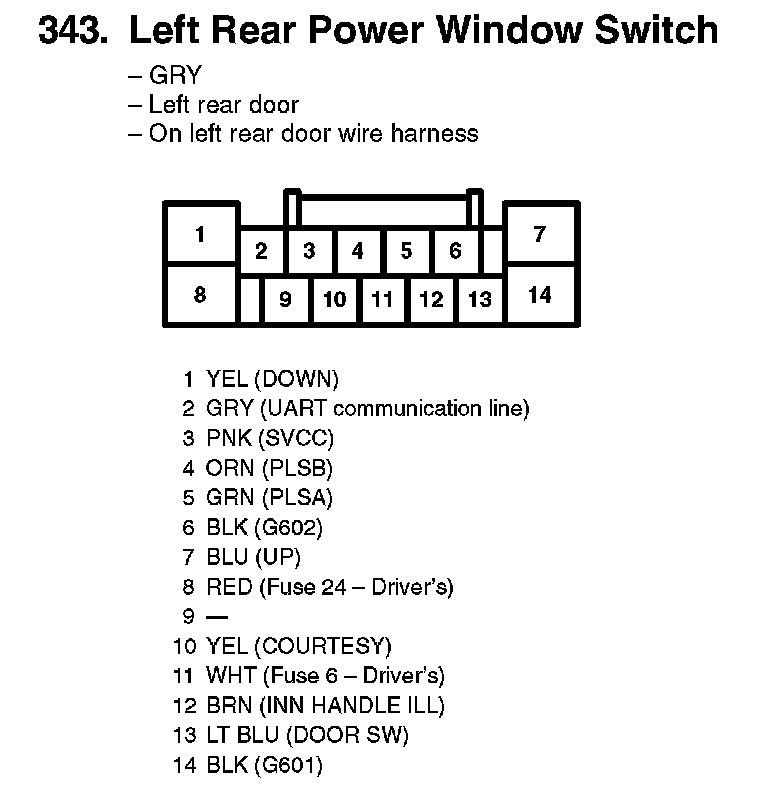

343. Left Rear Power Window Switch:

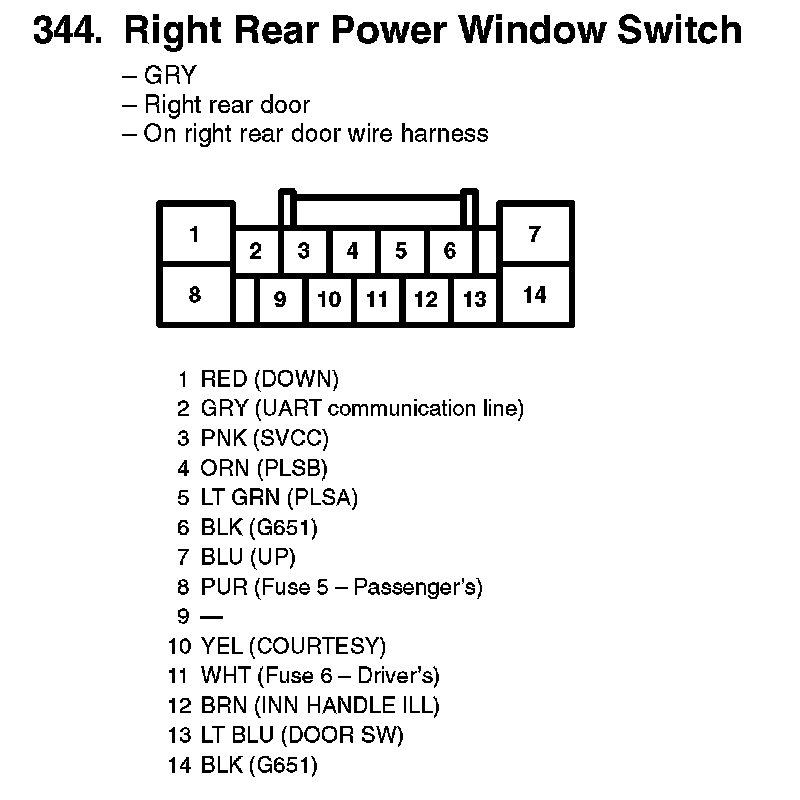

344. Right Rear Power Window Switch:

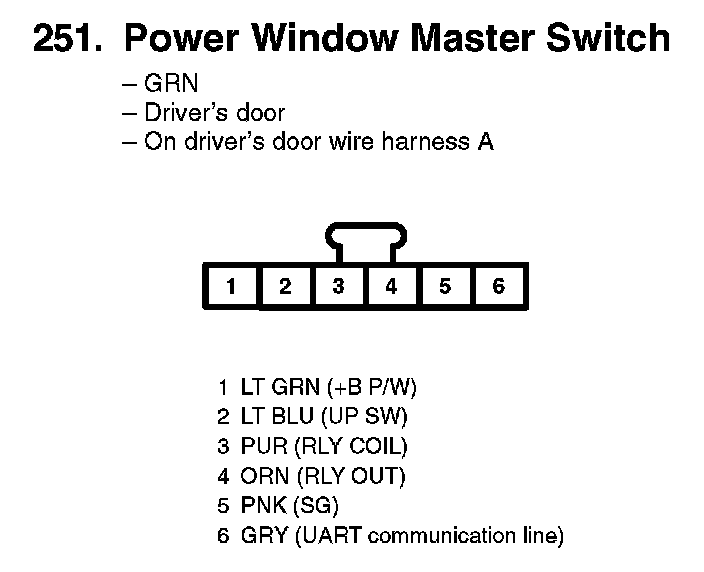

251. Power Window Master Switch:
