System Diagram

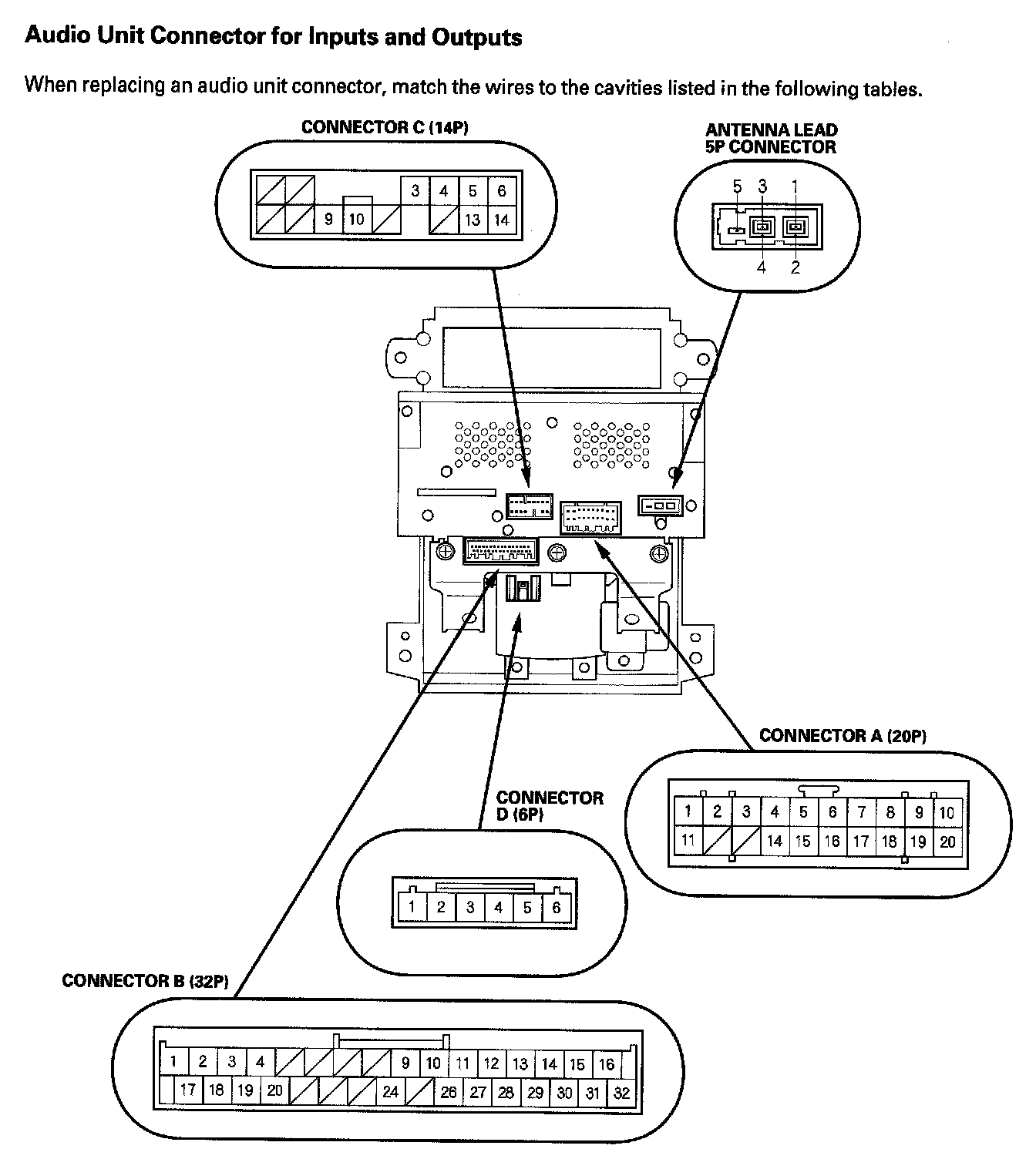

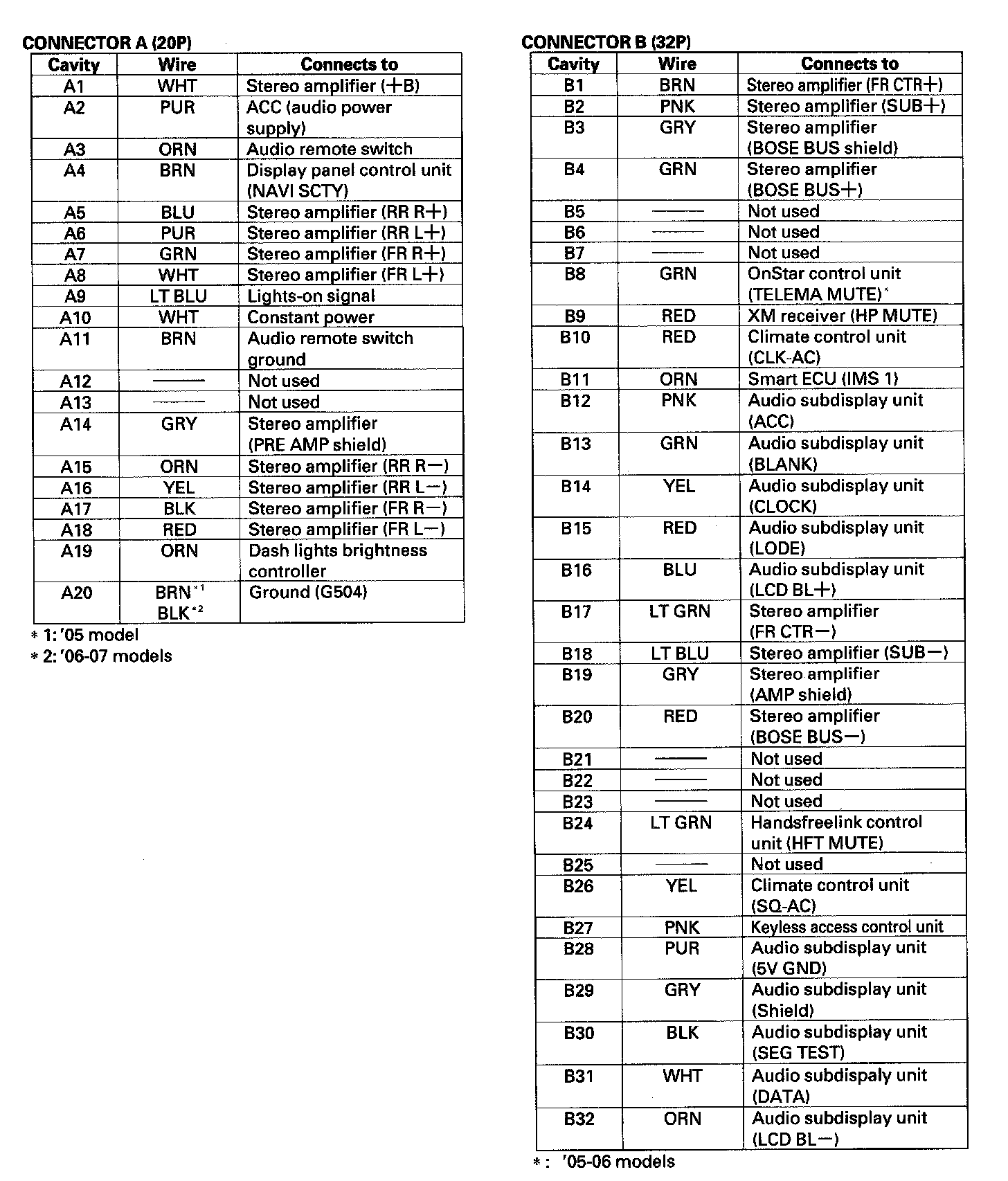

Audio Unit Connector For Inputs And Outputs Part 1:

Audio Unit Connector For Inputs And Outputs Part 2:

Audio Unit Connector For Inputs And Outputs Part 3:

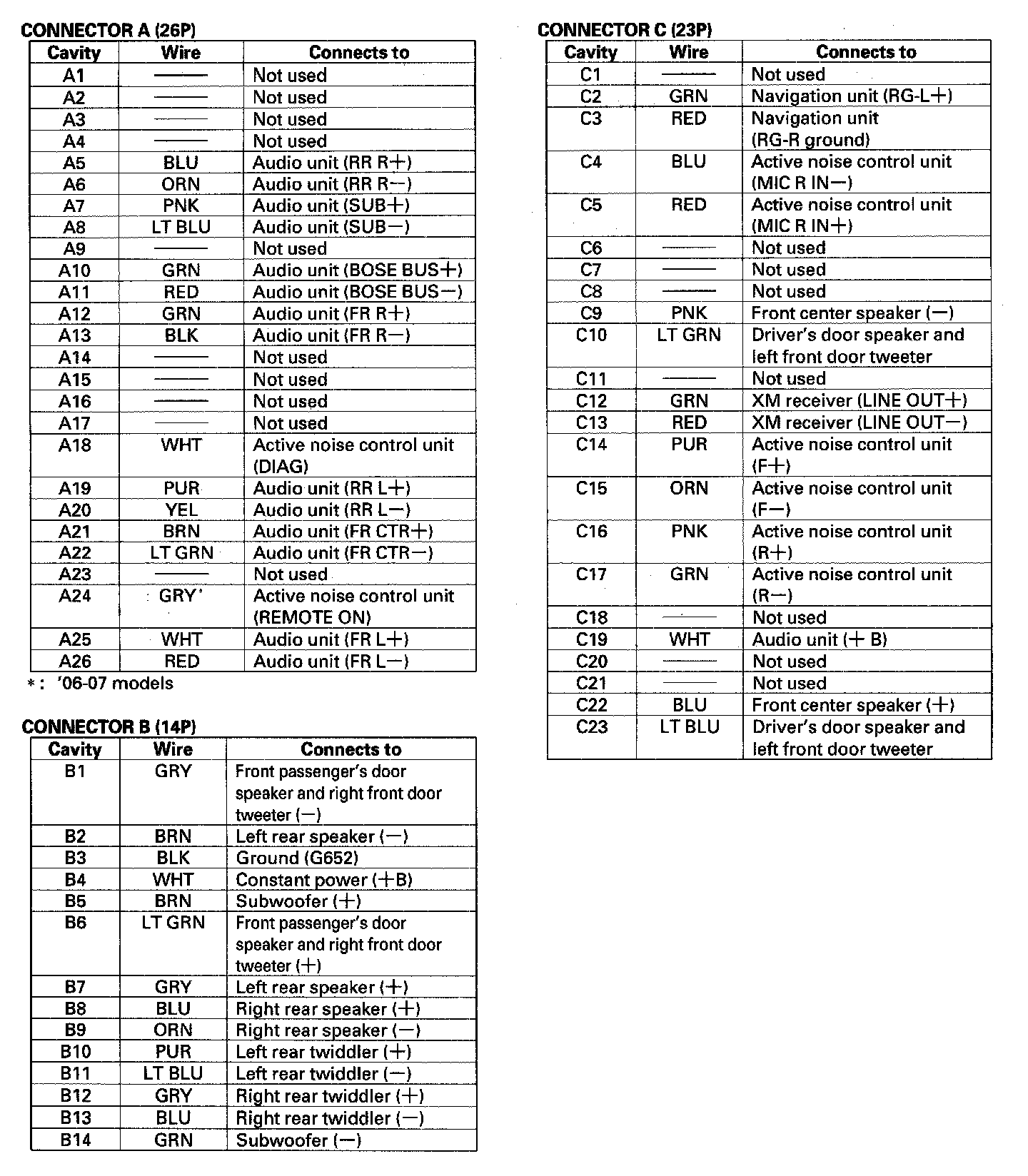

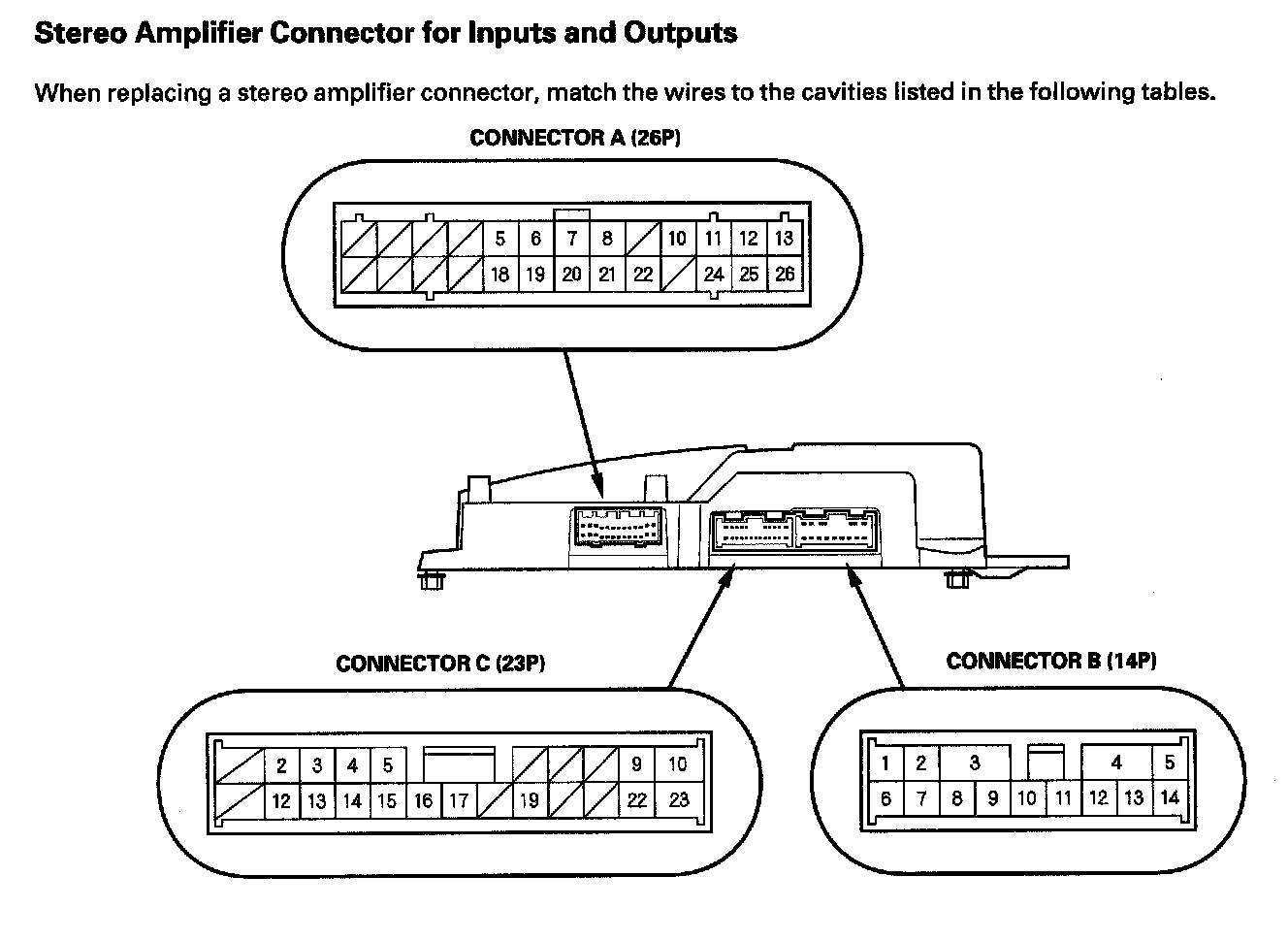

Stereo Amplifier Connector For Inputs And Outputs Part 1:

Stereo Amplifier Connector For Inputs And Outputs Part 2:

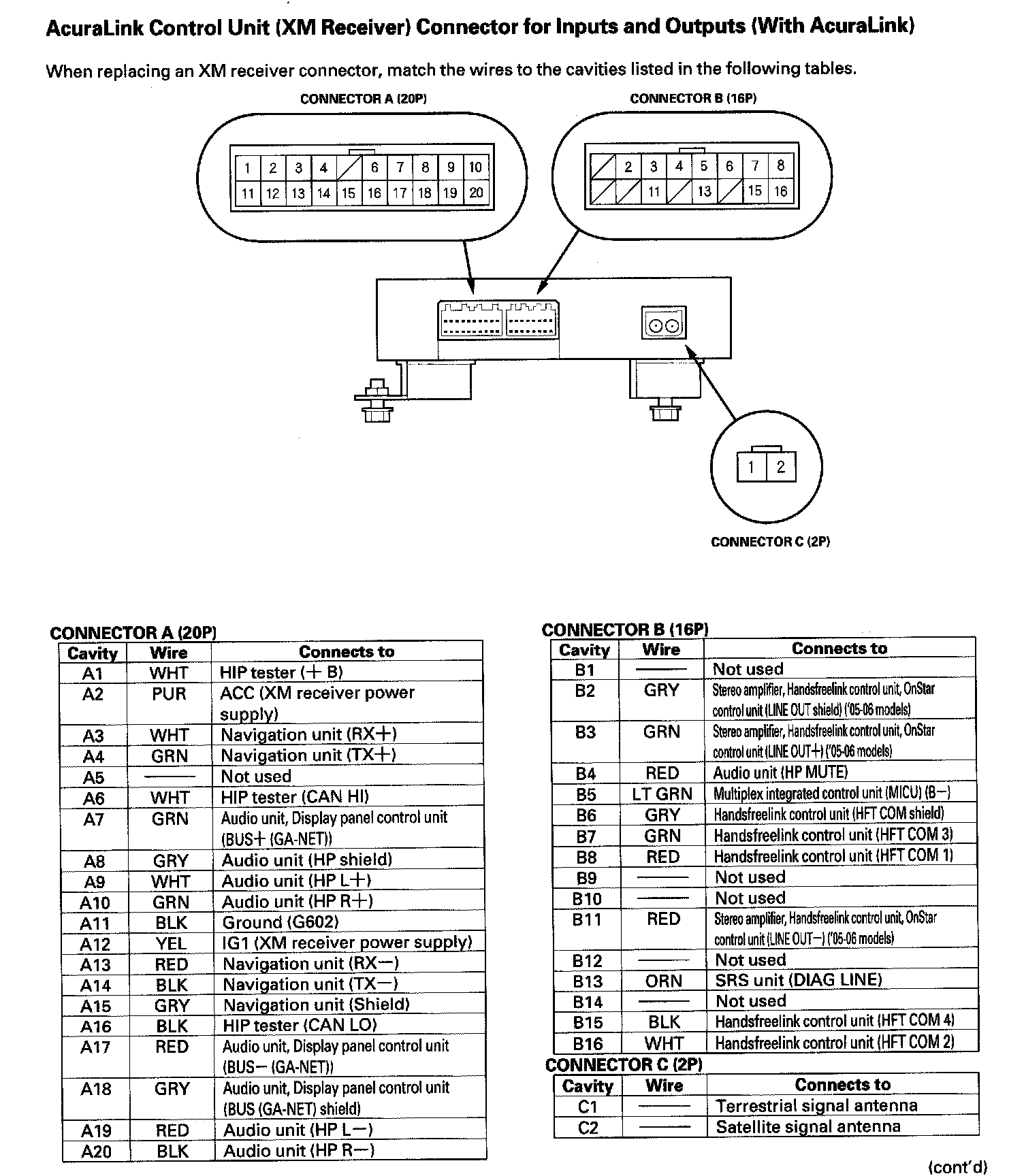

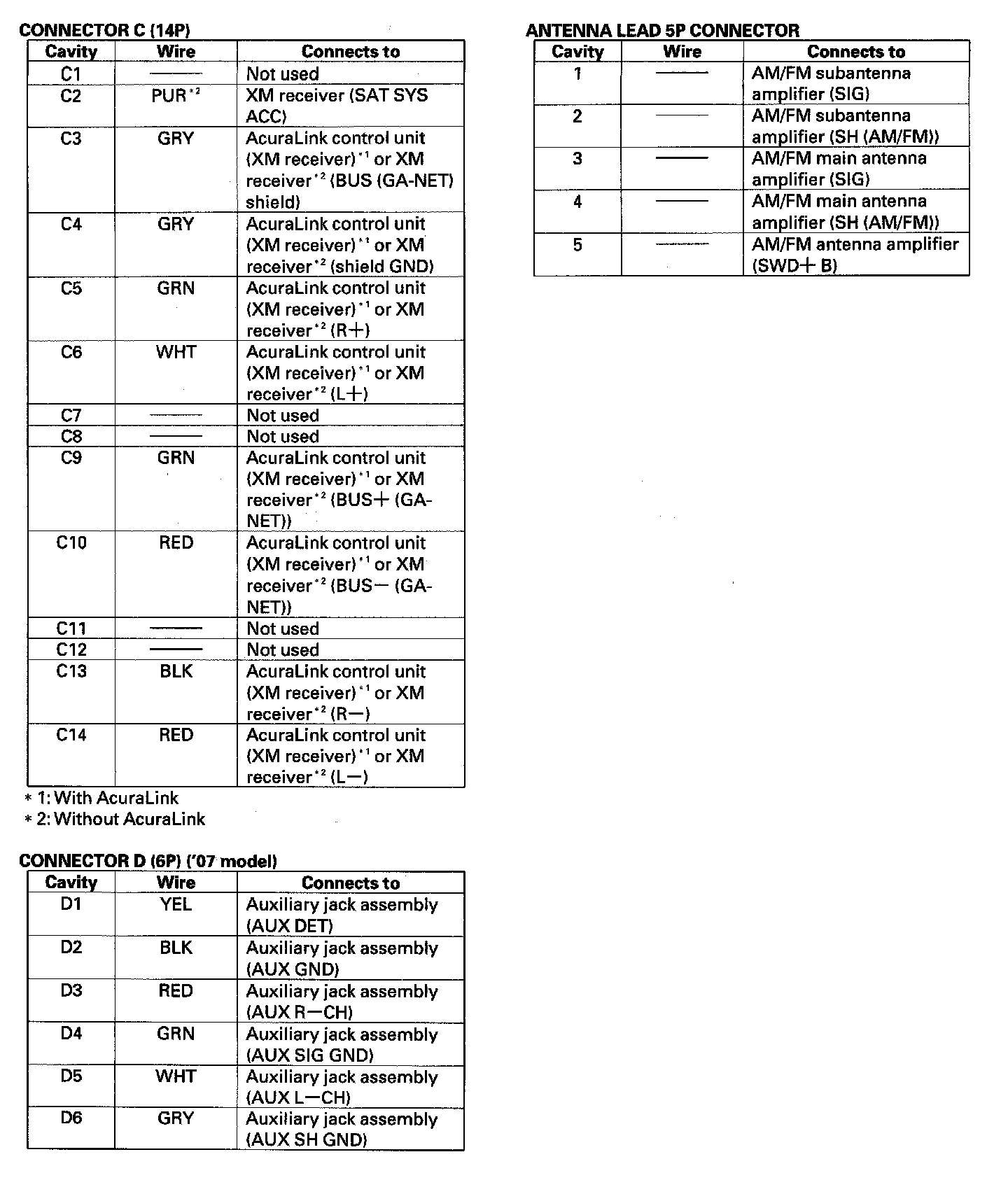

AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink):

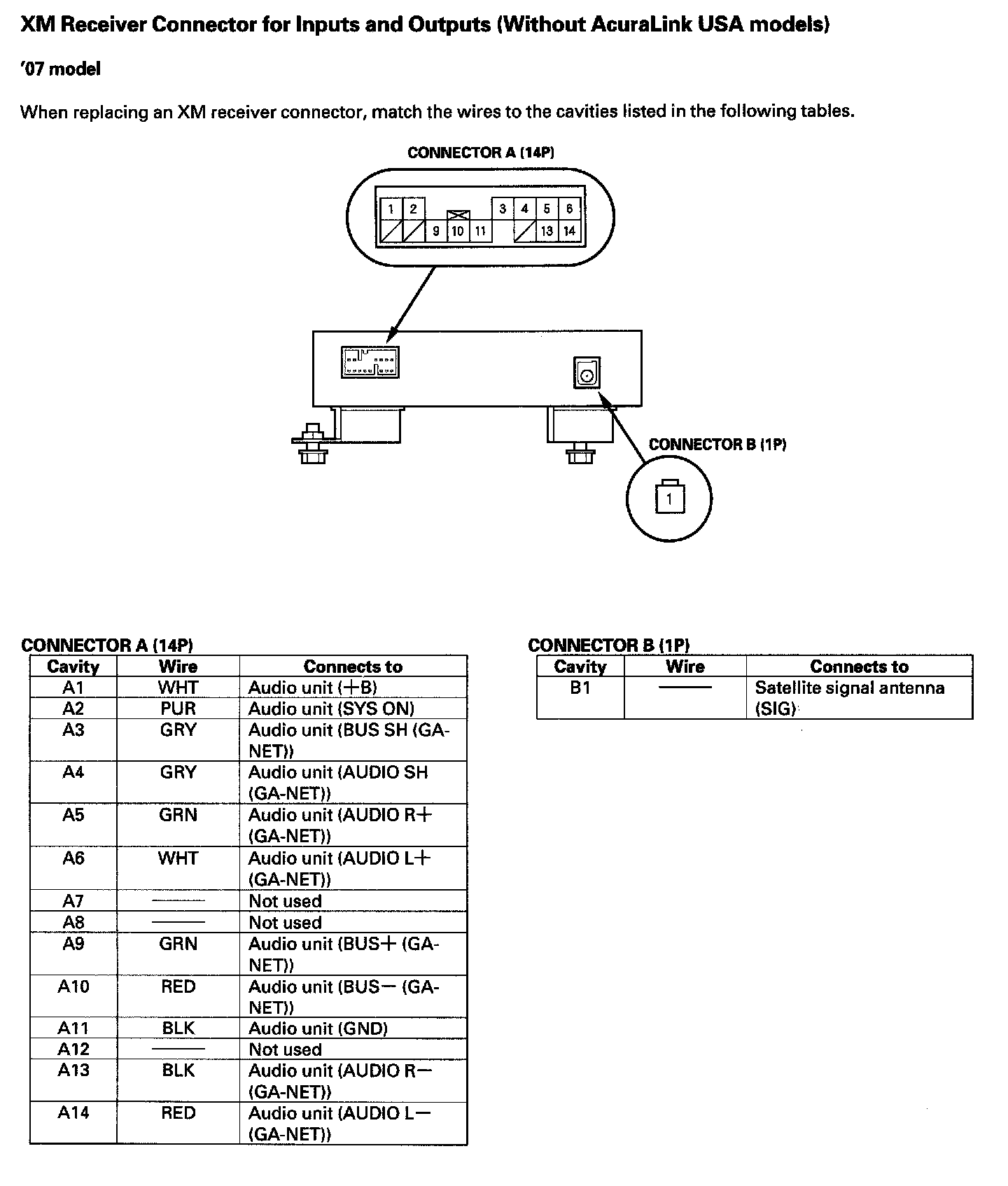

XM Receiver Connector For Inputs And Outputs (Without AcuraLink USA Models):

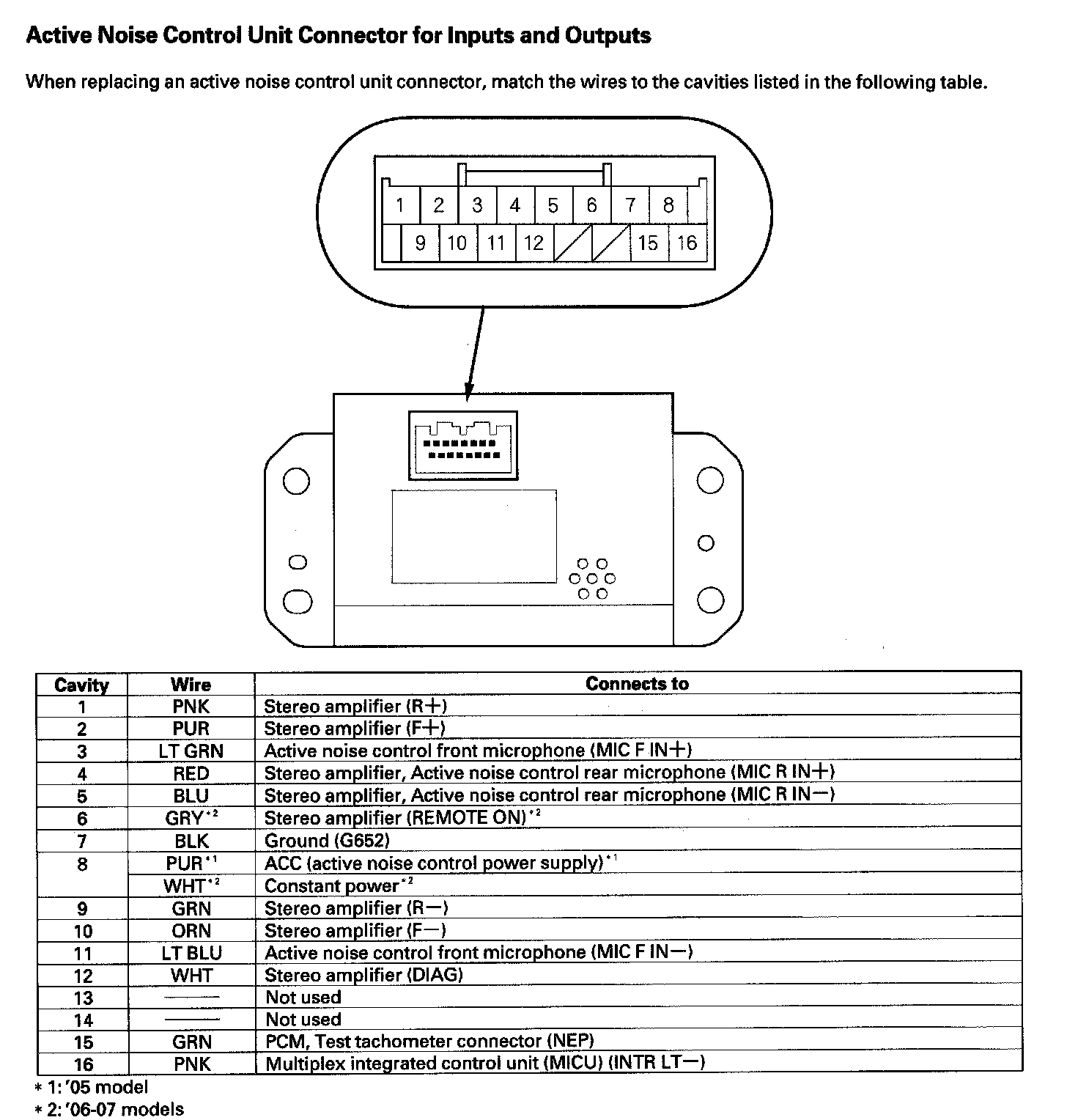

Active Noise Control Unit Connector For Inputs And Outputs:

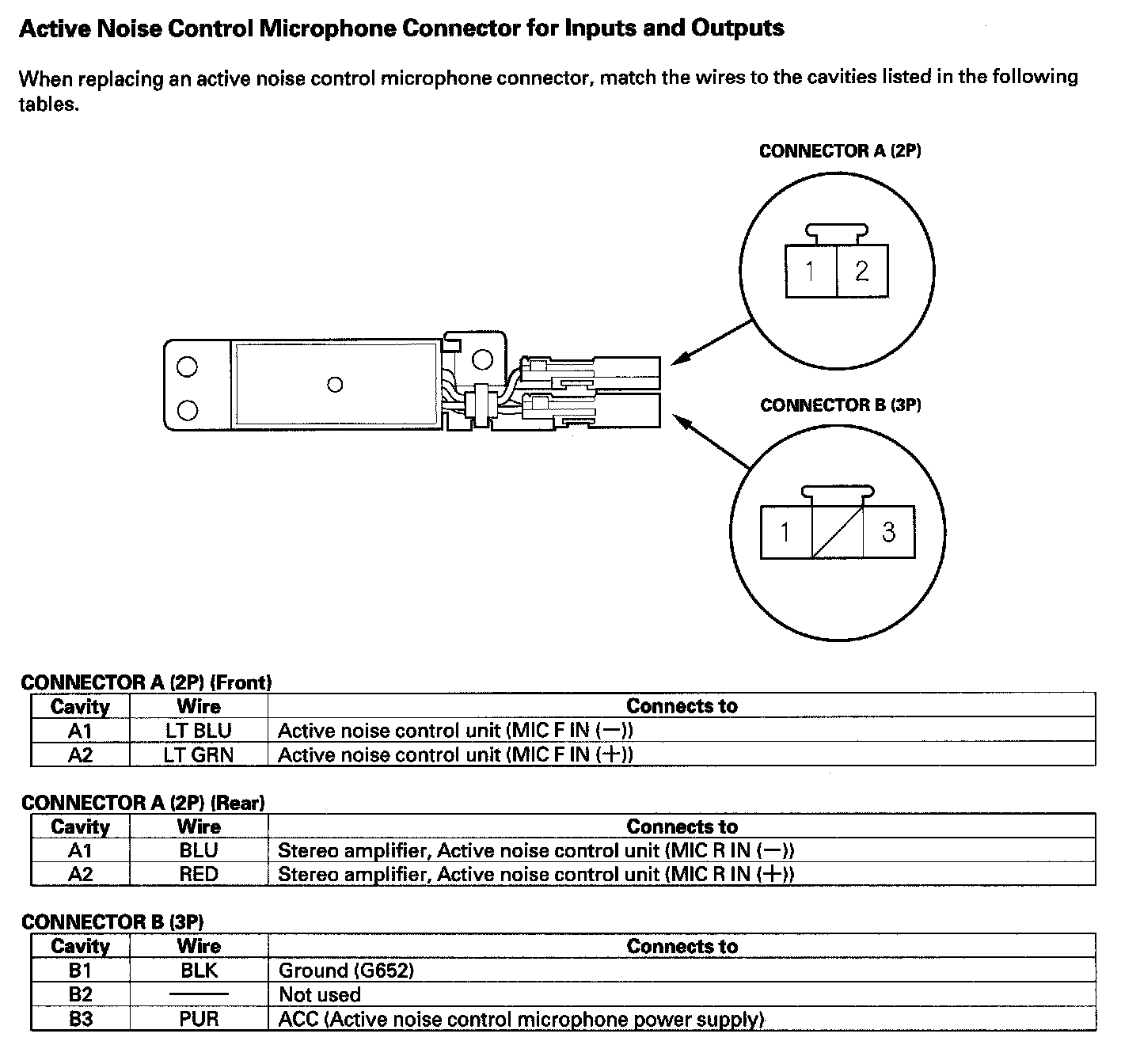

Active Noise Control Microphone Connector For Inputs And Outputs:

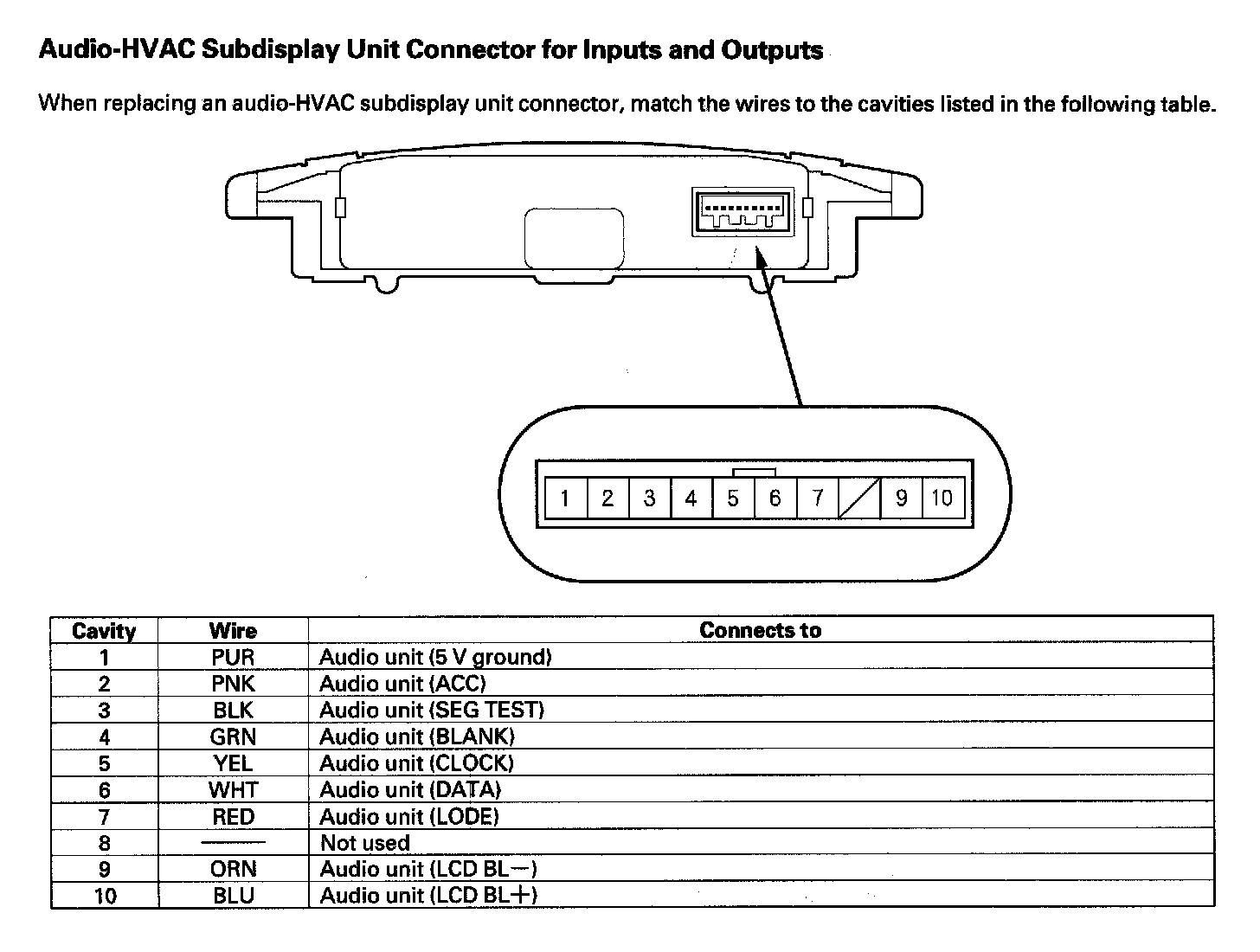

Audio-HVAC Subdisplay Unit Connector For Inputs And Outputs:

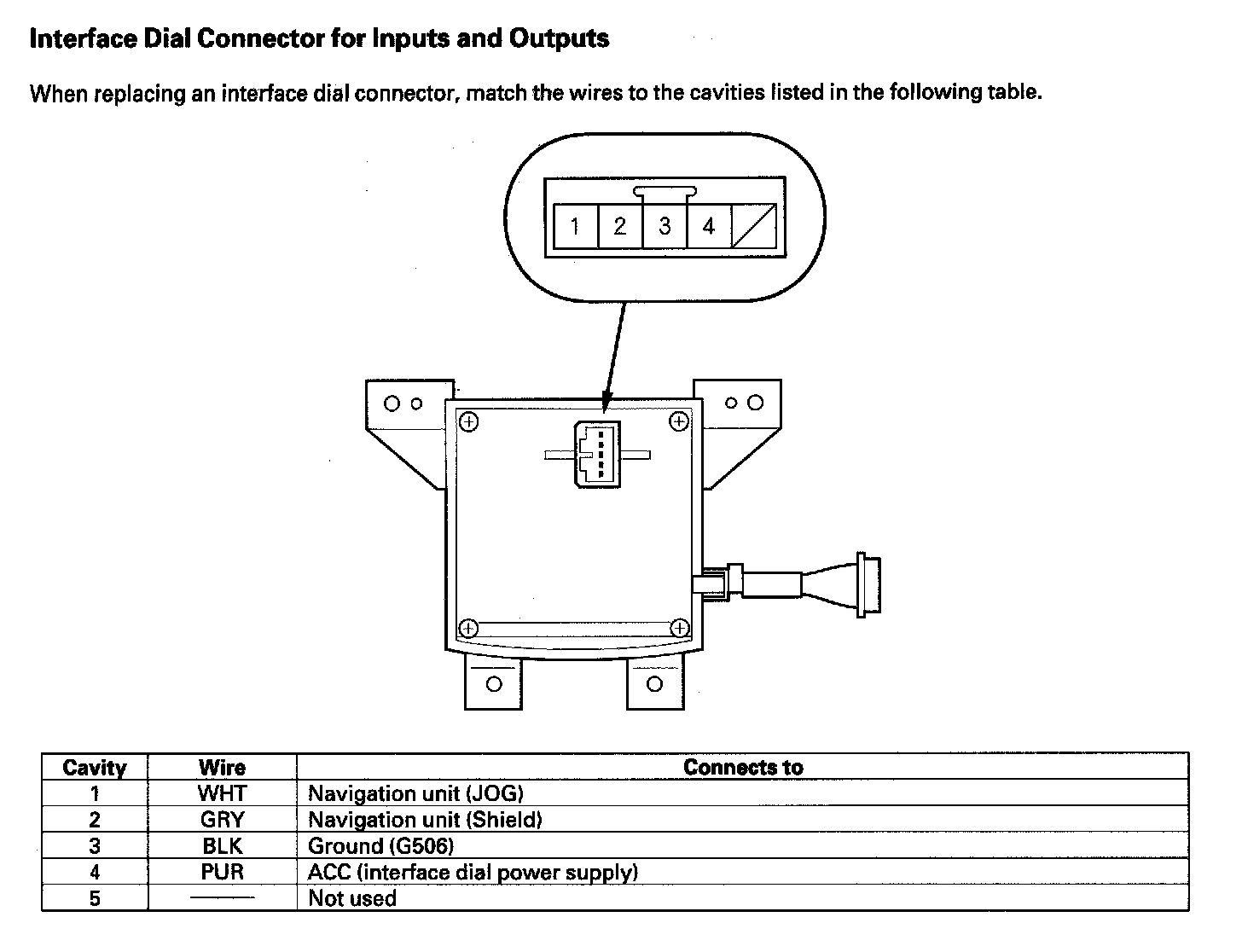

Interface Dial Connector For Inputs And Outputs:

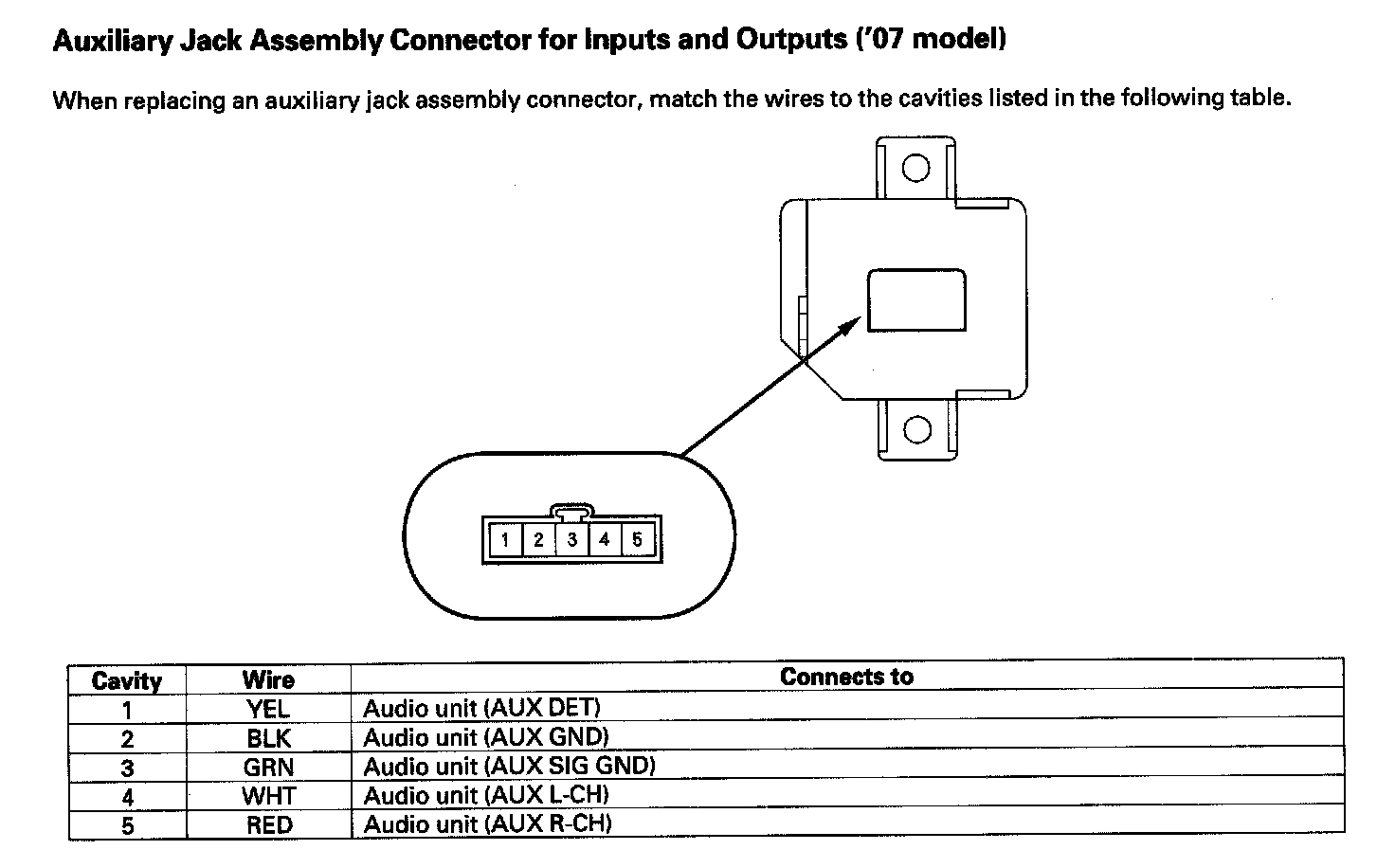

Auxiliary Jack Assembly Connector For Inputs And Outputs:

271. Audio-HVAC Sub Display-Clock:

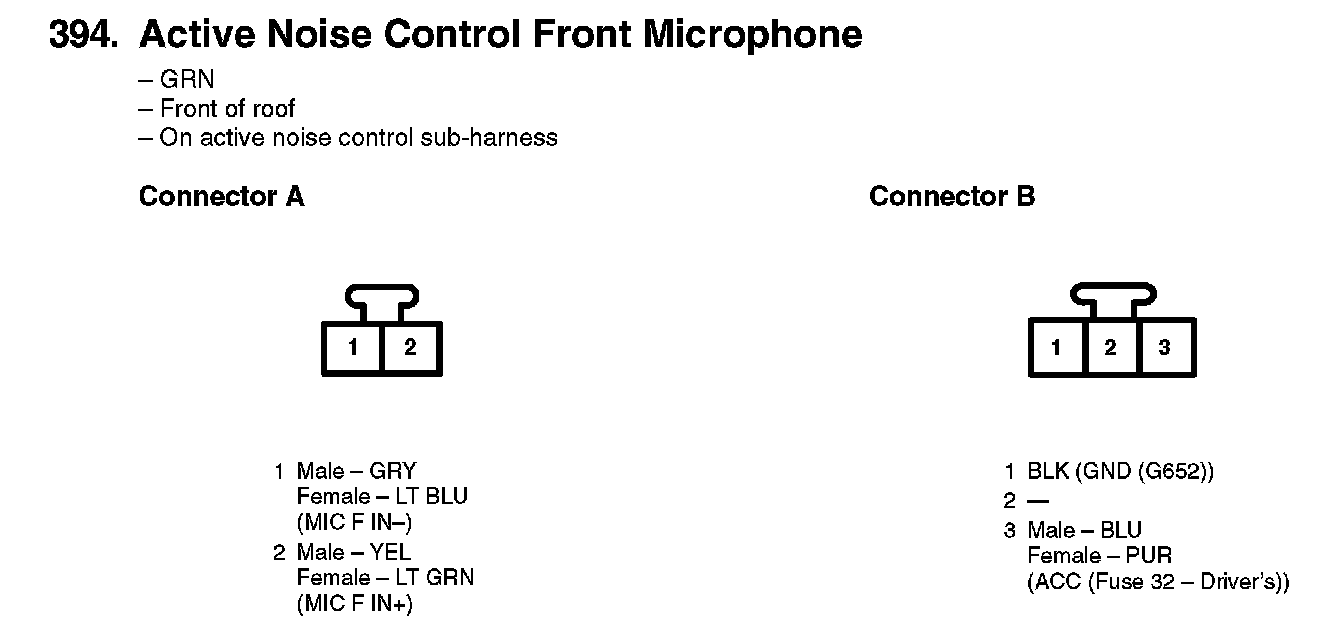

394. Active Noise Control Front Microphone:

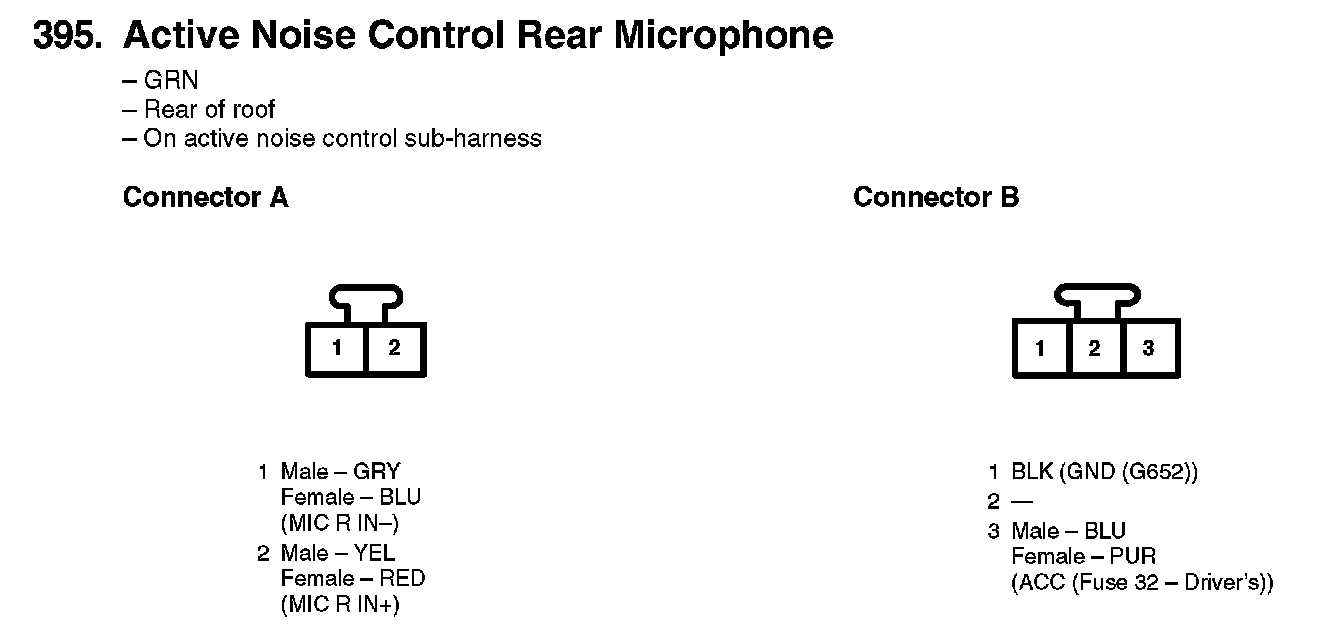

395. Active Noise Control Rear Microphone:

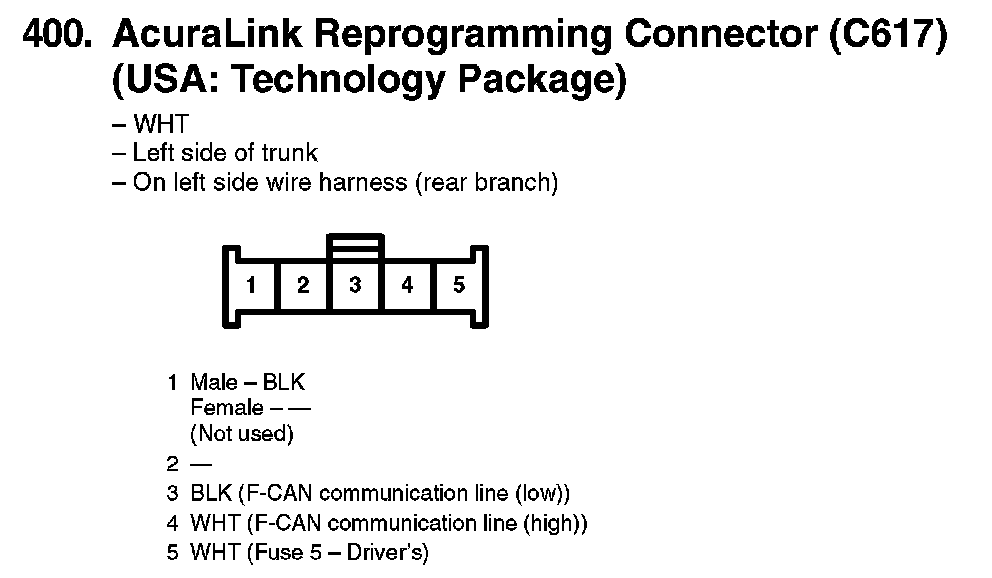

400. AcuraLink Reprogramming Connector (C617) (USA: Technology Package):

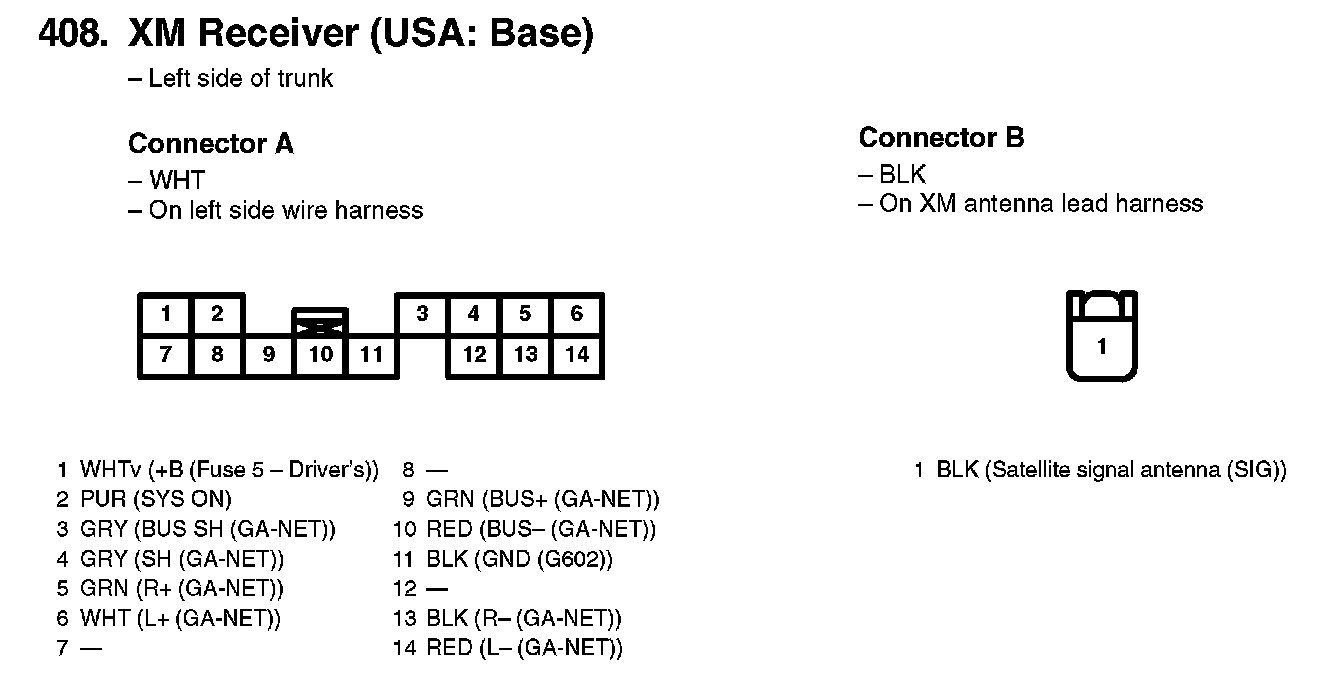

408. XM Receiver (USA: Base):

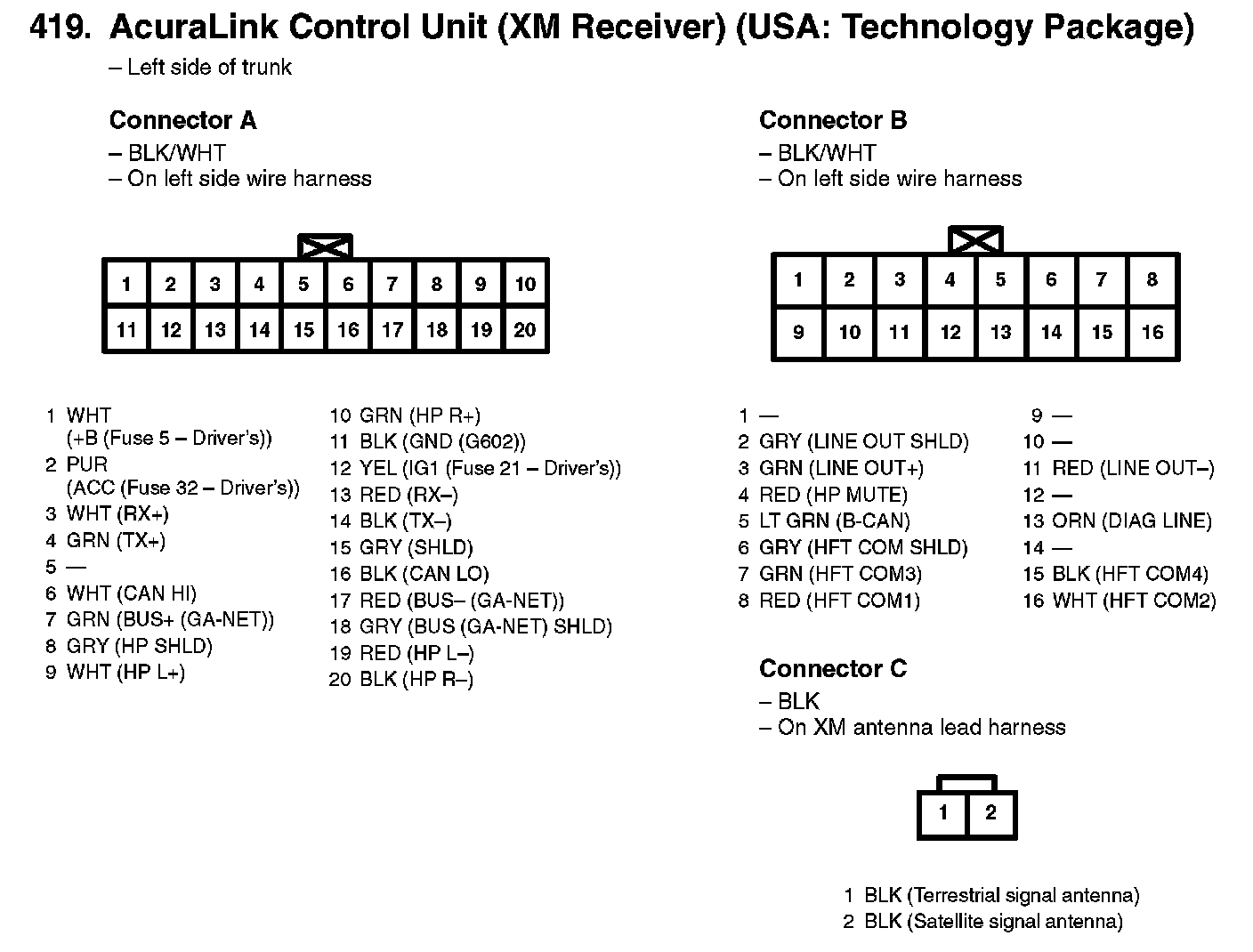

419. AcuraLink Control Unit (XM Receiver) (USA: Technology Package):

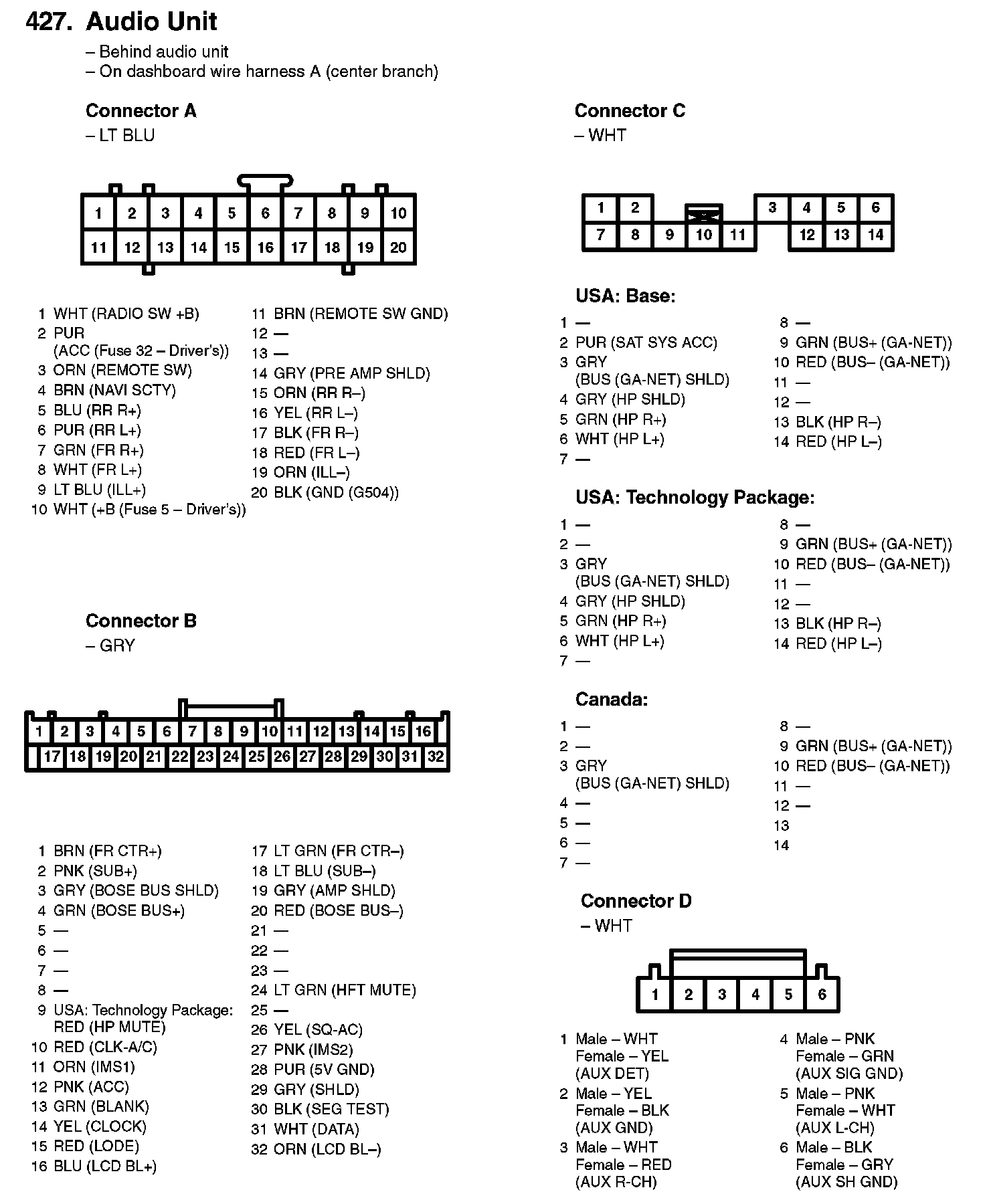

427. Audio Unit:
