Wheel Speed Sensor

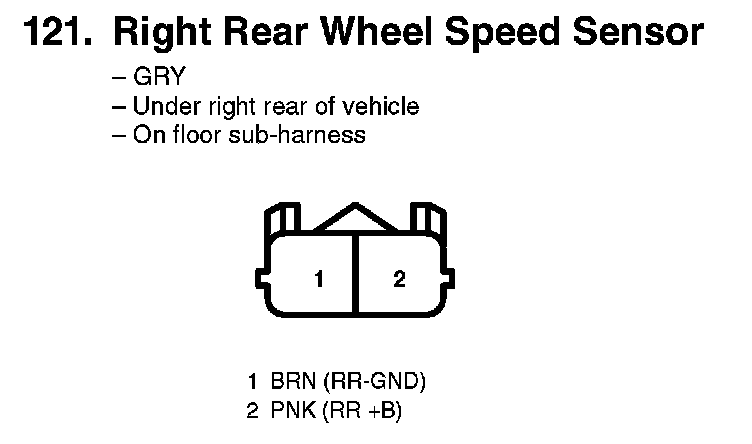

121. Right Rear Wheel Speed Sensor:

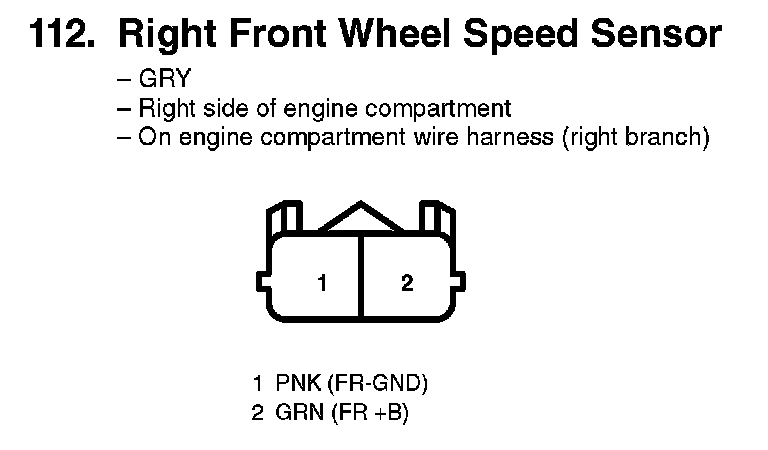

112. Right Front Wheel Speed Sensor:

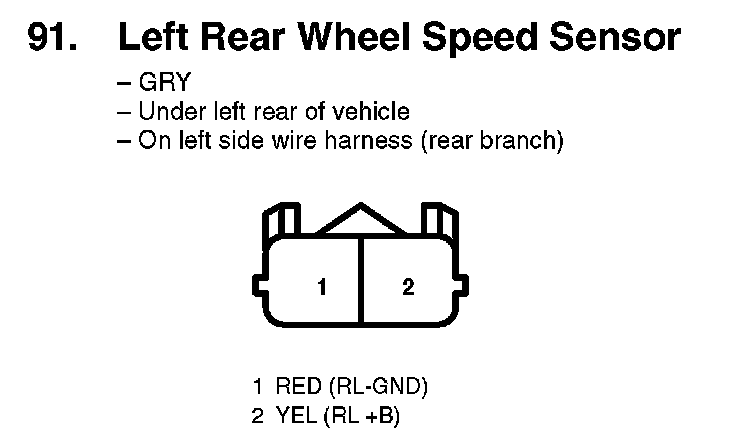

91. Left Rear Wheel Speed Sensor:

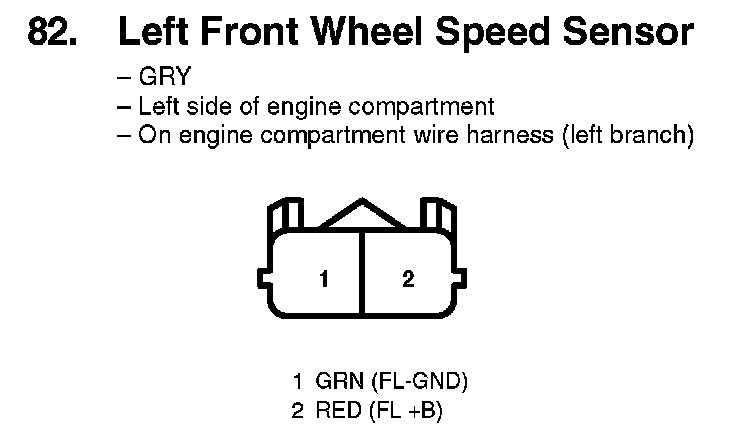

82. Left Front Wheel Speed Sensor:
