Console Sub-harness

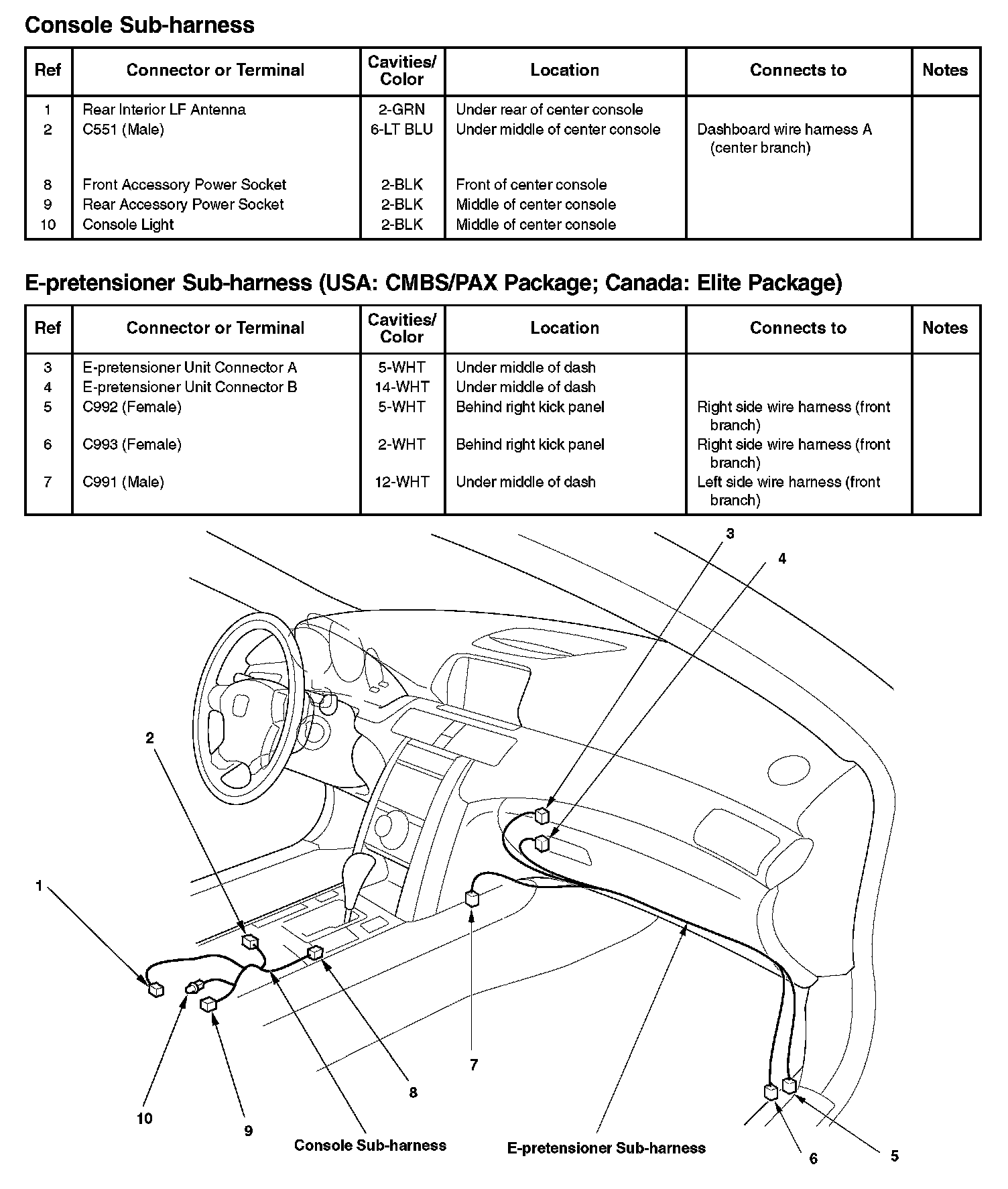

Console Sub-harness/E-pretensioner Sub-harness (USA: CMBS/PAX Package; Canada: Elite Package):
