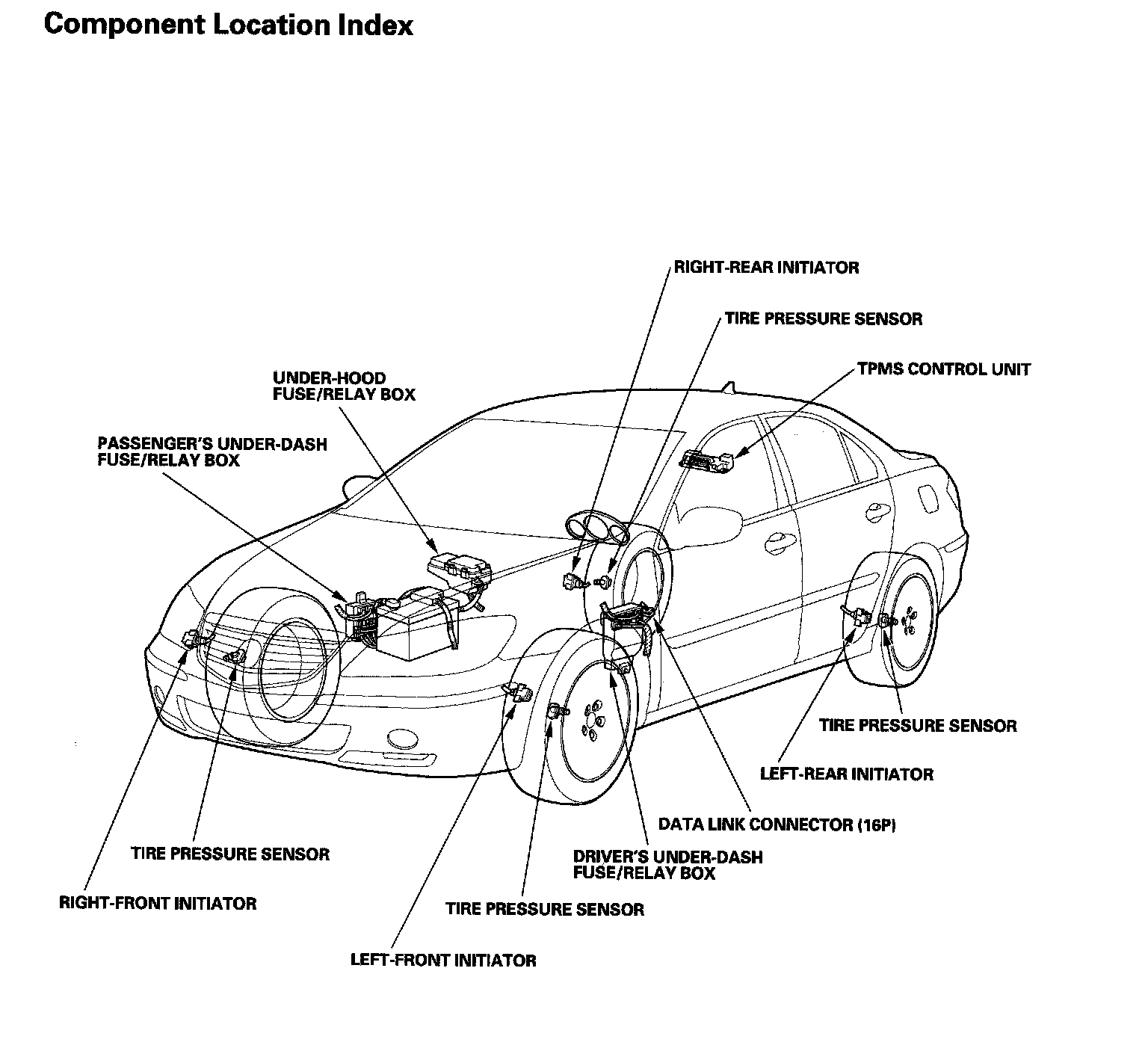

TPMS (Tire Pressure Monitoring System) Component Location Index

Component Location Index

TPMS (Tire Pressure Monitoring System) Component Location Index:
