Headlamp Alignment Control Module: Locations

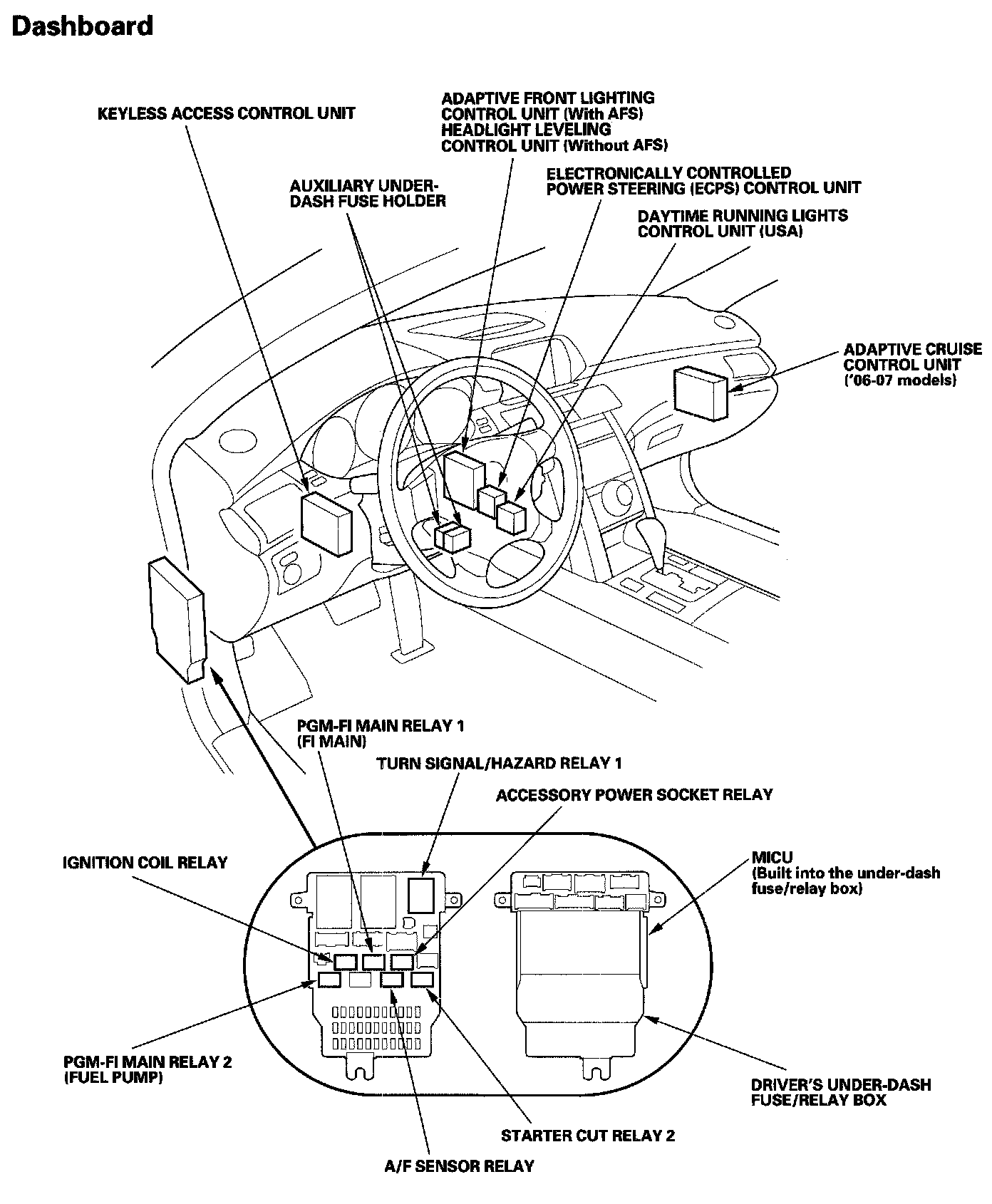

Relay And Control Unit Locations Dashboard:

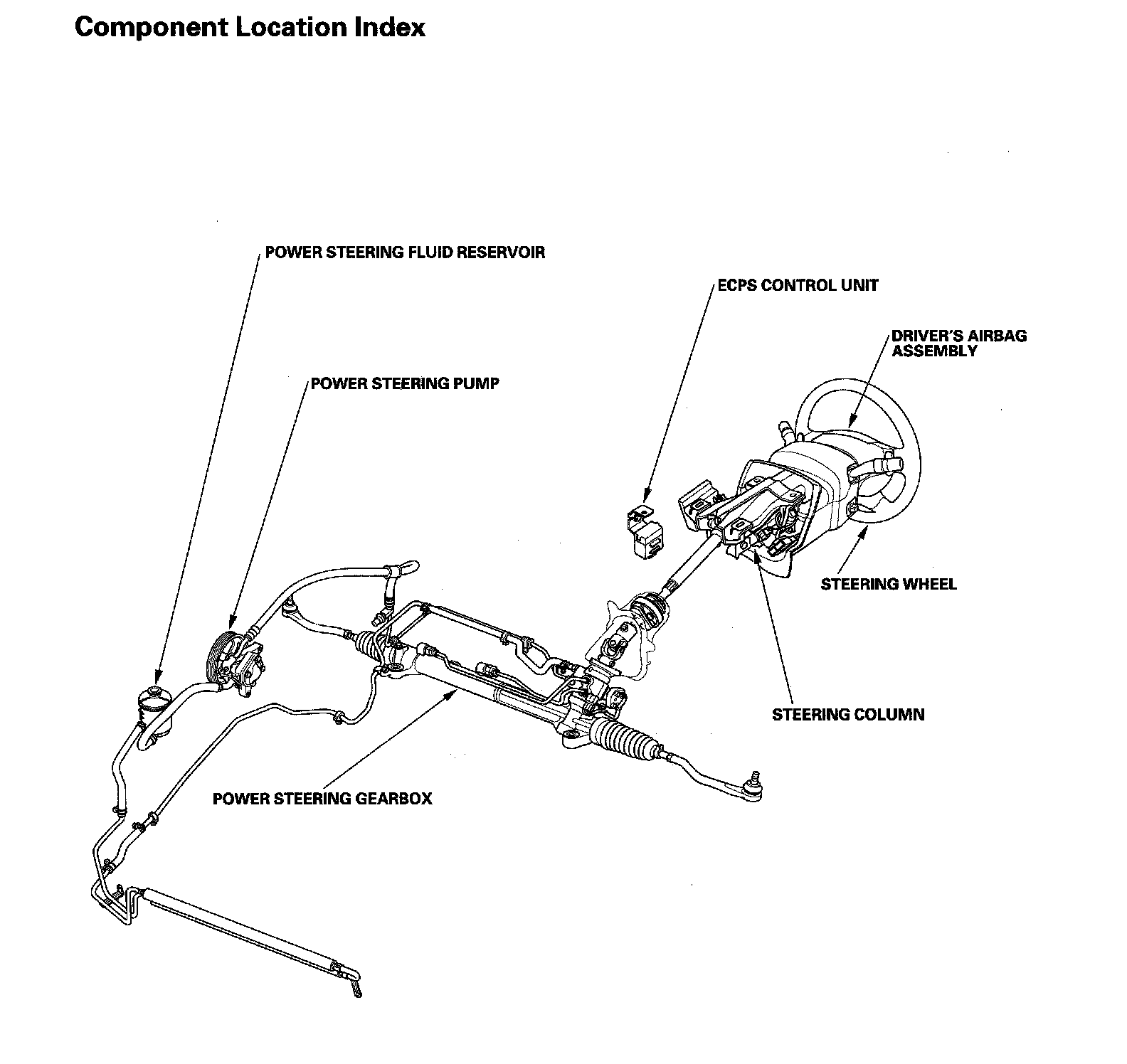

Power Steering Component Location Index:

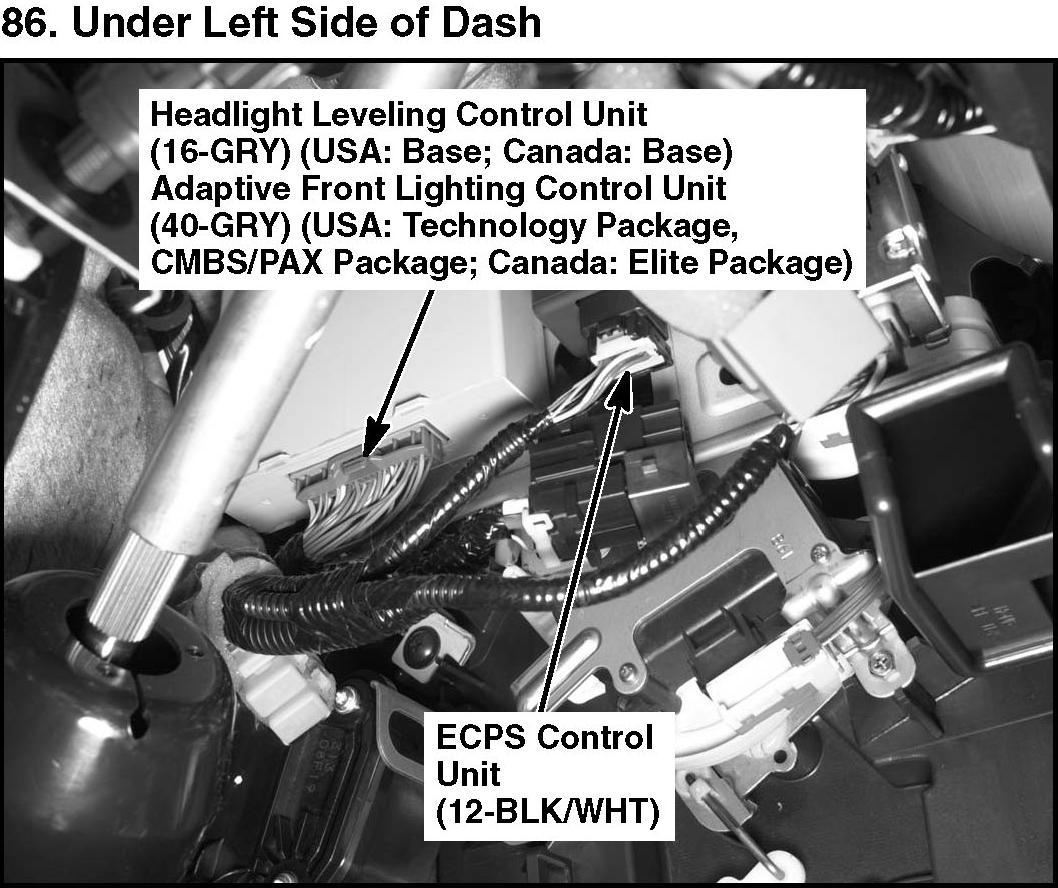

86. Under Left Side Of Dash:
