Seat Belt Control Module: Service and Repair

E-pretensioner Unit Replacement

NOTE:
- Do not turn the ignition switch ON (II) while the e-pretensioner unit connectors are disconnected.
- Do not remove the parking brake cable from the parking brake pedal.

1. Remove the accelerator pedal module.

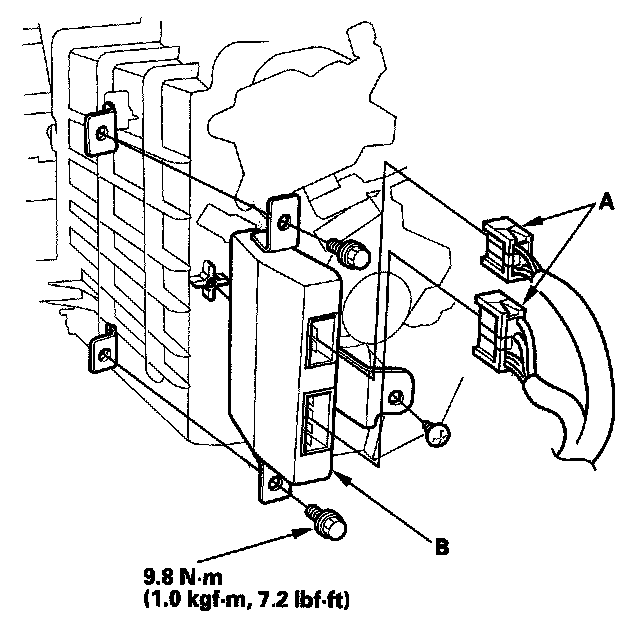

2. Disconnect the connectors (A) from the e-pretensioner unit (B).
3. Remove the e-pretensioner unit from behind the heater unit.
4. Install the unit in the reverse order of removal.
5. After installing the e-pretensioner unit, make sure the SRS indicator comes on for about 6 seconds after turning the ignition switch ON (II), then goes off.
