Overhaul Specifications

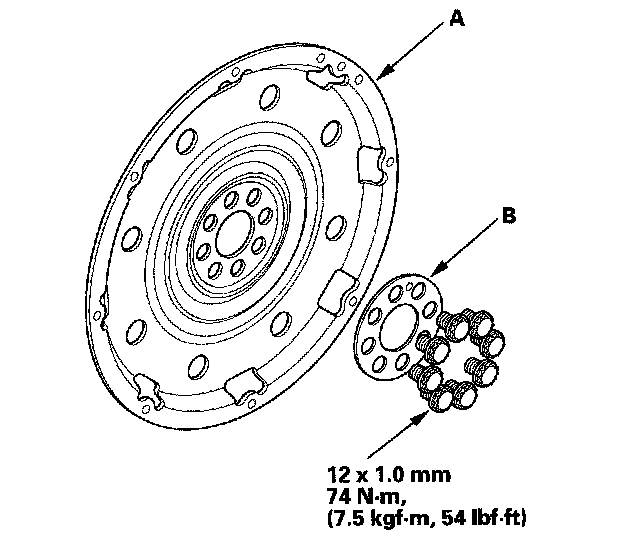

Flex Plate





Tighten the eight bolts in a crisscross pattern in two or more steps.

Transmission

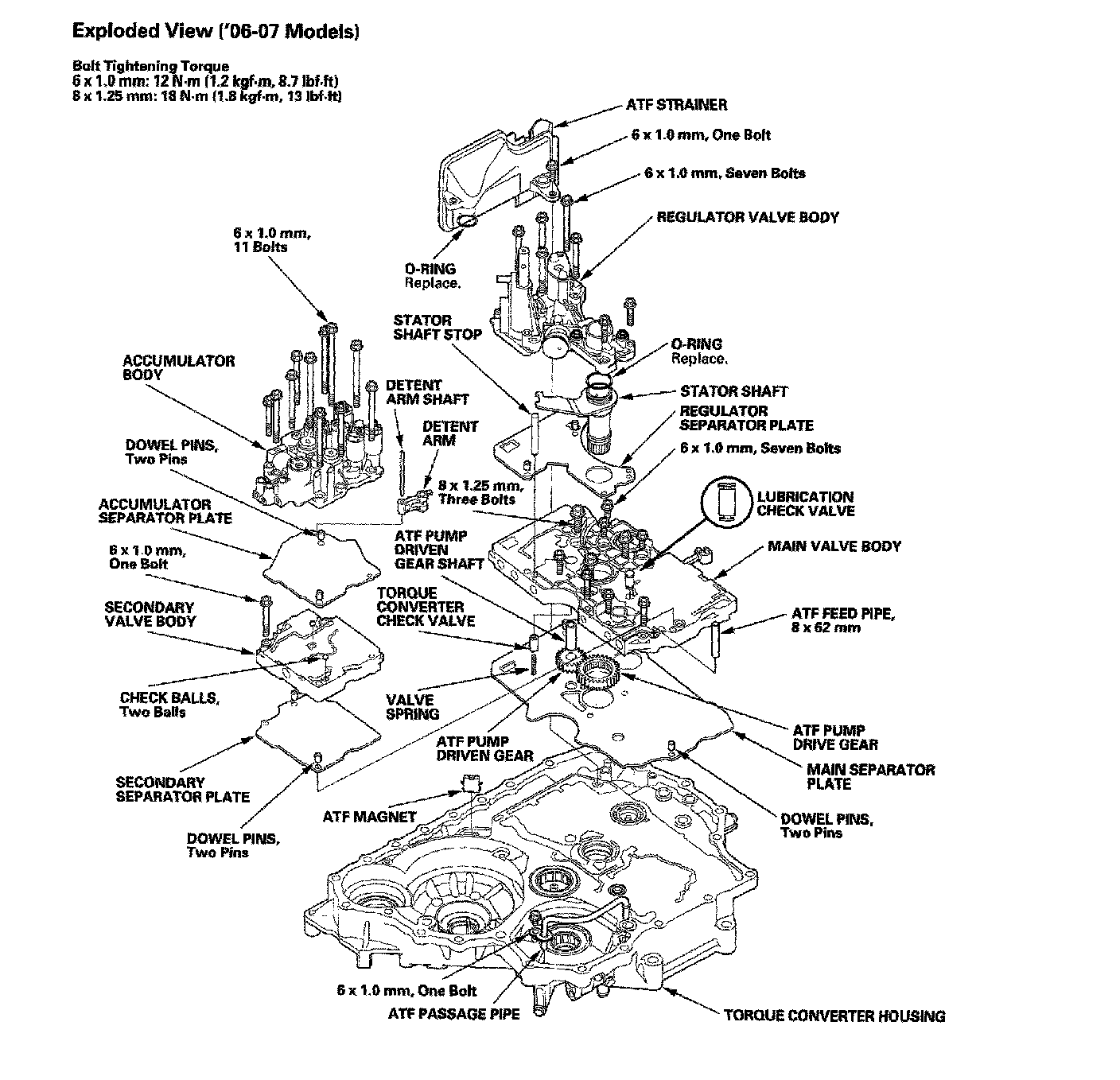

Automatic Transmission ('06-07 Models):

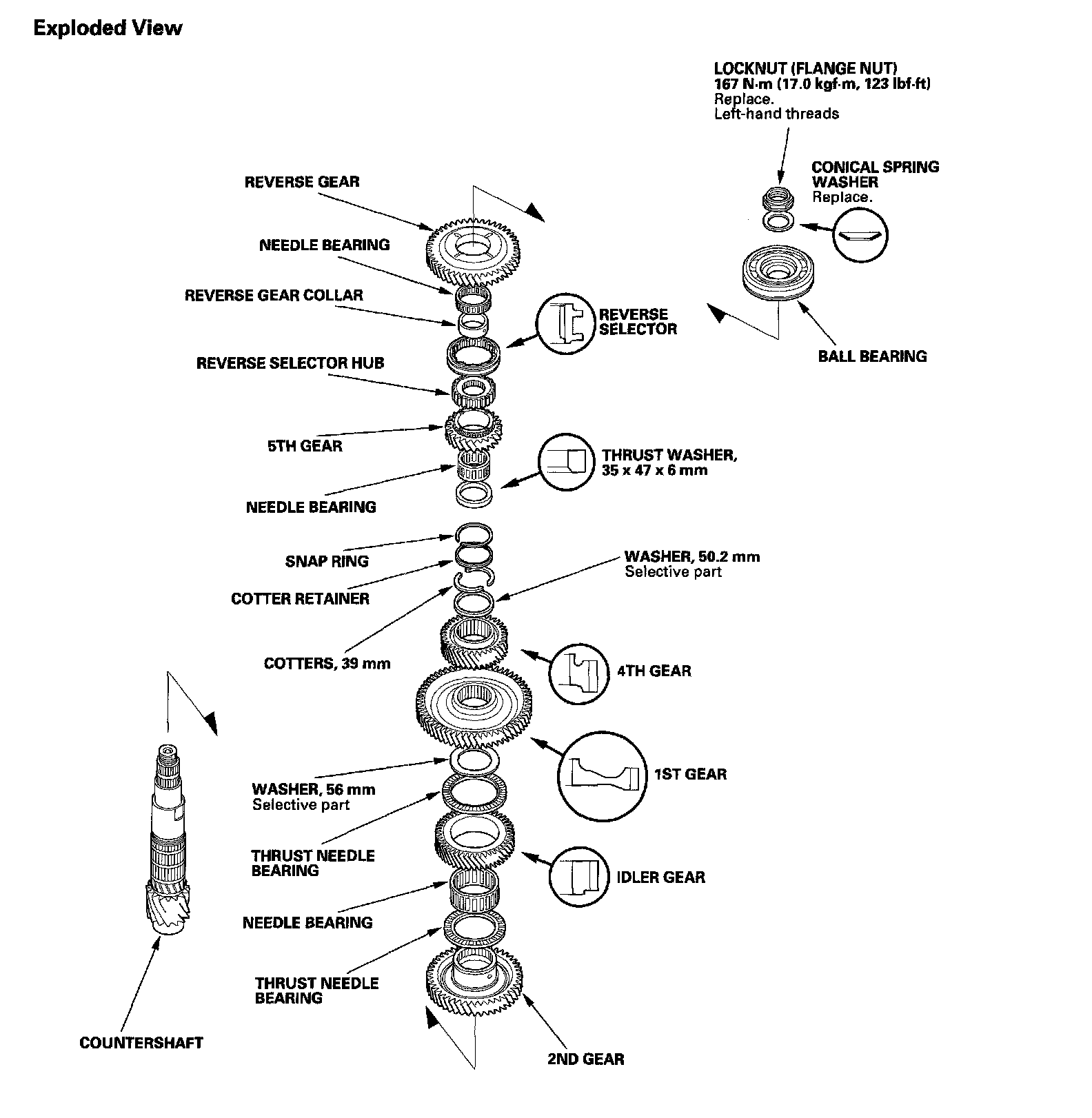

Countershaft

Countershaft:

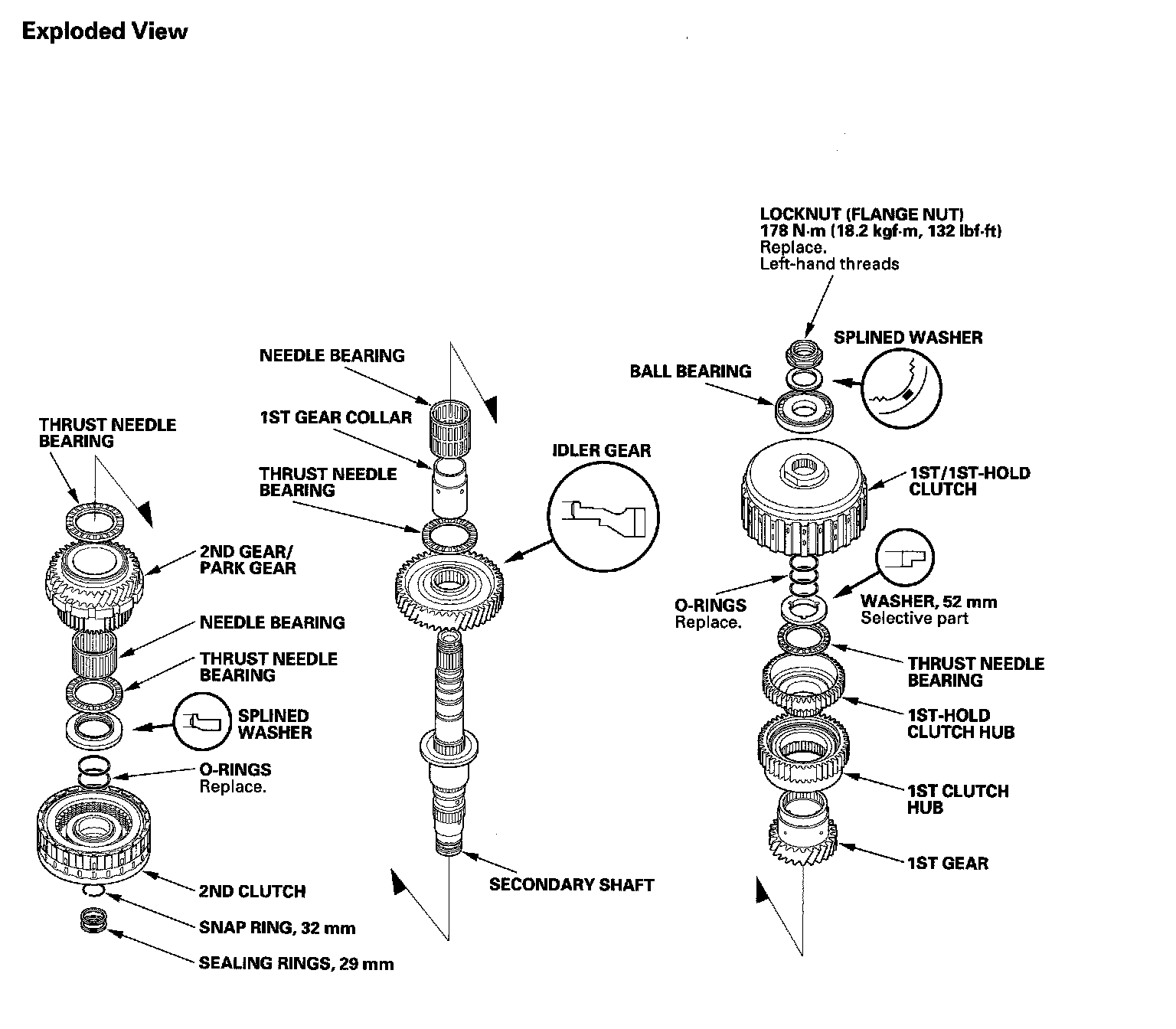

Secondary Shaft

Secondary Shaft:





For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
