Overhaul Specifications

Rear Differential

Rear Differential:

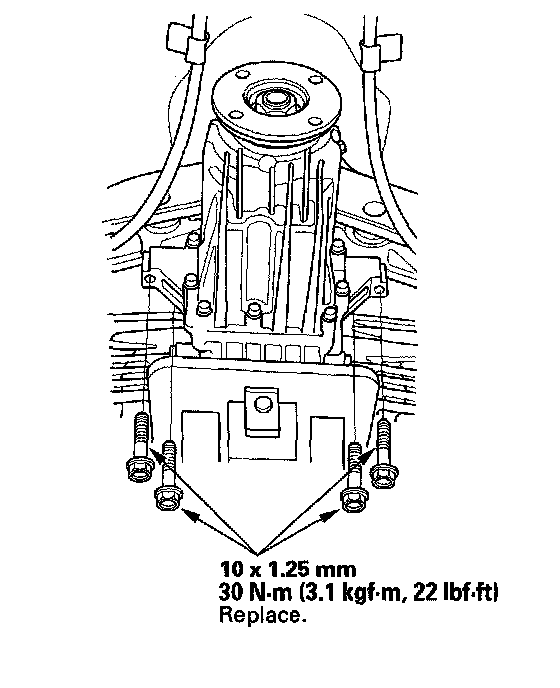

Front mounting bolts

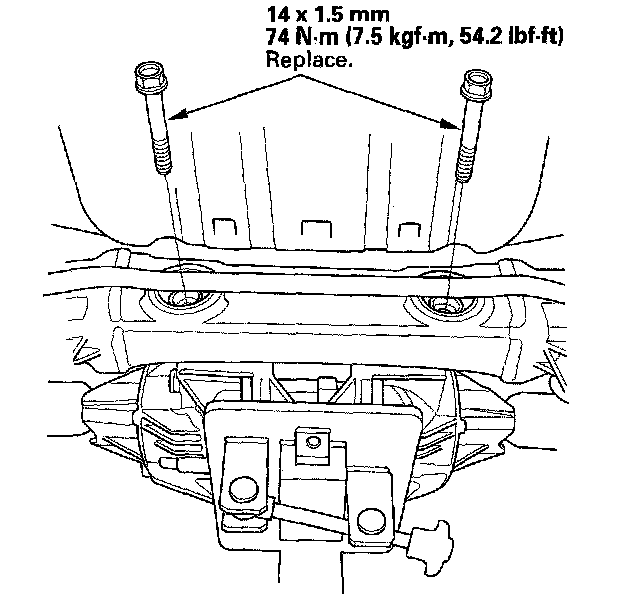

Rear mounting bolts

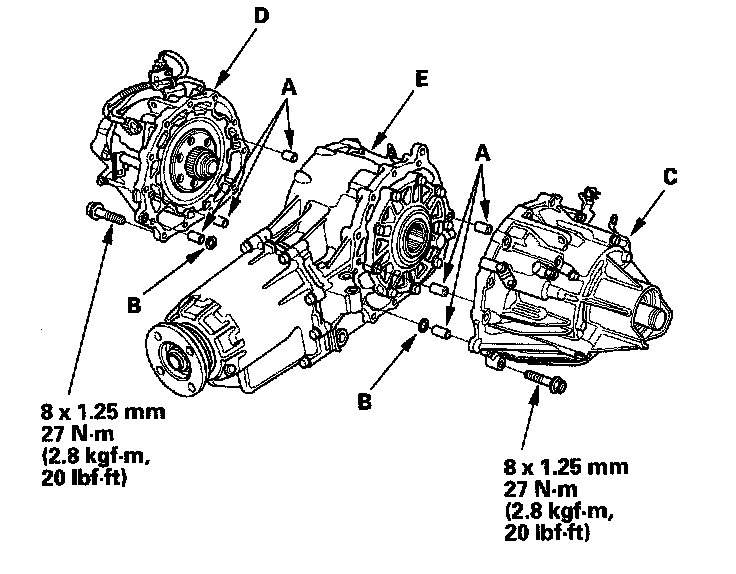

Center Case and Side Case





For information regarding Differential Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
