Connecting Rod Bearing

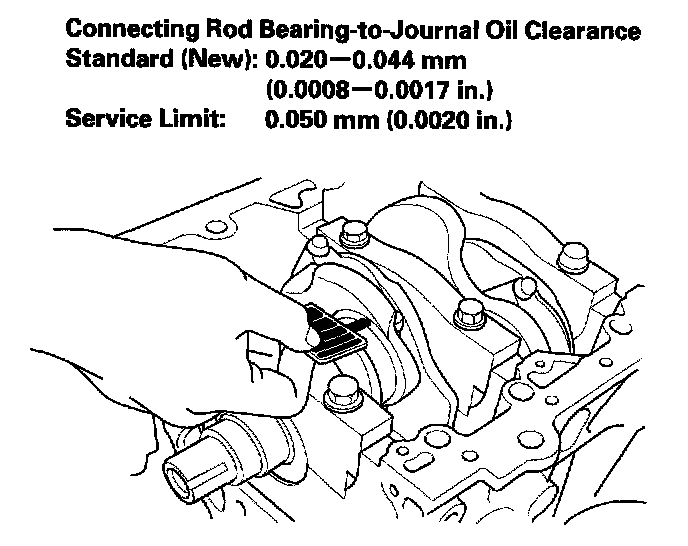

Rod Bearing Clearance Inspection





Rod Bearing Selection
Normal Bore Size: 58.0 mm (2.28 inch)
Inspect the connecting rod for cracks and heat damage.
