Driver's Under-Dash Fuse/Relay Box

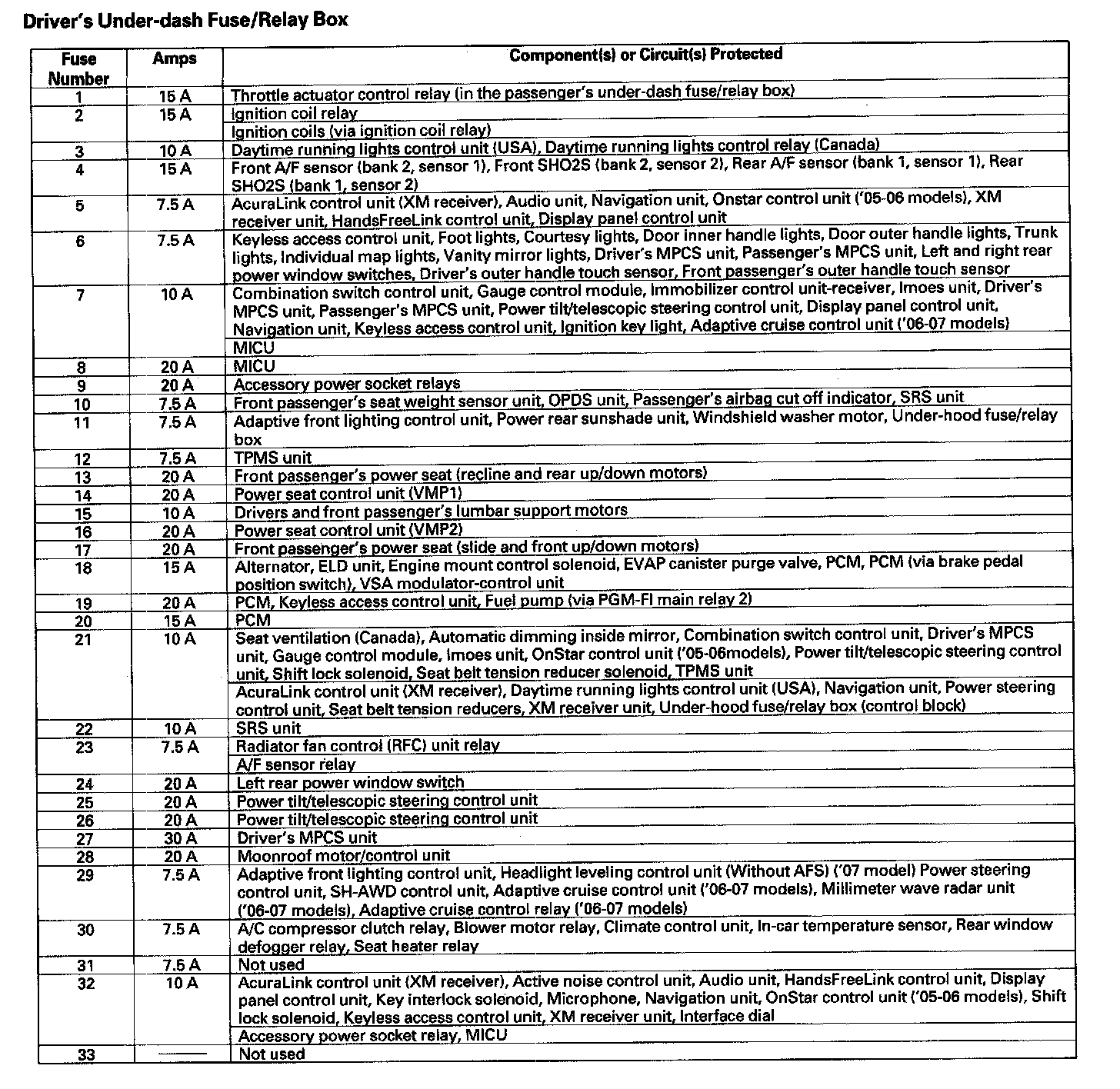

Driver's Under-dash Fuse/Relay Box:



Driver's Under-Dash Fuse/Relay Box:
