Steering Control Module: Service and Repair

ECPS (Electronically Controlled Power Steering) Control Unit Removal/Installation
1. Remove the driver's dashboard lower cover.

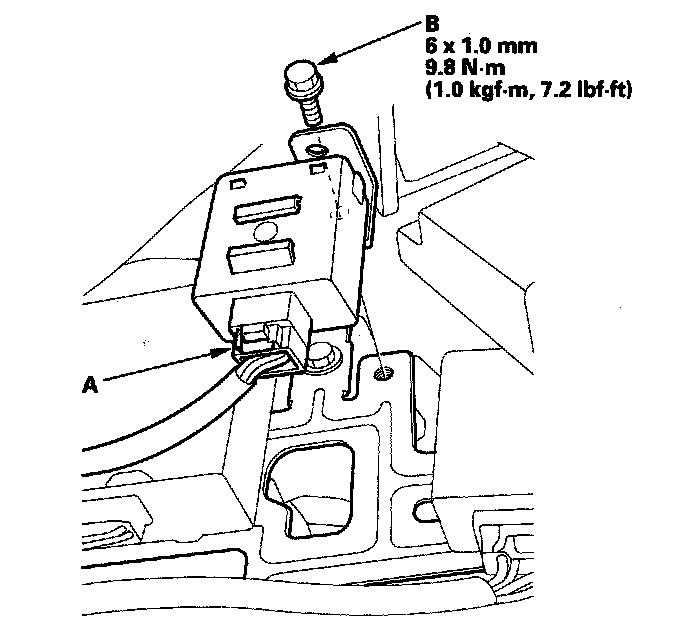

2. Disconnect the connector (A) from the ECPS control unit, and remove the bolt (B).





3. Install the ECPS control unit in the reverse order of removal.
4. Reset the power tilt and telescopic steering wheel system.
