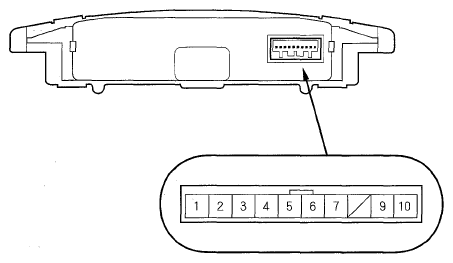

Audio-HVAC Subdisplay Unit Connector for Inputs and Outputs
When replacing an audio-HVAC subdisplay unit connector, match the wires to the cavities listed in the following table.
WIRE CAVITY CHART
| Cavity | Wire | Connects to |
|---|---|---|
| 1 | PUR | Audio unit (5 V GND) |
| 2 | PNK | Audio unit (ACC) |
| 3 | BLK | Audio unit (SEG TEST) |
| 4 | GRN | Audio unit (BLANK) |
| 5 | YEL | Audio unit (CLOCK) |
| 6 | WHT | Audio unit (DATA) |
| 7 | RED | Audio unit (LOAD) |
| 9 | ORN | Audio unit (LCD BL-) |
| 10 | BLU | Audio unit (LCD BL+) |
