Headlight Leveling Motor Replacement

  1. Remove the headlight assembly (see HEADLIGHT REPLACEMENT ).
  2. Turn the HID light cover 45° counterclockwise to remove it from the headlight housing.
  3. Turn the leveling motor (A) 45° clockwise.
    Fig 1: Turning Leveling Motor
    G05496983Courtesy of AMERICAN HONDA MOTOR CO., INC.

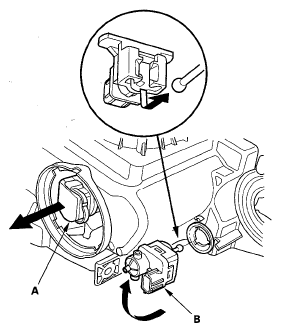

  4. Pull the headlight reflector (A) slightly, and remove the headlight leveling motor (B).
    Fig 2: Identifying Headlight Reflector And Headlight Leveling Motor
    G05496984Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install in the reverse order of removal.
  6. After installation, do the headlight initial position learning procedure (see HEADLIGHT INITIAL POSITION LEARNING PROCEDURE  ).
