Component Location Index

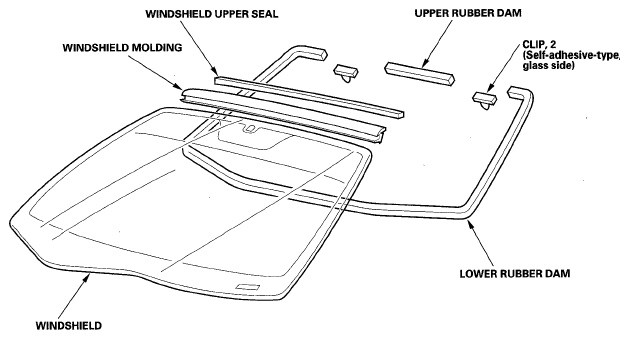

Fig 1: Identifying Glass Component (1 Of 2)
G05496180Courtesy of AMERICAN HONDA MOTOR CO., INC.

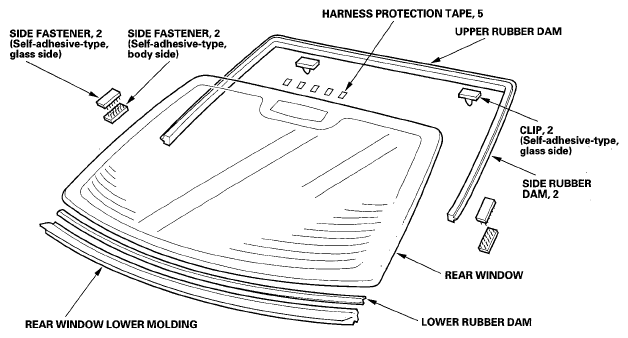

Fig 2: Identifying Glass Component (2 Of 2)
G05496181Courtesy of AMERICAN HONDA MOTOR CO., INC.
