C772 Connector End View

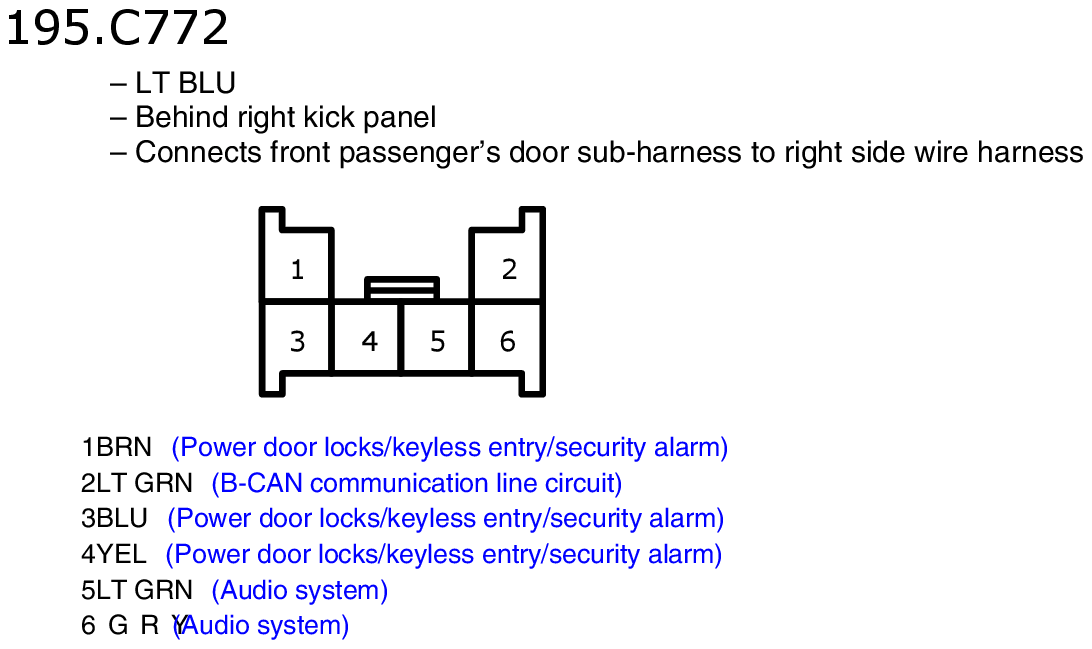

Fig 1: C772 Connector End View
GHHW9188Courtesy of AMERICAN HONDA MOTOR CO., INC.

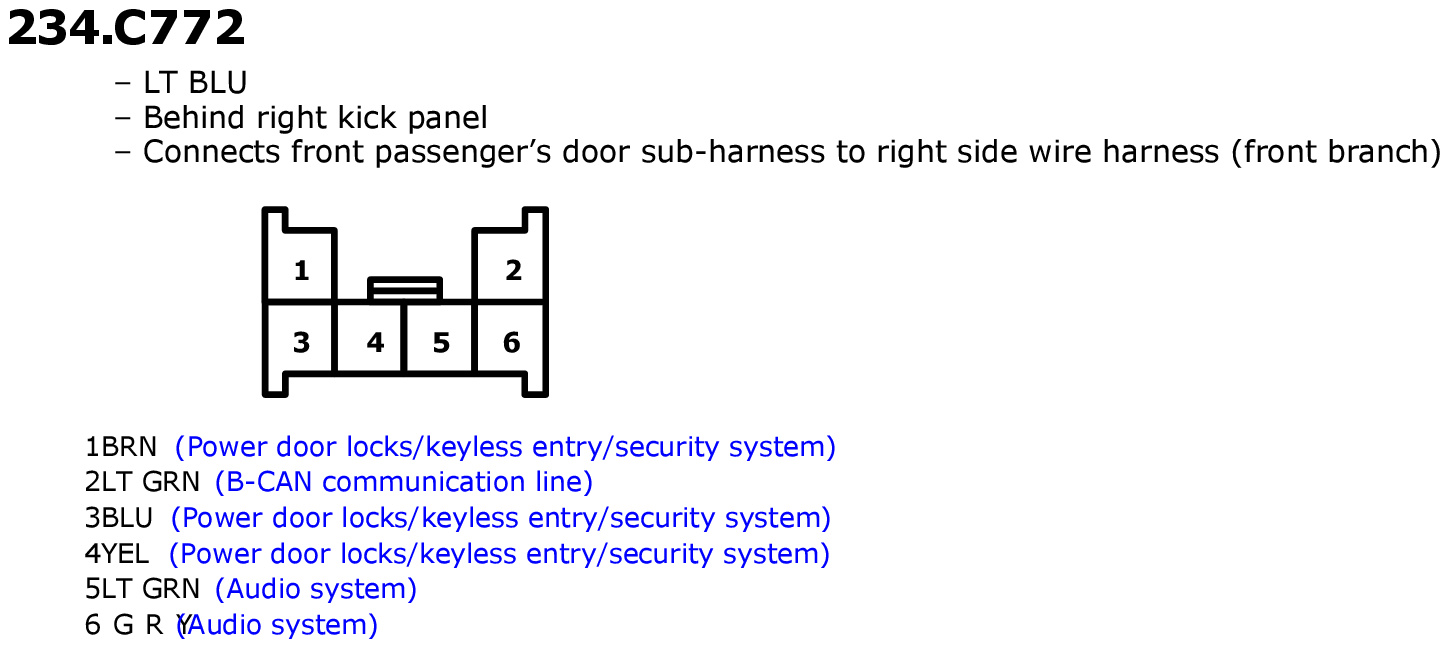

Fig 1: C772 Connector End View
GHHW9659Courtesy of AMERICAN HONDA MOTOR CO., INC.
