Circuit Diagram

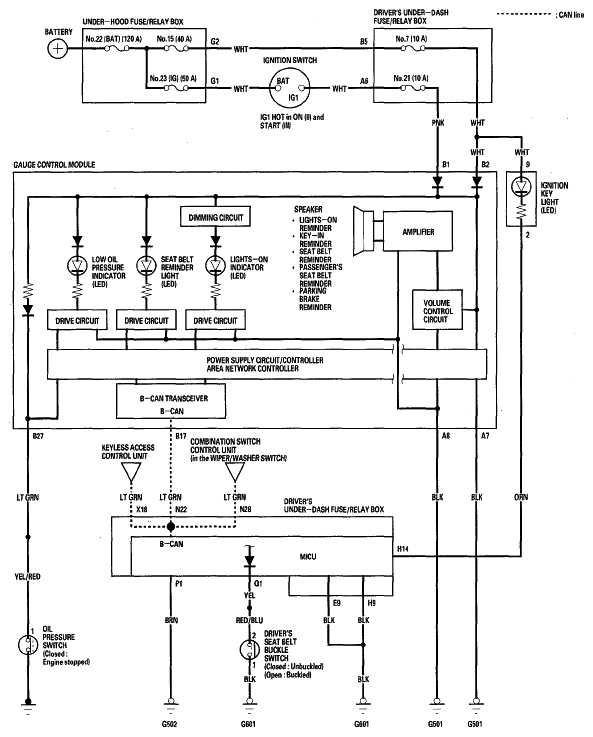

Fig 1: Reminder Systems - Circuit Diagram

G05497146

Courtesy of AMERICAN HONDA MOTOR CO., INC.
