Catalytic Converter System

Warm Up Three Way Catalytic Converter (WU-TWC) and Under-Floor Three Way Catalytic Converter (TWC)

The WU-TWC/TWC converts hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gas to carbon dioxide (CO2), nitrogen (N2), and water vapor.

WU-TWC

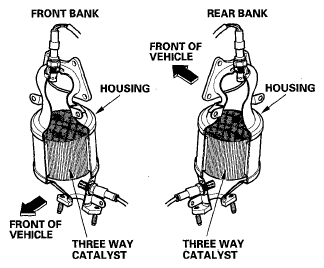

Fig 1: Identifying Catalytic Converter System (WU-TWC)
G05494269Courtesy of AMERICAN HONDA MOTOR CO., INC.

TWC

Fig 2: Identifying Catalytic Converter System (TWC)
G05494270Courtesy of AMERICAN HONDA MOTOR CO., INC.
