Drain Bolt Installation

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When installing the drain bolts, always use new washers.

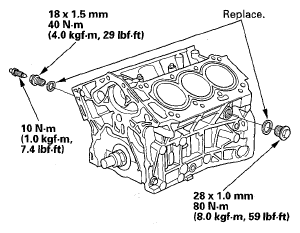

Fig 1: Drain Bolt With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
