Alternator Connector End View

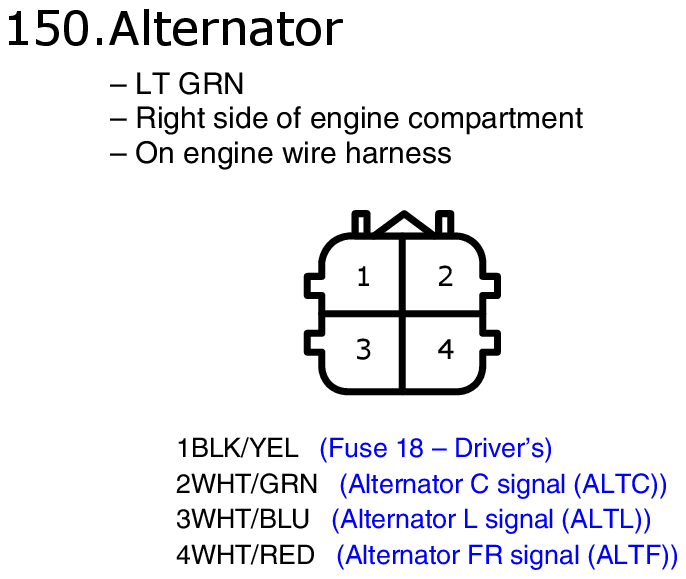

Fig 1: Alternator Connector End View
GHHW9143Courtesy of AMERICAN HONDA MOTOR CO., INC.

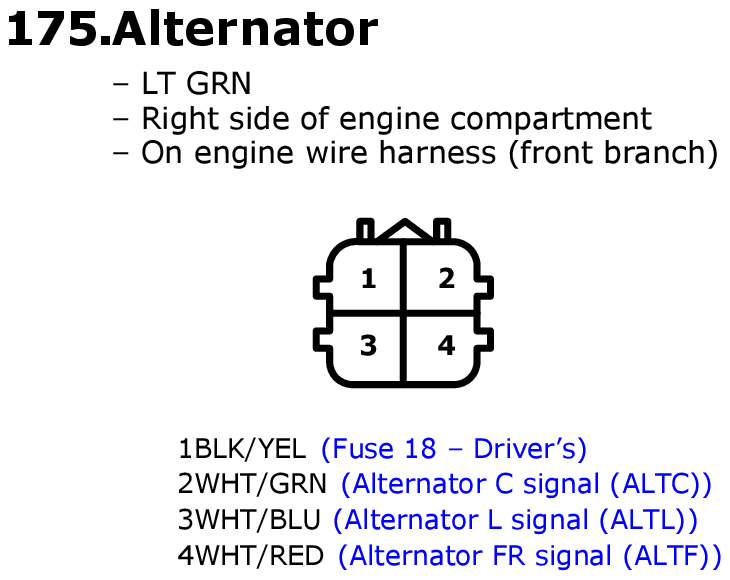

Fig 1: Alternator Connector End View
GHHW9600Courtesy of AMERICAN HONDA MOTOR CO., INC.
