C505 Connector End View

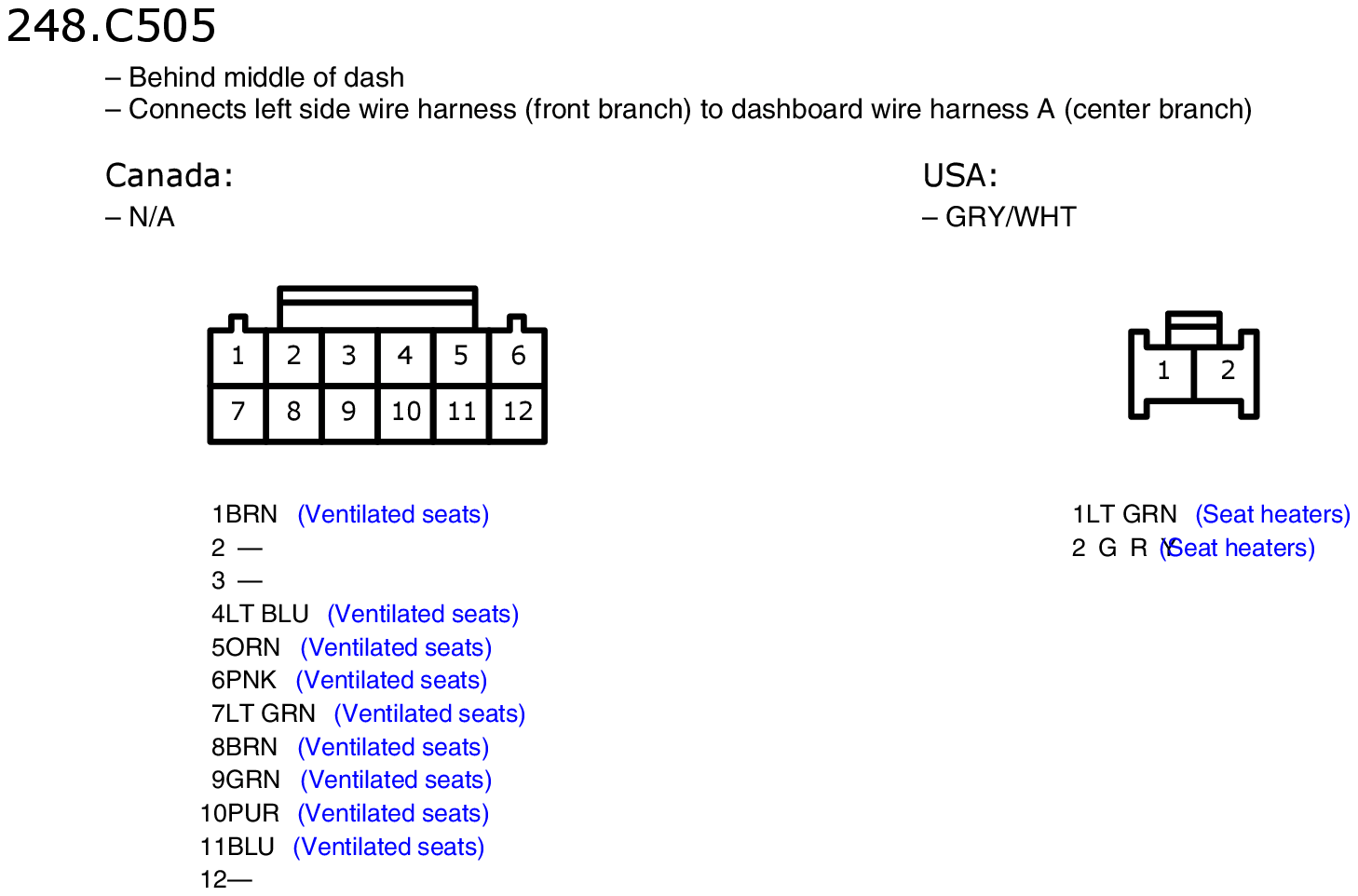

Fig 1: C505 Connector End View
GHHW9241Courtesy of AMERICAN HONDA MOTOR CO., INC.

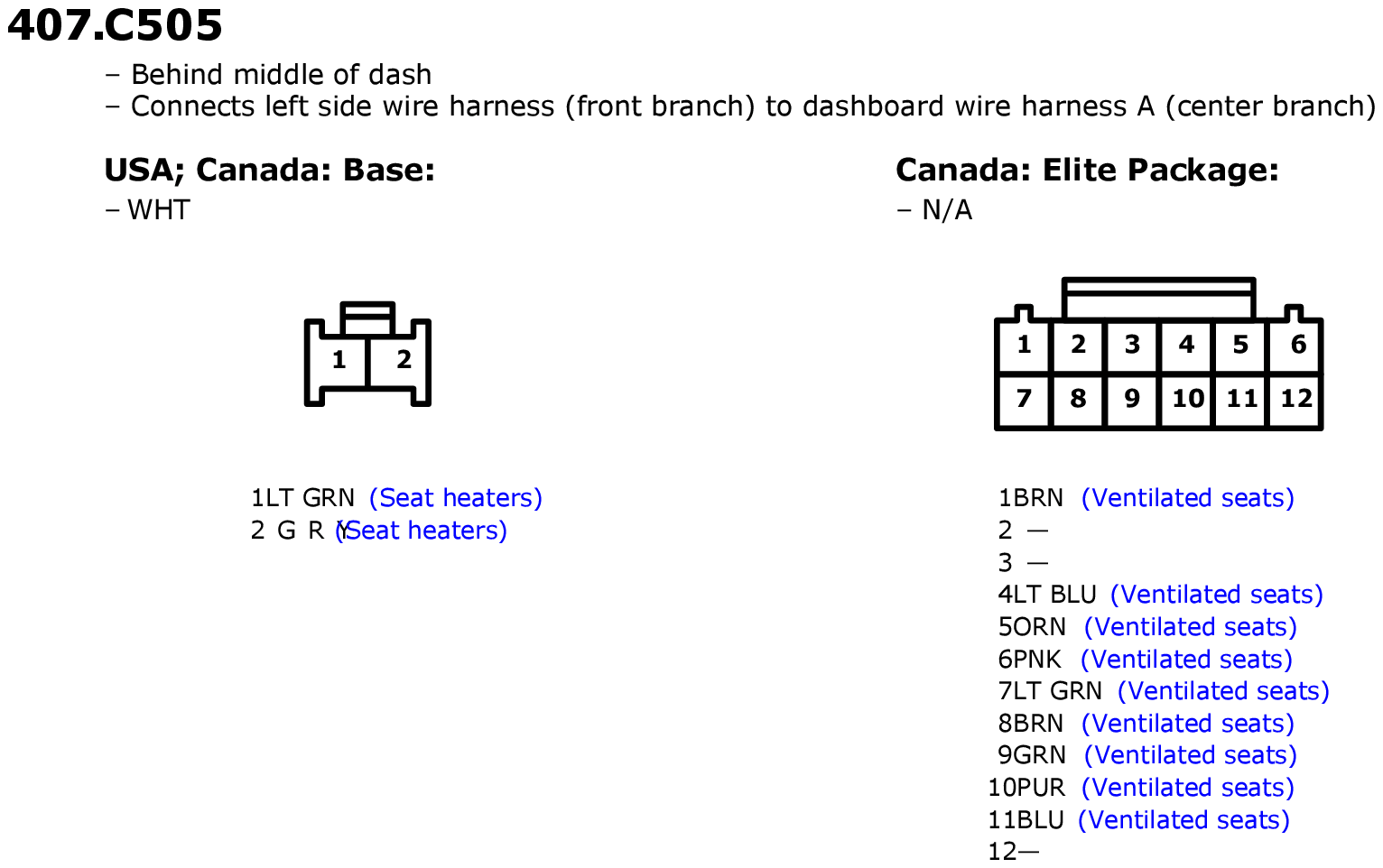

Fig 1: C505 Connector End View
GHHW9832Courtesy of AMERICAN HONDA MOTOR CO., INC.
