C801 Connector End View

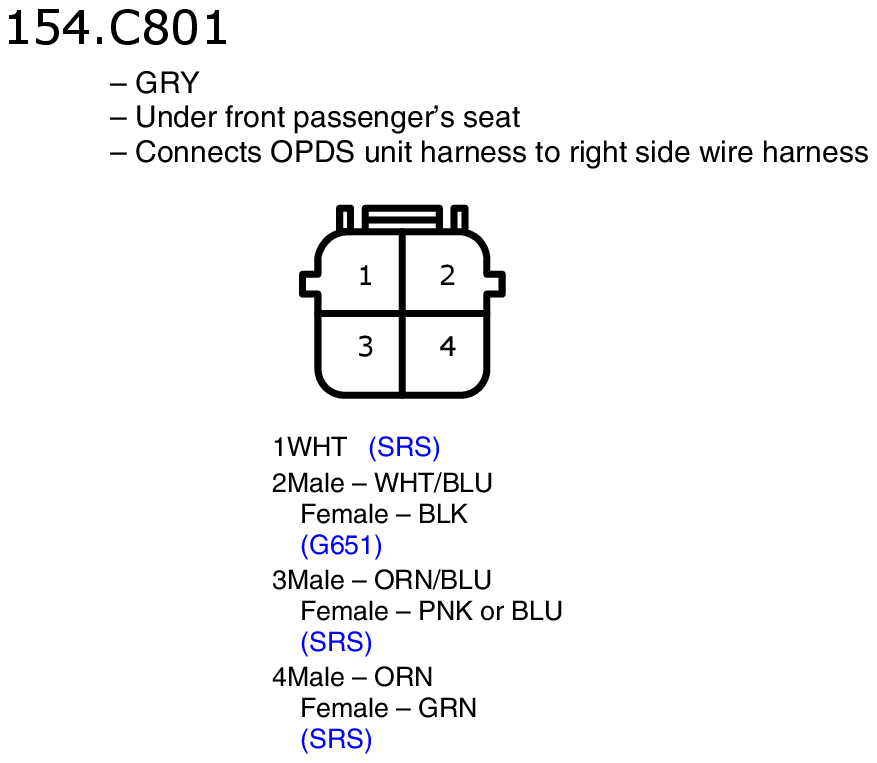

Fig 1: C801 Connector End View
GHHW9147Courtesy of AMERICAN HONDA MOTOR CO., INC.

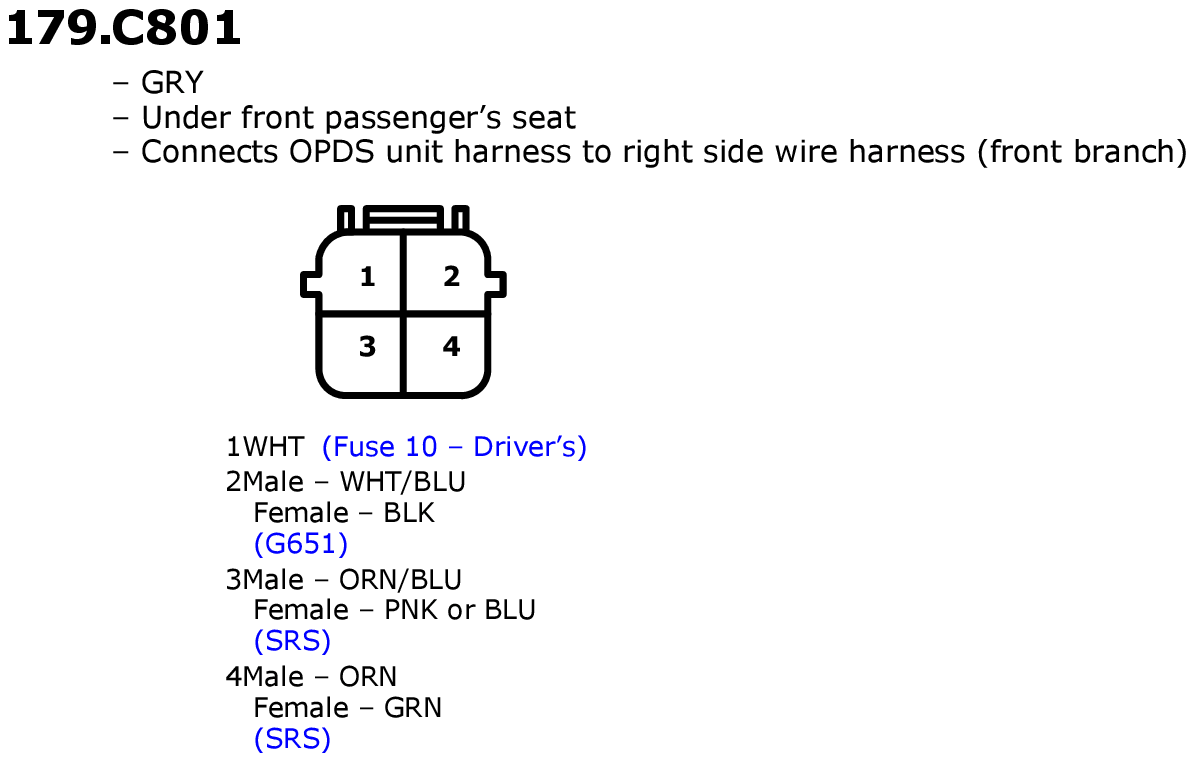

Fig 1: C801 Connector End View
GHHW9604Courtesy of AMERICAN HONDA MOTOR CO., INC.
