C831 Connector End View

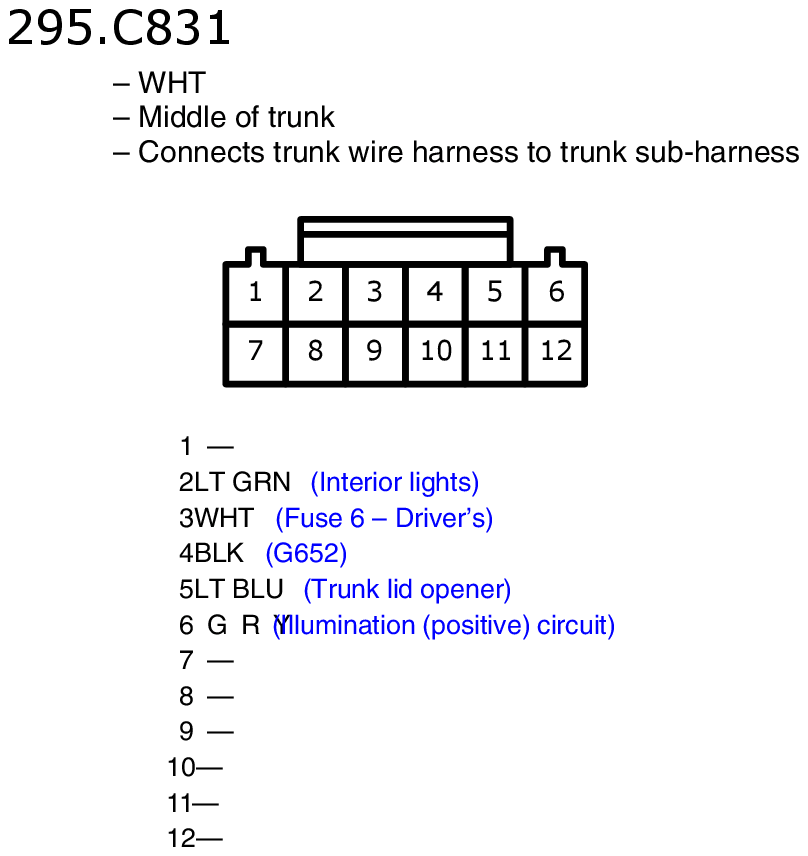

Fig 1: C831 Connector End View
GHHW9288Courtesy of AMERICAN HONDA MOTOR CO., INC.

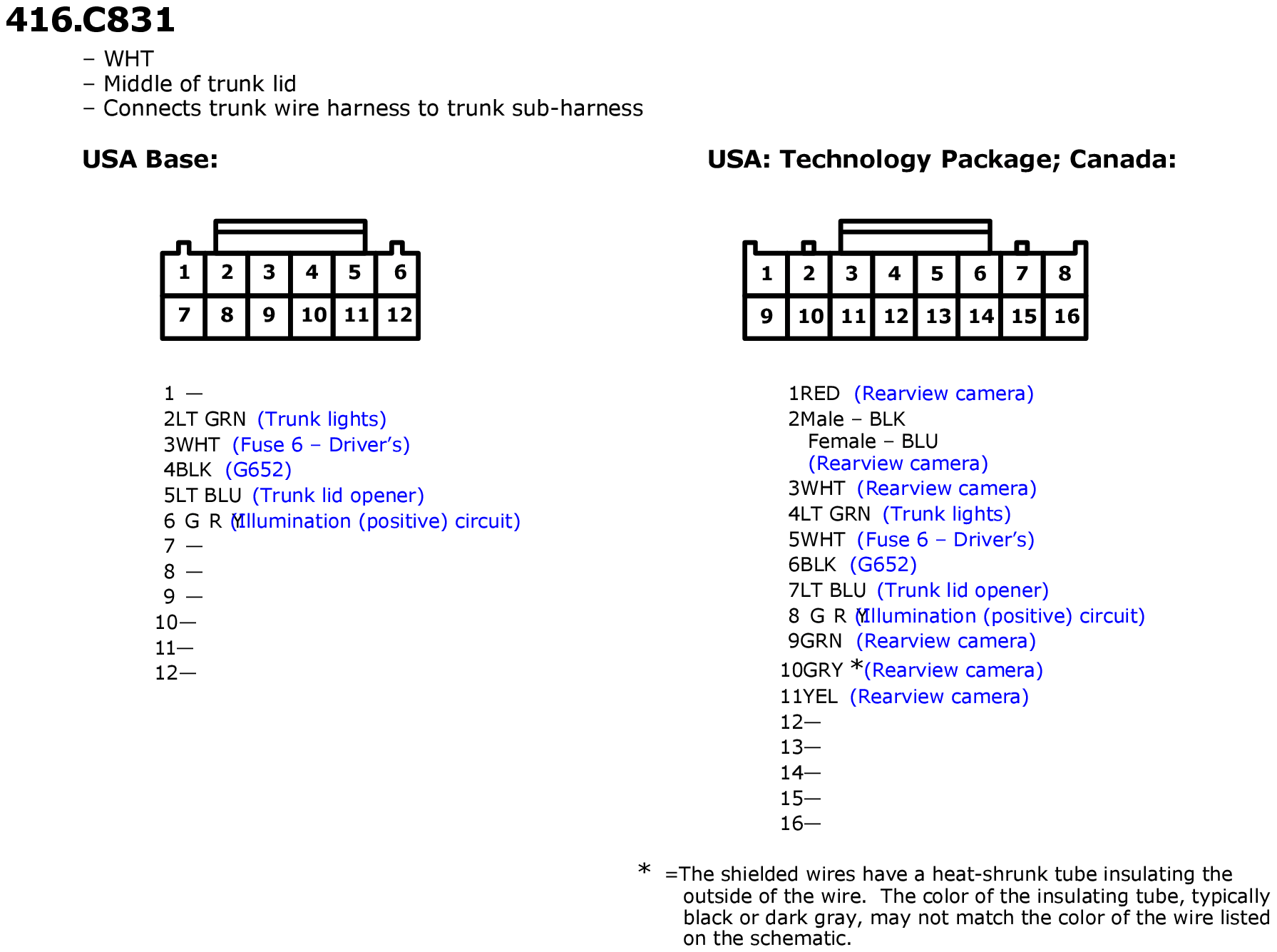

Fig 1: C831 Connector End View
GHHW9841Courtesy of AMERICAN HONDA MOTOR CO., INC.
