Driver's Door Courtesy Light Connector End View

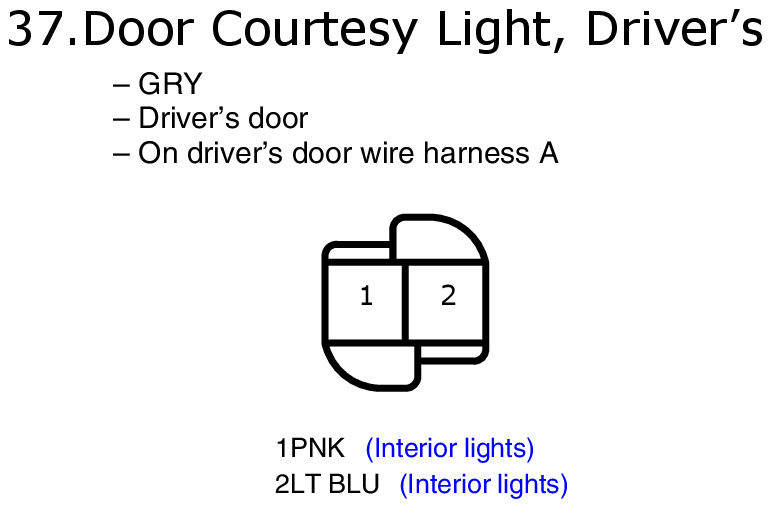

Fig 1: Driver's Door Courtesy Light Connector End View
GHHW9030Courtesy of AMERICAN HONDA MOTOR CO., INC.

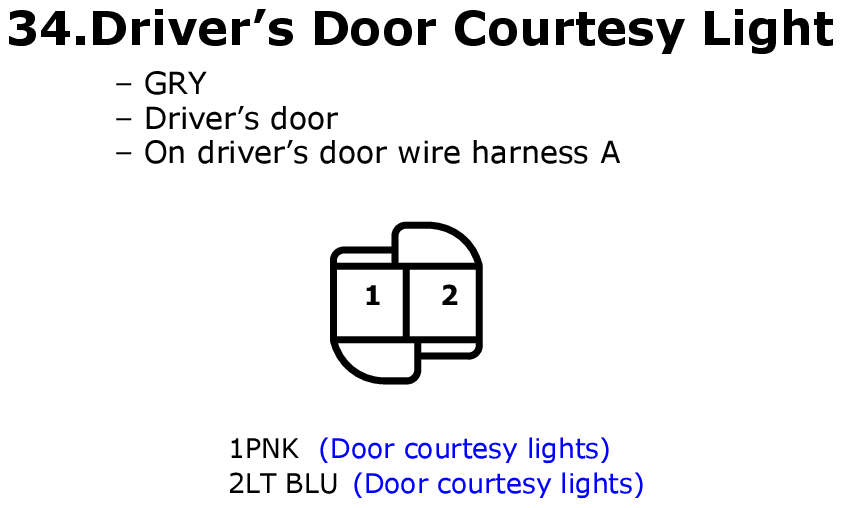

Fig 1: Driver's Door Courtesy Light Connector End View
GHHW9459Courtesy of AMERICAN HONDA MOTOR CO., INC.
