Driver's Lumbar Support Switch Connector End View

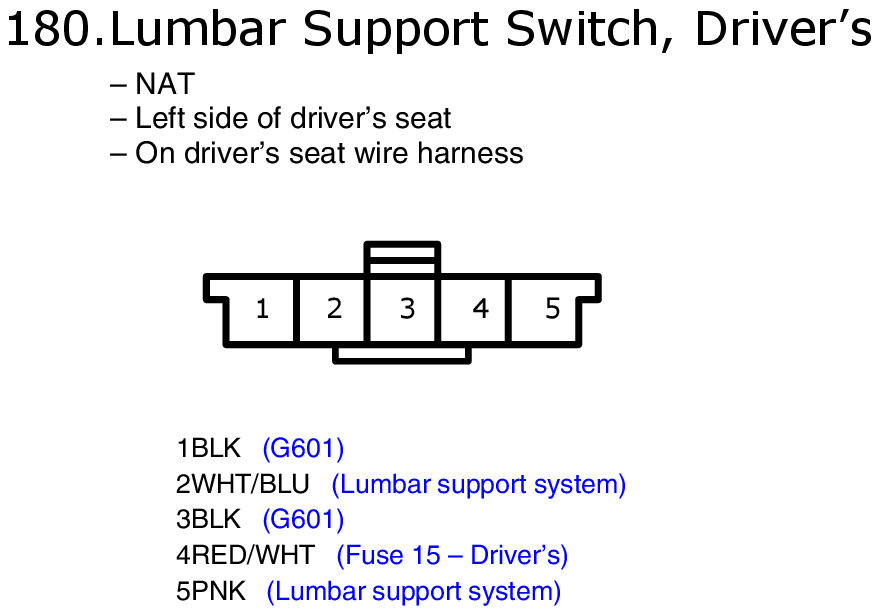

Fig 1: Driver's Lumbar Support Switch Connector End View
GHHW9173Courtesy of AMERICAN HONDA MOTOR CO., INC.

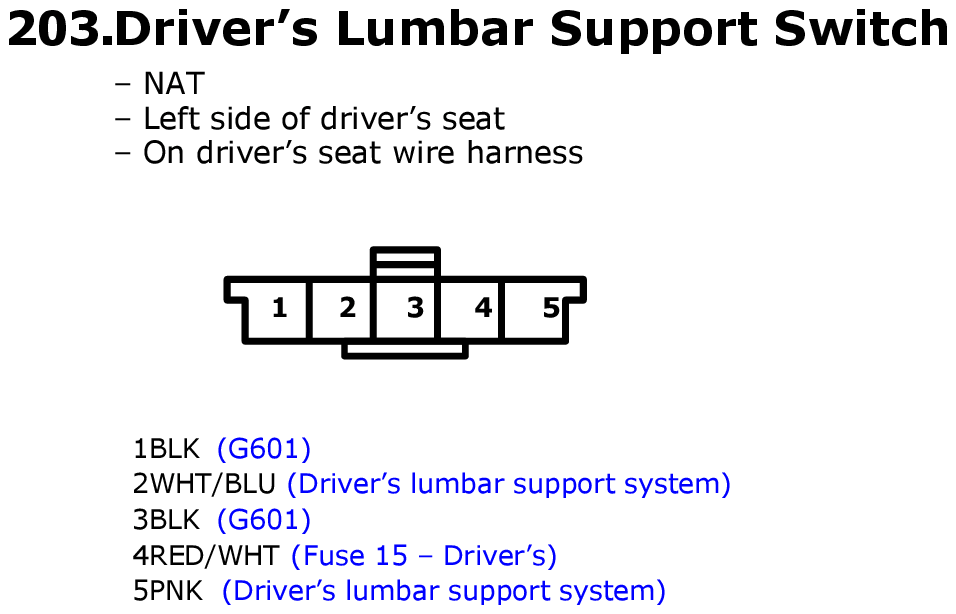

Fig 1: Driver's Lumbar Support Switch Connector End View
GHHW9628Courtesy of AMERICAN HONDA MOTOR CO., INC.
