Left Adaptive Front Lighting Gearbox Connector End View

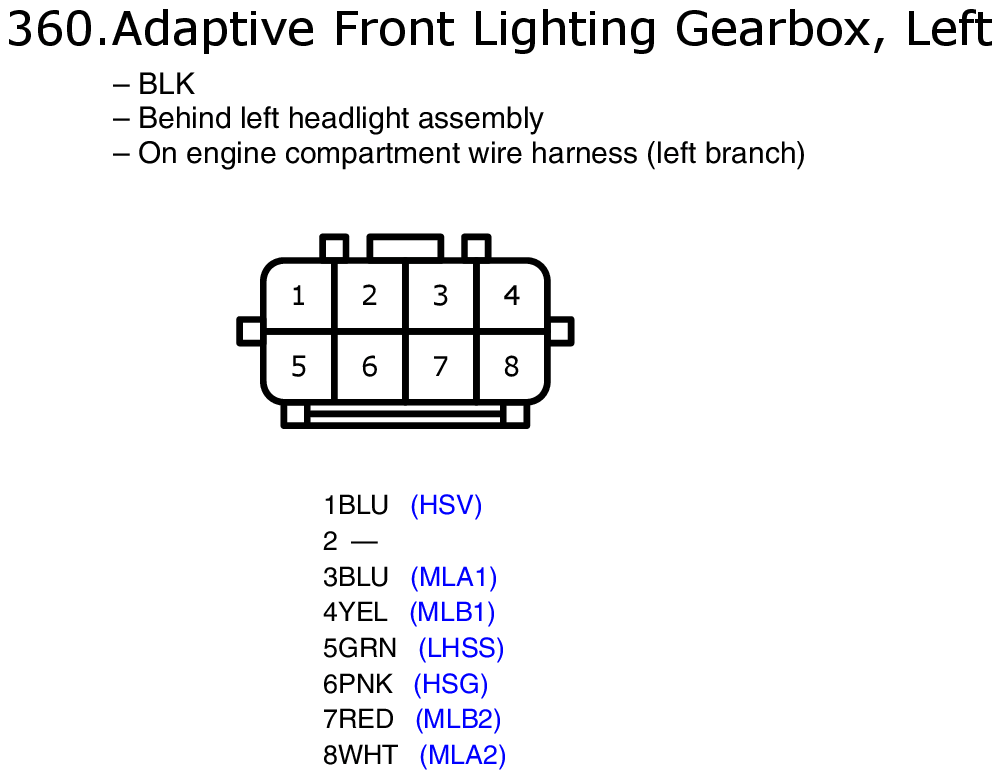

Fig 1: Left Adaptive Front Lighting Gearbox Connector End View
GHHW9353Courtesy of AMERICAN HONDA MOTOR CO., INC.

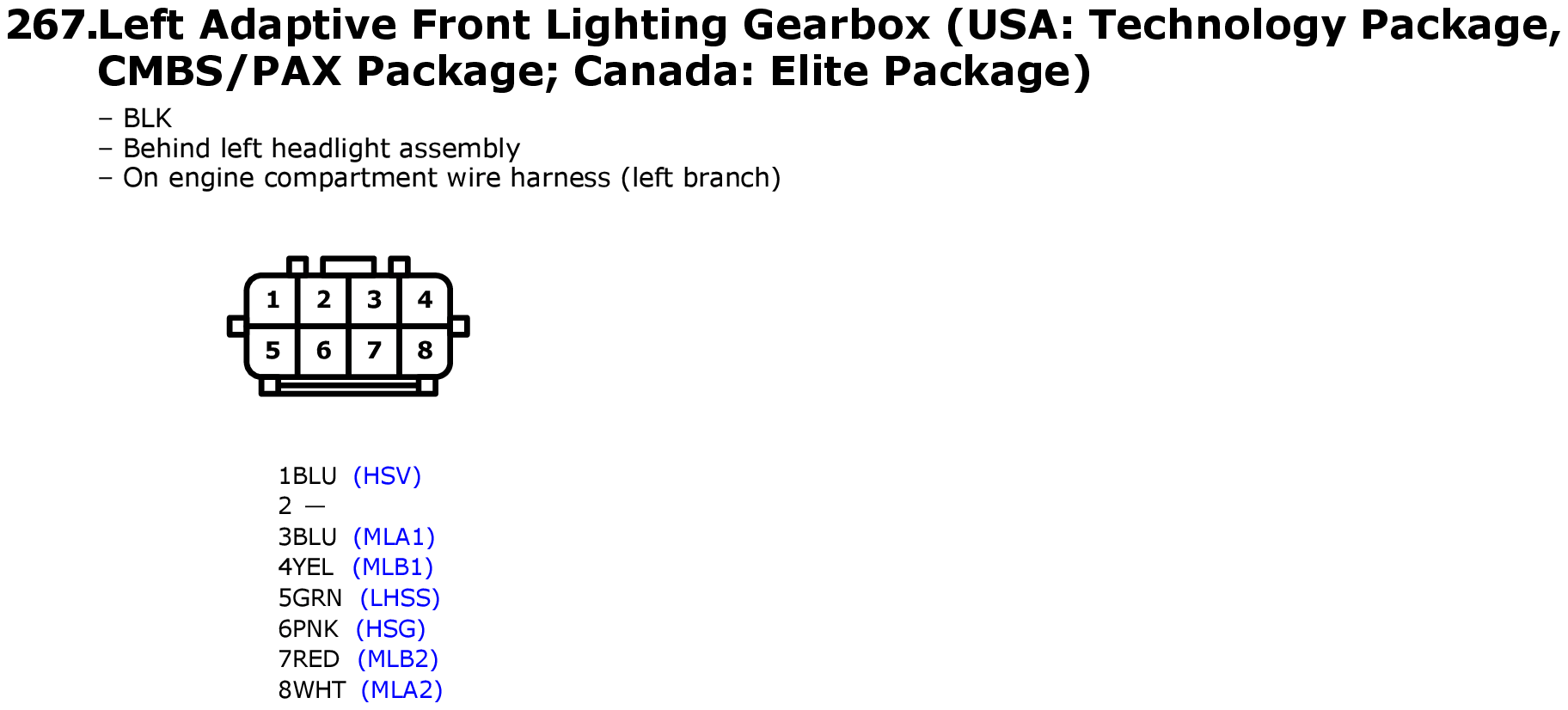

Fig 1: Left Adaptive Front Lighting Gearbox Connector End View
GHHW9692Courtesy of AMERICAN HONDA MOTOR CO., INC.
