Left Headlight Connector End View

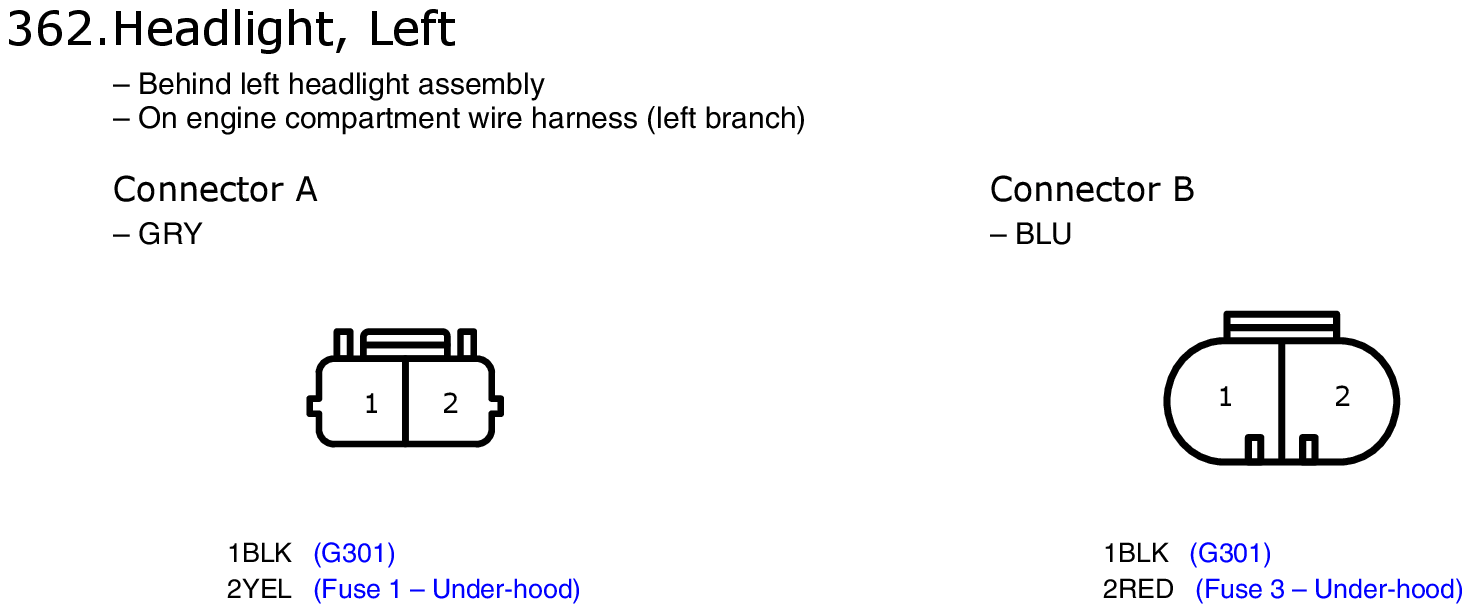

Fig 1: Left Headlight Connector End View
GHHW9355Courtesy of AMERICAN HONDA MOTOR CO., INC.

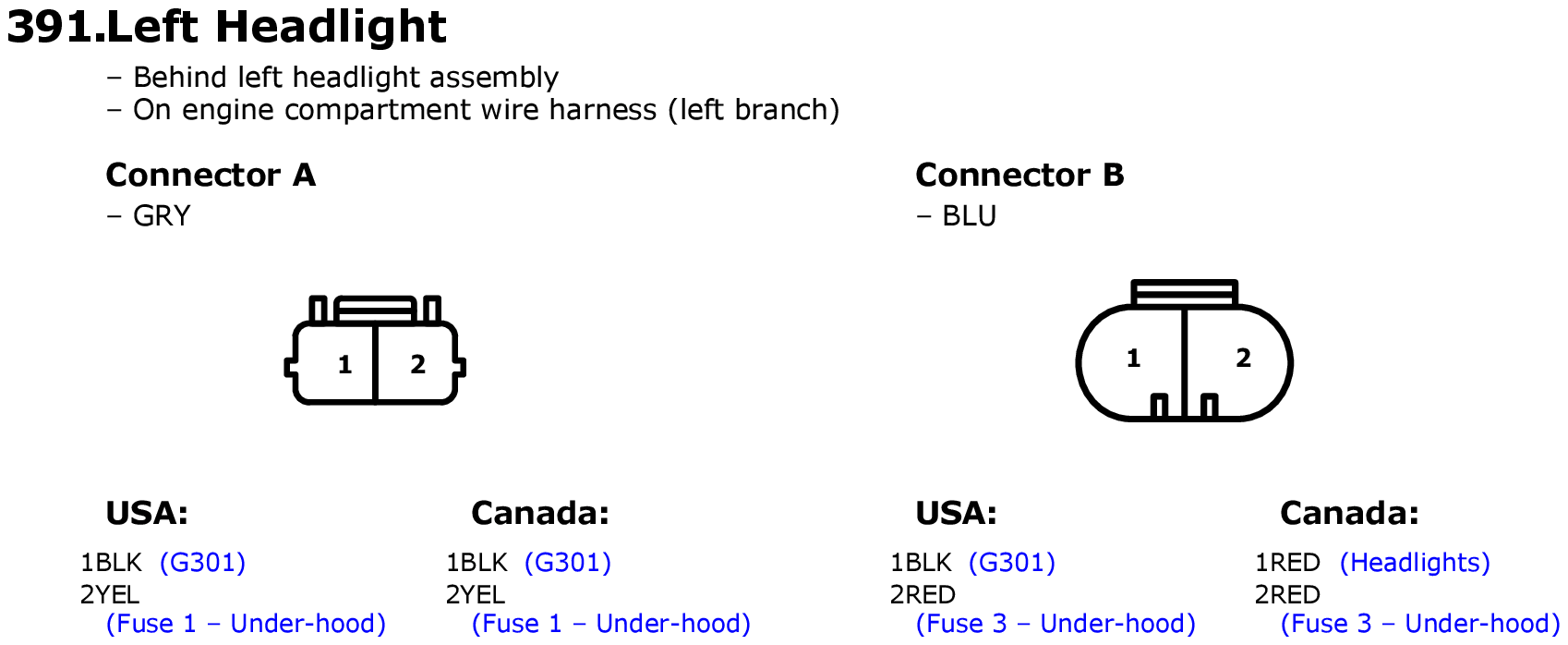

Fig 1: Left Headlight Connector End View
GHHW9816Courtesy of AMERICAN HONDA MOTOR CO., INC.
