Left License Plate Light Connector End View

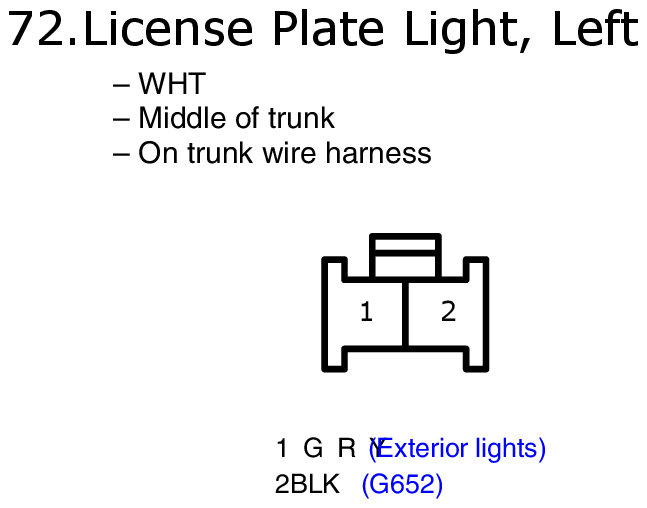

Fig 1: Left License Plate Light Connector End View
GHHW9065Courtesy of AMERICAN HONDA MOTOR CO., INC.

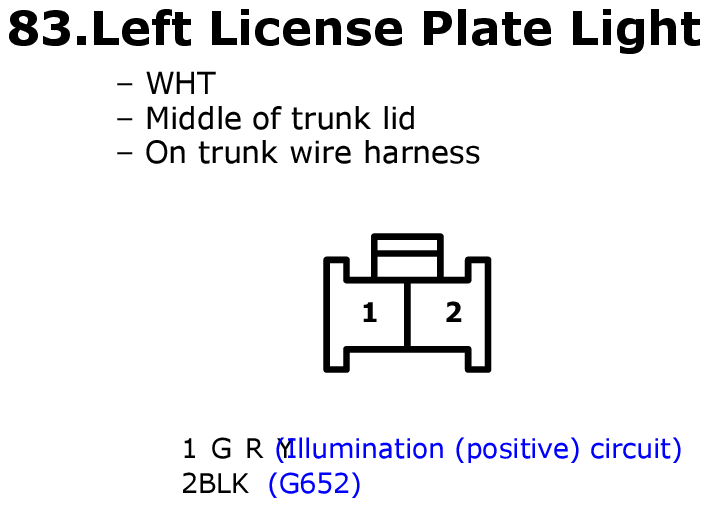

Fig 1: Left License Plate Light Connector End View
GHHW9508Courtesy of AMERICAN HONDA MOTOR CO., INC.
