Power Telescopic Steering Motor/Position Sensor Connector End View

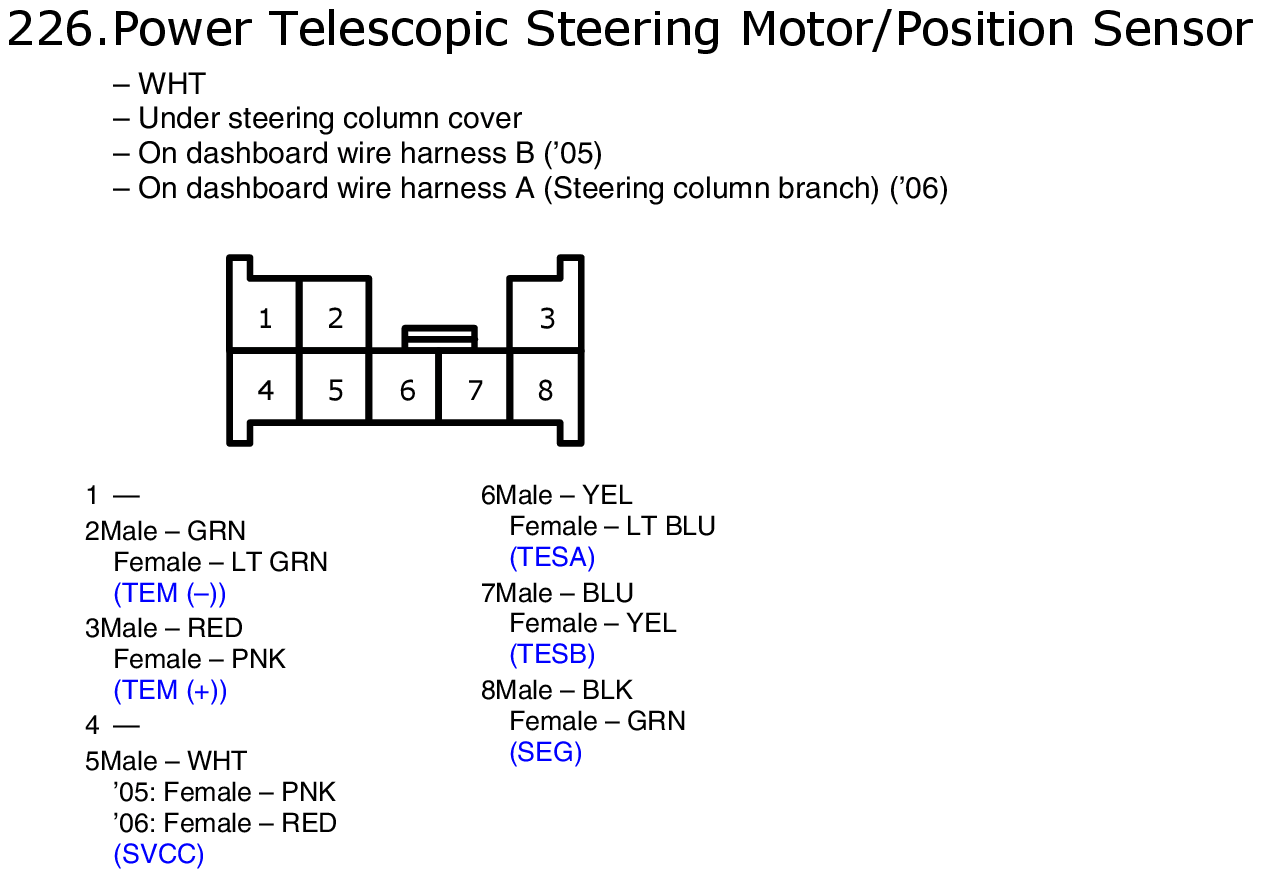

Fig 1: Power Telescopic Steering Motor/Position Sensor Connector End View
GHHW9219Courtesy of AMERICAN HONDA MOTOR CO., INC.

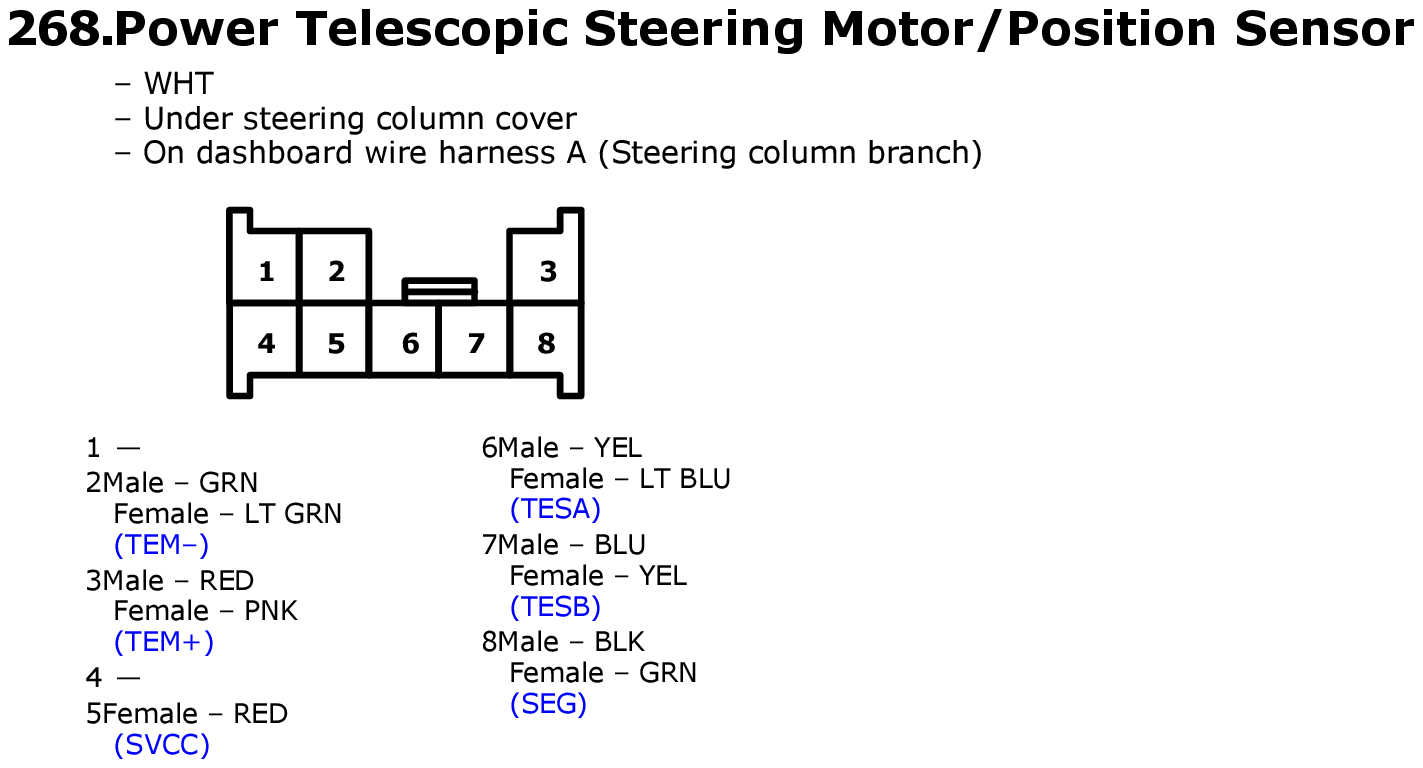

Fig 1: Power Telescopic Steering Motor/Position Sensor Connector End View
GHHW9693Courtesy of AMERICAN HONDA MOTOR CO., INC.
