Power Tilt Steering Motor/Position Sensor Connector End View

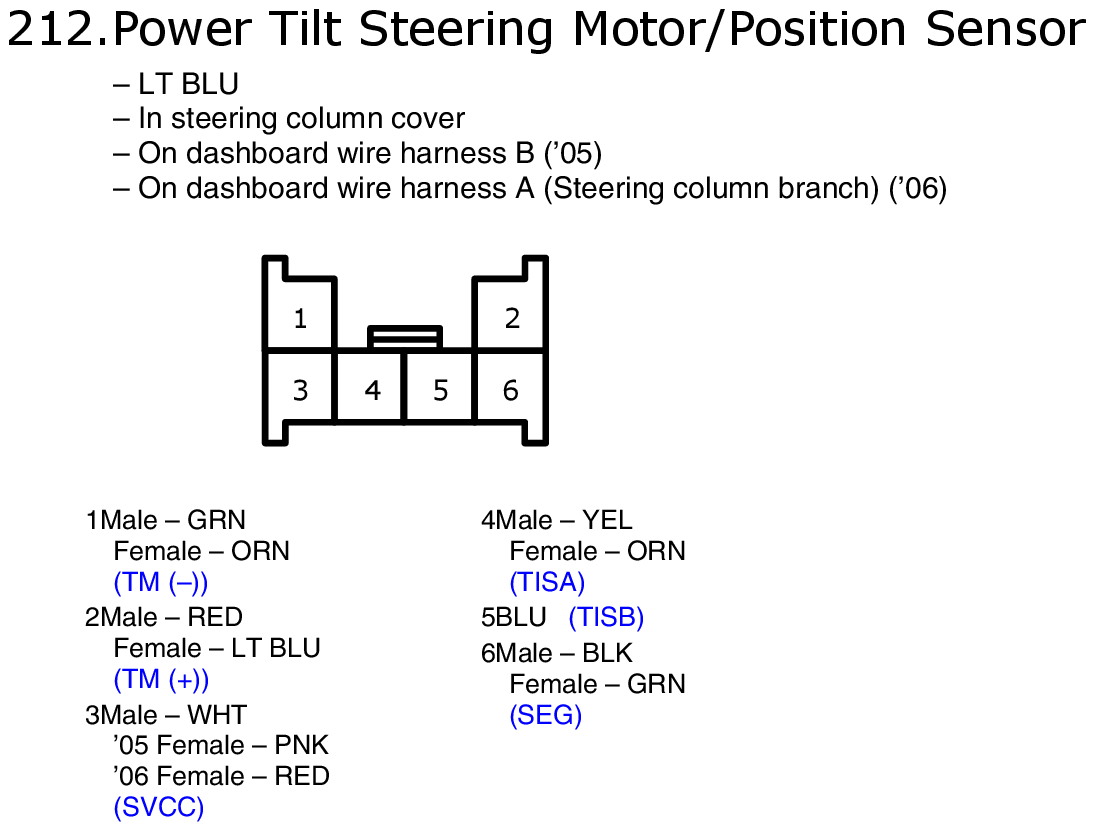

Fig 1: Power Tilt Steering Motor/Position Sensor Connector End View
GHHW9205Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Power Tilt Steering Motor/Position Sensor Connector End View
GHHW9675Courtesy of AMERICAN HONDA MOTOR CO., INC.
